SPECIFICATIONS

Brand Name: YTYIN,OEM

Car Fitment: Fiat

Car Model: bus/truck/motorhome/caravan, All motorhome ac

Condition: New

Cooling power: 2500W/3000W/3500W

Engine: 3.5 AWD, 3.5, 1800 Sport (CC1), 1800 Rally Abarth (CSA)

High-concerned chemical: none

Model: 124 Spider (124_), 124 Coupe (124_)

OE NO.: 01

Origin: Mainland China

Packaging Details: Standard carton package

Place of Origin: Guangdong, China

Purpose: for manufacturing

Refrigerant: R410a

Size: 667*497*96

Type: Fan

Warranty: 2 Years

Year: 1966-1985, 1967-1976

capacity(btu): 12000btu

Product Details

Product Paramenters

Model Name							PMDV-08	PMDV-12
Function							Cooling & Heating	Cooling & Heating
Capacity	Cooling		W	2500	3500
		Heating		W	2200	3200
EER/COP			W/W	2.33/2.24	2.75/2.71
Power Supply			ph,V,Hz	1ph,220V,50-60hz	1ph,220V,50-60hz
Power Input	Cooling		W	1070	1270
		Heating		W	980	1180
Cooling Current			A	6.6	8
Refrigerant							R410A	R410A
Indoor Unit	Airflow Volume		m³/h	340/280/220/190	380/320/260/230
		Sound Pressure Level		dB(A)(SH/H/M/L)	53/48/43/38	55/49/44/39
		Outline Dimension	W×H×D	mm	667×497×96	667×497×96
		Net Weight		kg	5.5	5.5
Outdoor Unit	Sound Pressure Level		dB(A)	65/55	65/55

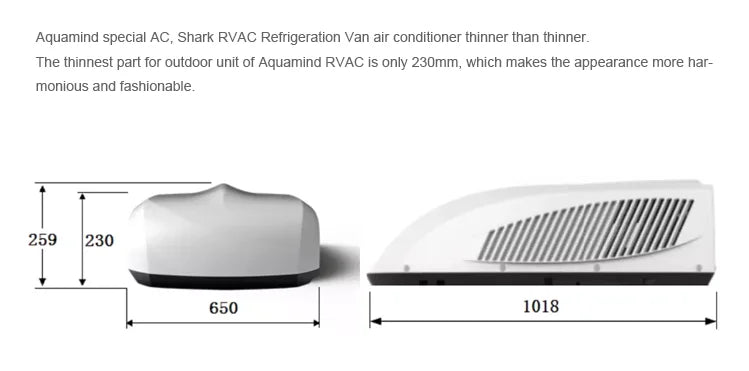

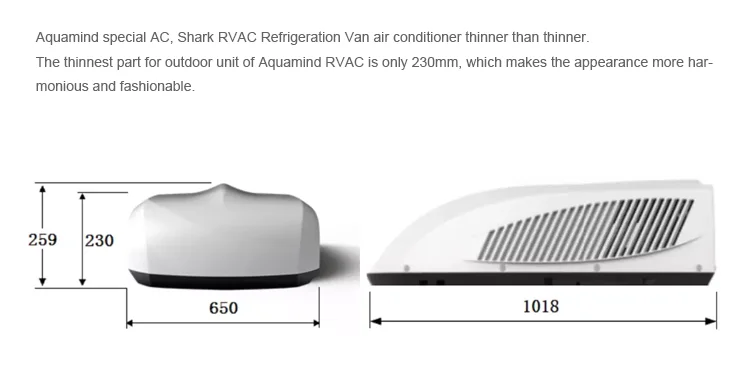

		Outline Dimension	W×H×D	mm	1018×650×294	1018×650×294
		Net Weight		kg	41	41
	Pakage Dimension	W×H×D	mm	1100×715×435	1100×715×435
	Gross Weight		kg	53	55
Loading Quantity			20`GP	sets	80	80
				40`GP	sets	160	160
				40`HQ	sets	160	160

Company Profile

If you have any other questions,you can leave us message or inquiry then we will contact you. Or you can directly call us or send us direct mail or fax to consult us.
