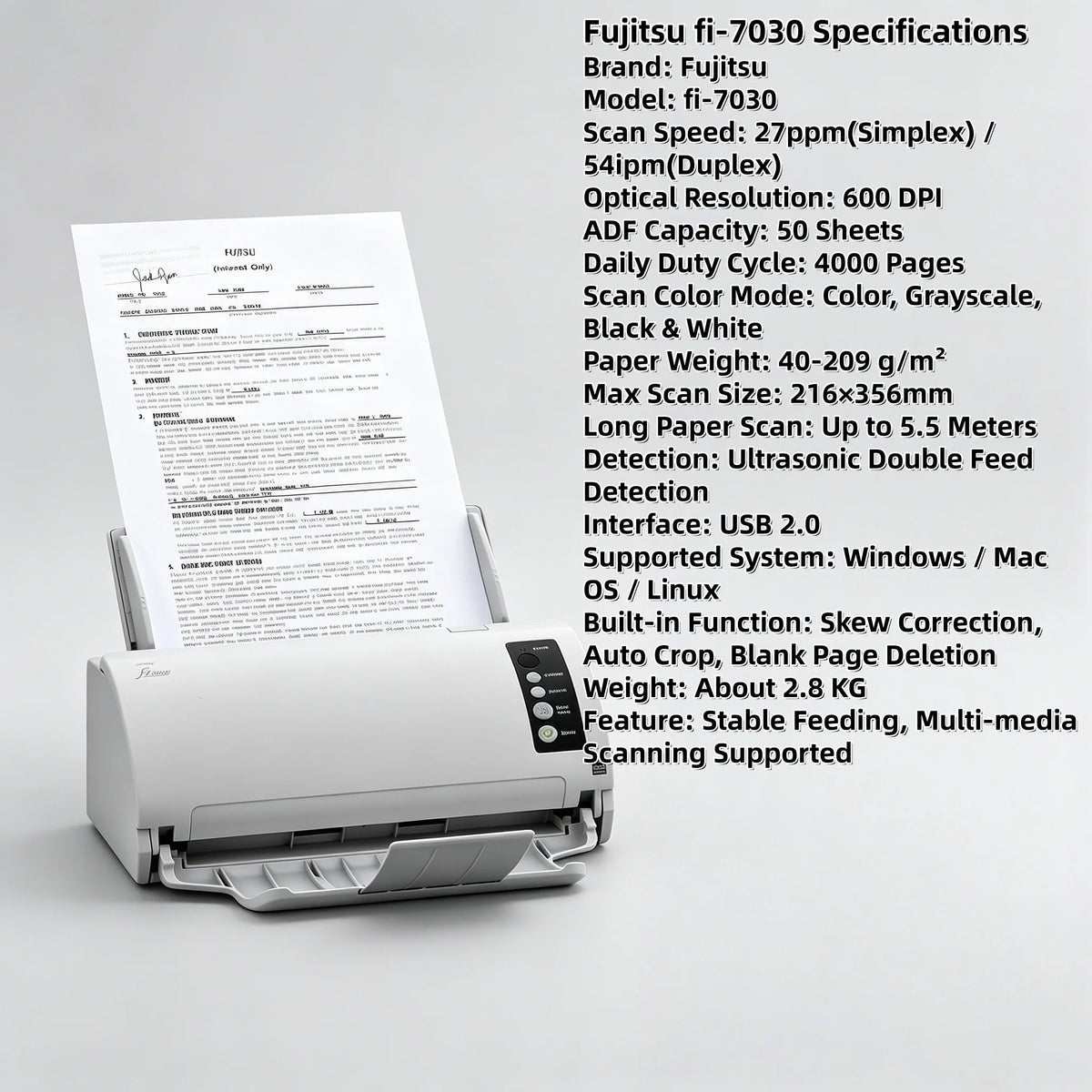

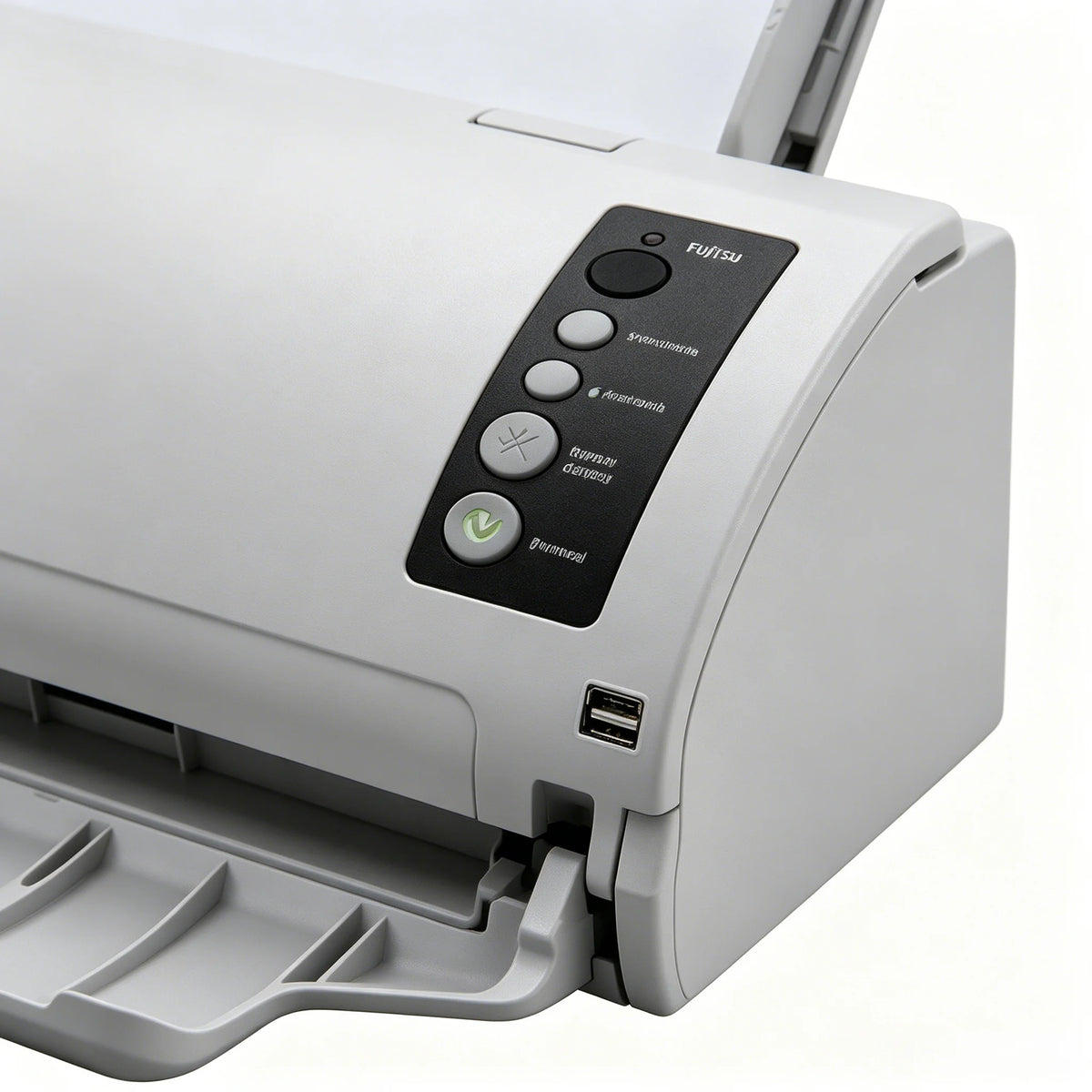

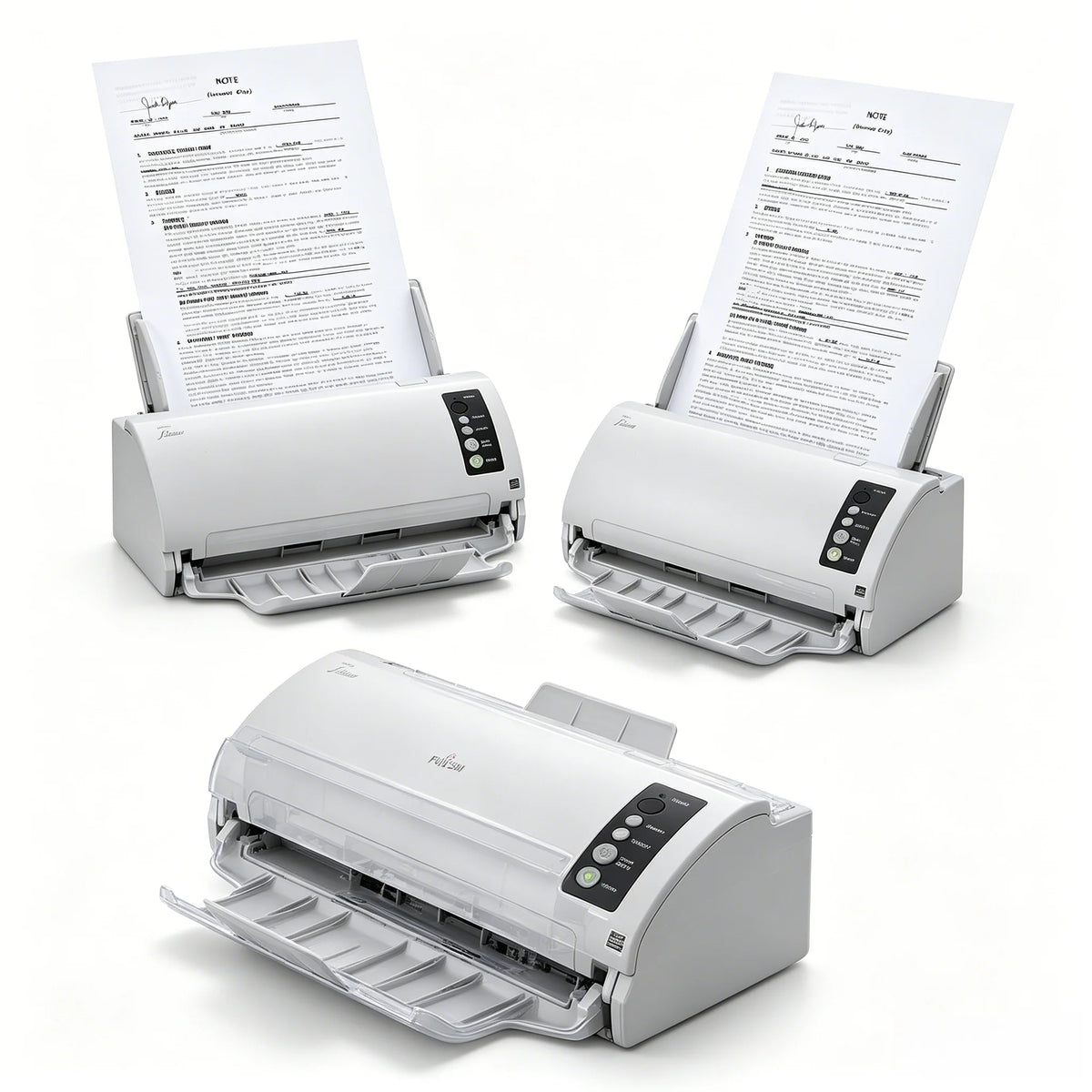

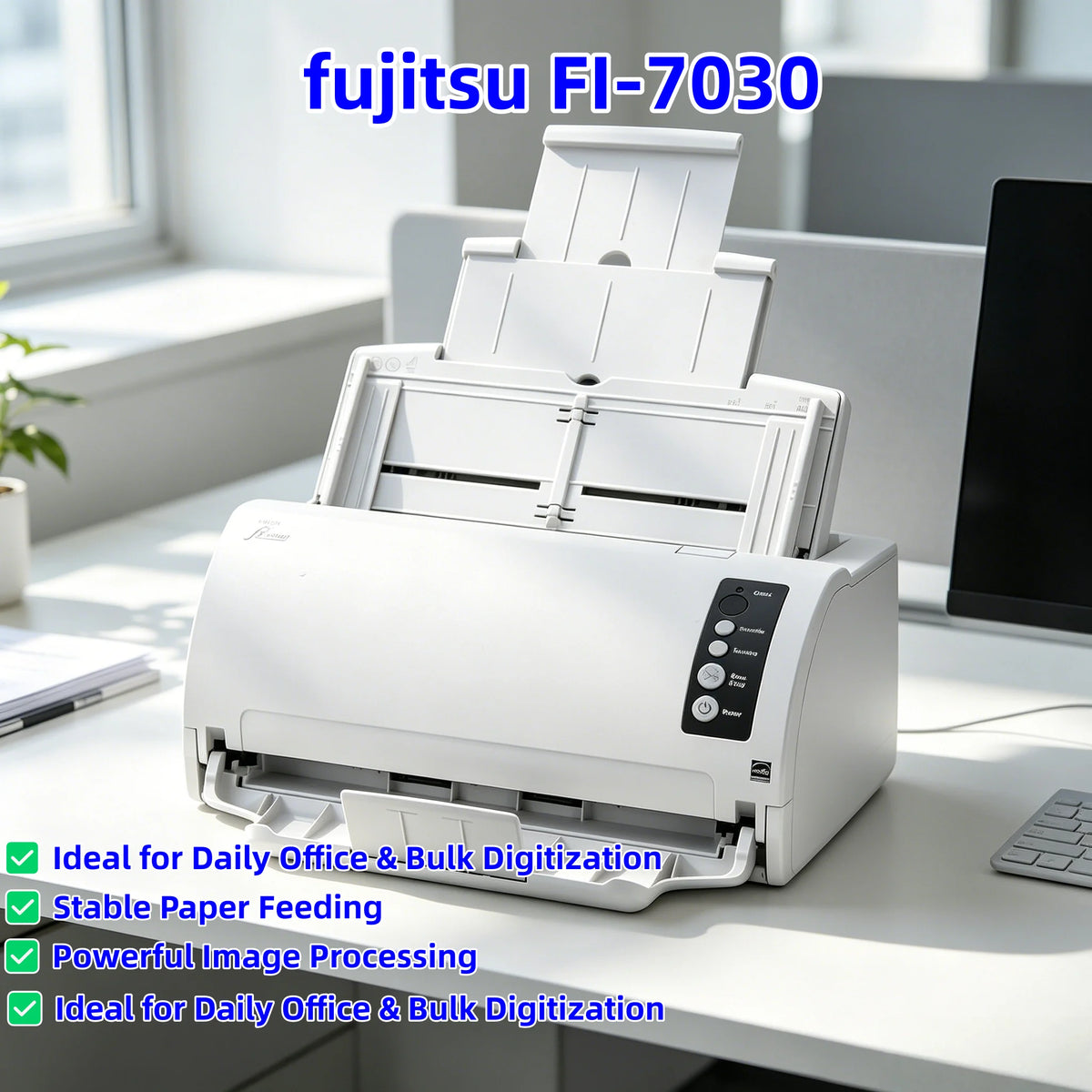

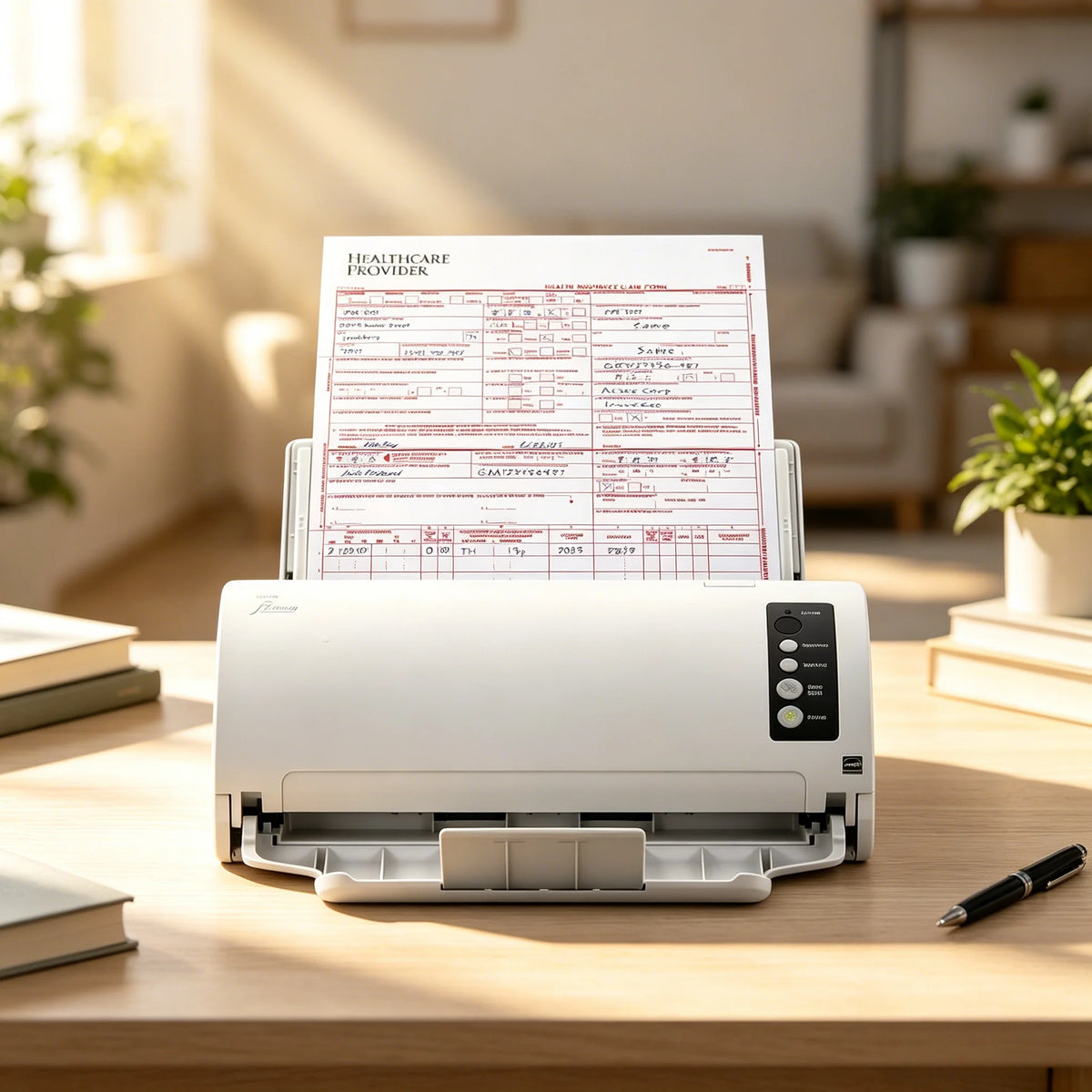

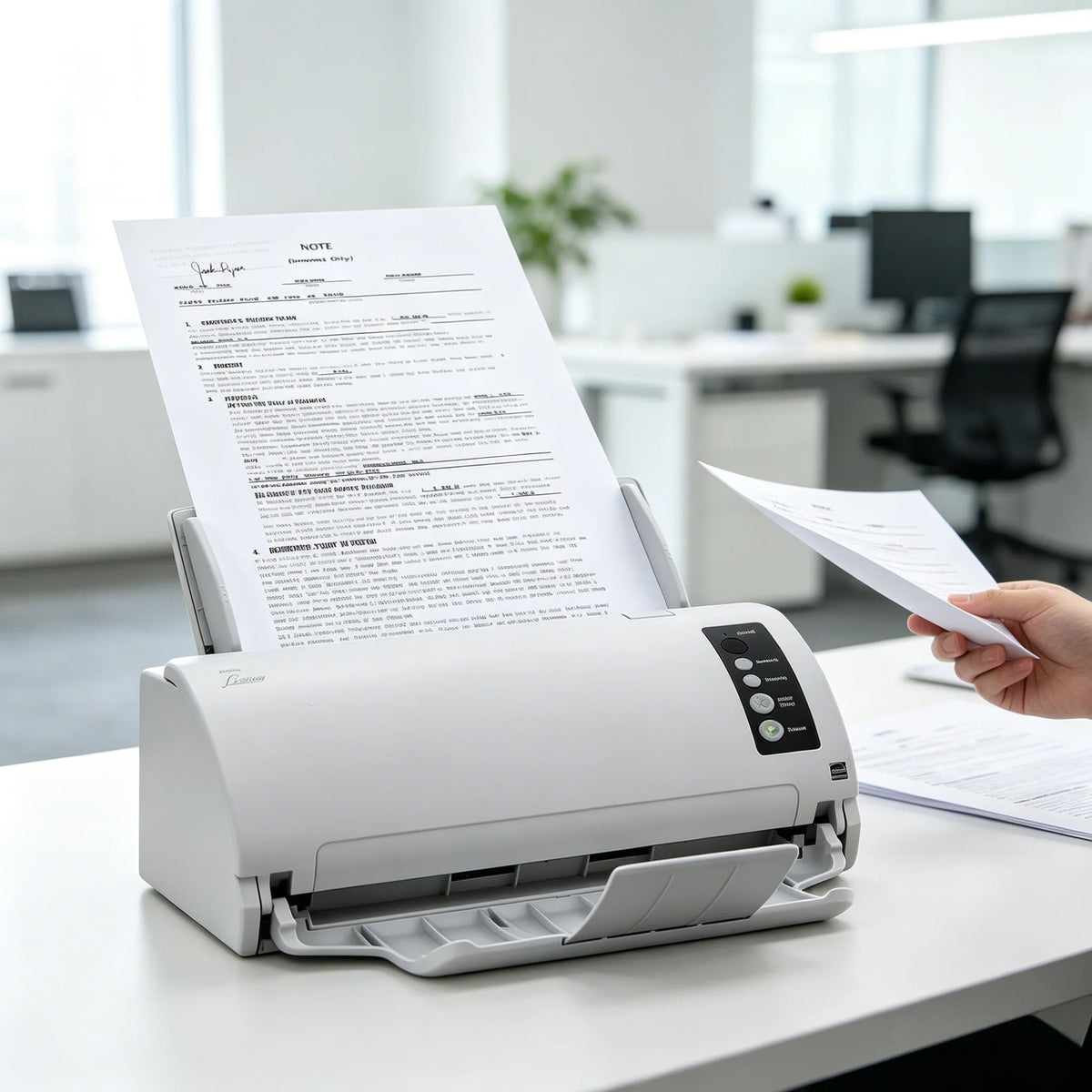

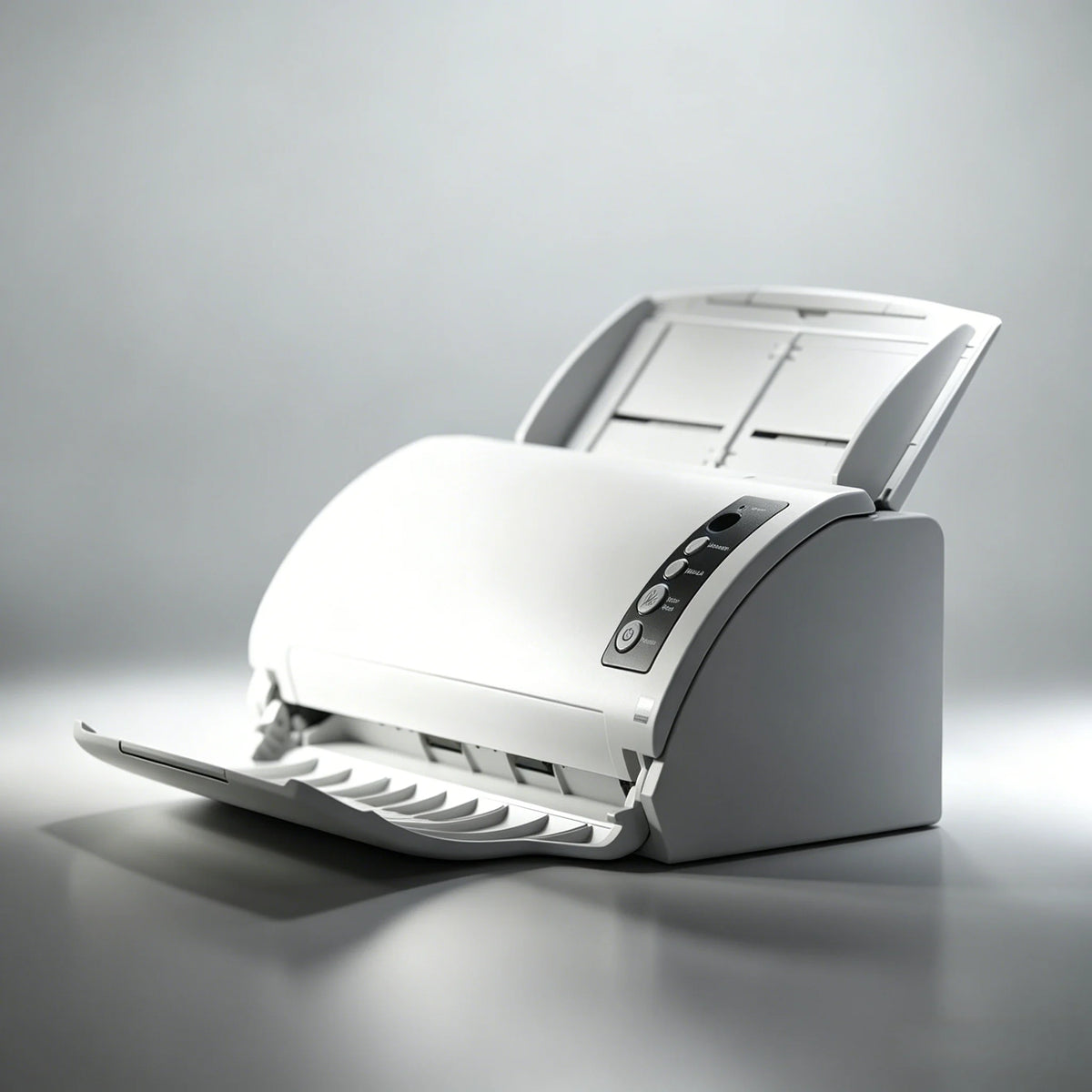

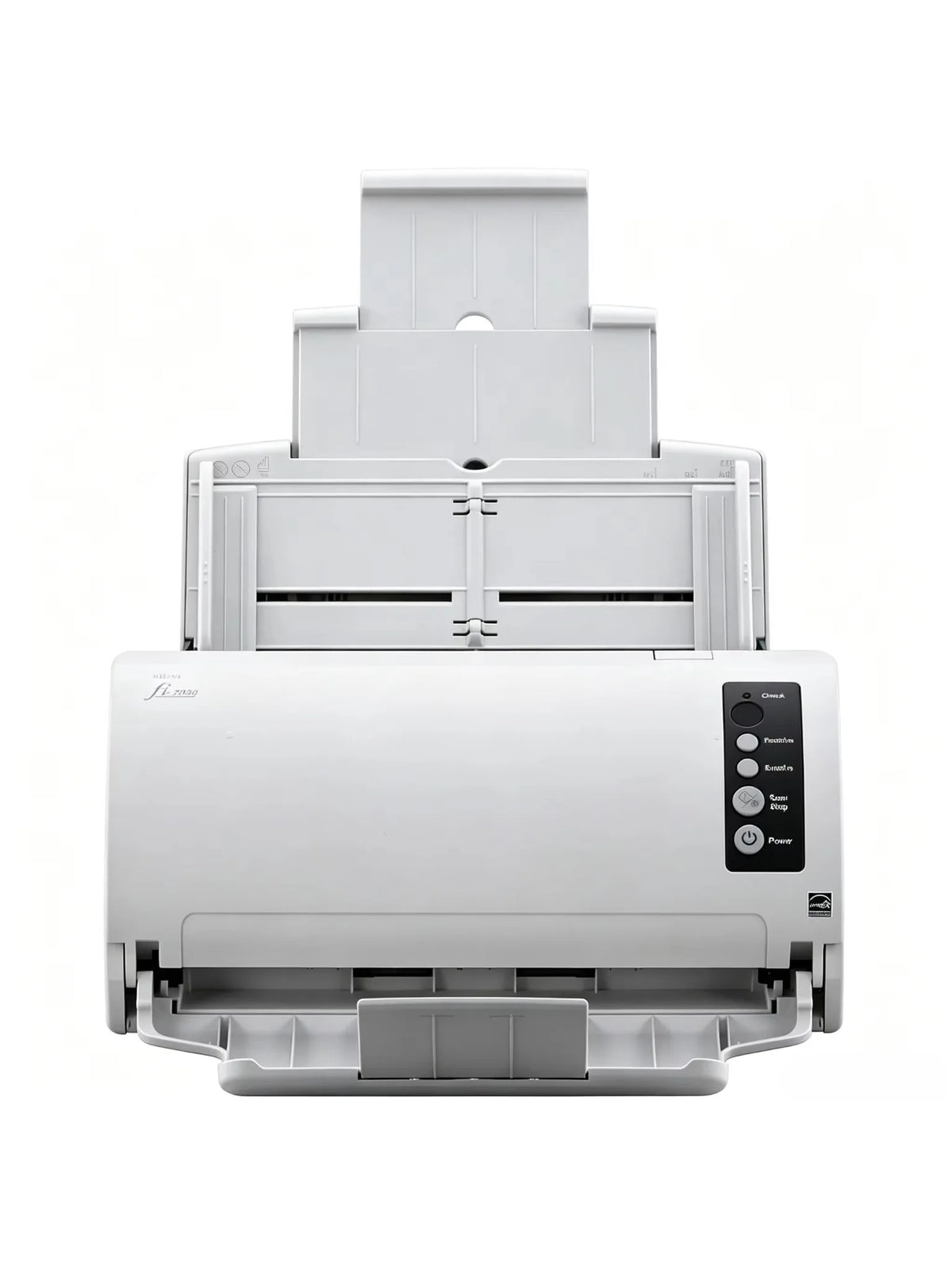

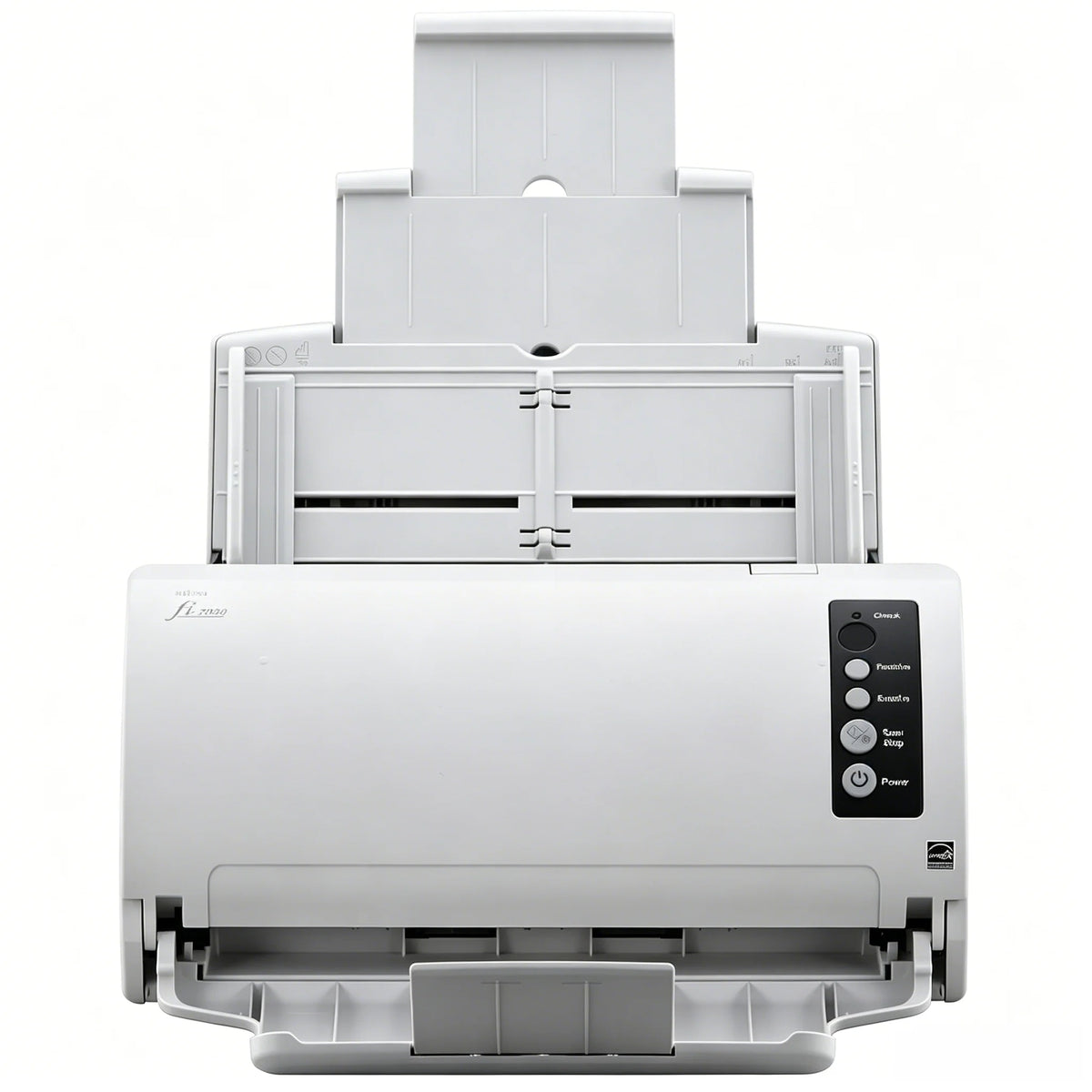

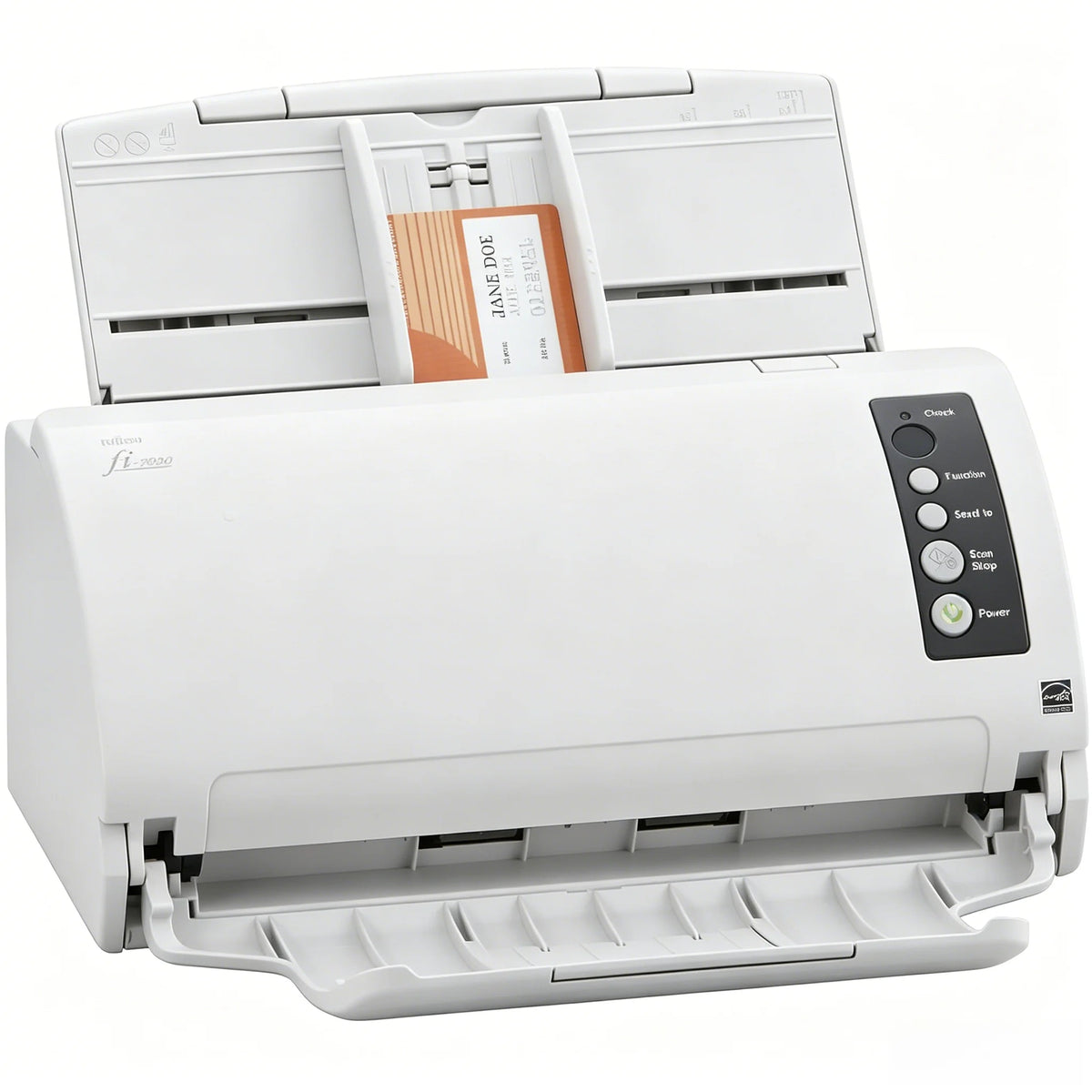

fi-7030

Scanner Type

ADF (Automatic Document Feeder), Duplex

Scanning Speed*1 (A4 Landscape)
(Color*2/Grayscale*2/Monochrome*3)

Simplex: 27 ppm (200/300 dpi)
Duplex: 54 ipm (200/300 dpi)

Image Sensor Type

Color CIS x 2 (front x 1, back x 1)

Light Source

3 Color LED x 2 (front x 1, back x 1)

Optical Resolution

600 dpi

Output Resolution*4
(Color / Grayscale / Monochrome)

50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5

Output Format

Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit

Background Colors

White

Document Size

Maximum*6

216 x 355.6 mm (8.5 x 14 in.)

Minimum

50.8 x 50.8 mm (2 x 2 in.)

Long Page Scanning*7

5,588 mm (220 in.)

Paper Weight (Thickness)

Paper

40 to 209 g/m2 (11 to 56 lb)*8

Plastic Card

0.76 mm (0.0299 in.) or less*9

ADF Capacity*10*11

50 sheets (A4 80 g/m2 or Letter 20 lb)

Expected Daily Volume*12

4,000 sheets

Multifeed Detection

Overlap detection (Ultrasonic sensor), Length detection

Interface

USB 2.0 / USB 1.1

Power Requirements

AC 100 to 240 V ±10 %

Power Consumption

Operating Mode

17 W or less

Sleep Mode

1.1 W or less

Auto Standby (Off) Mode

0.15 W or less

Operating Environment

Temperature

5 to 35 °C (41 to 95 °F)

Relative Humidity

20 to 80% (non-condensing)

Environmental Compliance

ENERGY STAR®, RoHS

Dimensions*13 (W x D x H)

290 x 146 x 130 mm (11.4 x 5.7 x 5.1 in.)

Weight

2.9 kg (6.4 lb)
