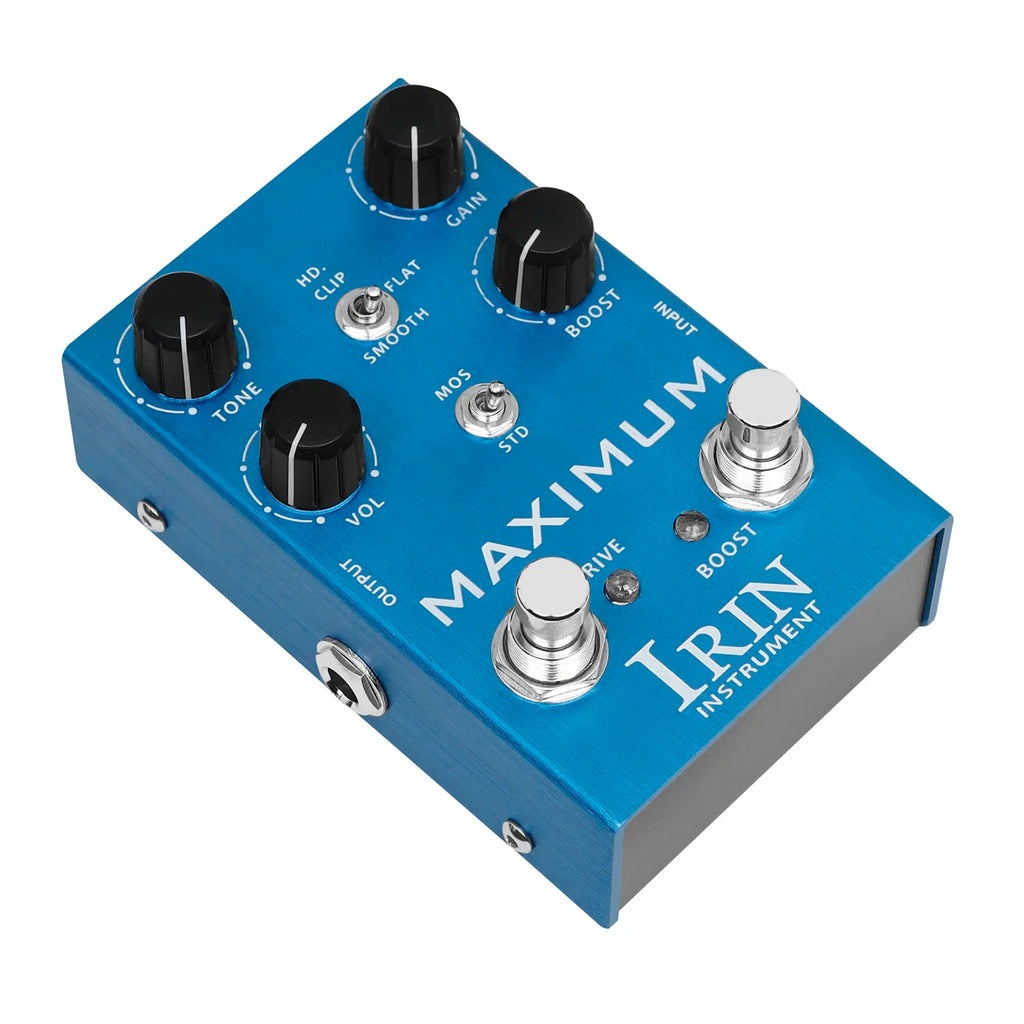

IRIN AN-41 Electric Guitar Effects Pedal MAXIMUM Overdrive Pedal Wild Overdrive Distortion Effect Effector Guitar Accessory

Description:
1. Two fabulous overdrive tones are created by the dual channel, the Drive channel features pure and clean overdrive tone without compression.
2. While Boost Channel delivers wild overdrive effect and long sustain by its independent BOOST Control Knob.
3. It also has 2 toggle switches, the left one for adjusting the brightness of Mid-frequency, 3 positions are available.
4. And the right dial can switch between different clipping modes, namely MOSFET mode and conventional clipping mode.
The dual tone is equipped with two adjustment gears, the upper gear adjusts the strength of the granular middle section and is set as a third gear selector switch; The lower gear switch has different cutting modes, namely field-effect transistor mode and conventional cutting mode.
Instructions：
1. 1. Please provide DC+9V external positive and internal negative power input to this machine, and connect the input and output sockets to the equipment; Press the step switch to start working.

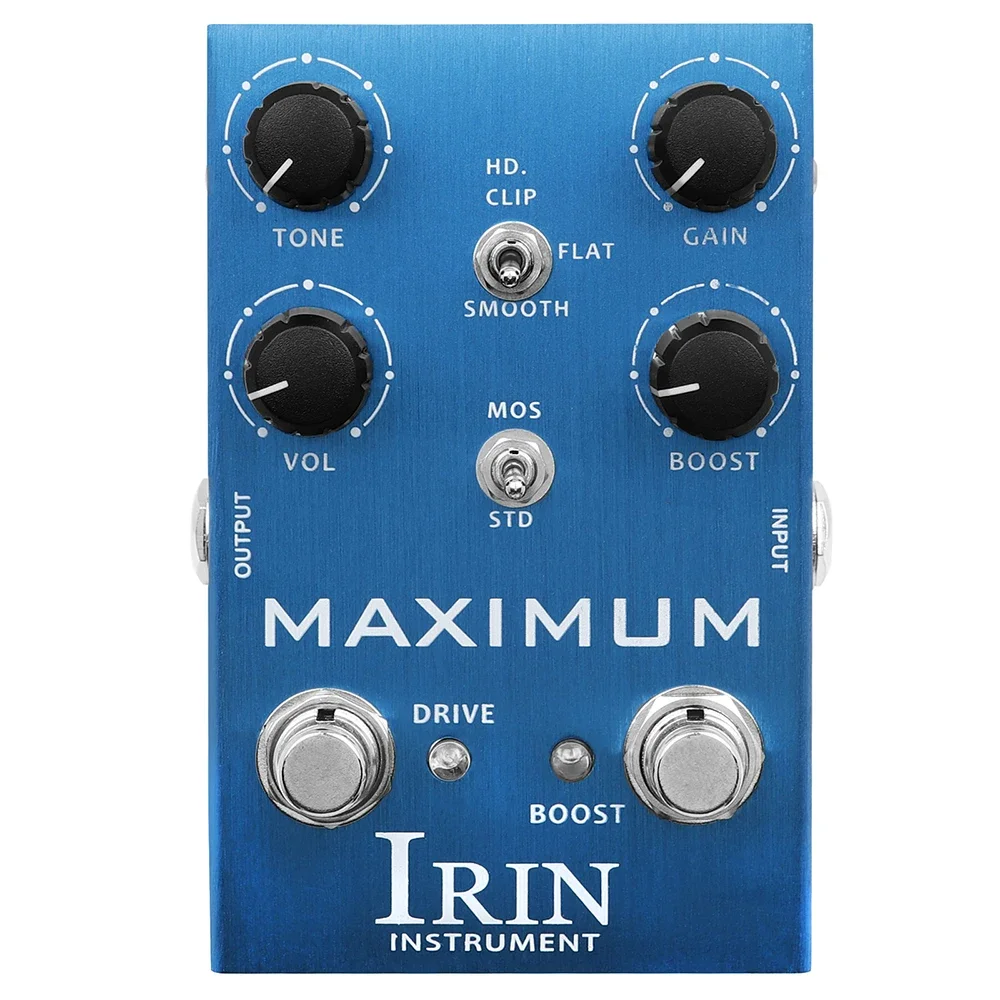

2. Function knob adjustment
TONE---low-frequency adjustment
GAIN---High-frequency adjustment
HD.CLIP/FLAT/SMOOTH--Hard clip mode/flat mode/smooth mode
MOS/STD---Mosfet clipper mode/Diode clipper mode
Boost ---Boost control (boost on/off)
VOL ---Volume control

Technical parameters:
Input impedance: 1M Ω
Output impedance: 100Ω
Working current: 8mA
Size: 108 (L) x 75 (W) x 51 (H) mm

Package List:
1*British Sound Effects Pedal
1*Use manual
