SPECIFICATIONS

Band1 2100MHz Frequency: Uplink:1920-1980MHz,Downlink:2110-2170MHz

Band3 1800MHz Frequency: Uplink :1710-1785MHz Downlink: 1805-1880MHz

Brand Name: ATNJ,OEING

Cellular Networks: 2G 3G 4G

Certification: CE

Color: White

Gain: 85dB

High-concerned chemical: none

Key words: Signal Booster Amplifier Signal Repeater

Model Number: AT-010-1800/2100/pro

Network: GPRS, 4g, GSM, 3G, LTE, 5G

Origin: Mainland China

Place of Origin: Guangdong, China

Power: 30dBm

RF connectoer: N/Female

Semi-finishedproduct: No

Type: 4G signal booster

coverage: 300-500m2

warranty: 3 years

If you have any questions, Please contact our customer service:

WhatsApp：+86 15216425580
Email：congandy02@163.com



VR

Product Description

Specification

Specifications			Parameters
Frequency Range (Customers to Choose)	Uplink	1710-1785MHz,1920-1980MHz
		Downlink	1805-1880MHz,2110-2170MHz
Frequency Bandwidth (3dB Bandwidth)			75MHz&60MHz
Gain			85dB
Automatic gain control (Step Attenuation)			31dB @ 1dB/ Step
Auto Gain Control			30dB Min.
Output Power(Customers to Choose)			30dBm
Spurious Emission			≤ -15dBm/30kHz
				9kHz~1GHz: ≤ -36dBm/30kHz
				1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR			≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple			≤ 3dB
VSWR			<=2
I/O Impedance			50 Ω
Noise Figure			≤ 8dB
System Delay			≤ 1μs
RF Connector(Customers to Choose)			N(Female)
Operating Temperature			Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply			AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Dimensions			440*268*88(mm)
Weight			≤5kg(Net)
Alarm Monitoring System			Alarm for uplink self-oscillation
Indication LED			Done

Features:

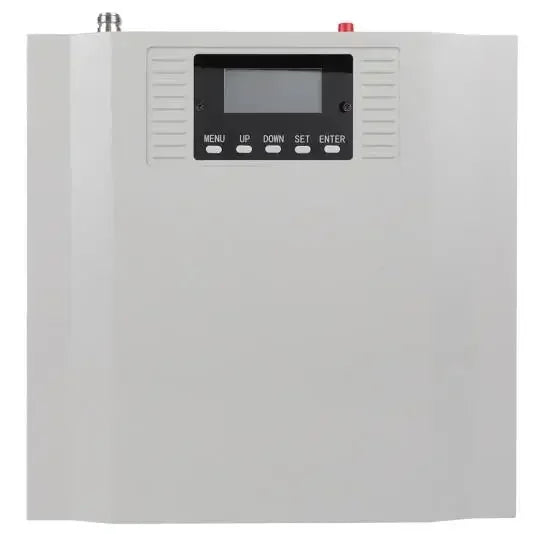

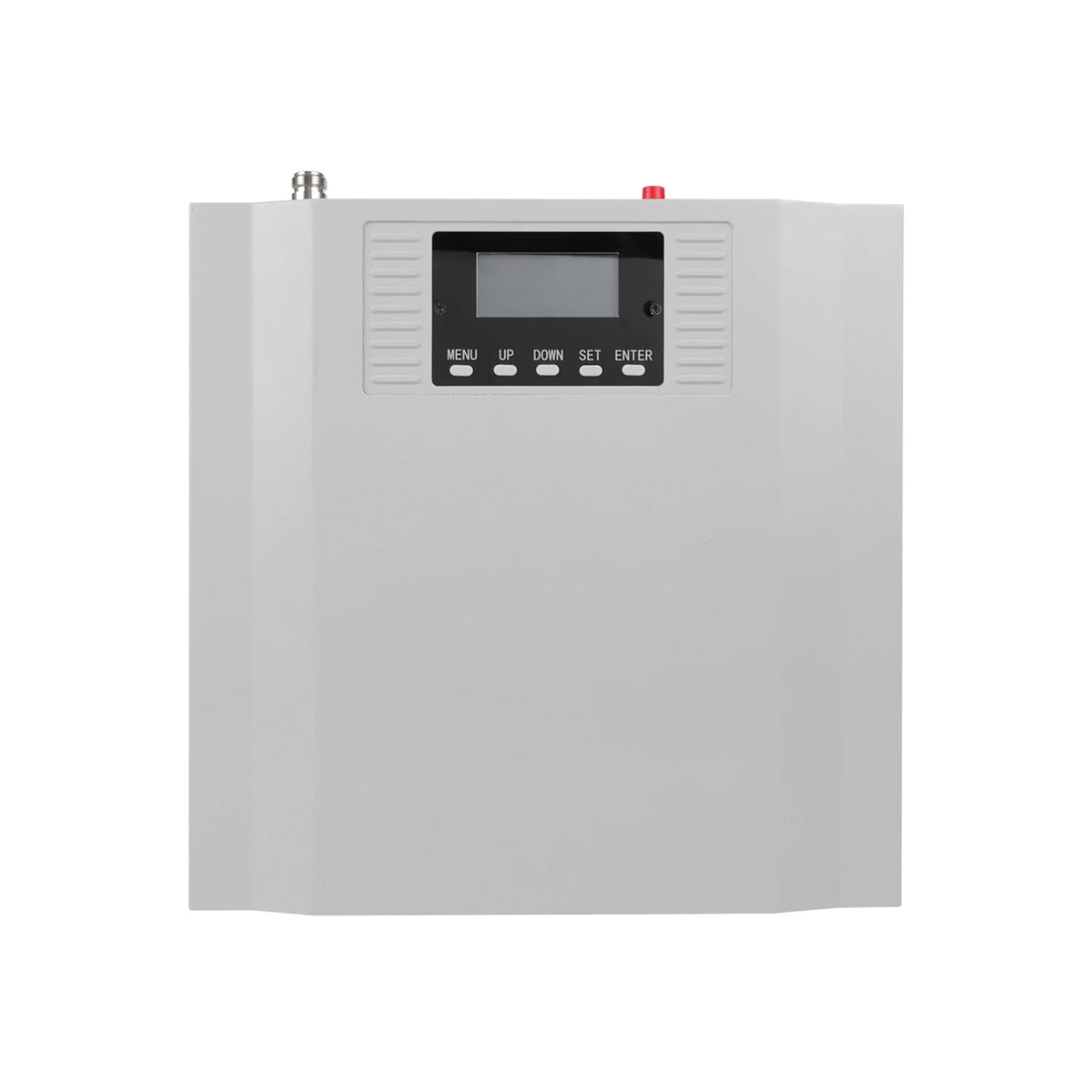

1,Intelligent to guide the installation with LCD
2,Real time display the signal strength.
3,Automatic dormancy when no user make the calling
4,Automatic alarm when installation mistake and provide the according solution
5,Automatic adjust the system gain to avoid the repeater self-excitation
6,initiative reminding when the device was damaged.

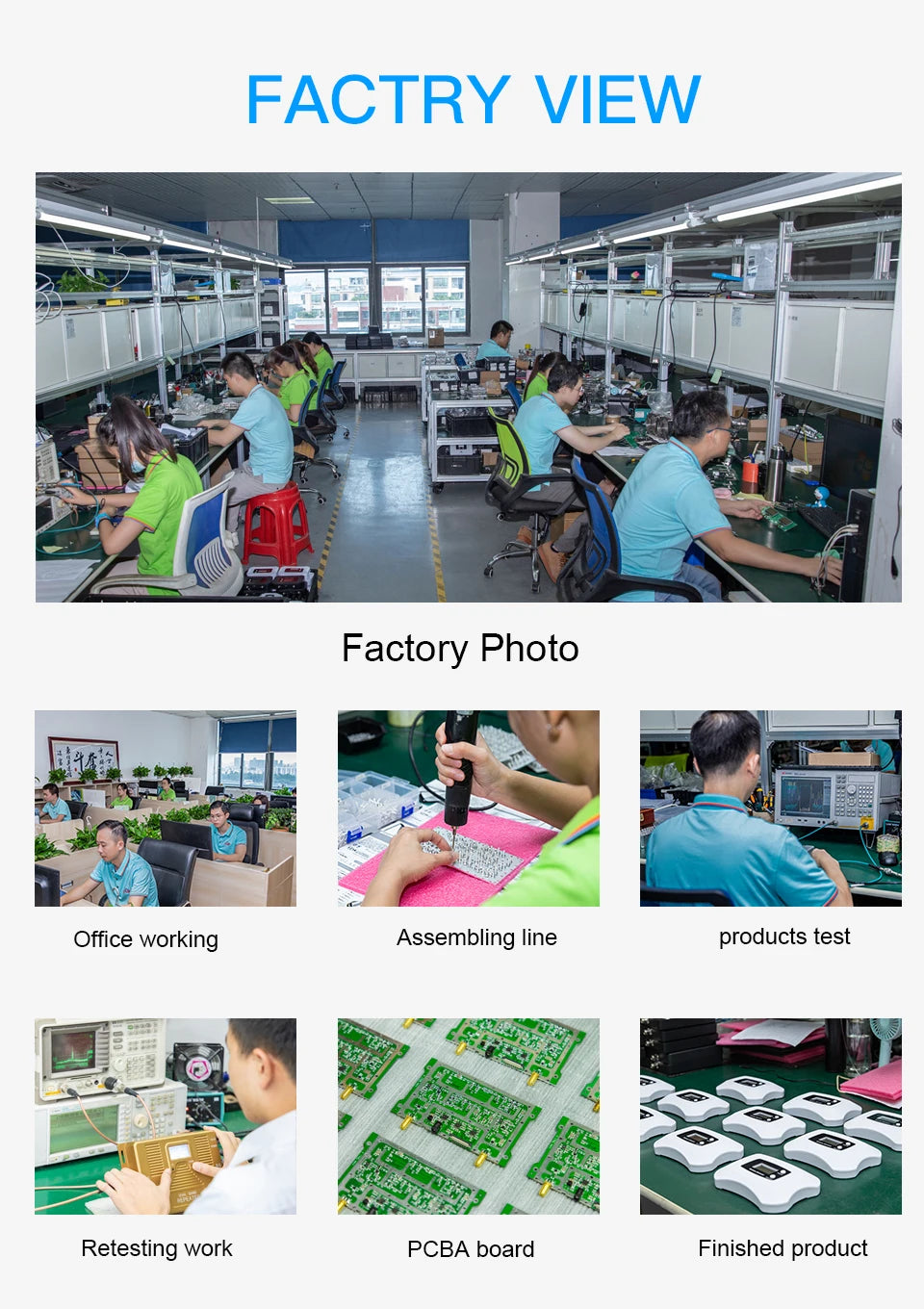

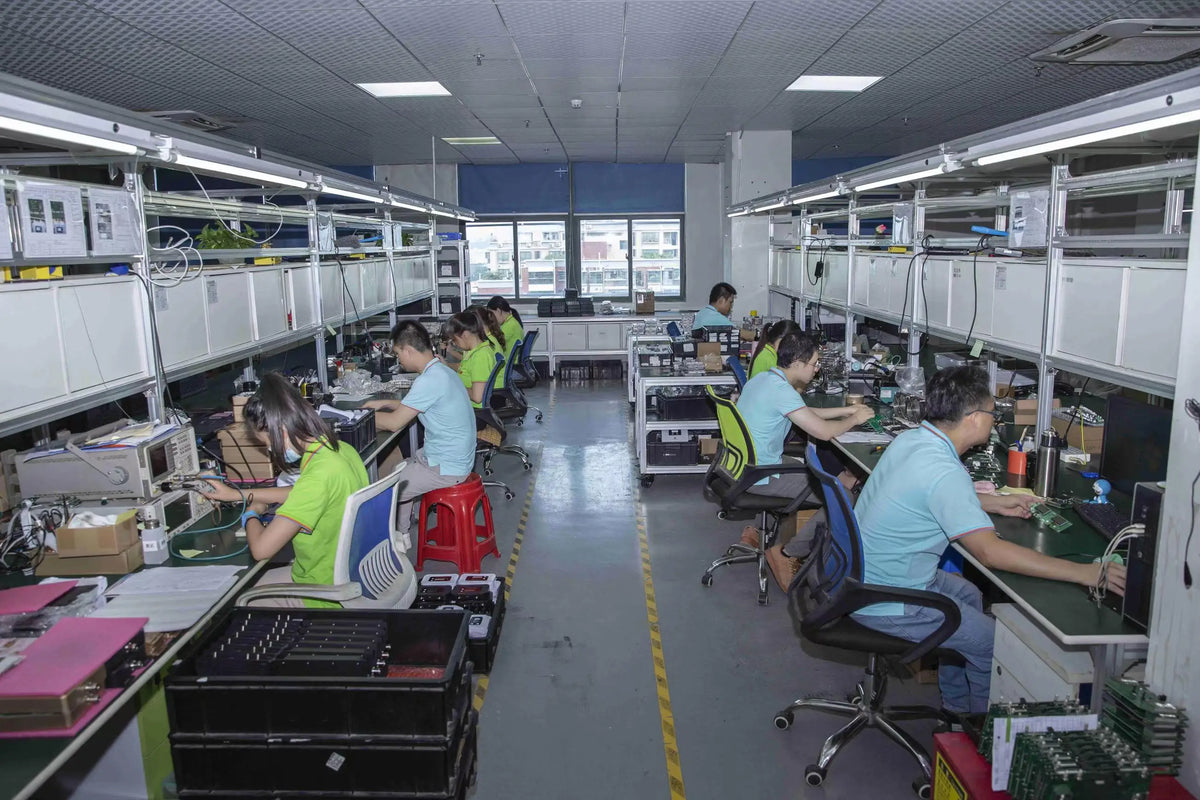

Shenzhen ATNJ Communication Technology Company, located in Shenzhen City, was founded in 2010.Our main focus is on Micropower
repeaters, Antenna Series, Passive Components. With professional engineers, workers, and with senior management personnel, the
group maintained high-speed development. Meanwhile, the Up-to-date facilities and technology end sure the business's long-term
development. With the development of facilities and technology, ATNJ expands its business scope to cooperate with signal
operators, provide signal coverage solutions for large areas like residential areas, office buildings, supermarkets, underground
garages, and rural areas. In 2021, 5G signal booster was developed and put on the market successfully. In the future, easier use
and more functional signal boosters have being developed.

FAQ

1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide
OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of
warranty.

5. Please feel free to contact us if any other questions.
