SPECIFICATIONS

After-sales Service Provided: Online Support

Brand Name: NONE

Brightness: 3500-4000 cd/sqm

Control system: NOVA Star

Display Function: Video Playing

High-concerned chemical: none

Installation: Stacking or Hanging

LED chip: Nationstar

Life span: 100000 Hours

Module size: 250x250

Origin: Mainland China

Panel Size: 500*500 500*1000

Refresh rate: 3840 Hz

Type: Other

Warranty: 5 Years

application: Indoor, outdoor

color: VIDEO FULL COLOR

media available: datasheet, Photo, EDA/CAD Models, Other

model number: rental led display

pixel density: 65410

pixels: P2.604/P2.976/P3.91/P4.81

place of origin: Guangdong, China

type: LED

warranty: 5 years

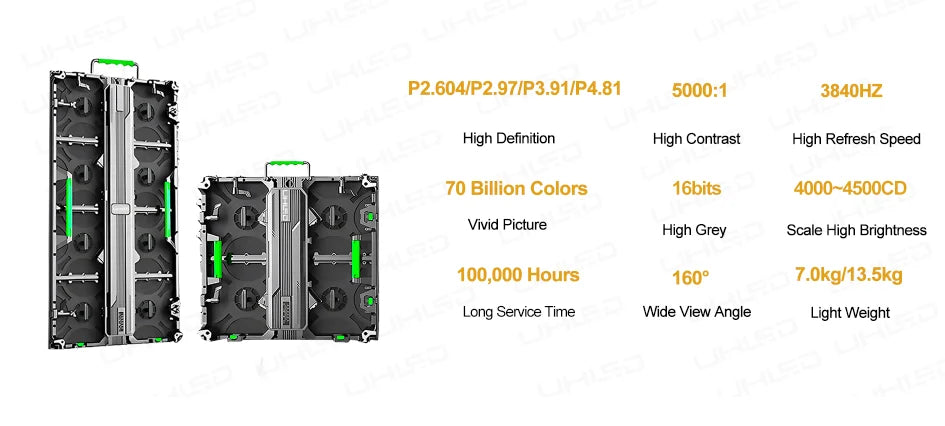

Techical Parameter

Indoor & Outdoor LED Stage Rental Display Screen
Pixel Pitch(mm)	2.604mm	2.976mm	3.91mm
LED Configuration	SMD1415	SMD1415	SMD1921
Cabinet Density ( dots /㎡)	147475	112910	65410
Module Size(L x W x H) /( mm)	250mm×250mm	250mm×250mm	250mm×250mm
Cabinet Size(L x W x L) /( mm)	500×500mm	500×500mm	500×500mm
Cabinet Material	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
Cabinet Weight ( Per Panel/ kg)	7.0kg	7.0kg	7.0kg
Color Depth(Bit)	16	16	16
Gray Scale	65536	65536	65536
Refresh Rate(Hz)	≥3840	≥3840	≥3840
Brightness(nit)	800-4000	800-4000	800-4000
Viewing Voltage(V)	140/120°	140/120°	140/120°
Storage Temperature (℃)	-15 ~ 50	-15 ~ 50	-15 ~ 50
Working Temperature(℃)	-10 ~ 40	-10 ~ 40	-10 ~ 40
Installation Type	Hanging /Stacking	Hanging /Stacking	Hanging /Stacking
Maintenance Type	Rear	Rear	Rear

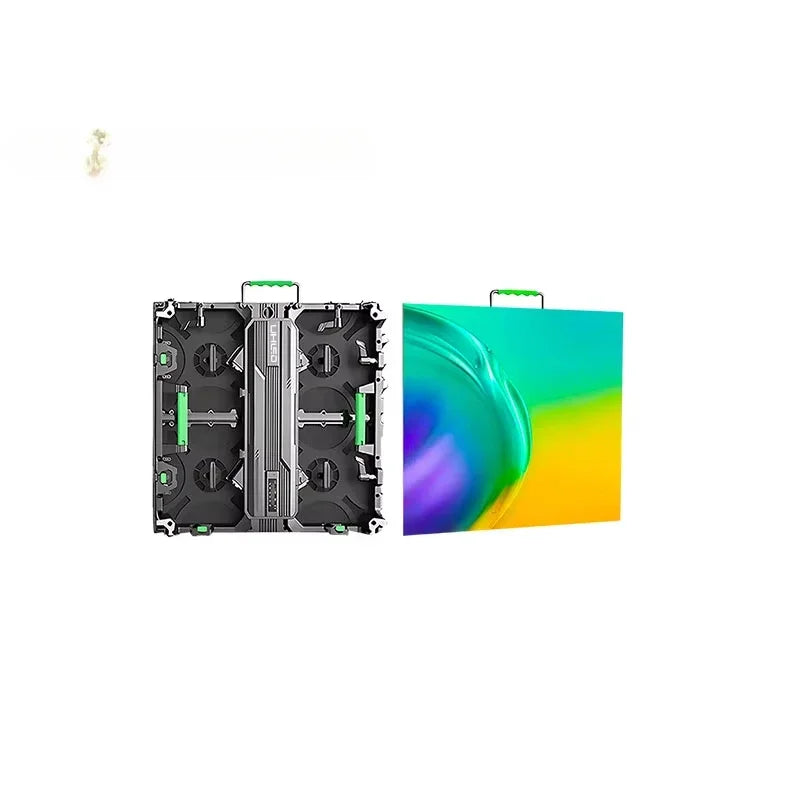

Rental LED Display

Copper Series

Support arc customization/Seamless splicing

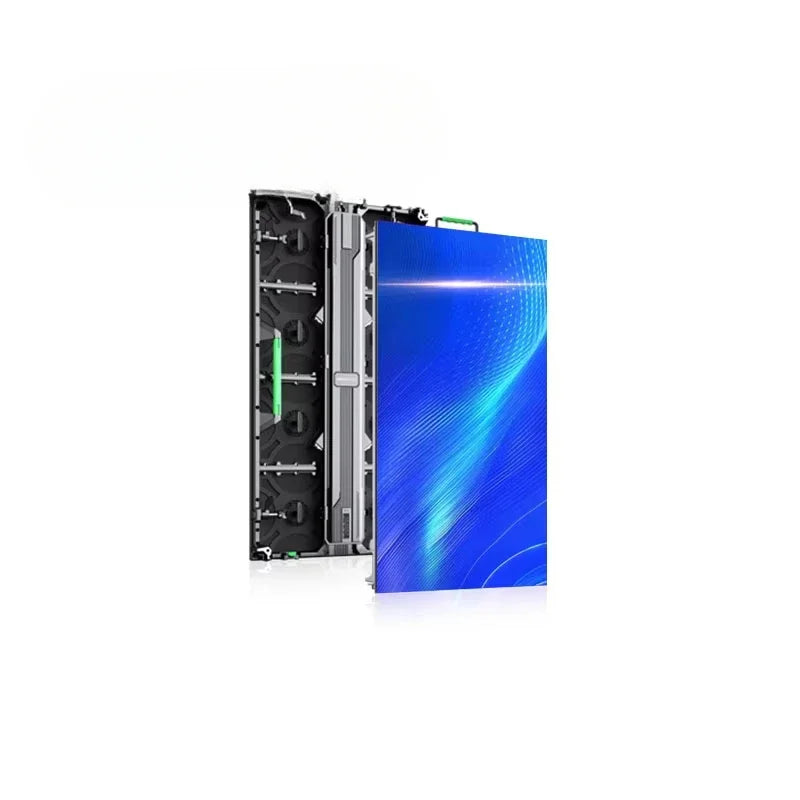

Lightweight But Durable

Die casting aluminum 500*500mm and 500*1000mm panel with 7.0Kg and13.5Kg individually, easy to handle for setup and operation

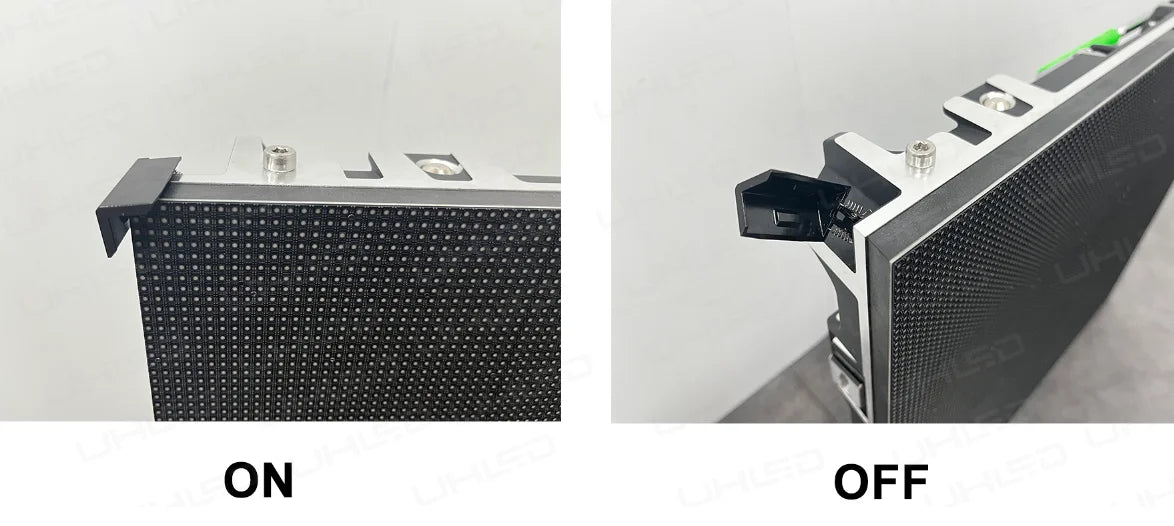

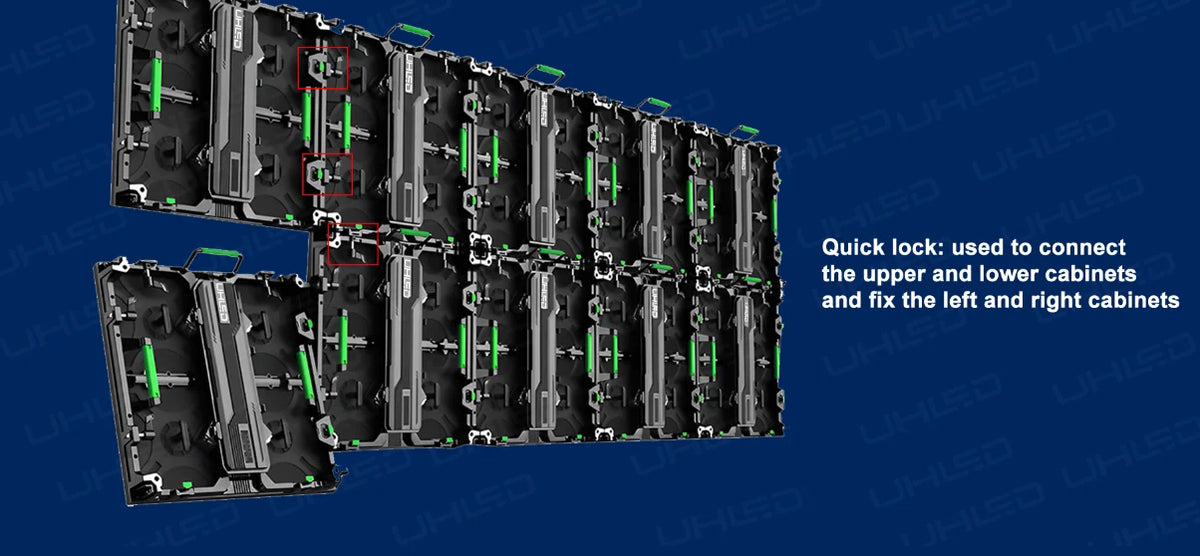

Fast Locking System, Quick Assembly and Disassembly

The copper series features a fast locking system with an instant feedback mechanism and magnet! on the top and bottom of the modulars,allowing the operator to set up quickly.



Corner Protection Design

The copper series incorporate Corner Protection Design on each panel corner, thereby reducing pixel damagduring manual operations and transportation

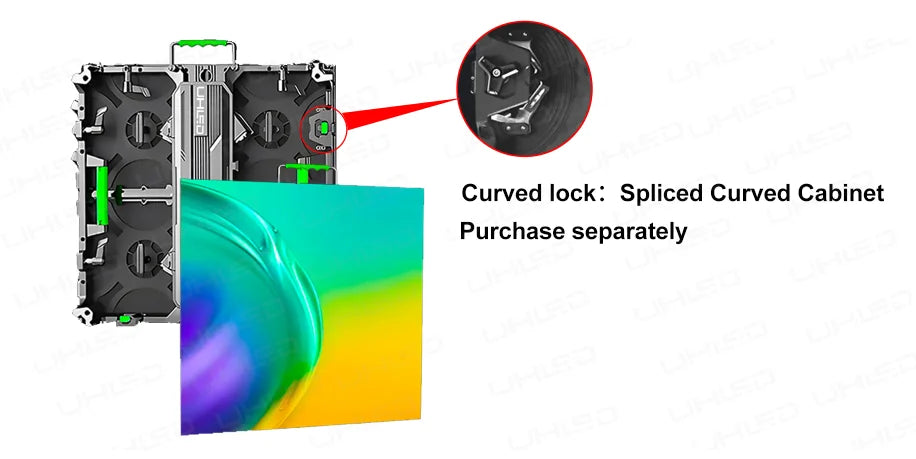

Curved Cabinets

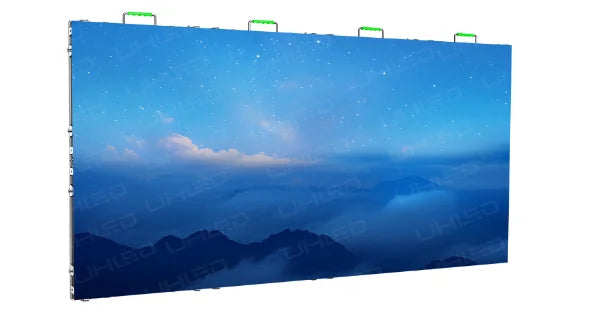

Seamless Splicing

The seamless splicing advantage of LED rental screens is that they can achieve perfect splicing between screens, eliminating the splicing gaps, thereby providing a higher quality viewing experience. They can present truly stunning picture effects and are suitable for large-scale indoor and outdoor advertising.

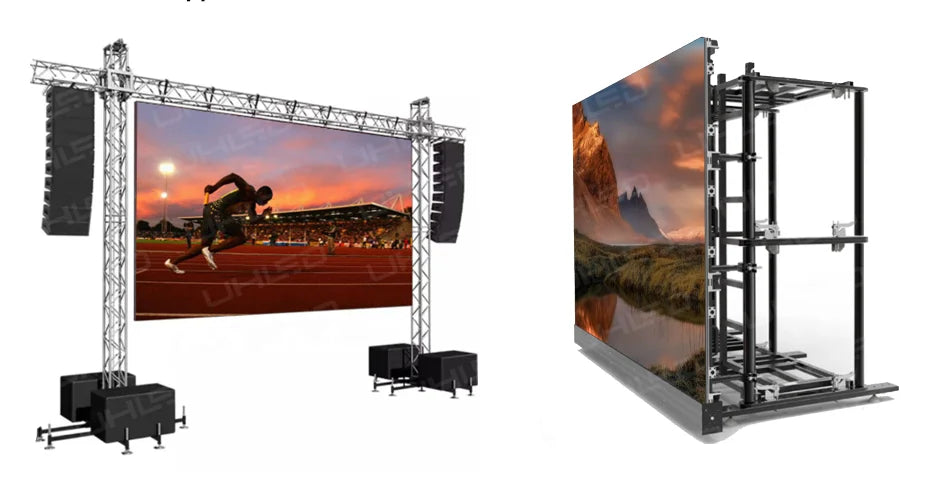

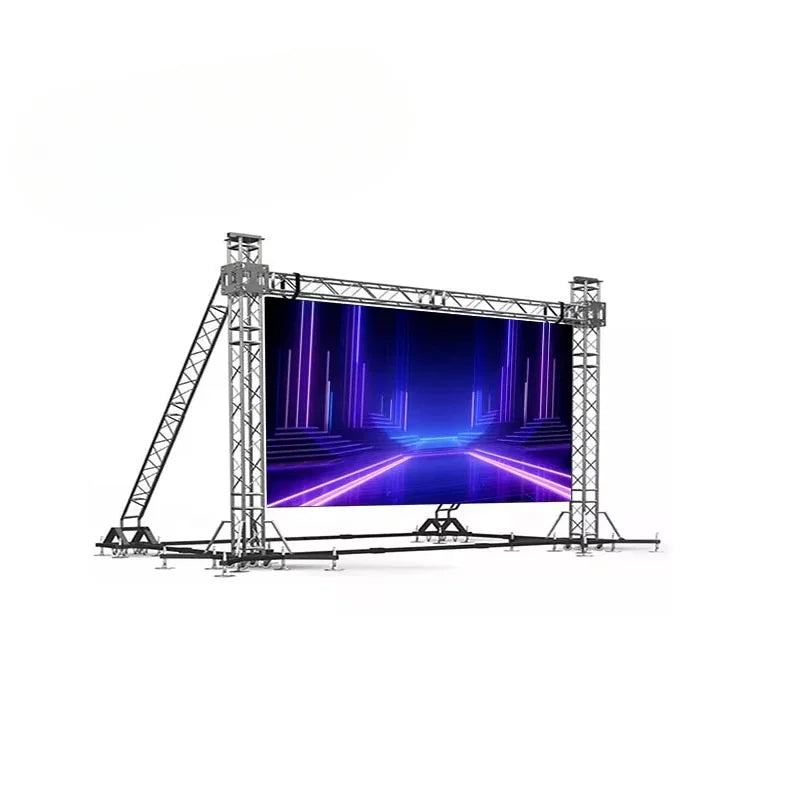

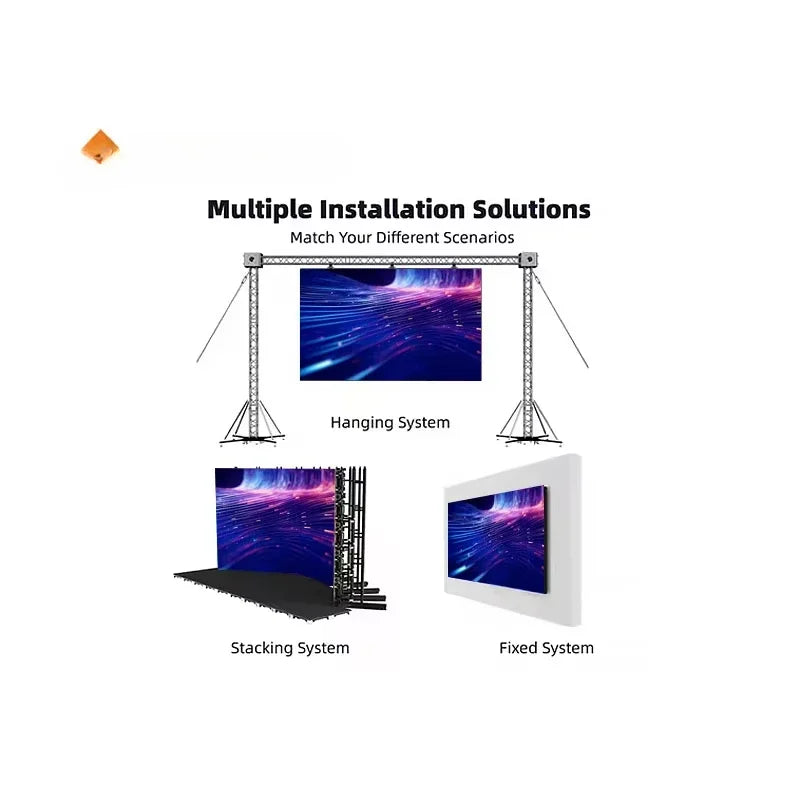

Hanging and Stacking Installation

The copper series are equipped with 500mm, 1000mm hanging beams, floor stacking supportbracket to meet the requests of hanging and stacking, which makes it convenient forcustomers according to the actual application.

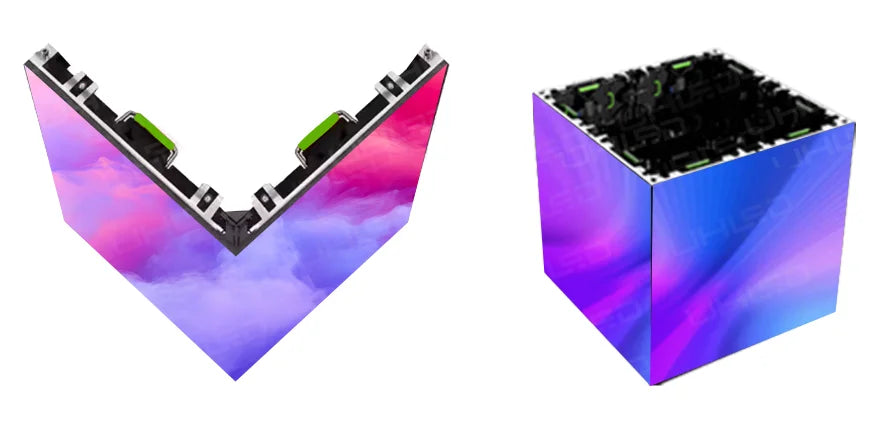

Perfect 90°instalation

45° bevel is optional to splice L shapes and cubes to realize more creativity

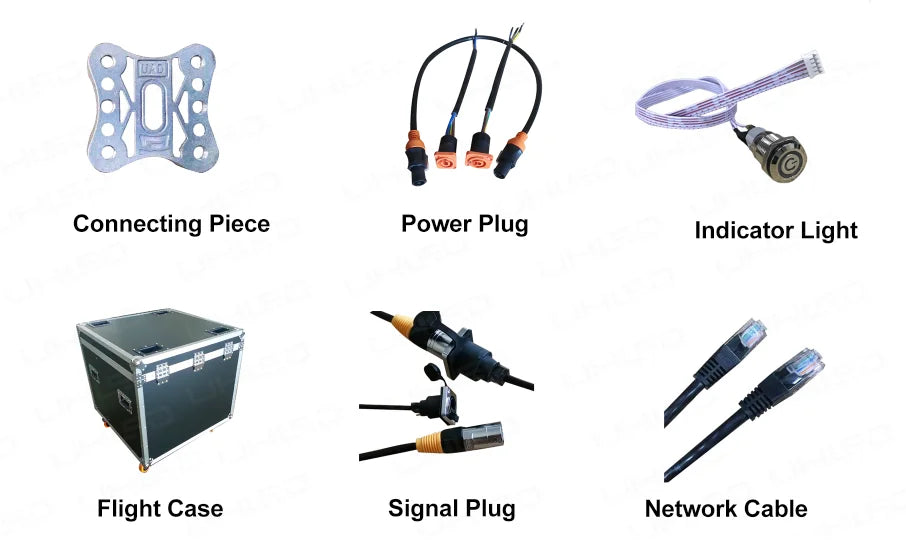

Product spare parts

One-stop service can support all kinds of accessories, welcome to consult
