SPECIFICATIONS

1: Nema17 Stepper Motor

10: Nema17 17HS4401S

11: 42BYGH

12: Usongshine

2: Nema17

3: Stepper Motor

4: 17HS4401

5: Nema17 17HS4401

6: 42 Stepper Motor

7: 42 Motor

8: Nema17 Motor

9: 17HS4401S

Brand Name: Usongshine

Cable Length: 1m

Certification: ce,ROHS,CE

Current / Phase: 1.5A

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Holding Torque: 4000

Model Number: 17HS4401

Origin: Mainland China

Phase: 2

Plug Type: XH-2.54

Step Angle(degrees): 1.8

Type: HYBRID

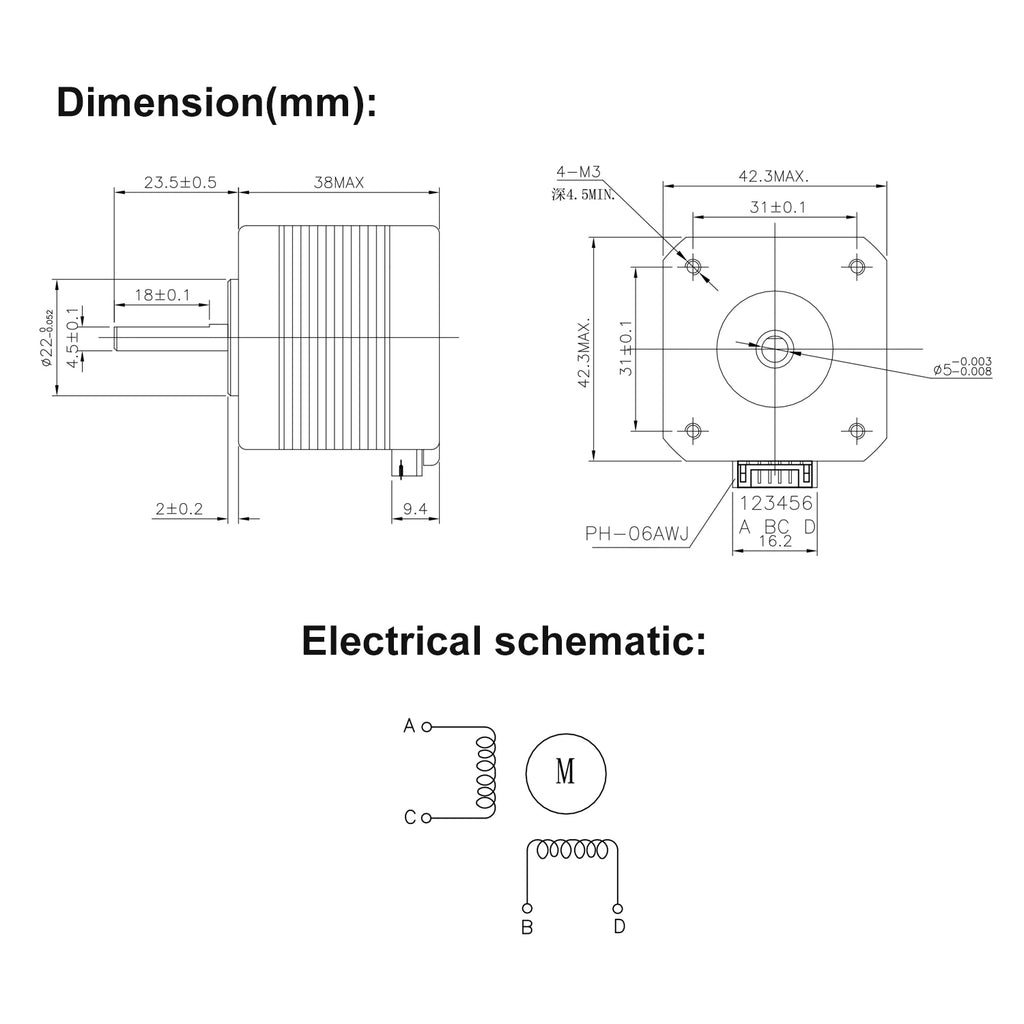

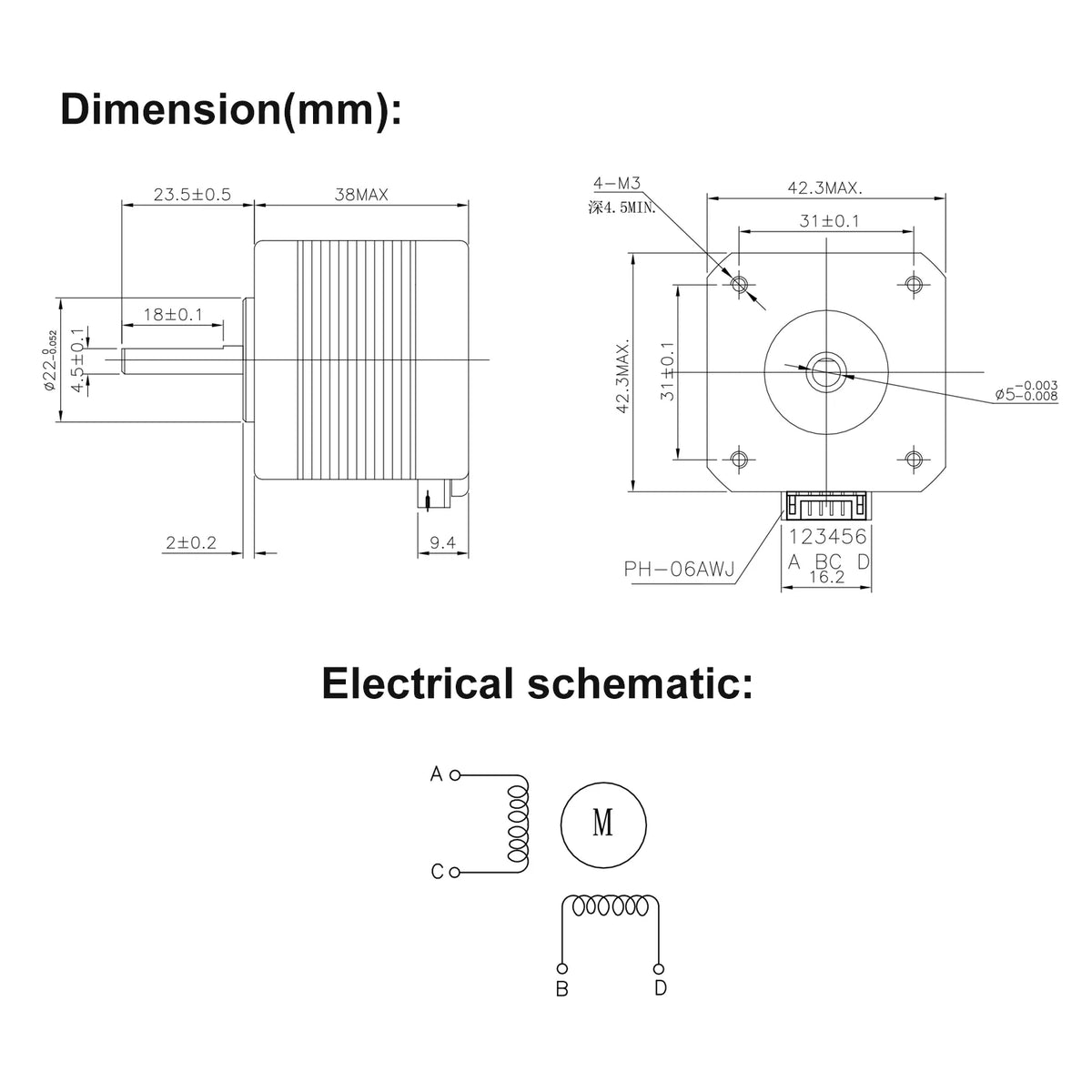

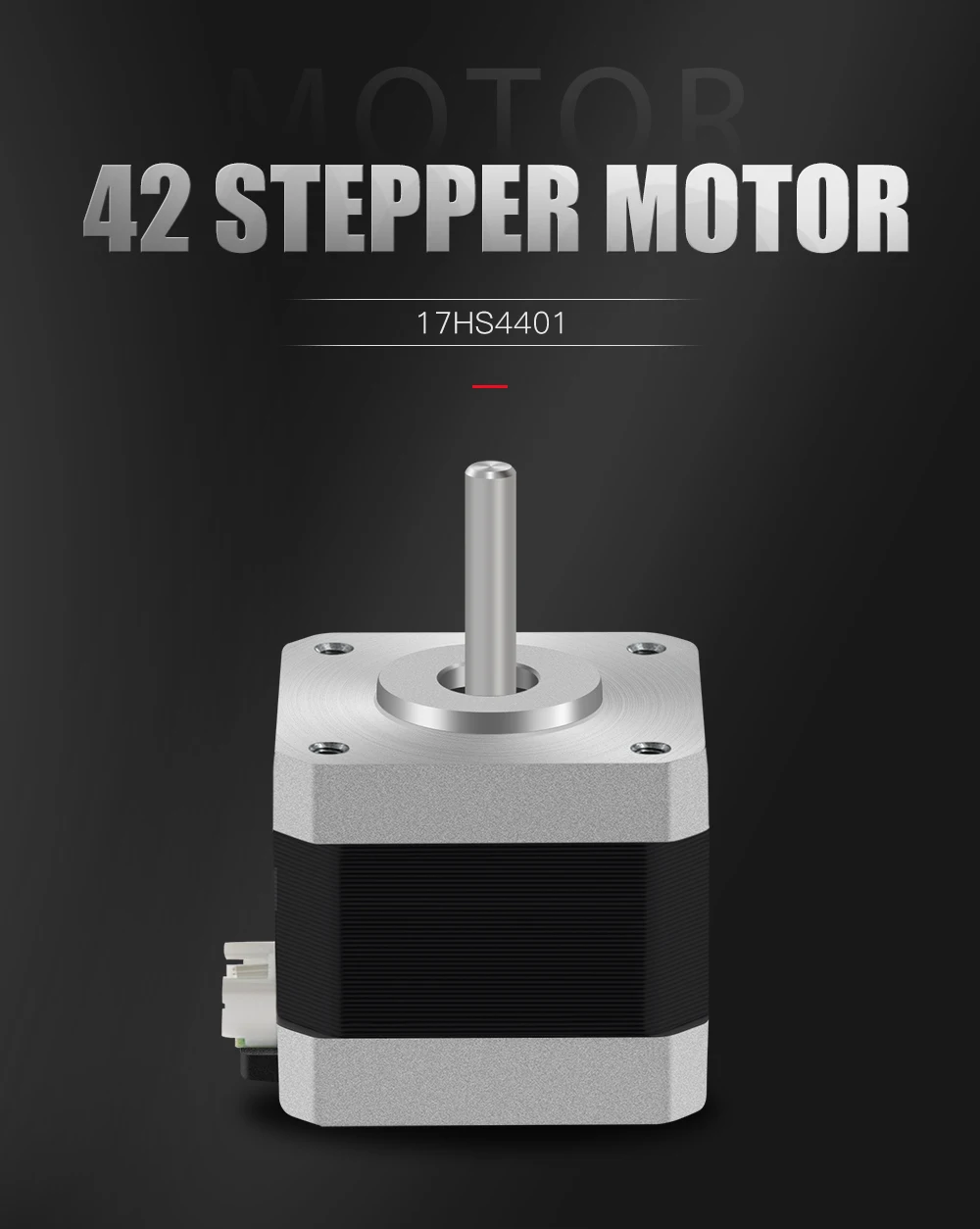

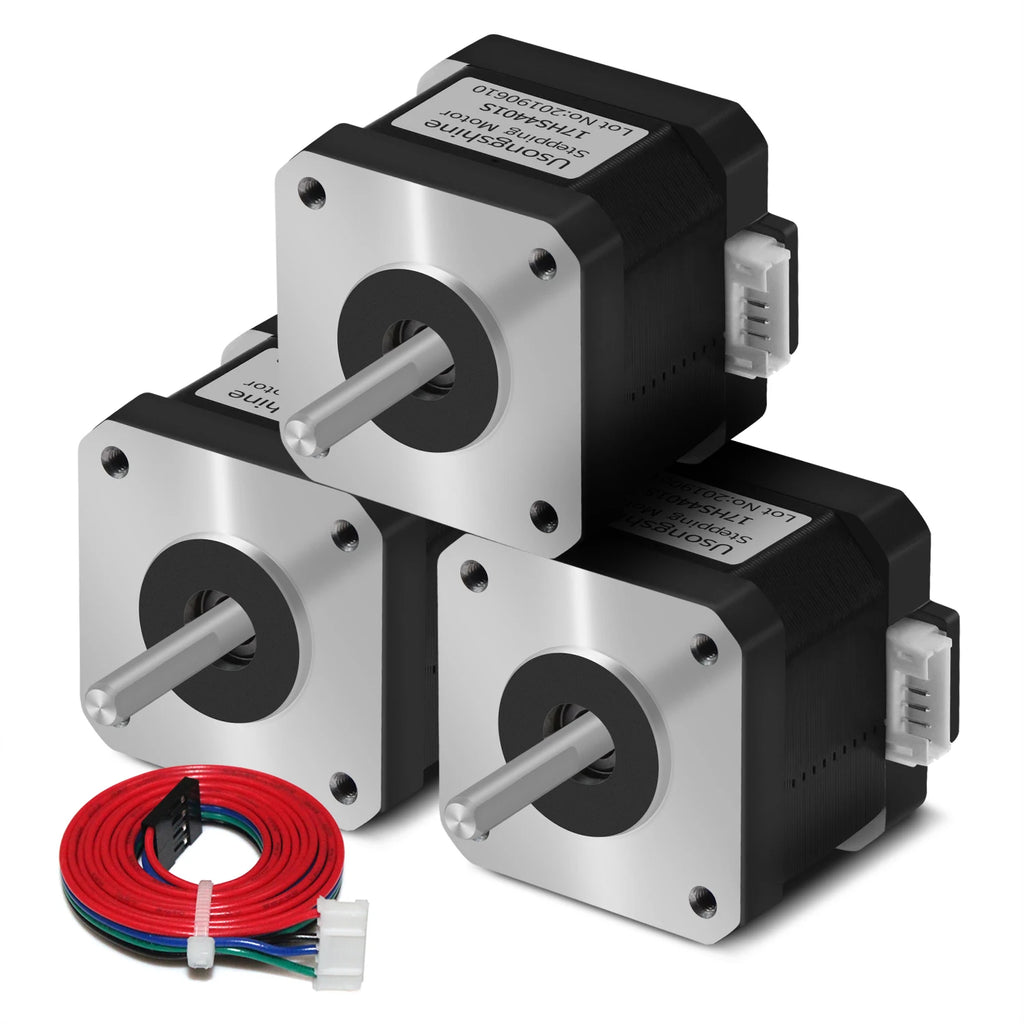

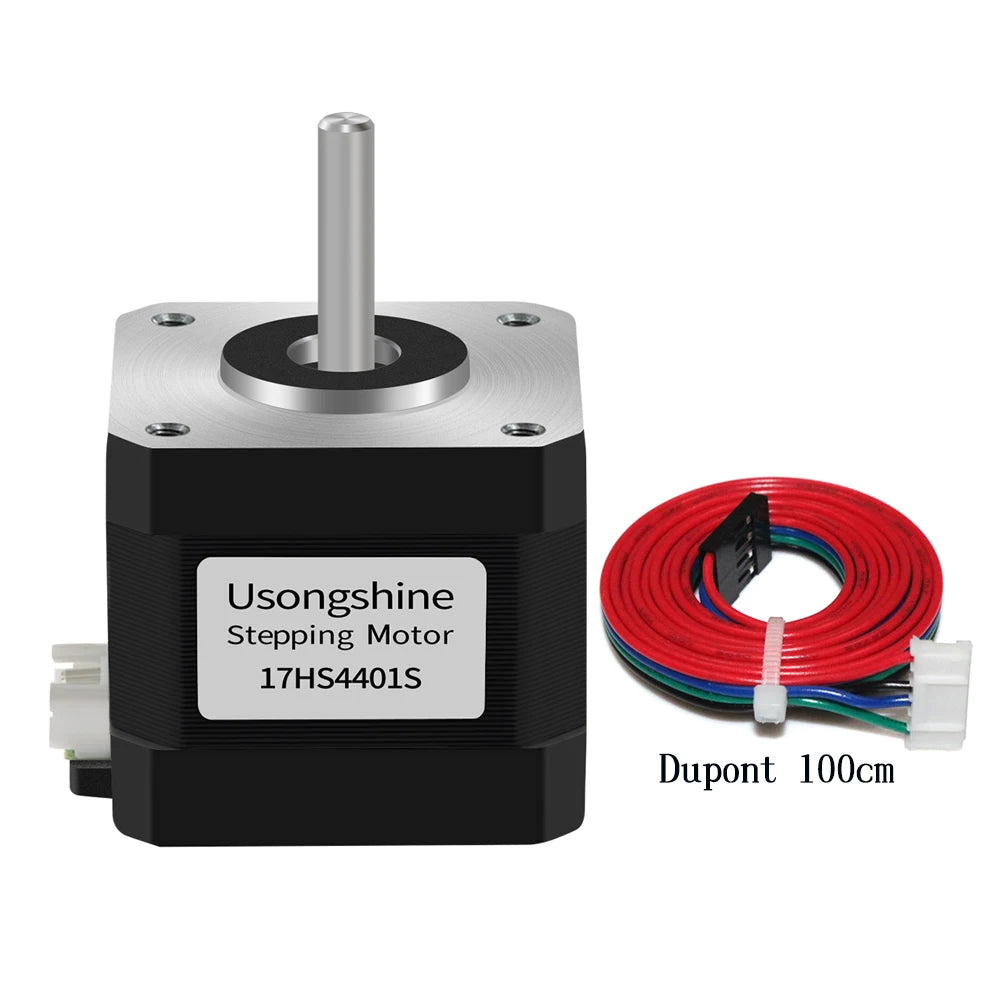

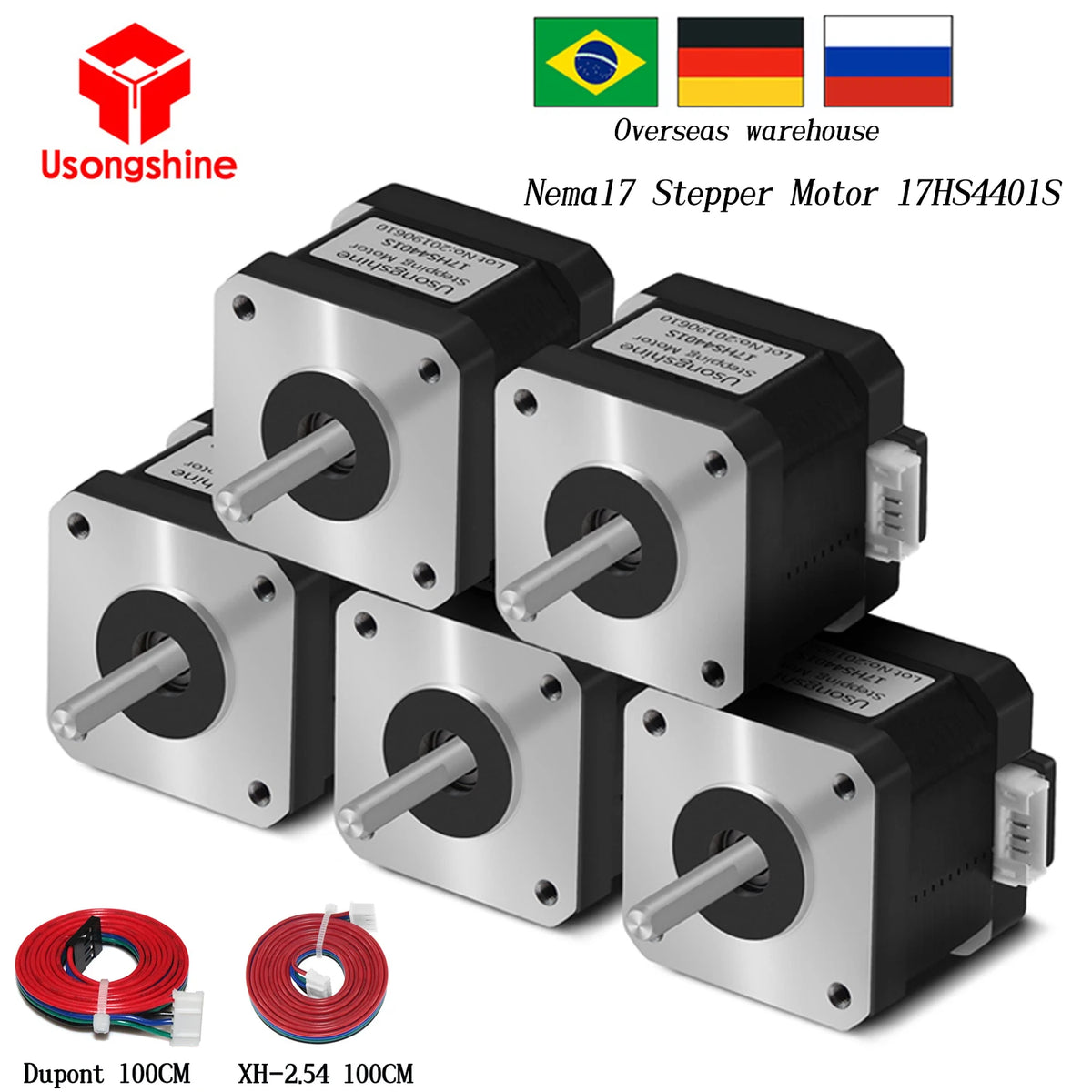

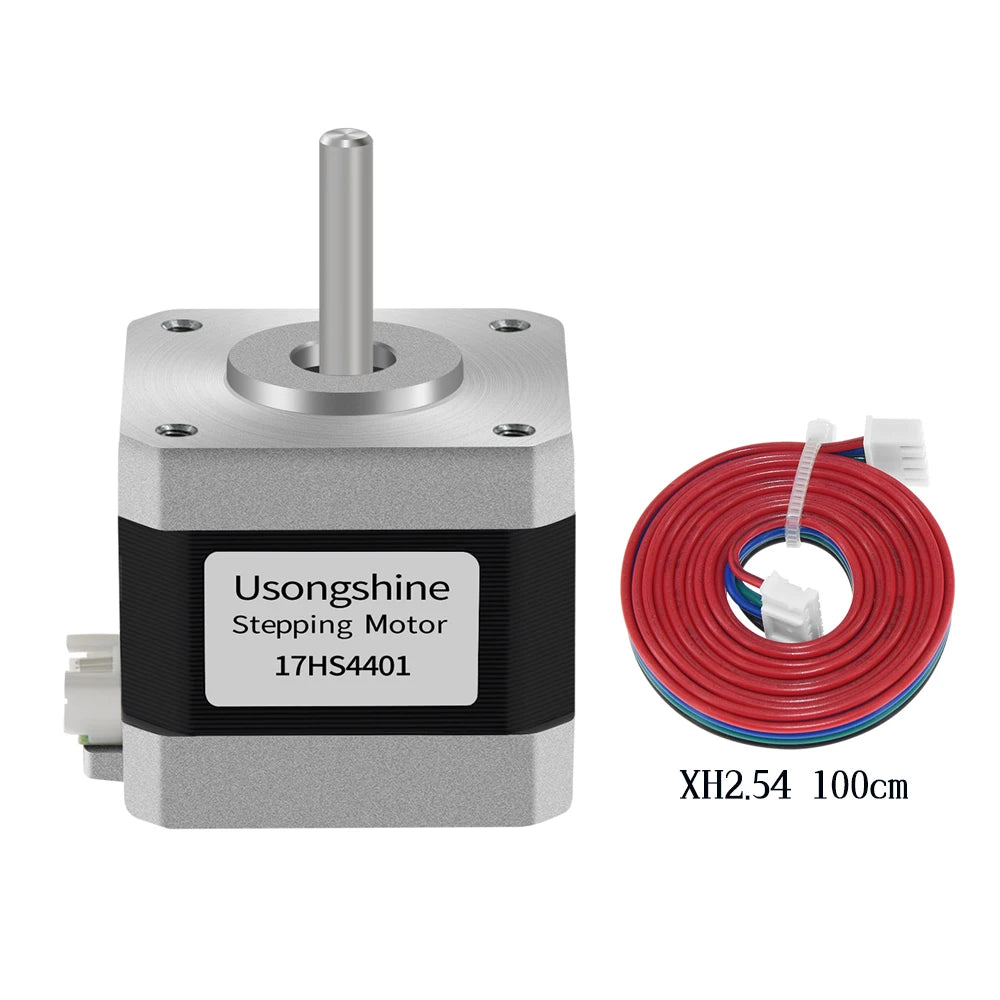

Usongshine Nema17 Stepper Motor 17HS4401S 42BYGH 1.5A 42N.cm 42 Motor With Line for 3D Printer CNC Laser Engraving Machine

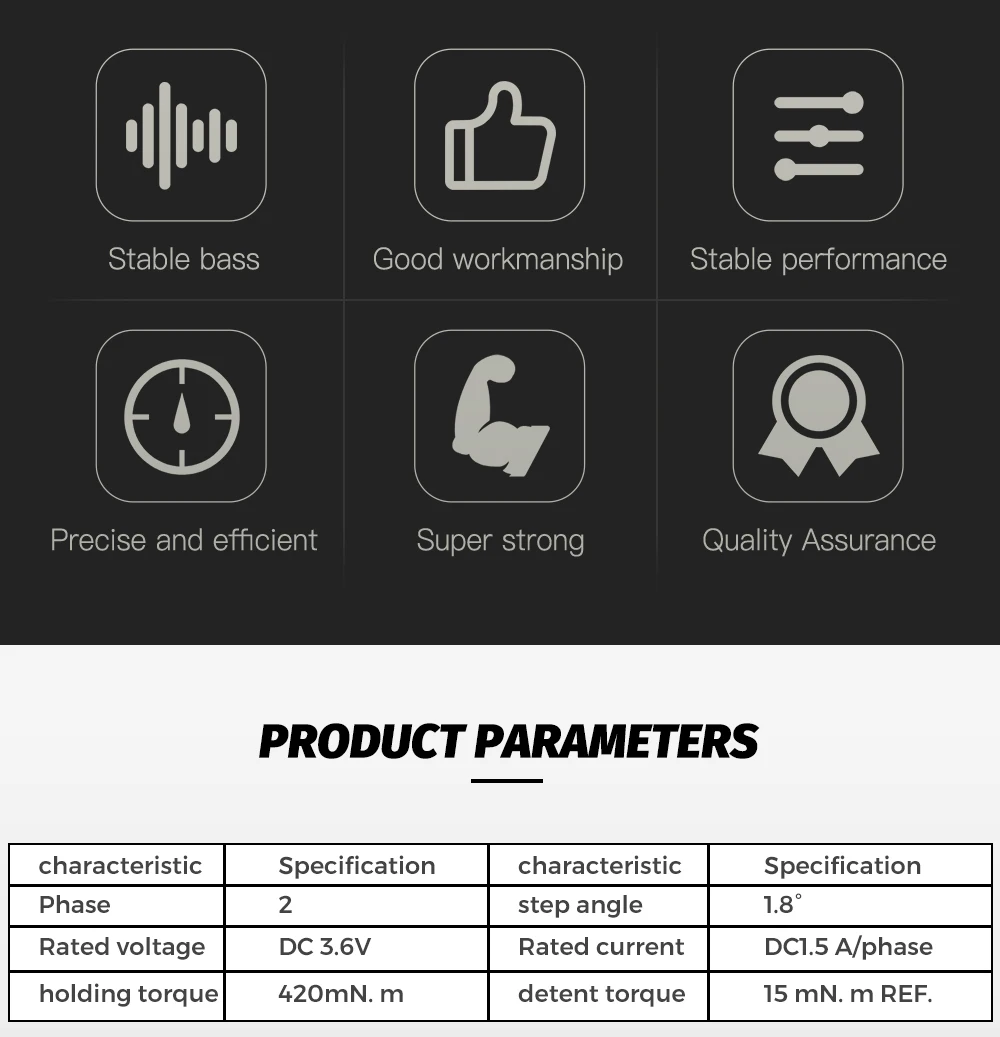

Feature Specification

Phase：2

Rated Voltage：DC 3.6V

Phase Resistance(20℃)：2.4*(1±15%)Ω/Phase

Holding Torque：≥420mN.m

Rotating direction：A-C B-D Clockwise

Maximum slewing rate：≥1900 PPS

Electrical strength：AC600V/1mA/1S

Step Angle(degrees)：1.8°±0.09°

Rated Current：DC 1.5A/Phase

Phase Inductance：3.7*(1±20%)mH/Phase

Positioning Torque： 15 mN.m    REF.

Maximum starting rate：≥1500 PPS

Insulation resistance：≥100 MΩ (DC 500V)

Insulation class：B

product features



1. The rotation speed is uniform and no step is lost.

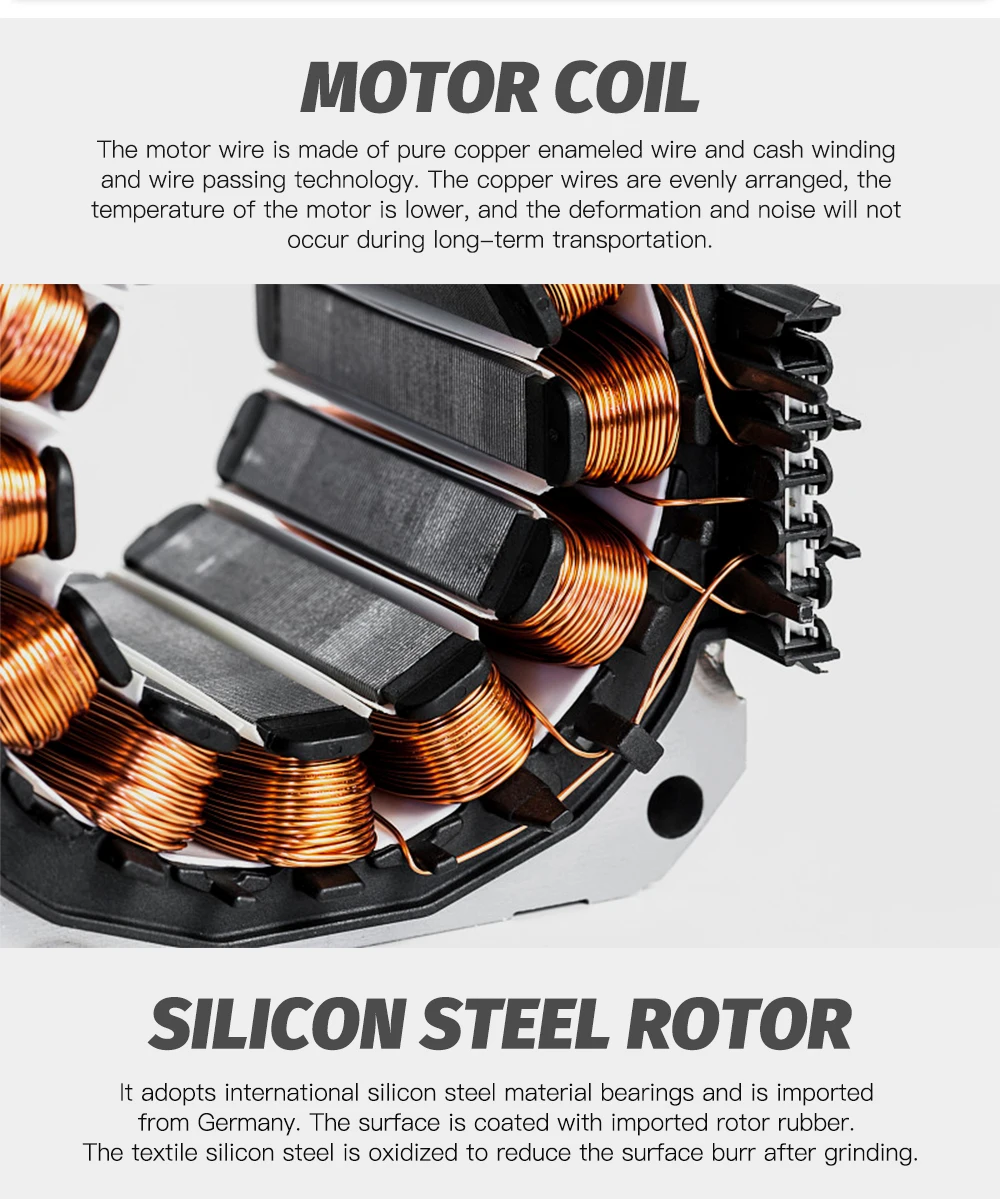

The PCB board is strengthened in the motor, and the unique stator technology is adopted,

Ensure that the stator teeth of the motor are ground uniformly and cleanly, and the internal control accuracy is high.

The speed is stable and accurate without losing step during the working process.



2. Stable structure, no jamming



The surface of the motor rotor is coated with imported epoxy resin, which seals the rotor as a whole and is cured at high temperature.After the rotor is processed by abrasion, machining residues such as iron pins are not easy to appear in the tooth grooves.The motor is stable even after long-term use. There is no risk of jamming.



3. Stable speed and low noise



The motor has high overall stability, uniform rotation speed and low noise through Kossel Prusa I3, Ultmaker, corexy and other motors. Users can purchase with confidence.
