SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 600mbps

5G Wi-Fi Transmission Rate: 2167Mbps

Antenna Type: Fixed

Application: Soho

Brand Name: comfast

Certification: CE,FCC,RoHS,UL

Choice: yes

Frequency: 5 GHz

Frequency Band Class: Dual-Band

Frequencyband: 5470–5725MHz

Function: Firewall,QoS,VPN,VOIP

High-concerned chemical: none

LAN Ports: 2

Max. LAN Data Rate: 1900Mbps

Model Name: CF-EW65

Number of USB Interfaces: None

Origin: Mainland China

Package: Yes

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac

Support Mesh: Support

Supports WDS: No

Supports WPS: No

Telecomcableconnected: Yes

Type: WireLess

WAN Ports: 2 x10/100Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

Wi-Fi Transmission Standard: 802.11ac

Wired Transfer Rate: 10/100/1000Mbps

Wireless Communication Standard: 802.11.ax

Wireless transmission rate: 600m

With Modem Function: No

comfast Model: WR-150N

semi_Choice: yes

COMFAST AX3000 Outdoor Access Point WiFi Booster Dual Band 2.4G/5.8GHz Extender IP66 Waterproof High Power Wifi Router/Repeater

Description

CF-EW65 is a high-power outdoor AP with dual band 2974Mbps wireless transmission rate, designed with two high gain antennas,Ensure full signal coverage of 360 °. Rigorous outdoor shell design, waterproof, lightning proof, moisture-proof, and antifreeze. Can be used outdoors WiFi coverage base station, suitable for various outdoor places such as squares, resorts, scenic spots, etc.

Pure white appearance design, simple and elegant

IP66 protection industrial shell waterproof and antifreeze

Wall hanging/pole installation and assembly are simple

Flexible deployment of 48VPoE power supply points

ABS material is heat-resistant and compressive resistant

The work indicator light is convenient for observing the working status of the equipment

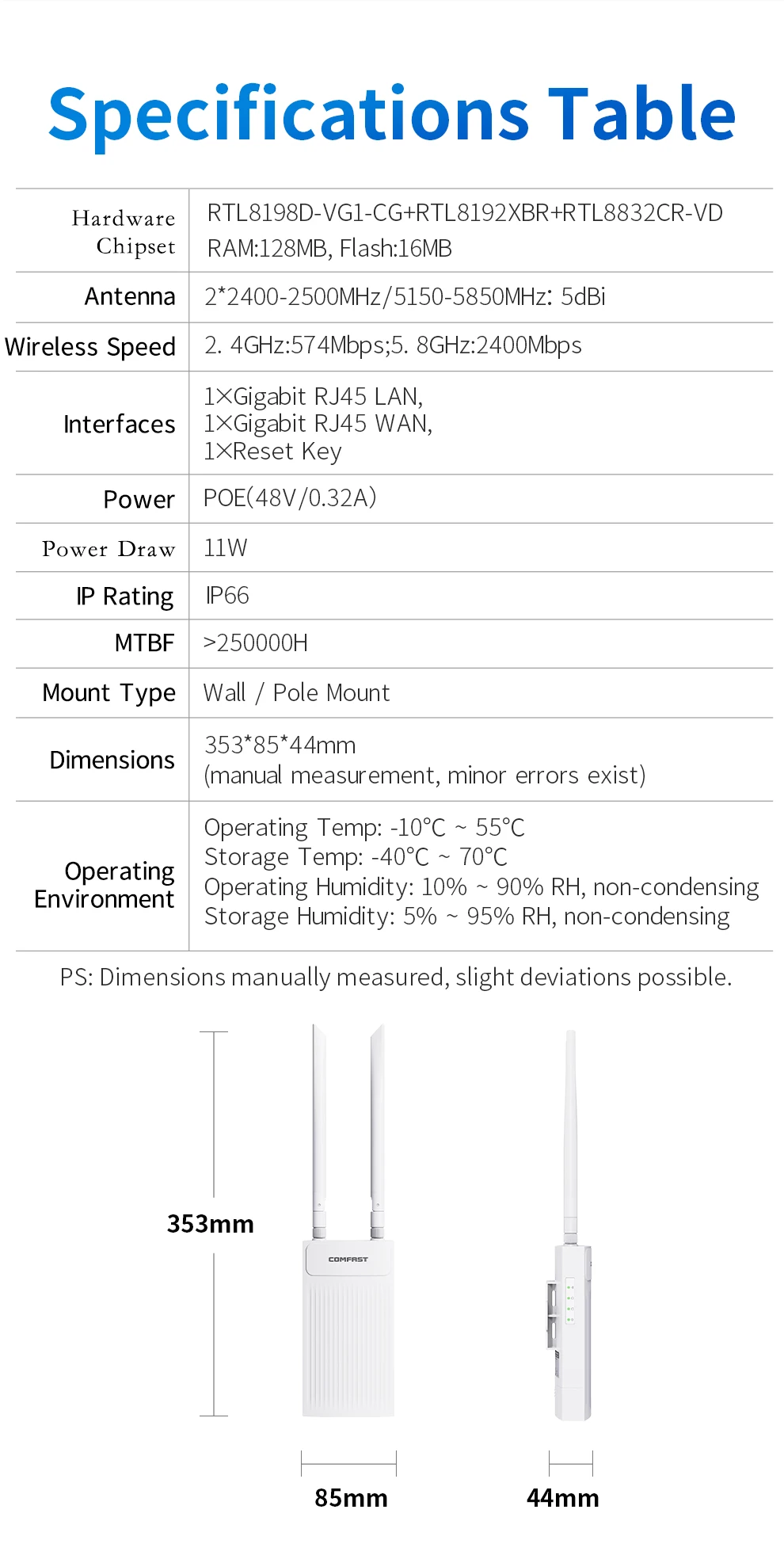

Specifications:

RTL8198D-VG1-CG+RTL8192XBR+RTL8832CR-VD brand chip solution, with stable performance;

2.4GHz&5.8GHz dual band signals are more stable and efficient in anti-interference;

48V standard PoE power supply ensures safety and makes construction more convenient;

2974Mbps wireless speed for high-speed transmission, providing a better internet experience;

The wireless protocol standard supports the IEEE 802.11a/b/g/n/ac/ax protocol;

High gain antenna provides strong signal and 360 degree all-round coverage;

Hardware specifications: RTL8198D-VG1-CG+RTL8192XBR+RTL8832CR-VD chip solution

Wireless standard: Supports IEEE802.11a/b/g/n/ac/ax standards

Memory Flash: Memory: 128MB; Flash: 16MB

Modulation techniques: BPSK, QPSK, CCK, 0FDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

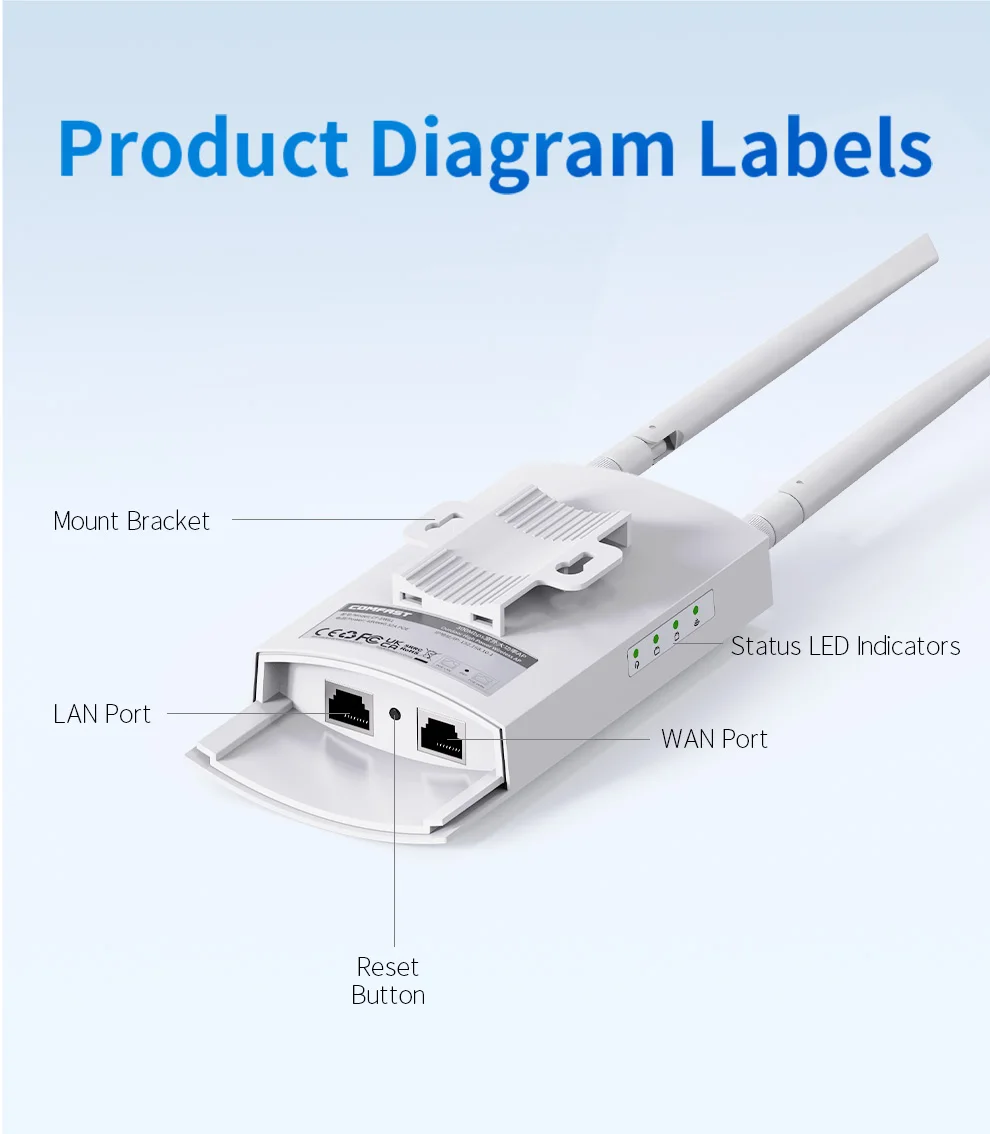

Physical interface: 1 10/100/1000Mbps RJ45LAN Ethernet port: 1 10/100/100Mbps RJ45WAN Ethernet port: 1 RESET reset button

Wireless speed: 2.4GHz: 574Mbps; 5.8GHz:2400Mbps

Antenna gain: 2 * 2400-2500MHz/5150-5850MHz: 5dBi

Power parameters: POE48V/0.32A

Maximum power consumption: 11W

MTBF：>25000h

Protection level: WPA/WPA2/WPA3

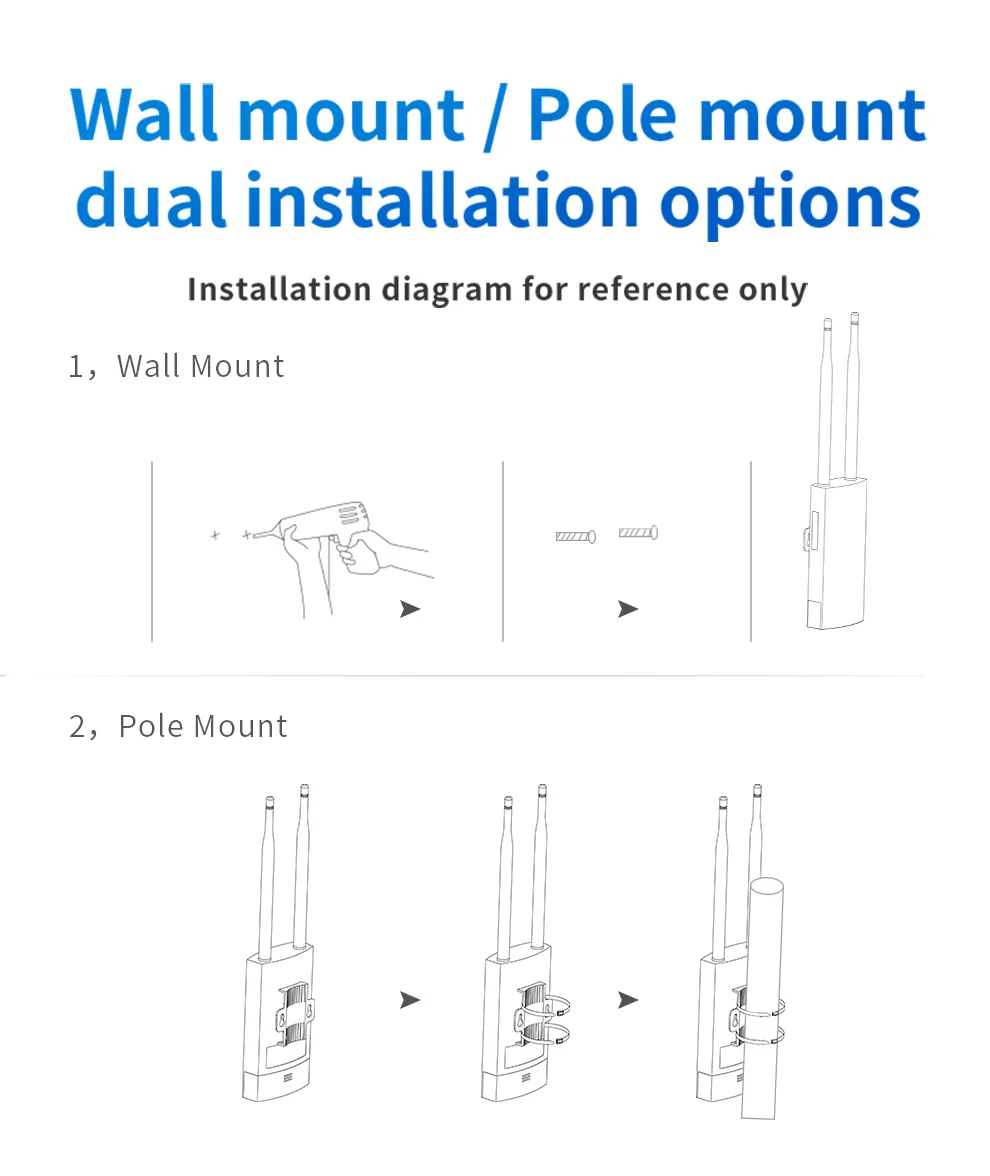

Installation method: wall mounted, pole mounted installation

Product size: IP66 plastic shell, external dimensions 353 * 85 * 44mm; (manual measurement may have errors, for reference only)

Indicator lights: power light, network port light, WiFi light

Packing List:

1* Outdoor AP
1* 48V POE Power Adater
1* 1.5M Network Cable
2* Screws
2* Stainless lock tie
1* User manual
1* Warranty Card

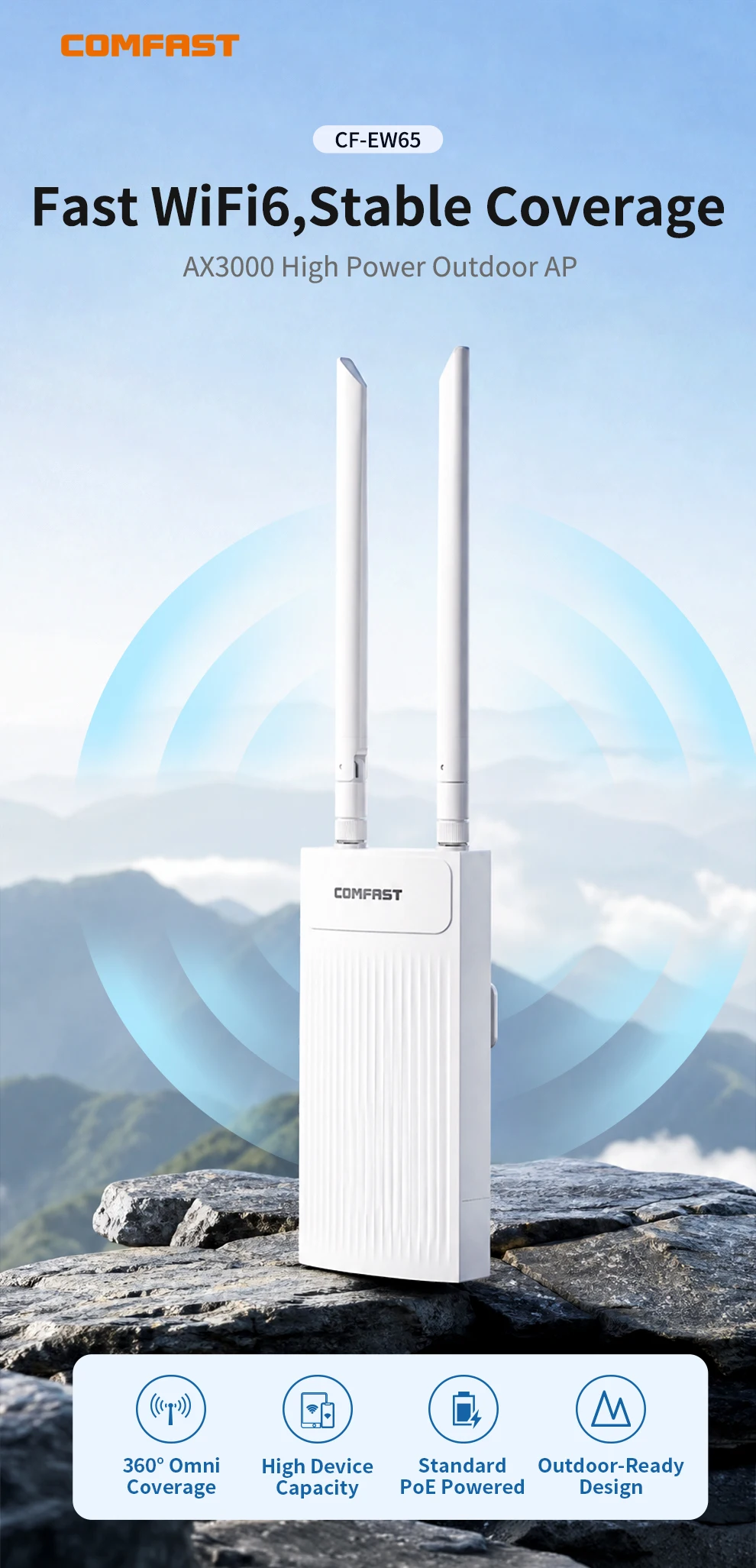

Fast WiFi6,Stable Coverage
AX3000 High Power Outdoor AP

Tired of These OutdoorAP Troubles?

Professional Hardware for Diverse Outdoor Networking Built for outdoor use,ideal for parks,plazas&construction sites

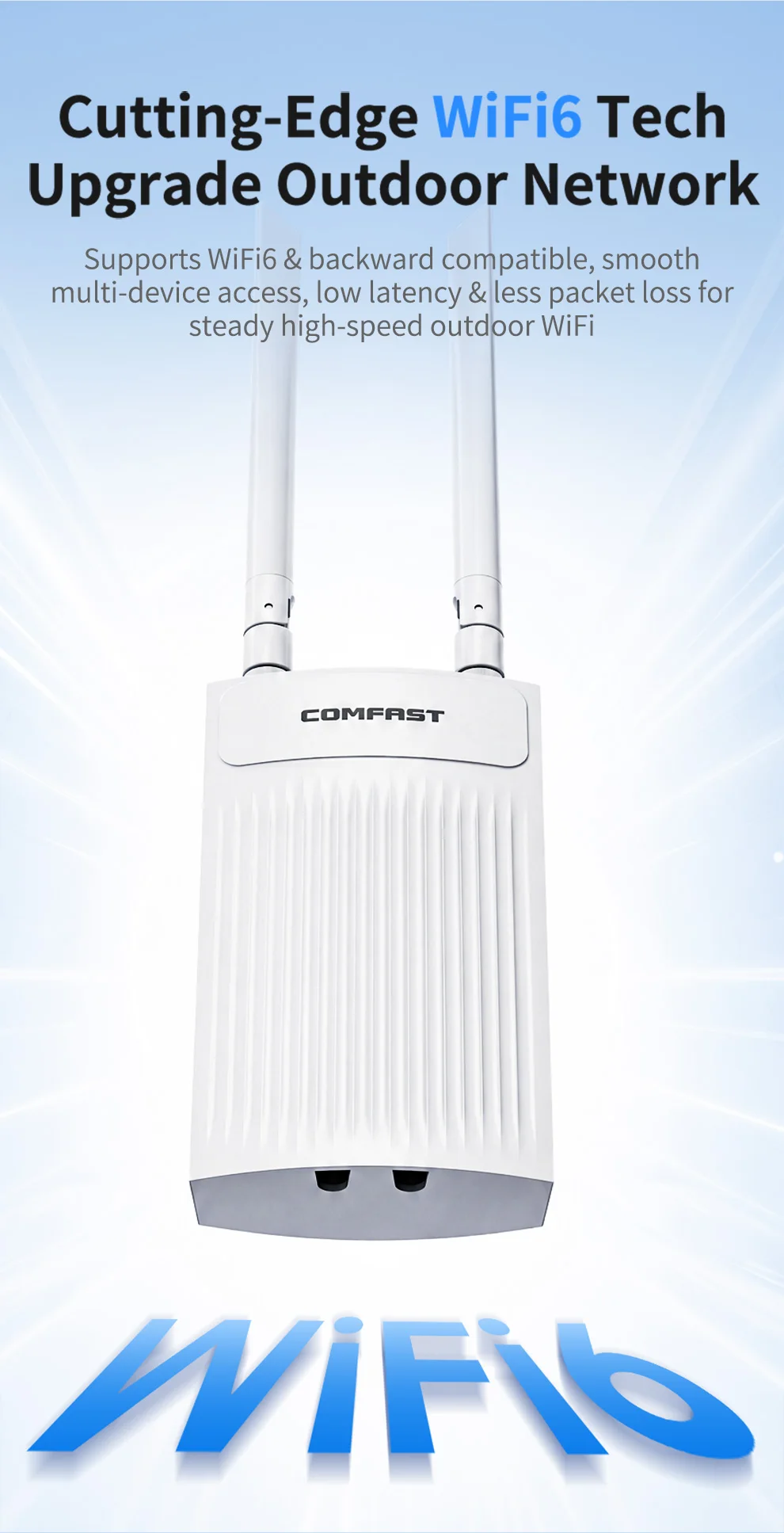

Cutting-Edge WiFi6 Tech
Upgrade OutdoorNetwork
SupportsWiFi6&backward compatible,smooth
multi-device access,low latency &less packet loss for

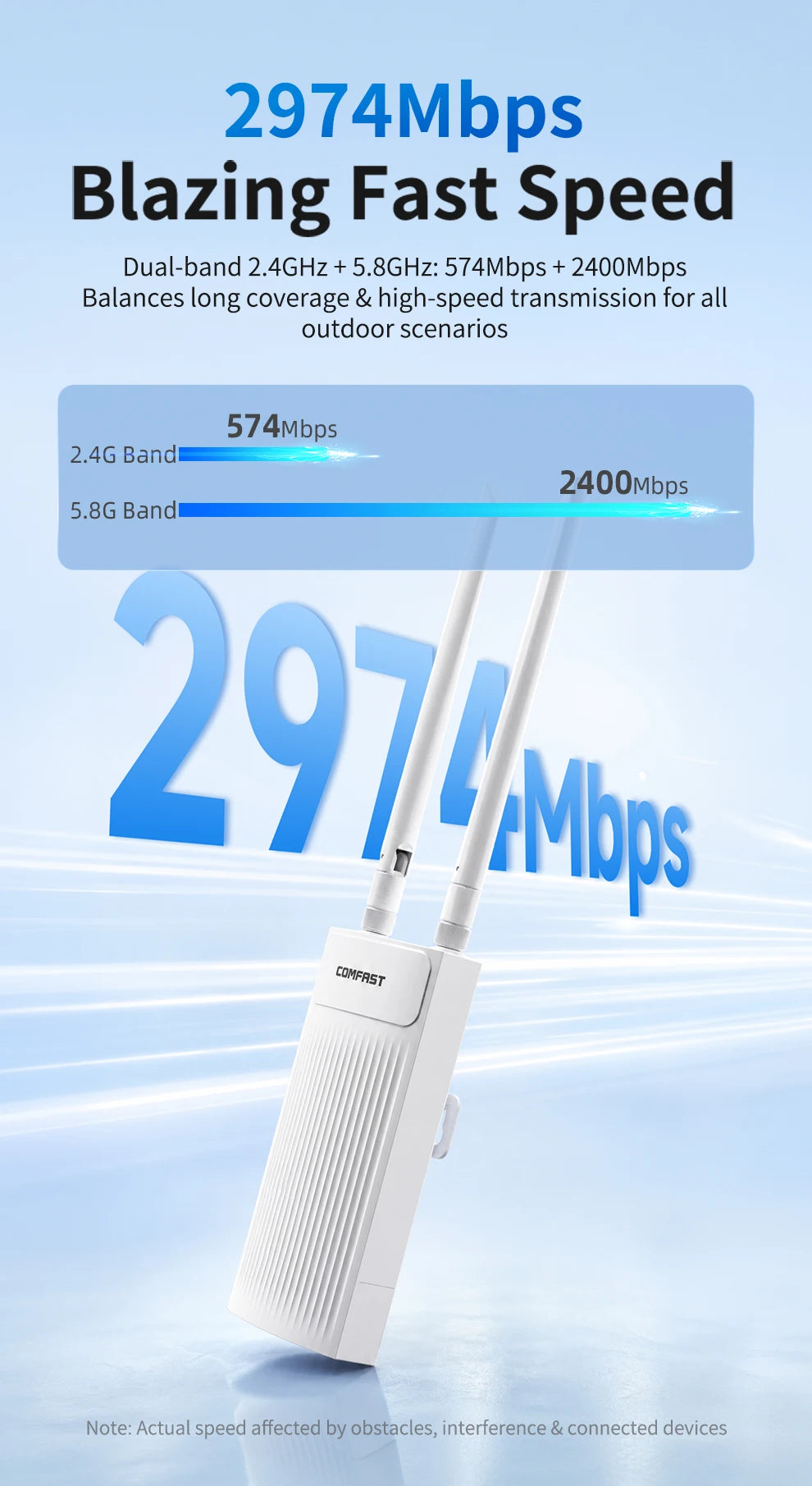

steady high-speed outdoor WiFi2974Mbps Blazing FastSpeed Dual-band2.4GHz+5.8GHz:574Mbps+2400Mbps Balances long coverage & high-speed transmission for all outdoorscenarios

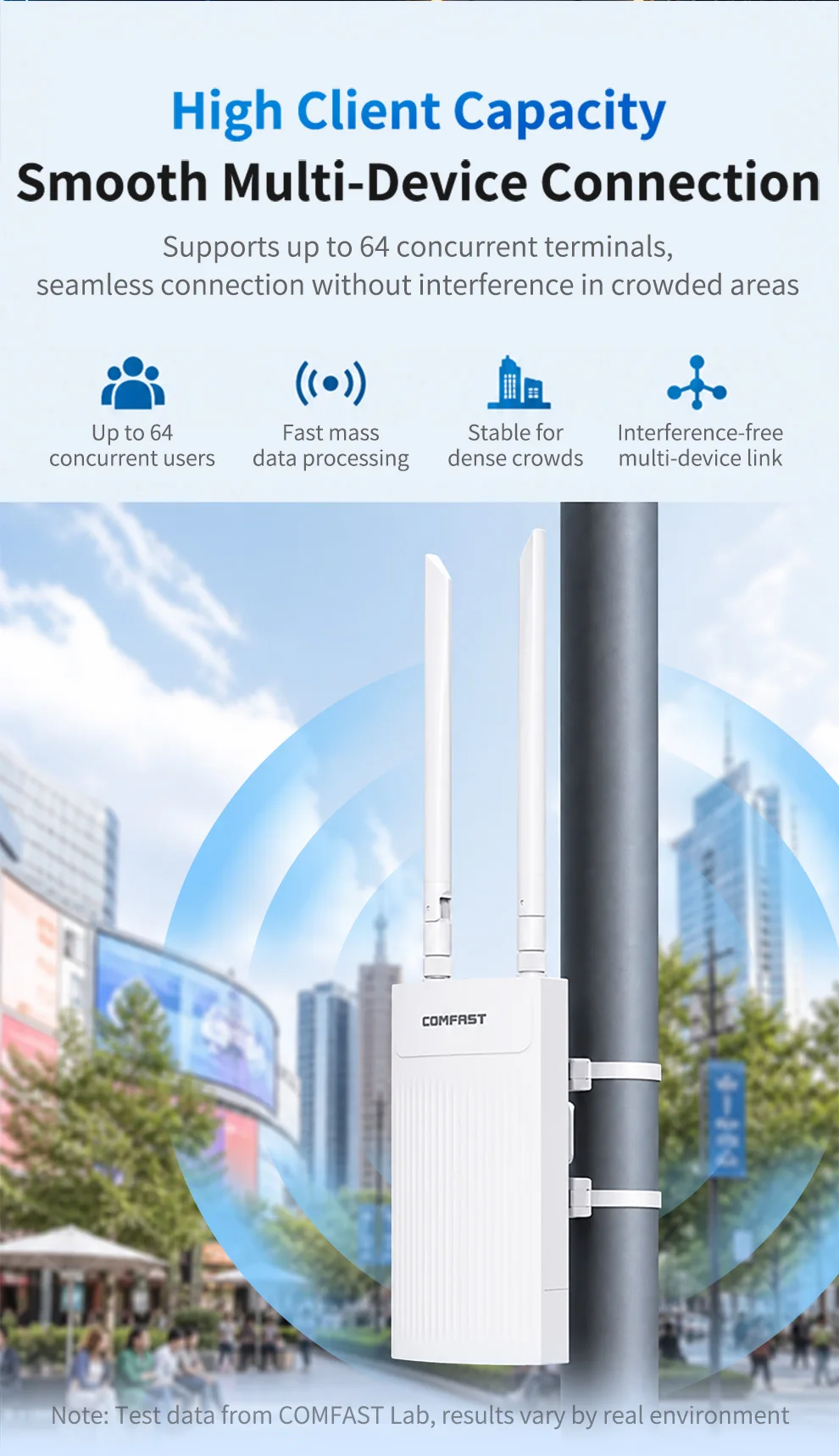

Premium Chipset Strong Computing Performance Powerfulprocessorhandlesheavymulti-devicedatatraffic,stablelong-termoutdoor transmissionHigh Client Capacity Smooth Multi Device Connection Supportsup to 64 concurrent terminals,seamless connection without interference in crowded areas

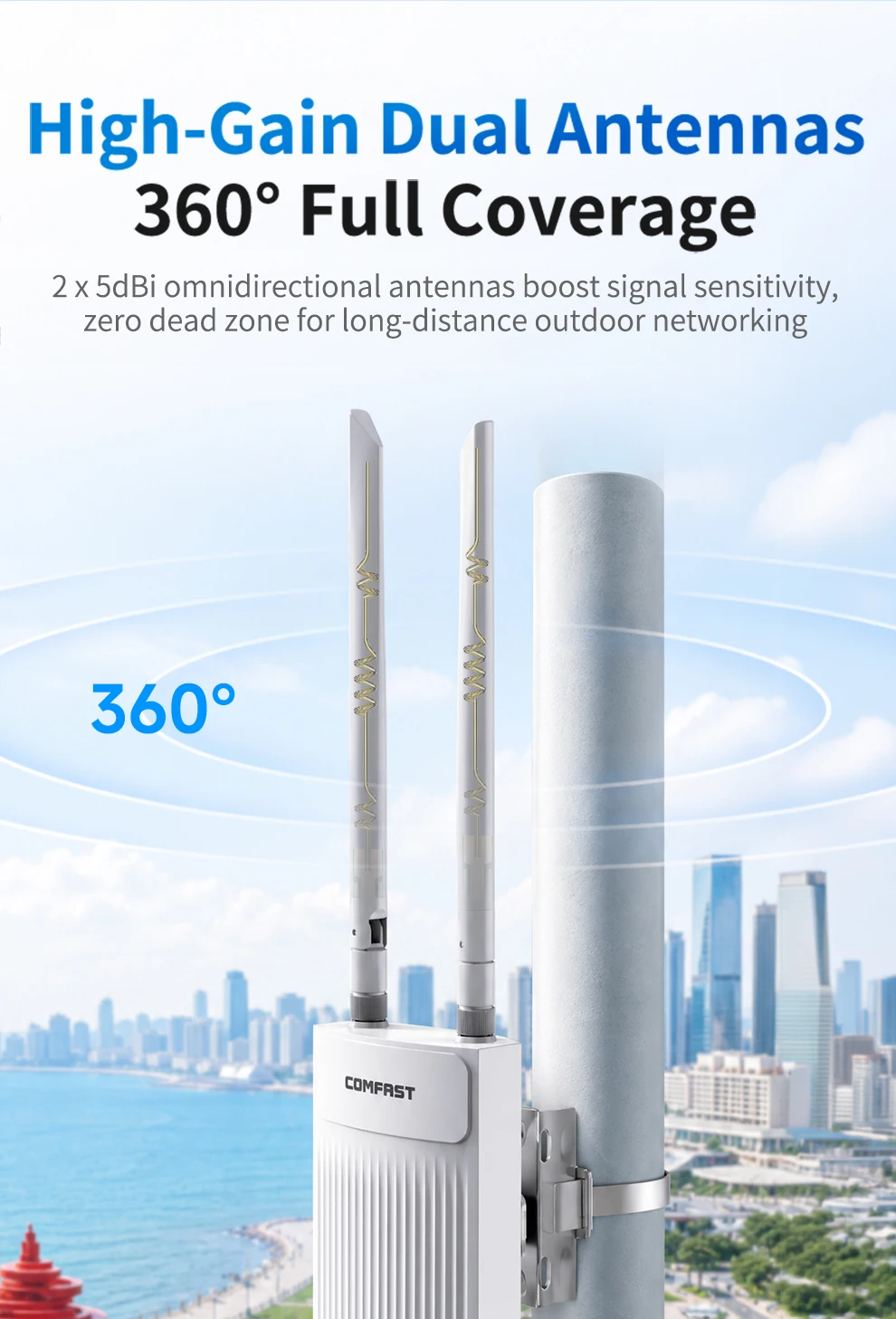

High-Gain Dual Antennas 360°FullCoverage 2 x5dBi omnidirectional antennas boost signal sensitivity,zero dead zoneforlong-distanceoutdoornetworking

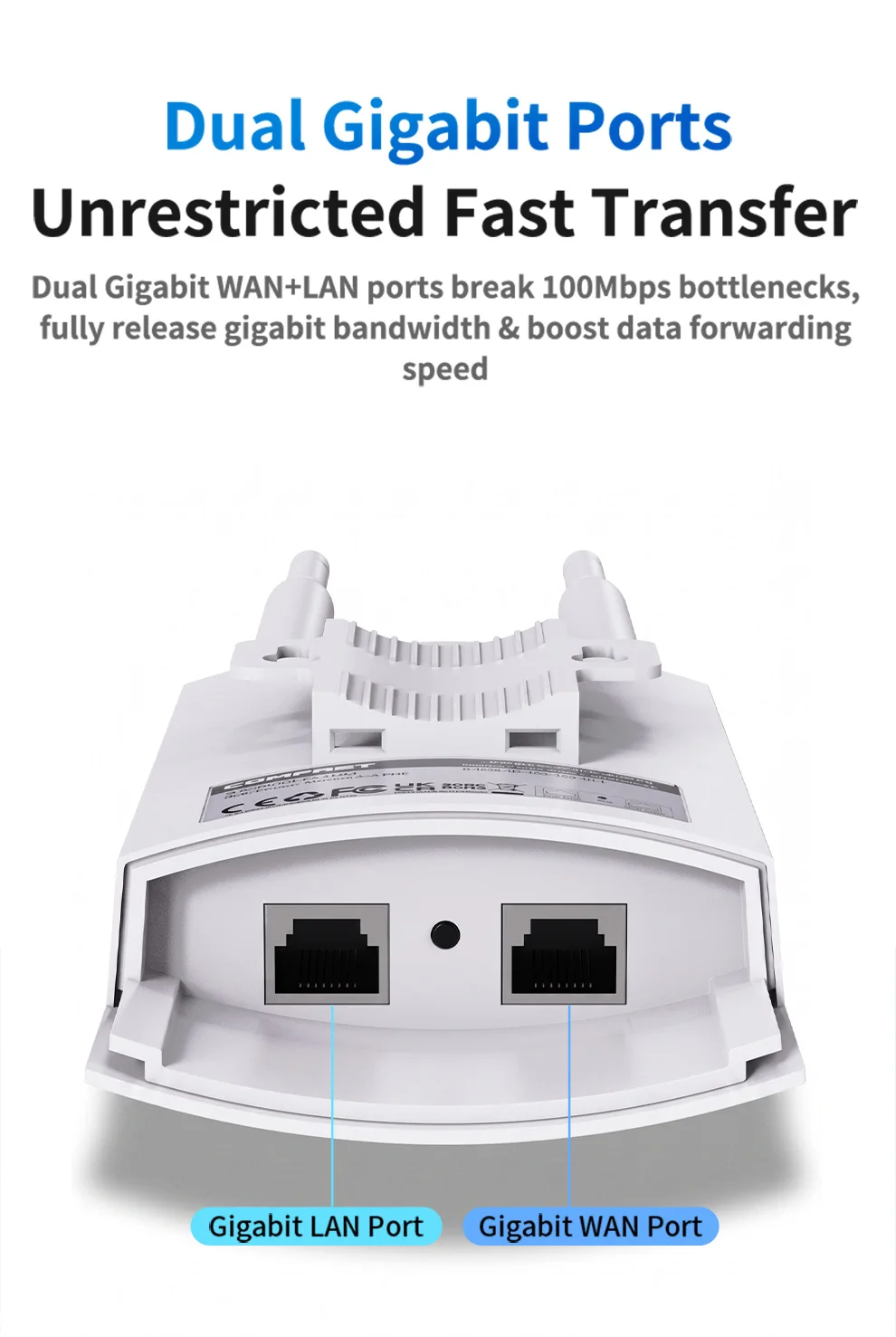

Dual Gigabit Ports Unrestricted Fast Transfer Dual GigabitWAN+LAN ports break 1ooMbps bottlenecks,fully release gigabit bandwidth&boost data forwarding speed

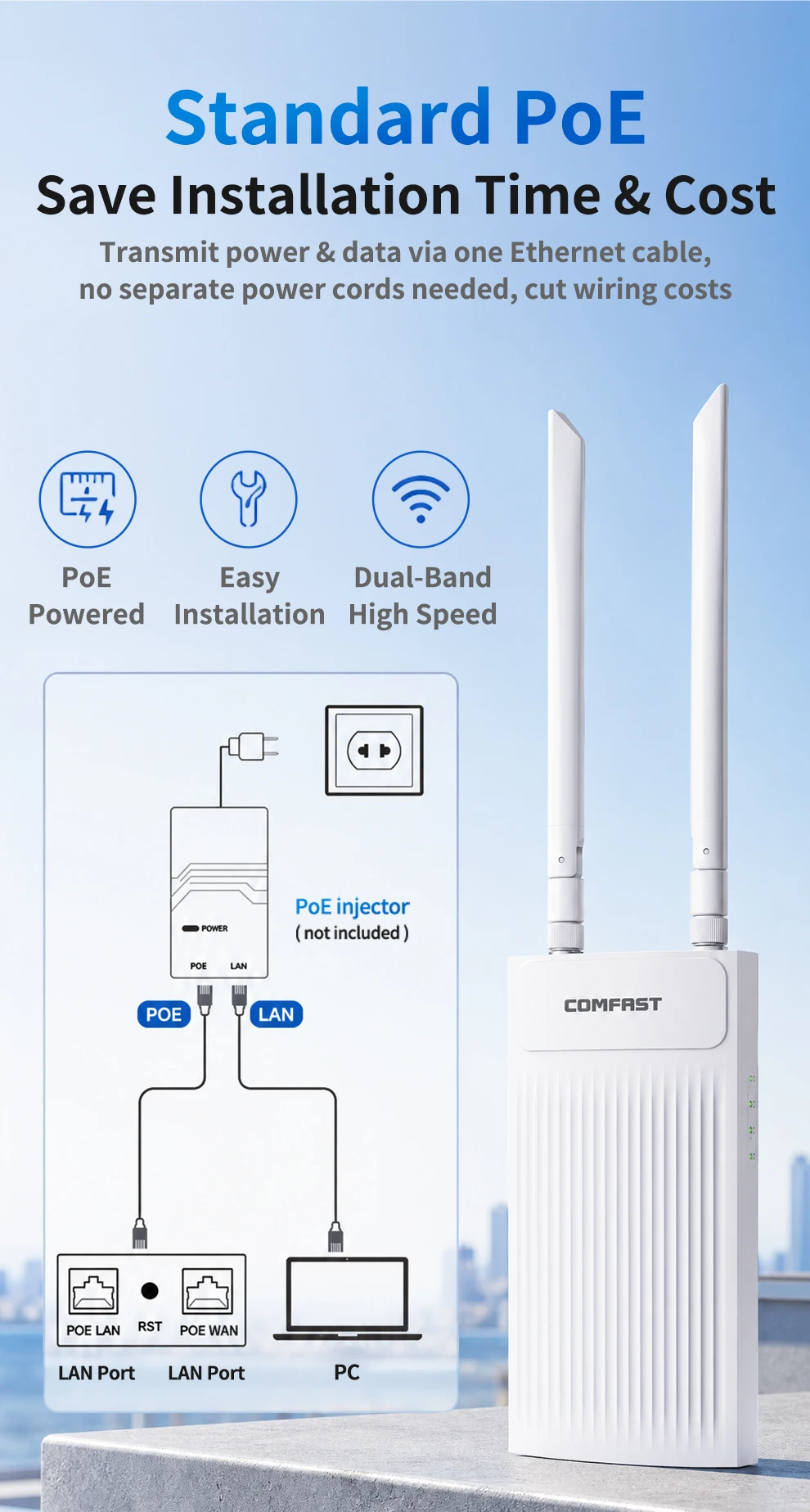

StandardPoE Save Installation Time & Cost Transmit power & data via one Ethernet cable,no separate power cords needed, cut wiring costs

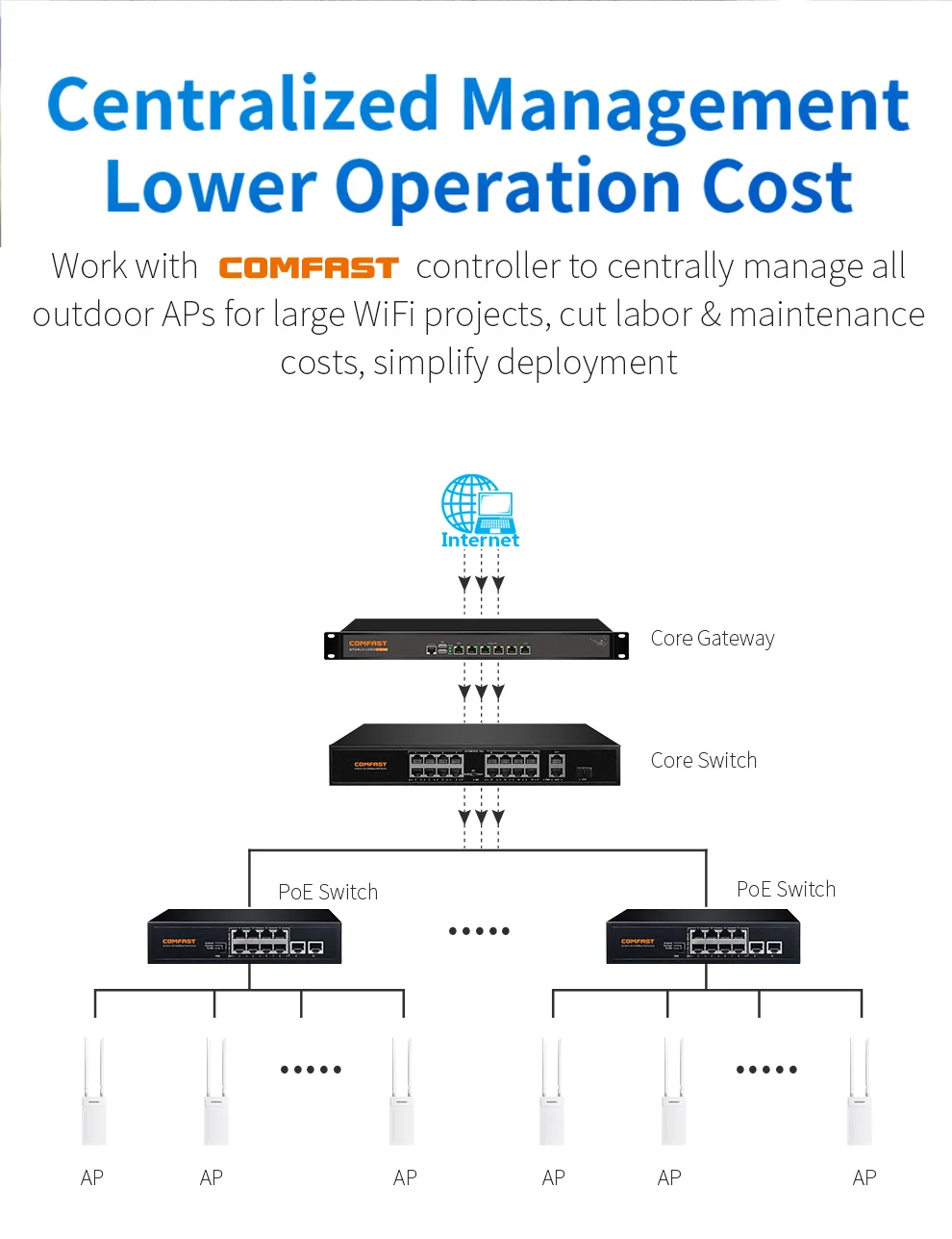

Centralized Managementr Operationn Cost Lower Work with COMFRST controller to centrally manage all outdoor APs for large WiFi projects, cut labor &maintenance costs, simplify deploymentIP66 fully sealed housing works year-round outdoors UV-proof,Waterproof,Dustproof,Frost

resistant,WideTempTolerance,AntiOxidation,Rustproof,Corrosion-resistant

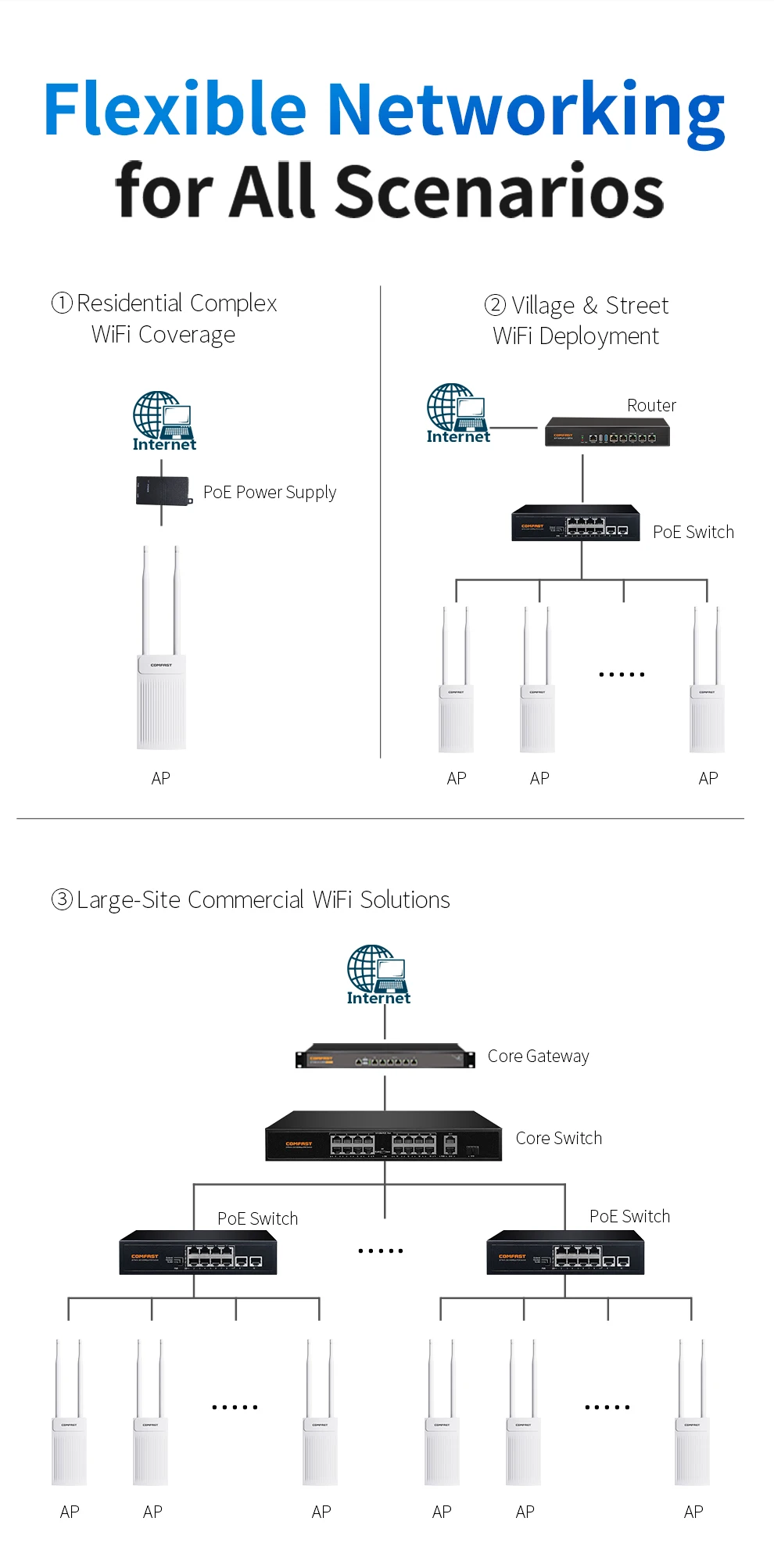

Flexible Networking for All Scenarios
