ECGSOLAX 6.5KW 5KW Hybrid Solar Inverter Pure Sine Wave 24V 48V 230V Off Grid Inverter 160A 120A Mppt Solar Controller With WIFI

5000W 24V WiFi / 220-240V

$699.58

$699.58 $0.00

ECGSOLAX 6.5KW 5KW Hybrid Solar Inverter Pure Sine Wave 24V 48V 230V Off Grid Inverter 160A 120A Mppt Solar Controller With WIFI

$699.58

$699.58 $0.00

SPECIFICATIONS

Brand Name: NONE

Certification: CE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature 1: Built-in WIFl

High-concerned chemical: None

MPPTRange@OperatingVoltage(VDC): 60 -450

MaxPV Charge Current(A): 120A

MaxPVInputCurrent/Power: 27A 9000W

MaxPVOpen Circuit Voltage(VDC): 500

Model Number: ECG-HVM

Origin: Mainland China

Output Current: 27A

Output Frequency: 50Hz-60Hz

Output Type: SINGLE

PV Start-upVoltage: 60Vdc

Size: 410*336*110mm

SolarChargerType: MPPT

Weight: 9KG

ECGSOLAX 6.5KW 5KW Hybrid Solar Inverter Pure Sine Wave 24V 48V 230V Off Grid Inverter 160A 120A Mppt Solar Controller With Built-in WIFI

Performance characteristics:

1.Pure sine wave inverter，Built-in MPPT solar charge controller

2.Built-in WIFI-GPRS remote monitoring

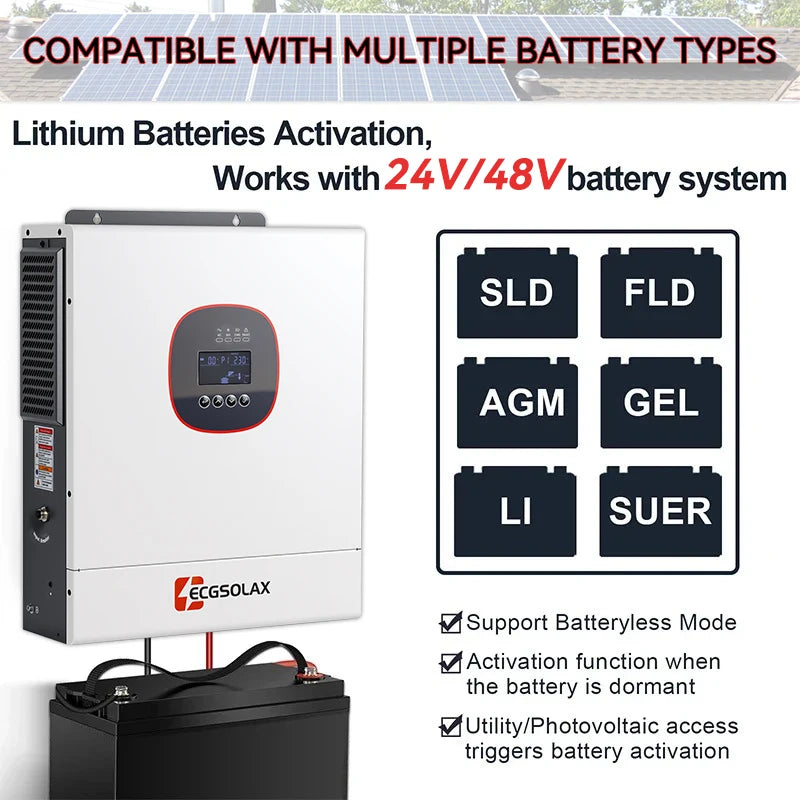

3.Supports connection of lead-acid battery and lithium battery,Compatible to mains voltage or generator power

4.Possessing complete short circuit protection, overvoltage and undervoltage protection, overload protection, back filling protection, etc.

5.Configurable input voltage range for home appliances and personal computers via LCD setting

6.Configurable battery charging current based on applications via LCD setting

Features1：

·Rated power 5KW/6.5KW , power factor 1

·MPPT range 60V~450V，500Voc

·High frequency with small size and light weight

·Pure sine wave AC output

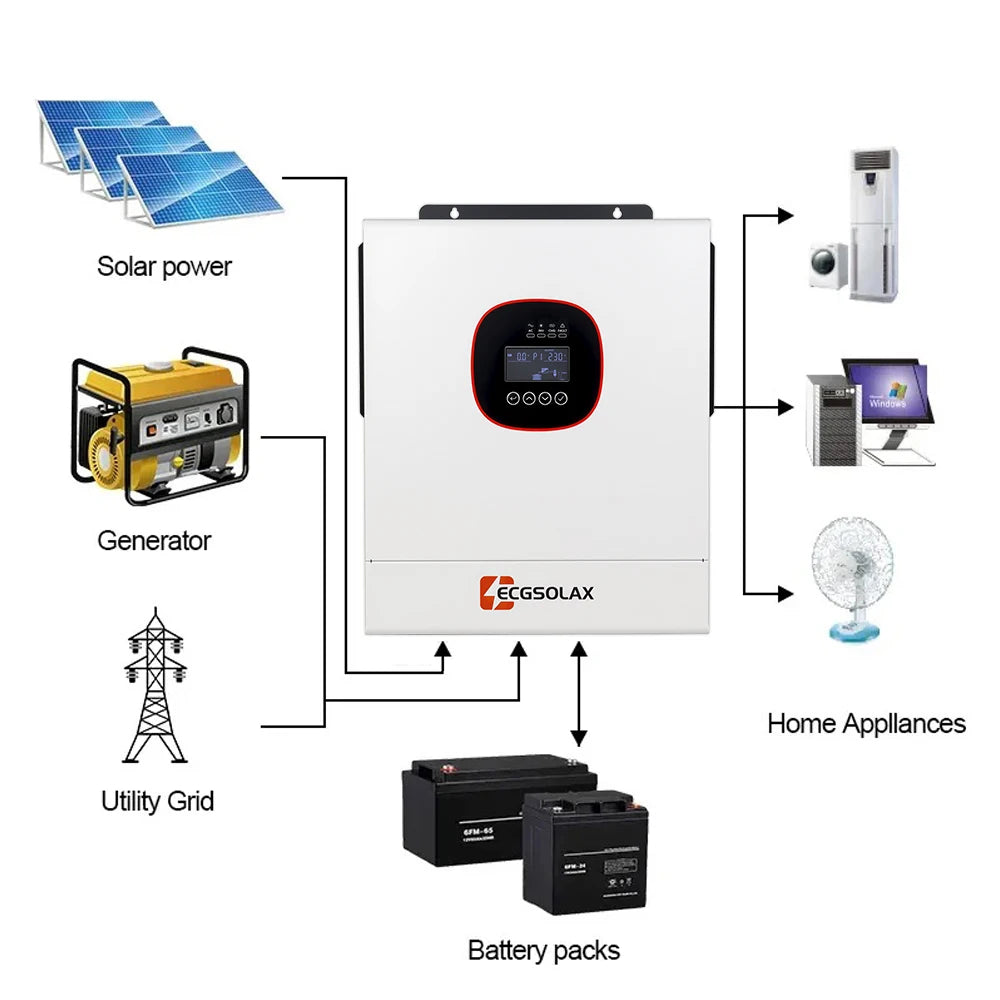

·Solar and grid power loads at the same time

Features2：

·CAN/RS485 for BMS communication

·Ability to work without battery

·WIFl remote monitoring（built-in)

·Dual AC output

·Feed-in to grid
