HAM Amateur Base Station Antenna Tunable GMRS Vertical Mobile Antennas 70cm 390-470MHZ 100W 6.0dBi SO239 Connector with Scale
Default Title
€116,95
Angebotspreis
€116,95
Normaler Preis
Zu Produktinformationen springen
HAM Amateur Base Station Antenna Tunable GMRS Vertical Mobile Antennas 70cm 390-470MHZ 100W 6.0dBi SO239 Connector with Scale
€116,95
Angebotspreis
€116,95
Normaler Preis
Inkl. Steuern.
Versandkosten werden beim Checkout berechnet.
SPECIFICATIONS
Brand Name: nagoya
Cable Length: 100cm
Certification: CE,FCC,RoHS
Choice: yes
Connector Type: Soldering
Gain(dB): 6.0dBi
High-concerned chemical: none
Impedance: 50
Model Number: TXSSKD-1
Origin: Mainland China
Pins: WHITE
Specification: 3M
semi_Choice: yes
Tunable Base Antenna,Length adjustable

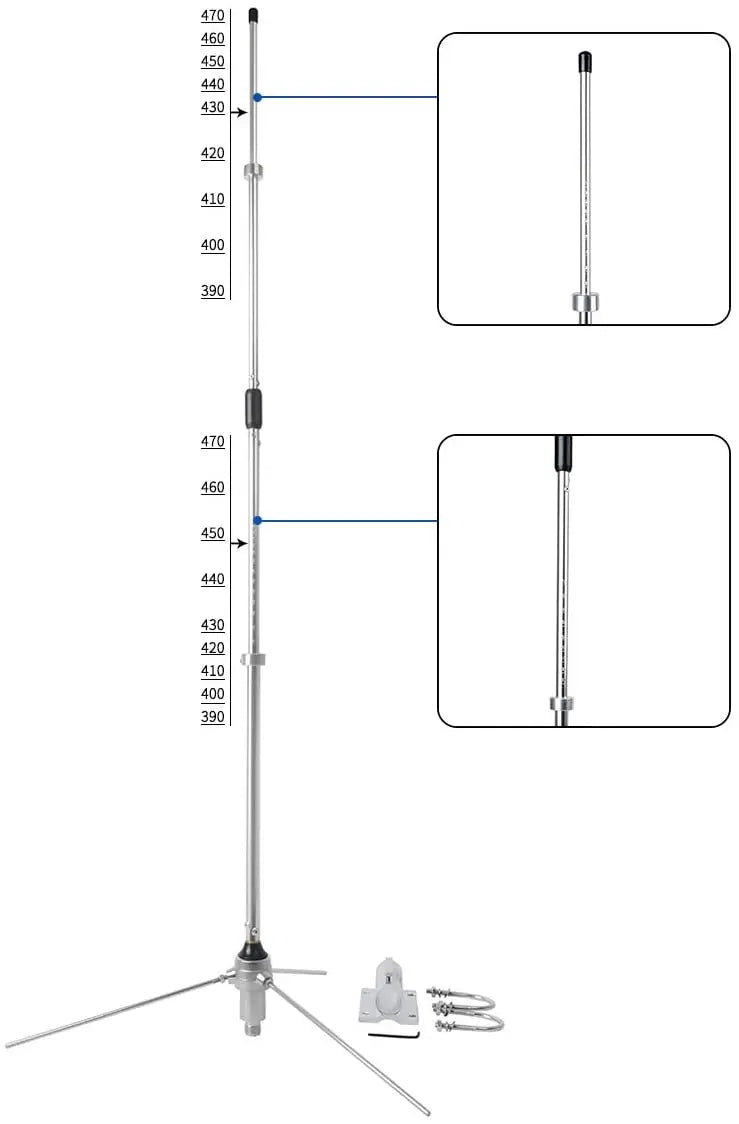

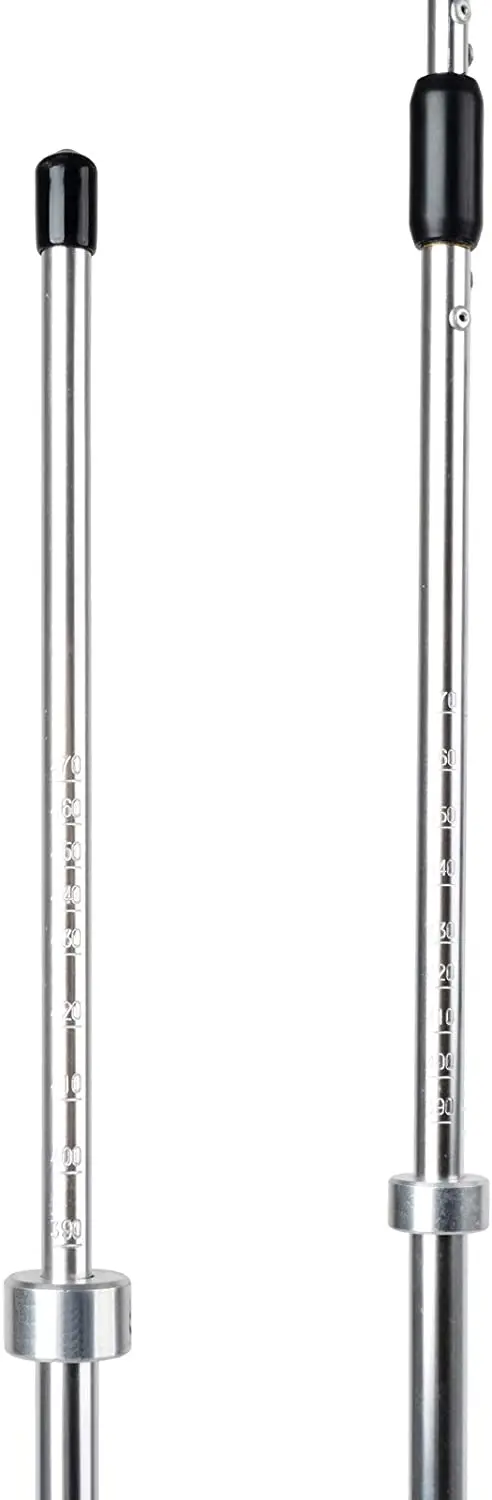

Adjust the length of the antenna according to the frequency you need(Unique calibration design)
Electrical specifications and Mechanical specifications
Frequency Range 390-470MHz
Impedance 50Ω
VSWR ≤1.5
Gain 6.0dBi
Horizontal Beam Width 360 Degree
Vertical Beam Width 17 Degree
Polarization Vertical
Lighting Protection Direct Ground

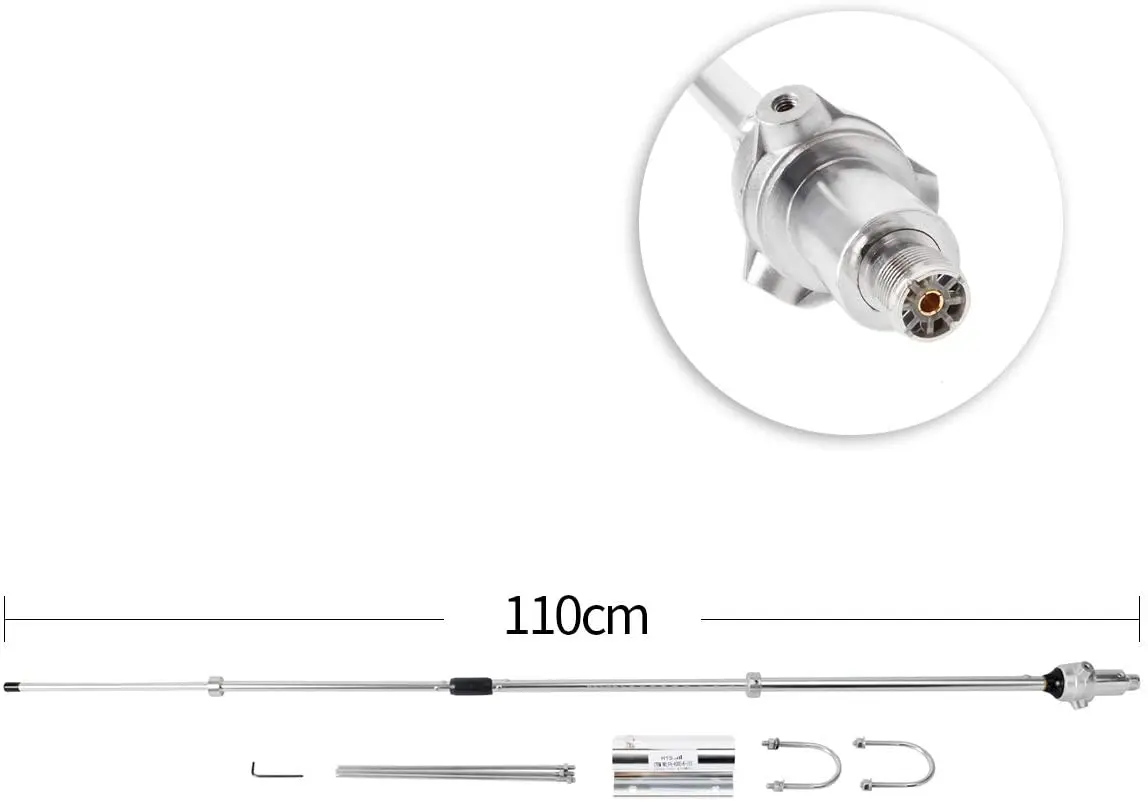

Dimension/Height 940-1100±10mm
Hold Pole Diameter Ø30-Ø60mm
Material of Hardware-supplied Aluminum Alloy
Connector SL-16K (FEMAL)/ UHF FEMALE / SO239
Radiating Element Material Aluminum Alloy
Adjust the length of the antenna according to the frequency you need(Unique calibration design)
Electrical specifications and Mechanical specifications
Frequency Range 390-470MHz
Impedance 50Ω
VSWR ≤1.5
Gain 6.0dBi
Horizontal Beam Width 360 Degree
Vertical Beam Width 17 Degree
Polarization Vertical
Lighting Protection Direct Ground
Dimension/Height 940-1100±10mm
Hold Pole Diameter Ø30-Ø60mm
Material of Hardware-supplied Aluminum Alloy
Connector SL-16K (FEMAL)/ UHF FEMALE / SO239
Radiating Element Material Aluminum Alloy
