SPECIFICATIONS

Brand Name: GIZONT

Choice: yes

Gain(dB): 28

High-concerned chemical: none

Impedance: 50Ω

Origin: Mainland China

semi_Choice: yes

What Frequency specifications do you choose we will ship, please don't choose wrong, if you are not clear, please contact customer service.

The last three options in this link are for the convenience of customers, so three kinds of cables of different lengths are added, not including antenna. If antenna and cable are needed, please place the order together with antenna and cable. The default cable is SMA male head and N male head, if other connectors are needed, please contact customer service.

--------------------------------------------------------------------------

Electrical parameters:

Frequency :(698-960/1710-2700mhz small and medium) (698-6000mhz large)

Gain: small 12DB/ medium 18DB/ large 28DB

Standing wave: 2.0 or less

Impedance: 50 Ω

Polarization mode: vertical

Radiation direction: omnidirectional

Maximum power: 100 W

Lightning protection: DC ground

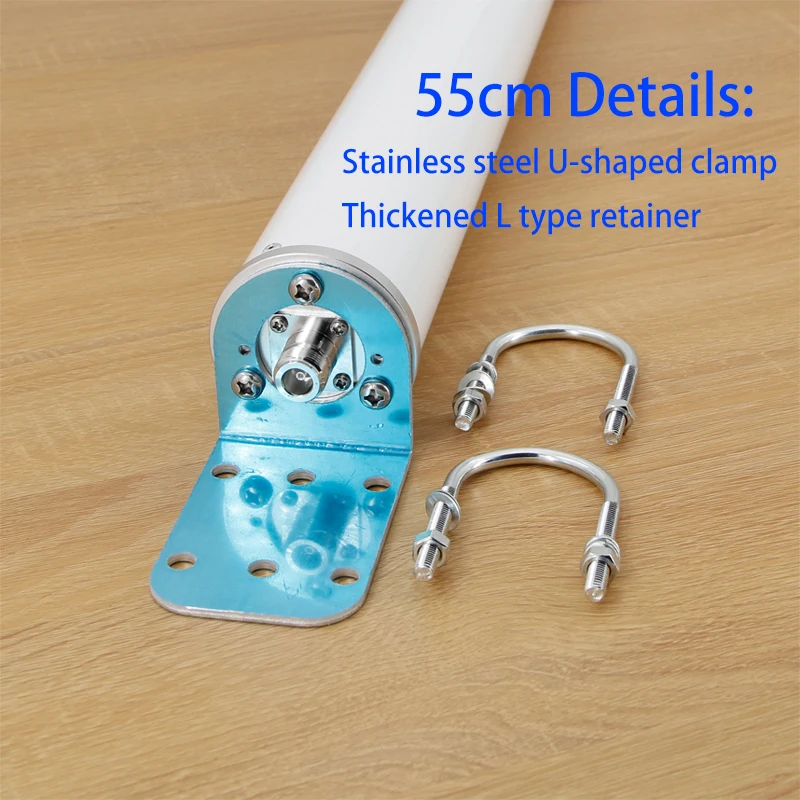

Connector type: N-K Female

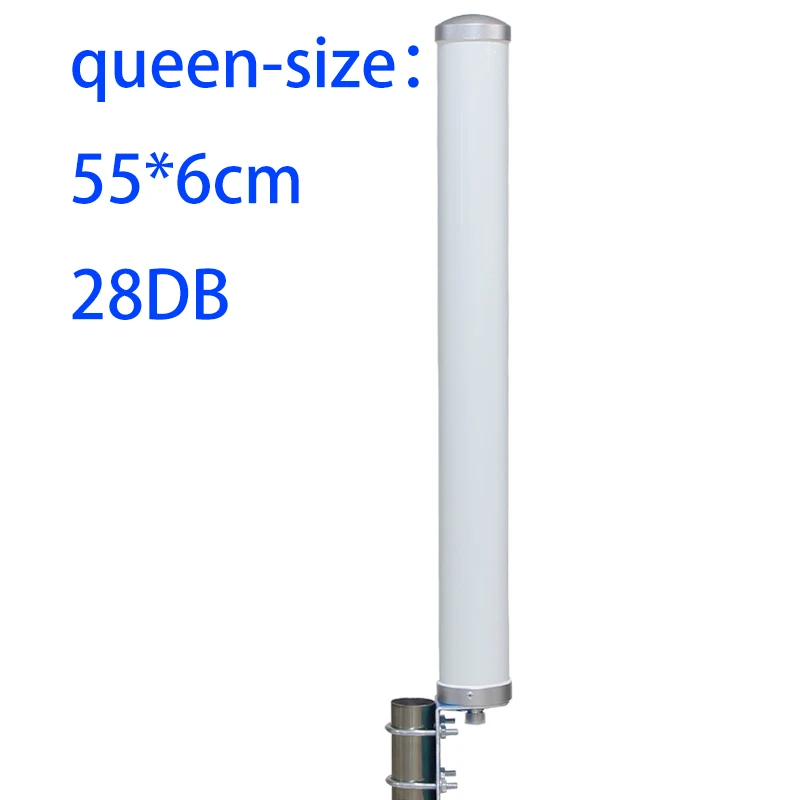

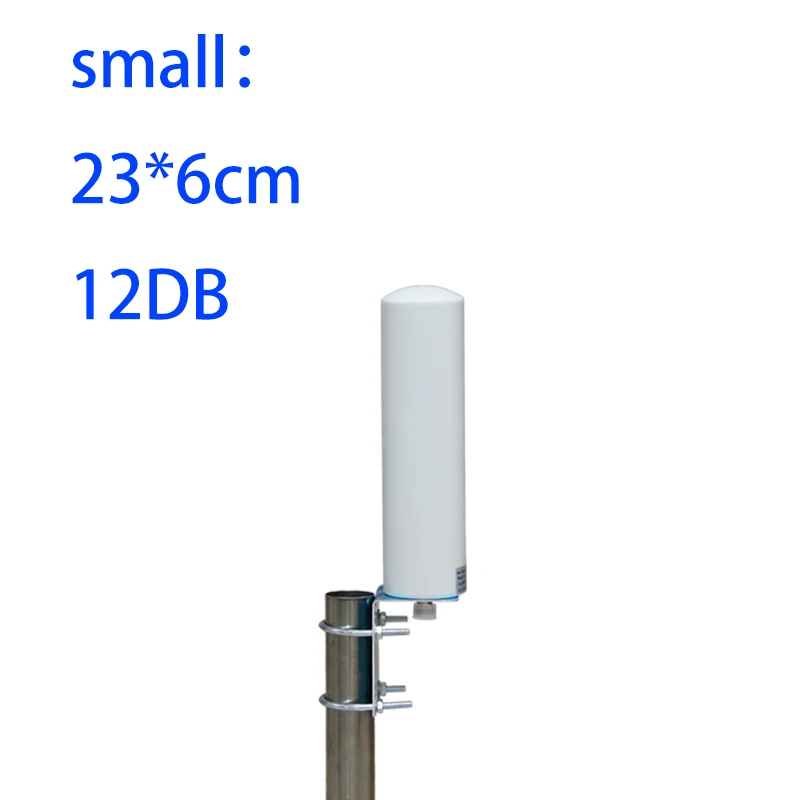

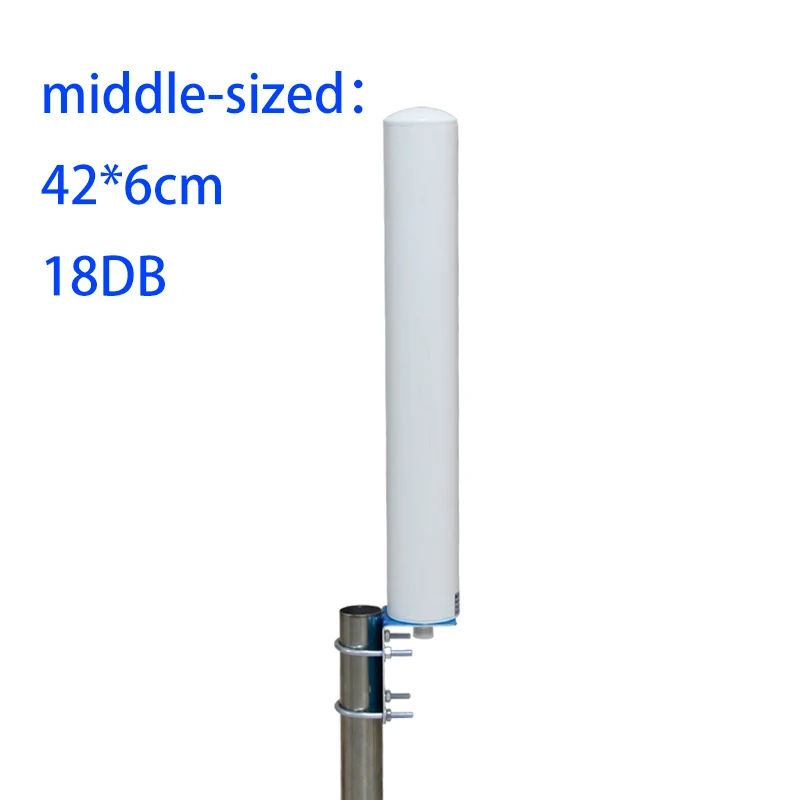

Antenna size:230*60mm/430*60mm/550*60mm

Radiation oscillator material: Aluminum (small and medium) / copper (large)

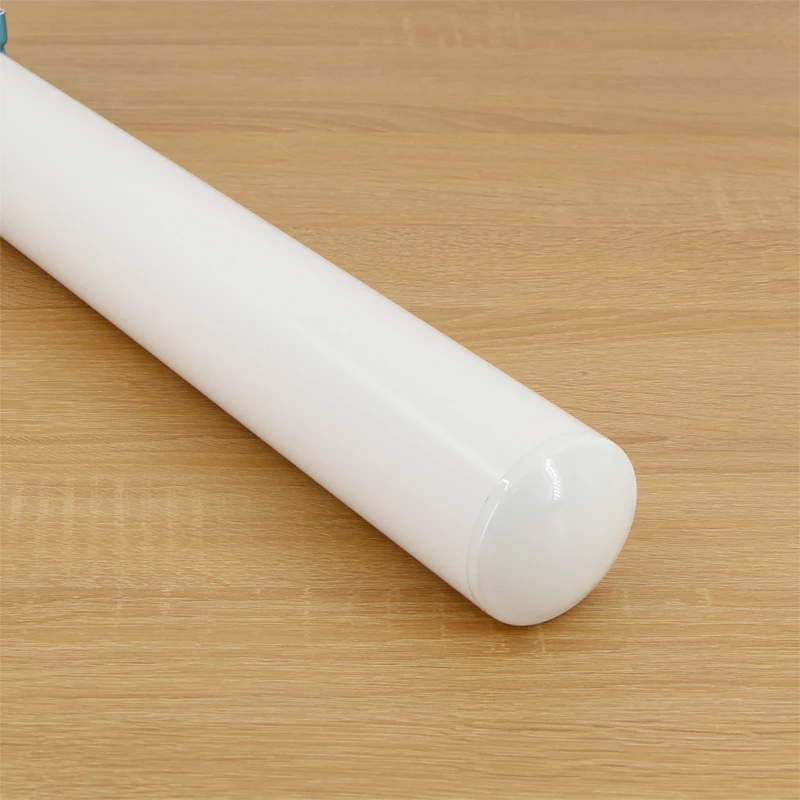

Exterior material: PVC (small and medium size)/FRP (large size)
