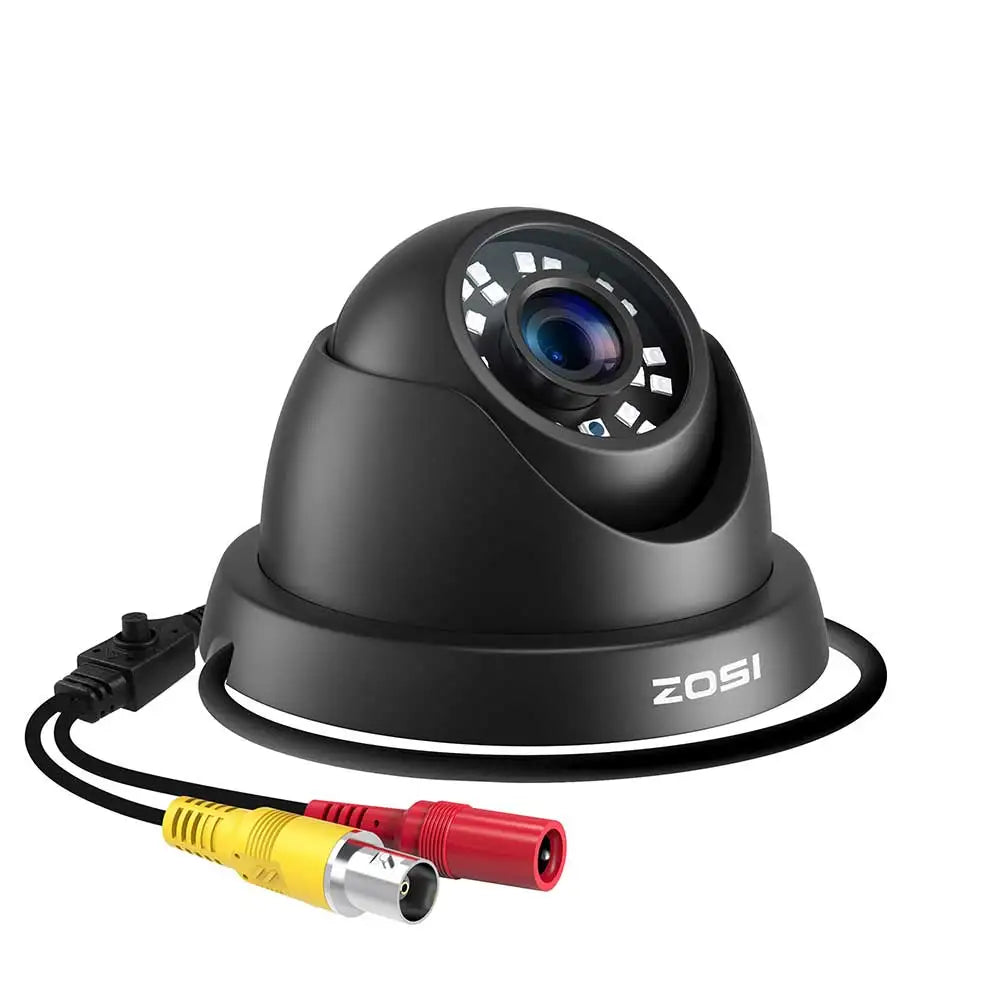

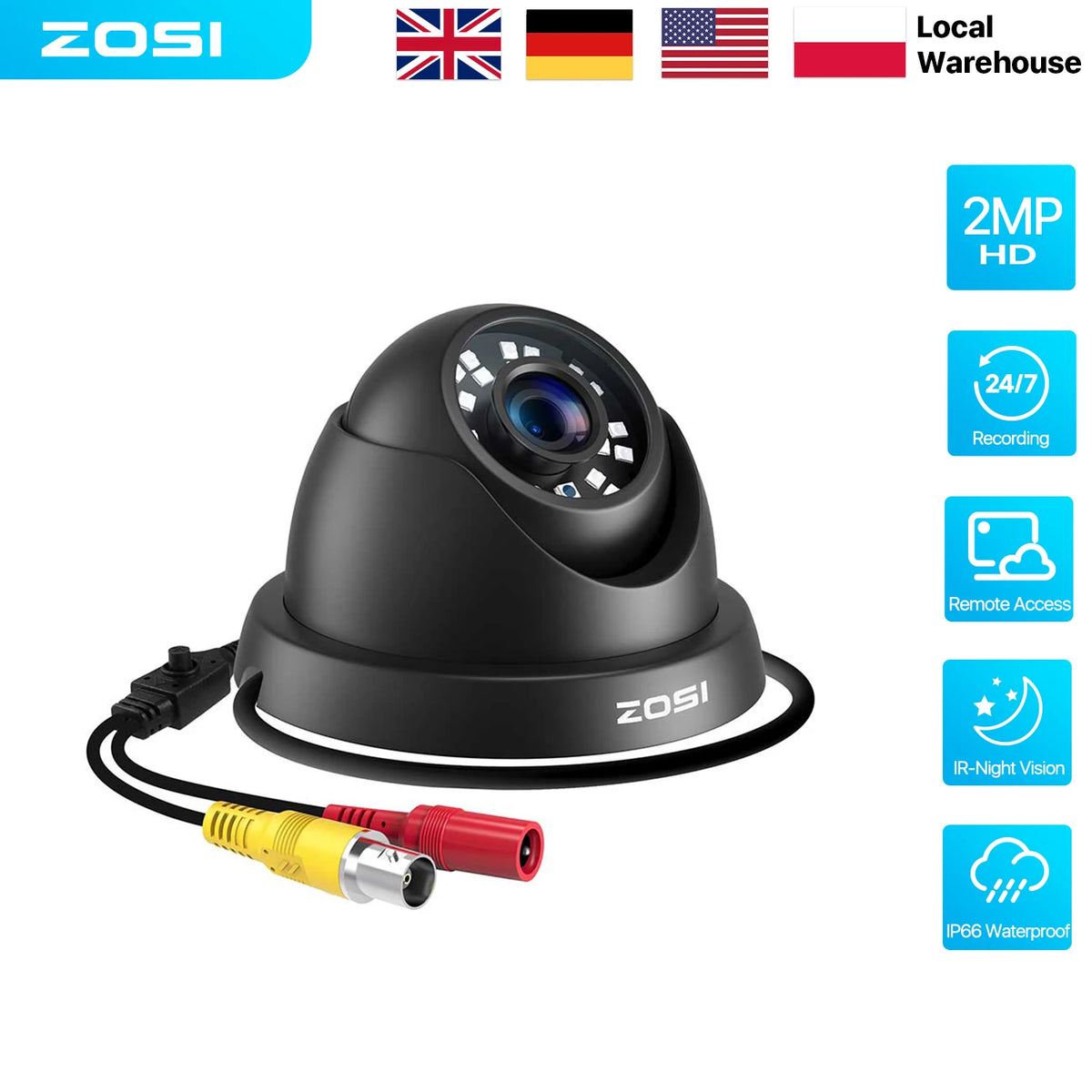

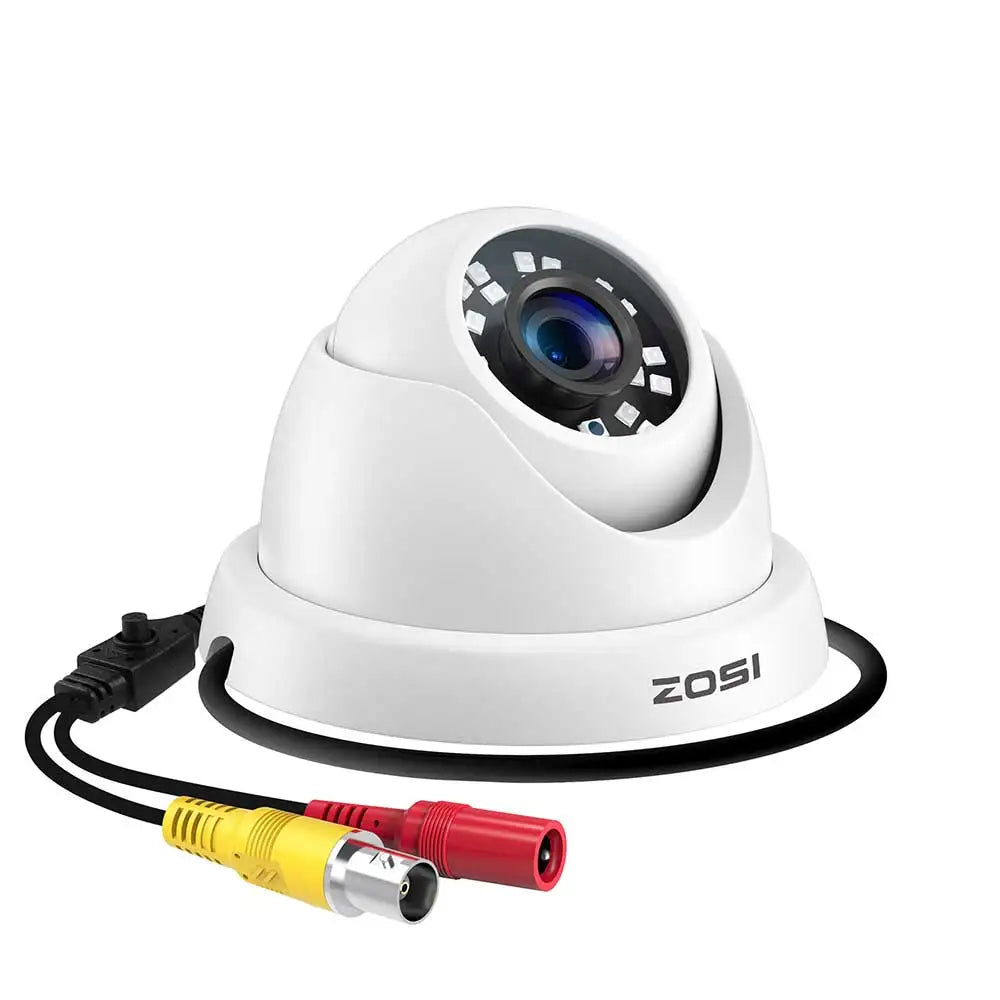

ZOSI 2MP CCTV Security Camera 1080P HD 4-in-1 AHD TVI CVI CVBS Weatherproof Home Dome Video Surveillance Camera for DVR System

4-in-1 Black / United Kingdom

€37,95

ZOSI 2MP CCTV Security Camera 1080P HD 4-in-1 AHD TVI CVI CVBS Weatherproof Home Dome Video Surveillance Camera for DVR System

€37,95

Inkl. Steuern. Versandkosten werden beim Checkout berechnet.

Sensor Size 4-in-1 Black 4-in-1 White

Ships From United Kingdom United States Germany

SPECIFICATIONS

AI Functions: Motion Detection

Audio Output: None

Brand Name: ZOSI

Certification: CE

Connectivity: Closed System/CCTV Wired

Dimensions (L x W x D)(mm): 18*8*8cm

High Definition: 1080P(Full-HD)

High-concerned chemical: none

IP Rating: IP66

IR Distance(m): 80ft

Installation: Ceiling

Internal Storage: None

Lens (mm): 3.6mm

Lens Quantity: Single Lens

Megapixels: 2 MP

Model Number: ZM4192C

Origin: Mainland China

Power Mode: Mains Electricity

Power Source: Normal,Mains Electricity

Power Supply: Normal

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Plastic

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows XP,Windows 7,macOS,Windows 8,Windows 10

TF Card: None

Video Compression Format: H.265

Viewing Angle : 90°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 4X

Zoom type: Digital zoom

is_customized: No

Please Be Kindly Noted

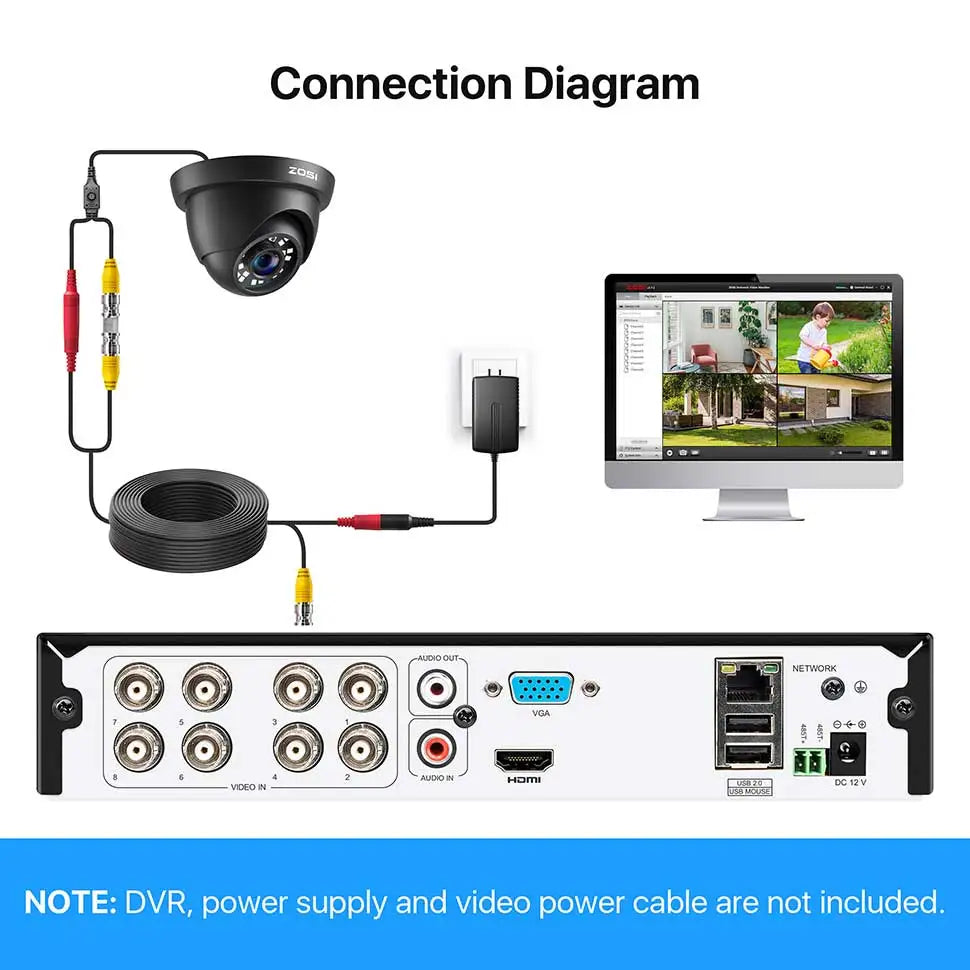

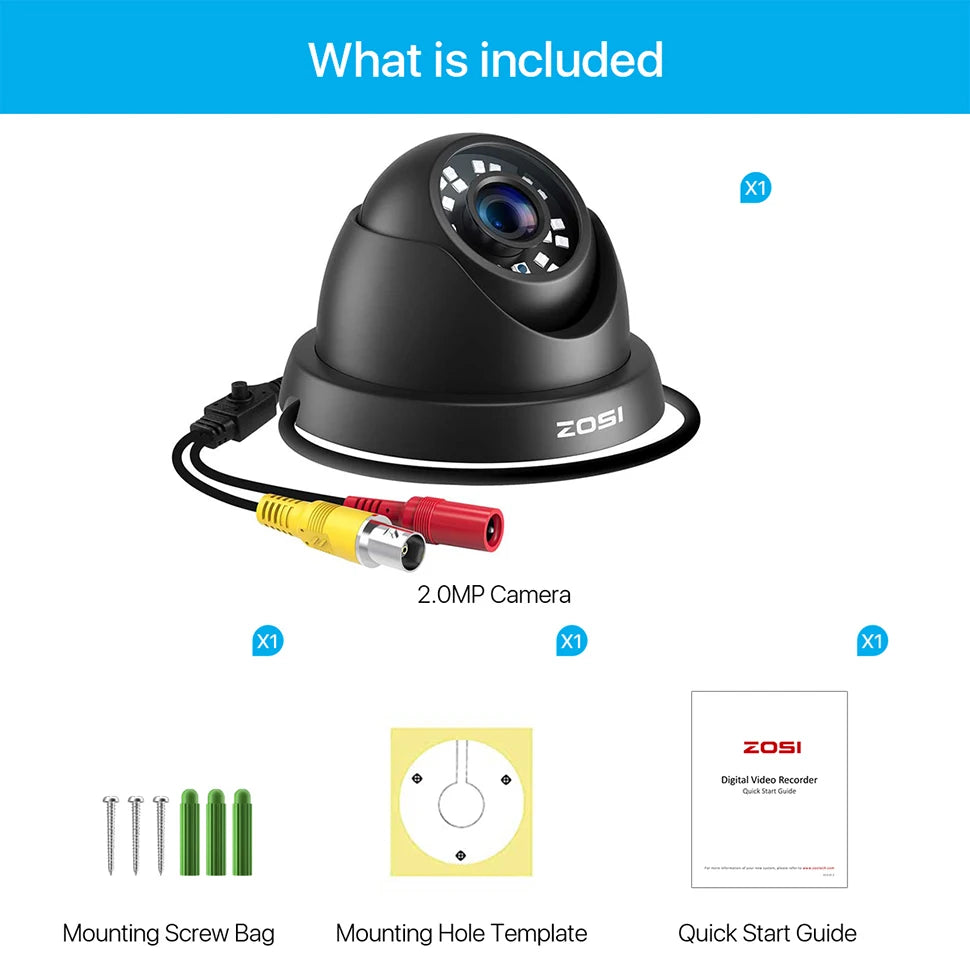

1, this is a hard-wired camera, it need to connect the cctv cable and power supply( NOT included).
2, this camera could not work seperately,it need to connect to the DVR to work( NOT included).

Troubleshooting

Q: Video Loss appears where the image from my camera should be displaying on my DVR?
A: 1.Check the extension cable (power and video) is securely connected to the camera.
2.Check the video output from the camera is securely connected to a video input channel on the DVR.
3.Check the power from the camera is securely connected to a power supply.
4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode.

Q: Poor image quality?
A:Default video mode is analog 960H mode.If your DVR supports 4 in 1(or 5 in 1),it is recommended to set the camera to TVI,AHD or CVI mode which the image achieve the best effect.

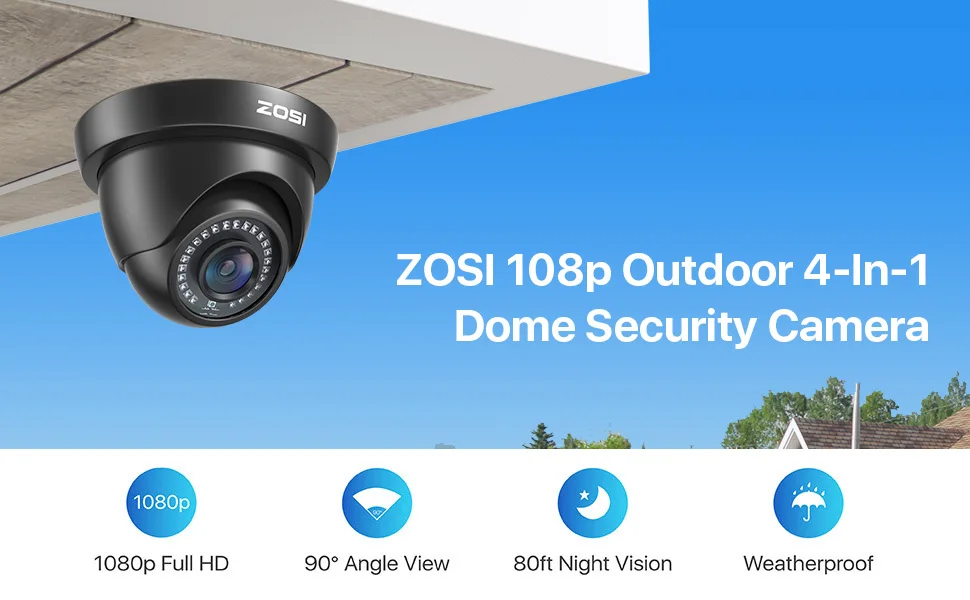

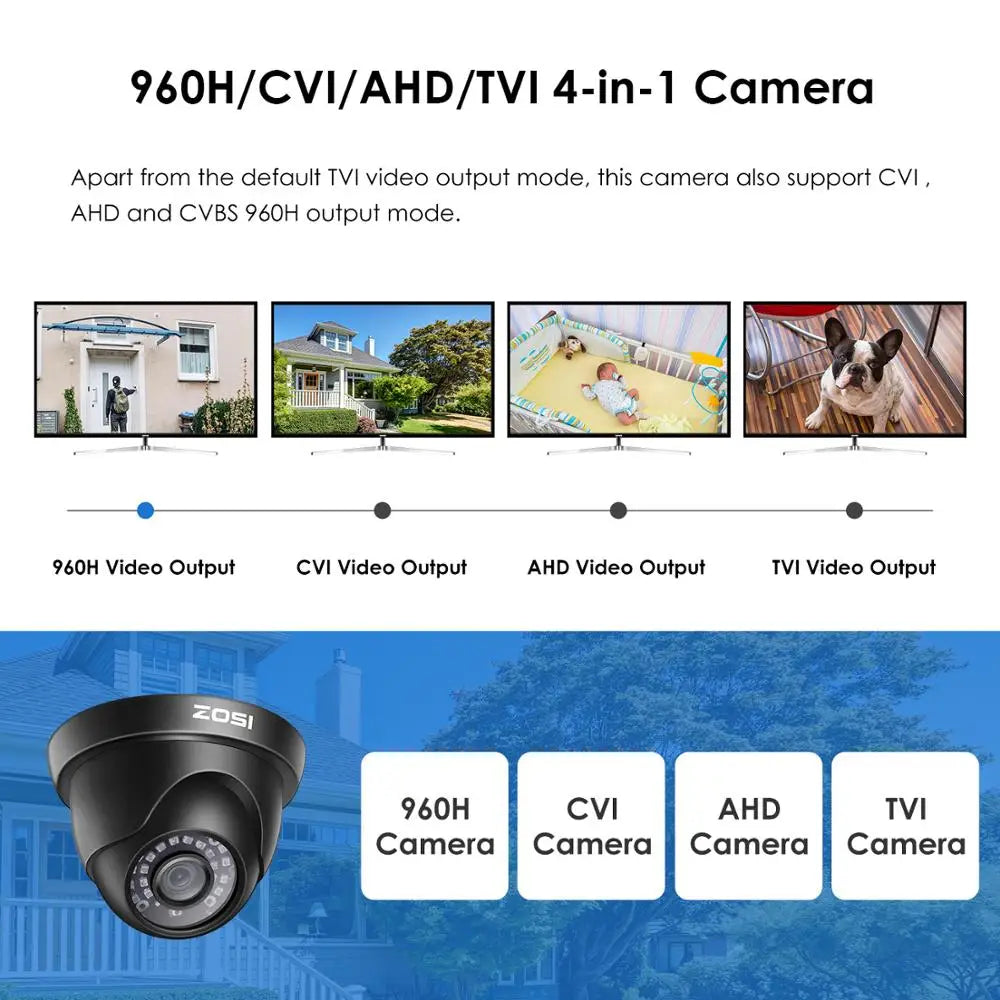

4-IN-1 Security Camera

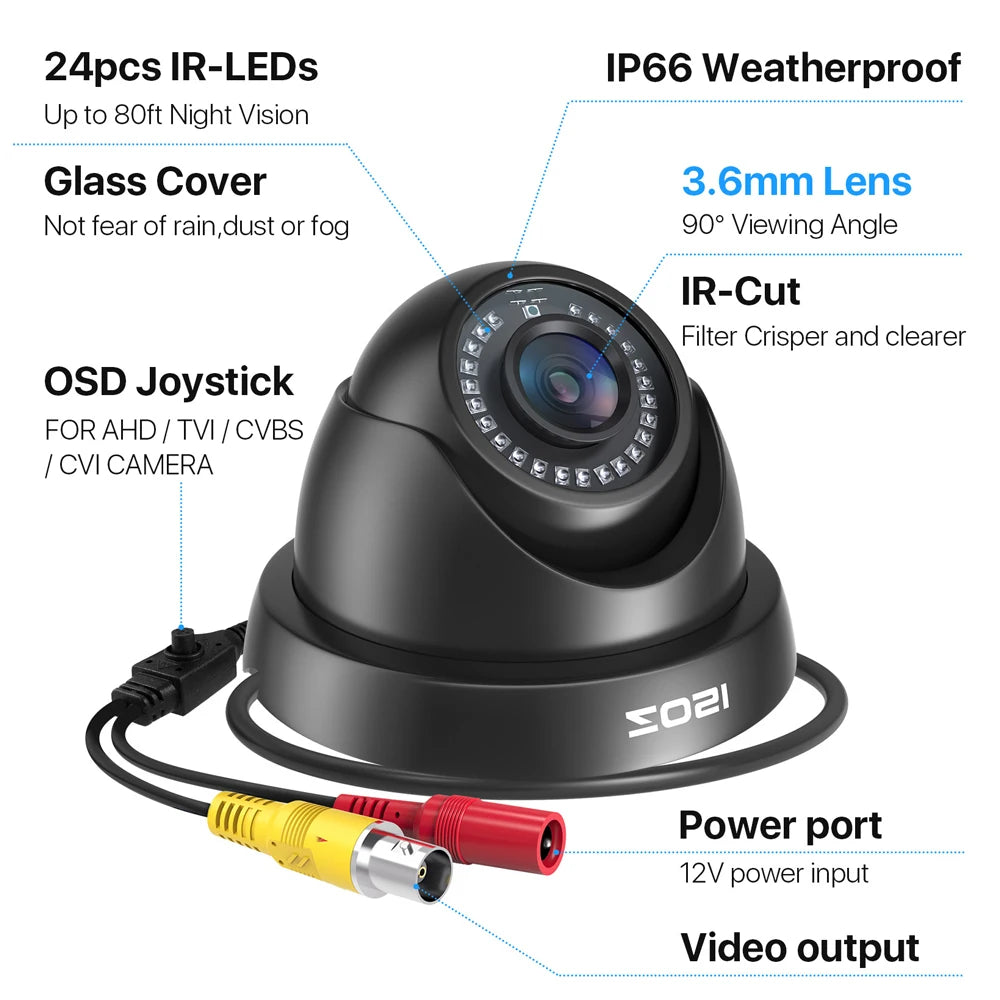

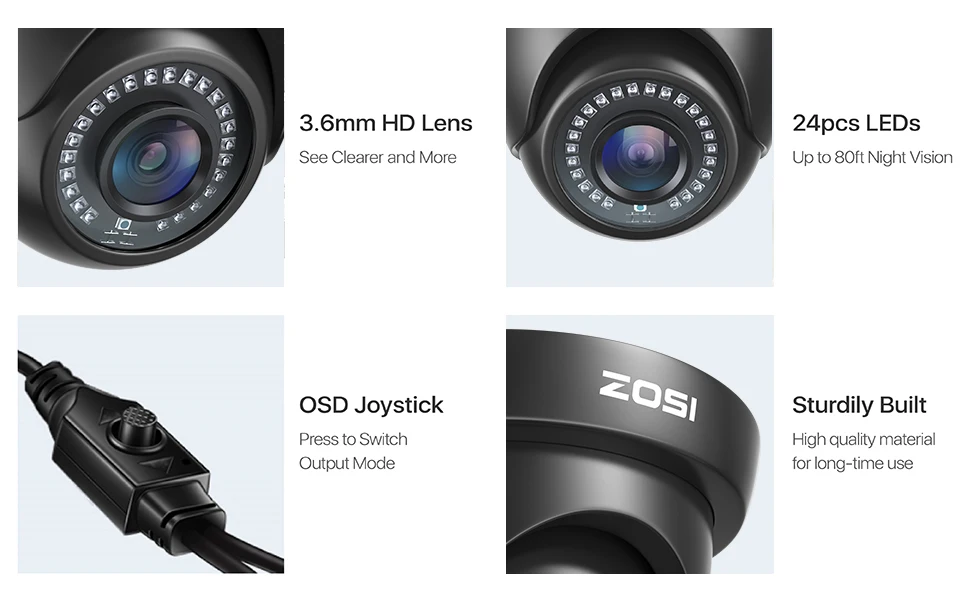

Built in 3.6mm HD Lens and 24pcs IR LEDs, Get a sharp and crisp image day or night with the camera's automatic IR-CUT filter. Up to 80ft night vision in total darkness and 120ft Night vision in ambient light. More than 3.0Lux the night vision is color.

1080p Full HD

See everything in details with true 1080p HD resolution. Get clearer and smoother images/videos than 720p cameras.

Day & Night In 1080p Full HD

Equipped with 24pcs infrared LEDs, this camera can see up to 80ft in darkness. 3.6mm HD lens with IR-CUT captures clear image and video at night..

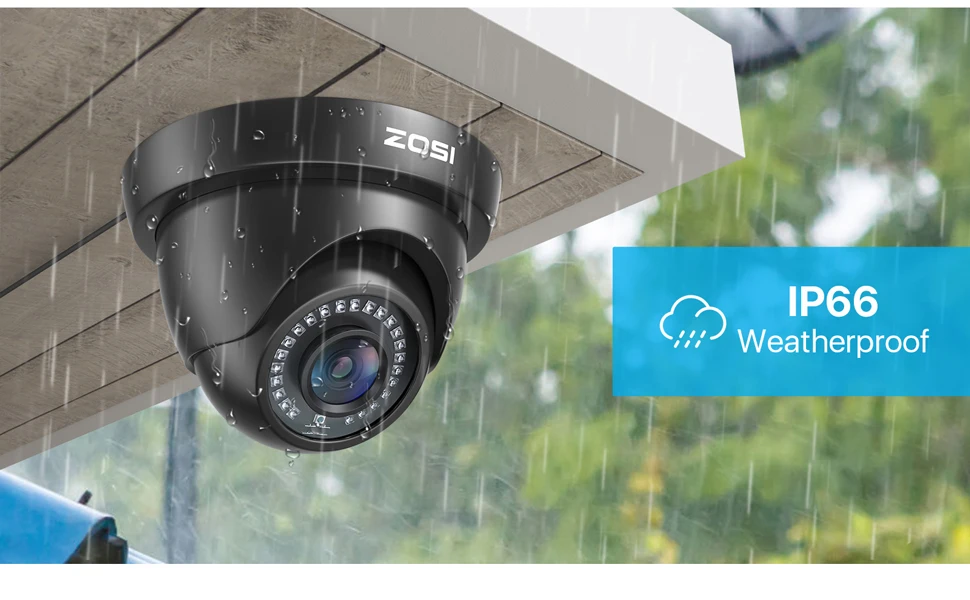

IP66 Weatherproof

This camera is IP66 rated, resistant to dust and rain, and can be installed in almost any outdoor or indoor location

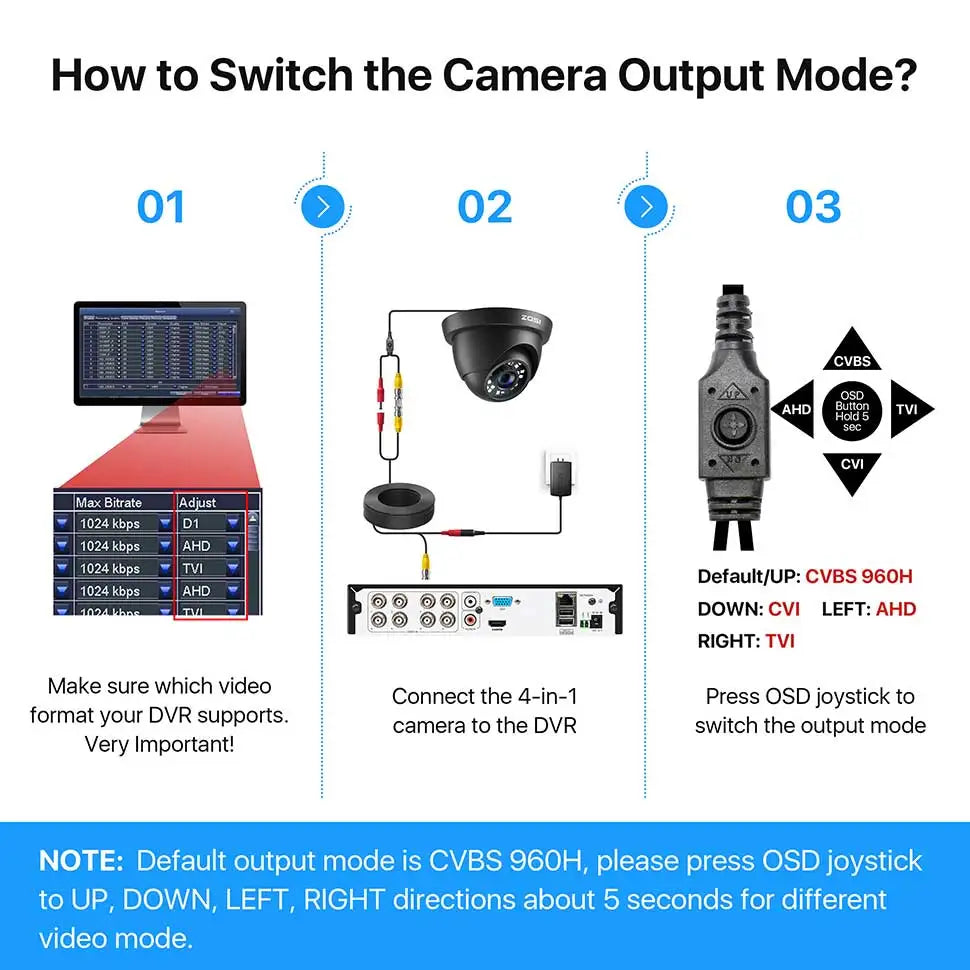

How To Switch The Camera Output Mode

1.Make sure which video format your DVR supports. Very important!
2.Connect the 4-in-1 Camera to the DVR
3.Default/UP:CVBS 960H
DOWN:CVI
LEFT:AHD
RIGHT:TVI
Press OSD joystick to seitch the output mode

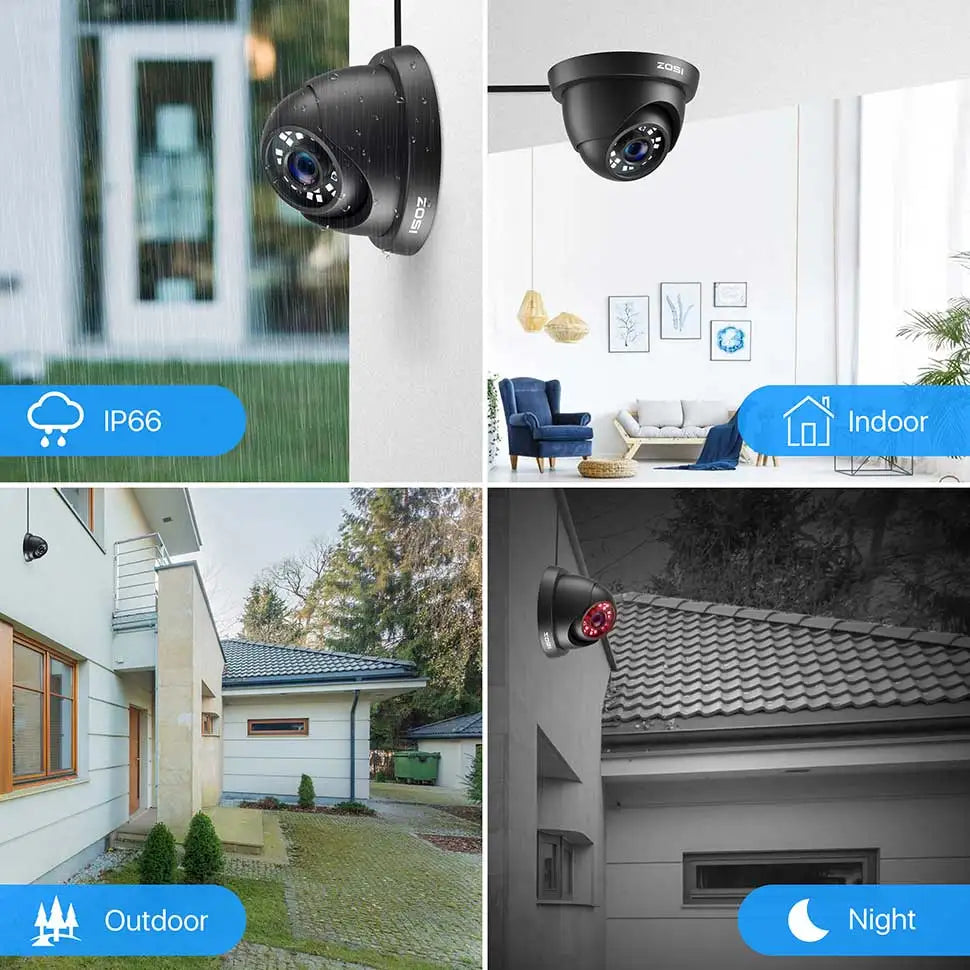

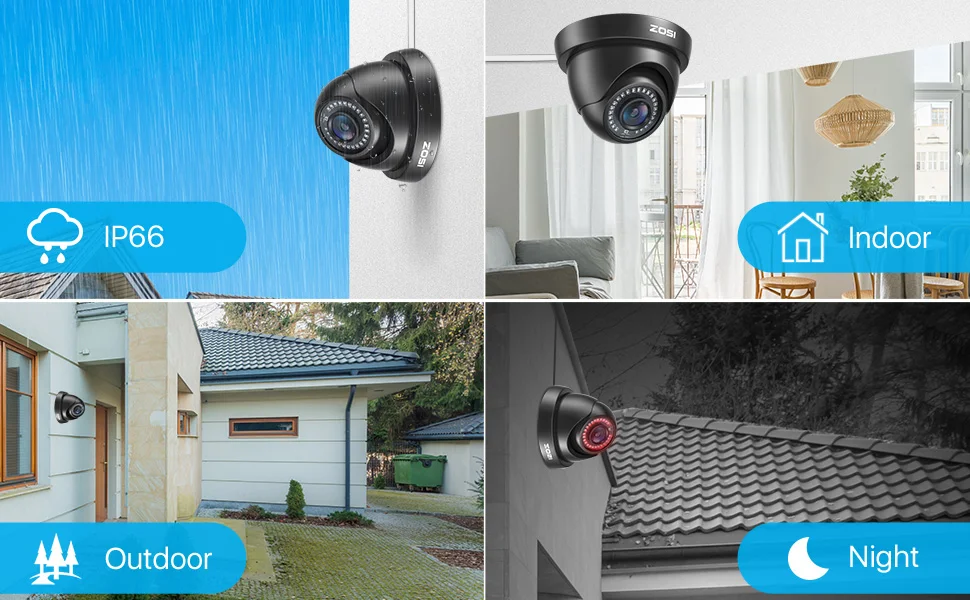

Flexible Installation

Mount this camera on the ceiling or on the wall. It’s simple to place it anywhere indoor and outdoor for all-round surveillance.

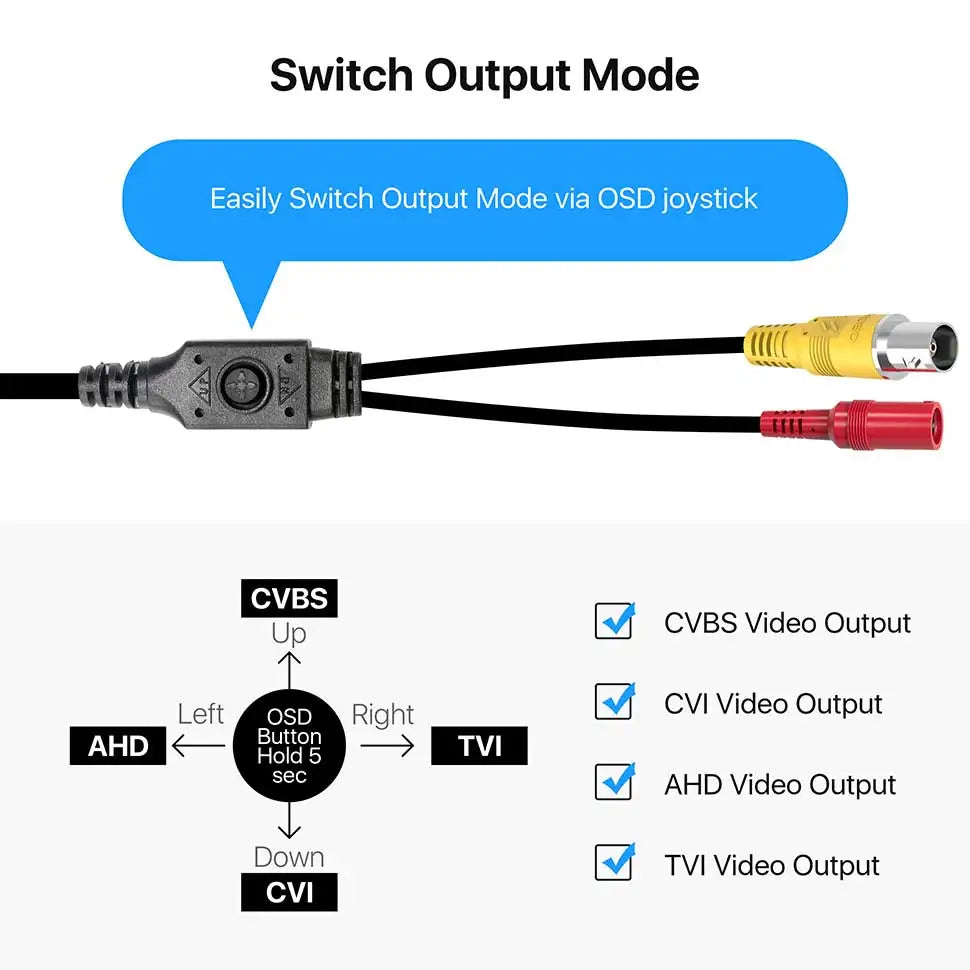

Easily Switch Output Mode via Joystick

Default output mode is CVBS 960H,please OSD joystick to UP,DOWN,LEFT,RIGHT direction ablout 5 seconds for different video mode

Product Description

1. Camera resolution: 1080P 2.0MP (only compatible with 1080P TVI DVR system)
2. Protection grade: IP66 Weatherproof
3. Image sensor: 1/2.7"" Aptina CMOS with ICR, 1080P
4. Effective pixels: 1920x1080
5. Lens: Megapixel 3.6mm
6. IR LED Quantity: 24pcs, 5mm LED
7. Night vision: 80 feet
