1200W/1000W/750W GS Hybrid Micro Inverter for Solar Pane & 36V/48V Battery Grid-Tie with Zero Export 180-265V AC | WiFi, IP65
1200W (6 Work Modes) / 180V-265VAC AUTO / 20V-60V
$505.48
Precio de oferta
$505.48
Precio habitual
$0.00
Ir directamente a la información del producto
1200W/1000W/750W GS Hybrid Micro Inverter for Solar Pane & 36V/48V Battery Grid-Tie with Zero Export 180-265V AC | WiFi, IP65
$505.48
Precio de oferta
$505.48
Precio habitual
$0.00
SPECIFICATIONS
Battery/Storage Mode Output: 450Wp / 600Wp / 720Wp(for corresponding models).
Brand Name: EcoSunTec
Certification: CE,RoHS
Communication: Wi-Fi (2.4 GHz, IEEE 802.11 b/g/n).
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: None
Is Smart Device: Yes
MPPT Accuracy: >99%
MPPT Voltage Range: 25~52VDC
Maximum AC Output Power: 750Wp / 1000Wp / 1200Wp.
Maximum DC Input Current: 2*15A / 2*20A / 2*25A
Maximum DC Open Circuit Voltage: 60VDC
Maximum Input PV Power(1000W model): 2*600Wp
Maximum Input PV Power(1200W model): 2*750Wp
Maximum Input PV Power(750W model): 2*450Wp
Nominal Frequency: 50Hz (47.5-52.5Hz) or 60Hz (57.5-62.5Hz).
Nominal Voltage/Range: 180~265VAC (compatible with 208V/220V/240V).
Origin: Mainland China
Output Frequency: 50HZ/60HZ AUTO
PV Mode Output: 750Wp / 1000Wp / 1200Wp(for corresponding models).
Recommended Battery Voltage: 36V or 48V (24V usable but not recommended).
Startup Voltage: 20VDC
UDM1250-GS All-in-One Hybrid Storage Grid-Tie Micro Inverter | 6 Working Modes | Built-in Zero Export Function | 1250W Max PV Input | WiFi Monitoring | IP65
Versatile Micro Inverter for PV Panels & Battery Storage | 1200W AC Output (PV Mode) / 720W (Battery Mode) | 36V/48V Battery Compatible | Safe Low 60V DC Input | Easy DIY Installation
Key Selling Points
Six Working Modes in One Device:
One versatile inverter meets all your solar energy needs. It supports six distinct working modes, seamlessly covering scenarios from simple grid-tie PV to advanced hybrid storage with zero export. PV On-Grid | PV Zero Export | Battery On-Grid | Battery Zero Export | Storage On-Grid | Storage Zero Export
Built-In Zero Export (Anti-Backflow):
Ensure your energy is consumed onsite. Easily enable the zero export function to prevent power from feeding back to the grid, maximizing self-consumption and ensuring compliance with utility safety regulations.
True Hybrid Input & Storage:

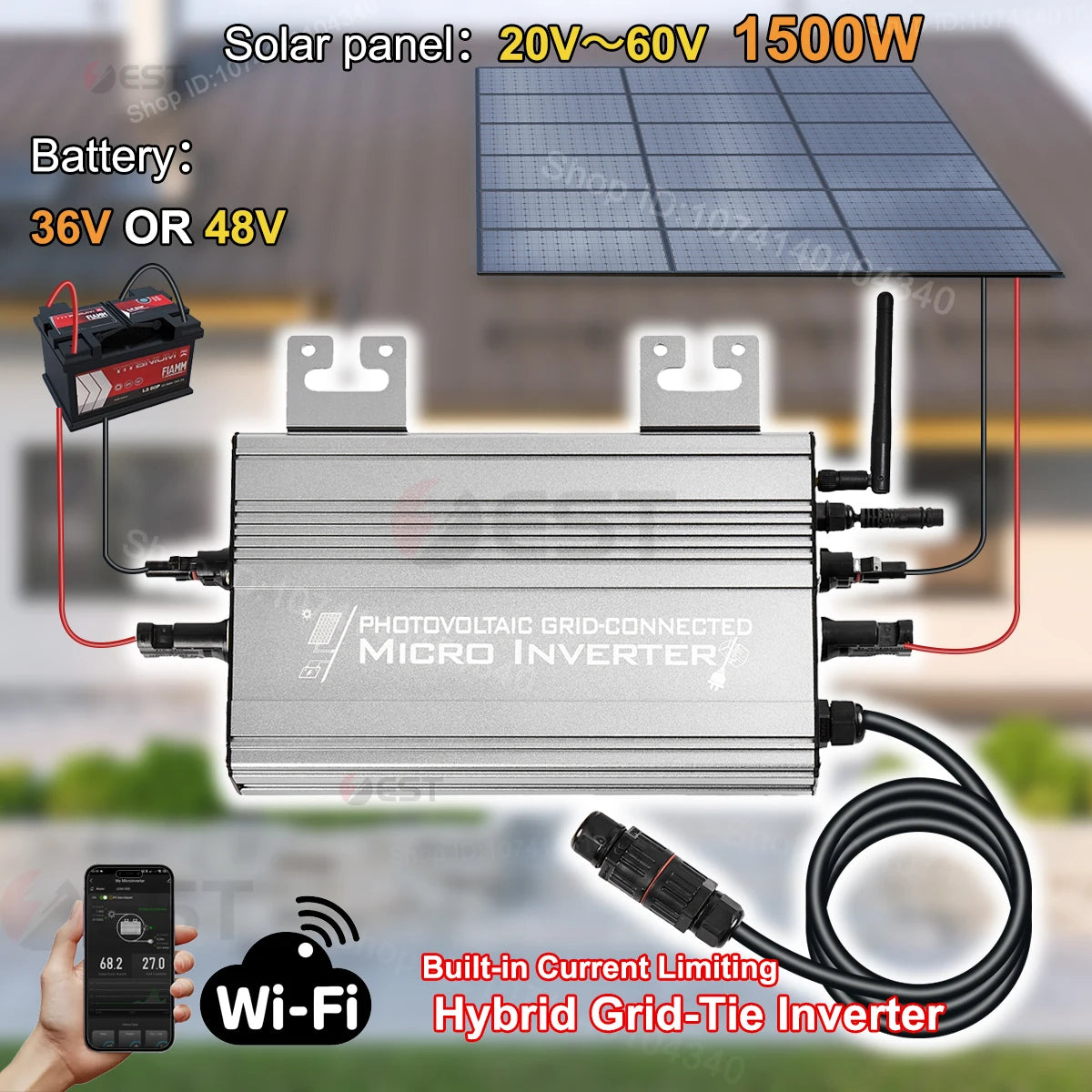

Uniquely designed to connect both PV panels and a battery bank simultaneously. During the day, it powers your home and charges the battery. At night or on cloudy days, it automatically switches to battery power, delivering nearly 24/7 clean energy.
Ultra-Safe Low Voltage DC Side:
Operates with a maximum DC voltage of 60V. This ultra-low voltage drastically reduces the risk of dangerous high-voltage DC arcs, making installation and operation significantly safer for DIY users and professionals alike.
Robust Build & Smart Monitoring:
Features an IP65-rated full aluminum alloy casing for superior heat dissipation, corrosion resistance, and lightweight durability. With a built-in 2.4G WiFi module, you can monitor, control, and manage your system remotely via the "Smart Life" mobile app.
Product Overview
The UDM1250-GS is a revolutionary single-phase hybrid storage micro-inverter. It's more than just a converter; it's a compact, intelligent home energy hub. Whether you're starting with a zero-export balcony PV system, building a battery-backed backup power system, or creating a comprehensive "PV + Storage" setup to maximize self-sufficiency, this inverter is the ideal core component. Its modular "plug-and-play" design allows single units to form complete systems, with flexible and straightforwar
Detailed Feature Breakdown
Six Intelligent Working Modes (Adapts to Any Scenario)
1~PV On-Grid Mode: Connects only to PV panels, feeding generated power to your home and the grid.
2~PV Zero Export Mode: Connects only to PV panels. Power generation is strictly for immediate local consumption, with zero export to the grid.
3~Battery On-Grid Mode: Connects only to a battery, converting stored DC energy to AC for home use or to feed into the grid.
4~Battery Zero Export Mode: Connects only to a battery. Battery discharge power is used only for local loads, not sent to the grid.
5~Storage On-Grid Mode: Connects both PV panels and a battery. Utilizes a hybrid of solar and battery power, with excess energy able to feed back to the grid.
6~Storage Zero Export Mode: Connects both PV panels and a battery. Intelligently manages energy flow between PV, battery, and home loads to ensure 100% self-consumption with zero power exported to the grid.
2~PV Zero Export Mode: Connects only to PV panels. Power generation is strictly for immediate local consumption, with zero export to the grid.
3~Battery On-Grid Mode: Connects only to a battery, converting stored DC energy to AC for home use or to feed into the grid.
4~Battery Zero Export Mode: Connects only to a battery. Battery discharge power is used only for local loads, not sent to the grid.
5~Storage On-Grid Mode: Connects both PV panels and a battery. Utilizes a hybrid of solar and battery power, with excess energy able to feed back to the grid.
6~Storage Zero Export Mode: Connects both PV panels and a battery. Intelligently manages energy flow between PV, battery, and home loads to ensure 100% self-consumption with zero power exported to the grid.
Wide Compatibility (Plug & Play, Easy Setup)
【1】PV Input: Supports 2 independent PV input channels. Maximum DC open-circuit voltage < 60VDC, with a low startup voltage of 20VDC. Perfectly compatible with most mainstream PV modules. Supports up to 750W per channel, for a total maximum PV power of 1500W.
【2】Battery Input: Optimized for 36V or 48V lead-acid or lithium battery banks (24V batteries are functional but not recommended for optimal performance).
【3】Grid Output: AC 230V nominal output (operating range 180~265VAC), compatible with both 50Hz and 60Hz grid standards, suitable for use in most regions worldwide.
Excellent Performance & Comprehensive Safety
【1】High Efficiency: Boasts a high CEC weighted efficiency of ~93% and >99% MPPT tracking accuracy, ensuring you capture the maximum possible energy from your solar panels.
【2】Complete Protection: Incorporates multiple safety mechanisms including DC/AC over/under voltage protection, over/under frequency protection, overcurrent protection, overtemperature protection, and anti-islanding protection.
【3】Silent & Reliable Cooling: Natural convection cooling with a fanless design, thanks to the full aluminum alloy body. Ensures quiet operation and minimal maintenance.
【4】Easy Installation: Compact dimensions (240 x 188.5 x 43 mm) and light weight (1.85kg) allow for easy mounting underneath solar panels or on walls.
Technical Specifications

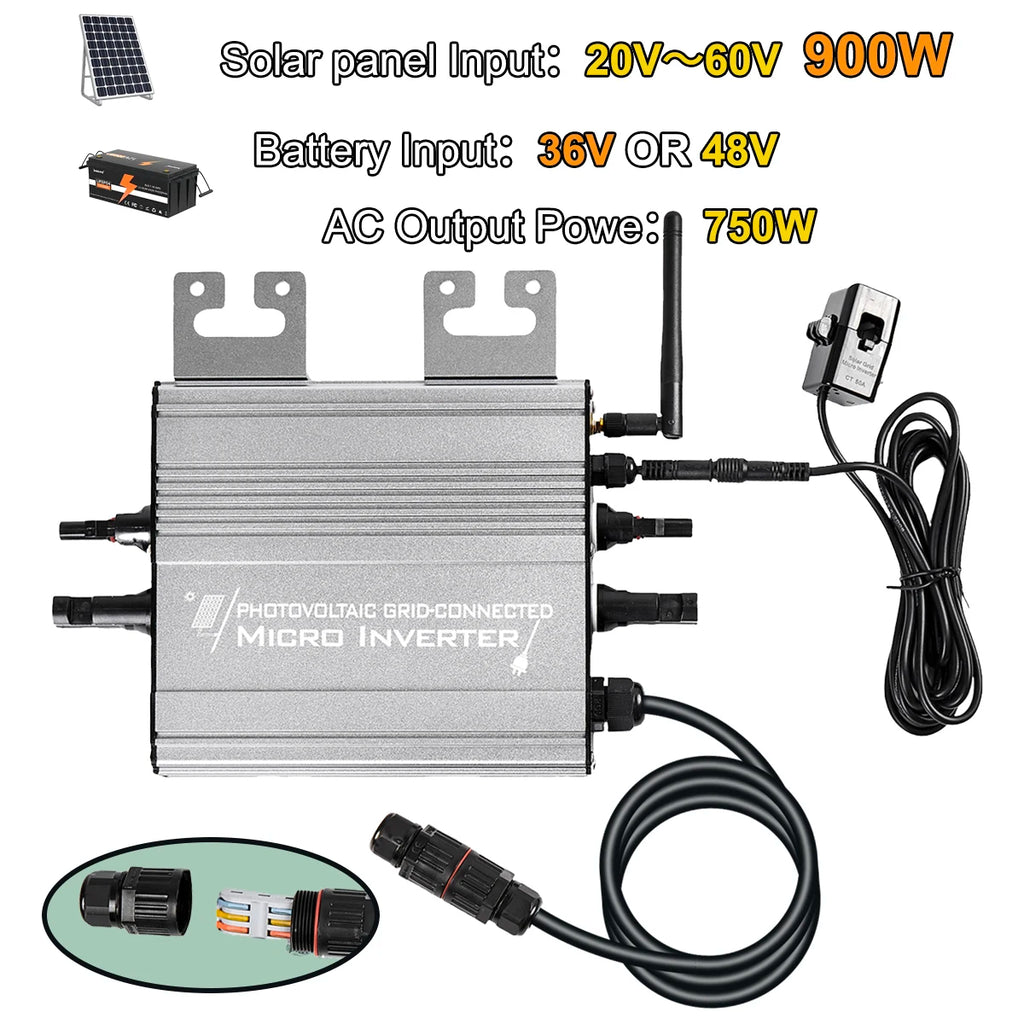

UDM750-GS
Maximum AC Output Power: 750W (PV Mode) / 450W (Battery Mode)
DC Input Voltage Range: 20-60 VDC
Maximum PV Power (Total): 2 * 450W (900W)
Recommended Battery Voltage: 36V or 48V
AC Output Voltage: 180-265 VAC
Output Frequency: 50/60 Hz (±2.5Hz)
MPPT Efficiency: > 99%
Weighted Average Efficiency (CEC): ≈ 93%
Total Harmonic Distortion (THD): < 3% (at rated power)
Power Factor (PF): > 0.99 (at rated power)
Working Modes: 6 Modes
Communication: 2.4GHz WiFi
Ingress Protection (IP): IP65
Operating Temperature: -40°C to +65°C

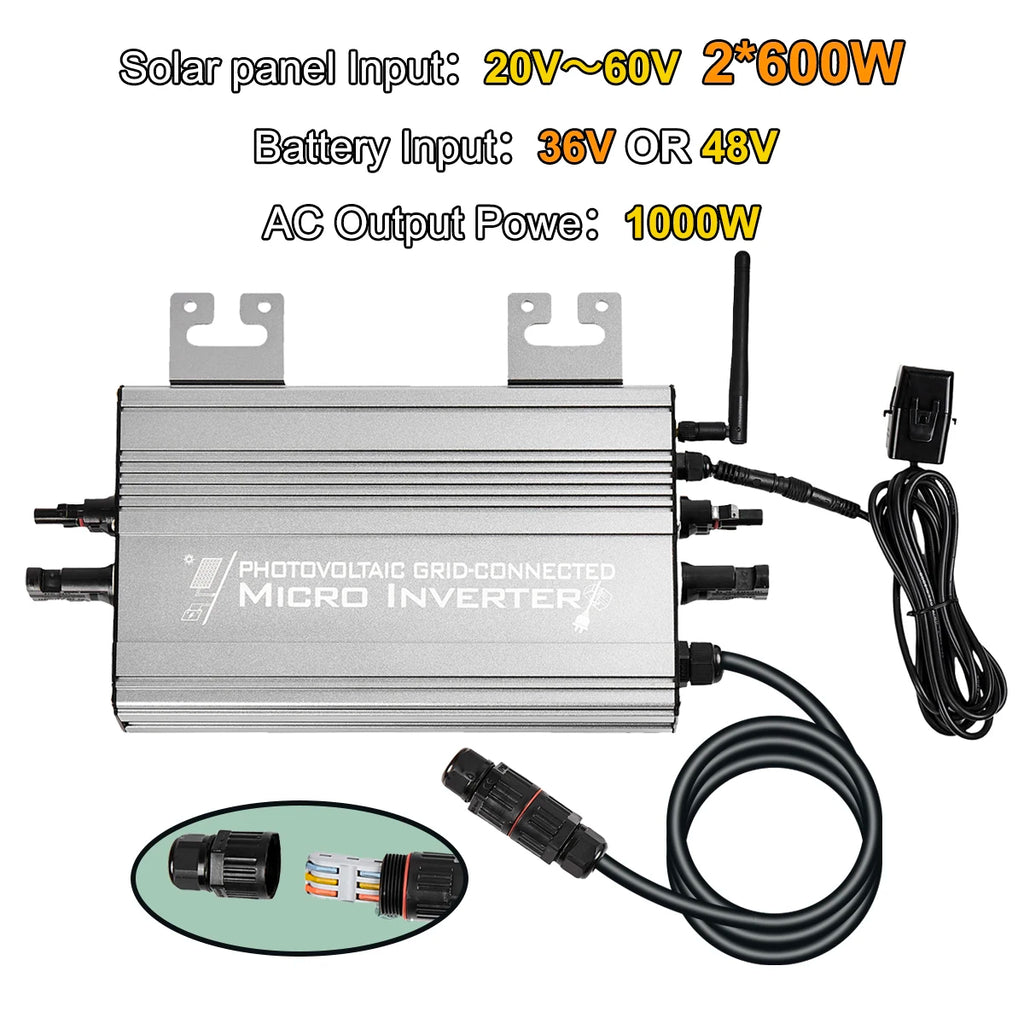

UDM1000-GS
Maximum AC Output Power: 1000W (PV Mode) / 600W (Battery Mode)
DC Input Voltage Range: 20-60 VDC
Maximum PV Power (Total): 2 * 600W (1200W)
Recommended Battery Voltage: 36V or 48V
AC Output Voltage: 180-265 VAC
Output Frequency: 50/60 Hz (±2.5Hz)
MPPT Efficiency: > 99%
Weighted Average Efficiency (CEC): ≈ 93%
Total Harmonic Distortion (THD): < 3% (at rated power)
Power Factor (PF): > 0.99 (at rated power)
Working Modes: 6 Modes
Communication: 2.4GHz WiFi
Ingress Protection (IP): IP65
Operating Temperature: -40°C to +65°C
UDM1250-GS
Maximum AC Output Power: 1200W (PV Mode) / 720W (Battery Mode)
DC Input Voltage Range: 20-60 VDC
Maximum PV Power (Total): 2 * 750W (1500W)
Recommended Battery Voltage: 36V or 48V
AC Output Voltage: 180-265 VAC
Output Frequency: 50/60 Hz (±2.5Hz)
MPPT Efficiency: > 99%
Weighted Average Efficiency (CEC): ≈ 93%
Total Harmonic Distortion (THD): < 3% (at rated power)
Power Factor (PF): > 0.99 (at rated power)
Working Modes: 6 Modes
Communication: 2.4GHz WiFi
Ingress Protection (IP): IP65
Operating Temperature: -40°C to +65°C
Application Scenarios
【1】Residential Rooftop Power Plant: Achieve energy independence and significantly reduce electricity bills.
【2】Commercial/Small Business Use: Provide cost-effective daytime power for shops, offices, and workshops.
【3】Balcony PV Systems: Easily turn your balcony into a mini power generation station. Emergency Backup Power: When connected to a battery, it can provide critical backup power during grid outages.
【2】Commercial/Small Business Use: Provide cost-effective daytime power for shops, offices, and workshops.
【3】Balcony PV Systems: Easily turn your balcony into a mini power generation station. Emergency Backup Power: When connected to a battery, it can provide critical backup power during grid outages.
Package Includes
【】Micro Inverter x 1
【】Zero Export Current Transformer (CT) Sensor x 1
【】WiFi Antenna x 1
【】Mounting Screw Kit x 1
【】User Manual x 1
【】Zero Export Current Transformer (CT) Sensor x 1
【】WiFi Antenna x 1
【】Mounting Screw Kit x 1
【】User Manual x 1
(Friendly Tip: To complete your system installation, you may need to purchase accessories separately, such as Battery Connection Cables, PV Extension Cables, and AC Output Plug Cables.)
