4G 64G Android 13 Terminal Handheld Mobile Rugged PDA with Bluetooth Wifi 1D 2D Barcode Scanner Reader GPS Warehouse Code Read
1D 966 NFC / US
€349,95
Precio de oferta
€349,95
Precio habitual
Ir directamente a la información del producto
4G 64G Android 13 Terminal Handheld Mobile Rugged PDA with Bluetooth Wifi 1D 2D Barcode Scanner Reader GPS Warehouse Code Read
€349,95
Precio de oferta
€349,95
Precio habitual
Impuestos incluidos.
Envío calculado en el pago.
SPECIFICATIONS

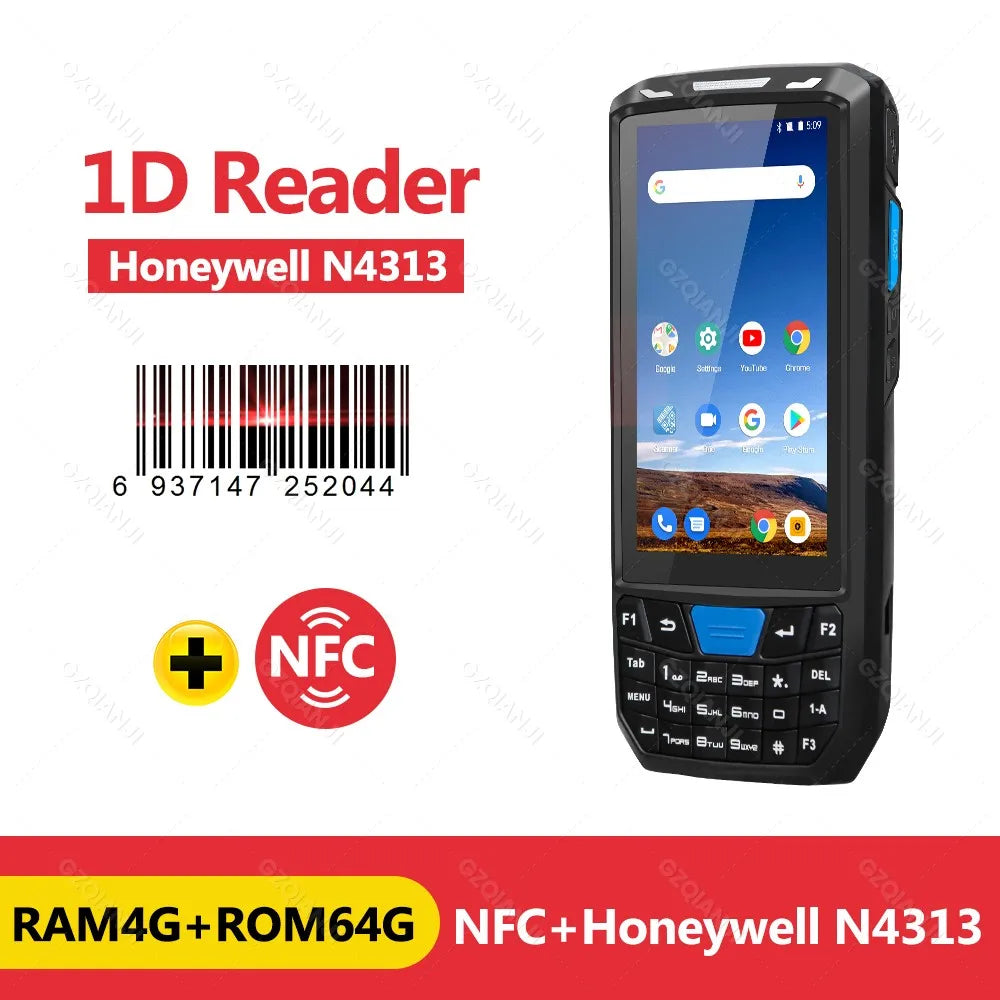

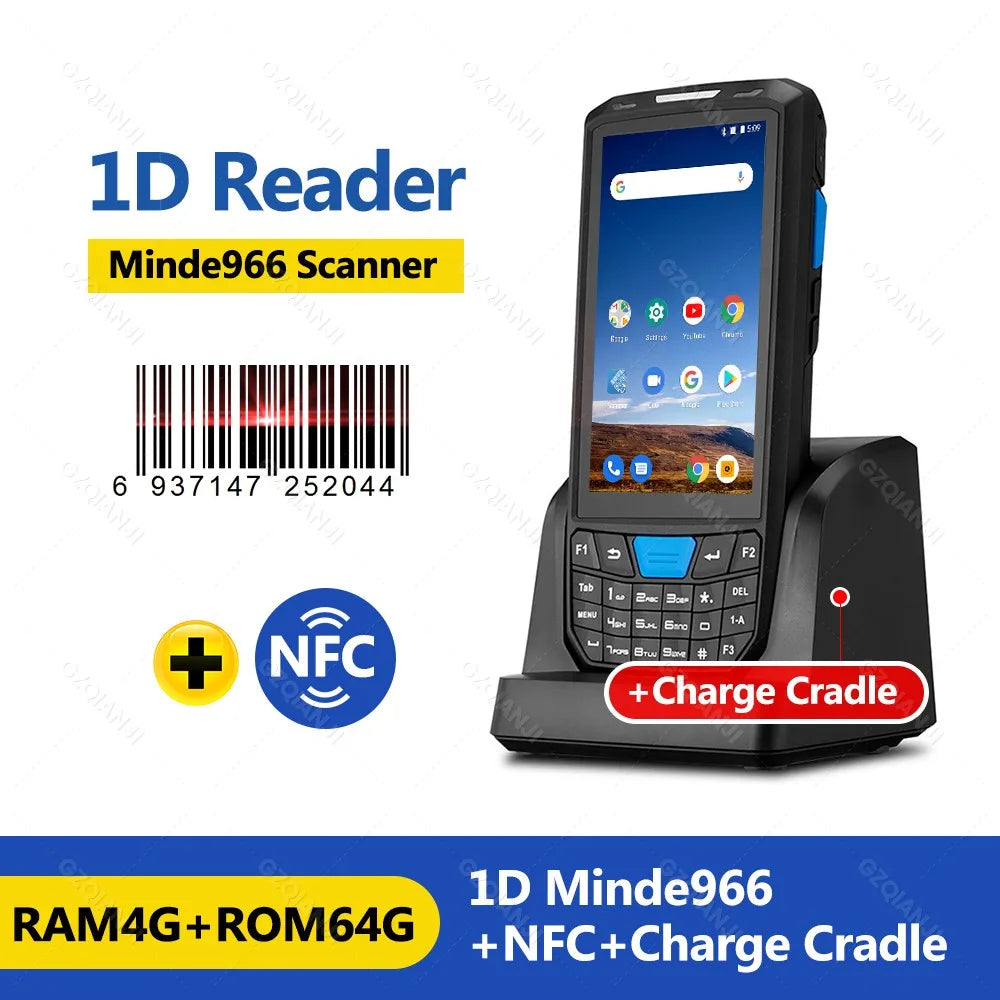

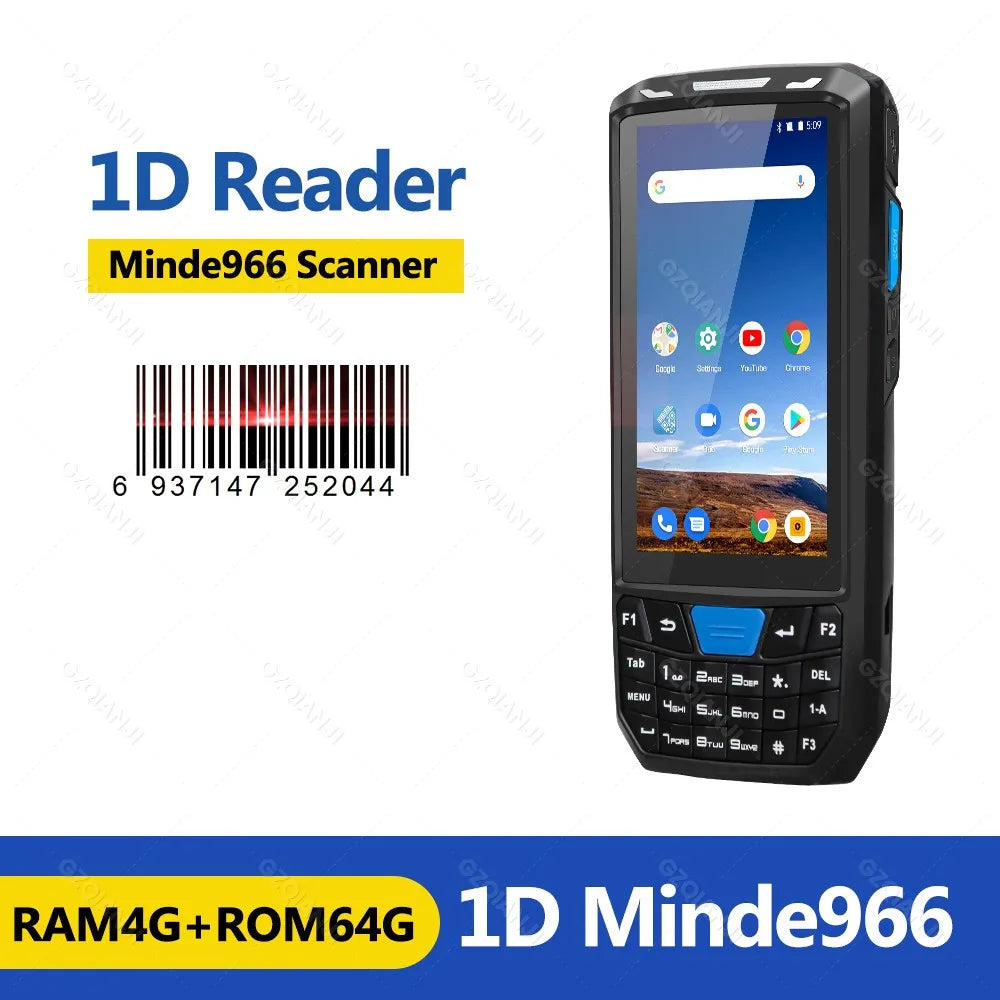

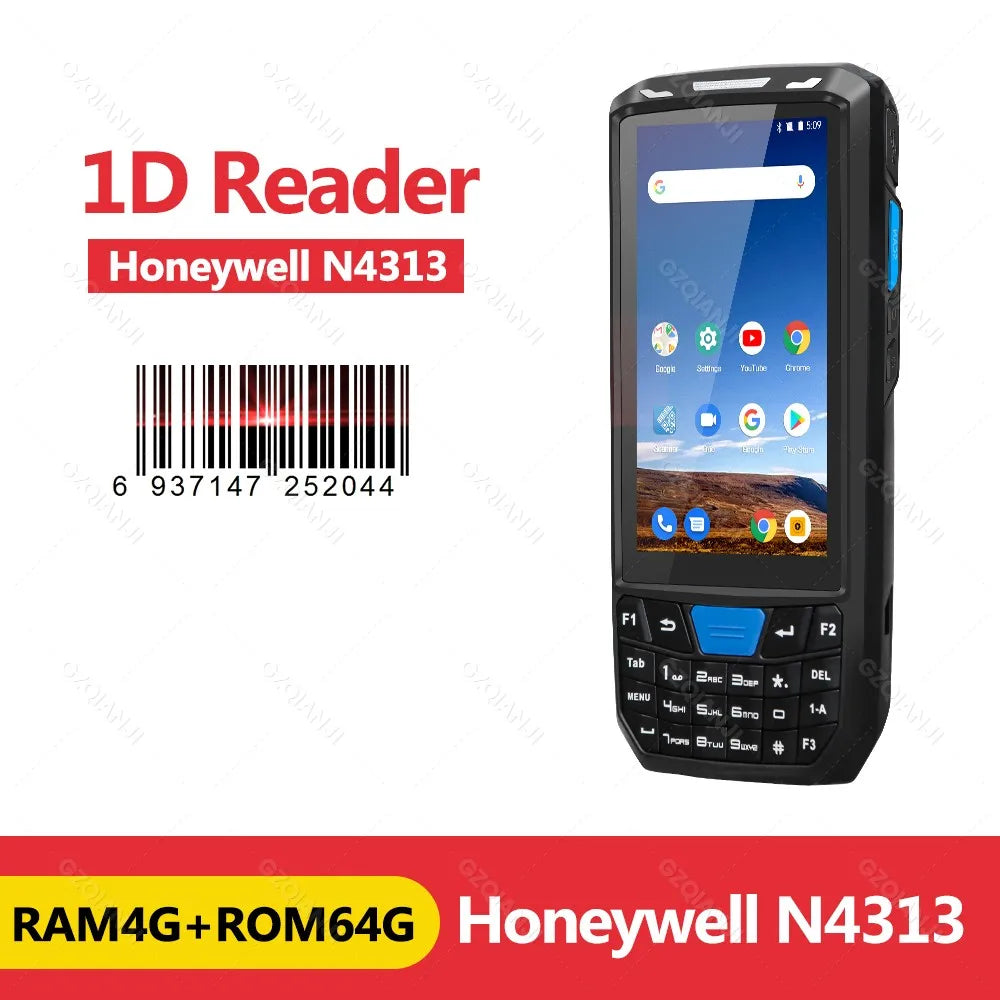

1D Scanner: Mingde966(Standard),HoneywellN4313(Optional, add $10)

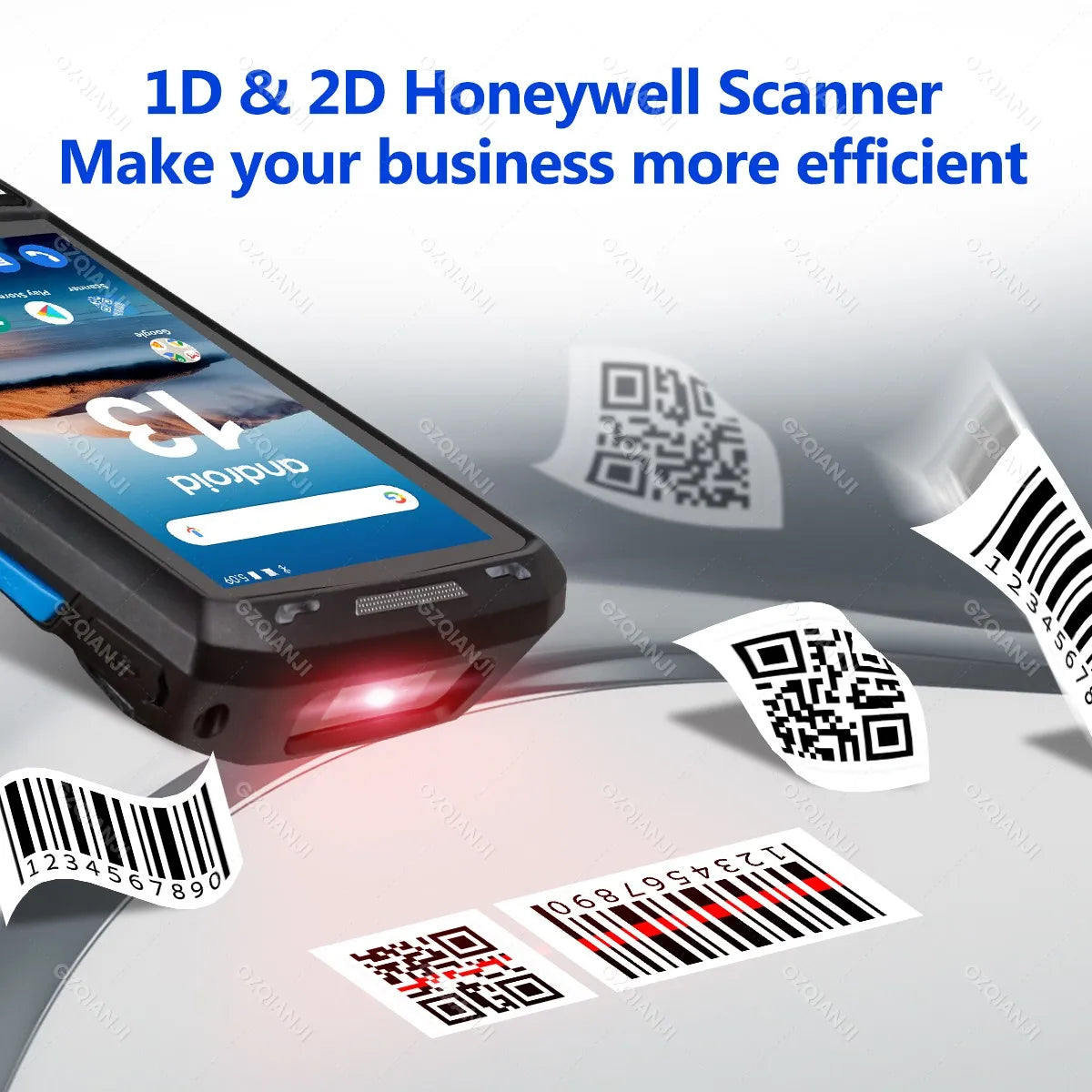

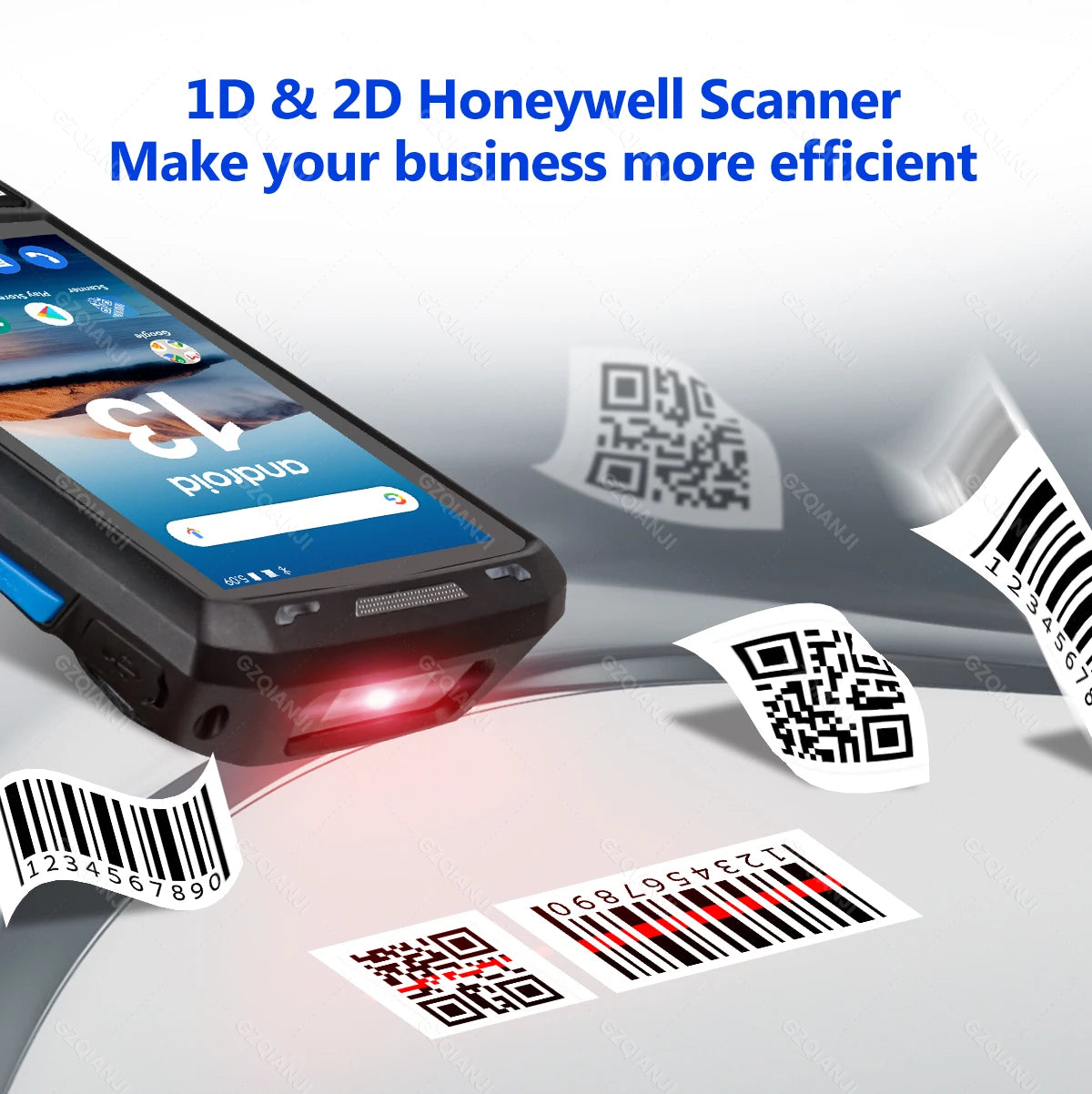

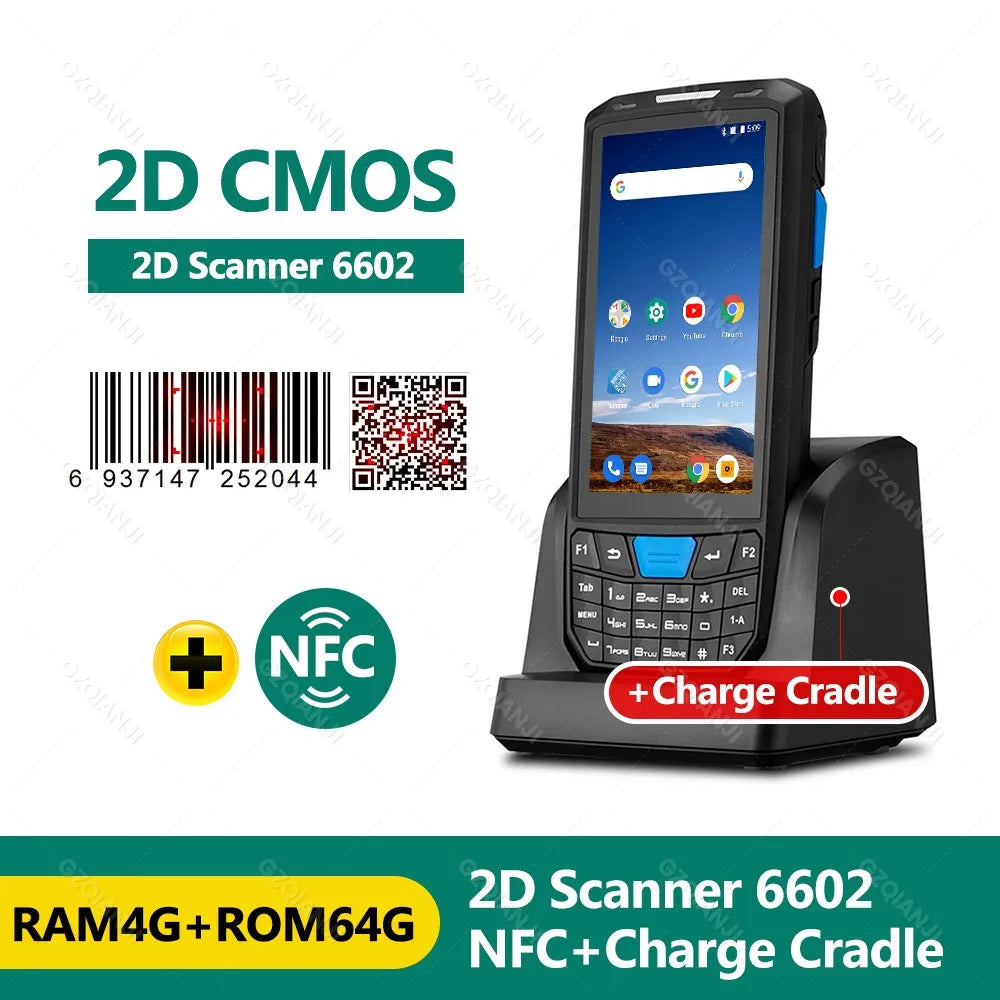

2D Scanner: 2D 6602 or Honeywell5703
Battery: 3.7V 4,200mAh Li-battery
Brand Name: GZQIANJI
CPU: ARM Cortex-A53 64 bit Octa-core
Certification: CE
Colour Depth: 48 Bit
Display: 4.5inch; QVGA touch panel TFT-LCD Display (720X1280)
High-concerned chemical: none
Interface Type: USB
Memery+Flash: 64G Flash ROM 4GB RAM
Model Name: Touch Screen Android PDA
Model Number: GZPDA05
Novelty: New
Optical Resolution: 600*1200
Optional: QR scanner and NFC
Origin: Mainland China
Product Type: Portable Scanner
Scan Breadth: A6
Scan Element Type: CMOS
Scan Speed: 100 scans/second
Scanning Light Source: Natural Light + LED
Signal Connection Type: Wi-fi
Type: Barcode Scanner
Wireless: WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS

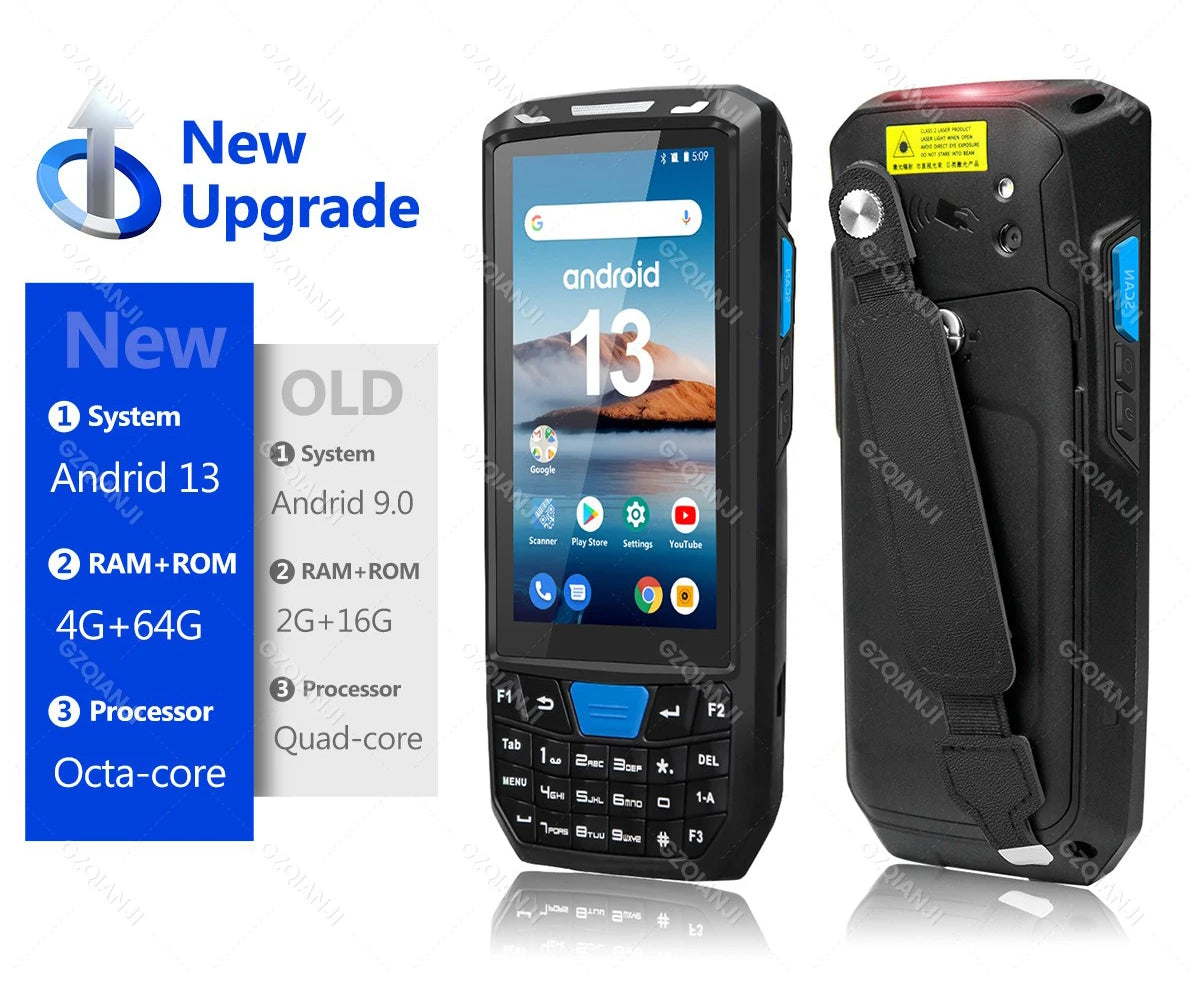

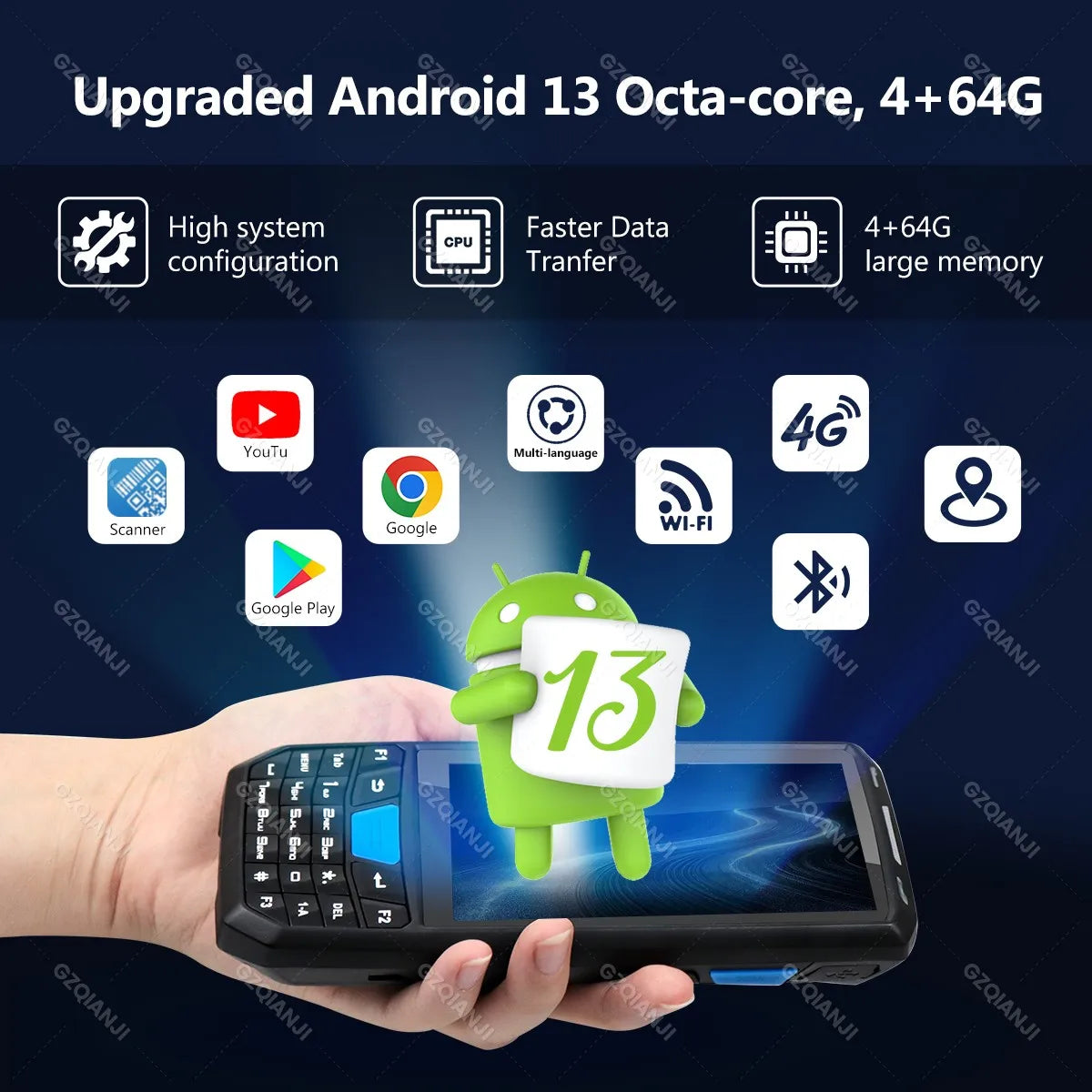

Android 13 Barcode Scanner with Numeric Pad Mobile Computer with 2D Scanner
4.5-inch Handheld Rugged PDA Support Wireless Wi-Fi 4G LTE
Product certification:

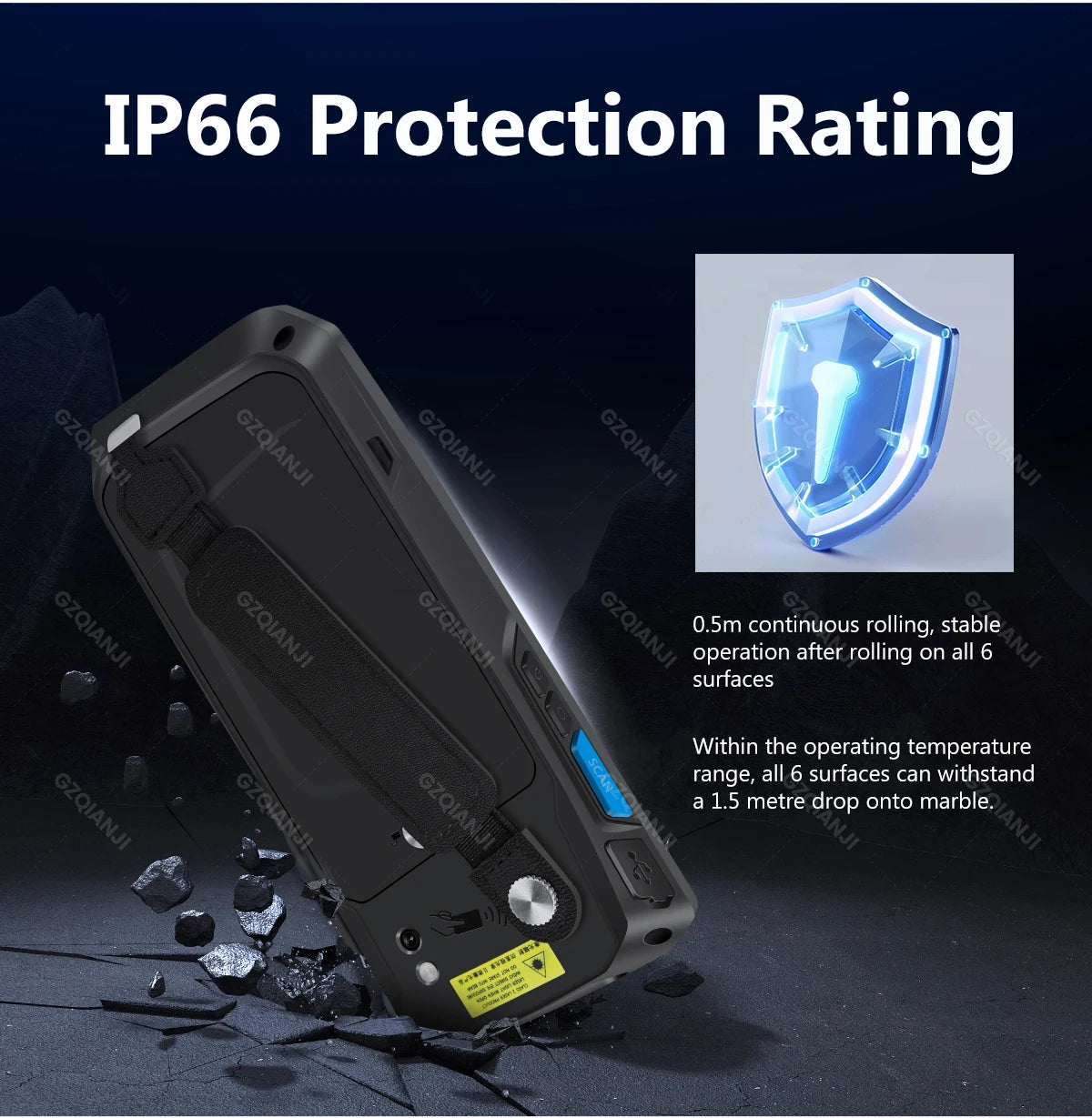

- ●IP rating: IP66
- ●Safety specification: IEC2 /FDA Ⅱgrade,conform IEC60825shy/EN60825-1 standard
- ●Working life: No less than 5 year
- ●CPU: ARM Cortex-A53 64bit Quad-Core 1.3G
- ●OS: Android 13
- ●Camera: 8MP autofocus camera with flash
- ●Bluetooth: Support 2.0+EDR/3.0+HS/4.0+HS Transmission distance is 5-10m
- ●Battery capacity:Rechargeable Li-polymer Battery 3.7V 4200mAhOptional. RTC battery keeps time not lost.
- ●Drop specification: 6 sides can bear impact from 1.5m drop to cement floor about 30 times in the range of operating temperature
Scanner engine(Optional)

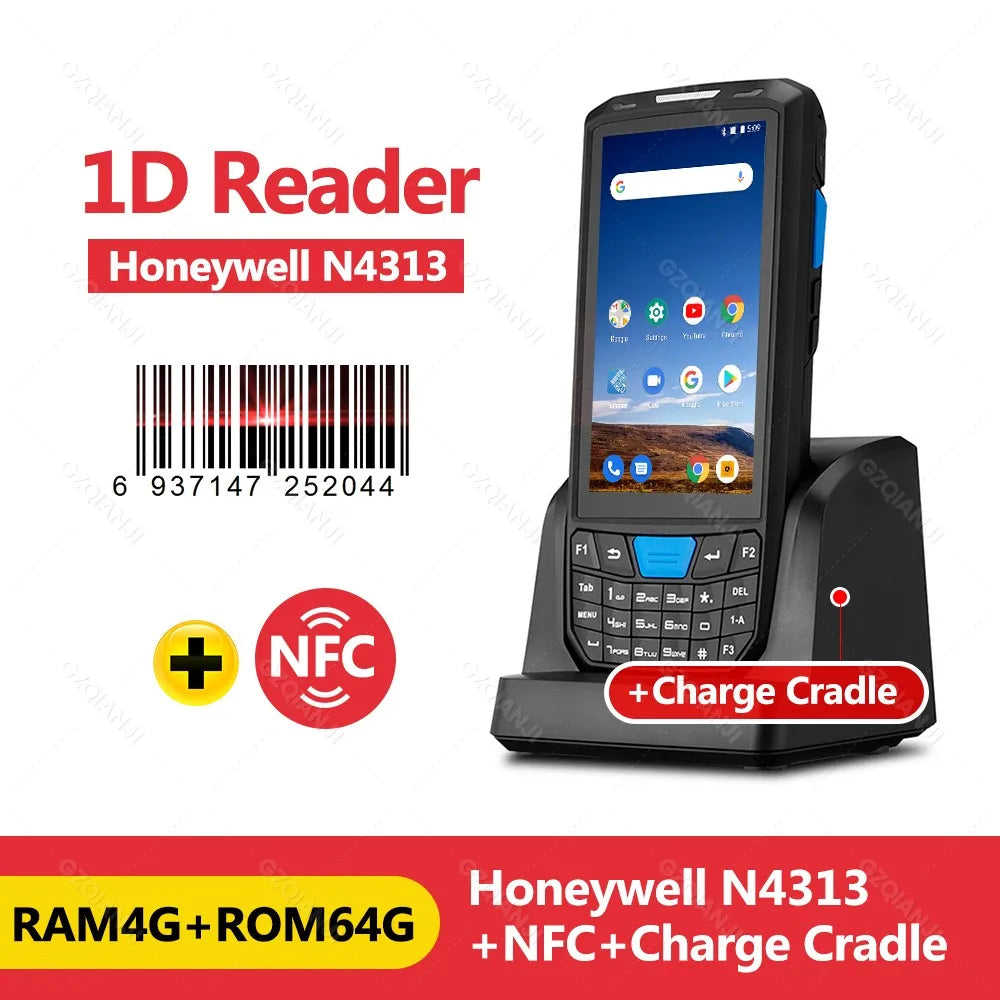

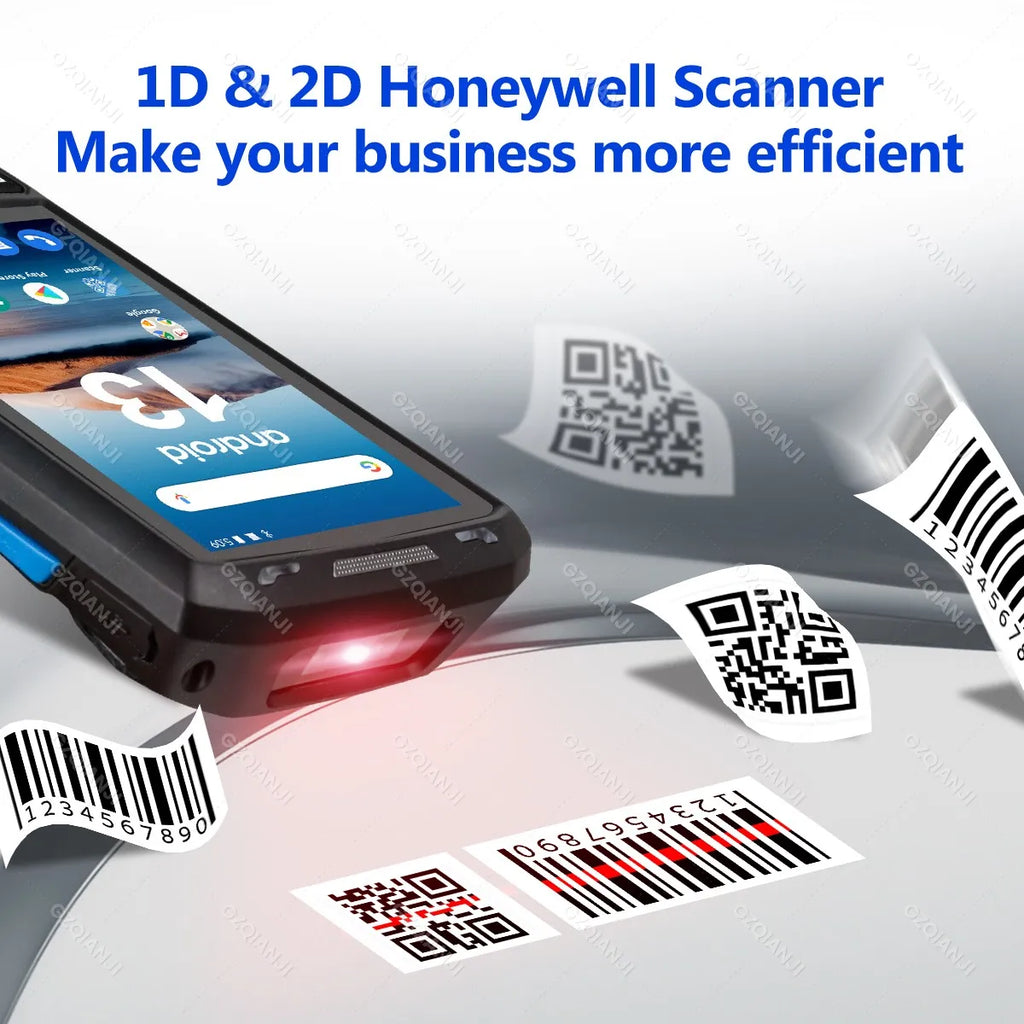

●1D scanner (optional):Minde SE966 / Honeywell N4313, Support Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codaber, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc.

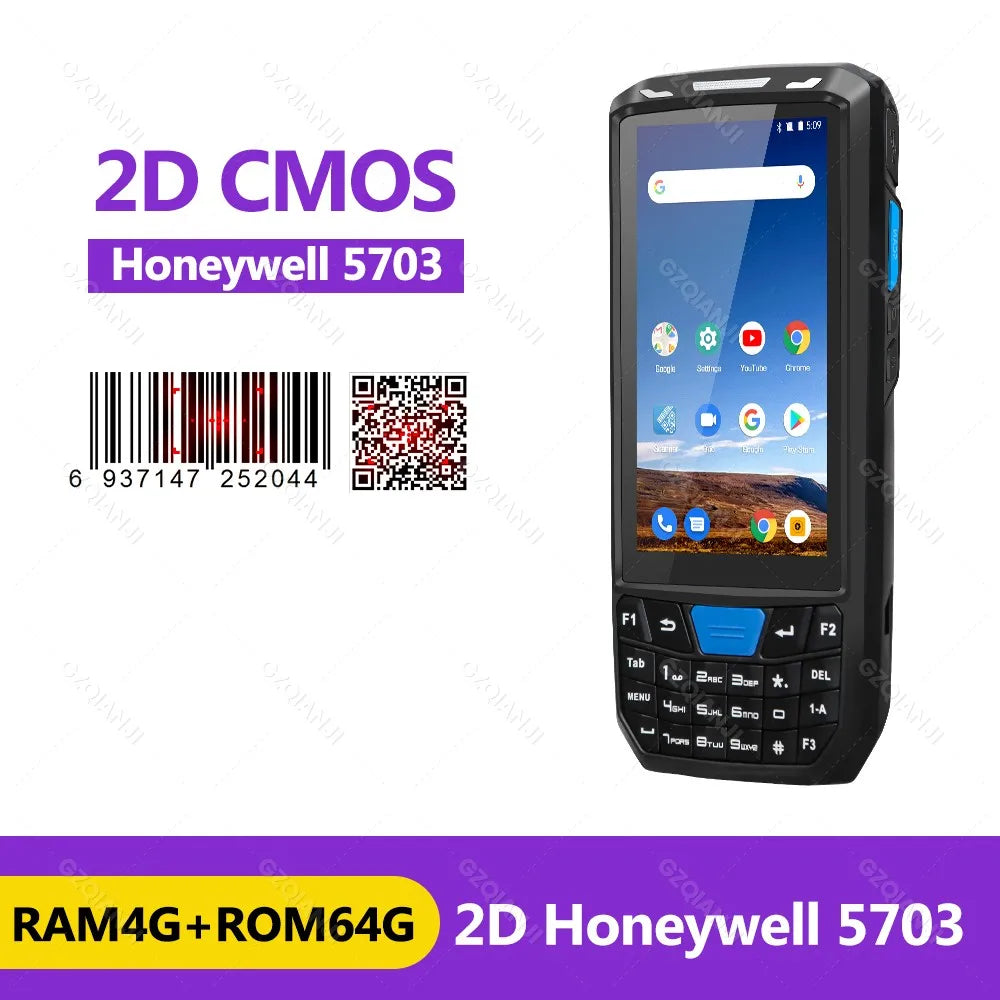

●2DCMOS scanner (optional):2D Scanner 6602/2D Honeywell5703, Support PDF417, MicroPDF417, GS1 Composite, Aztec, Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin Code, etc.
Data Communication:
- ●WI-FI: Support IEEE802.11a/b/g/n， it need effective wireless LAN signal cover
- ●4G: FDD-LTE （B1/B2/B3/B5/B7/B8/B20） TDD-LTE （B40)
- ●3G: WCDMA （850/900/1900/2100MHz)
- ●2G: GSM（850/900/1800/1900MHz)
- ●BT: Support 2.0+EDR/3.0+HS/4.0+HS (Transmission distance is 5-10)
Frequent Questions and Answers
Q1: Can the device be used in my country via 4G LTE network?
A: Yes, it supports global 4G LTE network.
Q2: Does this device support dual band with 5ghz and 2.4ghz wifi?
A: Yes.
Q3: What languages do the device support?
A: Our device support global languages, rest assured to use it in your country.

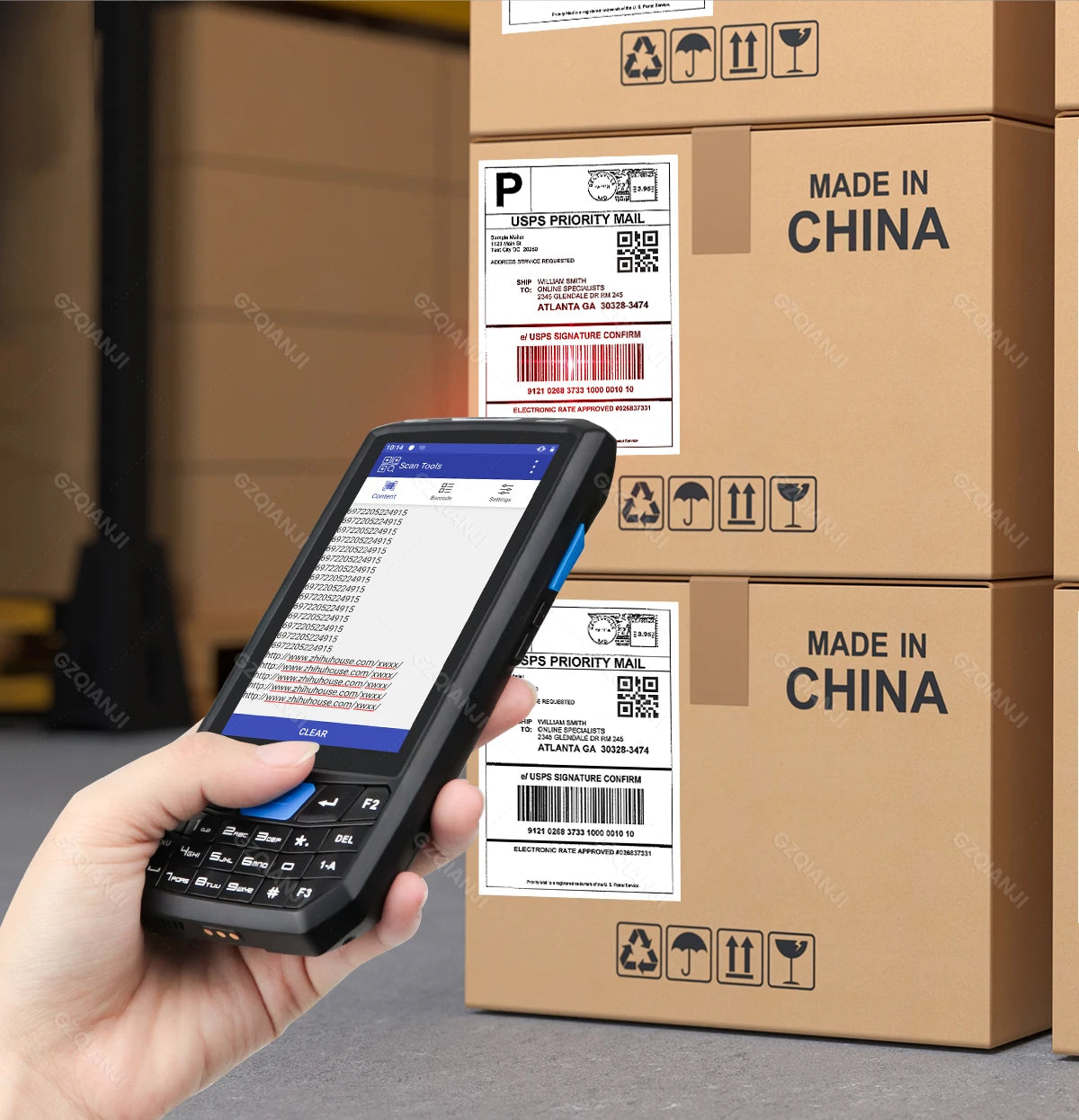

Q4 Does this device work with scanning usps, ups and fedex barcodes?
A: Yes, our terminal support to scan this kinds of barcodes.
Q5: What is the range on the scanner for scanning?
A: It depends on the size of the codes.
Q6: Can this scan a barcode presented on a smartphone screen?
A: Yes, the model with 2D scanner can scan the codes on the Electronic screen
Q7: Does this device have phone capabilty?
A: Yes, you can use it as a smartphone with barcode scanner.
Q8: Can I develop App based on SDK by Java language?
A: Yes, you can use the Java language develop your App in Android studio.

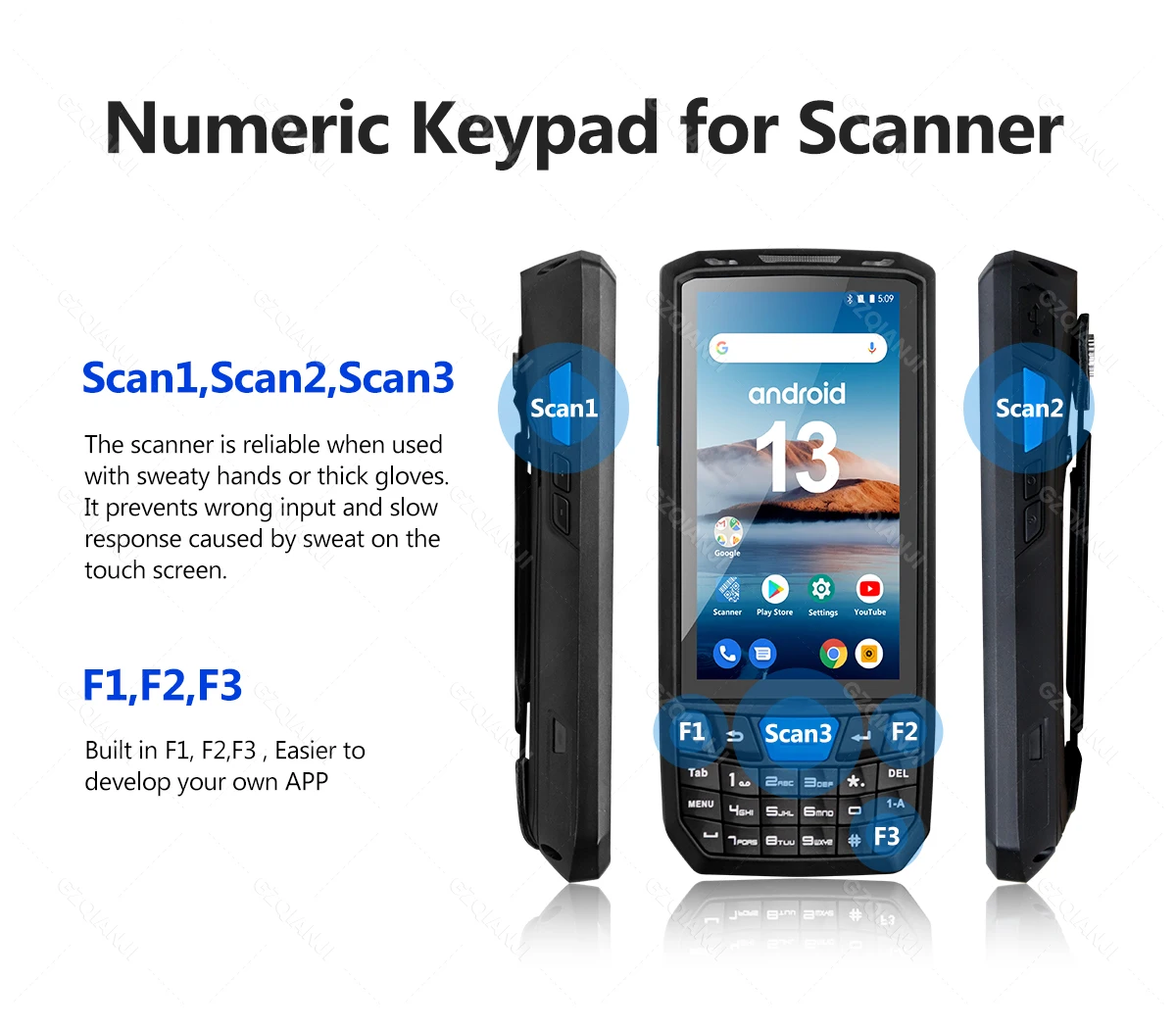

Q9: How do I use the F1, f2 and F3 buttons?
A: You can customize the F1, F2 and F3 with our SDK for this handheld terminal.
Physical Parameter | |

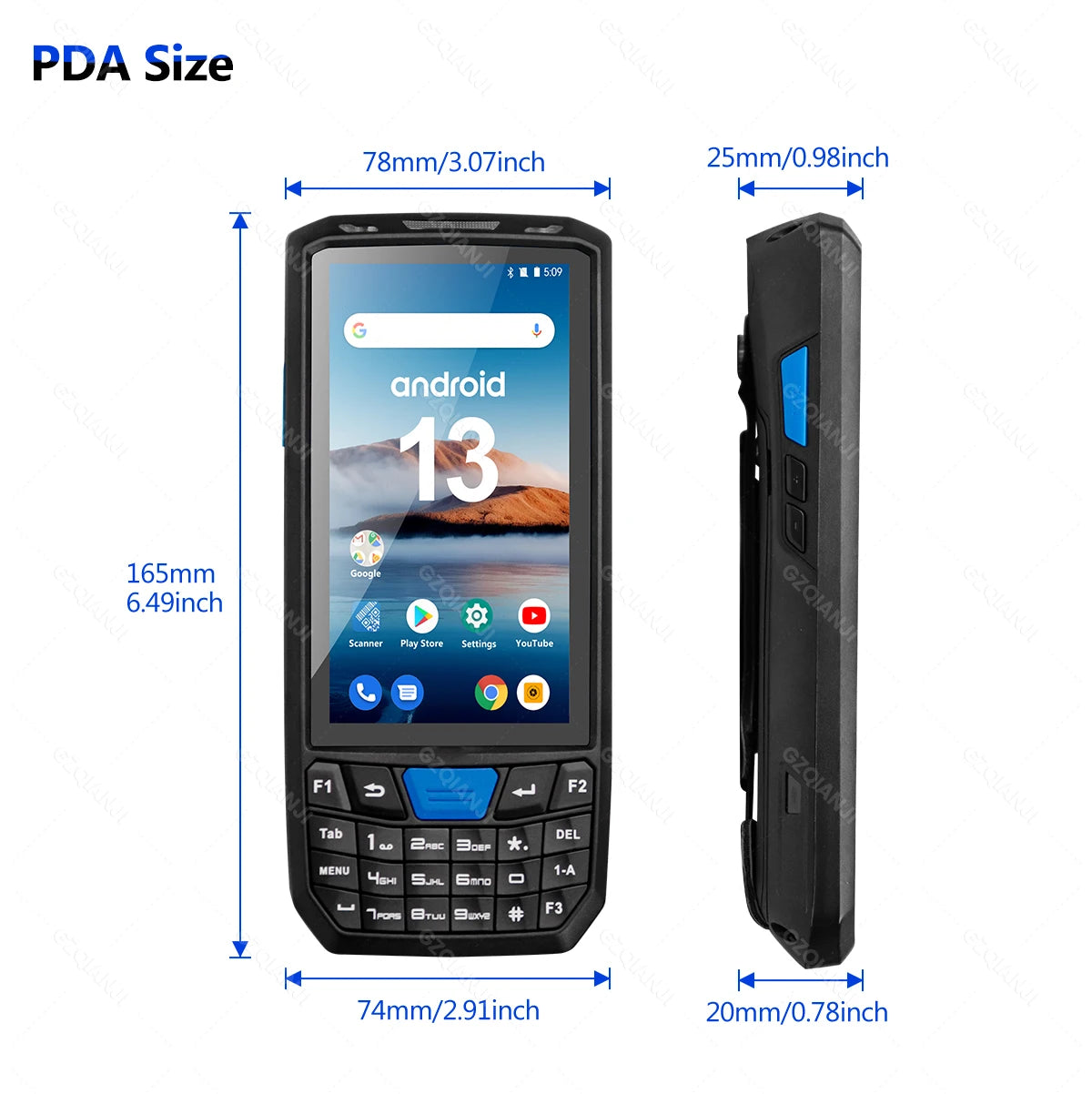

Dimensions |
166mm(L)X77.5mm(W)X22mm(D) |
Weight |
<500g |

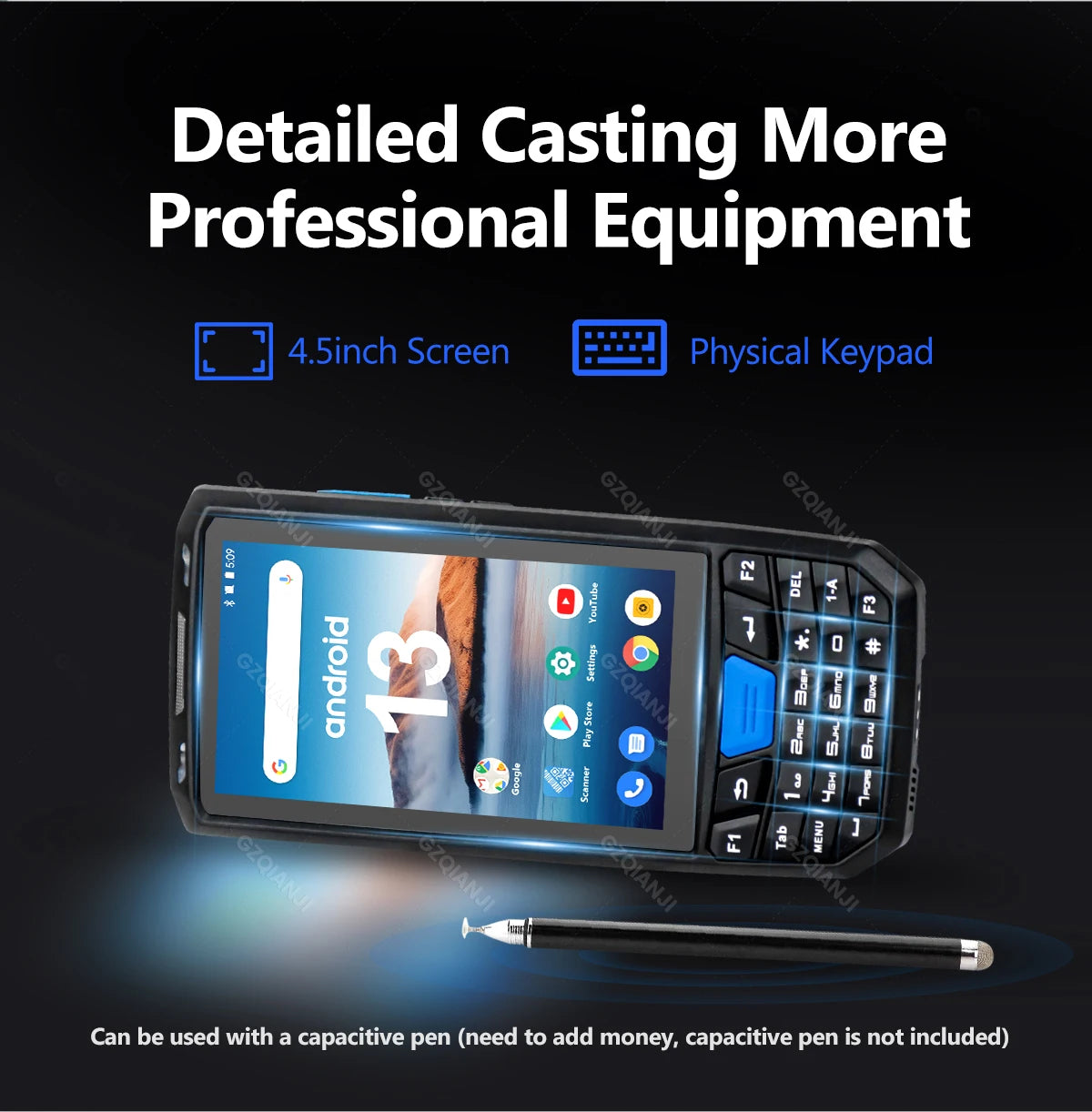

Display Screen |
Color 4.0 inch QVGA imitative glass durable touch screen |
TFT-LCD, 650000 colors, 480*800 (QVGA size) | |
The brightness of LED Backlight is adjustable | |

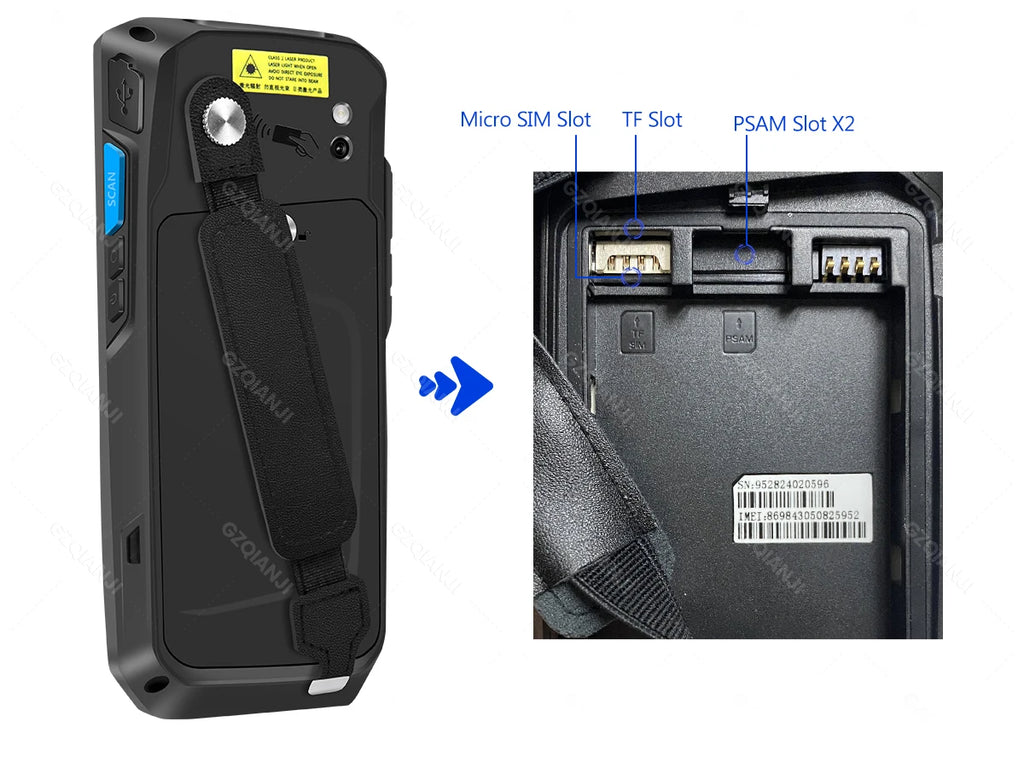

Expand Port |
SIM card, Micro SD (TF) Card |
Communication Interface |
USB2.0 Device, |
Input Mode |
Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity |
Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
Frequency |
8 1W speaker |
Buttons |
21pcs soft silicon key |
Data Communication | |
WI-FI |
Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover |
FDD-LTE 4G |
Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ |
Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ | |
WCDMA 3G |
Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
GSM 2G |
850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ |
900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ | |
Bluetooth |
Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Operating Environment | |
Operating Temperature |
—20C to 50C |
Storage Temperature |
—25C to 70C |
Environment Humidity |
5%RH--95%RH(no condensation) |
Drop Specifications |
6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications |
1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment |
IP65 |
Development Environment | |
Operating System |
Android 13 |
SDK |
exclusive use software development kit |
Supported Language |
JAVA |
Development Tool |
Eclipse |

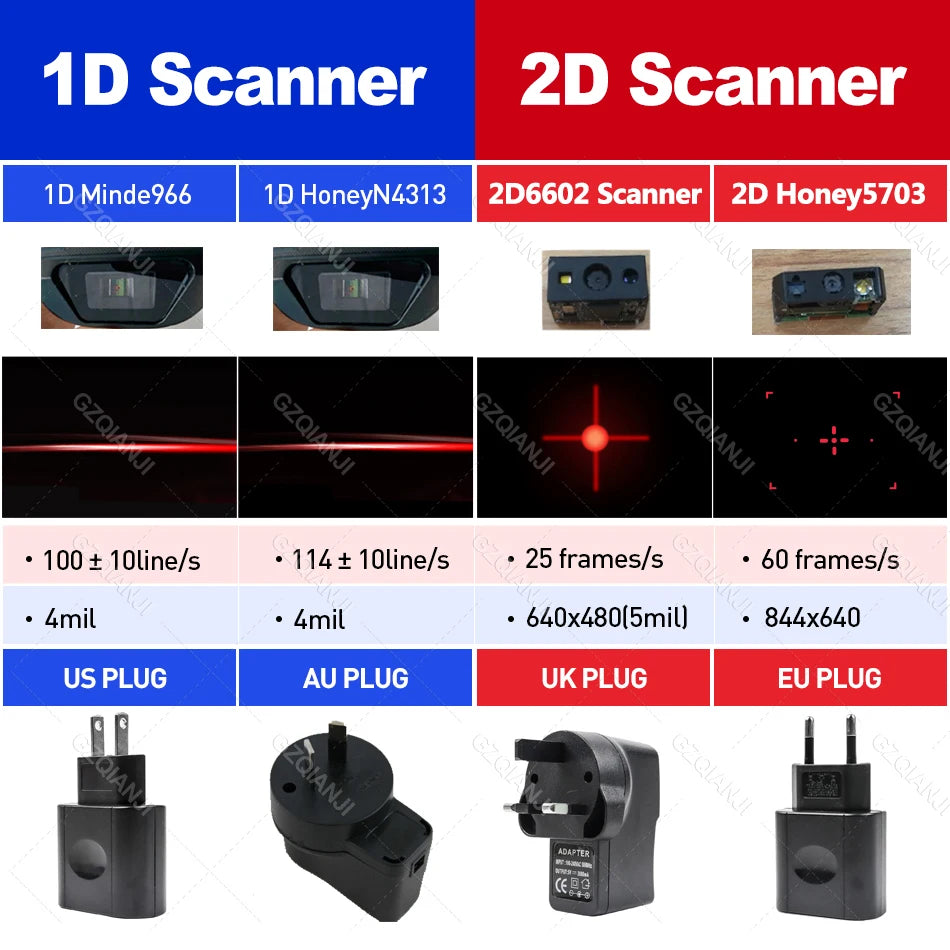

1DScanner | |
One dimensional scanner |
Minde966 or Honeywell N4313 |
Resolution |
4Mil minimum width |
Ambient Light |
10000ft.candles(107640 lux) |
Scanning Speed |
104(±)12/sec (both way) |
Scanning Angle |
47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type |
UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, |
2D CMOS (Optional) | |

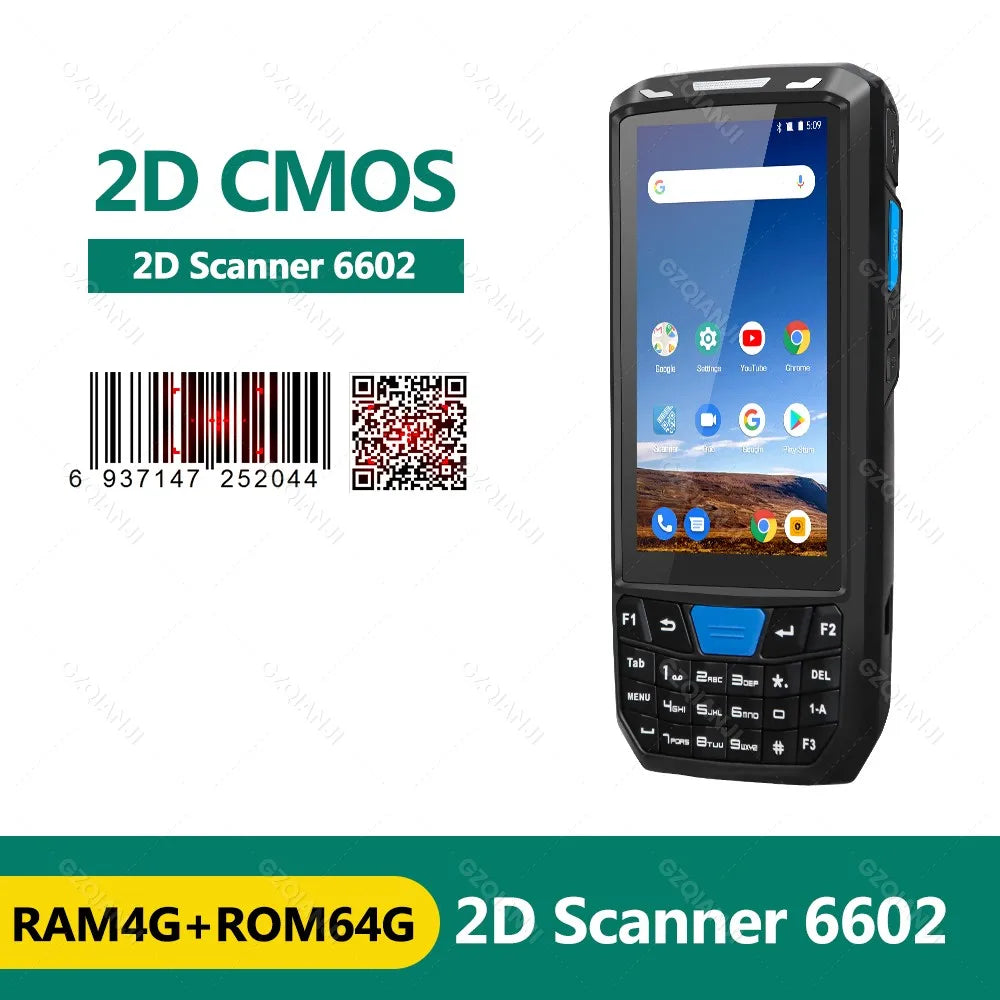

CMOS Scanner |
2D Scanner 6602/2D Honeywell 5703 |
The Sensor Resolution |
752(level)×480(vertical)pels(gray level) |
Ambient Light |
All dark 9000ft.candles/96900 lux |
Focus element (VLD) |
655nm ± 10nm |
Support bar code type |
PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, |

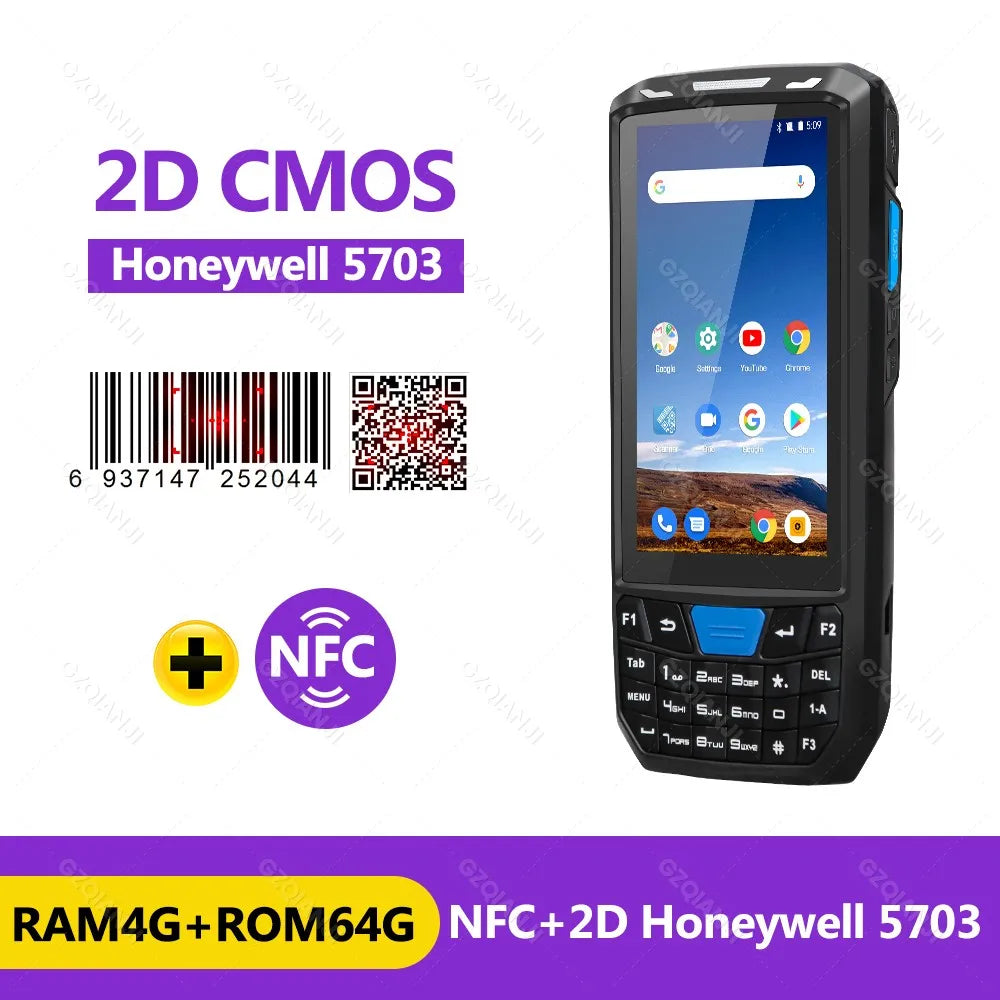

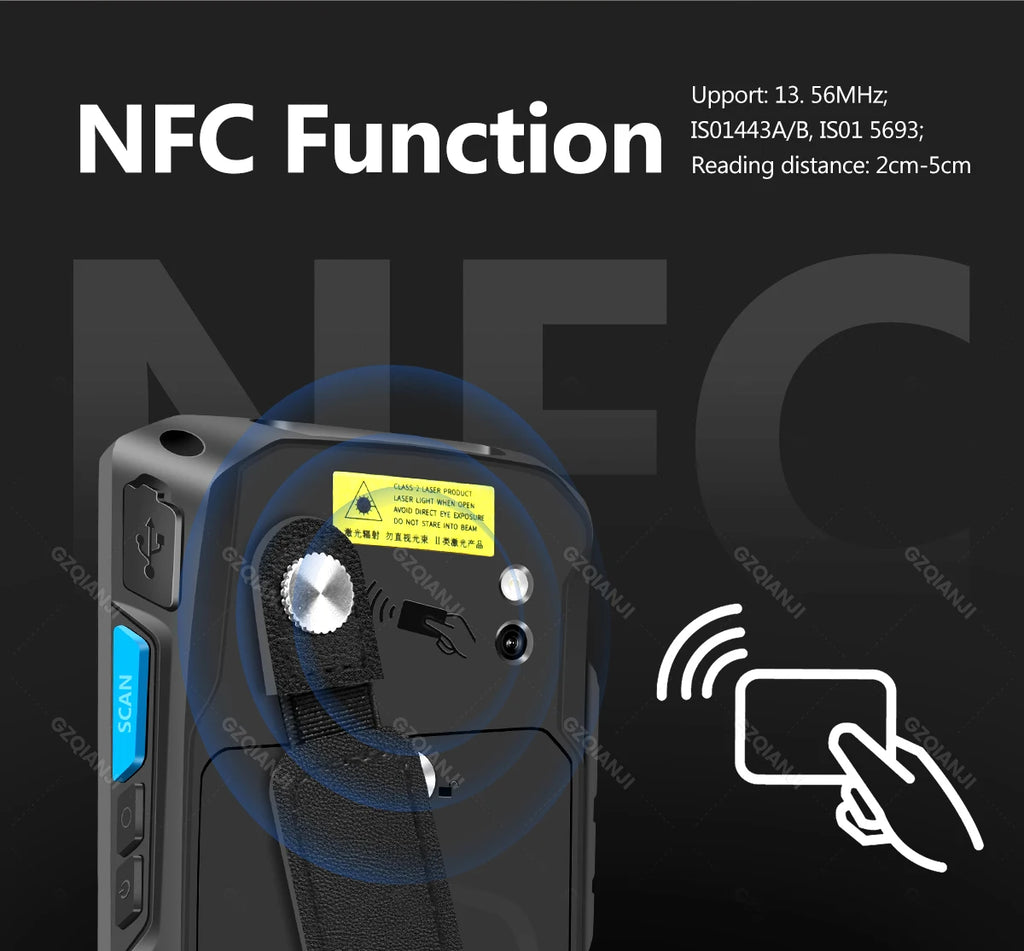

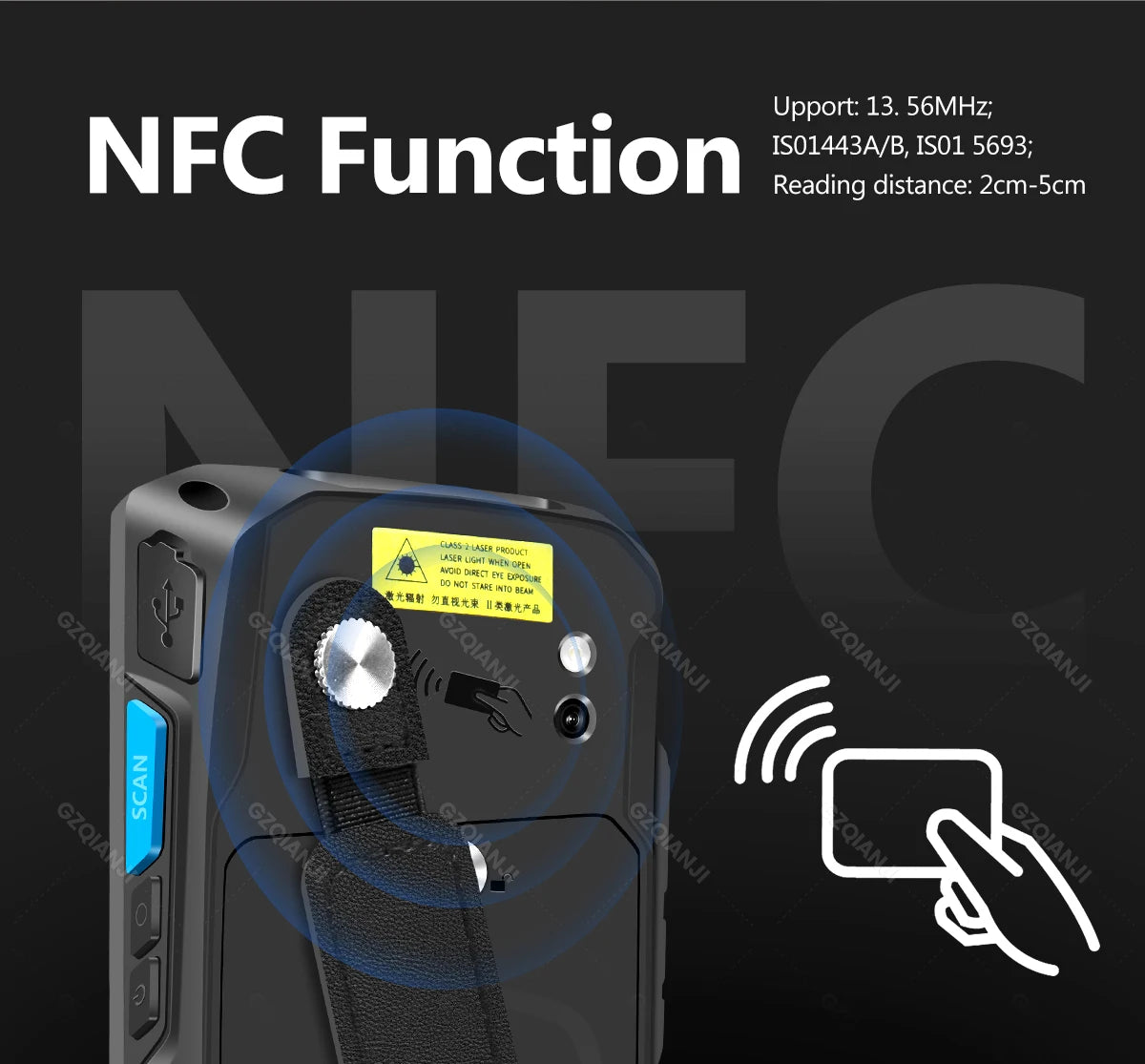

NFC(Optional) | |
NFC |
13.56MHz |
If you need the NFC |
Please choose the NFC optional |
Camera |
Hd 8 million pixels, with LED, automatic focusing |
GPS |
Support A-GPS |
Android 9.0 System | |
CPU |
ARM Cortex-A53 64bit Quad-Core 1.3G |
RAM |
4G RAM |
Flash ROM |
|
64G NAND Flash Storage | |
