SPECIFICATIONS

Automatic Power-Off: Three adjustment options: 24 hours, 48 hours, and 72 hours

Black: WiFi Router Automatic Restart Line

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: -20℃+70℃

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: DC 9-12V

Type: Module

is_customized: Yes

Features:

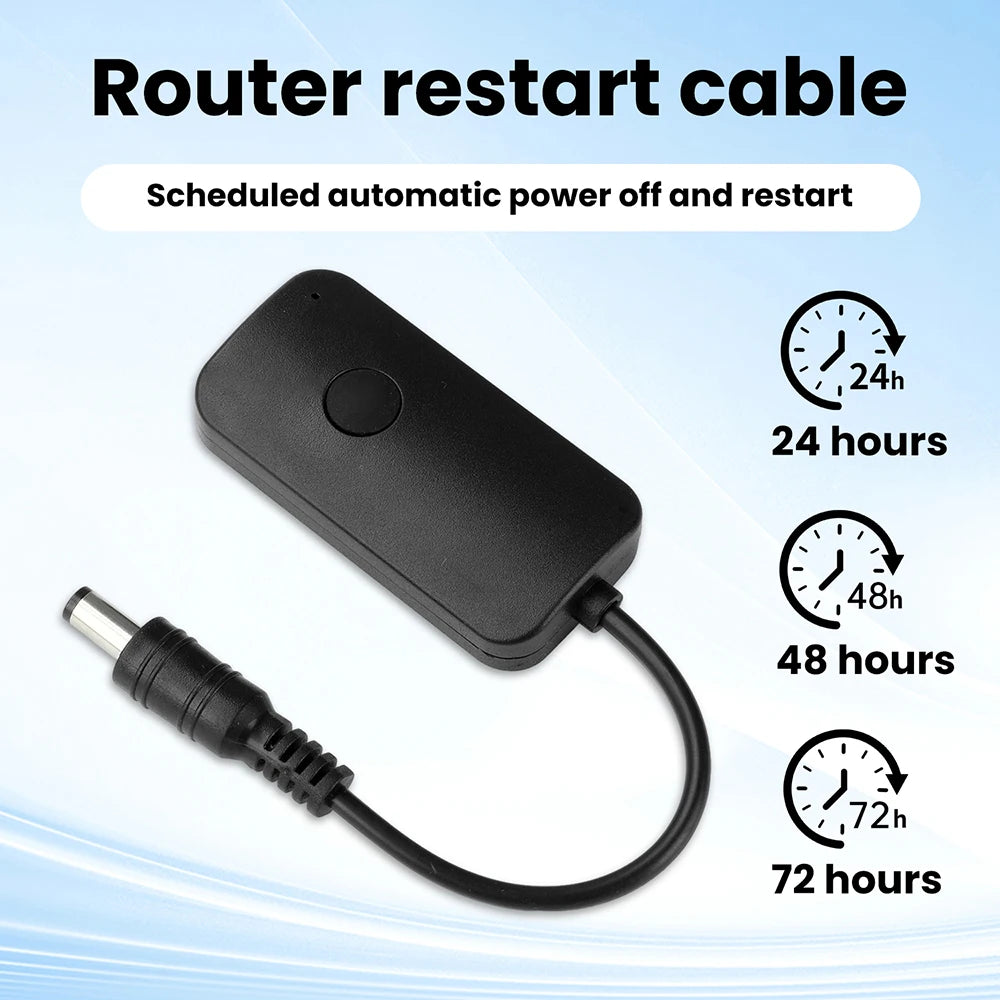

1. There are three timing modes to choose from, with three adjustment cycles of 24/48/72 hours to restart and meet different needs.

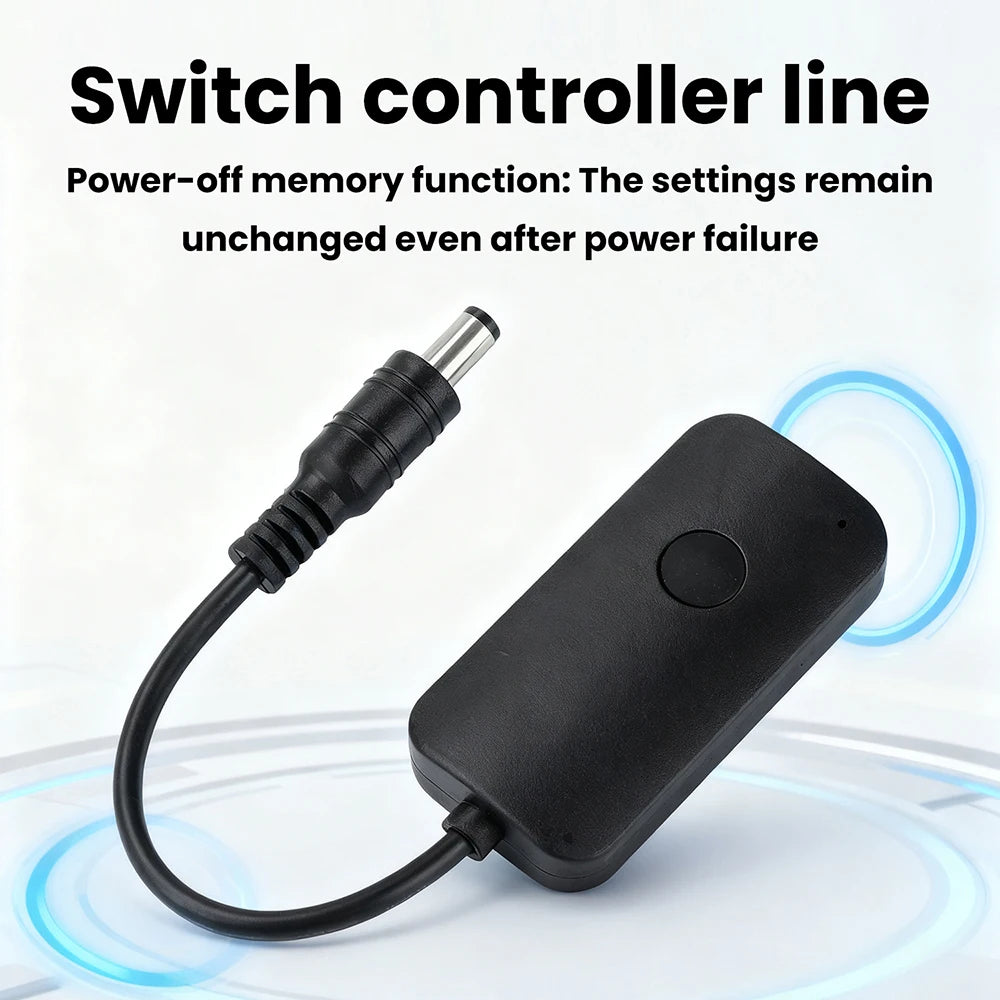

2. Power off memory function, which can retain the set mode unchanged even after power failure.

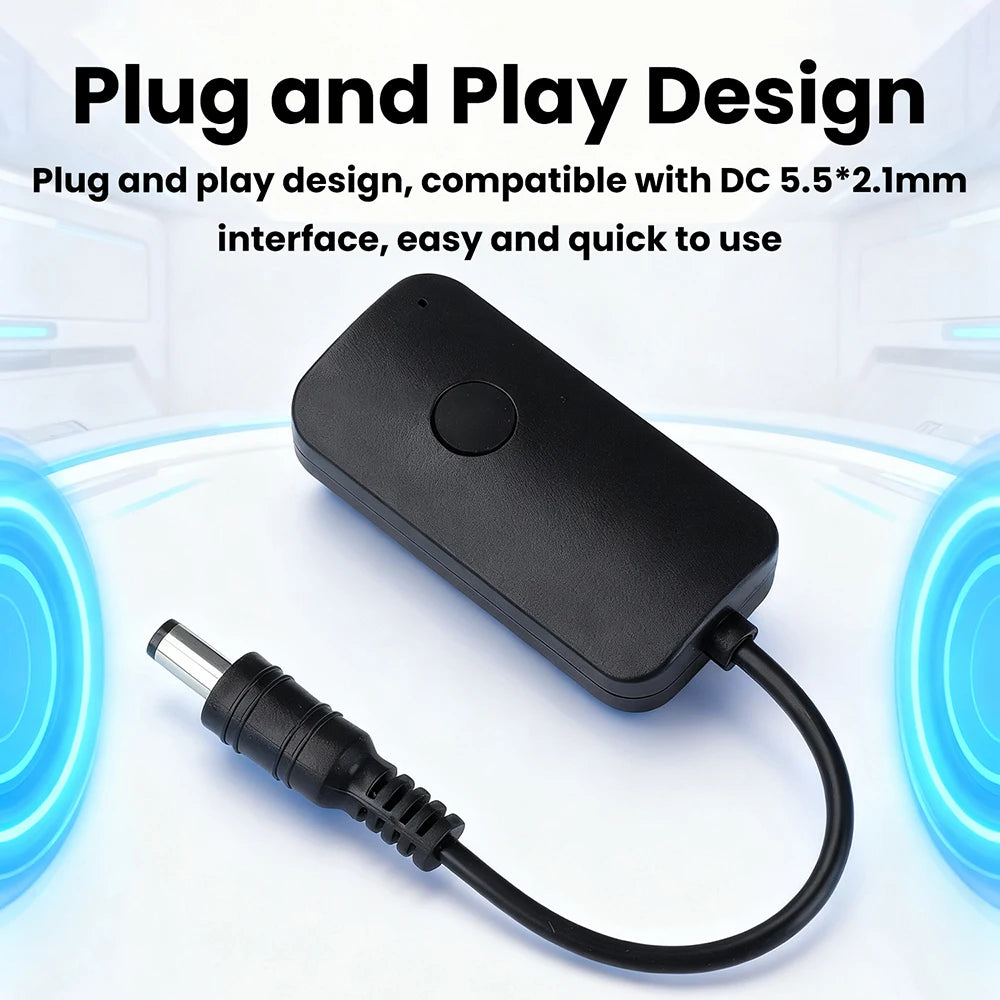

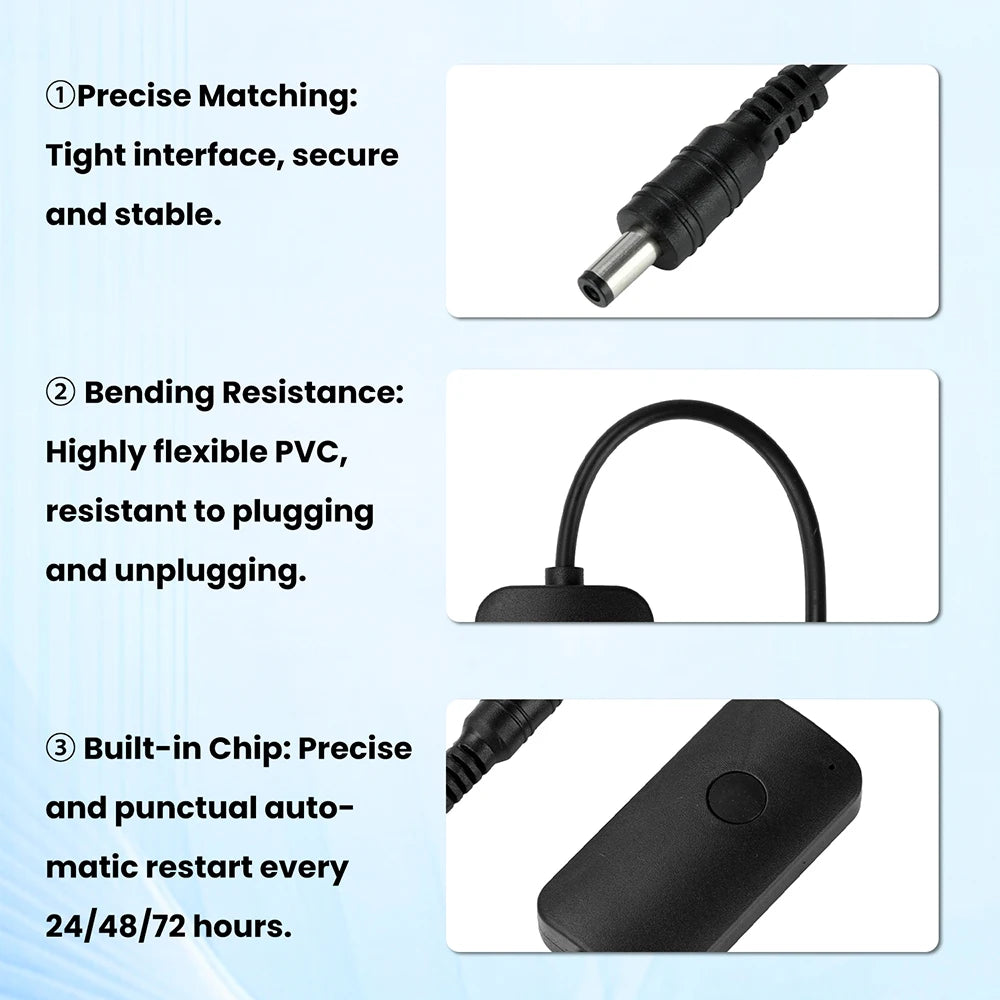

3. Plug and play design, compatible with DC5.5 * 2.1mm interface, easy and fast to use.

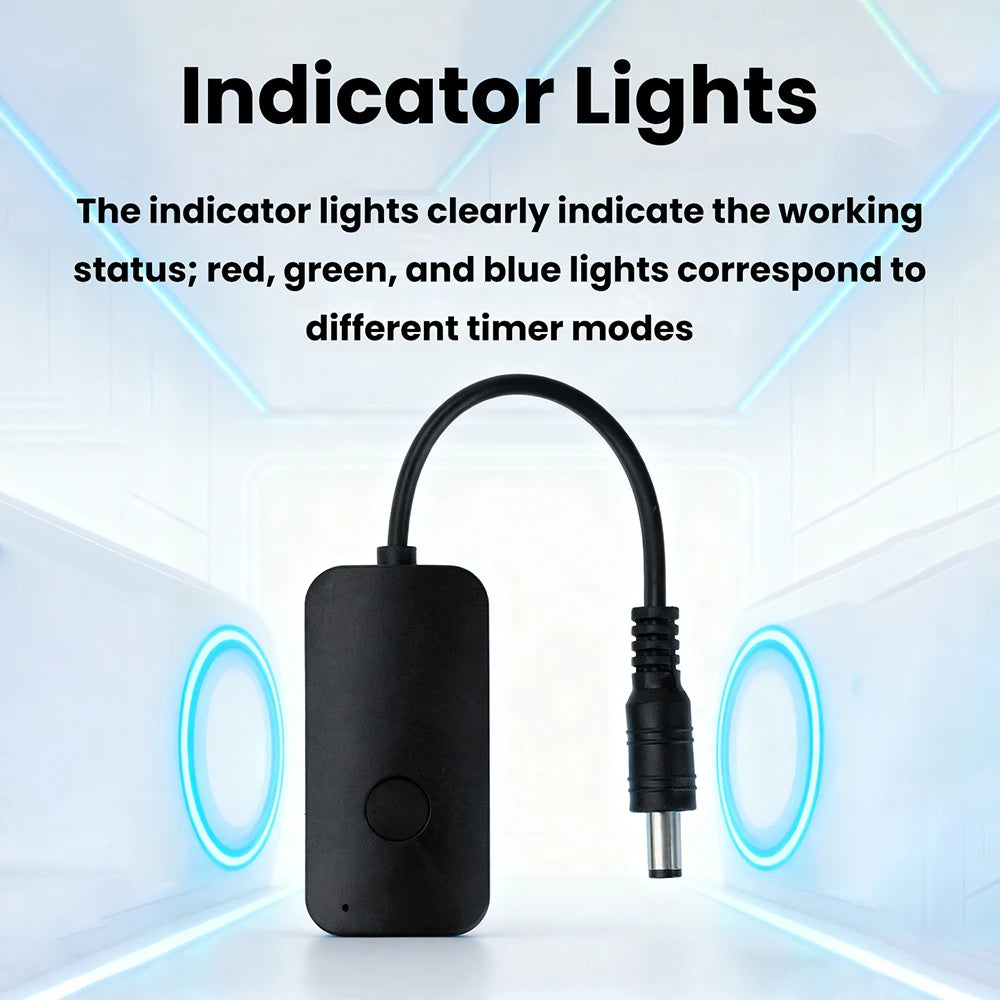

4. The indicator light clearly indicates the working status, and the red, green, and blue lights correspond to different timing modes.

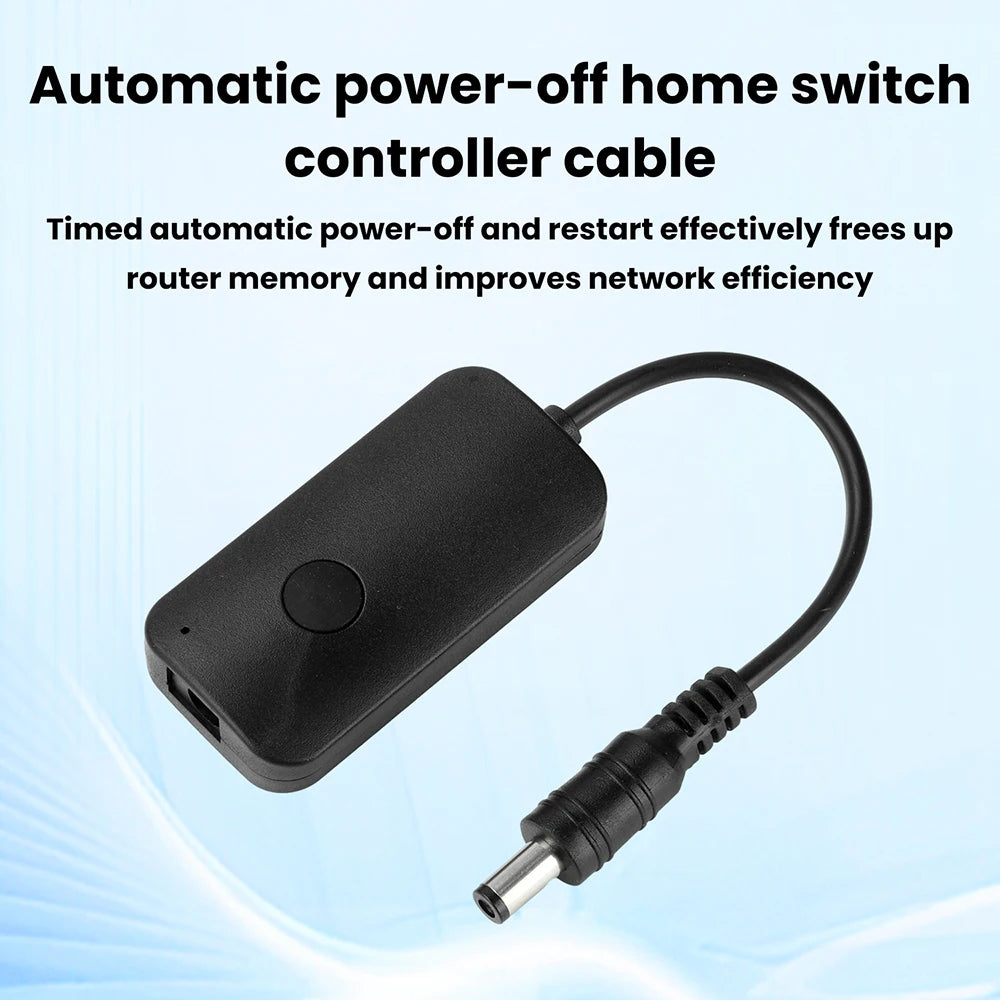

5. Scheduled automatic power-off and restart, effectively freeing up router memory and improving network efficiency.

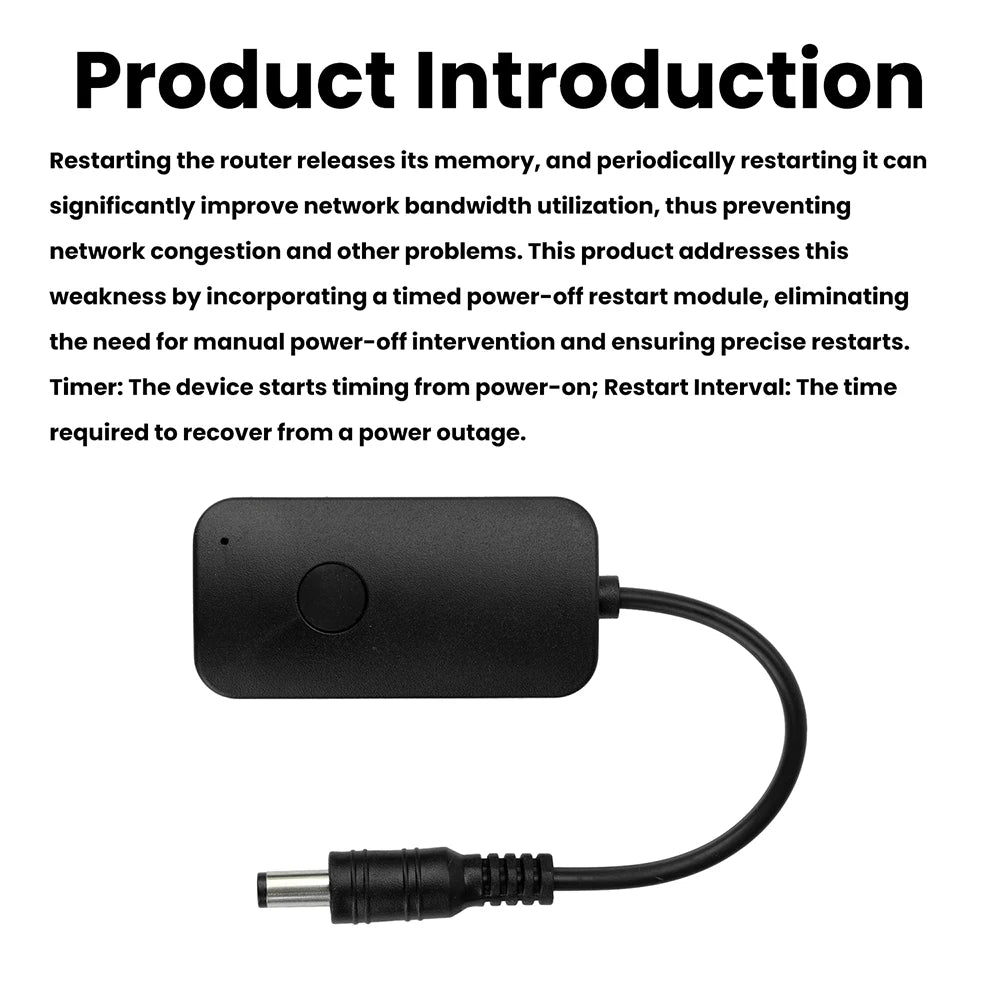

Product Introduction:
Restarting the router can release the router's memory in a timely manner. Regularly restarting the router can greatly improve the efficiency of network bandwidth usage, thus avoiding a series of problems such as network congestion. This product has designed a timed power-off and restart module to address the weakness of routers, eliminating the need for manual power-off intervention and achieving timely power-off and restart. Timing time: The device starts timing from the moment it is powered on; Restart interval: The time it takes for a power outage to restore the state.

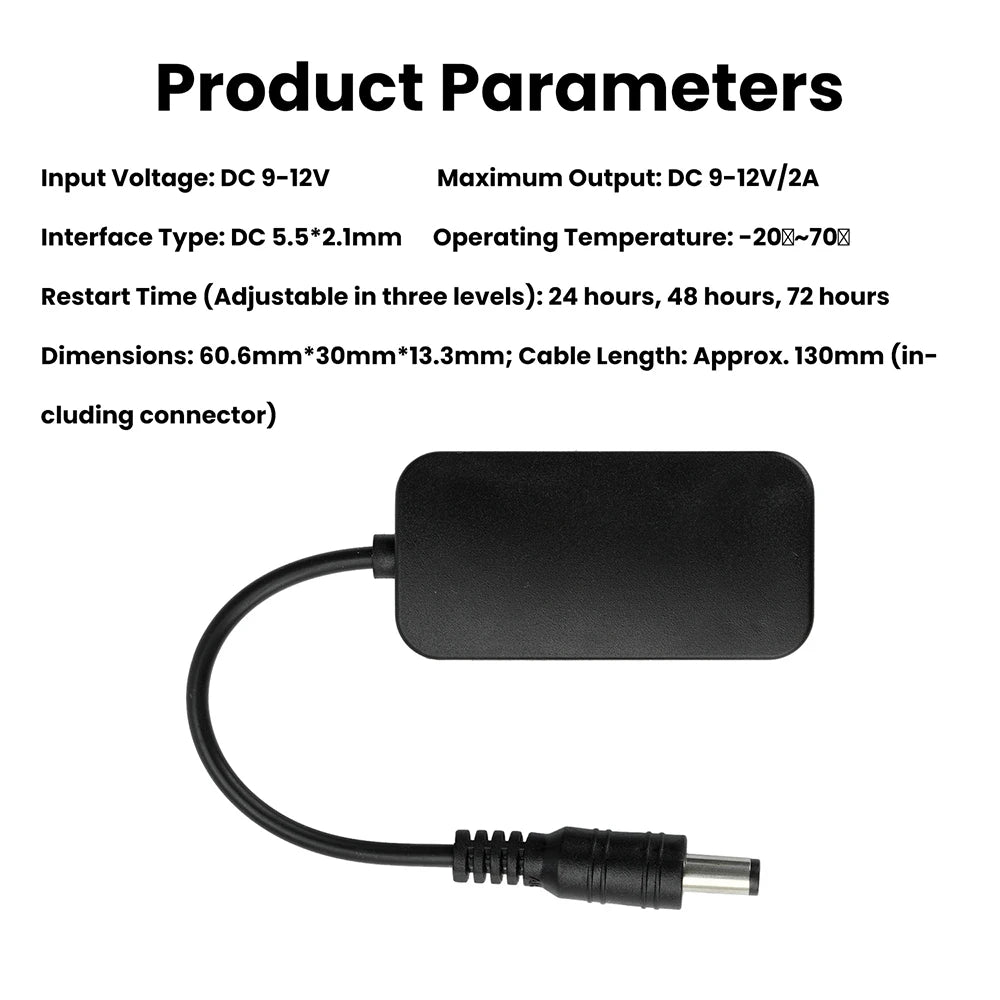

Parameters:
Input voltage: DC 9-12V
Maximum output: DC 9-12V/2A

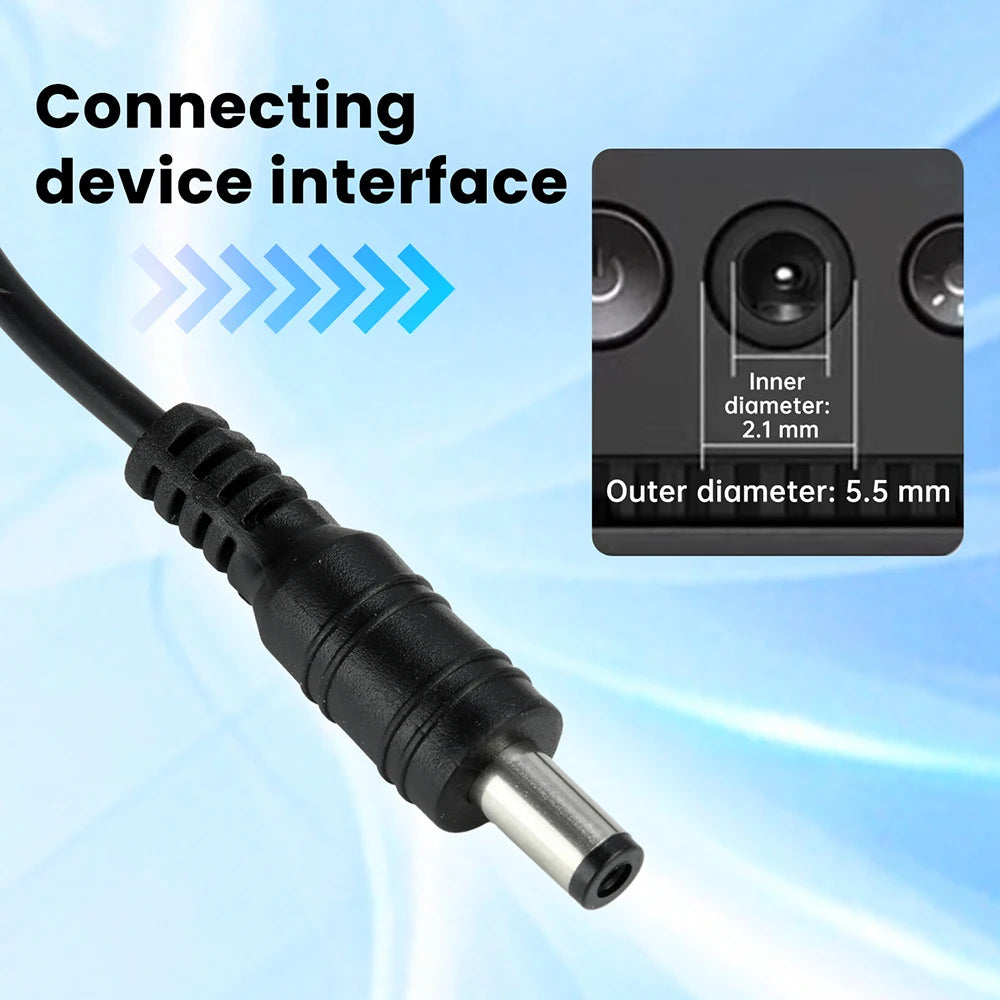

Interface type: DC 5.5 * 2.1mm
Working temperature: -20 ℃~70 ℃
Restart time (adjustable in three levels): 24 hours, 48 hours, 72 hours

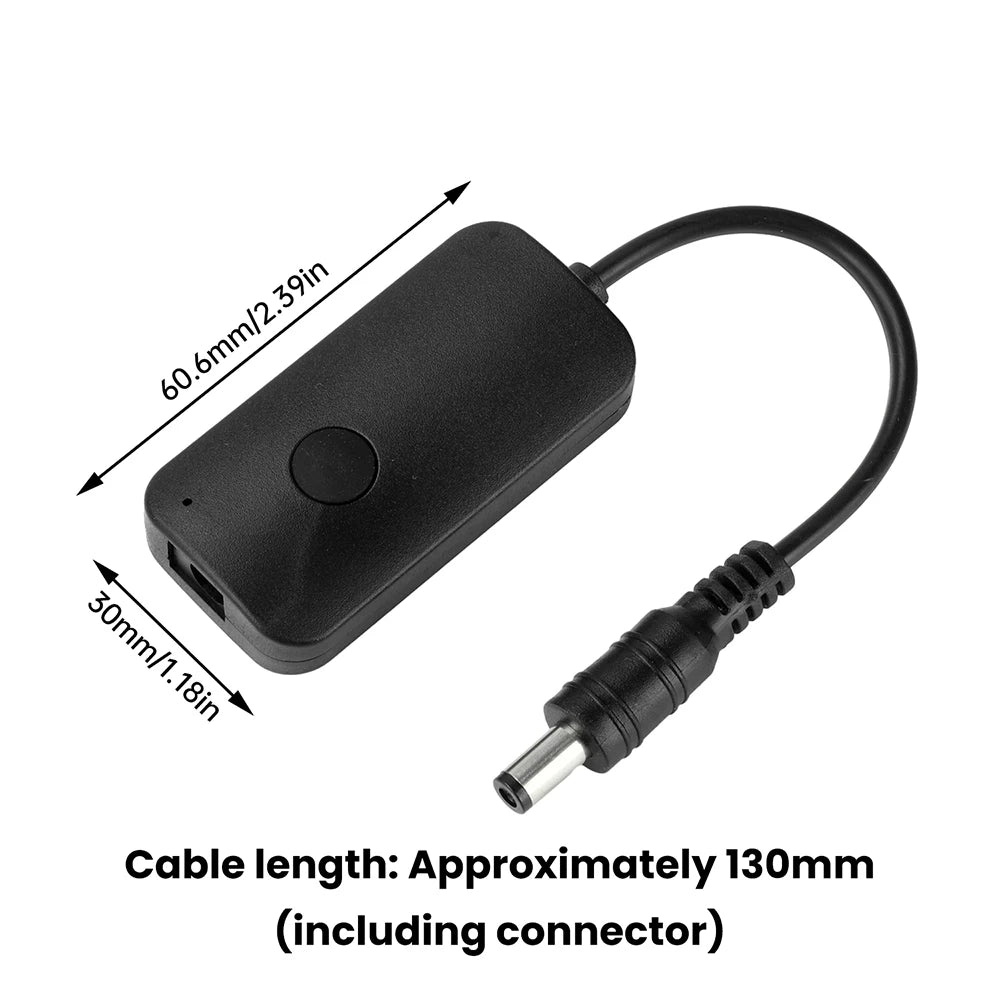

Size: 60.6mm * 30mm * 13.3mm; Line length: approximately 130mm (including interfaces)

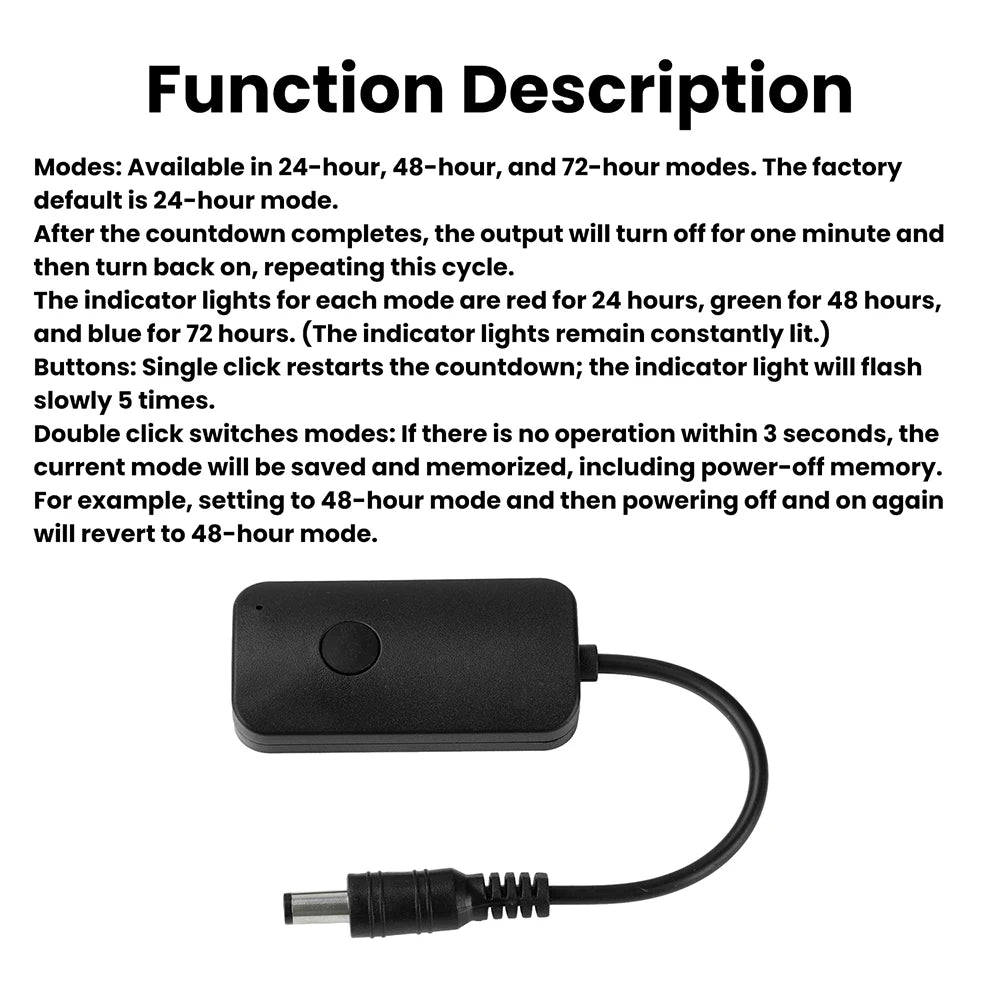

Function Description:
Modes: 24-hour mode, 48 hour mode, 72 hour mode, default 24-hour mode at the factory.
After the countdown of the mode is completed, turn off the output for 1 minute and then turn it back on in this loop
The indicator lights corresponding to the mode are red light for 24 hours, green light for 48 hours, and blue light for 72 hours. (The indicator light is always on)
Button: Click to restart the timer, and the indicator light will flash slowly 5 times.
Double click to switch modes: If there is no operation within 3 seconds, save the current mode and remember it with power-off memory. For example, set the 48 hour mode, and then restart after power failure to return to the 48 hour mode

Package Include:
1X restart cable
