SPECIFICATIONS

Battery type: Lithium ion battery, lithium battery pack

Brand Name: NONE

Free installation service: Yes

High-concerned chemical: none

Installation method: BIPV installation

Installation type: pole installation

Model: DC 200W\A

Origin: Mainland China

Output voltage (volts): 12V

Pre-sales project design: Y

Scope of application of the camera: POE or IP

Solar panel efficiency: Efficiency 21.6%

Solar panel type: monocrystalline silicon

System bracket material: Galvanized - rust resistant

Warranty: 10 years

Working hours (hours): 24H

certificate: CE TUV

controller: PWM

controller type: MPPT

country of origin: Shandong, China

function: Power support

load power: 200 watts

output frequency: 50HZ

purpose: outdoor

solar panel: Monocrystalline Perc solar panels

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 17680717689 or maoyishunda@gmail.com



Product Description

Product Name	200w120ah dc 12v output solar power system
Solar panel	200w 18v mono solar panel
Solar panel size	1510*670*30mm
Solar panel weight	12kg
Battery type	Ternary lithium polymer battery
Battery capacity	12V 120ah
Max pulse discharge current	40A
Battery size	776*147*50mm
Battery weight	7.2kg
Solar controller type	PWM
System voltage	12V
Solar controller size	190*170*135mm
U-type hoop	8-14 U-type hoop
Package size	1515*675*140mm
Package weight	25kg



Low cost solar power system

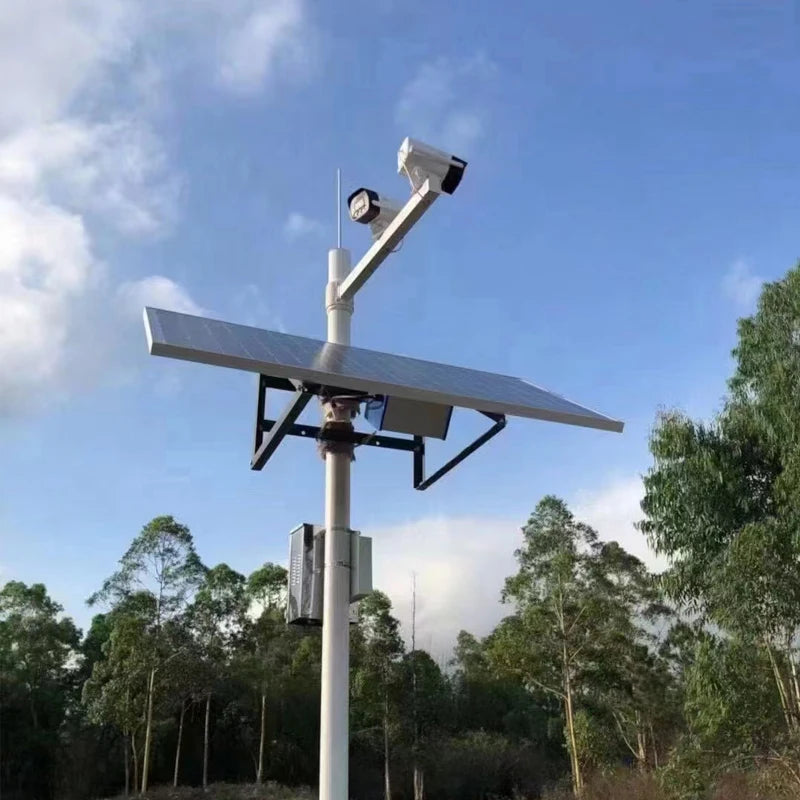

This solar system is equipped with 200W solar panel, 120AH lithium battery and PWM charge controller. Default output of this system is 12V DC(24VDC, 48VDC optional). So, this product provide power to devices such as ip camera, wifi camera, 4G camera, network switch, sensor, street light and so on.

We also provide other solar systems, like 360WH, 480WH, 720WH, 960WH, 1440WH, 2160WH and so on. Feel free to contact us if you have any requirements about power issue.

OEM ODM 1440wh solar portable power station kit solar 12v dc output solar panel syste

Here are what included in this kit:

1) 200w solar panel -- 1 piece

2) 12v 120ah ternary lithium battery -- 1 piece

3) PWM solar charge controller -- 1 piece(Inside battery shell)

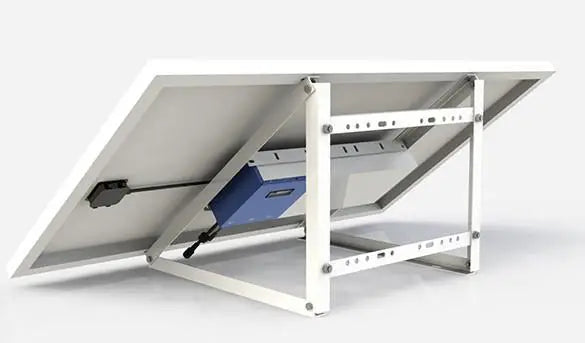

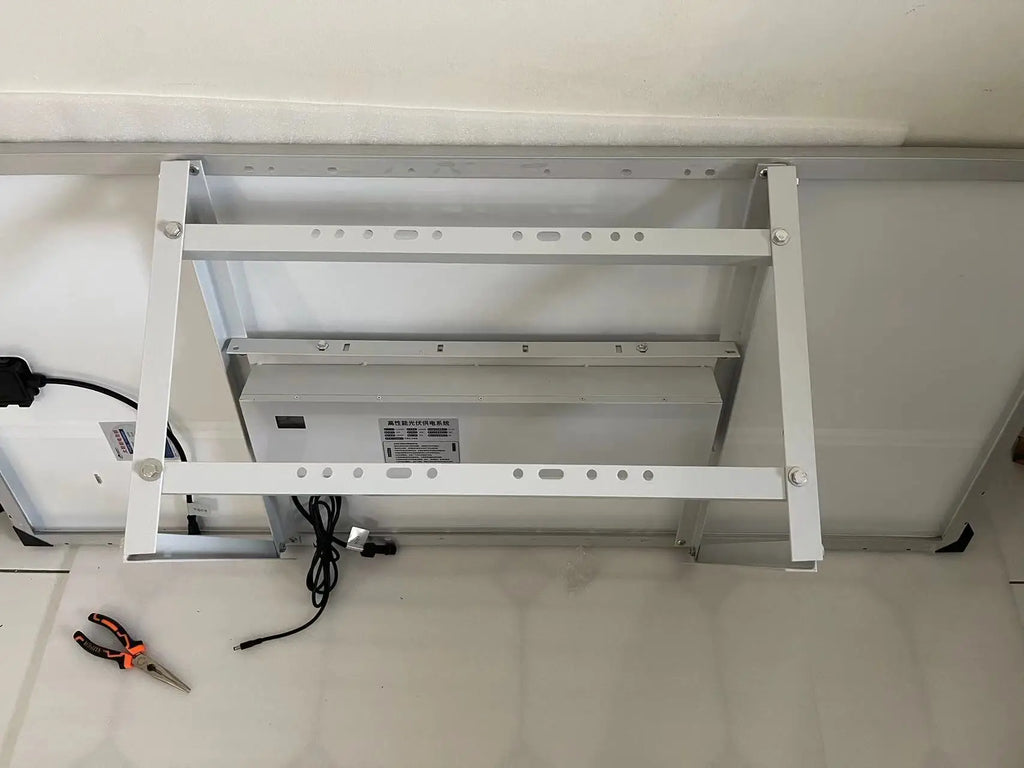

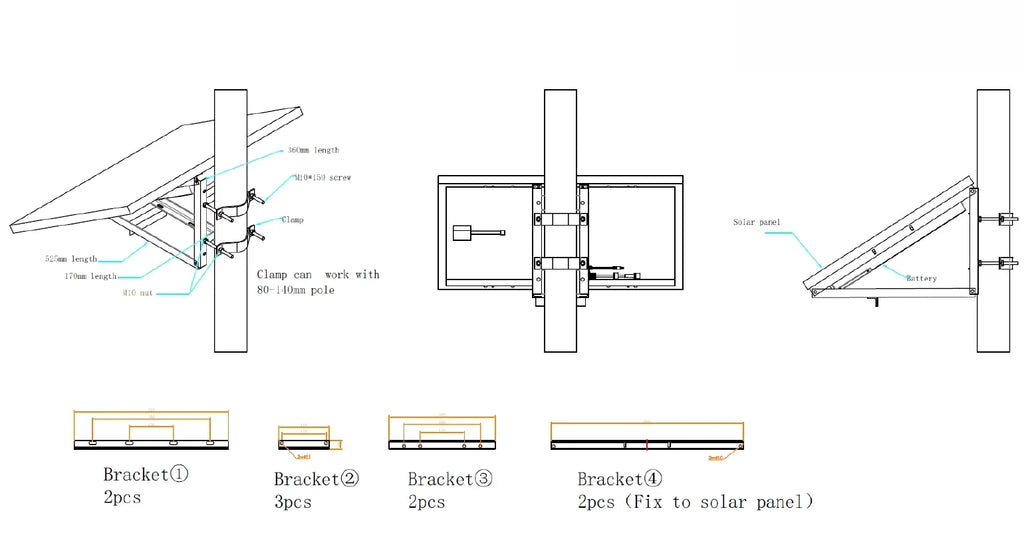

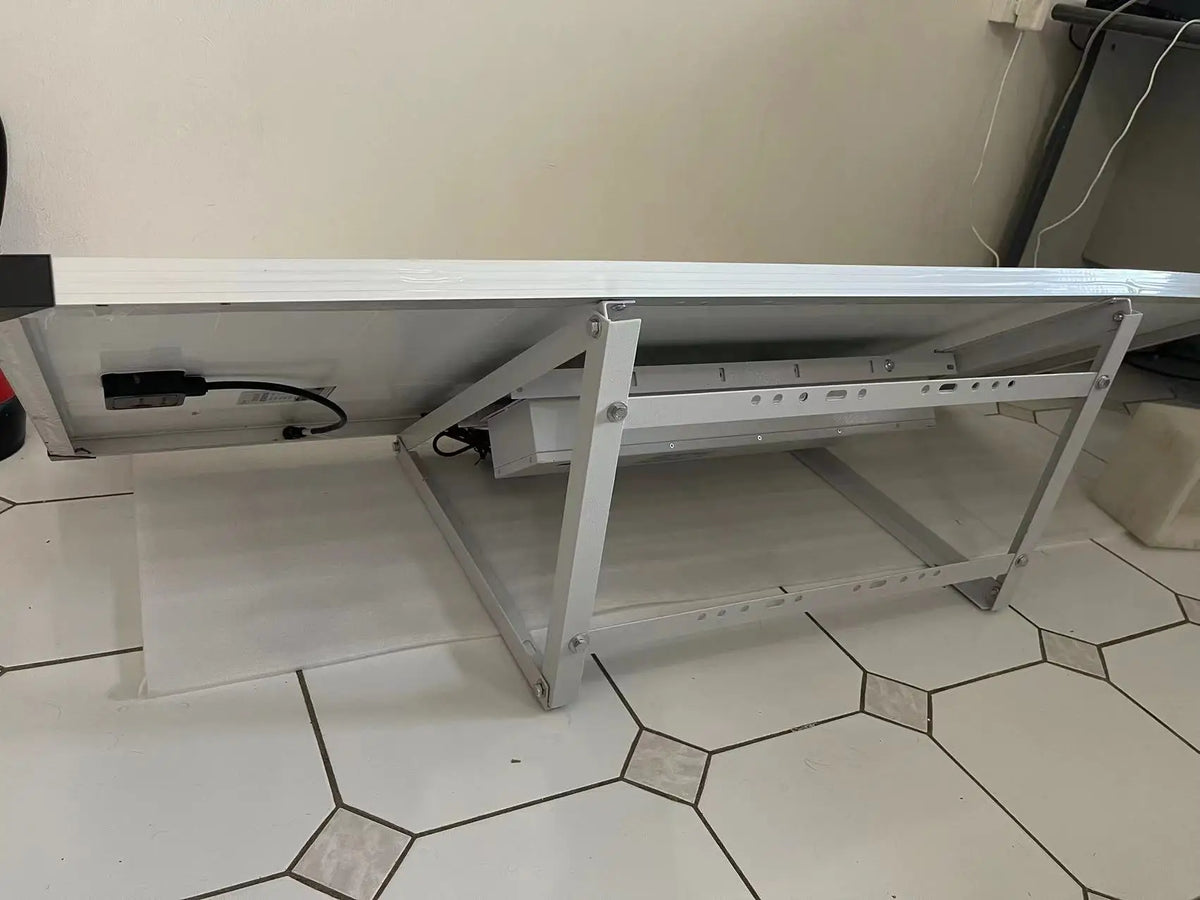

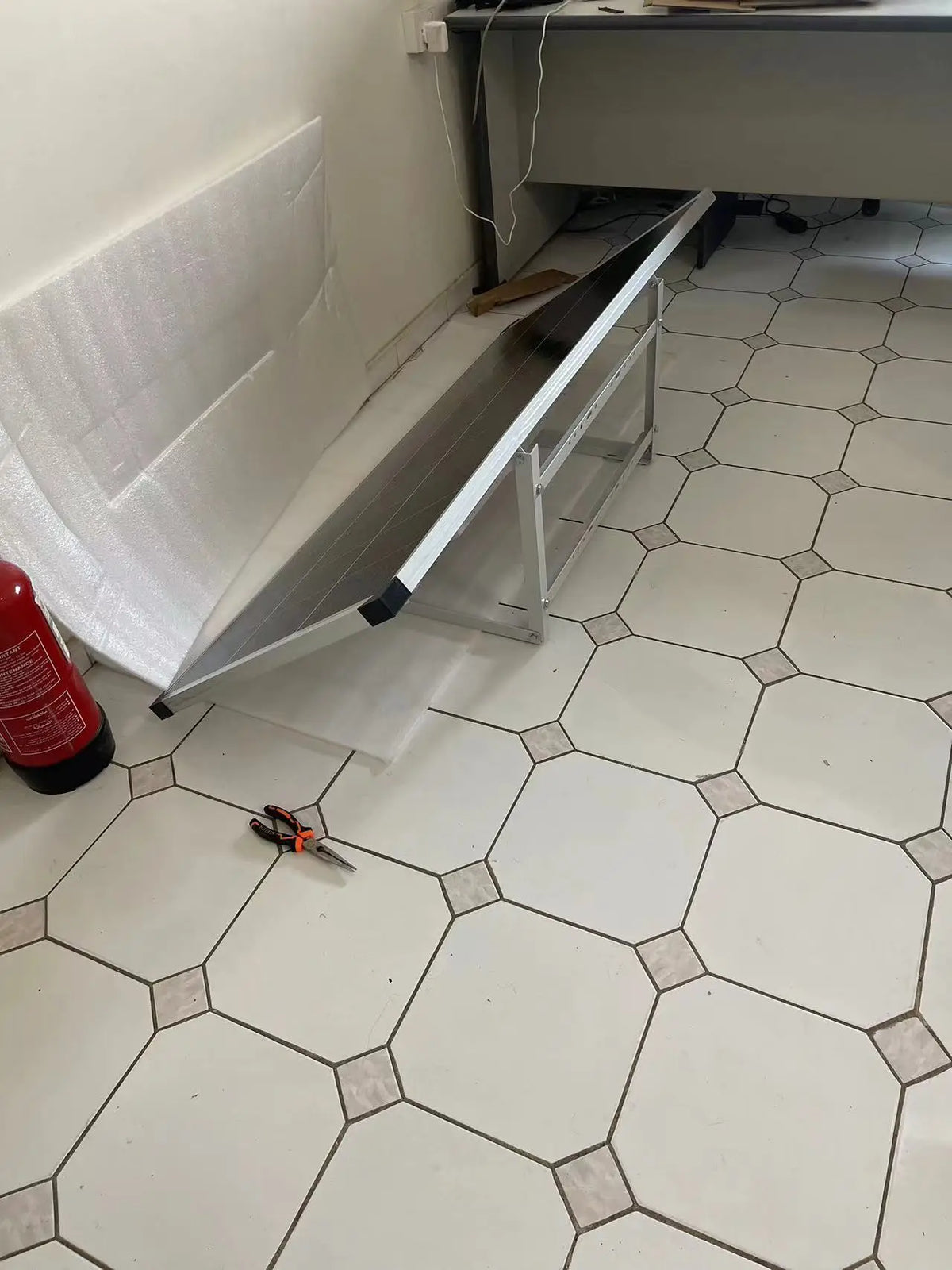

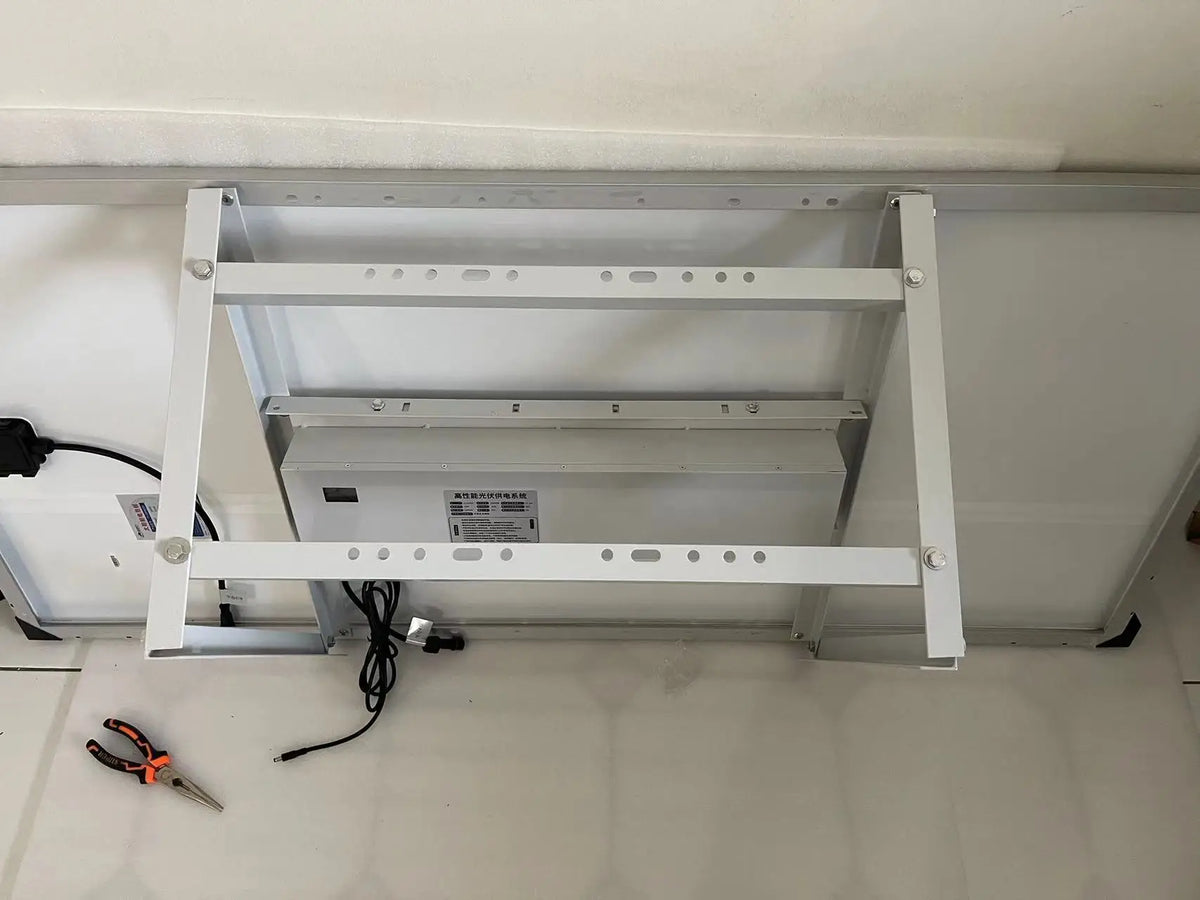

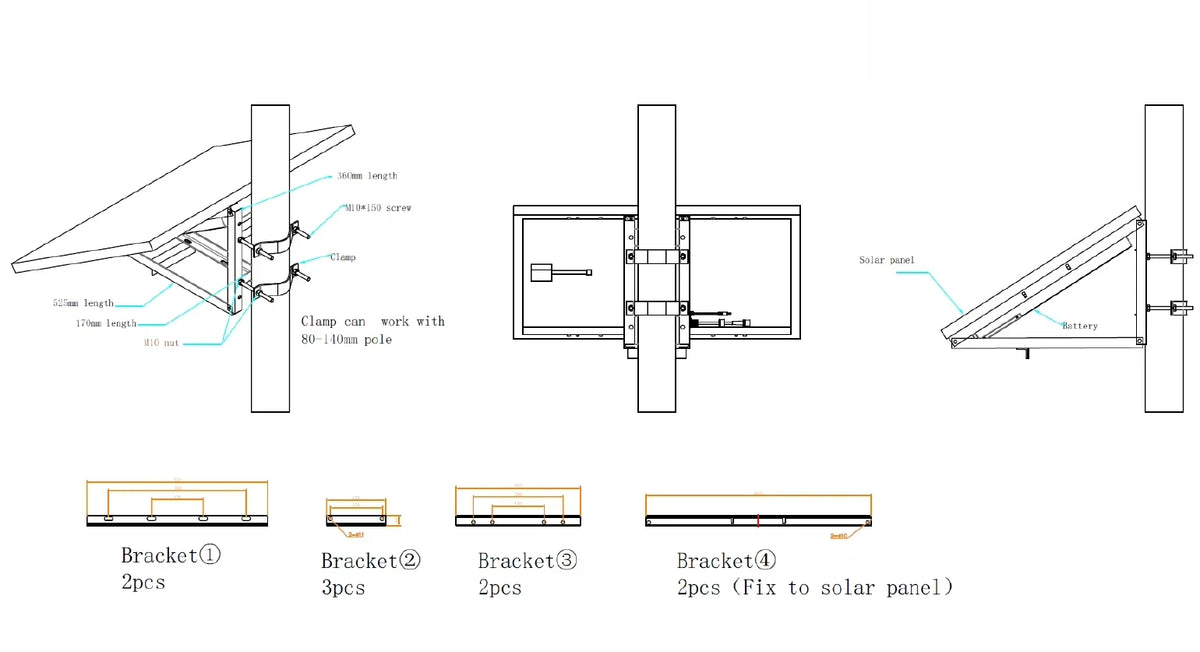

4) Solar panel bracket -- 2 piece (To fix solar panel and battery)

5) U shape clamp -- 2 pieces



DC output solar solutions

- Long standby tiem for 12V loads

- Suitable for environment without electricity and network

- Low power consumption and long endurance Peak power tracking technology

- High conversion rate of solar controller

- OEM/ODM service supported

Professional solar power solutions

- Solar solution according to your request

- Comprehensive testing to ensure quality
- Bang for the buck
- Professional technical support on line

Details Images

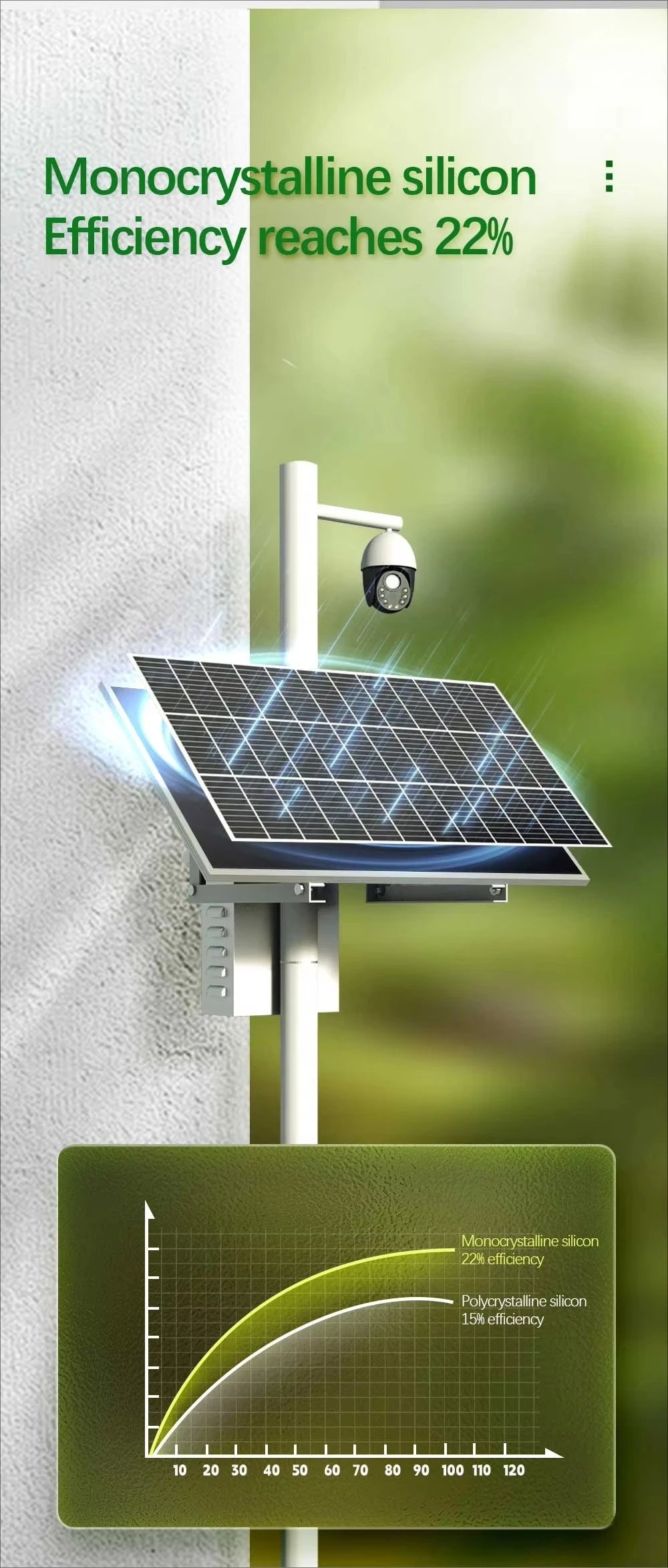

Part 1: High efficiency solar panel (200w solar panel inside)

- A grade solar cell with efficiency rate
- Toughened glass withstand 5400Pa wind and rain impact
- PPF backboard waterproofing and sealing
- IP65 junction box

200w Solar panel specifications
Max power voltage(Vmp)	18V
Max power current(Imp)	11.11A
Open circuit voltage(Voc)	21.6V
Short circuit current(Isc)	12.55A
Module efficiency STC	22%
Power tolerance	0~3%
Max system voltage	1000V
Cell type	210mm
Number of cells	33pcs
Dimension	1510*670*30mm
Weight	12kg

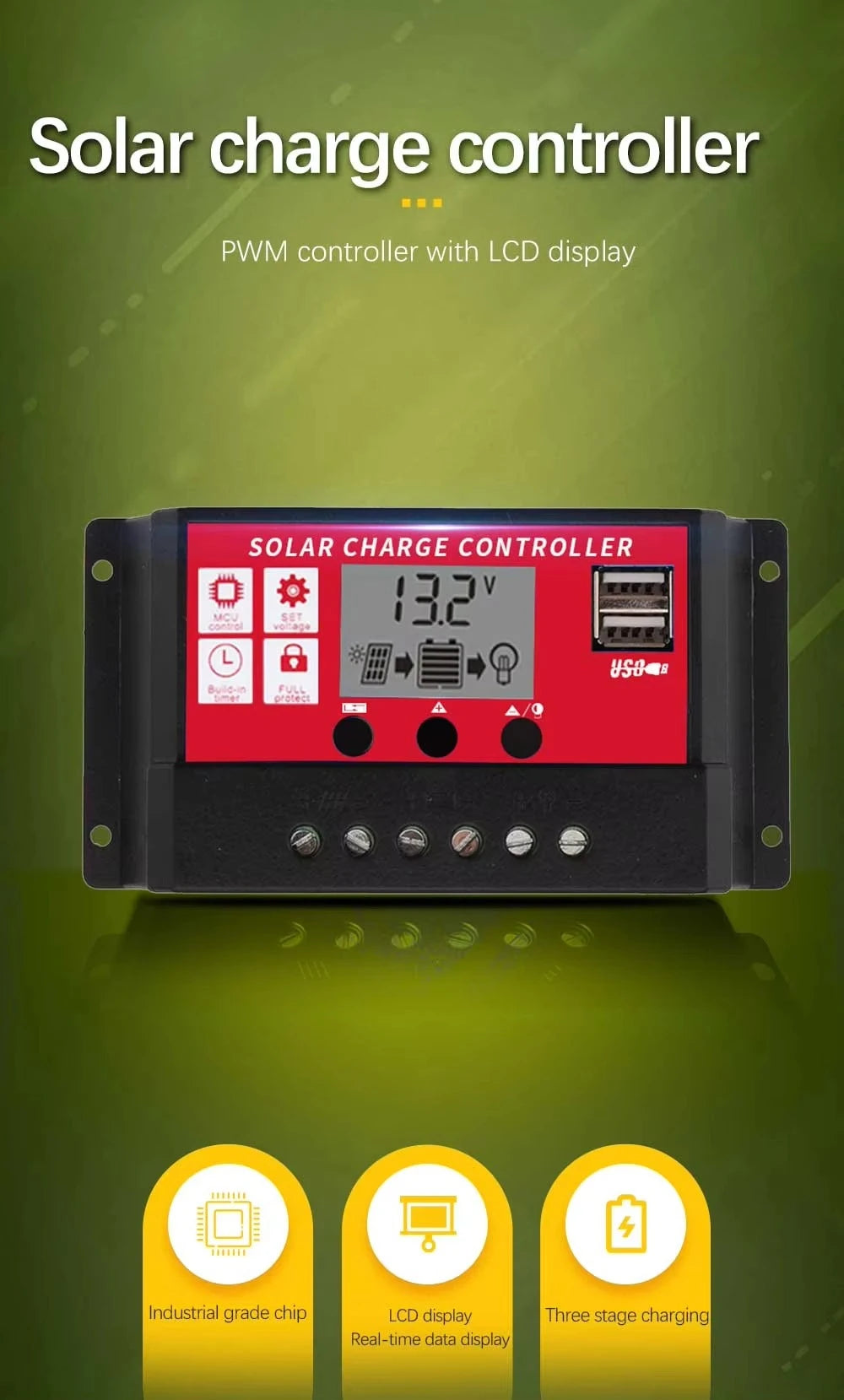

Part 2: PWM solar controller(inside battery shell)

- 20A PWM solar charge controller

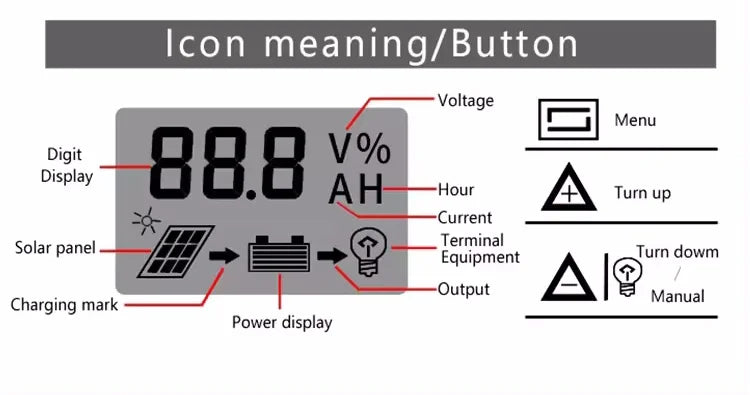

- LCD real time display
- Intelligent charge management

Solar controller specifications
System voltage	12V DC
Rated charge current	20A
Rated discharge current	20A
Maximum solar voltage	＜50V
Floating charge current	12.6V

1.Industrial grade chip

2.LCD display, data adjustable

3.PWM charge management

4.Overload/short circuit protection and other protection functions

5.Dual MOS anti-backflow circuit, ultra low heat

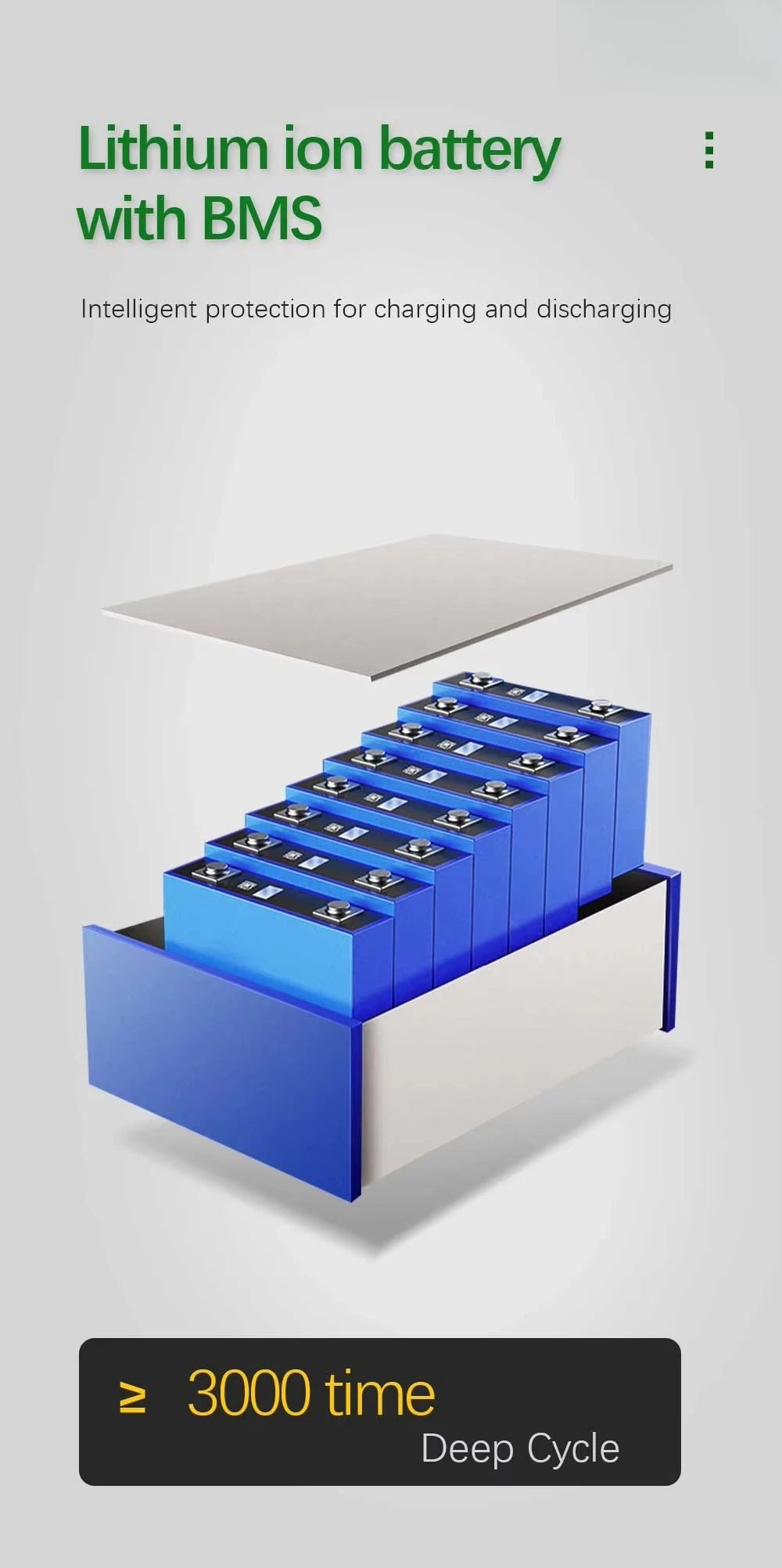

Part 3:  lithium ion battery (120ah battery inside)

After 3000 times cycles, battery performance still remains about 85%

Single Lithium battery specifications
Rated capacity	120Ah
Operating voltage	7.8V ~ 12.6V
Overcharge protection voltage	12.83V
Standard cycle life	≥2500
Dimension	776*147*50mm
Weight	7.2kg

Product Usage

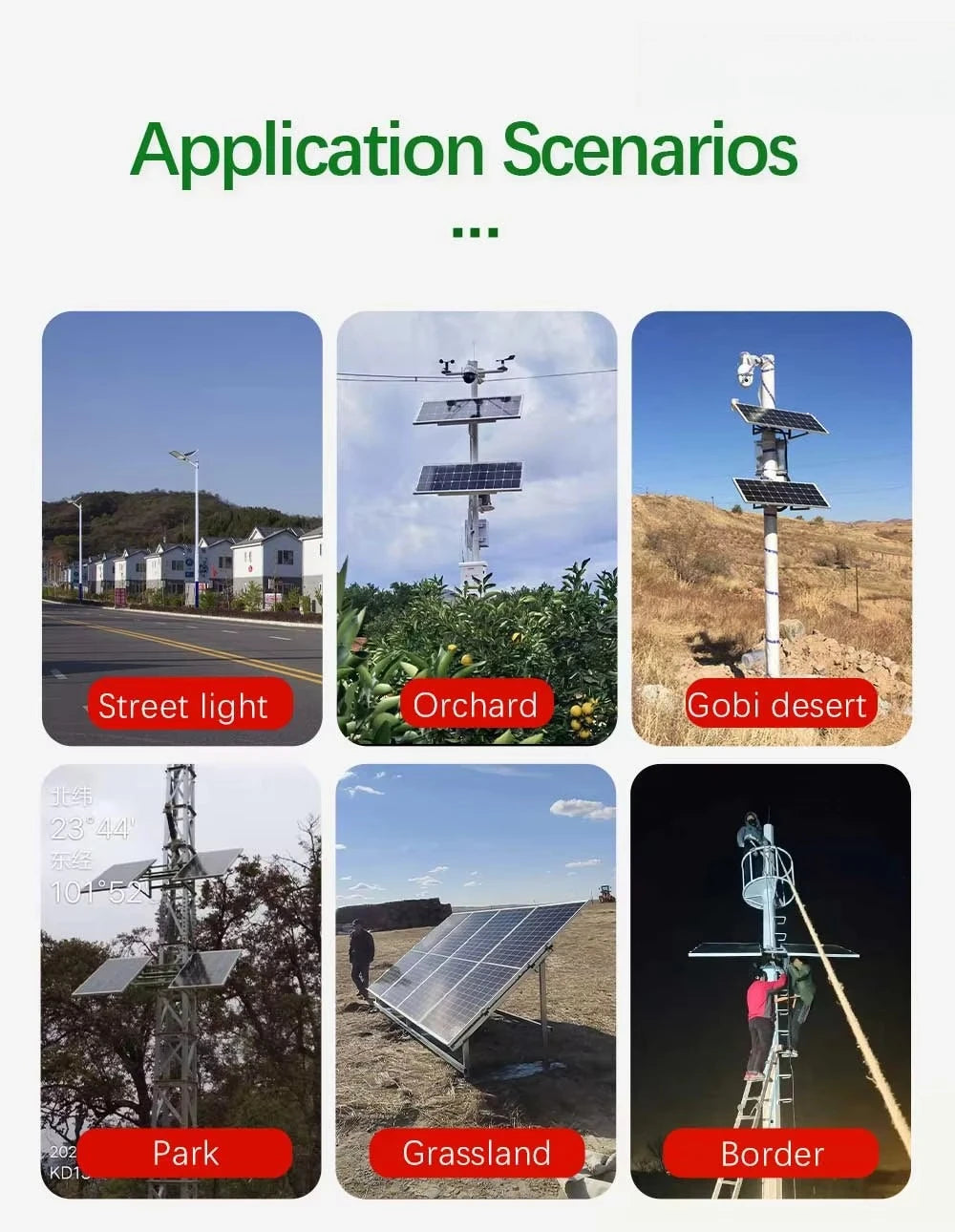

Wide application scenarios

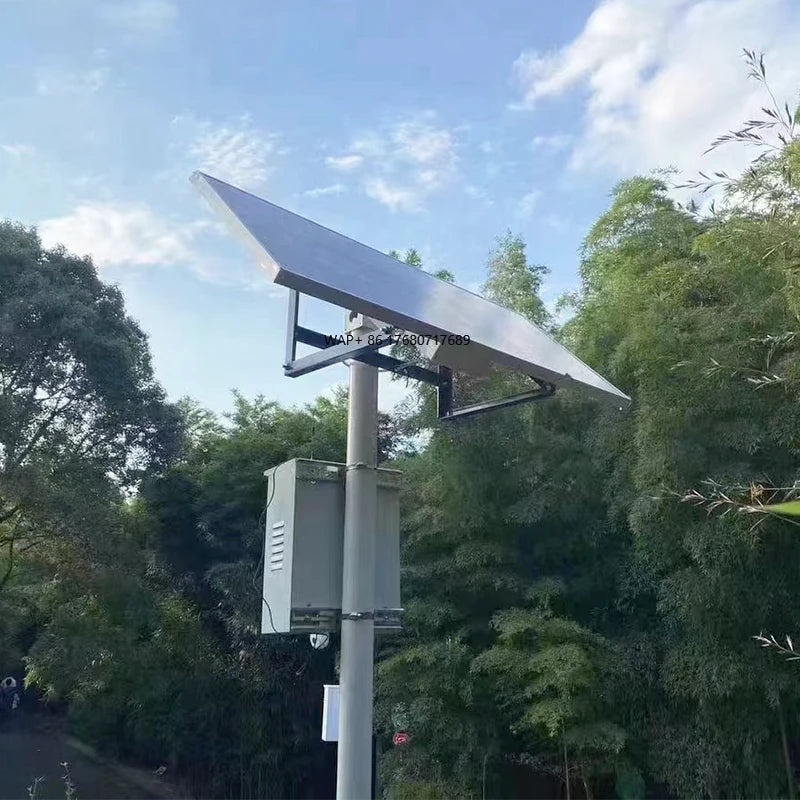

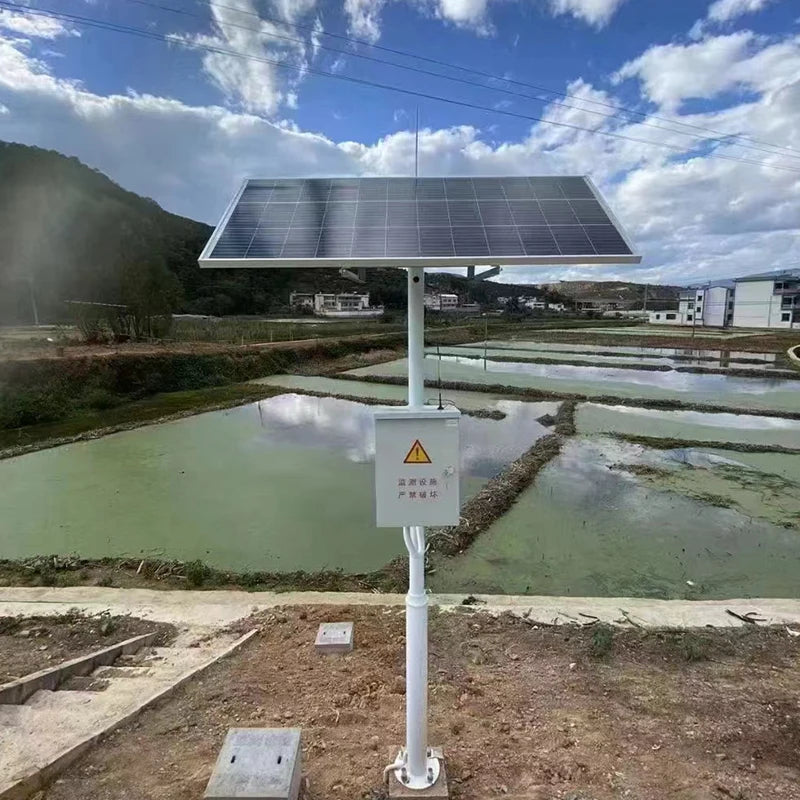

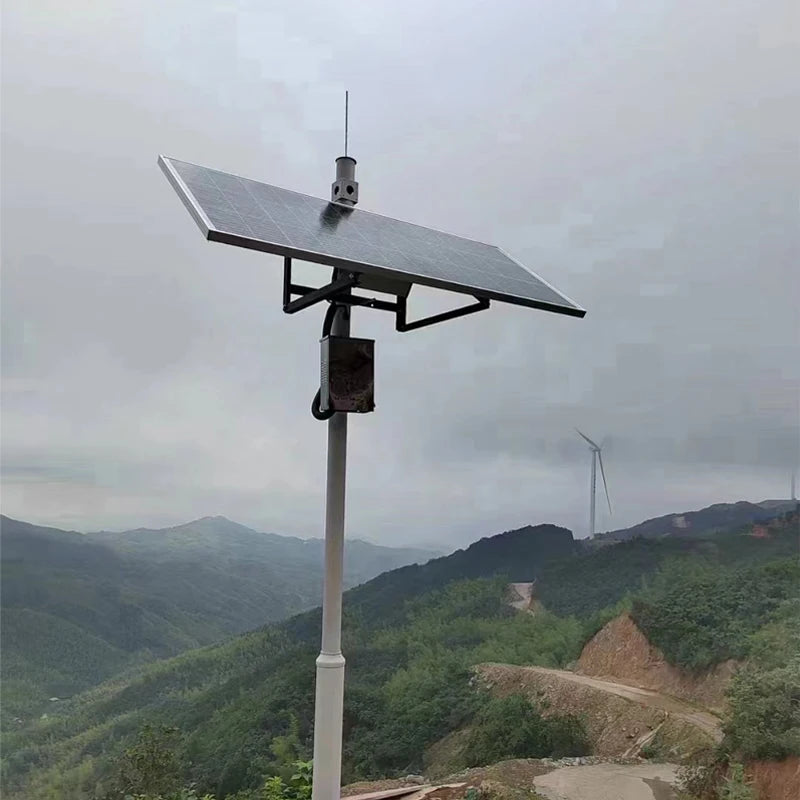

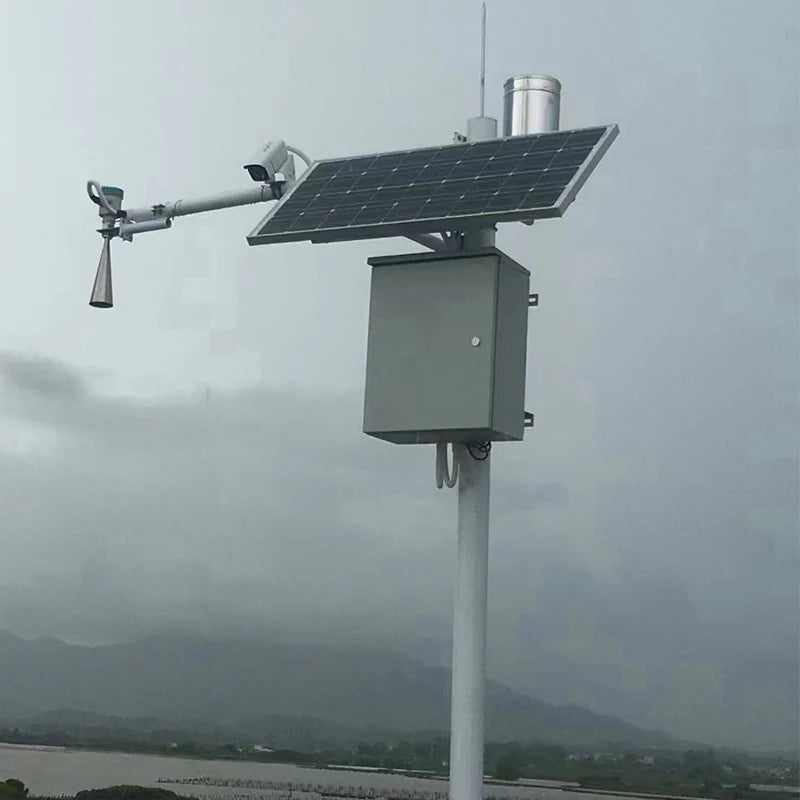

Our solar power system provides power for different a pplication scenarios, such as CCTV camera, wifi bridge, wireless access point, smart weather station, smart hydrological monitoring station and other IoT devices.

Packing&Shipping

Company Introduction

Shandong Xiyuan Solar Energy Co., Ltd. is located in the Economic Development Zone of Zibo City, Shandong Province. It is a high-tech enterprise integrating R&D and production. The products involve monocrystalline/polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, off grid solar systems, on grid solar ystems, etc. Our products are widely used in all walks of life in the society. The sales network covers China and is exported to overseas. The company adheres to the tenet of "customer first, pioneering and innovative", adheres to customer-centricity, keeps improving, pioneering and innovating, and is committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to come to visit, to realize win-win business opportunities and common development.

FAQ

How can i get product price list? Contact us by email, trade manager, skype or send inquiry to us. Can i get samples to test before placing an order? Yes, welcome to get samples to test and check their quality. Can we use our logo and design? Yes, customization is acceptable for bulk order. What is the product warranty policy? Twelve-month warranty. If any problems appear when you use, please feel free to contact us. I don't know how to install it. Can you help me? Of course. You can contact us for solution. Once we receive your inquiry, we will reply back to you within 12 - 24 hours. How do we pay you? We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
