SPECIFICATIONS

7RYMS Model: IRAYDW40

Battery Type: Others

Brand Name: 7RYMS

Built-in Battery: Yes

Certification: CE,RoHS

Communication: WireLess

Diaphragm: S-Mall

Enclosure material: Plastic

Feature 1: 7Ryms iRay DW40

Feature 2: wireless lavalier microphone

Feature 3: wireless mic for camera

Feature 4: wireless microphone system 4 channel

Feature 5: video microphone

Feature 6: vlogging microphone

Feature 7: microphone for recording

Frequency response: 20Hz~20kHz

High-concerned chemical: none

Origin: Mainland China

Package: Yes

Polar Patterns: Omnidirectional

Set Type: Transmitter Sets

Style: Lavalier Microphone

Transducer: Condenser Microphone

Use: Pro Studio

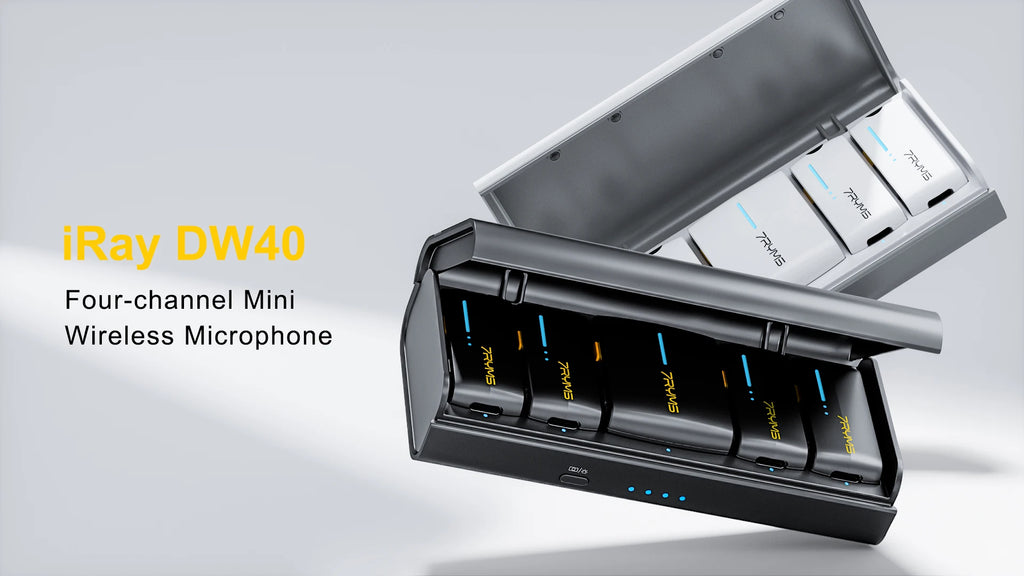

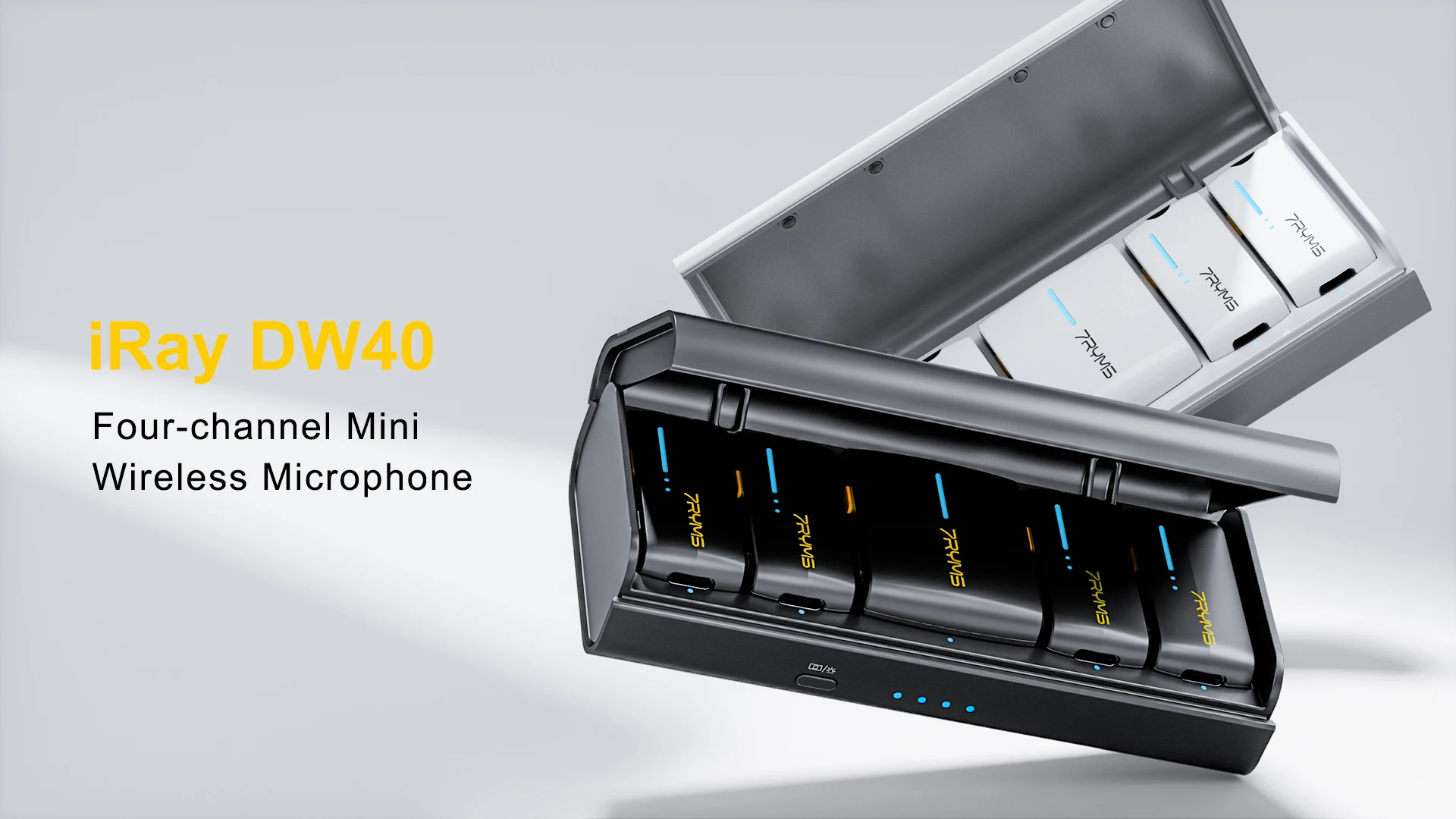

iRay DW40

Four-channel Mini Wireless Microphone

1. It is better to keep face to face when using it and not turn your back to the receiver. Otherwise, it is easy to generate breakpoints, which is a normal phenomenon

2. Please notice that the STEREO function can not be realized when recording in single-channel

3. The product is a high-precision equipment, please prevent it from falling, collision, or pounding

4. Do not use this device near sources of heat or interference, such as radiators, ovens, refrigerators, air conditioners, etc

5. If the sound pickup distance is close or record outdoors, please put the wind muff on the transmitter to prevent sound bursting or reduce wind noise

6. Please keep the product in a dry environment; do not use the equipment in rainy or damp environments to avoid short-circuit danger

Compatibility

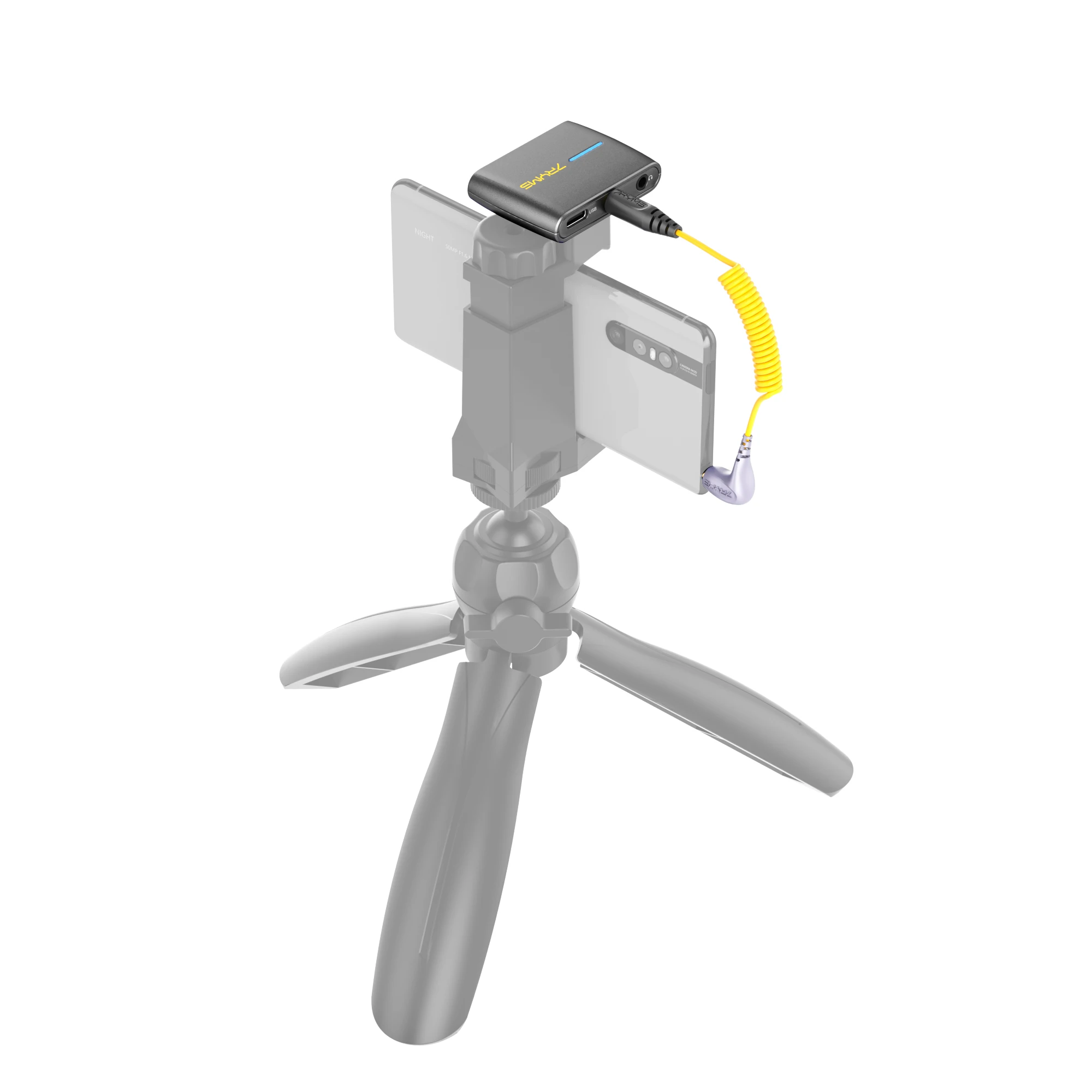

1. Smartphones (according to the cell phone interface to choose to buy different adapter cable): iPhone, Android, Huawei, Samsung, Xiaomi...

2. Computer

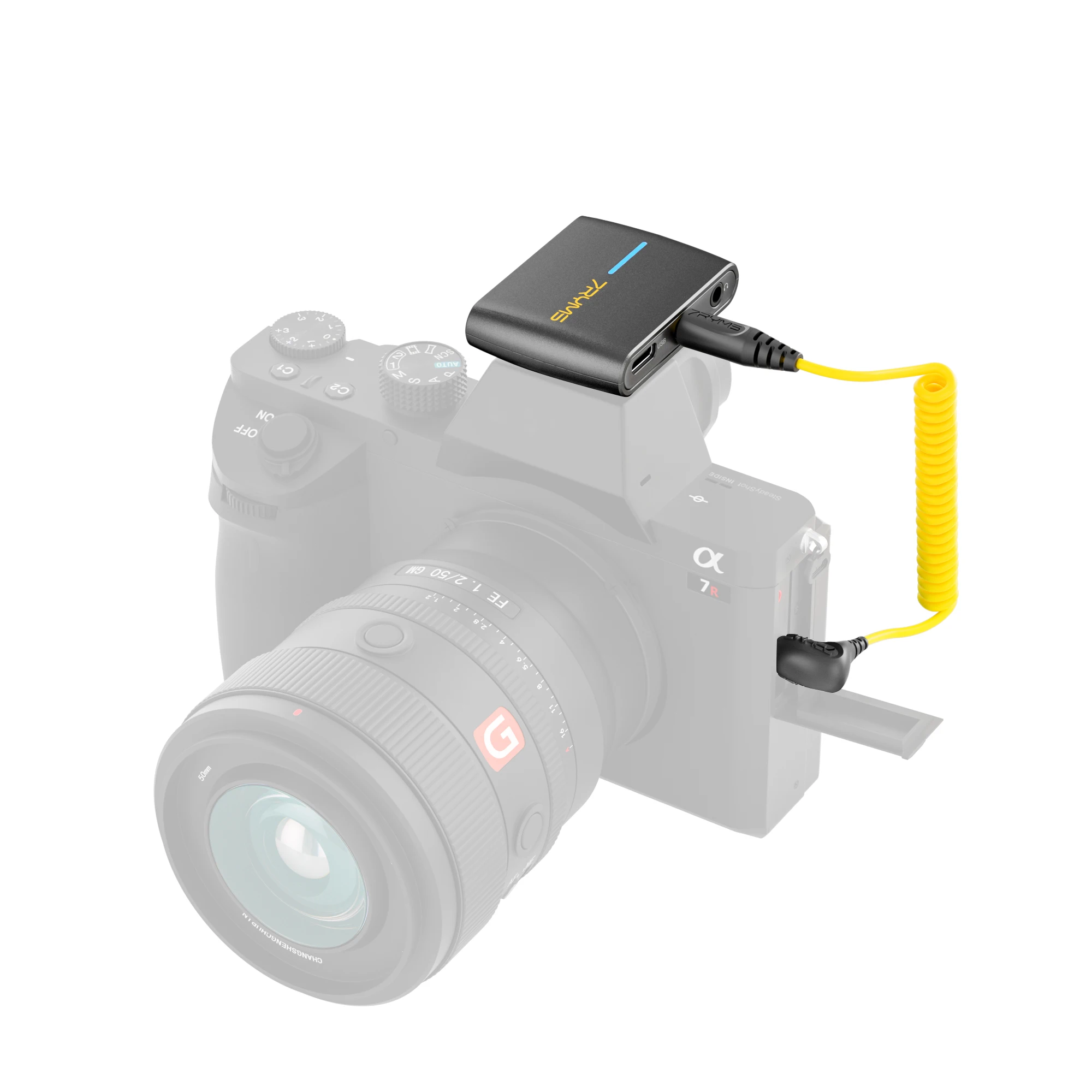

3. Camera

4. Tablets

5. PC

6. Other(Pls contact our customer service to ask for details)

• Four-channel Wireless Microphone, Support Multi-person Recording

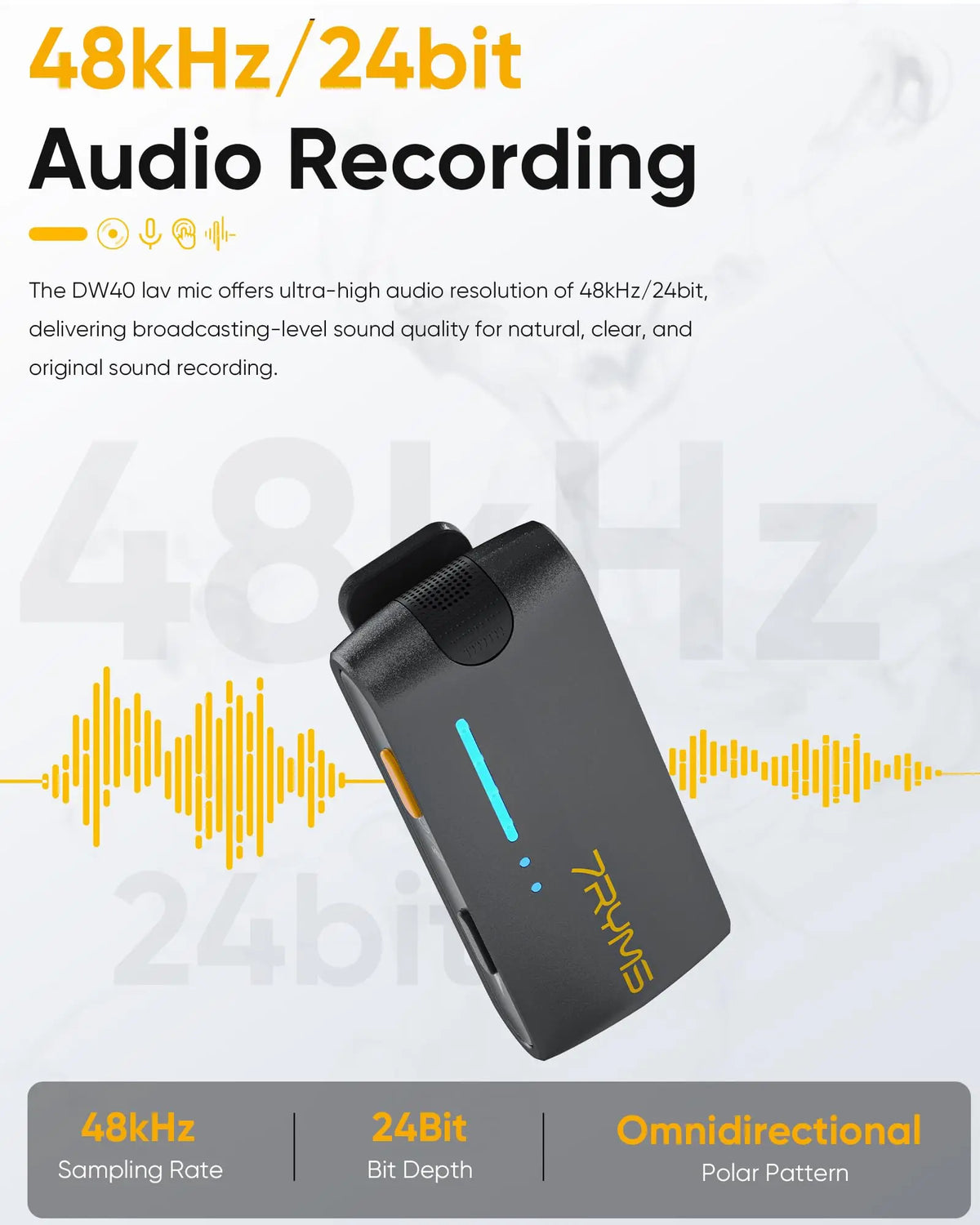

• 48kHz/24bit Recording, Broadcasting-level Sound Quality

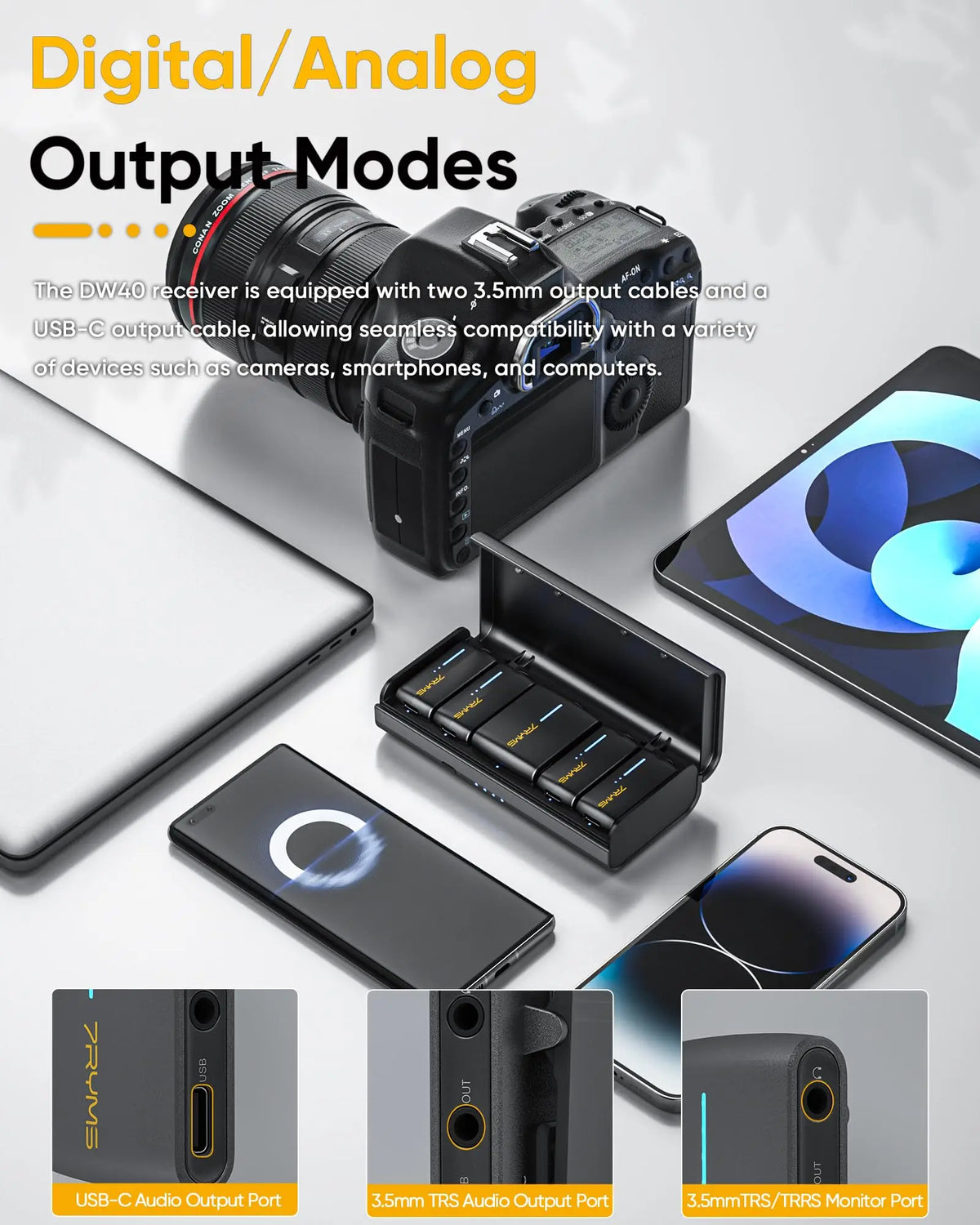

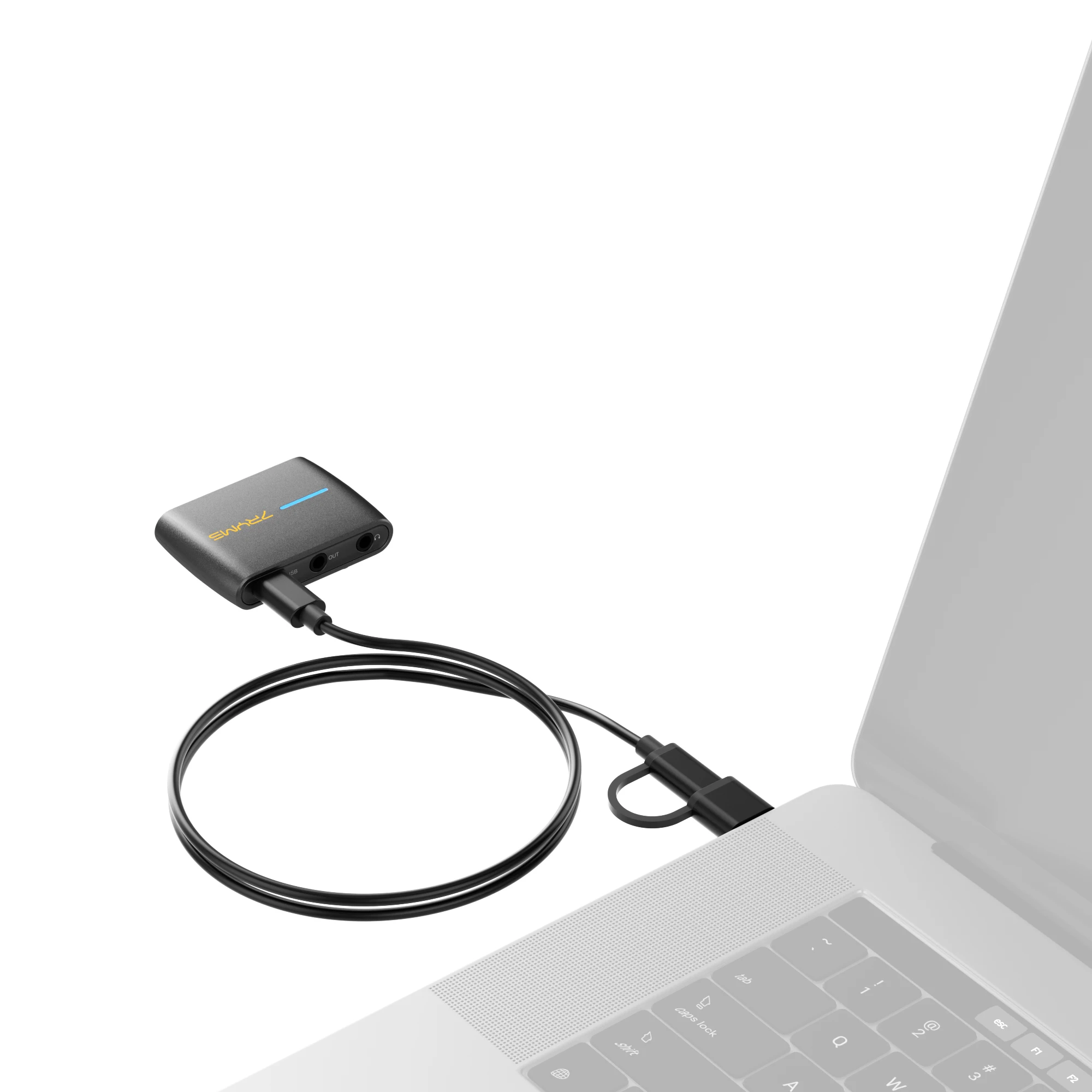

• Digital/Analog Output Modes, Universal for Camera/Phone/PC

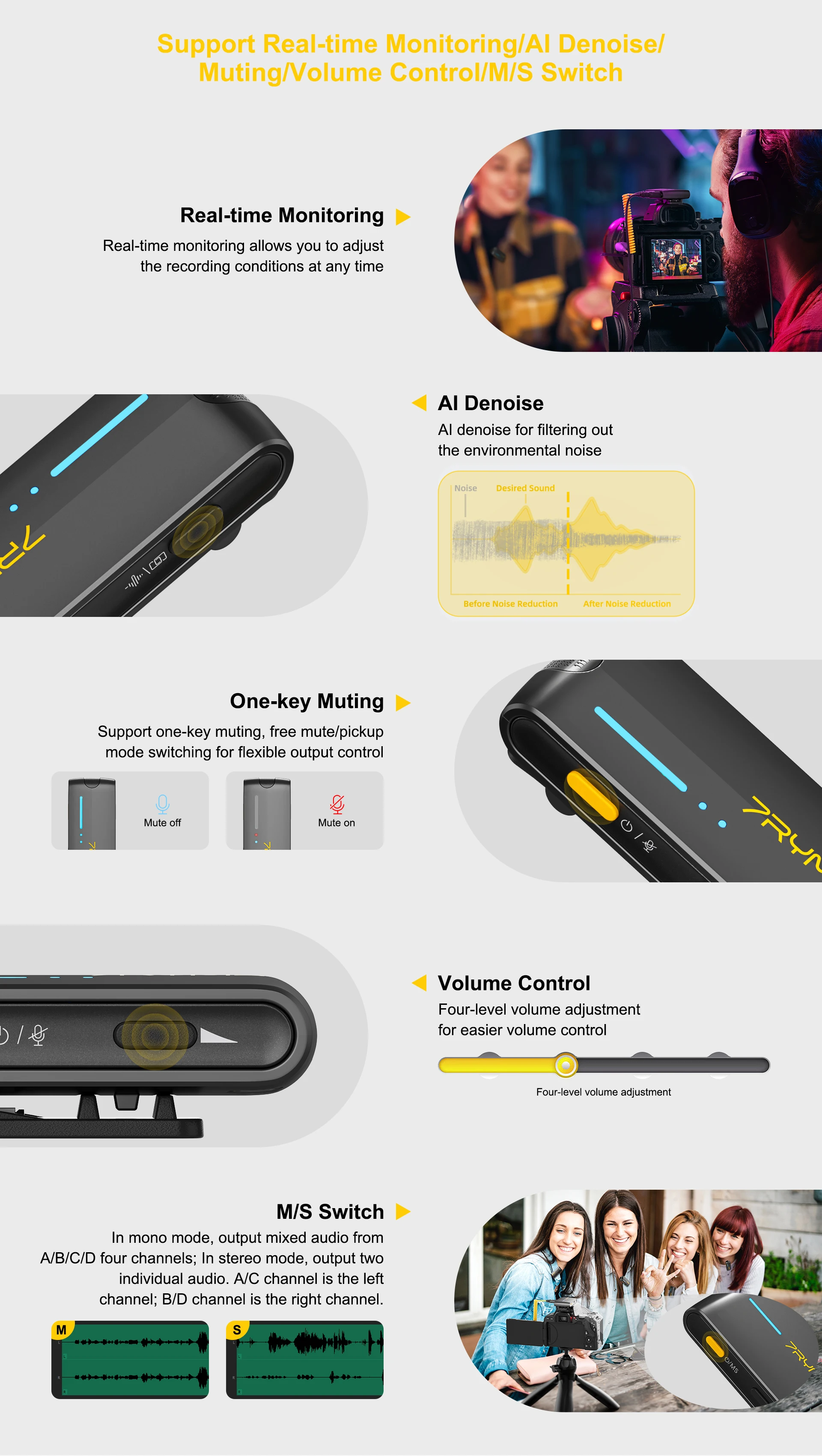

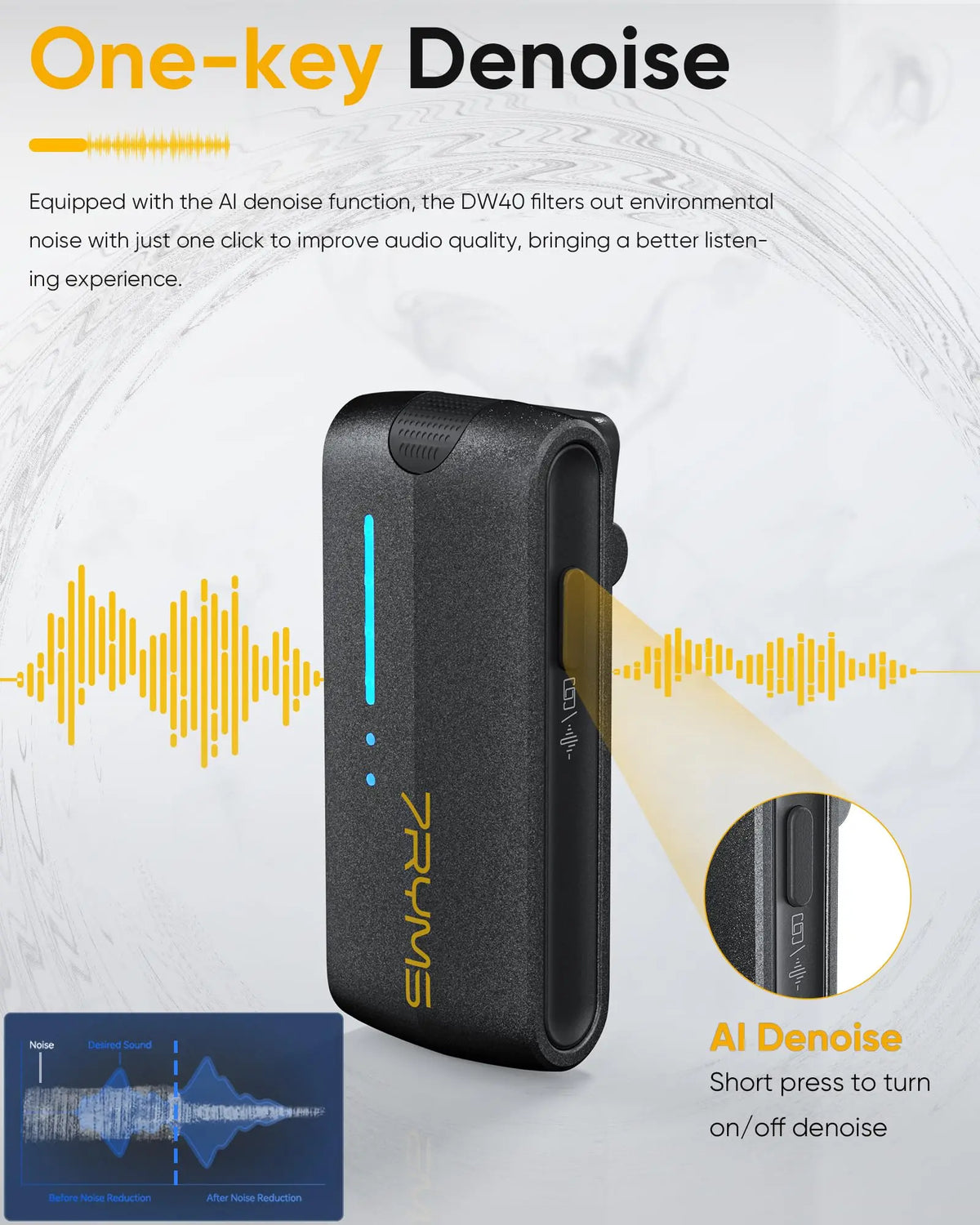

• Support Real-time Monitoring and One-key Denoise

• Support One-key Muting, Volume Control, and M/S Switch

• USB-C Charging Port, Support Charging While Using

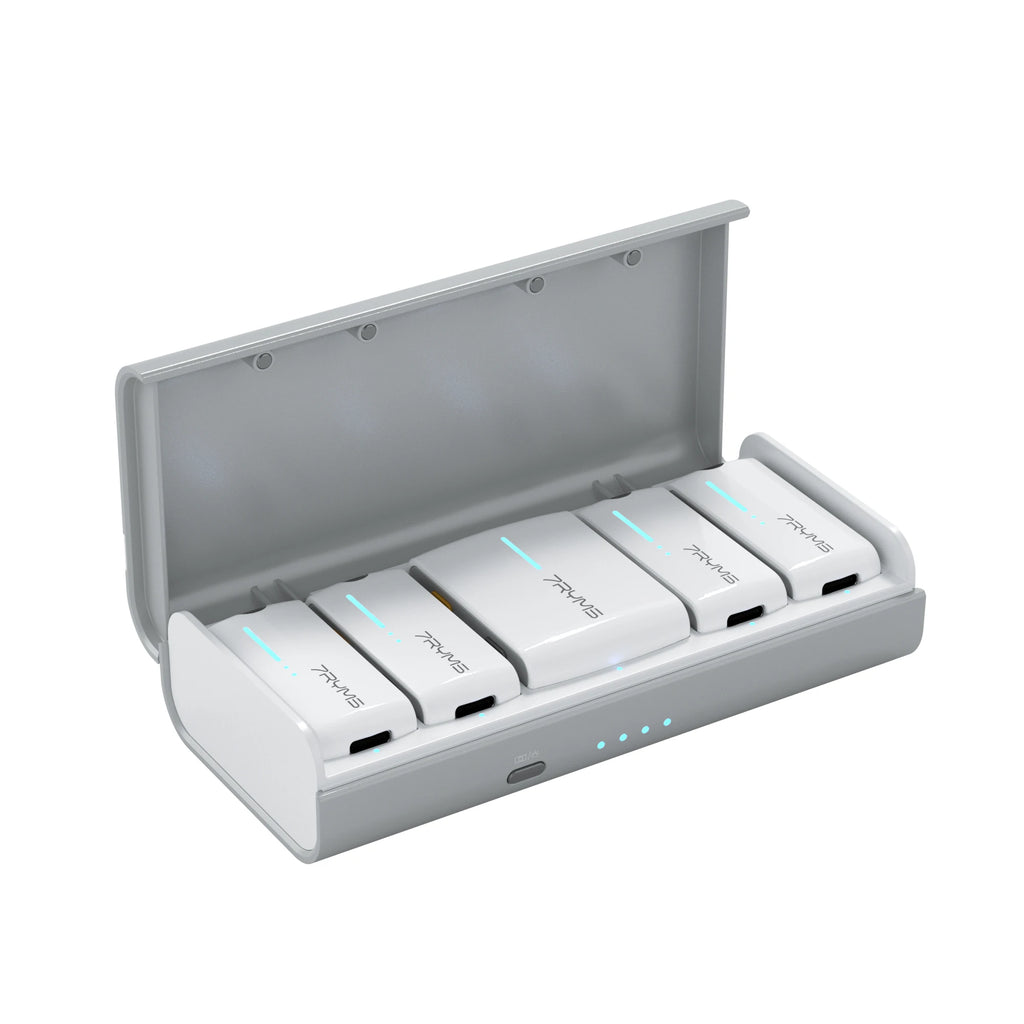

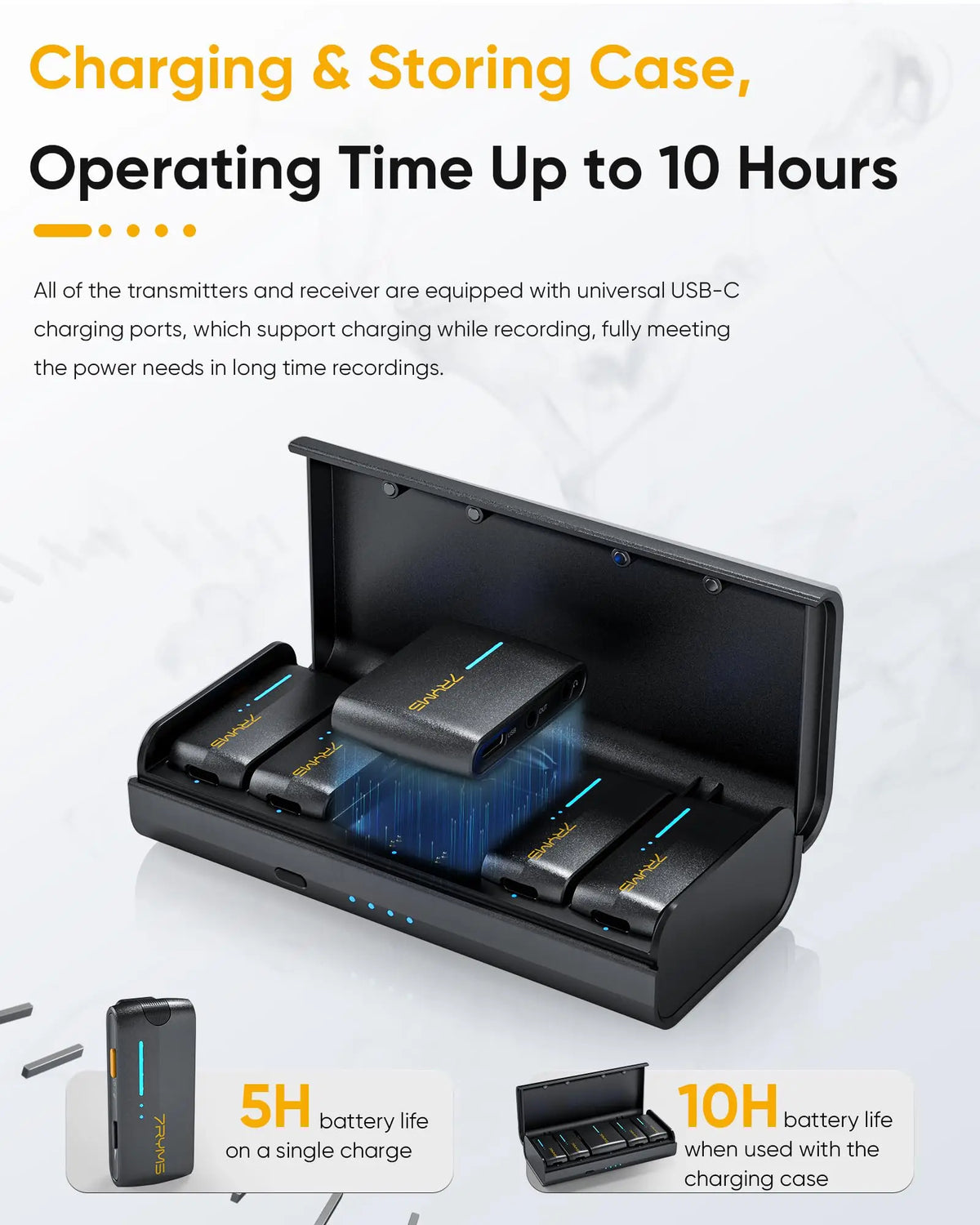

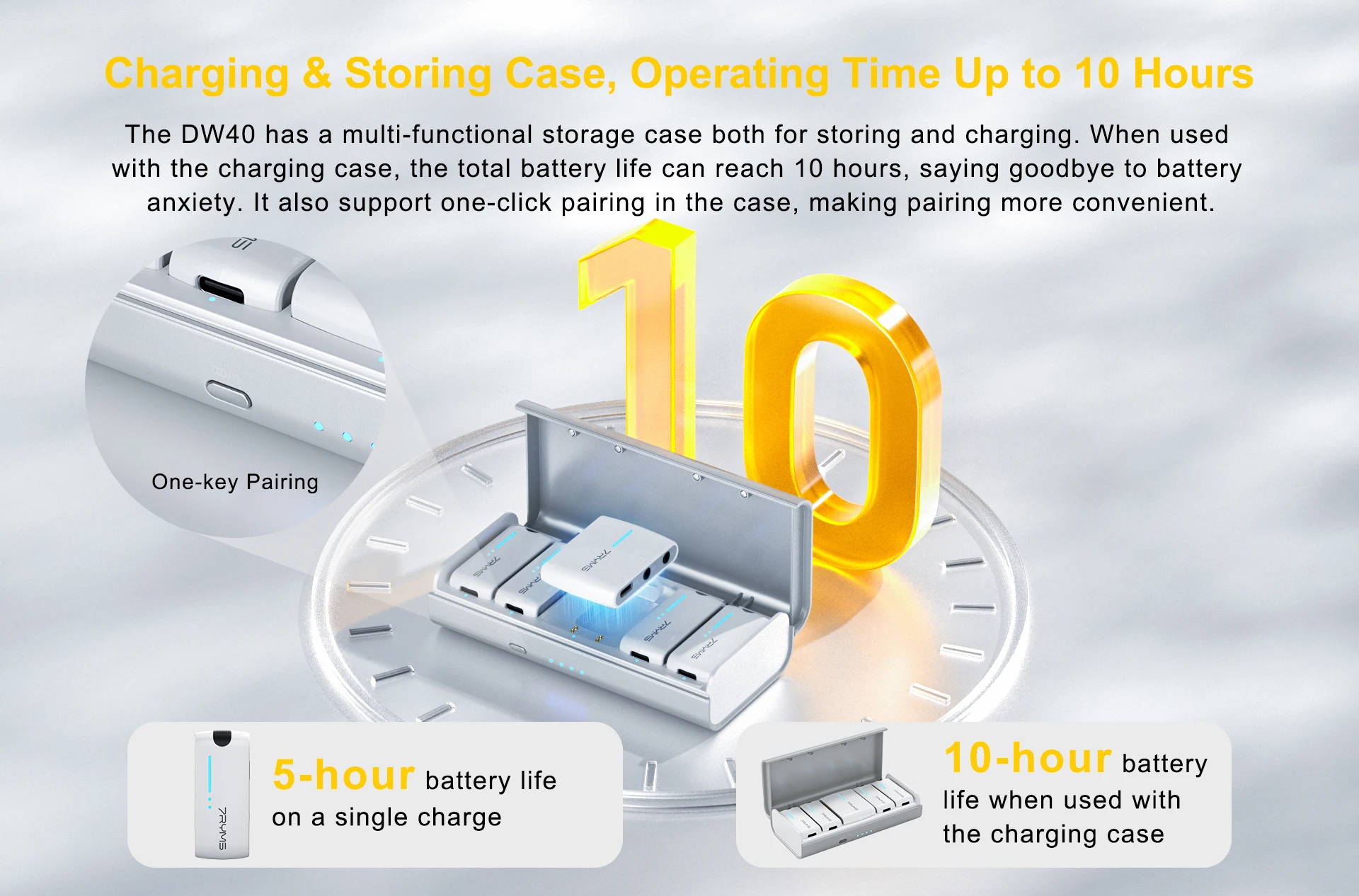

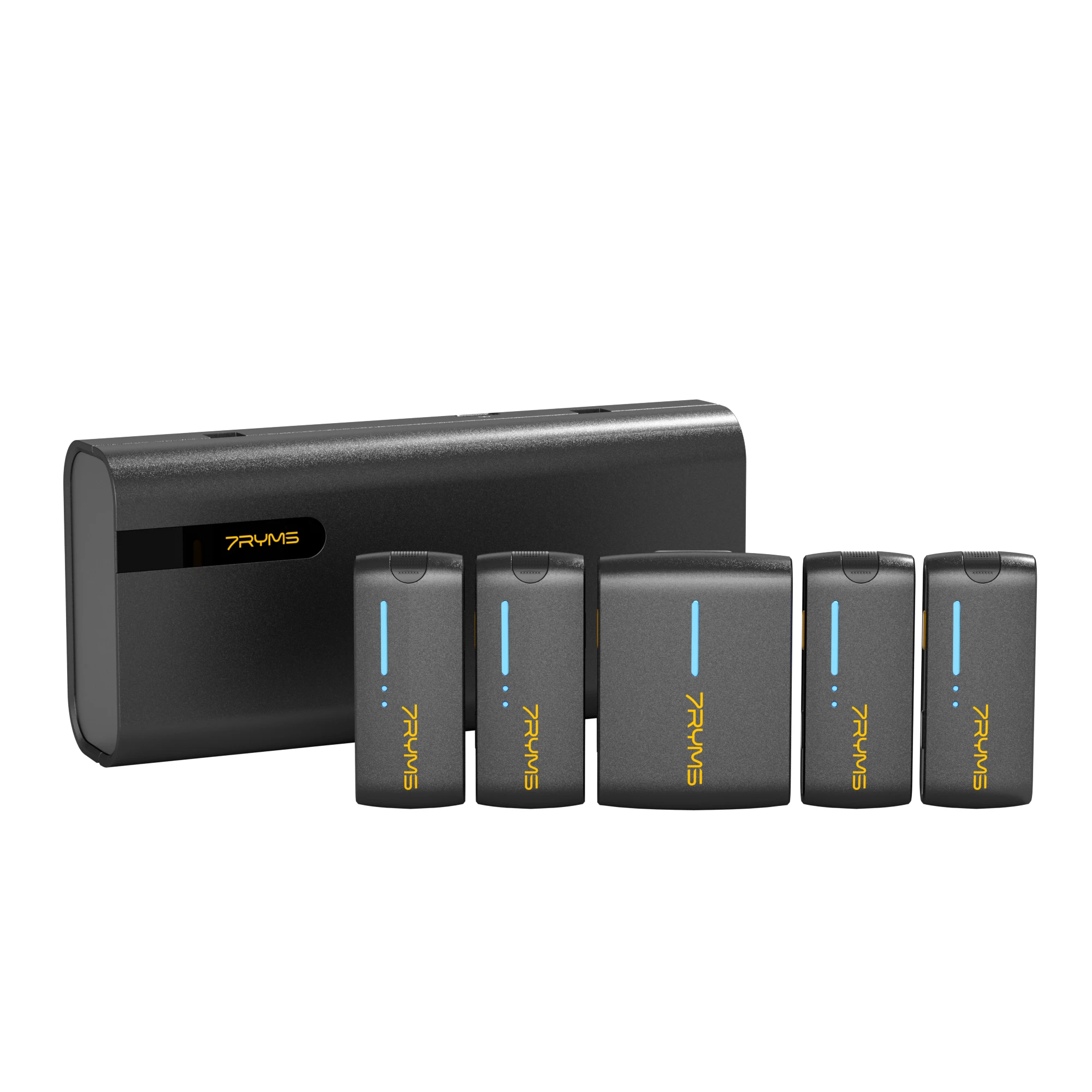

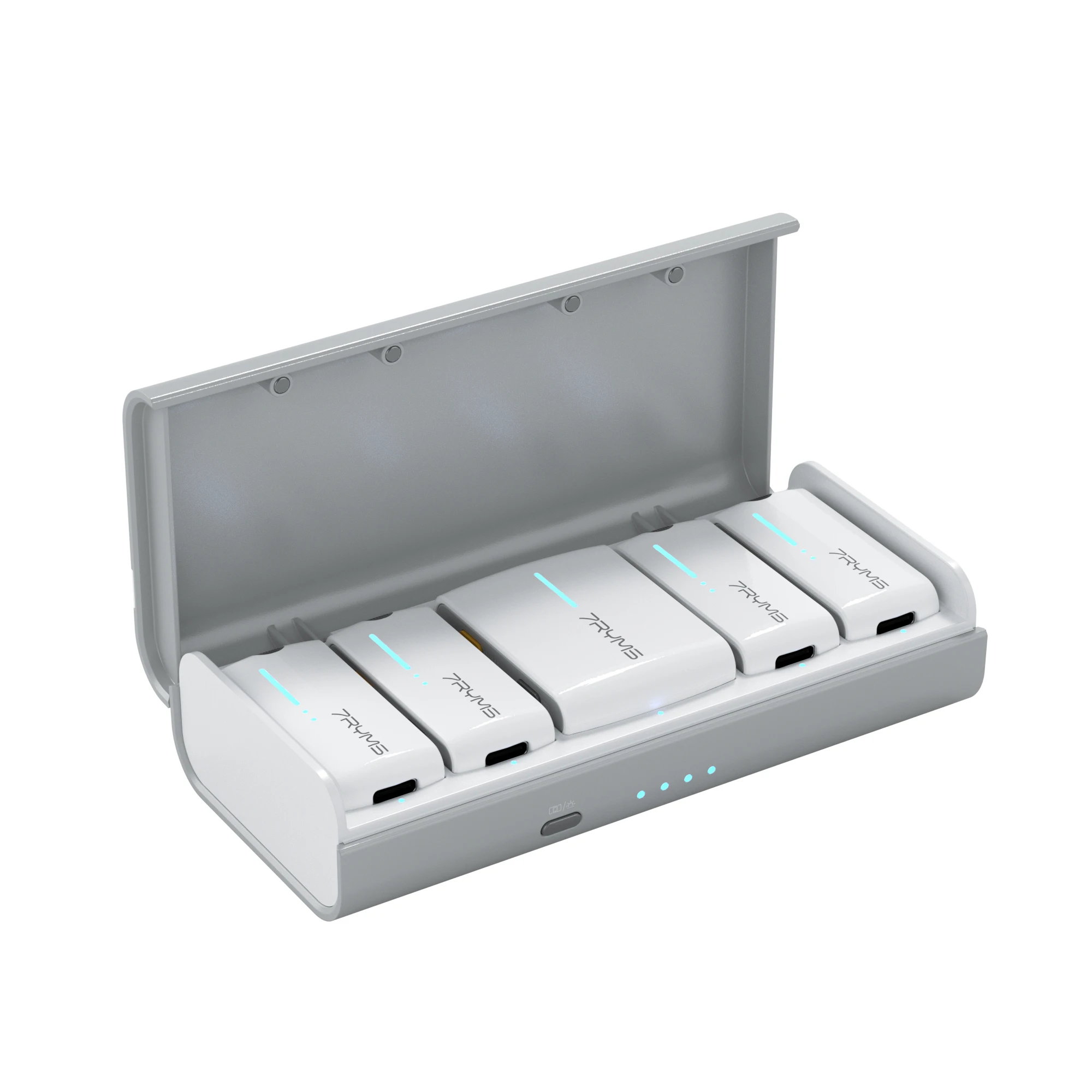

• Charging & Storing Case, Operating Time Up to 10 Hours

• Low Latency < 20ms, Working Range Up to 200 Meters(Open Area)

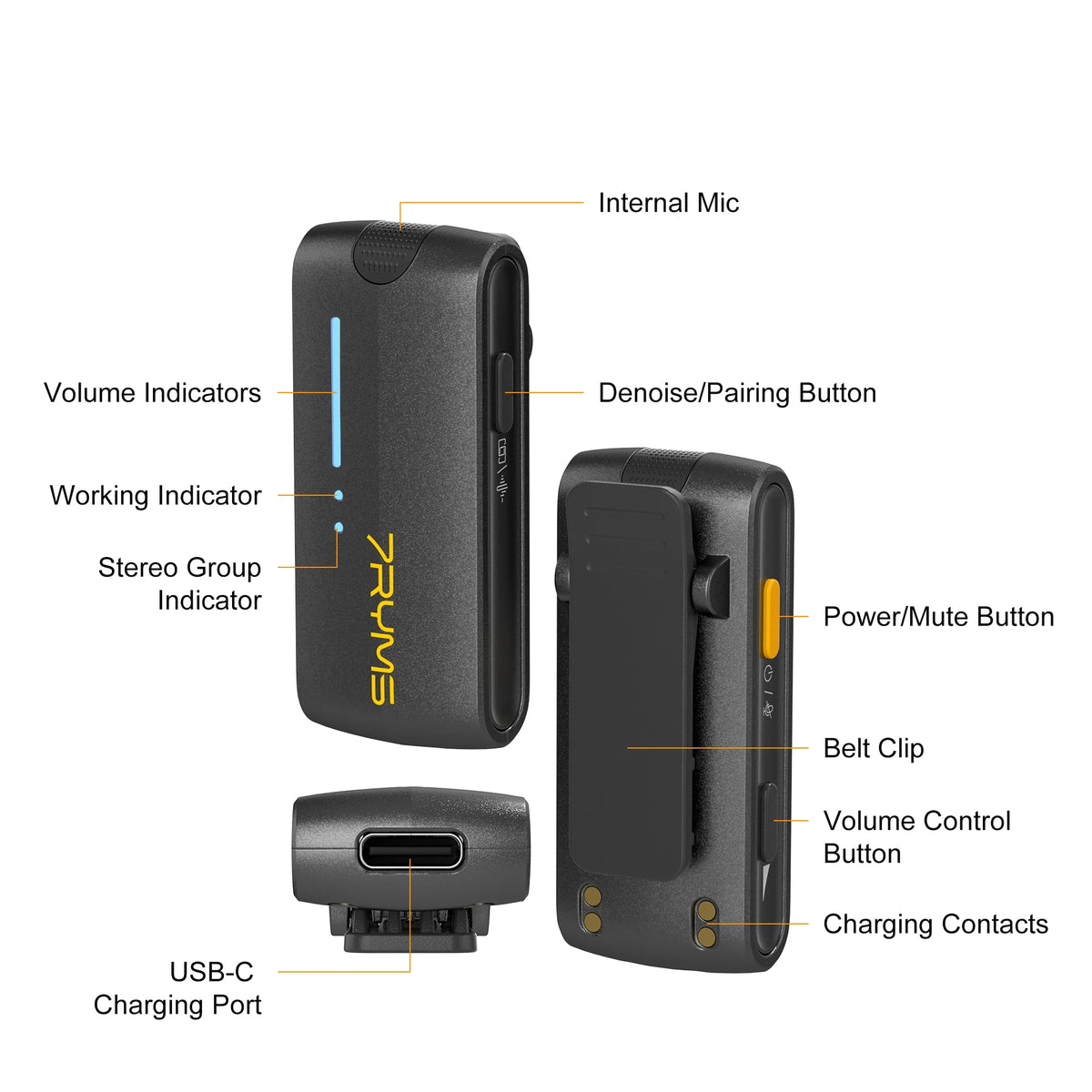

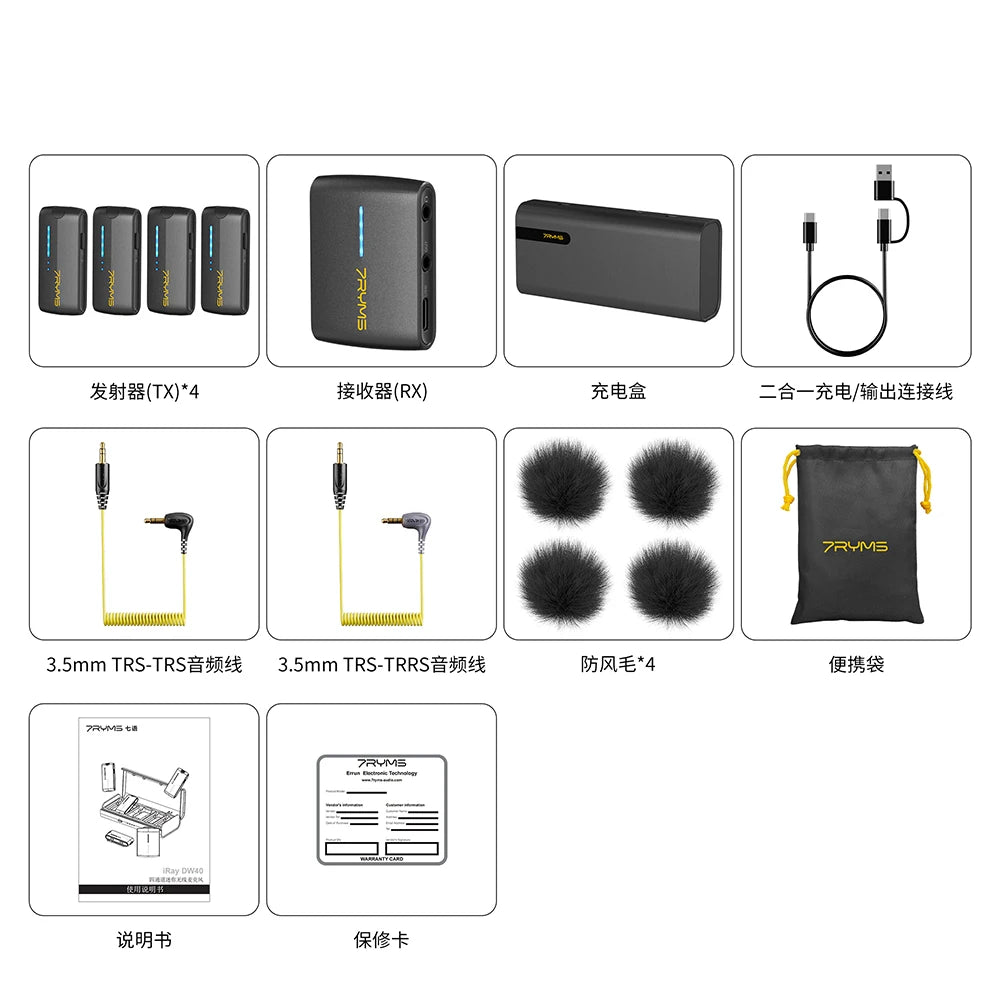

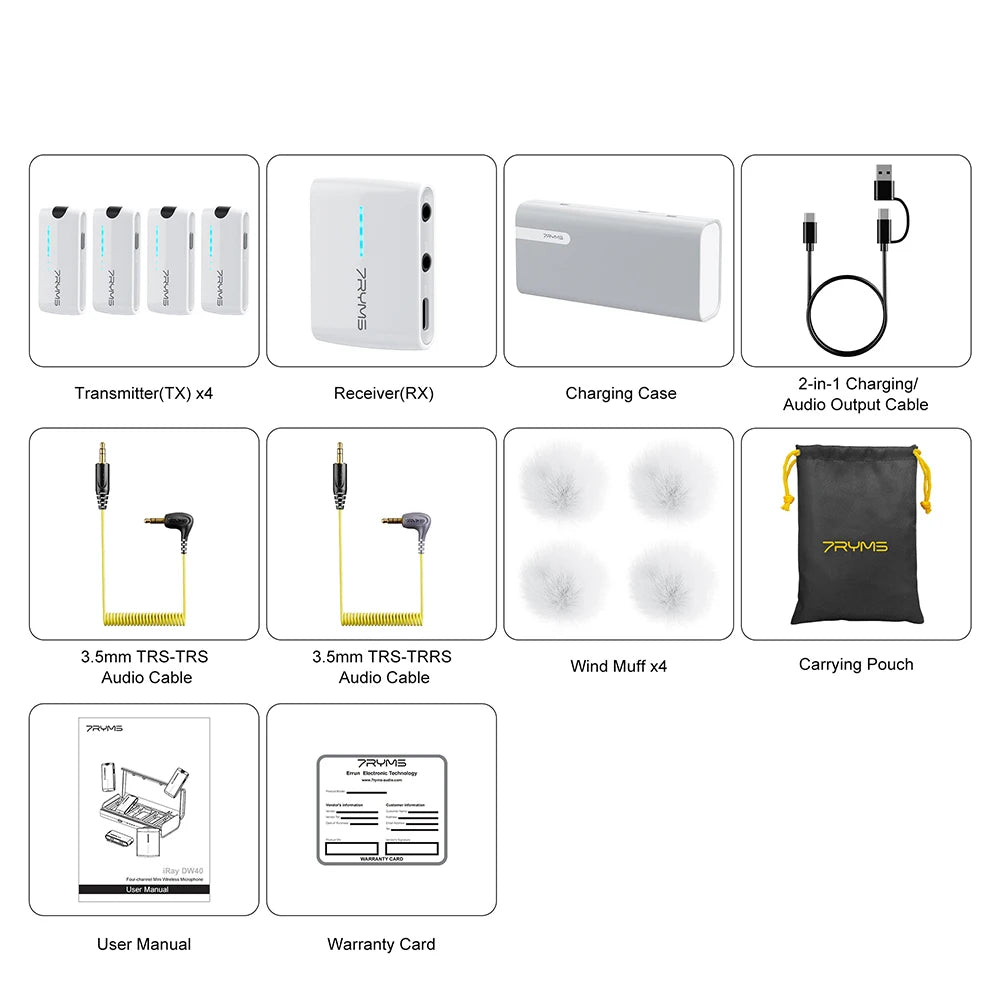

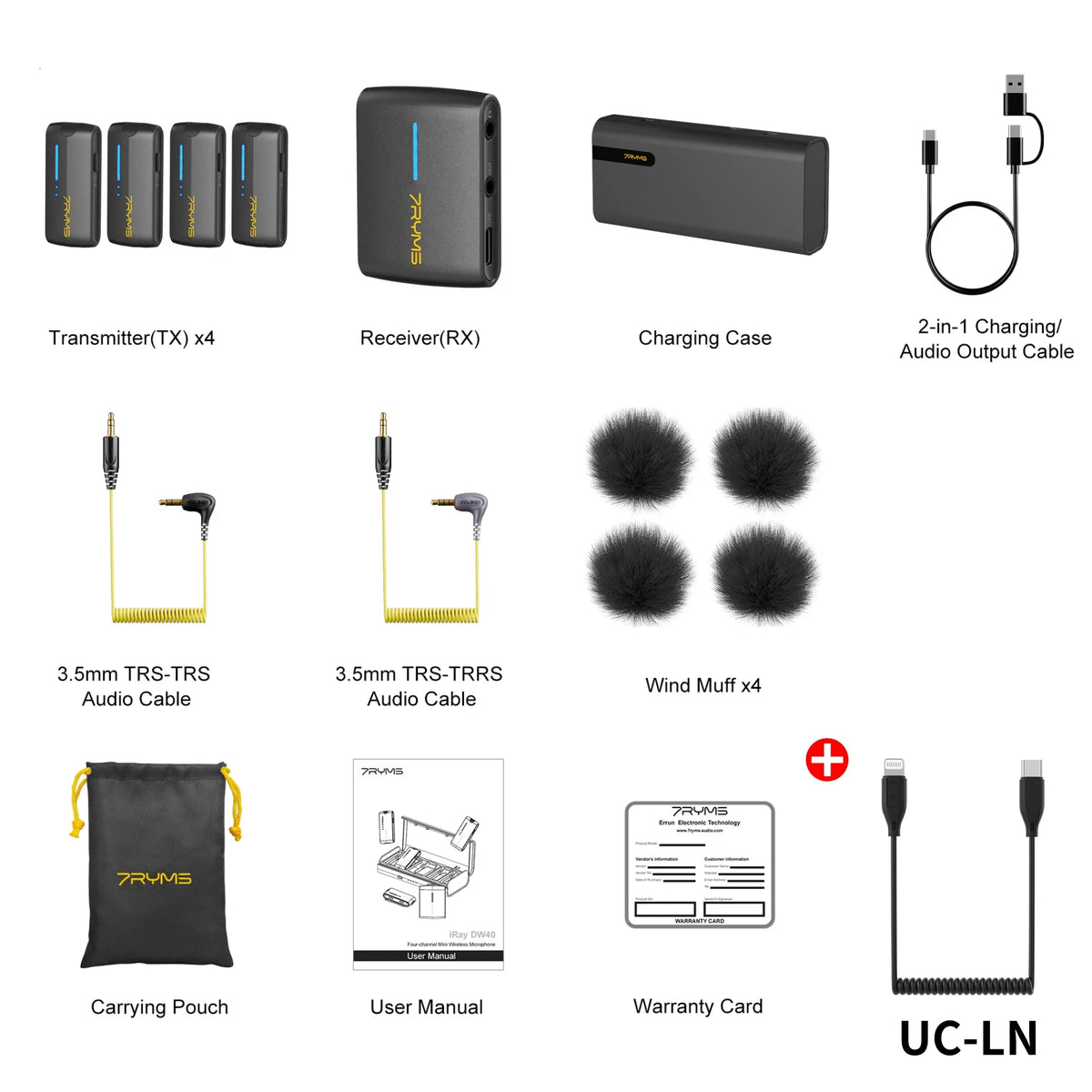

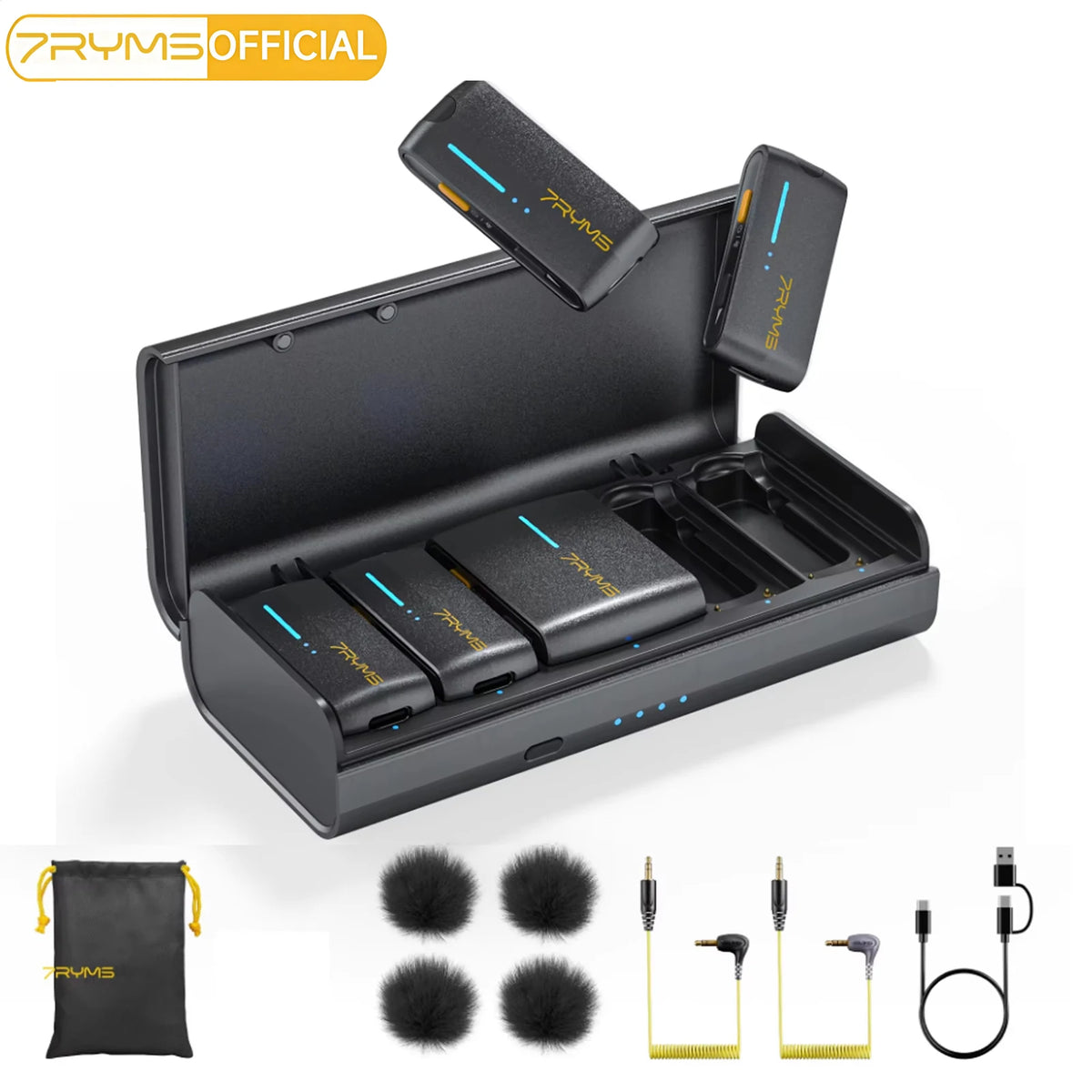

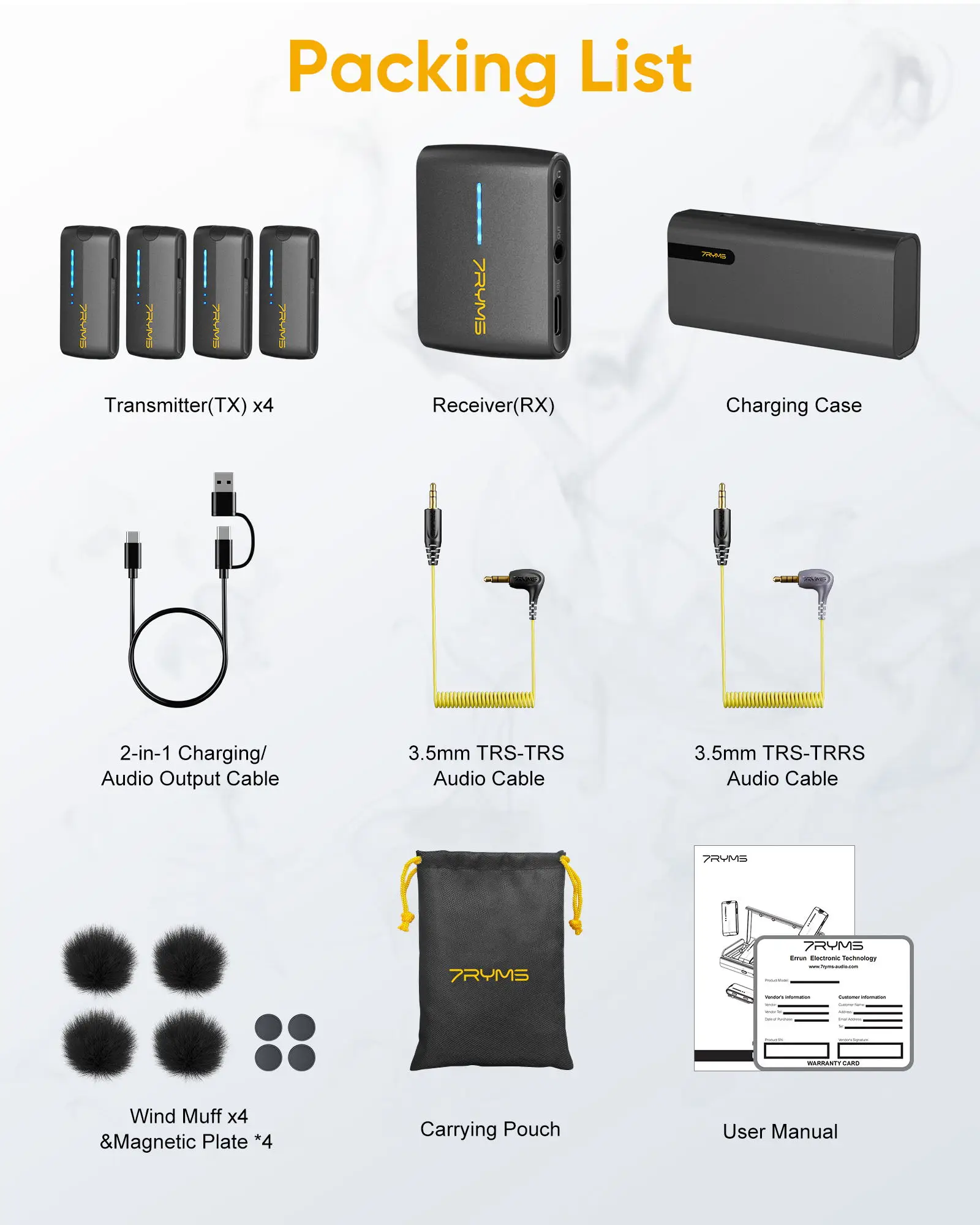

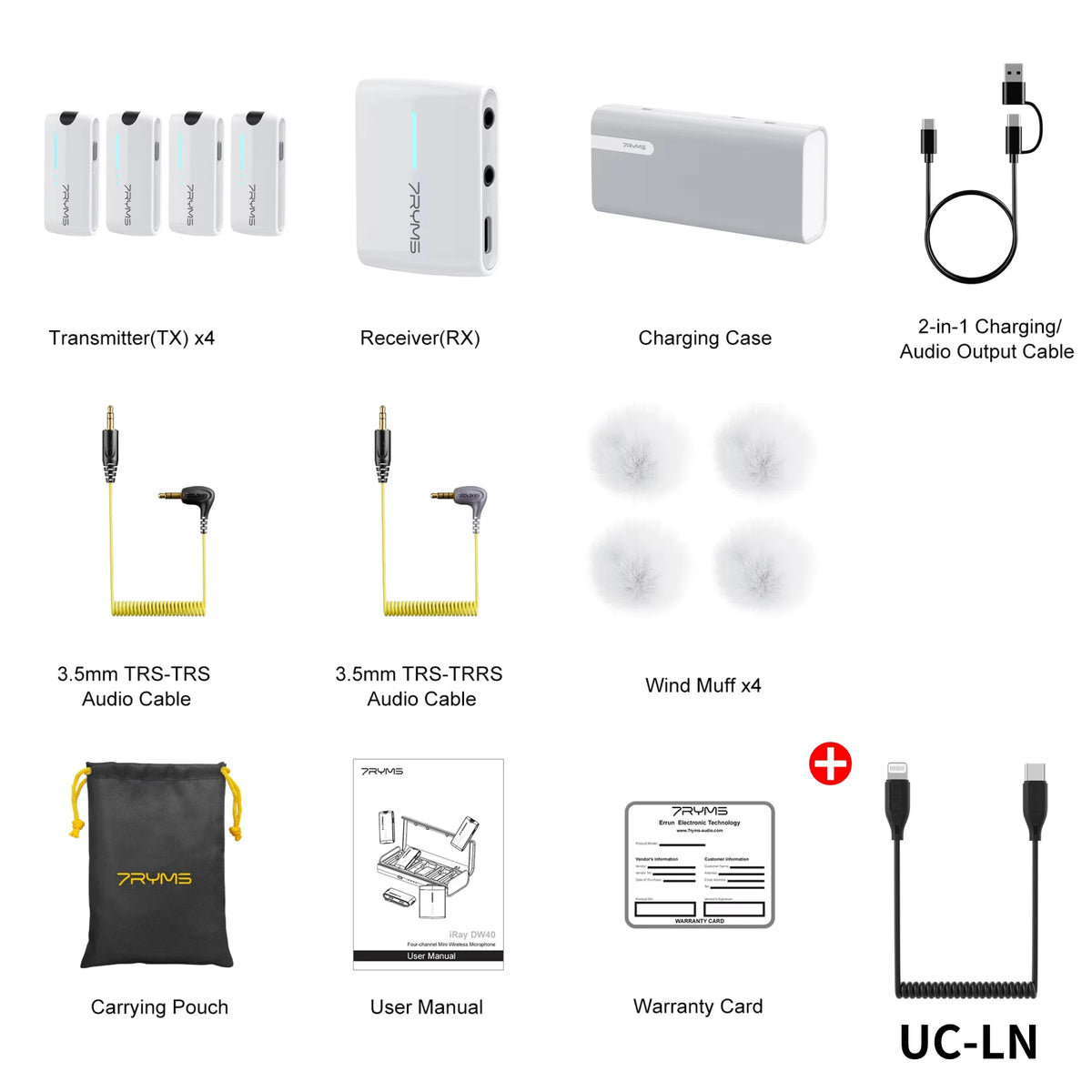

1. Transmitter(TX) x4

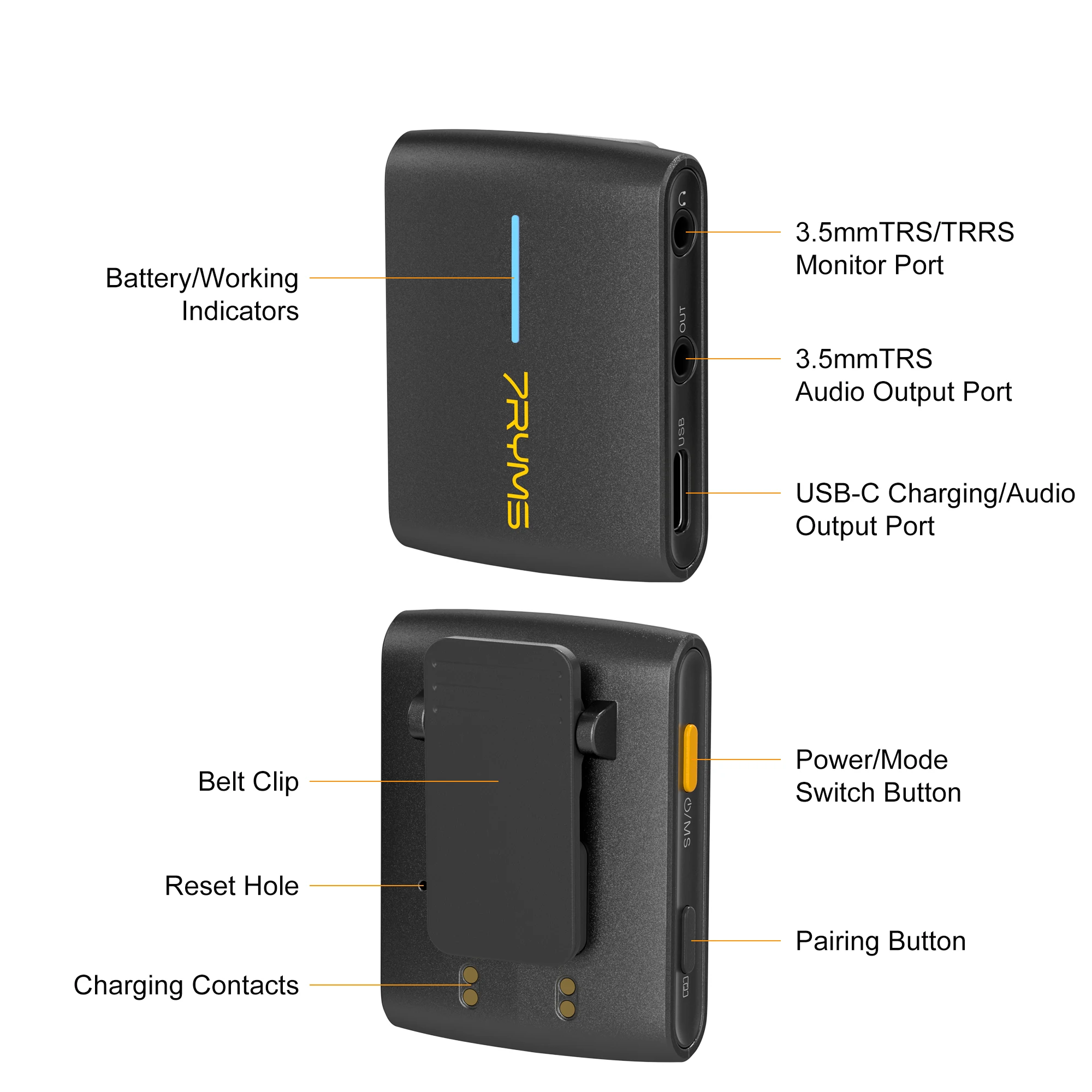

2. Receiver(RX)

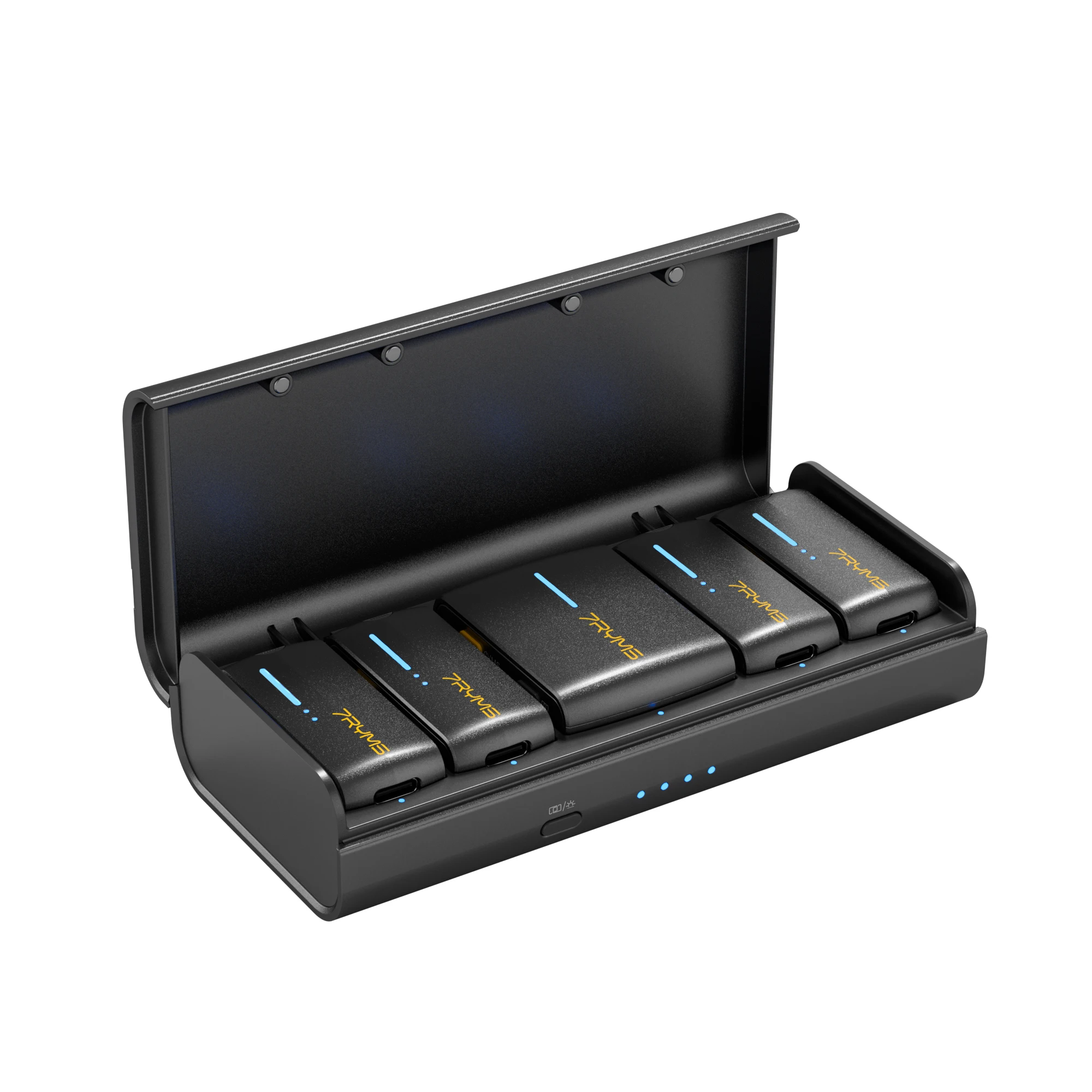

3. Charging Case

4. 2-in-1 Charging/Audio Output Cable

5. 3.5mm TRS-TRS Audio Cable

6. 3.5mm TRS-TRRS Audio Cable

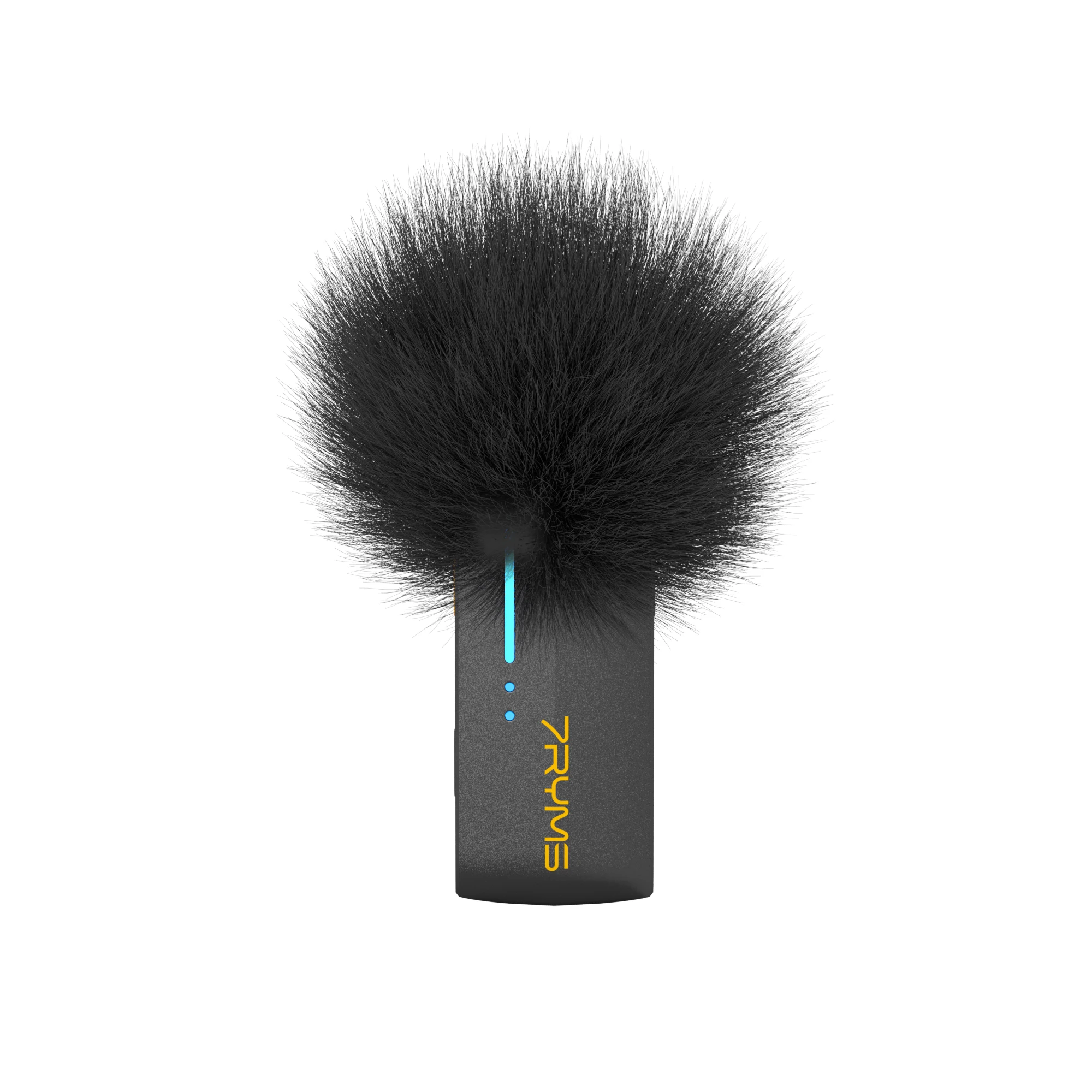

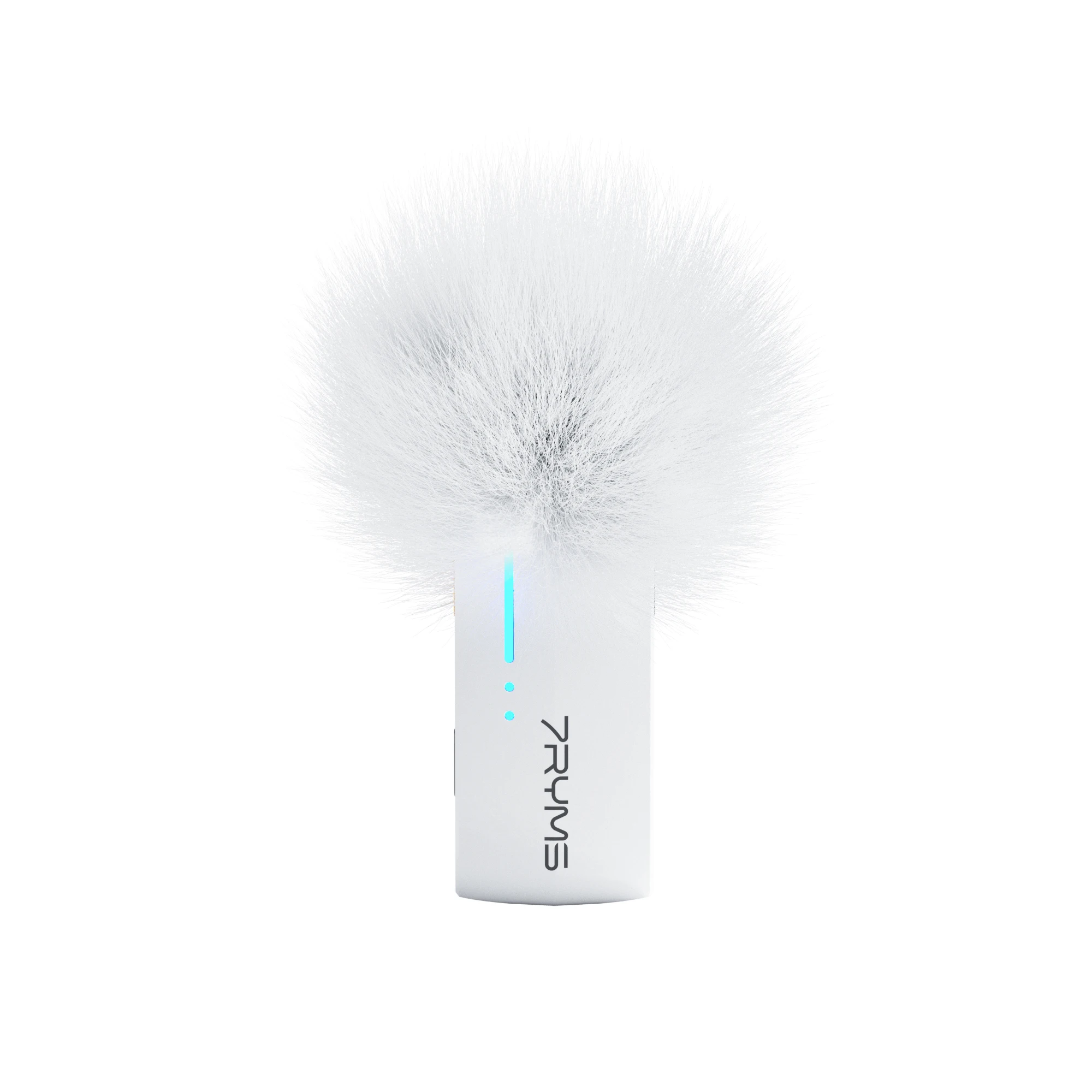

7. Wind Muff x4

8. Carrying Pouch

9. User Manual

10. Warranty Card

Installation and Usage

Pairing(All have been paired by default, if you need to re-pair, please follow the instructions below.)

Method I:

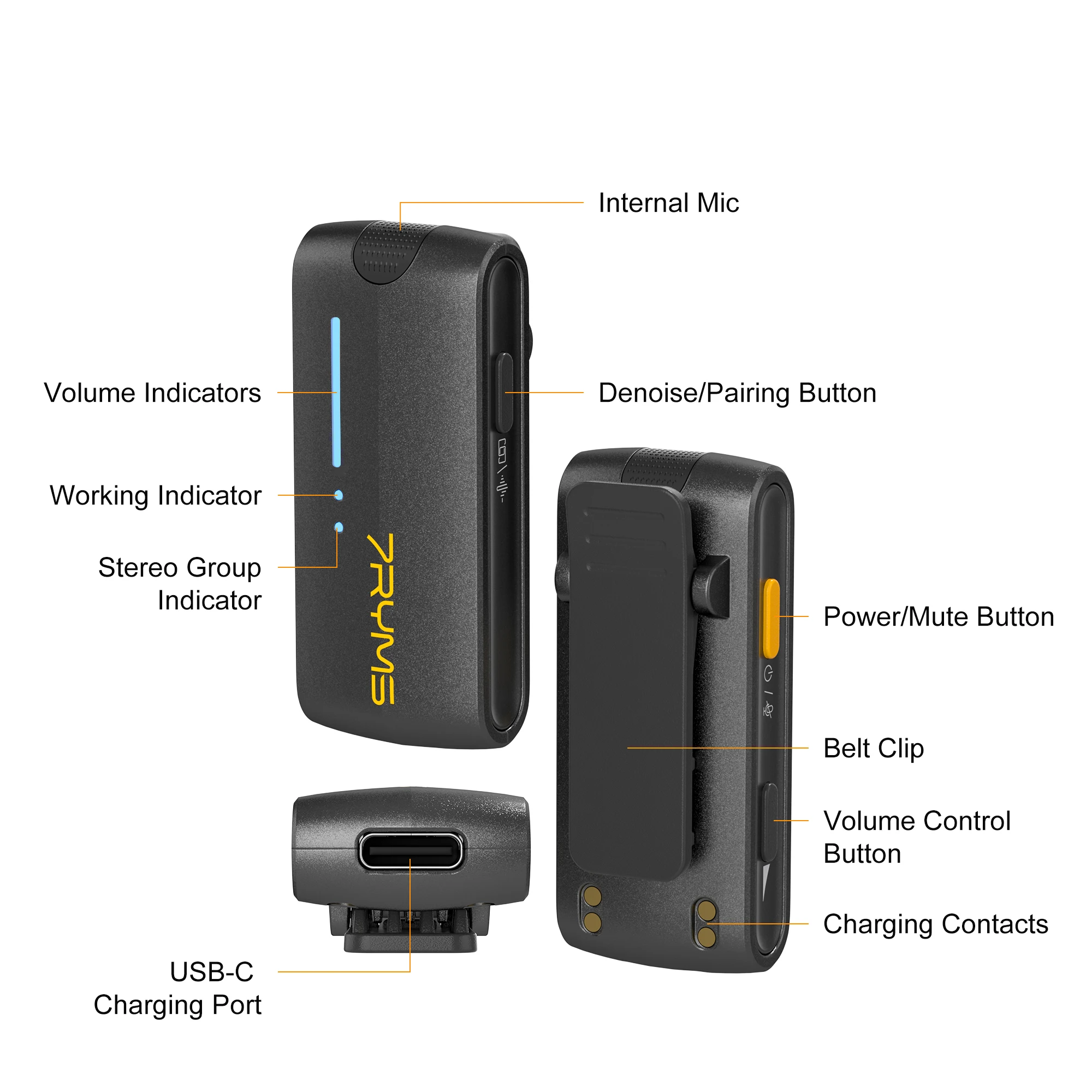

Place the transmitter and the receiver within one meter. Long press power buttons to turn them on and long press the pairing buttons to enter the pairing state. During the pairing state, the working indicator of the transmitter alternately blinks red, blue and green and which of the receiver blinks blue/green rapidly. The working indicator of TX/RX show blue/green when paired

Method II:

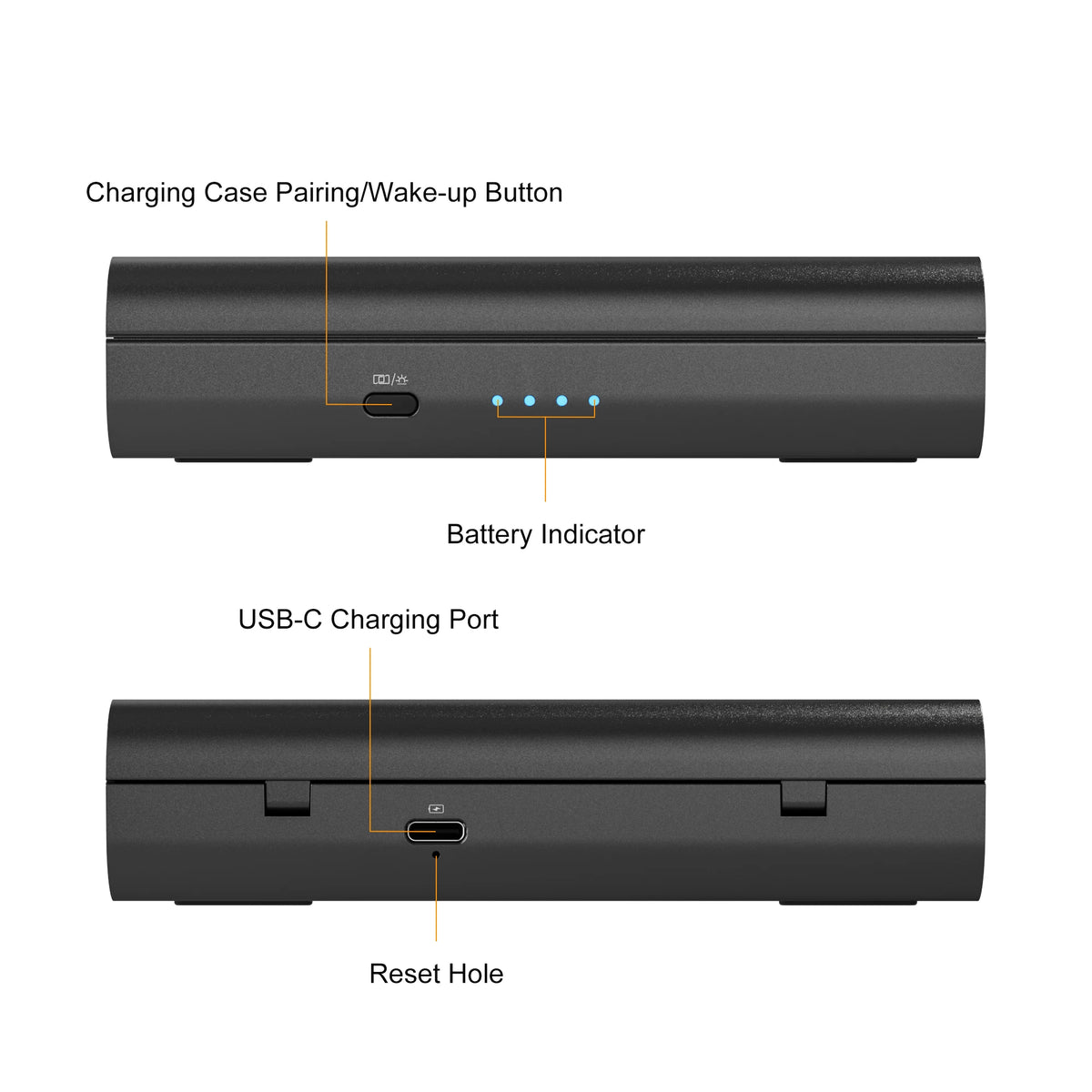

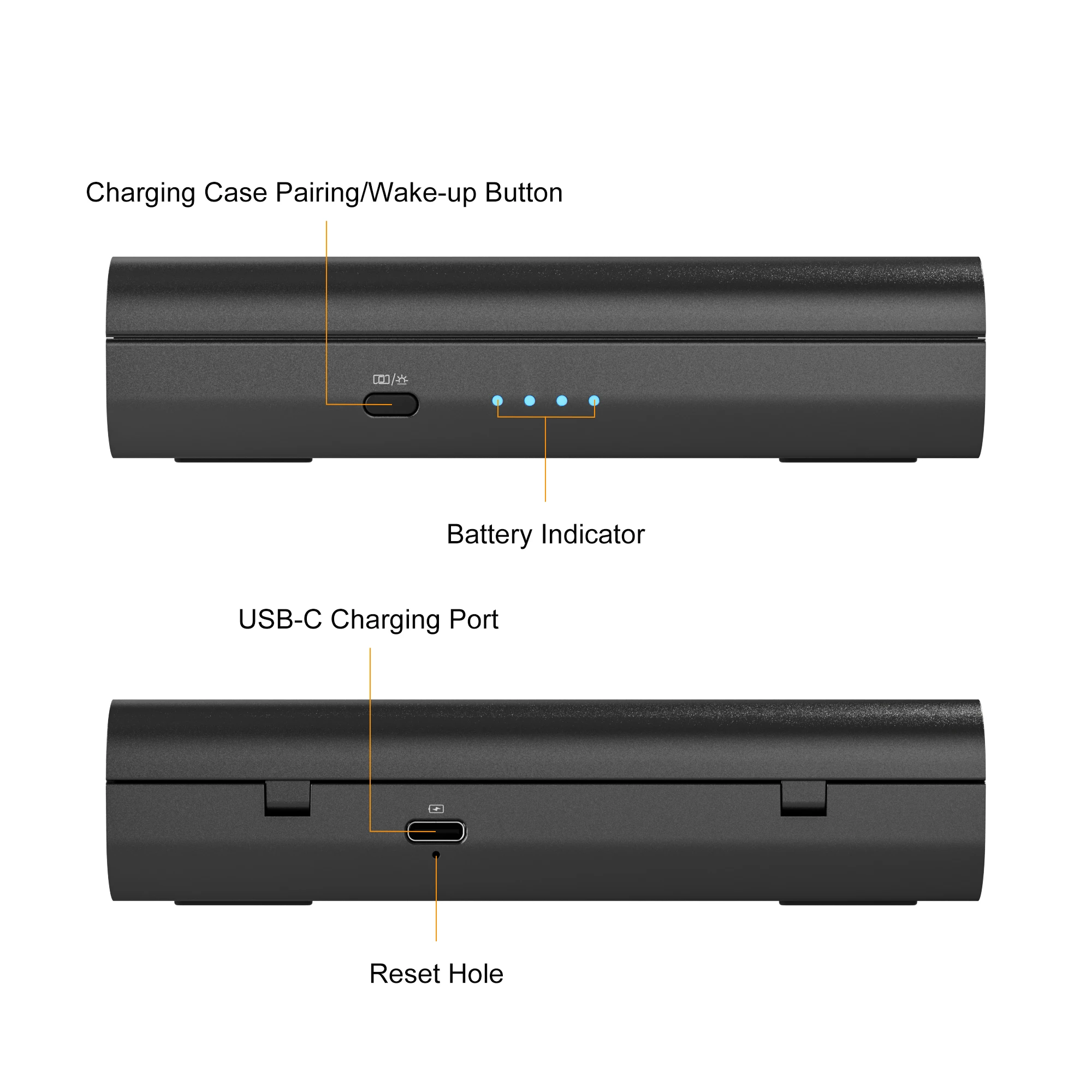

Place the receiver and transmitter in the charging case. Long press the pairing button on the charging case, the TX and RX will enter the pairing state. During the state, the working indicator of the transmitter alternately blinks red, blue and green and which of the receiver blinks blue/green rapidly. The working indicator of TX/RX show blue/green when paired
