SPECIFICATIONS

Application: Submersible

Brand Name: xmshxltd

Certification: CE,RoHS

Choice: yes

Flow Rate: 1100L/H,450~1100L/H

Fuel: Electric

Head: 80~800cm

High-concerned chemical: none

Model Number: JT800

Origin: China Mainland

Outlet Type: G1/2

Power: 26W

Power (W): Electric

Power Source: Electric

Pressure: Low Pressure

Standard or Nonstandard: Standard

Structure: Submersible Pump

Theory: Centrifugal Pump

Use: Booster Pump

Working voltage: DC6~24V

If the water pump is not equipped with a transformer, it cannot directly use 220V AC voltage!If the 220V AC voltage is directly connected without a transformer, the water pump will be damaged!

(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.)

100% brand new and high quality

Features:

This DC pump uses advanced electronic components and high-quality wear-resistant shaft

It is smooth operation, high efficiency, good performance, long service life,

Can be a long time continuous work, low noise, safety and environmental protection.

It is widely used in industry, scientific research, aerospace industry

This water pump is a wide-voltage type pump. Its operating voltage ranges from DC 6V to 24V. By adjusting the voltage, the flow rate of the pump can be controlled. The flow rate of the pump ranges from 450 to 1100 liters per hour, and the transmission distance is from 80 to 800 centimeters.

Usage:

Connect the DC female connector of the water pump to a suitable power adapter, then attach a good water pipe, and finally put the water pump into the water. Then it can be used normally.

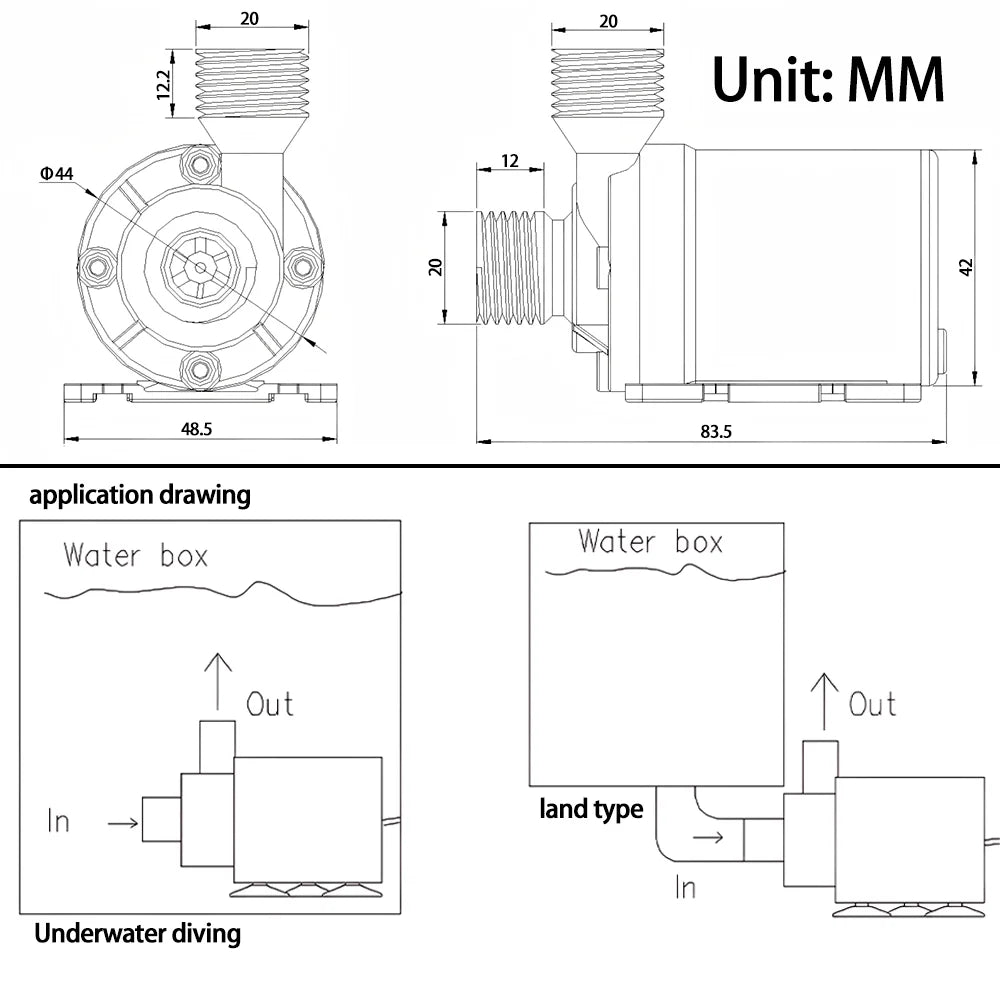

If the pump is in the land mode, it needs to be placed below the horizontal level and the water should be introduced into the pump's interior. Only in this way can it work properly.

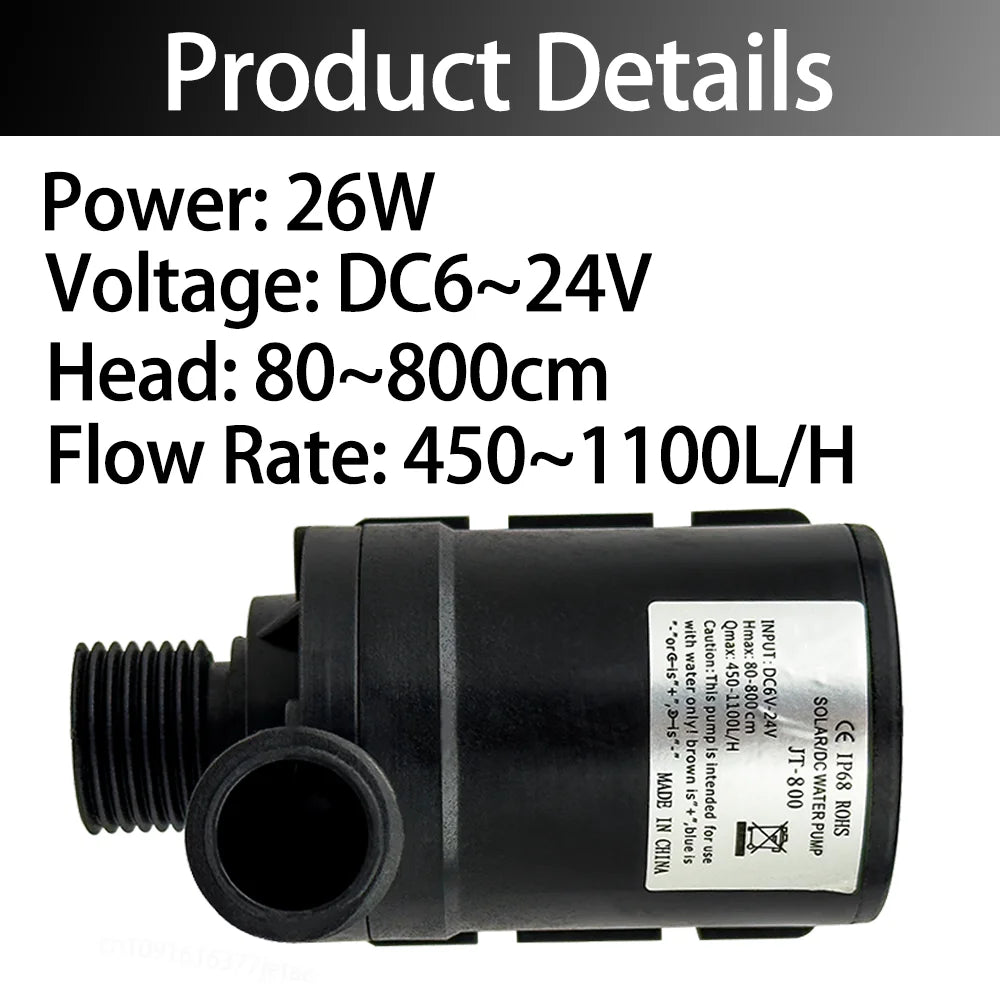

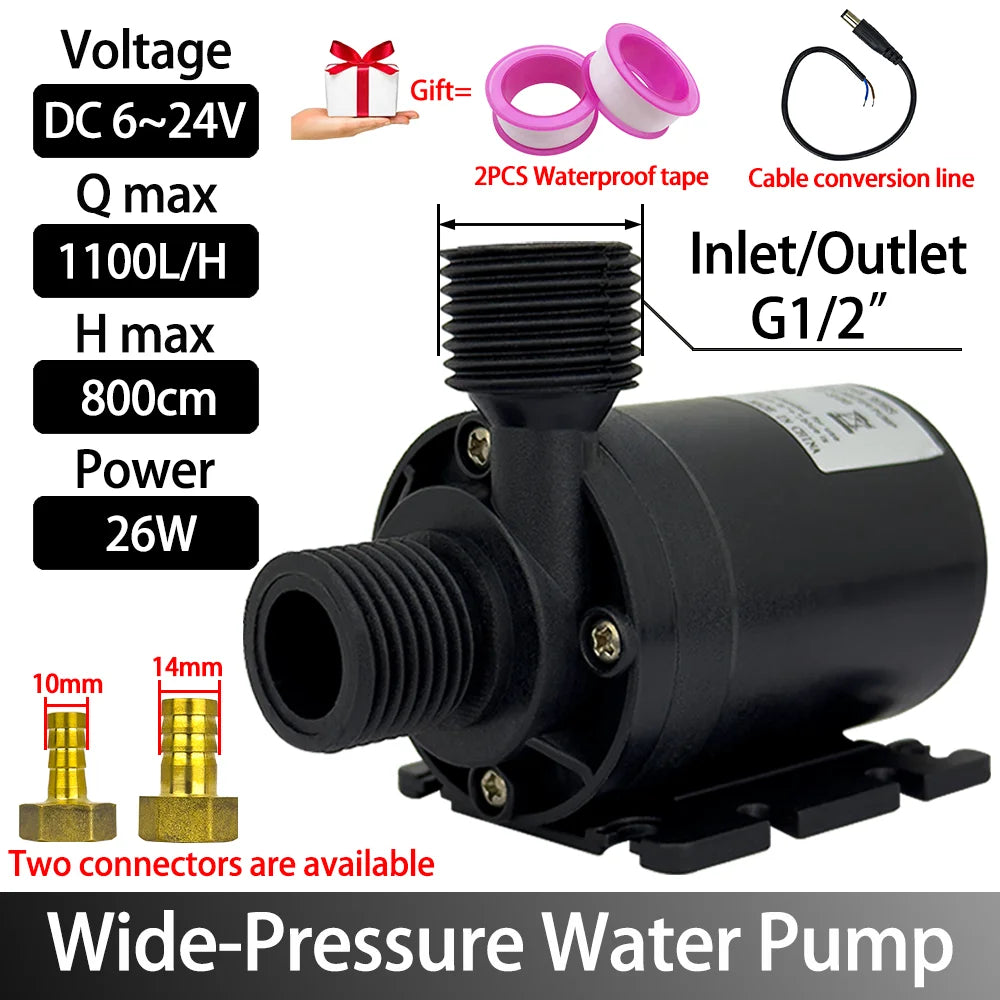

Specification:

Name: Water pump

Color: Black

Power: 26W

Voltage: DC 6~24V

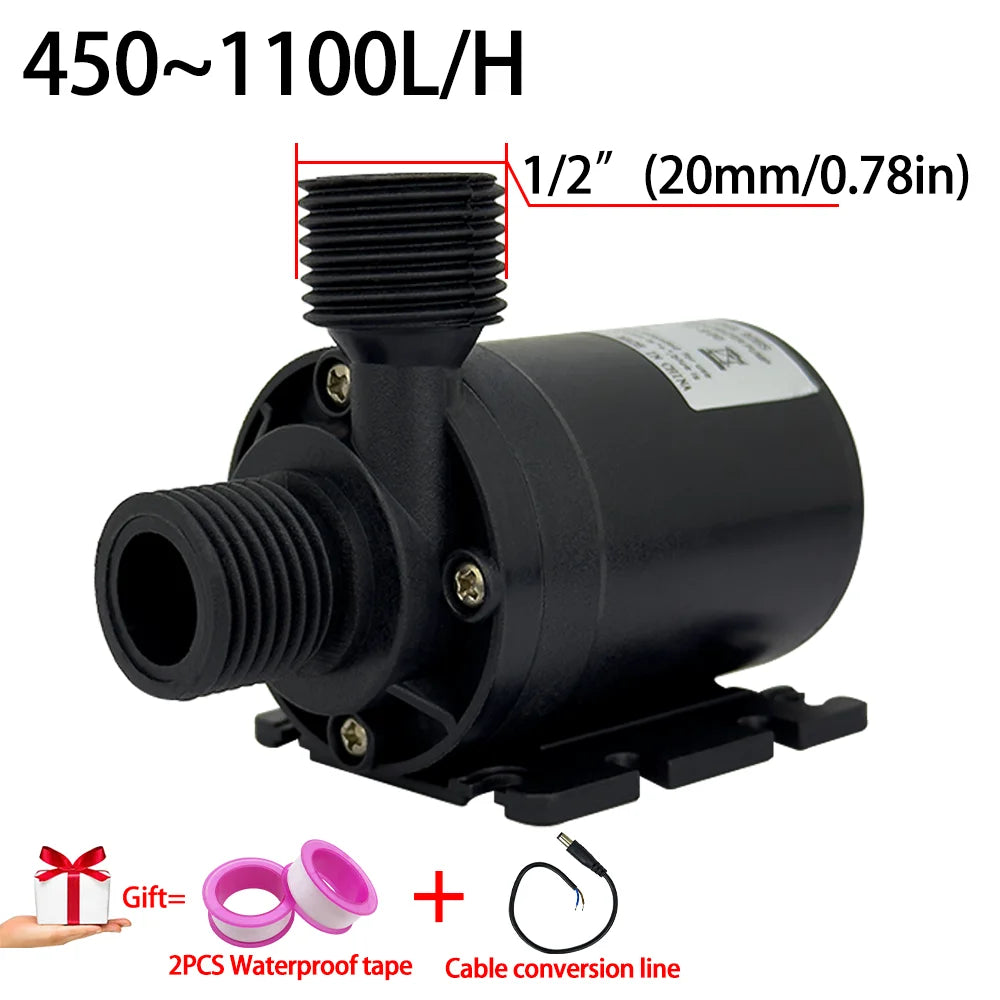

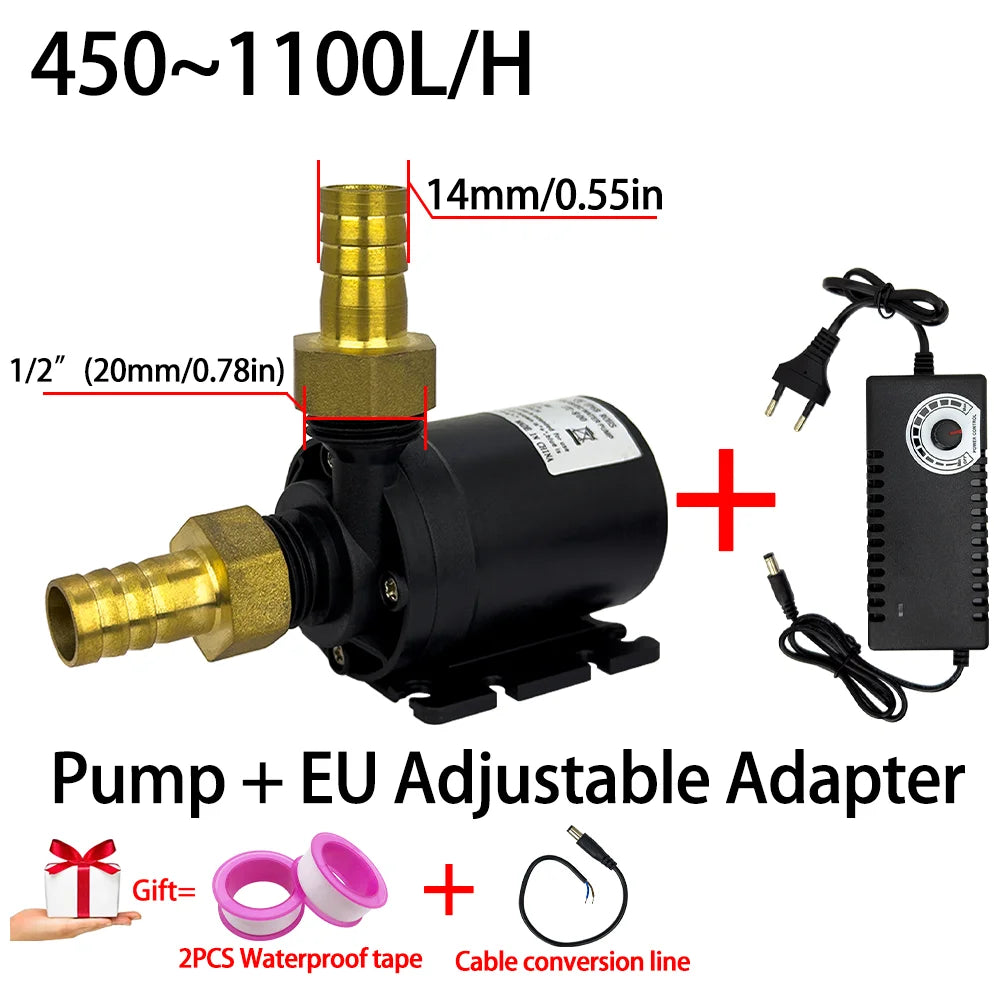

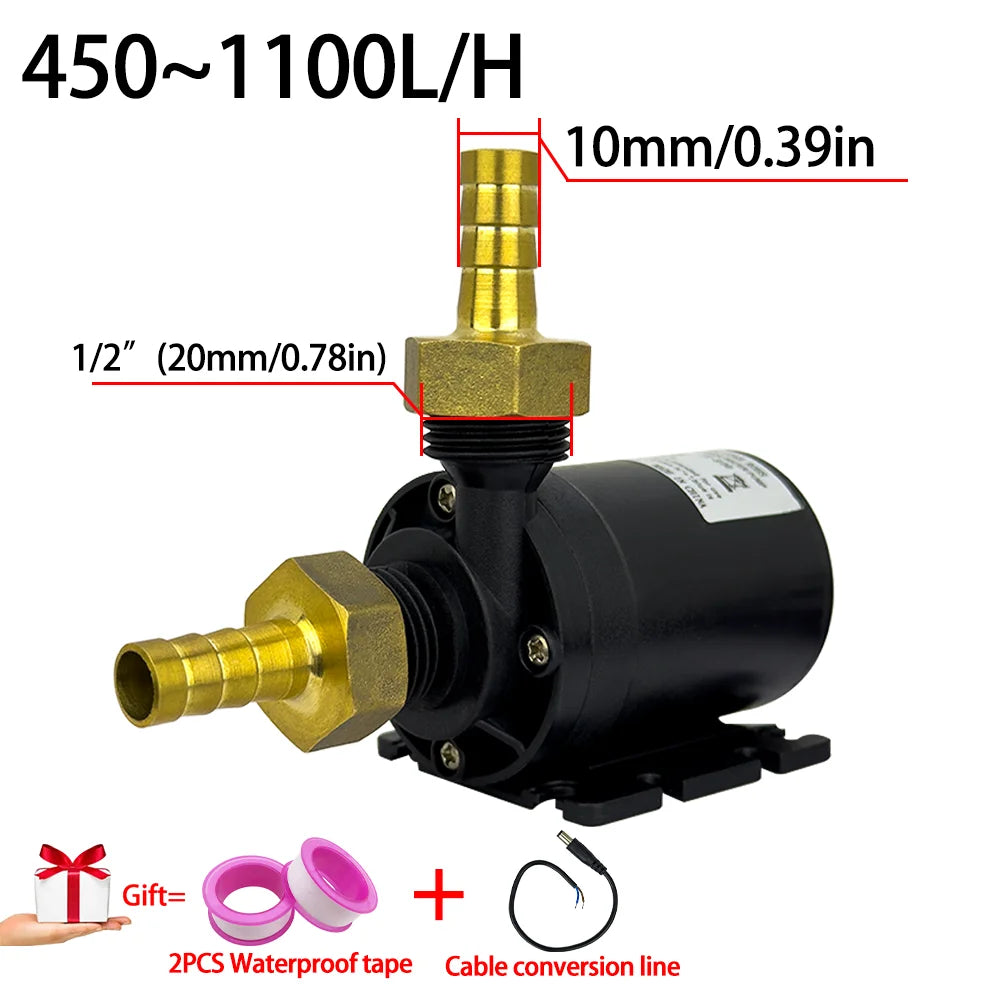

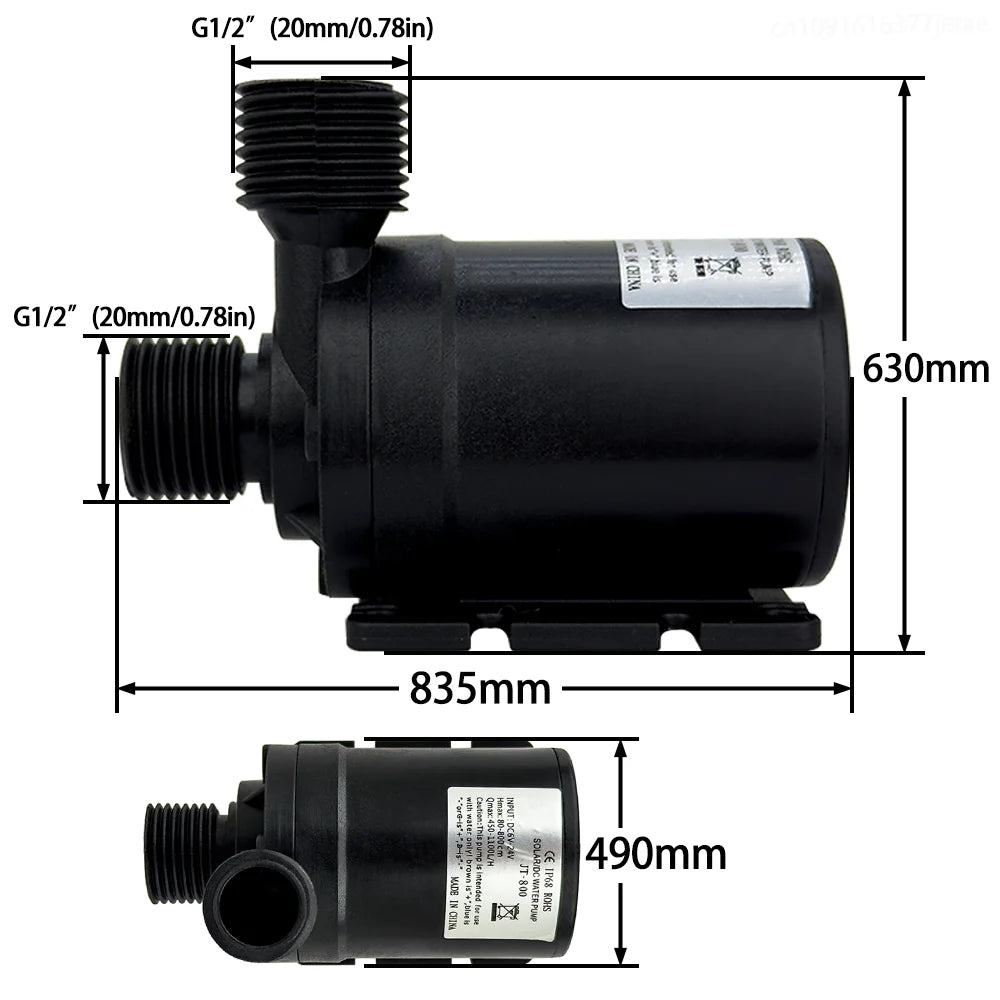

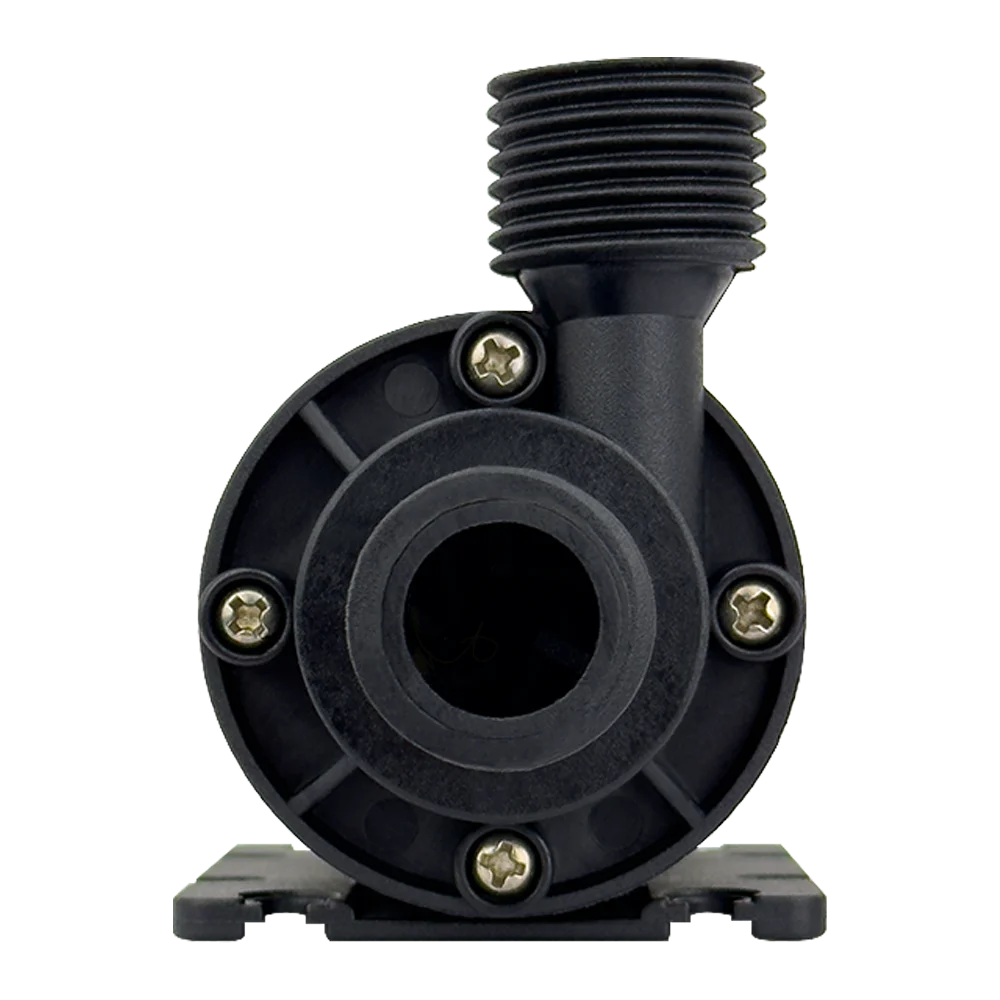

Inlet/Outlet: G1/2" male thead

Max Flow Rate: 450~1100L/H

Max Water Head: 80~800CM

Waterproof rating: IP68

Working noise: ≤35dB

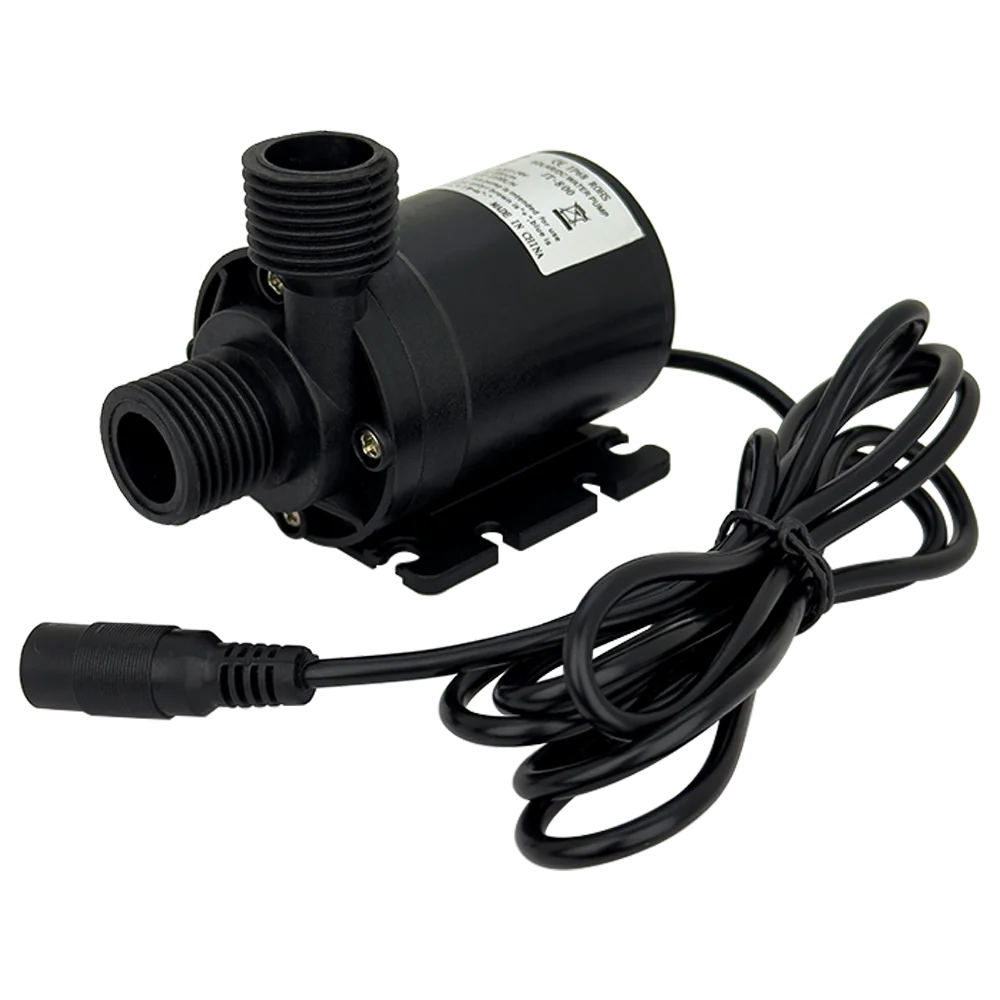

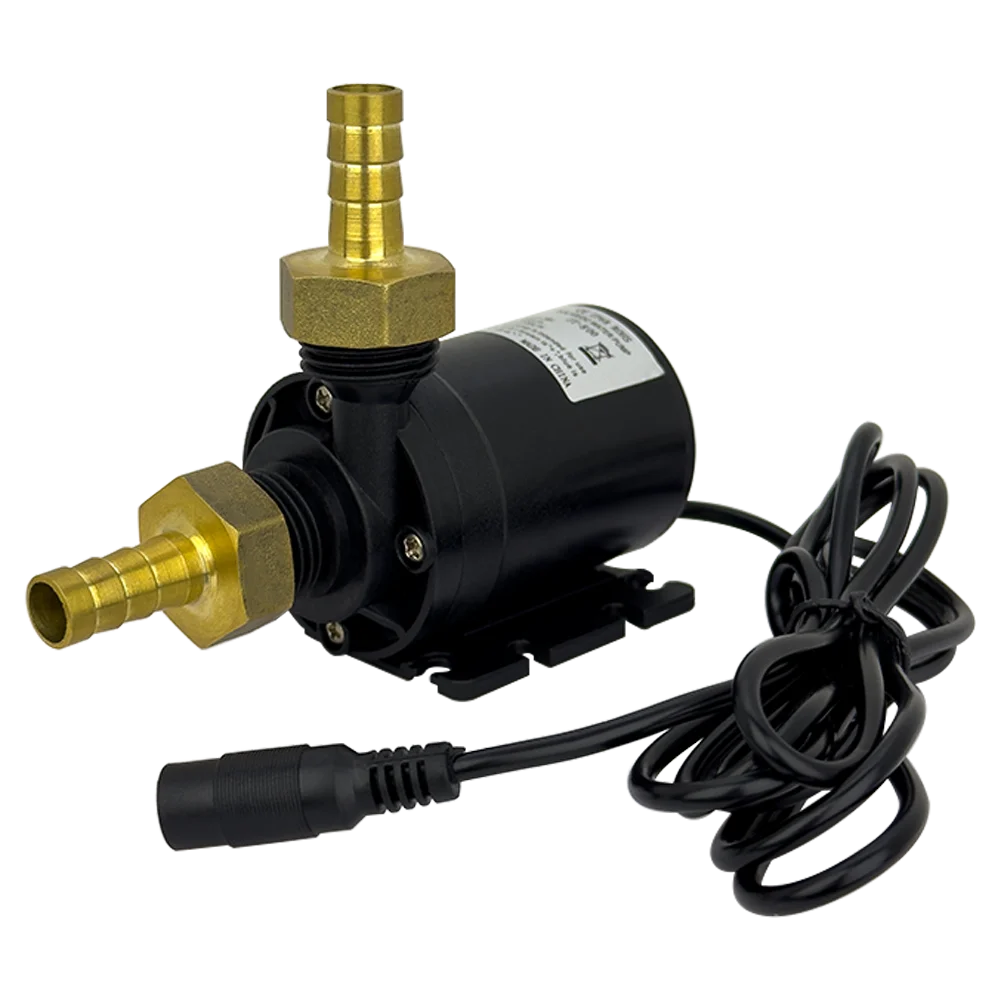

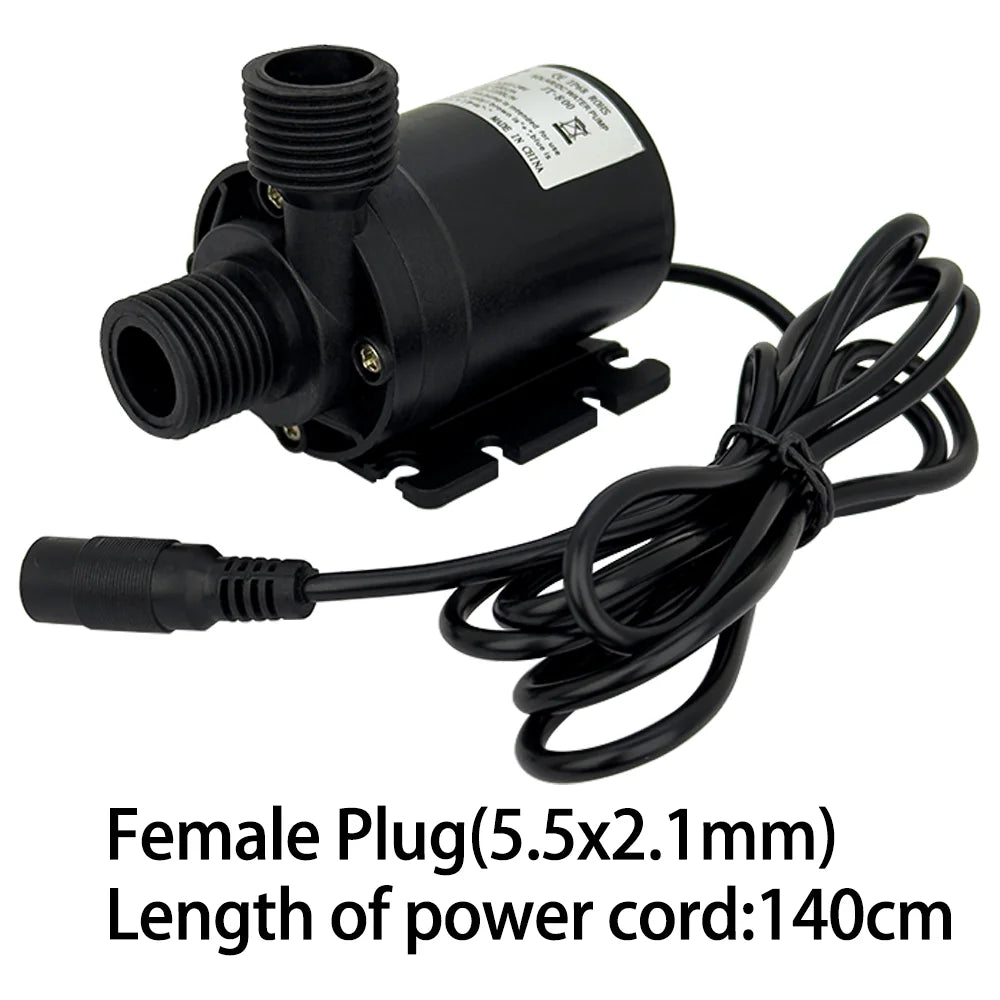

Length of power cord: 140cm

DC female connector specification: 5.5x2.1mm

Max circulating water temperature: 100°C

Operating environmental temperature: 0~80°C

Operating environment humidity: below 90% RH

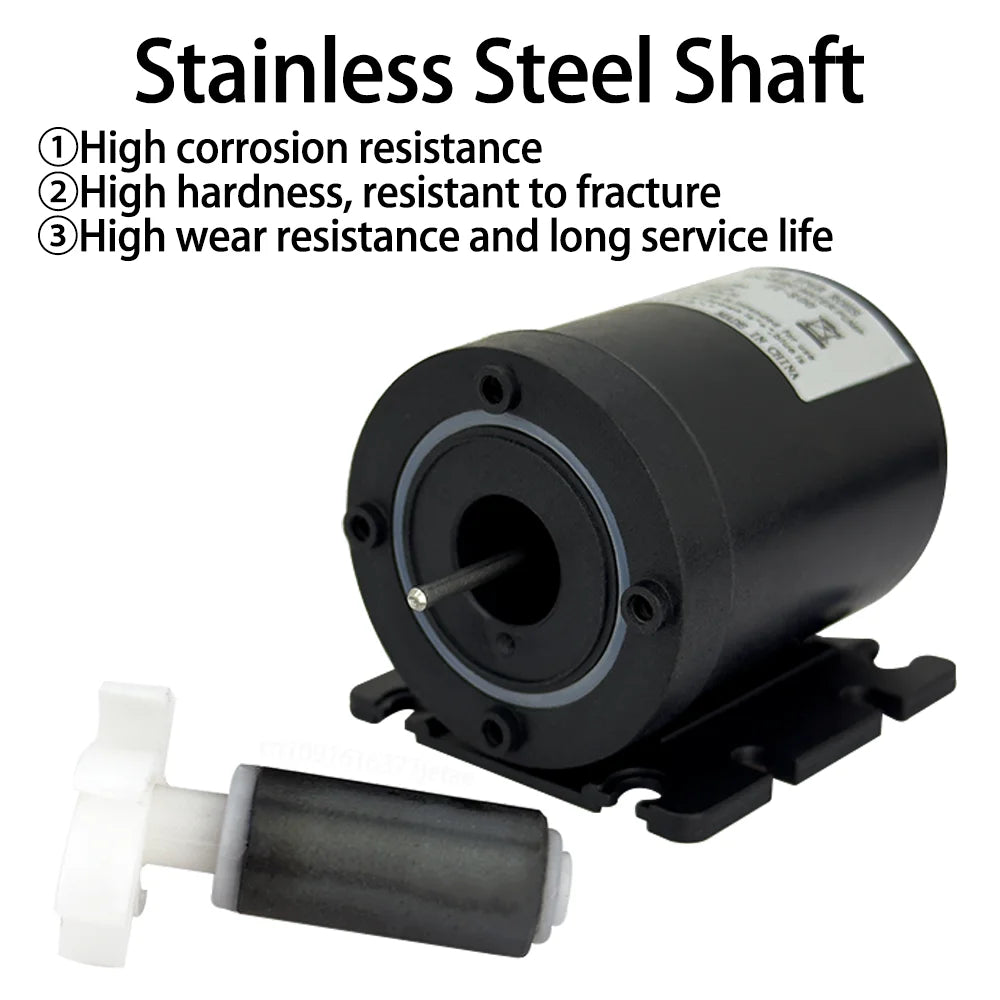

Pump shaft assembly: stainless steel shaft

Shaft material: 316 stainless steel

1Material of the pump housing: PA66 + 30% glass fiber

Usage medium: Water, alcohol, diesel and other liquids with good fluidity.

Note:

1.To use the land-based mode, water must first be introduced into the inlet before it can operate normally.

2.It is prohibited to connect the pump to a 220-volt power supply without a power converter.

3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.

4.The pump is suitable for medium temperature 0 ℃ -100 ℃.

5.It is strictly prohibited to use in liquids containing impurities larger than 0.35MM and magnetic conductive particles. If the water quality is too dirty, the impurities in the pump chamber should be cleaned promptly.

6.It is strictly prohibited to run the machine without water for an extended period.
