SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 600mbps

5G Wi-Fi Transmission Rate: 2167Mbps

Antenna Type: Fixed

Application: Soho

Brand Name: comfast

Certification: CE

Choice: yes

Frequency: 5 GHz

Frequency Band Class: Dual-Band

Frequencyband: 5470–5725MHz

Function: Firewall,QoS,VPN,VOIP

High-concerned chemical: none

LAN Ports: 0

Max. LAN Data Rate: 1900Mbps

Model Name: CF-EW87

Number of USB Interfaces: None

Origin: Mainland China

Package: Yes

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

Support Mesh: Support

Supports WDS: Yes

Supports WPS: Yes

Telecomcableconnected: Yes

Type: WireLess

WAN Ports: 1 x10/100/1000Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

Wi-Fi Transmission Standard: 802.11ac

Wired Transfer Rate: 10/100/1000Mbps

Wireless Communication Standard: 802.11.ax

Wireless transmission rate: 3600M

With Modem Function: No

comfast Model: CF-E530N

semi_Choice: yes

Comfast WiFi7 3600Mbps Outdoor CPE Wireless AP 2.4&5.8GHz WiFi Repeater Router AP Access Point WiFi Antenna Extender POE Adapter

Product Overview:

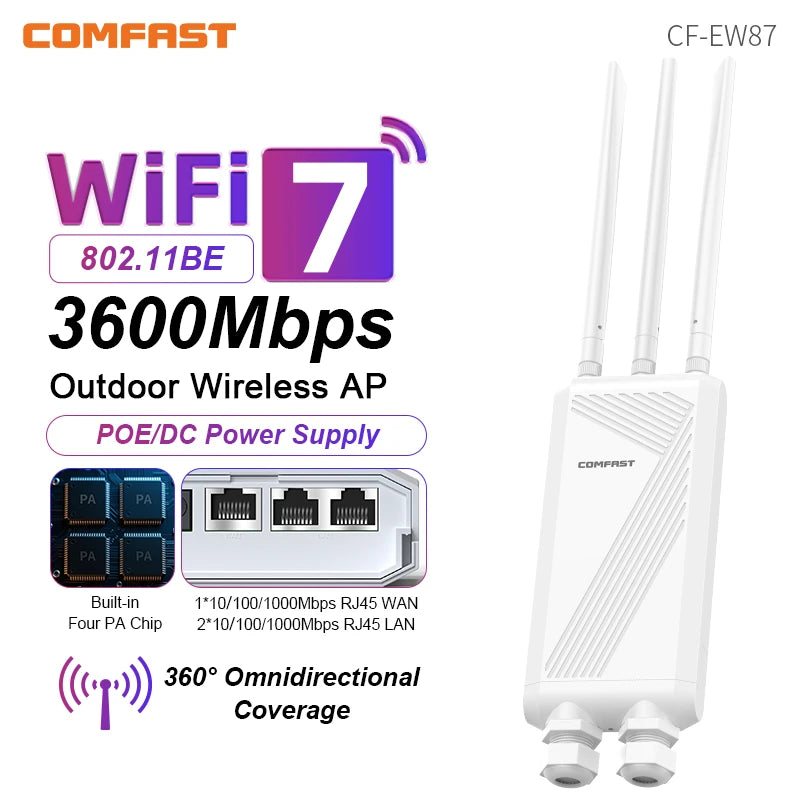

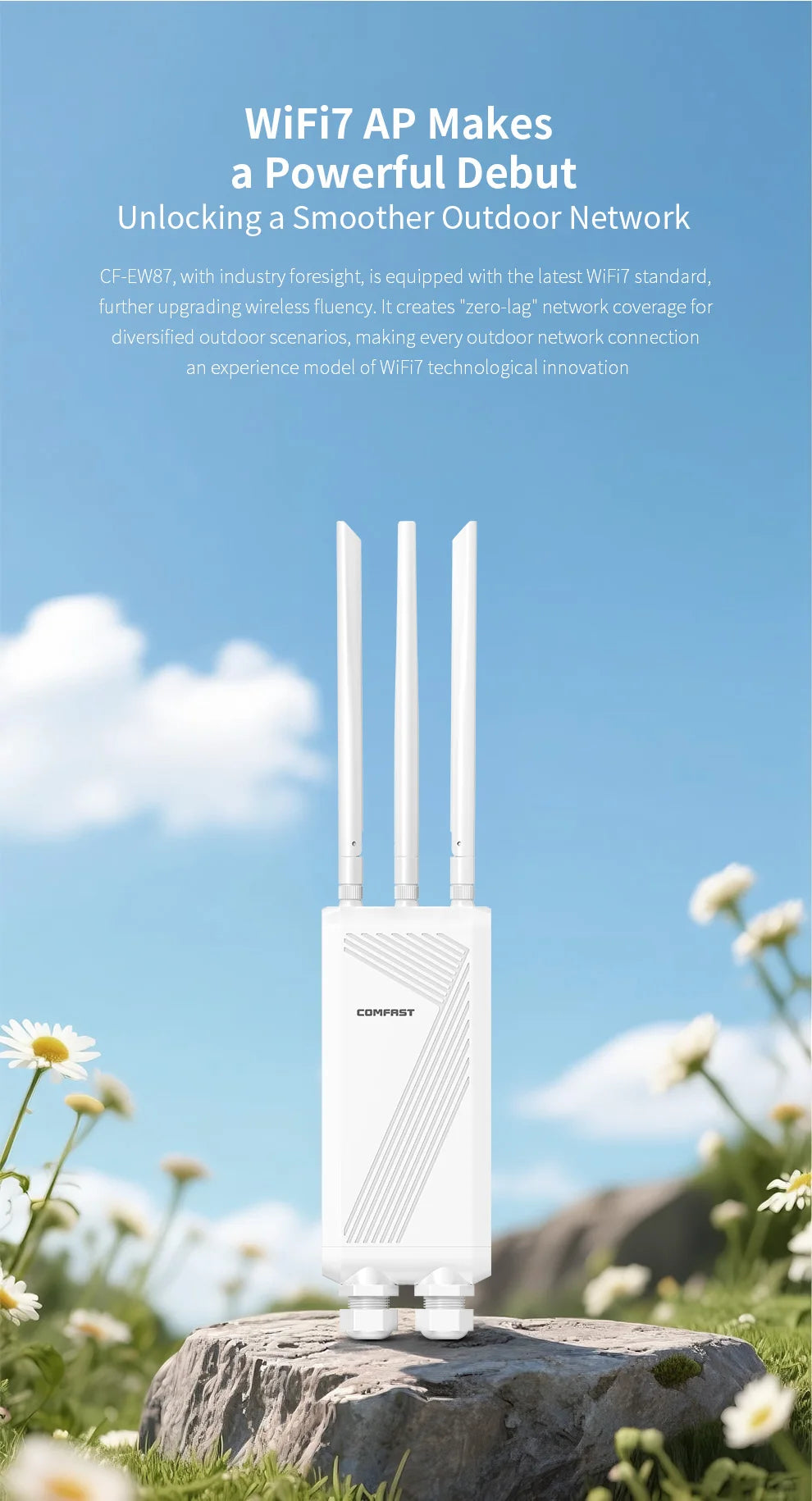

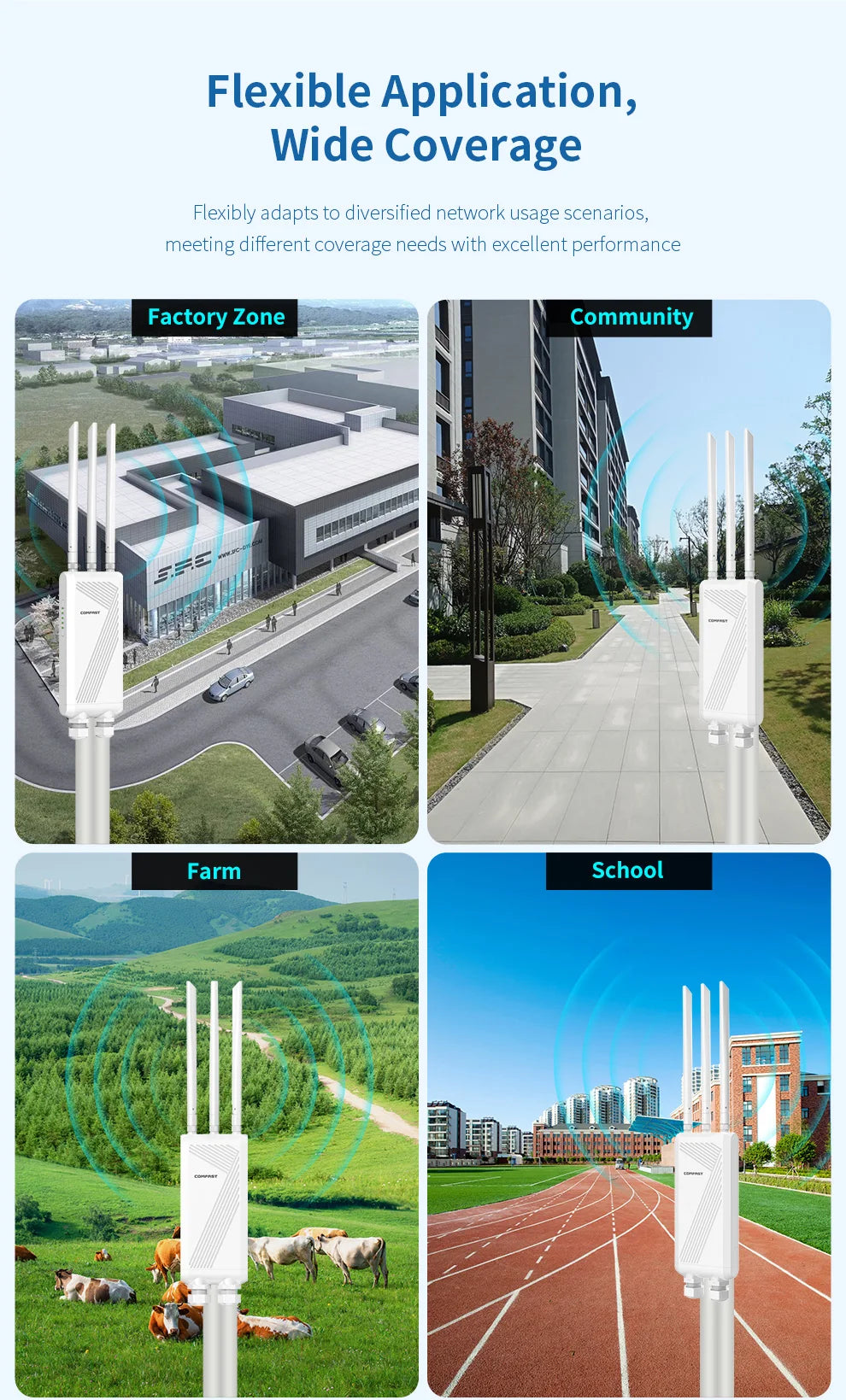

CF-EW87 is a high-power outdoor AP with WiFi7 wireless transmission rate, dual band wireless speed up to 3600Mbps, and 3 high gain omnidirectional antennas to ensure 360 ° signal coverage. Rigorous outdoor shell design, waterproof, lightning proof, moisture-proof, and antifreeze. Can be used as an outdoor WiFi coverage base station, suitable for various outdoor places such as squares, resorts, scenic spots, etc.

Pure white exterior design

Simple and elegant

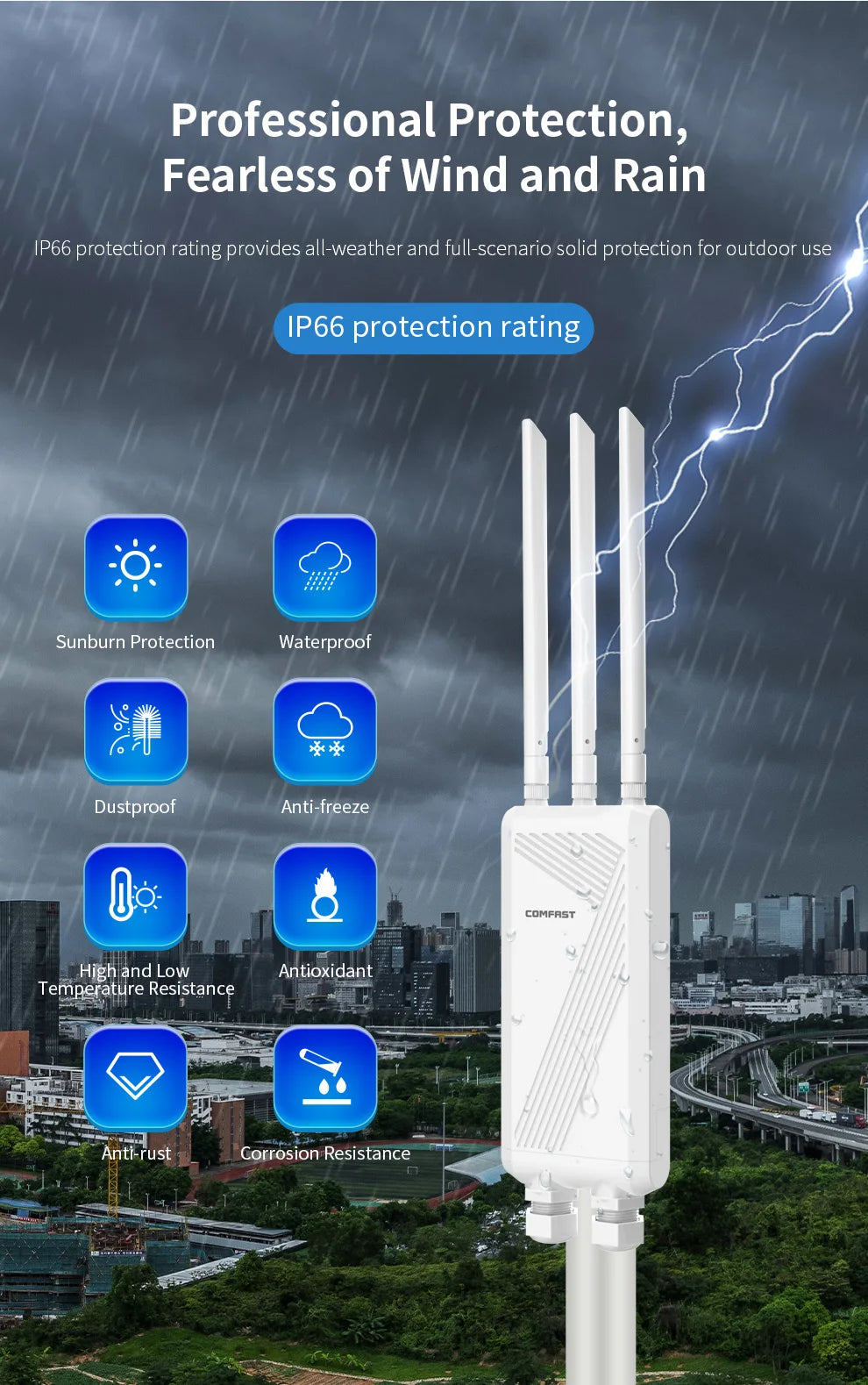

IP66 protective industrial casing

Waterproof and antifreeze

Installation of wall hanging poles

Easy assembly

PoE/DC power supply

Flexible deployment

Detachable antenna

Easy to adjust

Work indicator light

Observe the working status of the equipment

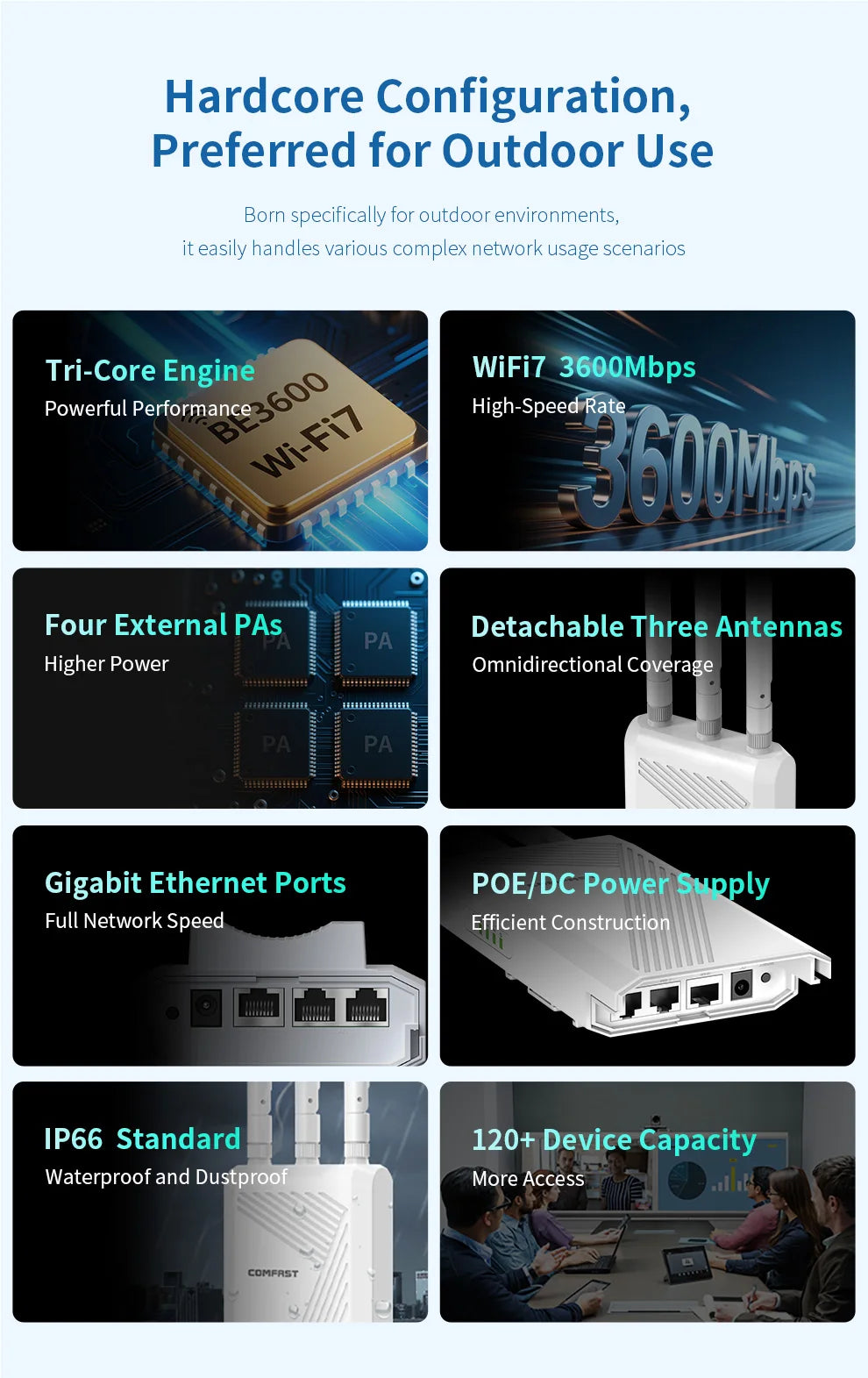

Product Performance：

IPQ5312+QCN6412+QCA8337

Brand chip solution with stable performance;

2.4GHz&5.8GHz dual band concurrent

More stable signal, efficient anti-interference;

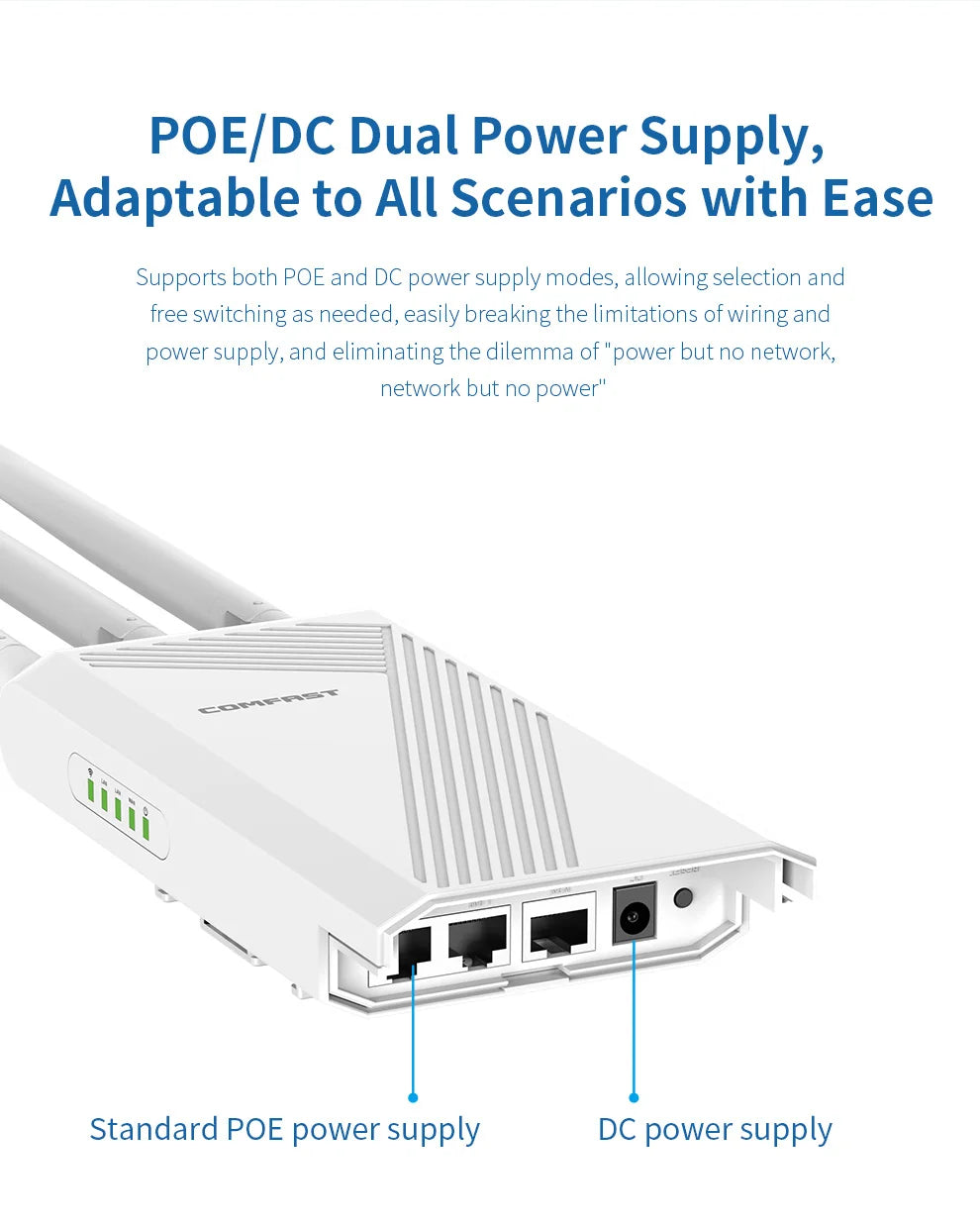

POE/DC dual-mode power supply

Flexible power supply makes construction easier;

3600Mbps wireless speed

High speed transmission for better internet experience;

Wireless Protocol Standards

Support IEEE802.11a/b/g/n/ac/ax/be protocol;

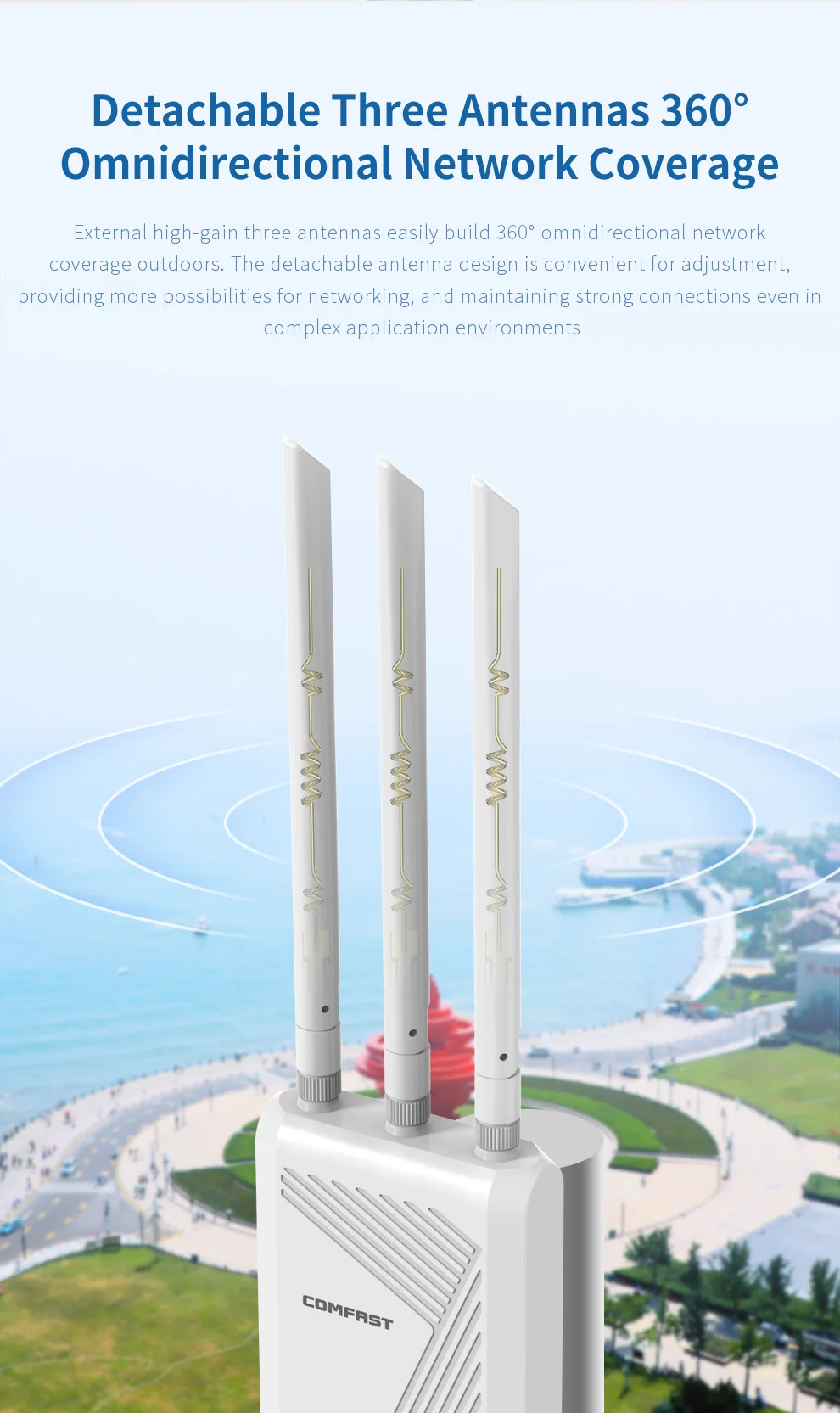

High gain detachable antenna

Strong signal, 360 degree all-round coverage;

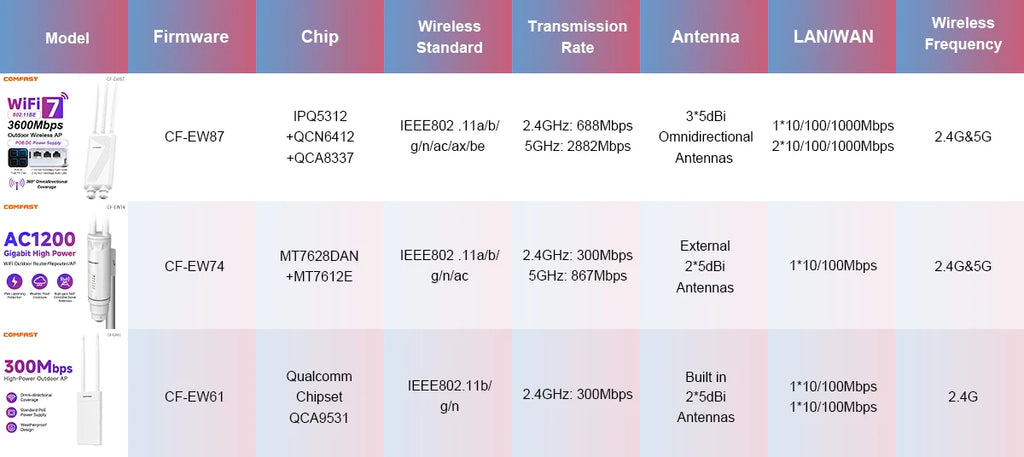

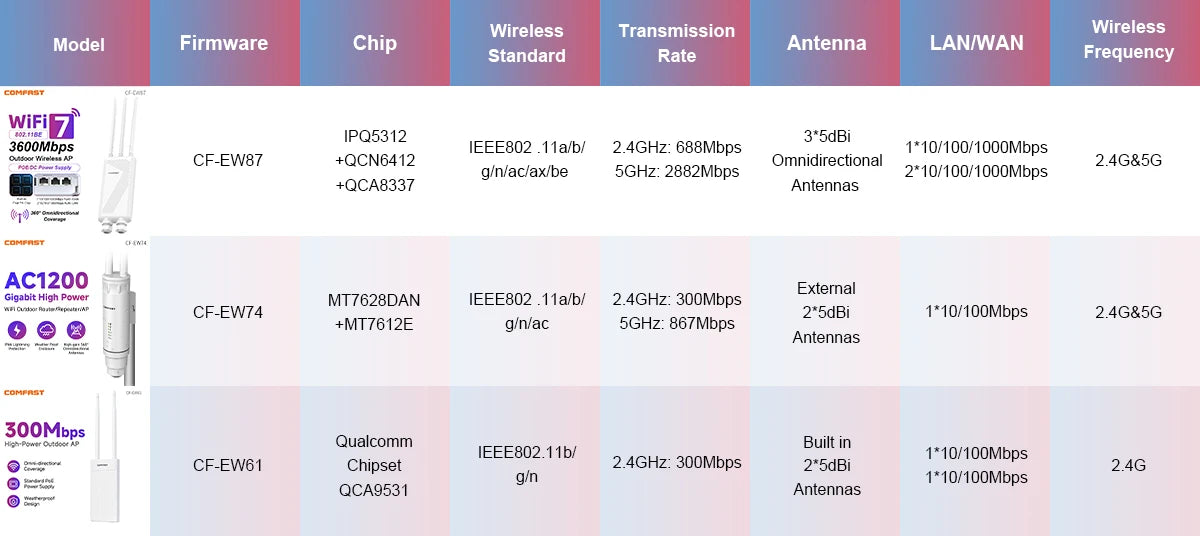

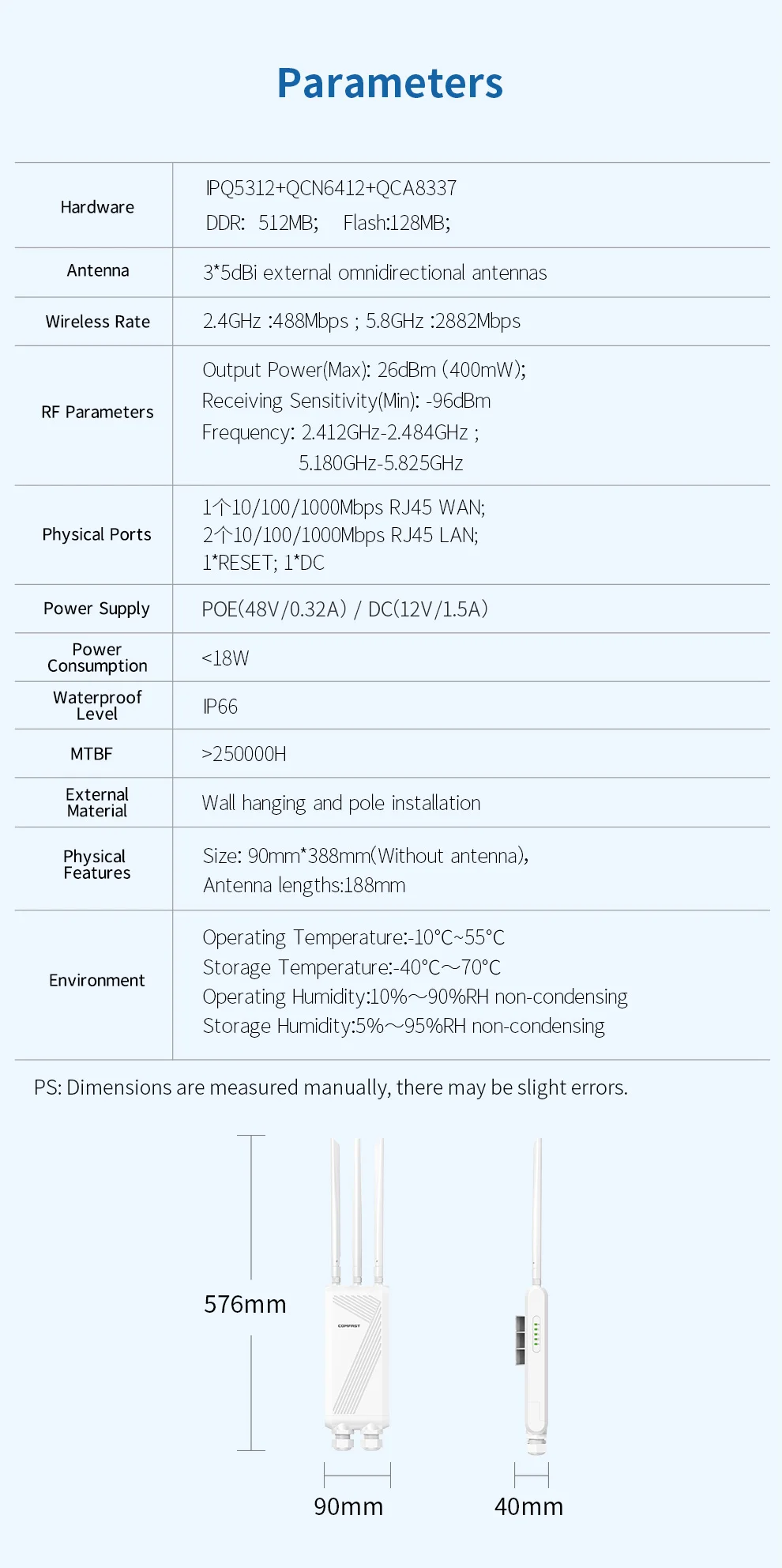

Specification parameters:

Hardware specifications: IPQ5312+QCN6412+QCA8337 chip solution

Wireless standard: Supports IEEE 802.11a/b/g/n/ac/ax/be standards

Memory Flash: Memory: 512MB Flash: 128MB

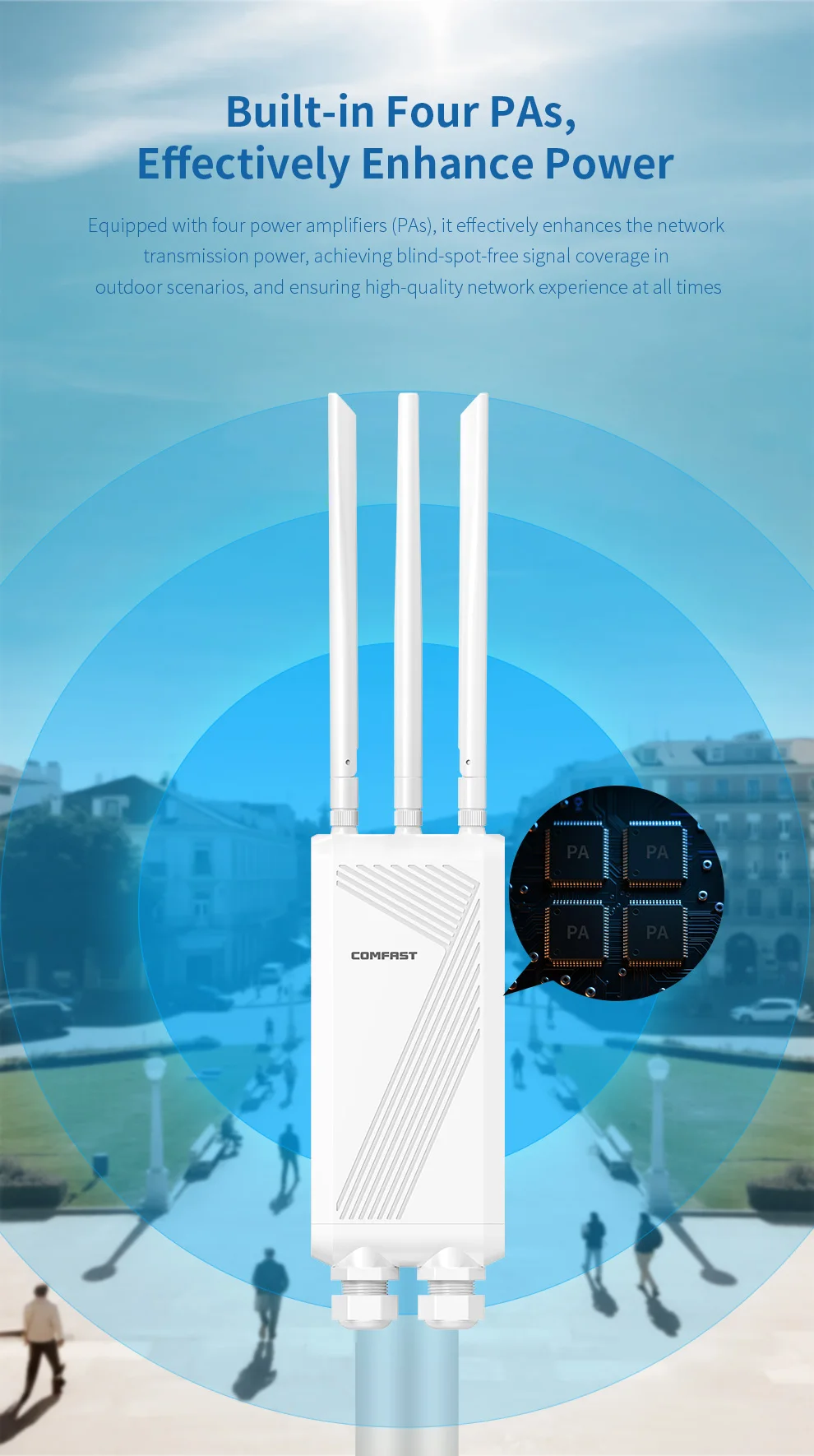

Maximum transmission power: 26dBm (400mW) RF parameters

Minimum receiving sensitivity: -96dBm

Working frequency: 2.412GHz-2.484GHZ; 5.180GHz-5.825GHz

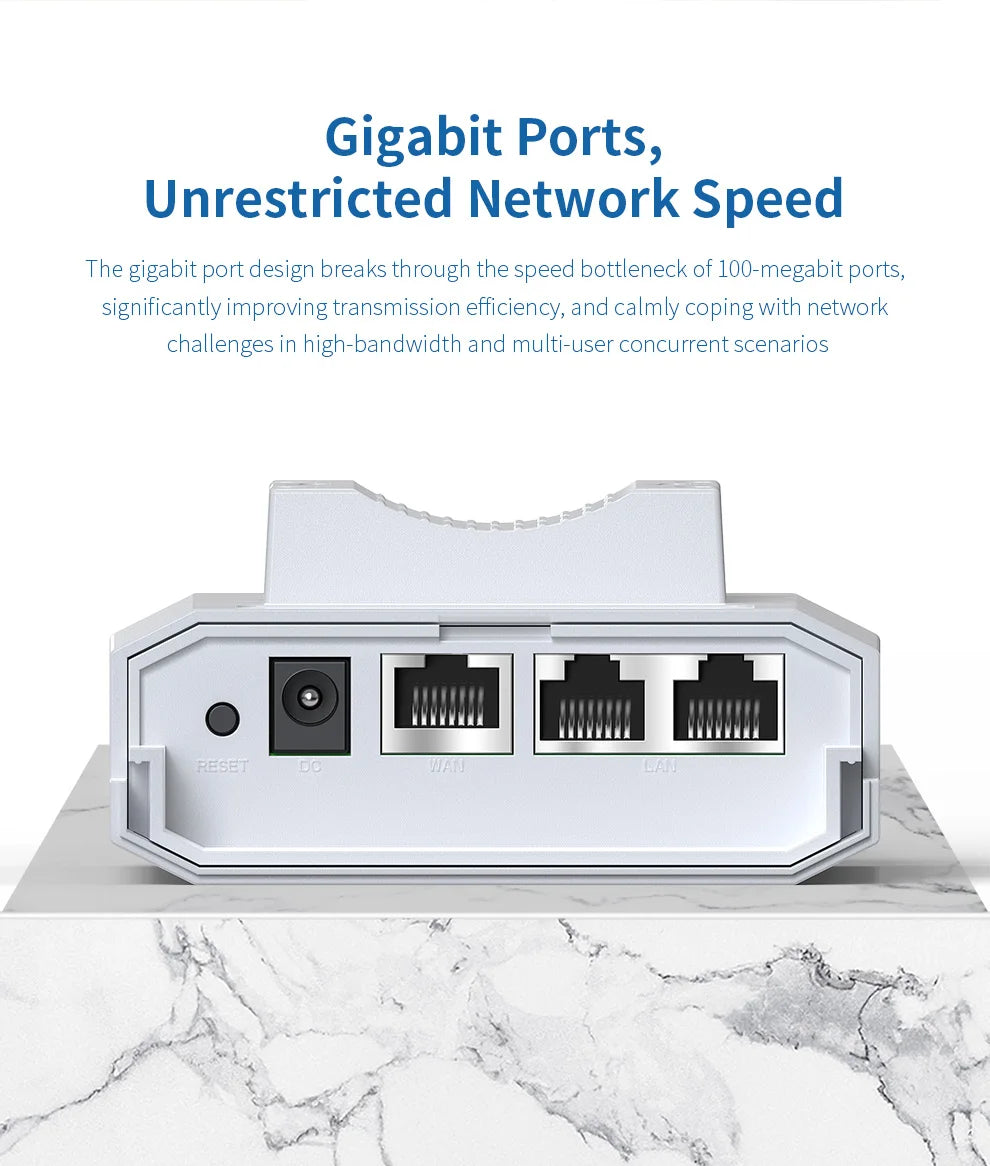

Physical interface: 1 10/100/1000Mbps RJ45 WAN Ethernet port; 2 10/100/1000Mbps RJ45 LAN Ethernet ports, 1 * DC interface, 1 * RESET reset button

Wireless speed: 2.4GHz: 688Mbps; 5.8GHz:2882Mbps

Antenna gain: 3 * 5dBi

Power parameters: POE (48V/0.32A)/DC (12V/1.5A)

Maximum power consumption:<18W

MTBF：>250000h

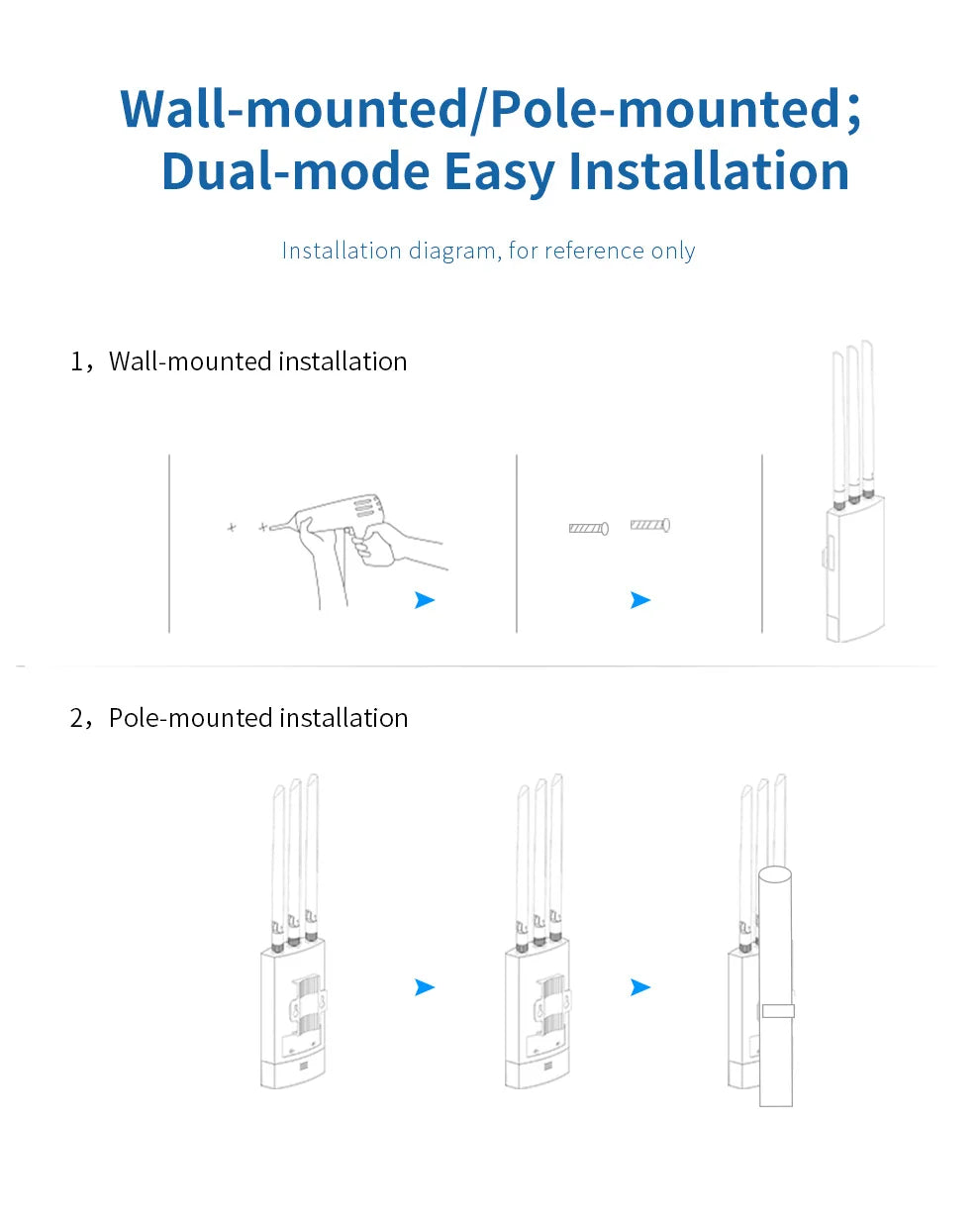

Installation method: wall mounted, pole mounted installation

Protection level: IP66

Product size: External dimensions: 90mm * 388mm (including antenna length)

Single antenna length: 188mm

Indicator light: WiFi light * 1; 3 mesh lights; Power light * 1

Operating environment: Operating temperature: -10 ° C~55 ° C; Storage temperature: -40 ° C~70 ° C

Working humidity: 10%~90% RH, non condensing; Storage humidity: 5%~90% RH, non condensing

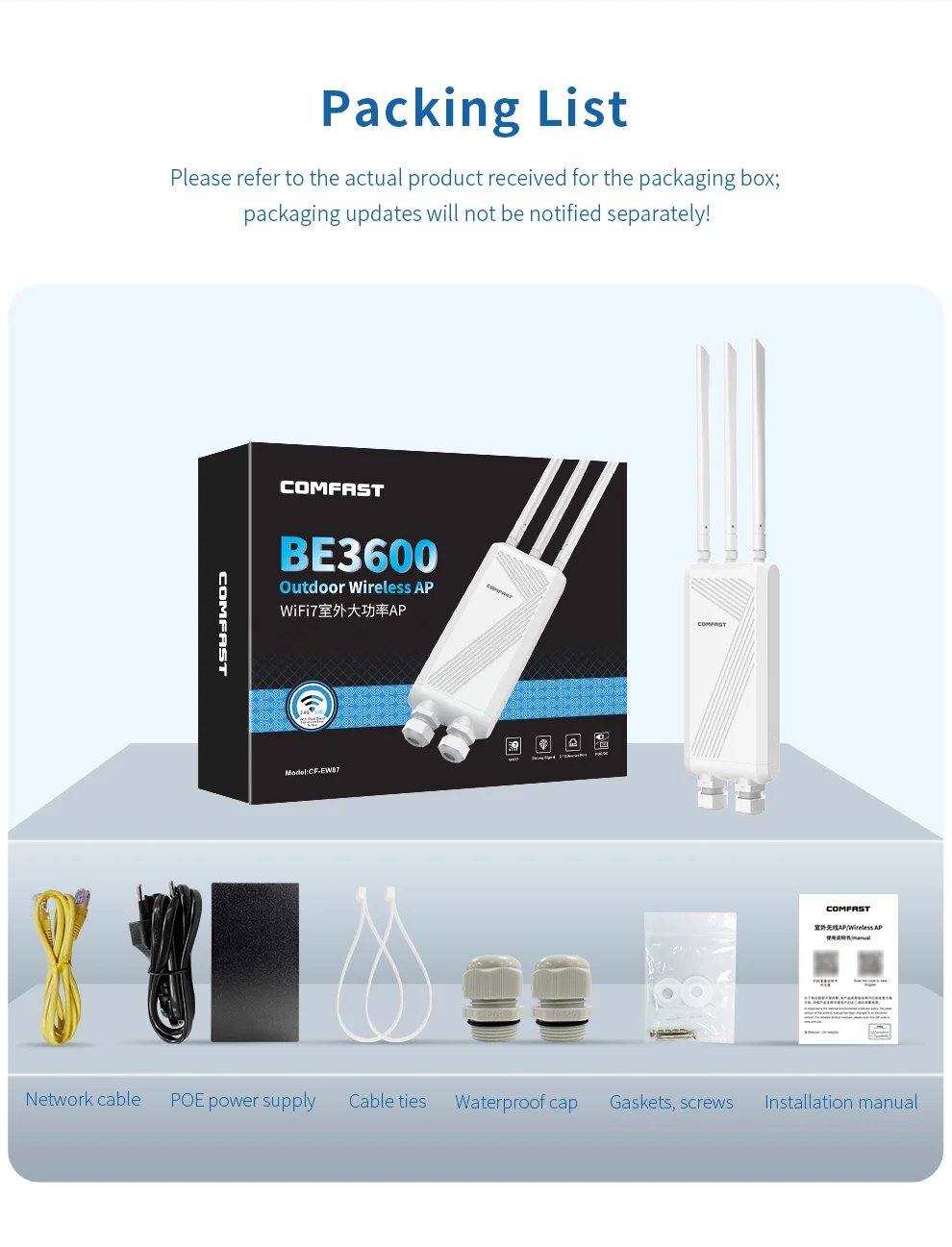

The package includes:

1 X WIFI AP

1 X Network Cable

1 X POE Power

2 X Ties

2 X Waterproof Cap

1 X Set Screws

1 X Manual
