SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,VGA (D-Sub),6 x USB 2.0,PS/2,HDMI 2.0

Battery Included: no

Brand Name: MSI

Chipset: Intel B560

Chipset Manufacturer: Intel

High-concerned chemical: none

Material: others

Maximum Ram Capacity: 64 GB

Number of PCI: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: No

Processor compatibility: 11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,11th Intel Core i5

RAID Supported: no

Socket Type: LGA1200

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Motherboard Chip
Integrated Chips Sound Card/Network Card
Main Chipset Intel B560
Chipset Description Uses Intel B560 chipset
Display Chip CPU integrated graphics chip (requires CPU support)
Audio Chip Integrated Realtek ALC897 7.1 channel audio chip
Network Chip Onboard Realtek 8125B gigabit network card
Processor Specifications
CPU Type 11th/10th Generation Core/Pentium/Celeron
CPU Socket LGA 1200
Memory Specifications
Memory Type 2×DDR4 DIMM
Maximum Memory Capacity 64GB
Memory Description Supports dual-channel DDR4 5200(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4533(OC)/4400(OC)/4300(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200(OC)/3000(OC)/2
Storage Expansion
PCI-E Standard PCI-E 4.0
PCI-E X16 Slot 1
PCI-E X1 Slots 2
Storage Interfaces 1×M.2 interface, 6×SATA III interfaces

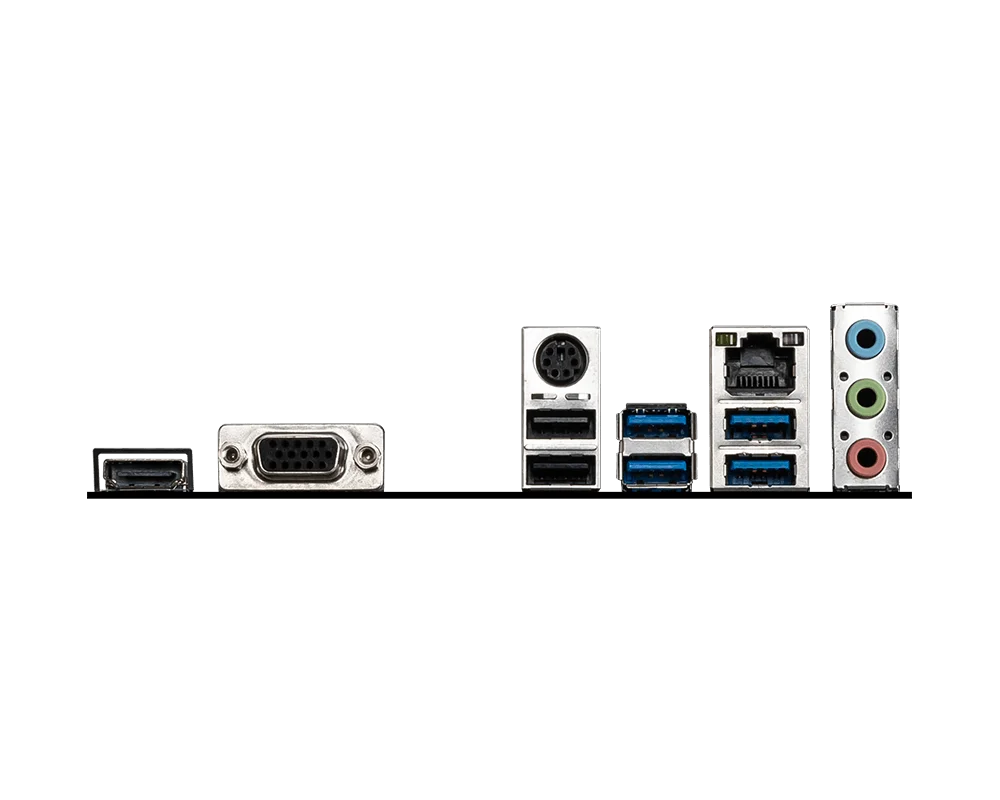

I/O Interfaces
USB Interfaces 6×USB3.2 Gen1 interfaces (2 internal, 4 back panel)
6×USB2.0 (4 internal, 2 back panel)
Video Interfaces 1×HDMI interface, 1×VGA interface
Power Interfaces 1×8-pin, 1×24-pin power interface
Other Interfaces 1×PS/2 keyboard and mouse combo interface, 1×RJ45 network interface, 3×audio interfaces
Form Factor
Motherboard Form Factor Micro ATX
Dimensions 23.6×20.2cm
