PDA Android Handheld Terminal Honeywell Barcode Scanner 1D 2D QR Portable Data Collector Terminal Device with WIFI 4G NFC
2D HoneyN5703 / UK / China Mainland
€374,95
Prix promotionnel
€374,95
Prix régulier
Passer aux informations sur le produit
PDA Android Handheld Terminal Honeywell Barcode Scanner 1D 2D QR Portable Data Collector Terminal Device with WIFI 4G NFC
€374,95
Prix promotionnel
€374,95
Prix régulier
Taxes incluses.
Expédition calculée lors du paiement.
SPECIFICATIONS

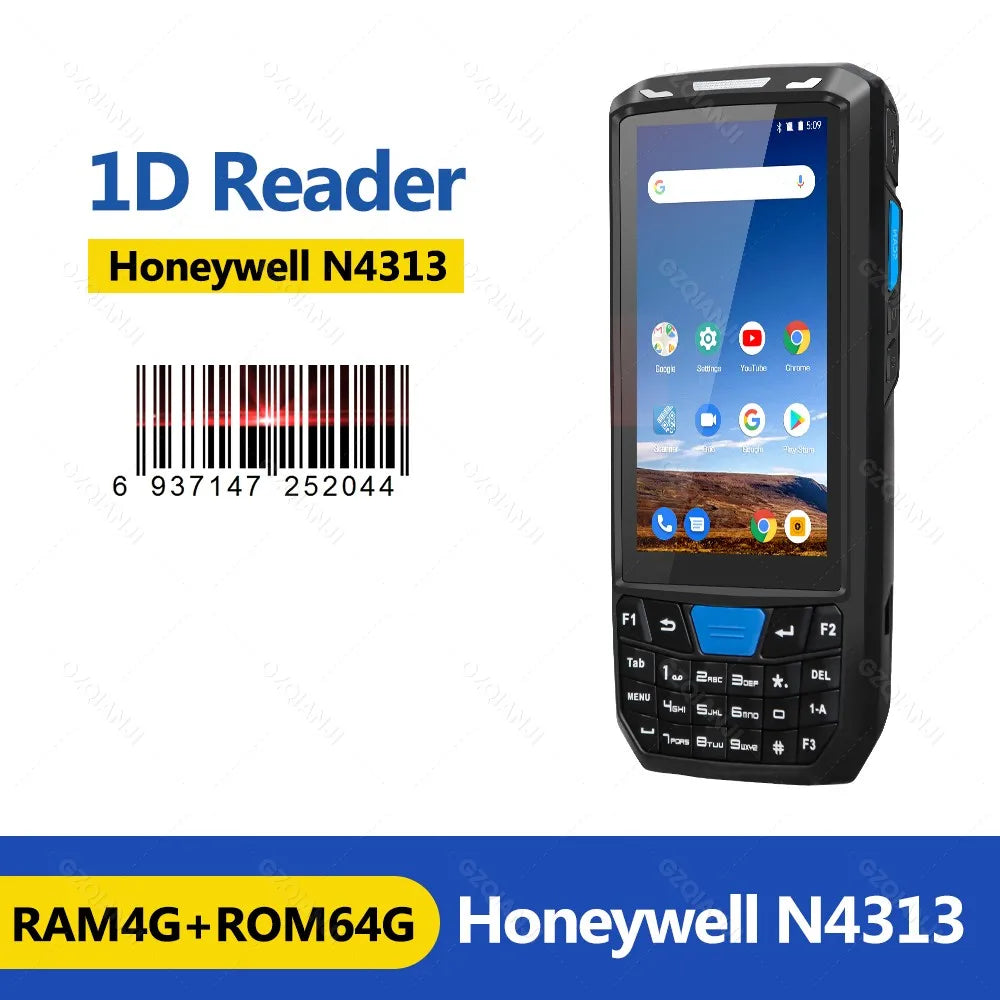

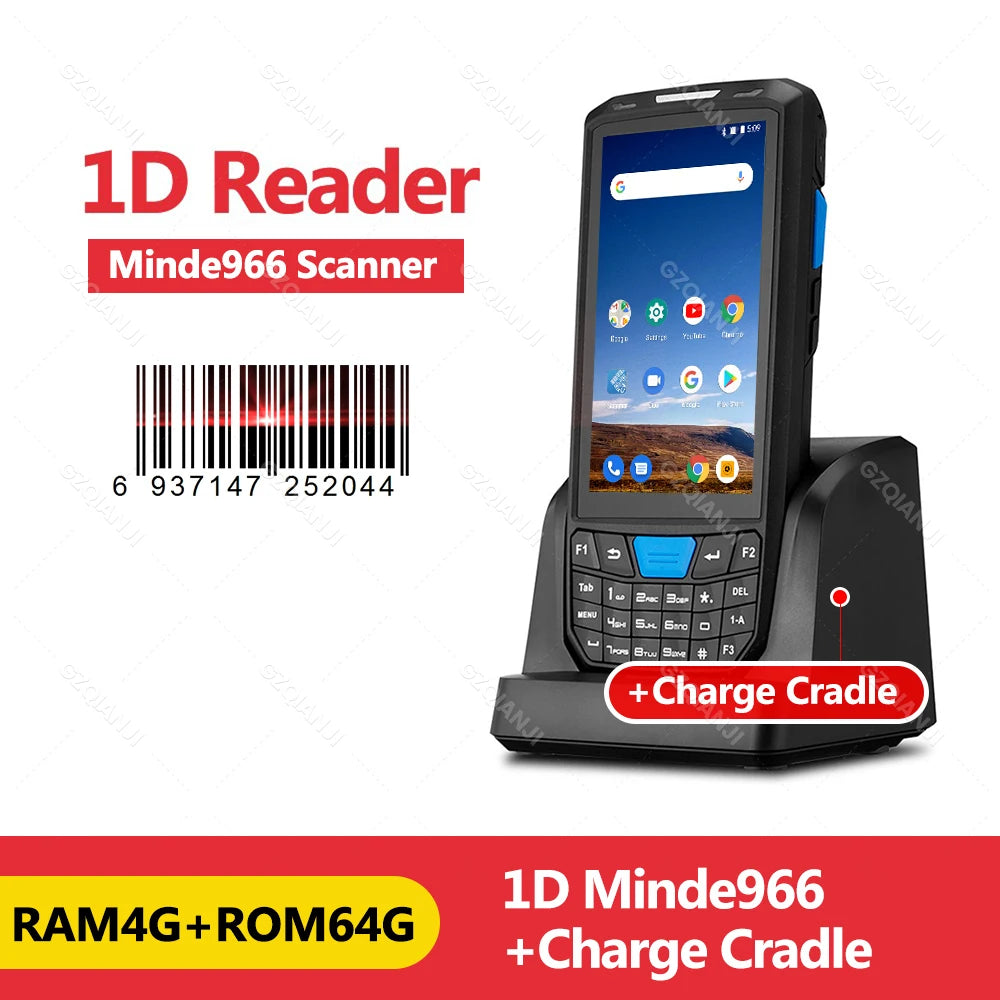

1D Scanner: Minde966 or HoneywellN4313
2D Scanner: 2D 6602 or HoneywellN5703
Battery: 3.7V 4,200mAh Li-battery
Brand Name: GZQIANJI
CPU: ARM Cortex-A53 64 bit Octa-core
Certification: CE
Colour Depth: 48 Bit
Display: 4.5inch touch panel TFT-LCD Display (720X1280)
High-concerned chemical: none
Interface Type: USB 2.0
Memery+Flash: 64G Flash ROM 4GB RAM
Model Name: Touch Screen Android 13 PDA
Model Number: GZPDA05
Novelty: New
Optical Resolution: 600*1200
Optional: QR scanner and NFC
Origin: Mainland China
Product Type: Bar Code Scanner
Scan Breadth: A6
Scan Element Type: CMOS
Scan Speed: 100 scans/second
Scanning Light Source: Natural Light + LED
Signal Connection Type: Wi-fi
Time to market: Mar-13
Type: Barcode Scanner
Wireless: WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS
Noted:

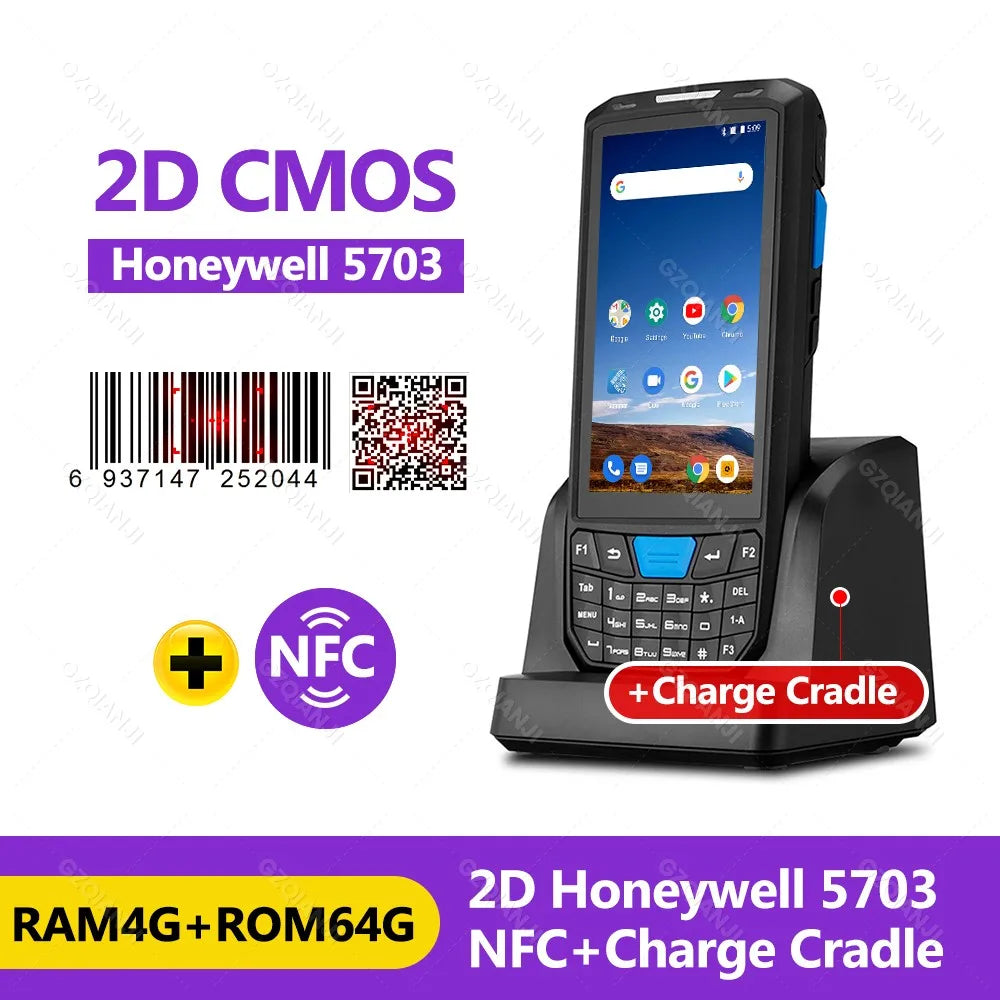

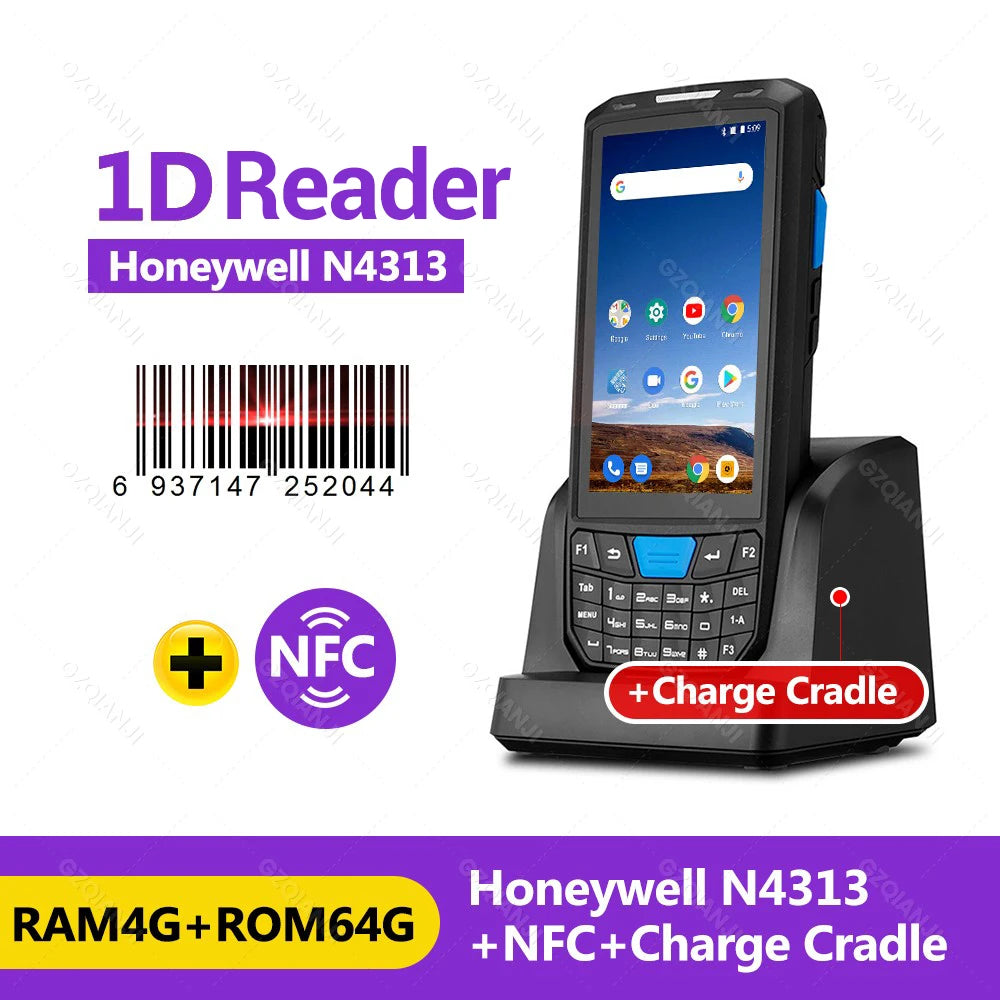

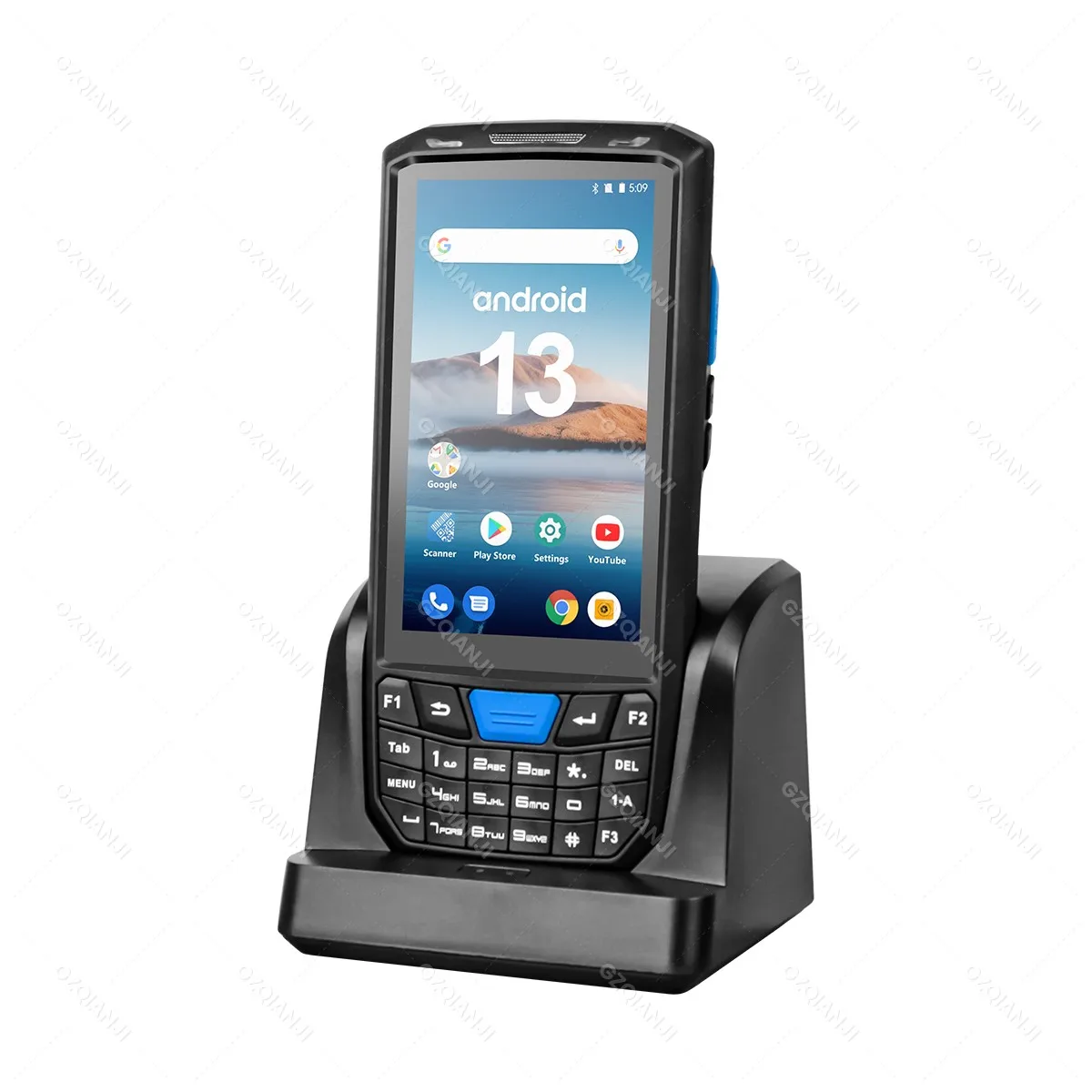

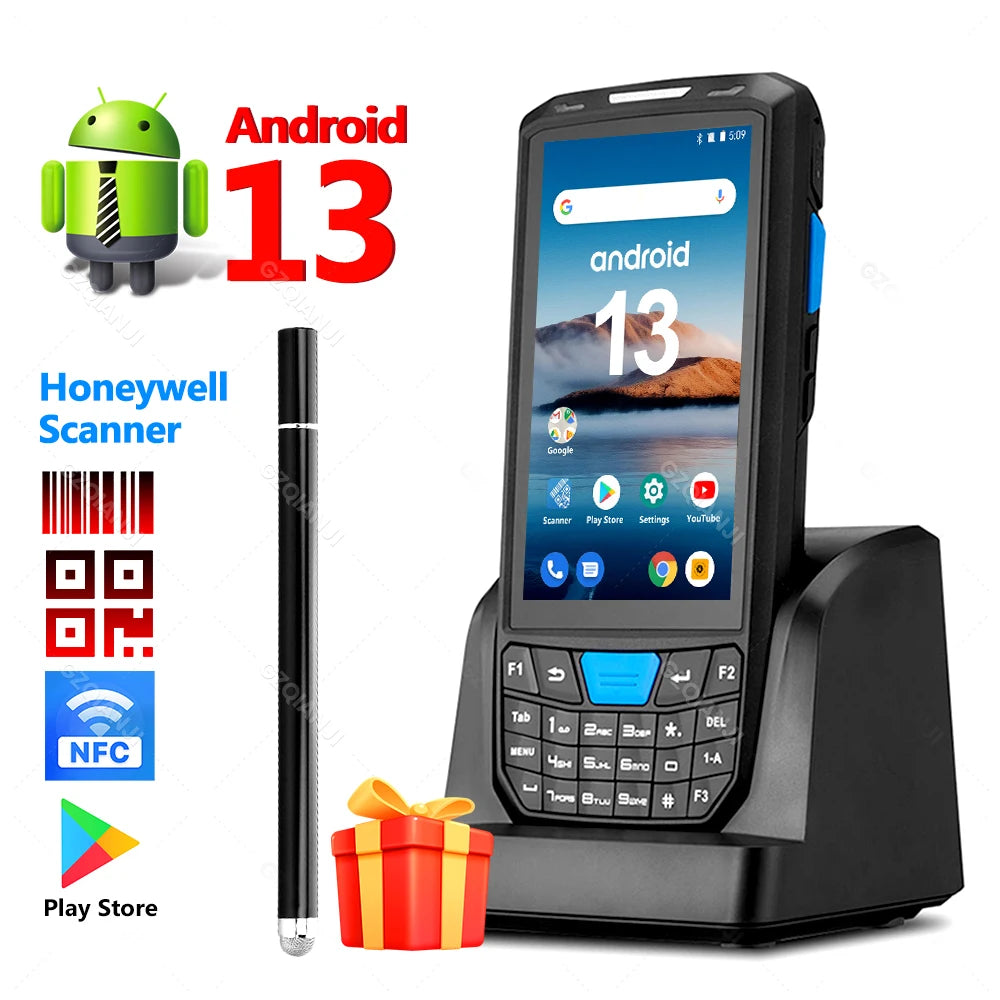

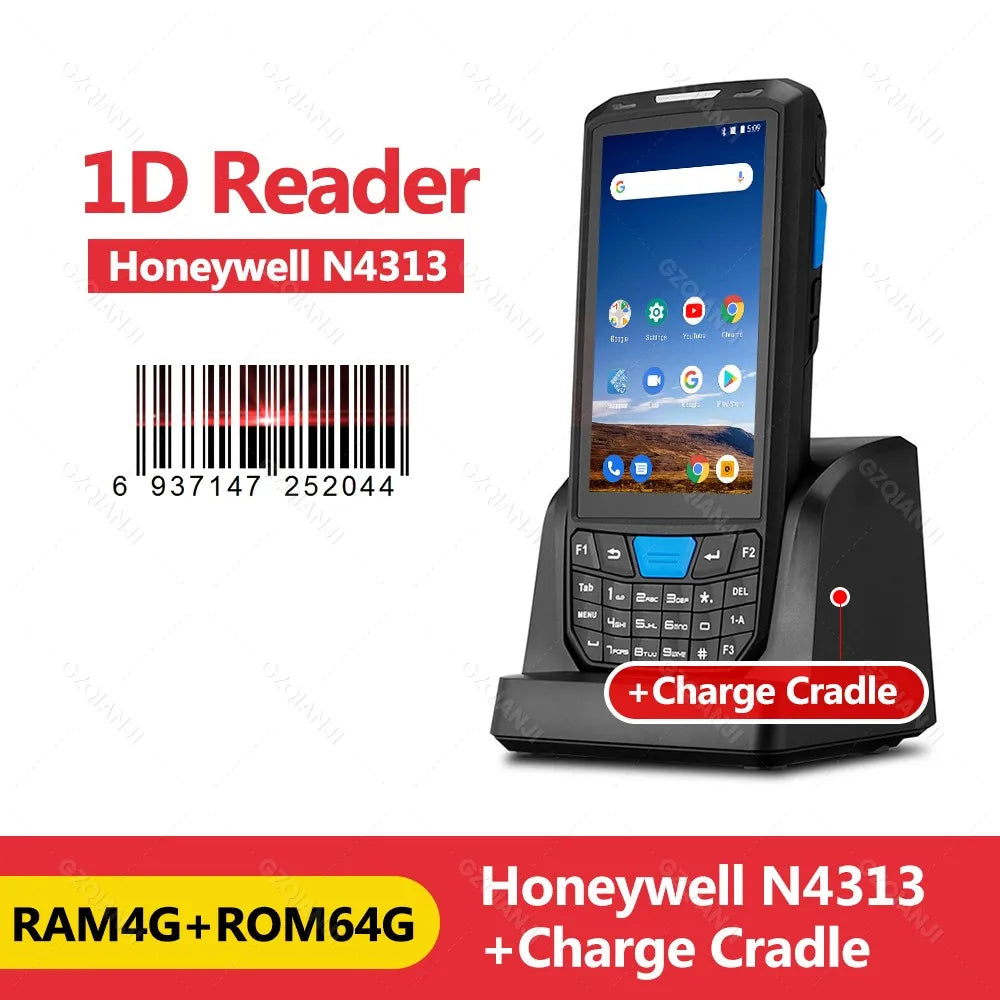

1. This PDA link isnot include the Charge Cradle, if you need, please check this link:
https://www.aliexpress.com/item/4000042535072.html
2. NFC function can be choosed, please contact us.

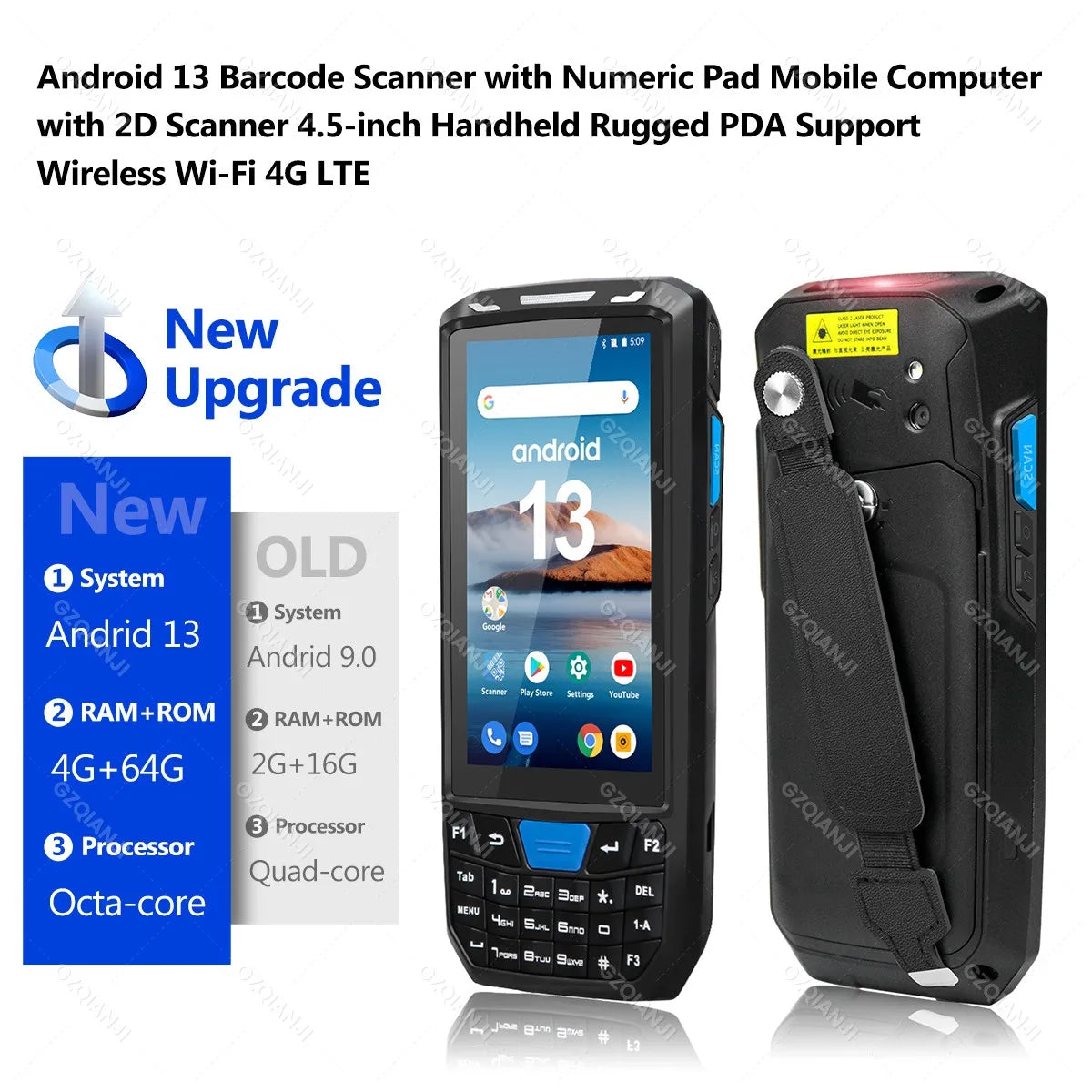

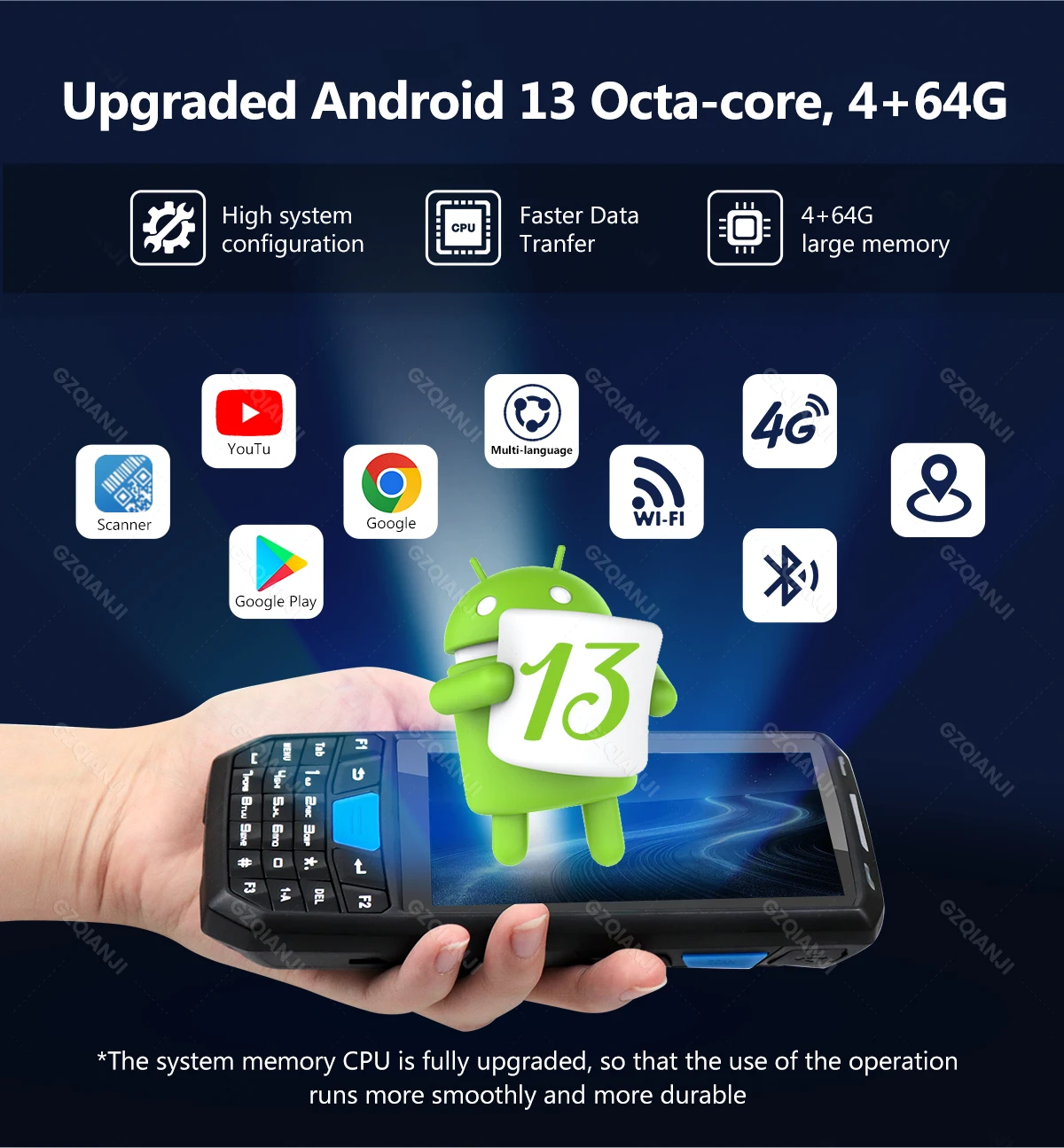

Android 13 Barcode Scanner with Numeric Pad Mobile Computer with 2D Scanner 4.5-inch Handheld Rugged PDA Support Wireless Wi-Fi 4G LTE
Product certification:

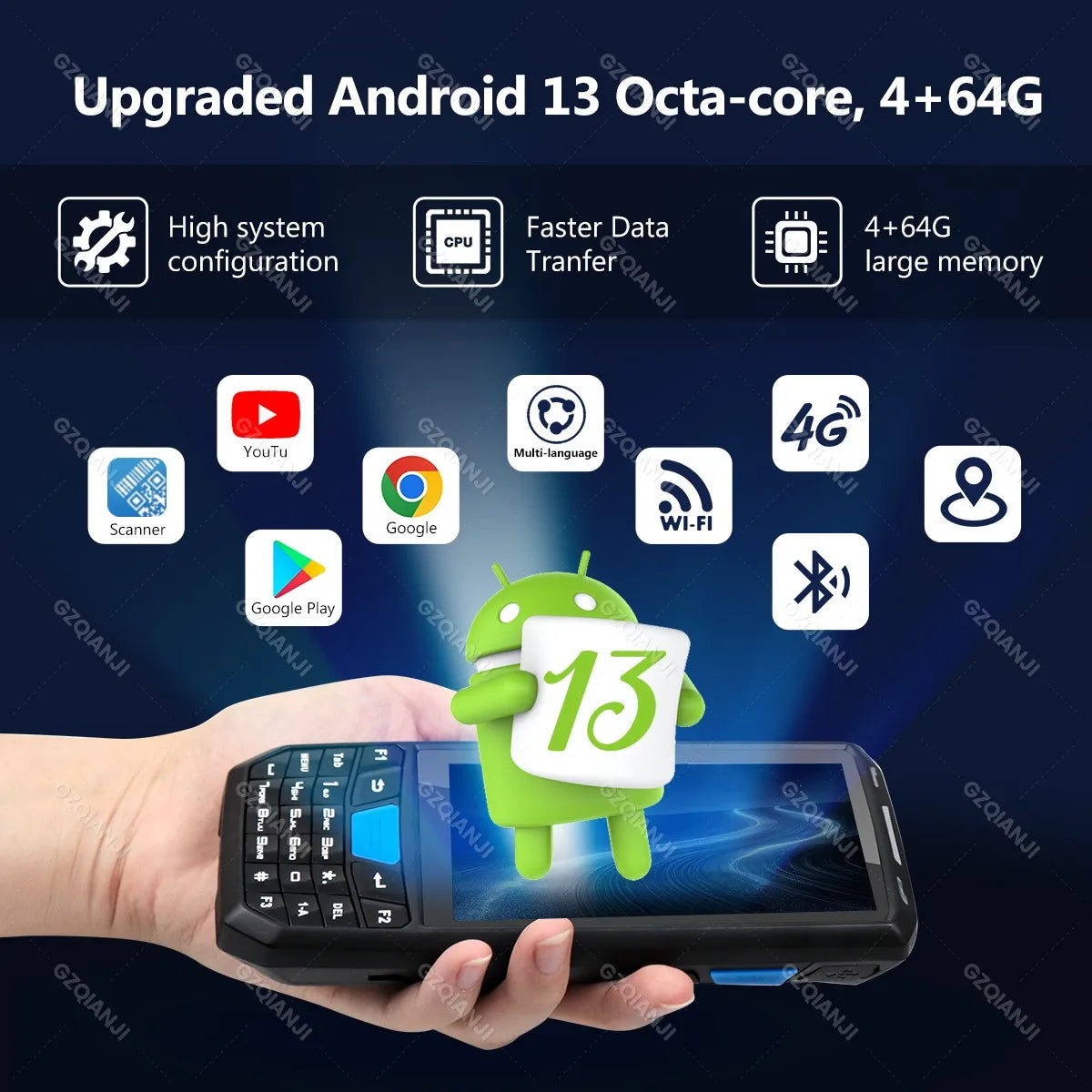

OS: Android 13
CPU: ARM Cortex-A53 64bit Octa-core
RAM+ROM:4+64GB
IP rating: IP66
Safety specification: IEC2 /FDA Ⅱgrade,conform IEC60825shy/EN60825-1 standard
Working life: No less than 5 year
Camera: 8MP autofocus camera with flash
Bluetooth: Support 2.0+EDR/3.0+HS/4.0+HS Transmission distance is 5-10m
Battery capacity:Rechargeable Li-polymer Battery 3.7V 4200mAhOptional. RTC battery keeps time not lost.
Drop specification: 6 sides can bear impact from 1.5m drop to cement floor about 30 times in the range of operating temperature
Scanner engine(Optional)

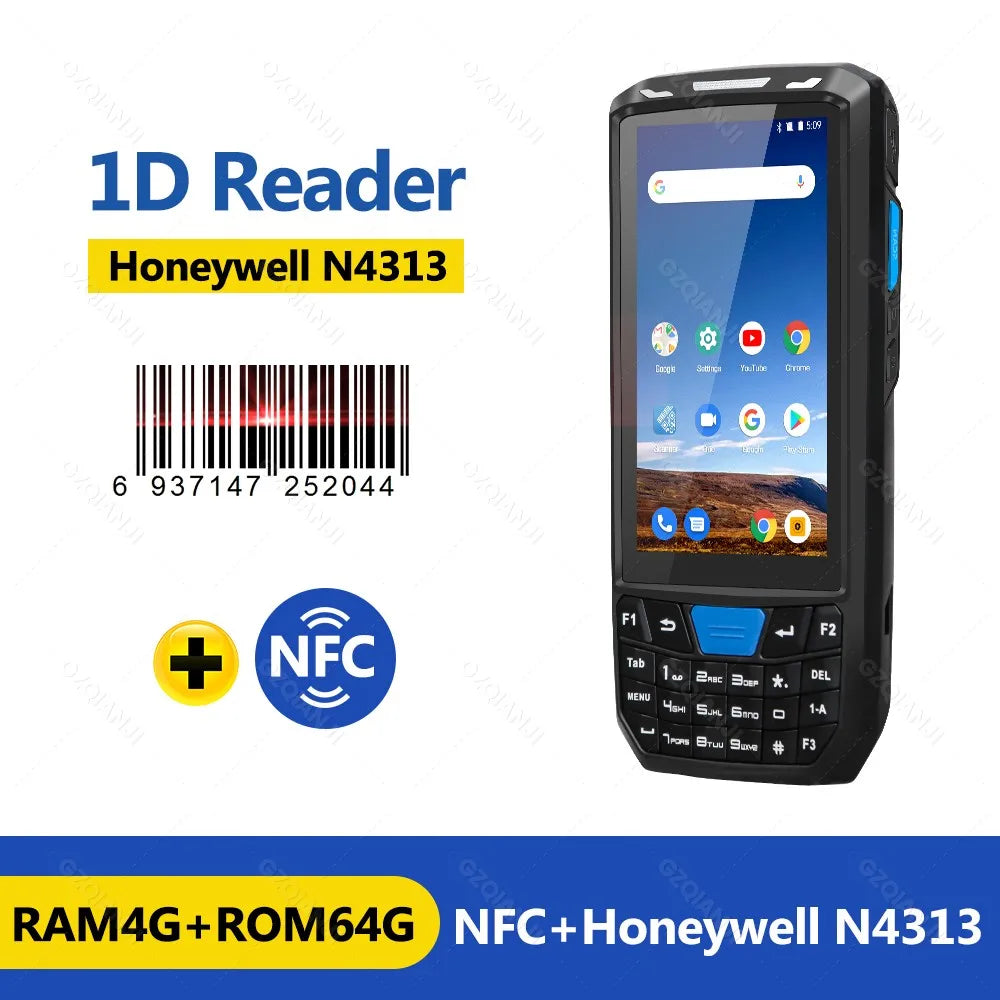

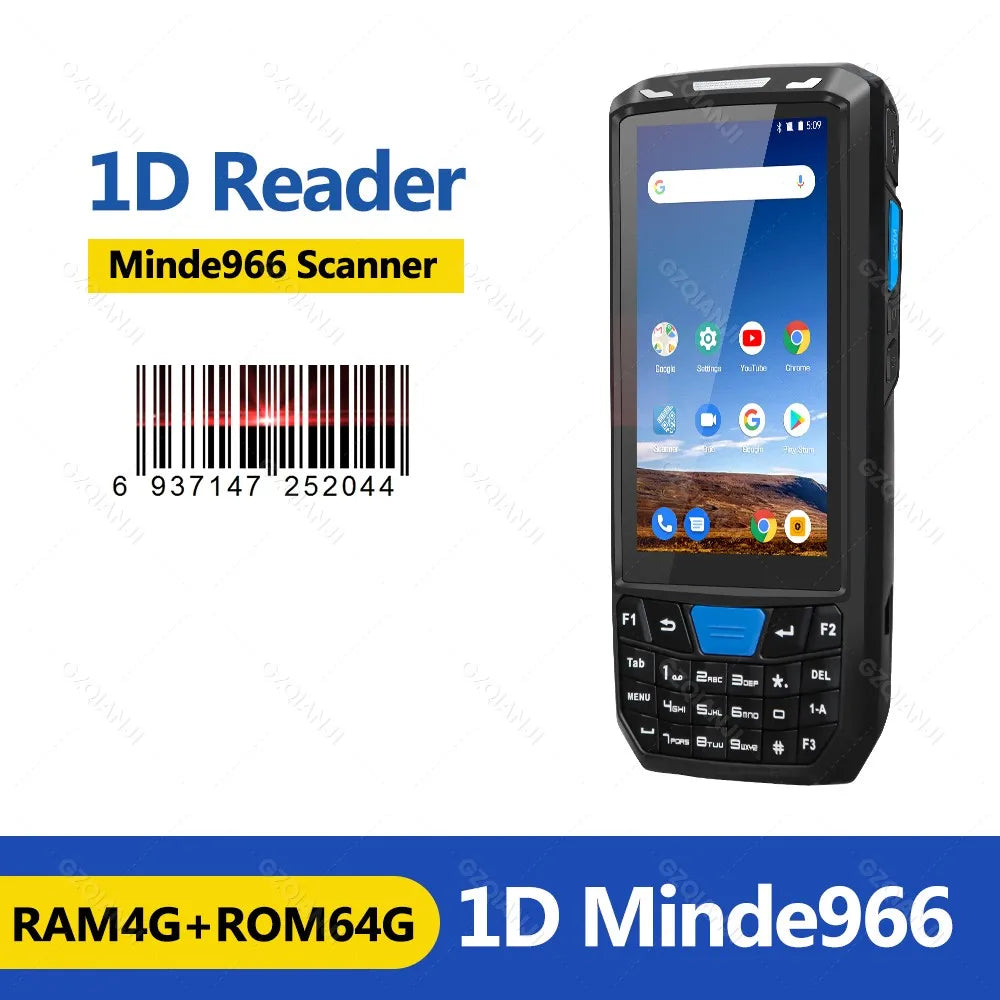

1D scanner (optional):Minde SE966 / Honeywell N4313, Support Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codaber, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc.

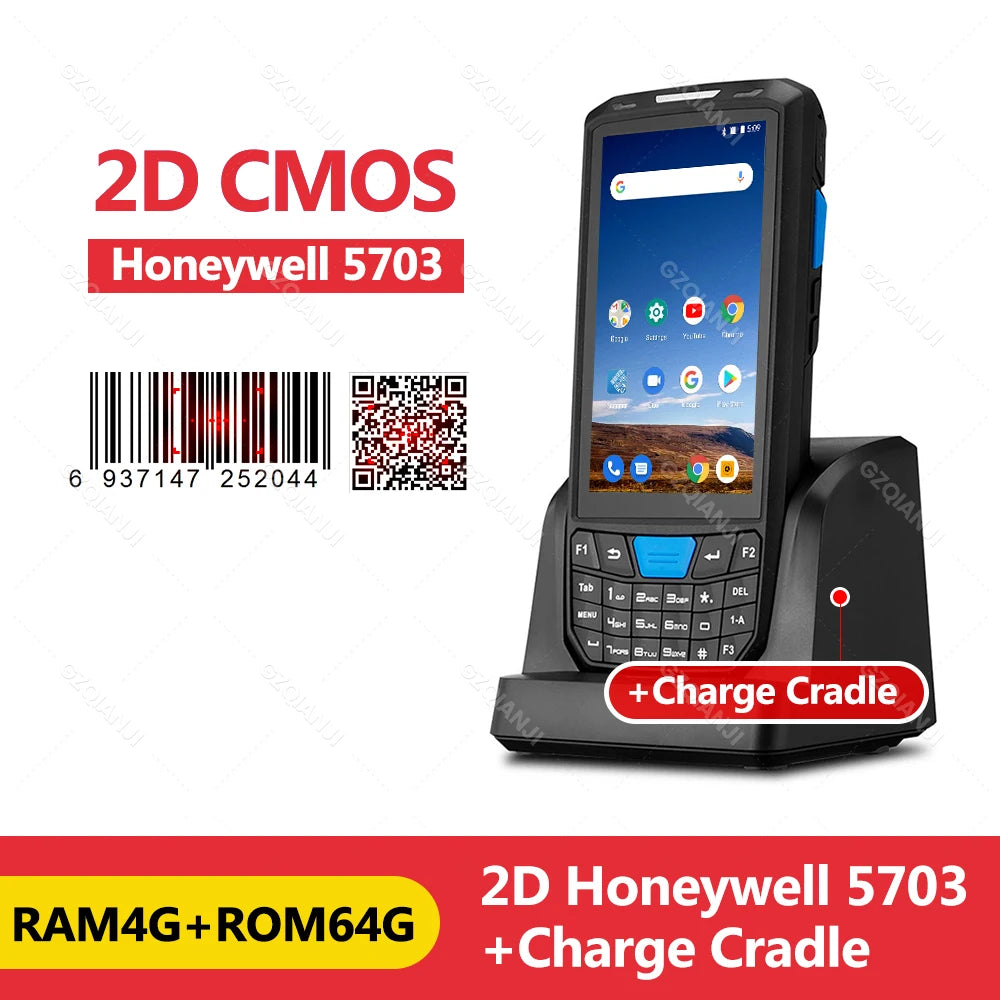

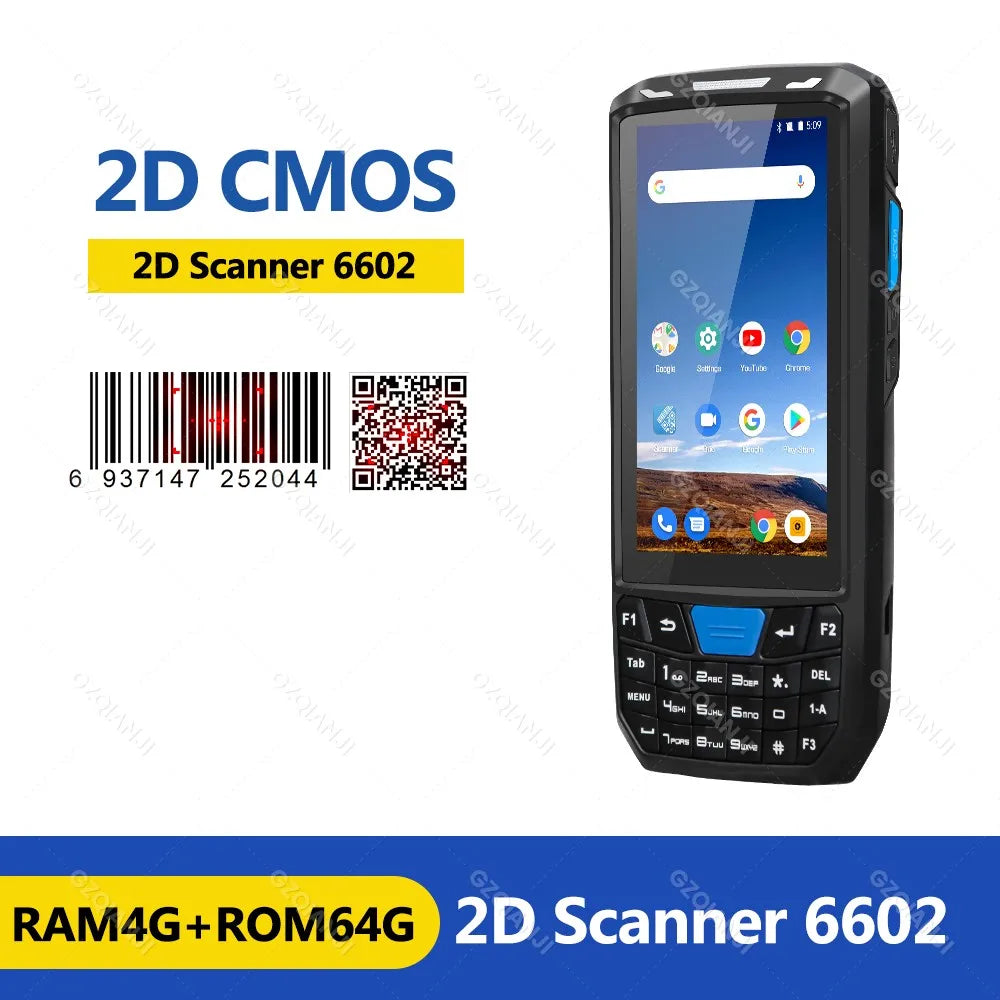

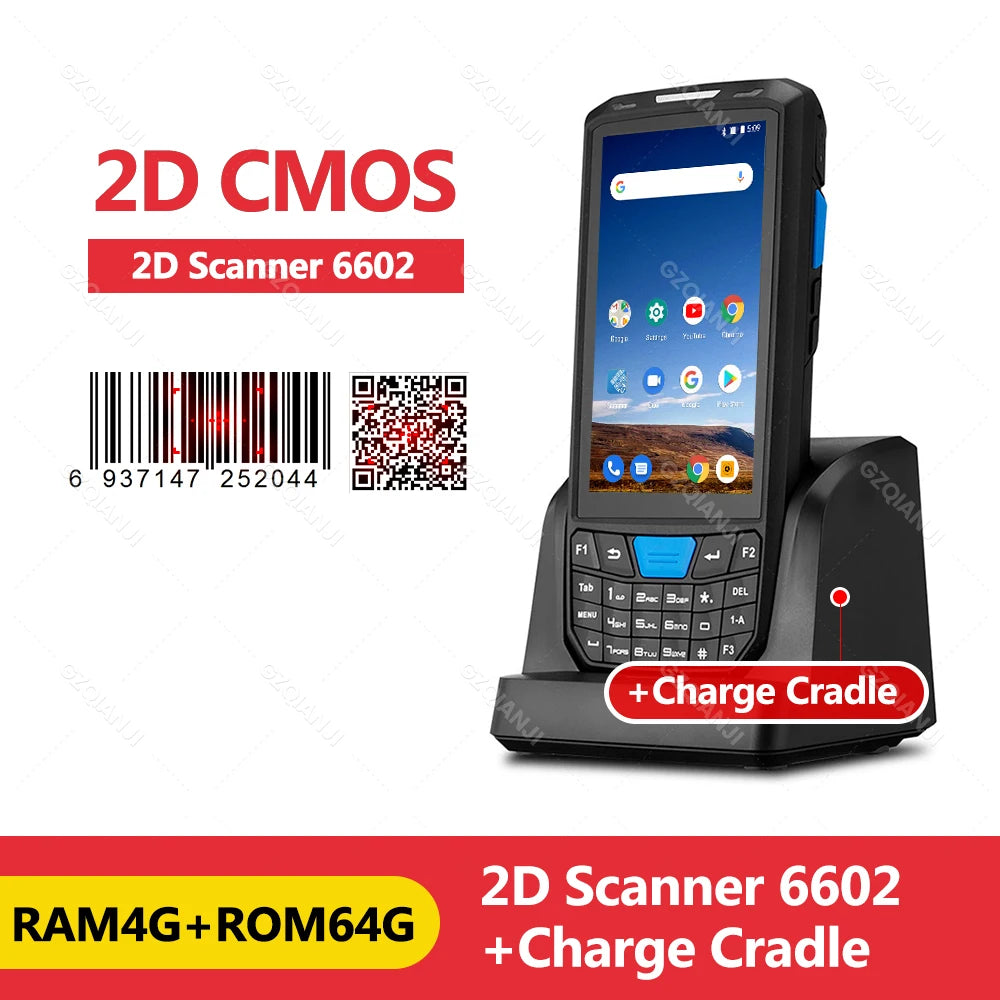

2DCMOS scanner (optional):2D 6602/ Honweyll N5703, Support PDF417, MicroPDF417, GS1 Composite, Aztec, Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin Code, etc.
Data Communication:
WI-FI: Support IEEE802.11a/b/g/n， it need effective wireless LAN signal cover
4G: FDD-LTE （B1/B2/B3/B5/B7/B8/B20） TDD-LTE （B40)
3G: WCDMA （850/900/1900/2100MHz)
2G: GSM（850/900/1800/1900MHz)
BT: Support 2.0+EDR/3.0+HS/4.0+HS (Transmission distance is 5-10)

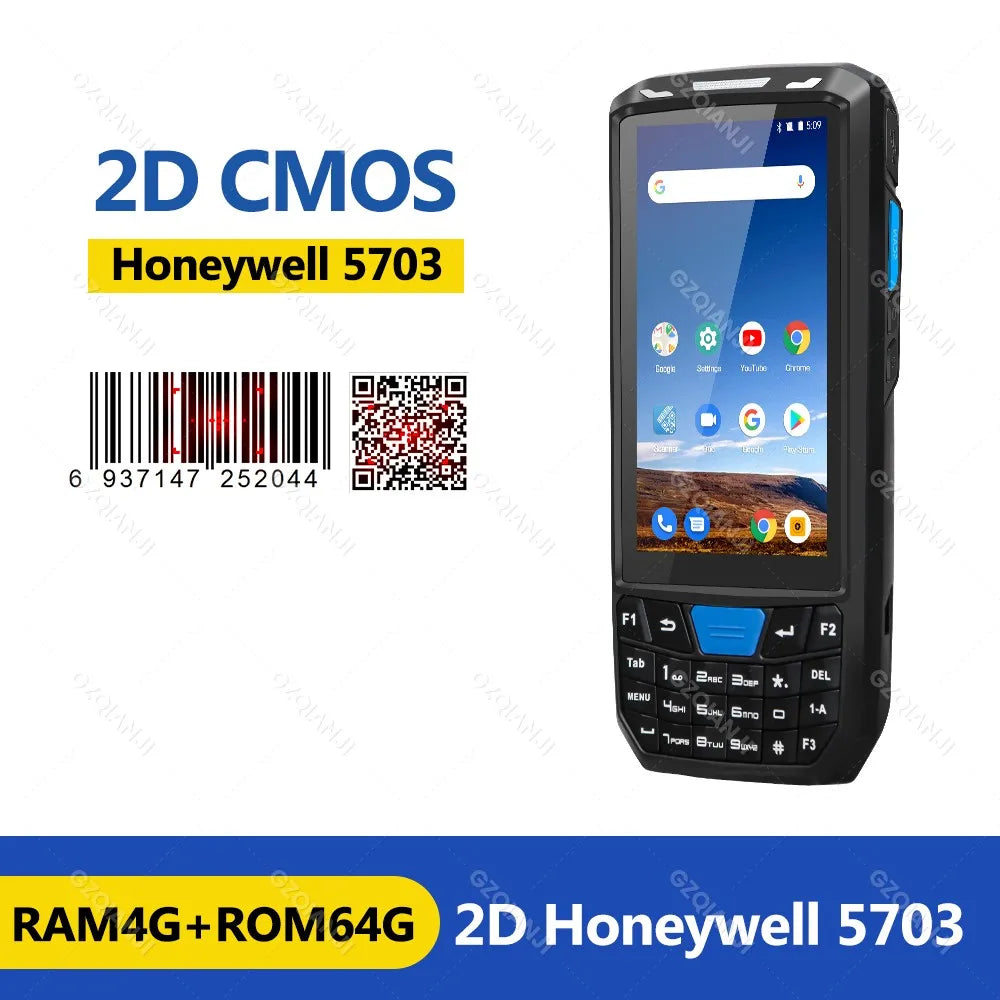

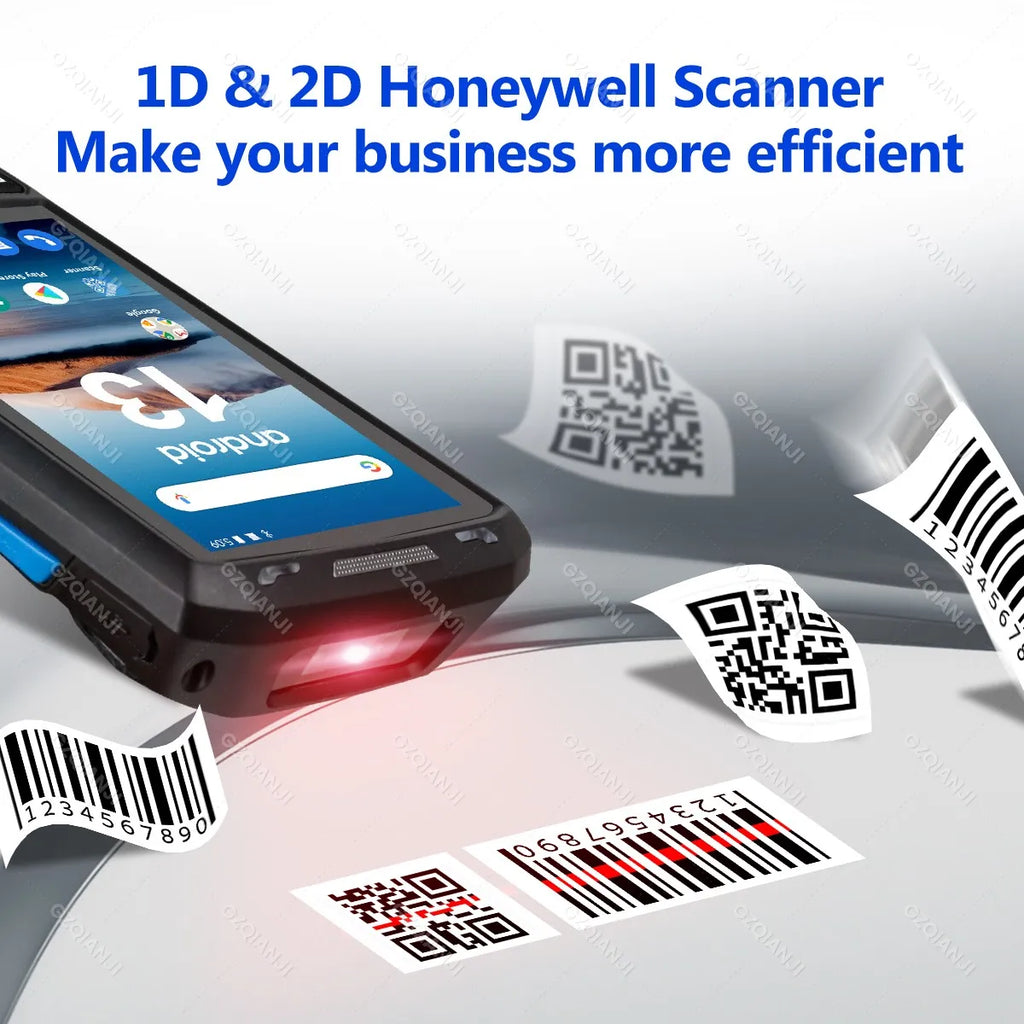

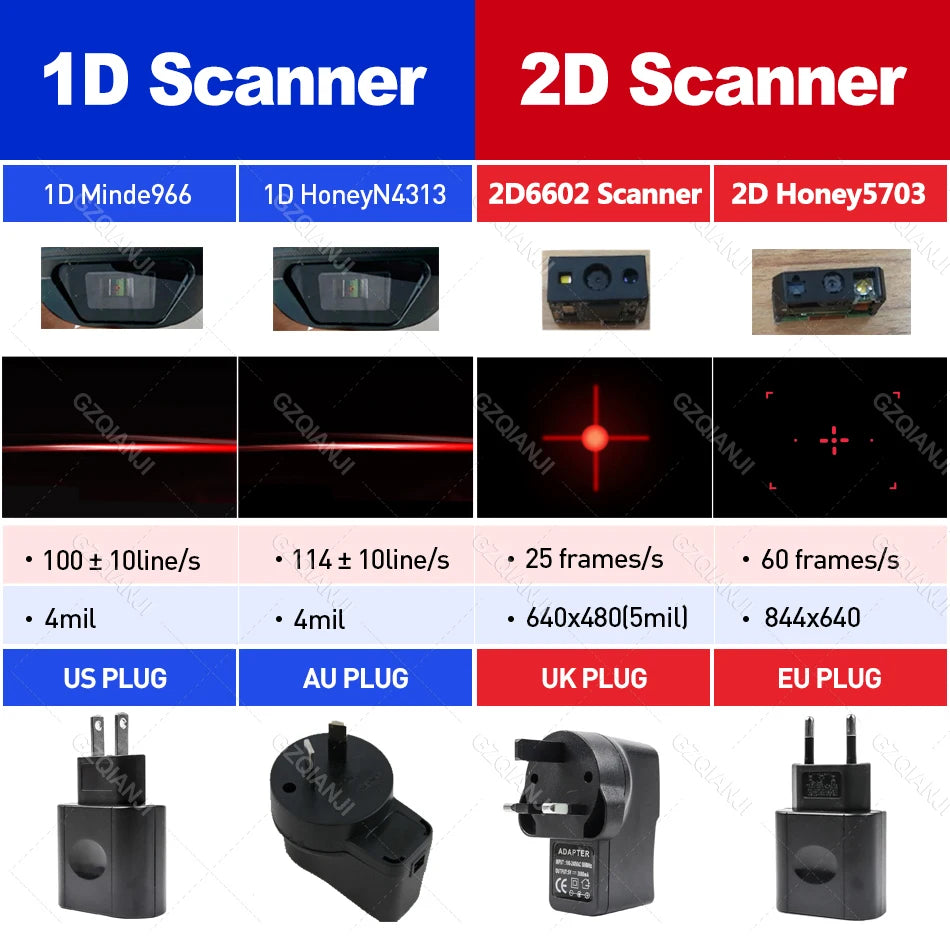

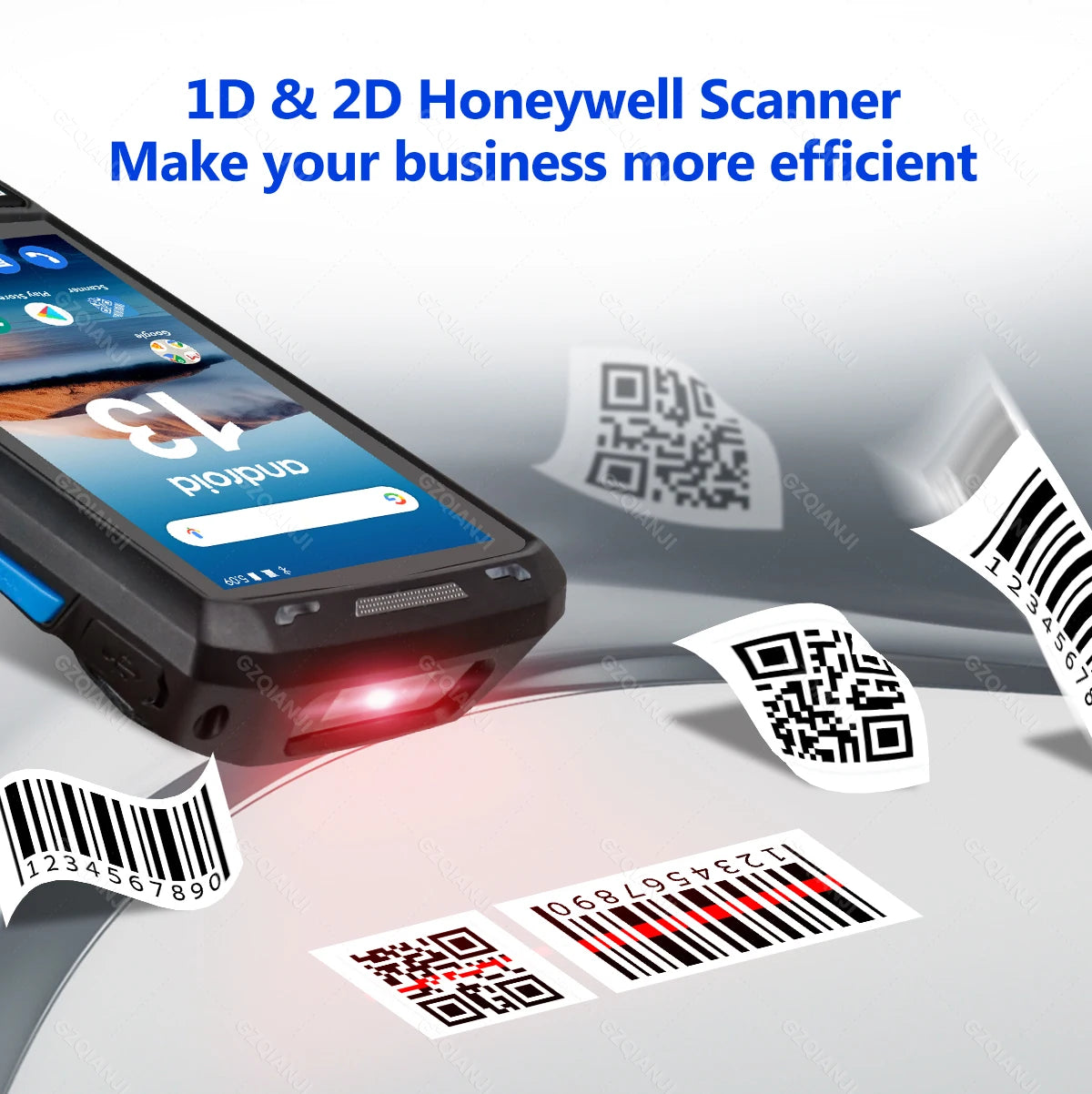

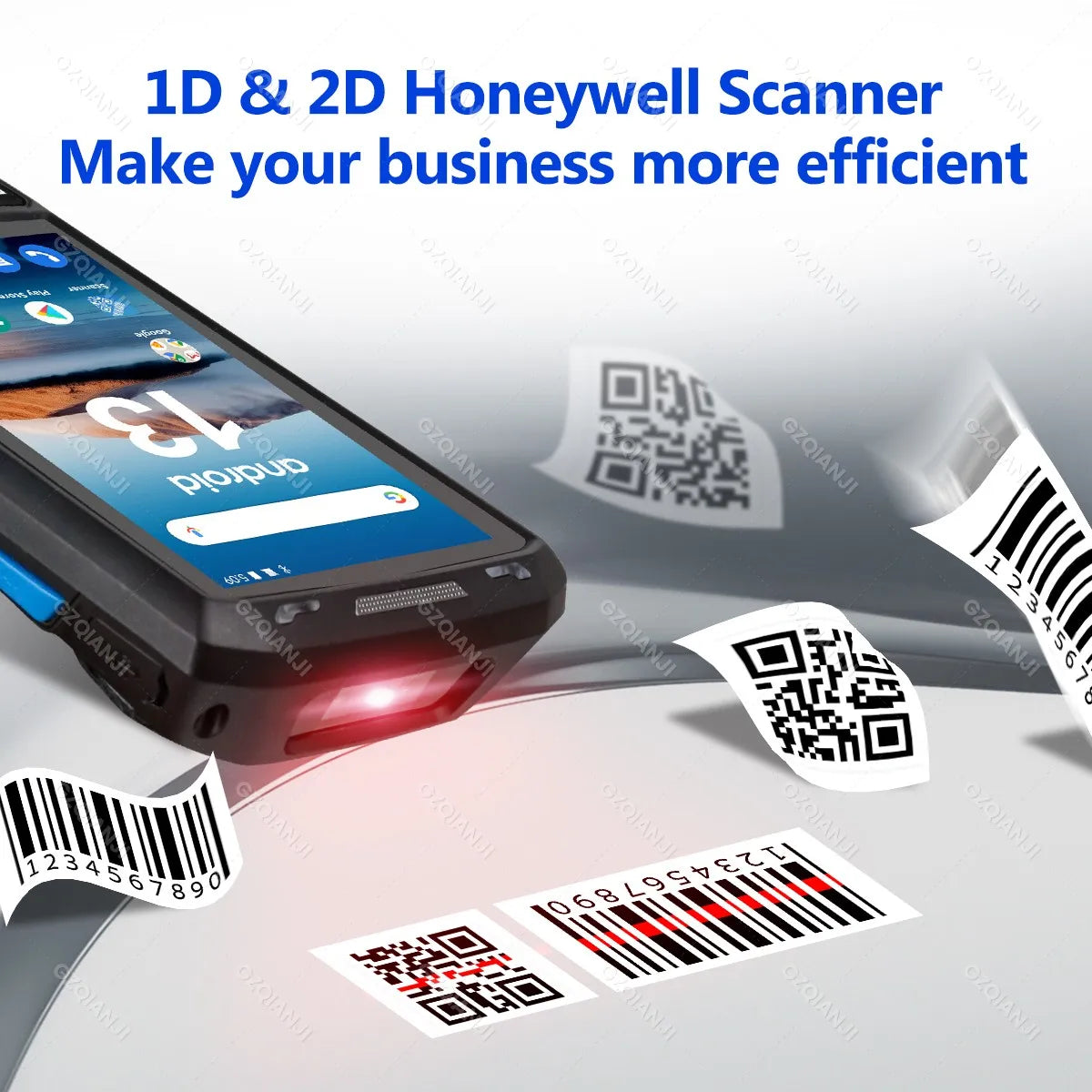

1D/2D Honeywell scanner
Many brands of scan heads are available.
Honeywell scan heads are recommended for faster scanning speed and more stable performance.

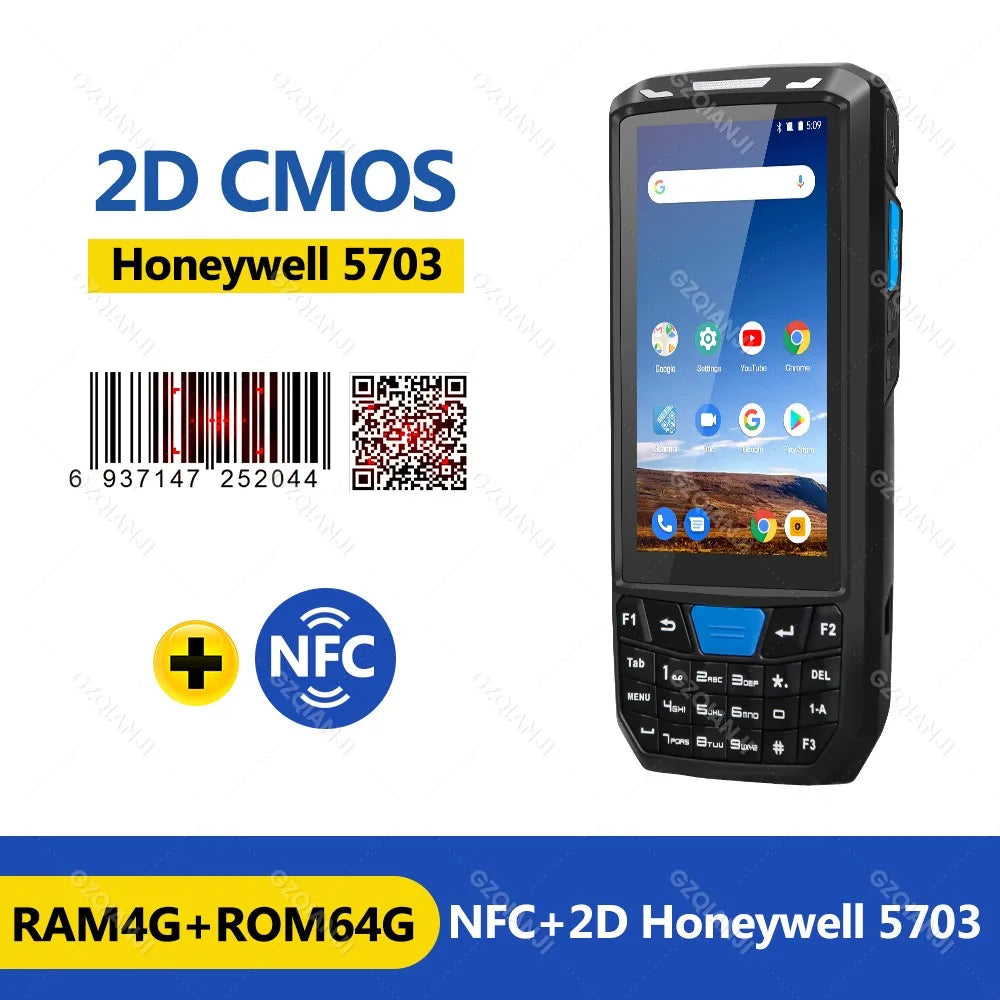

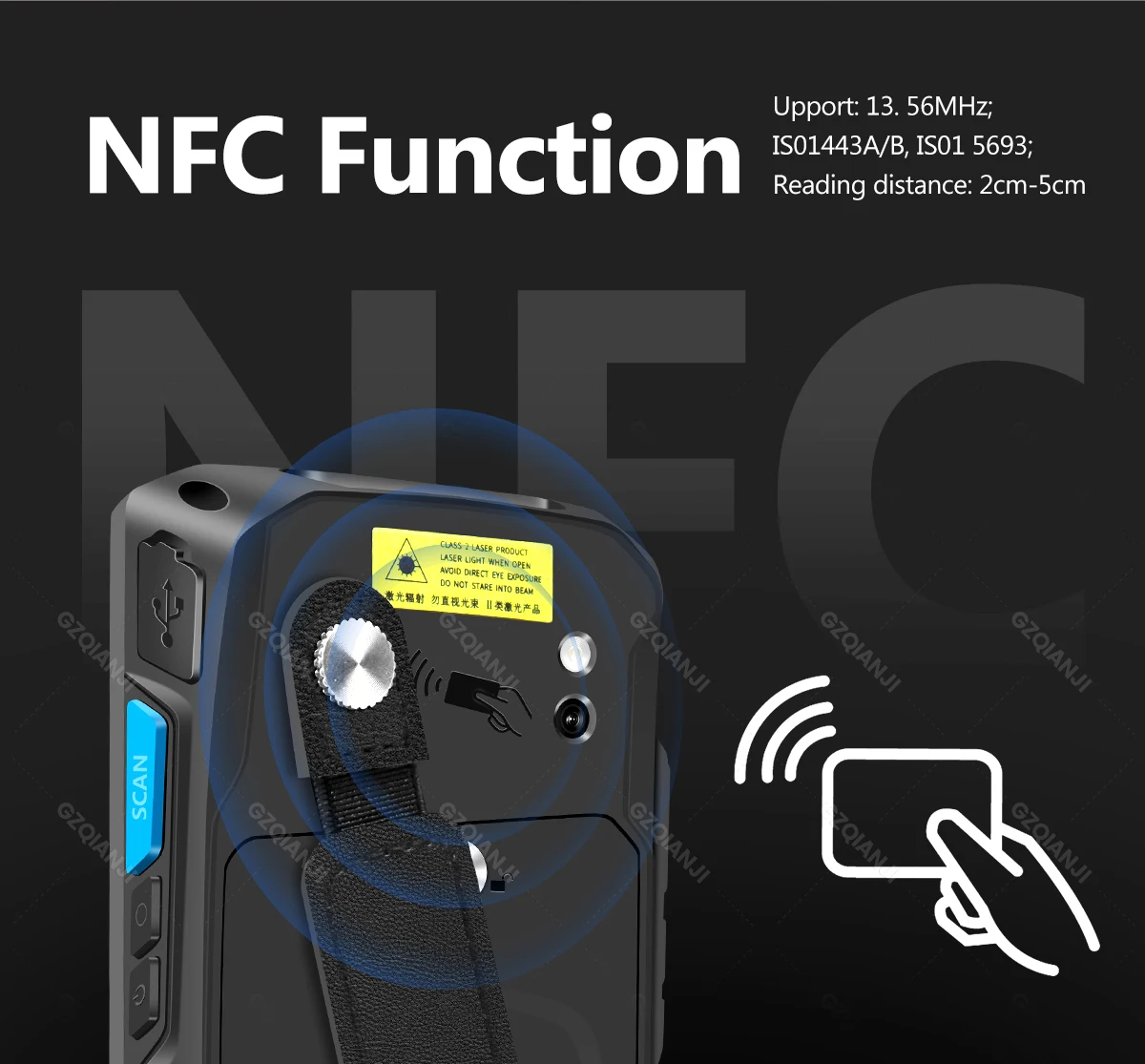

NFC Function (Optional, contact us to add money)
Upport: 13. 56MHz; IS01443A/B, IS01 5693;Reading distance: 2cm-5cm

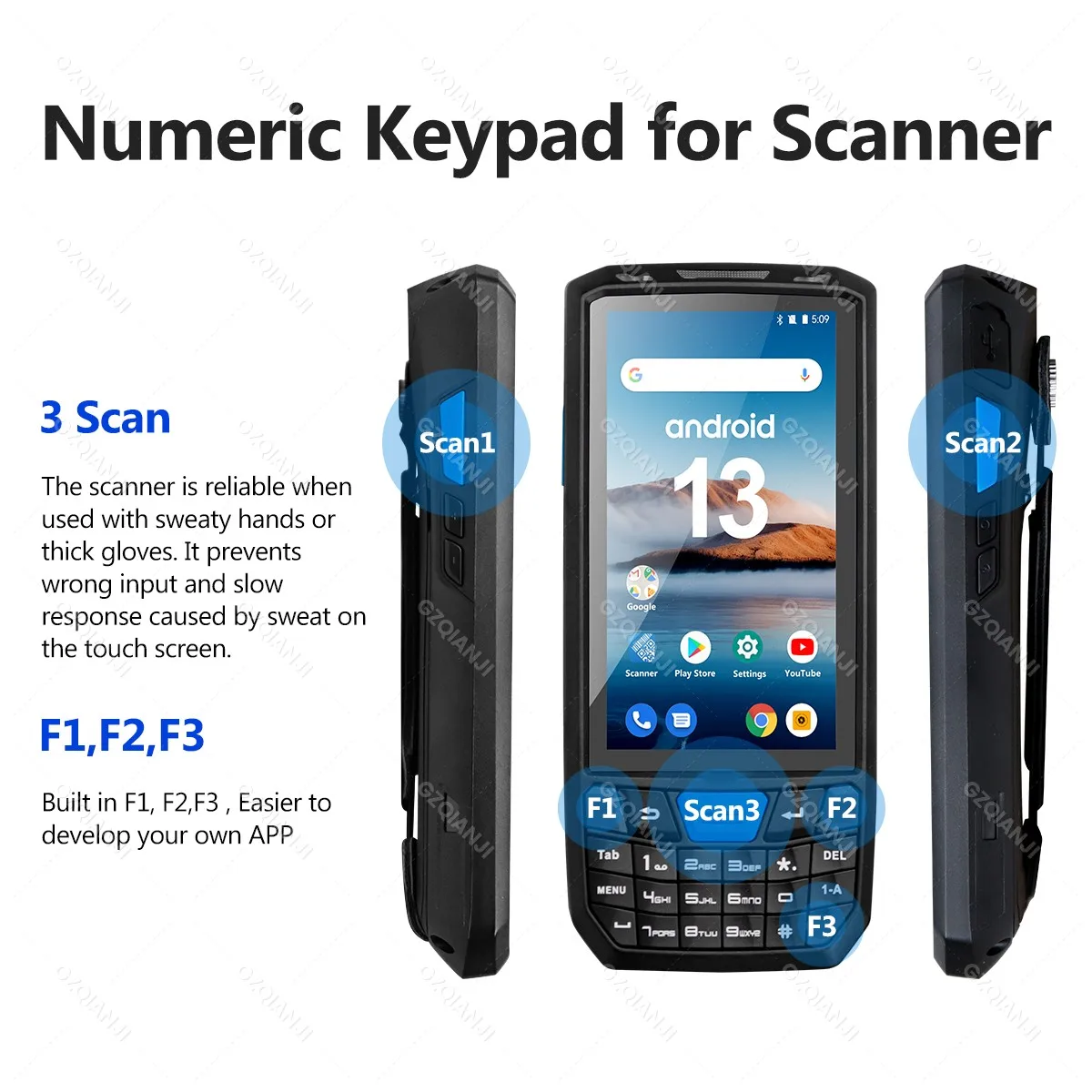

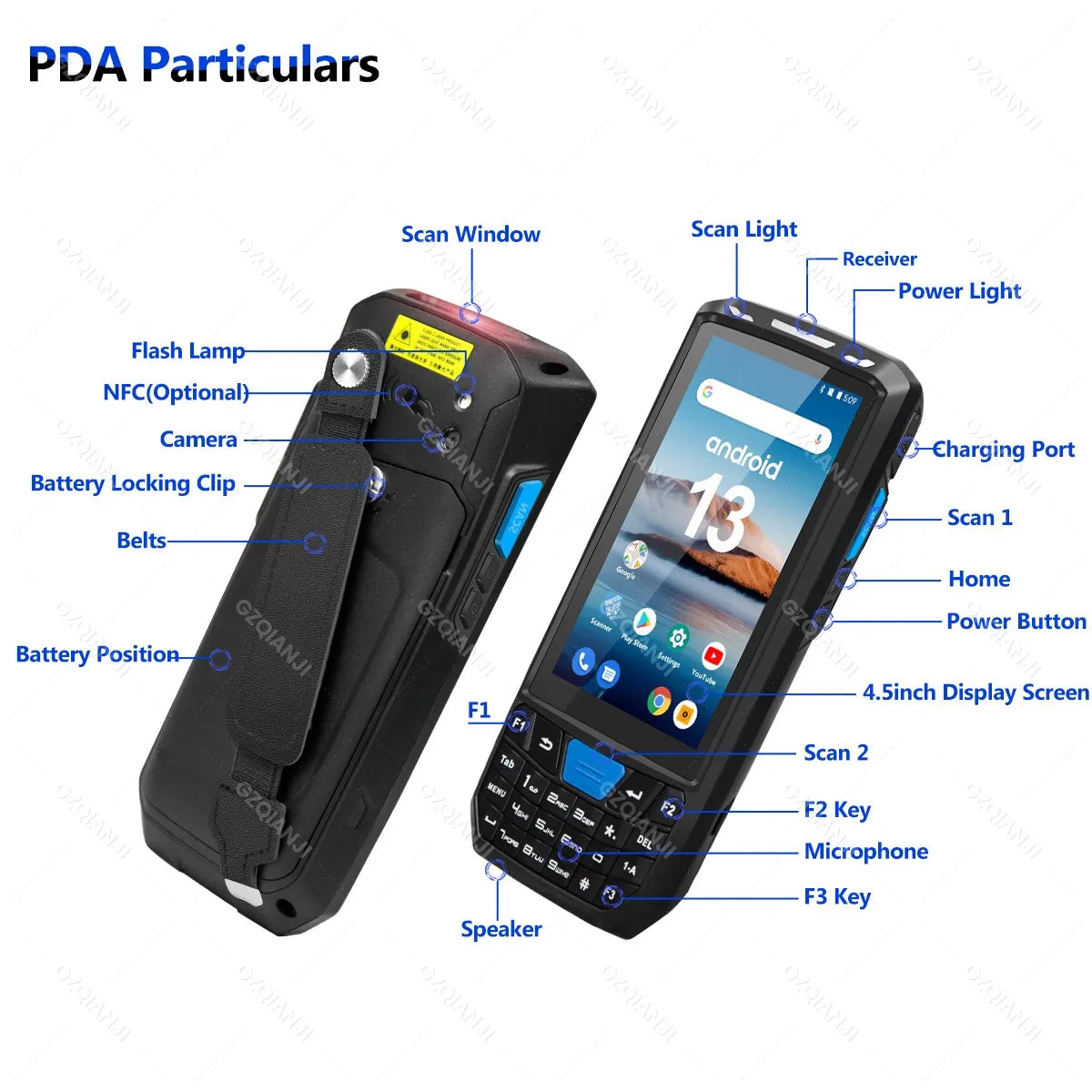

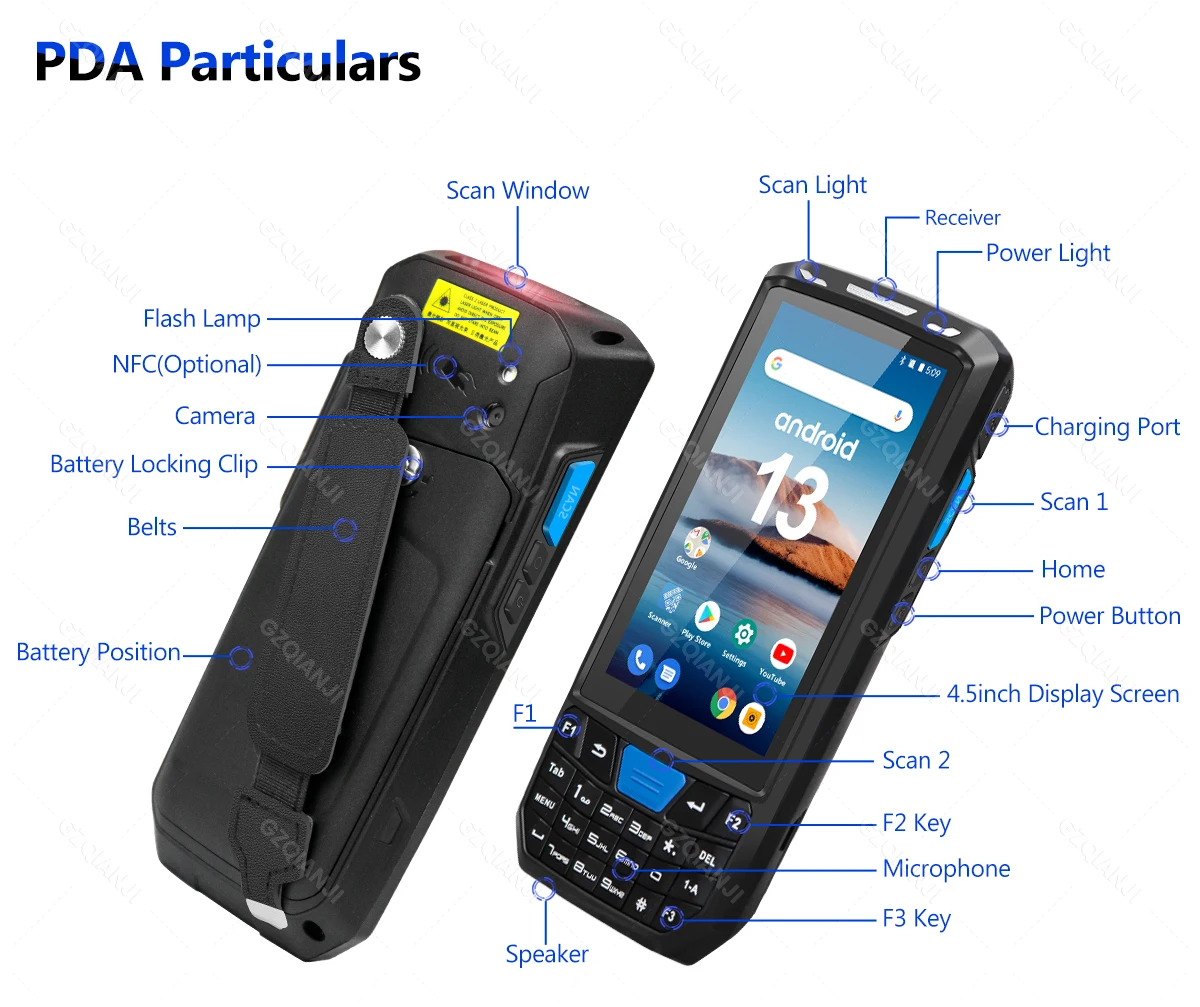

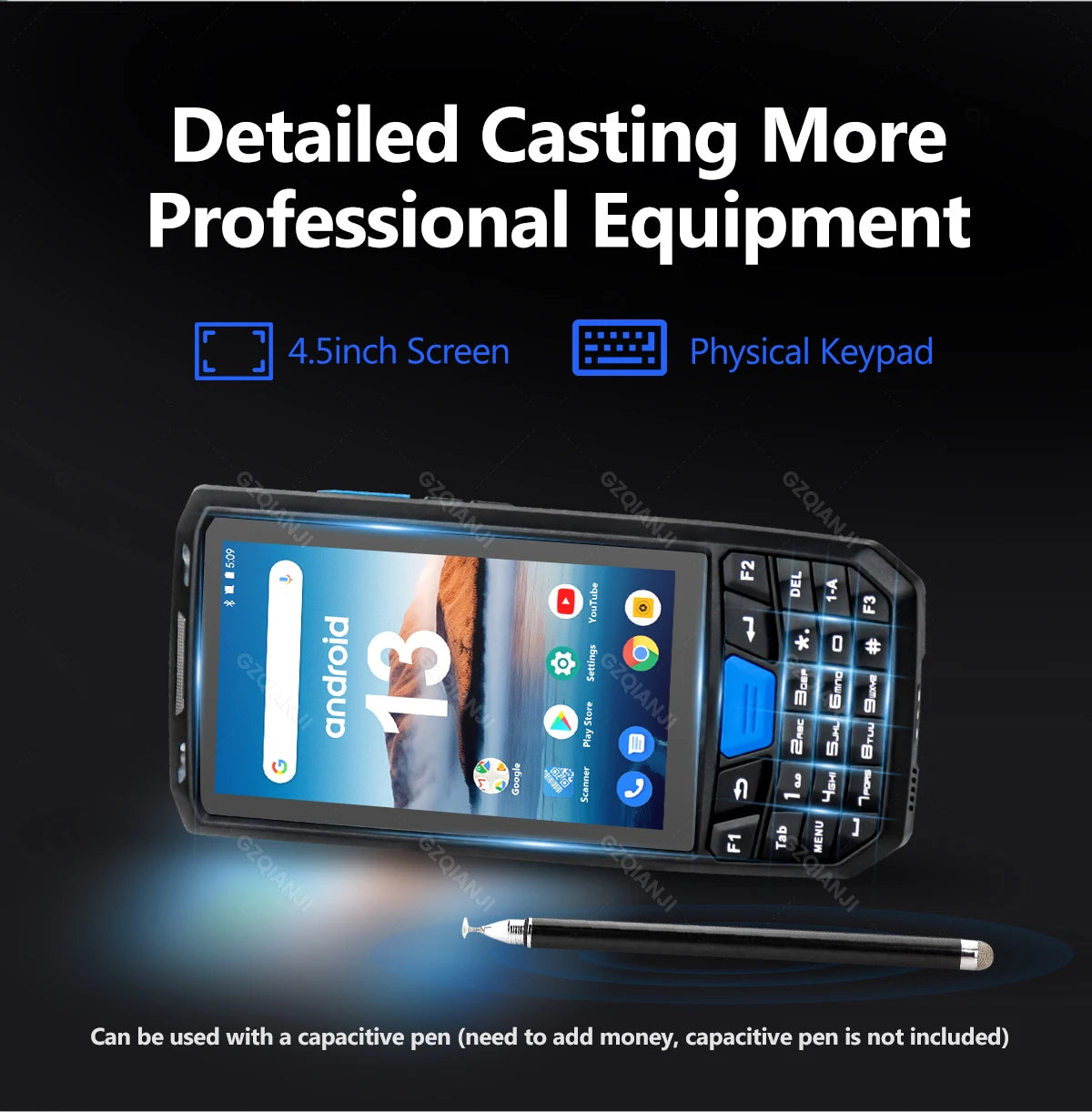

Physical Keypad
- Built inF1,F2,F3,Easier to develop your own APP
- Built inThree scan buttons,scan comfortably no matter how to hold.

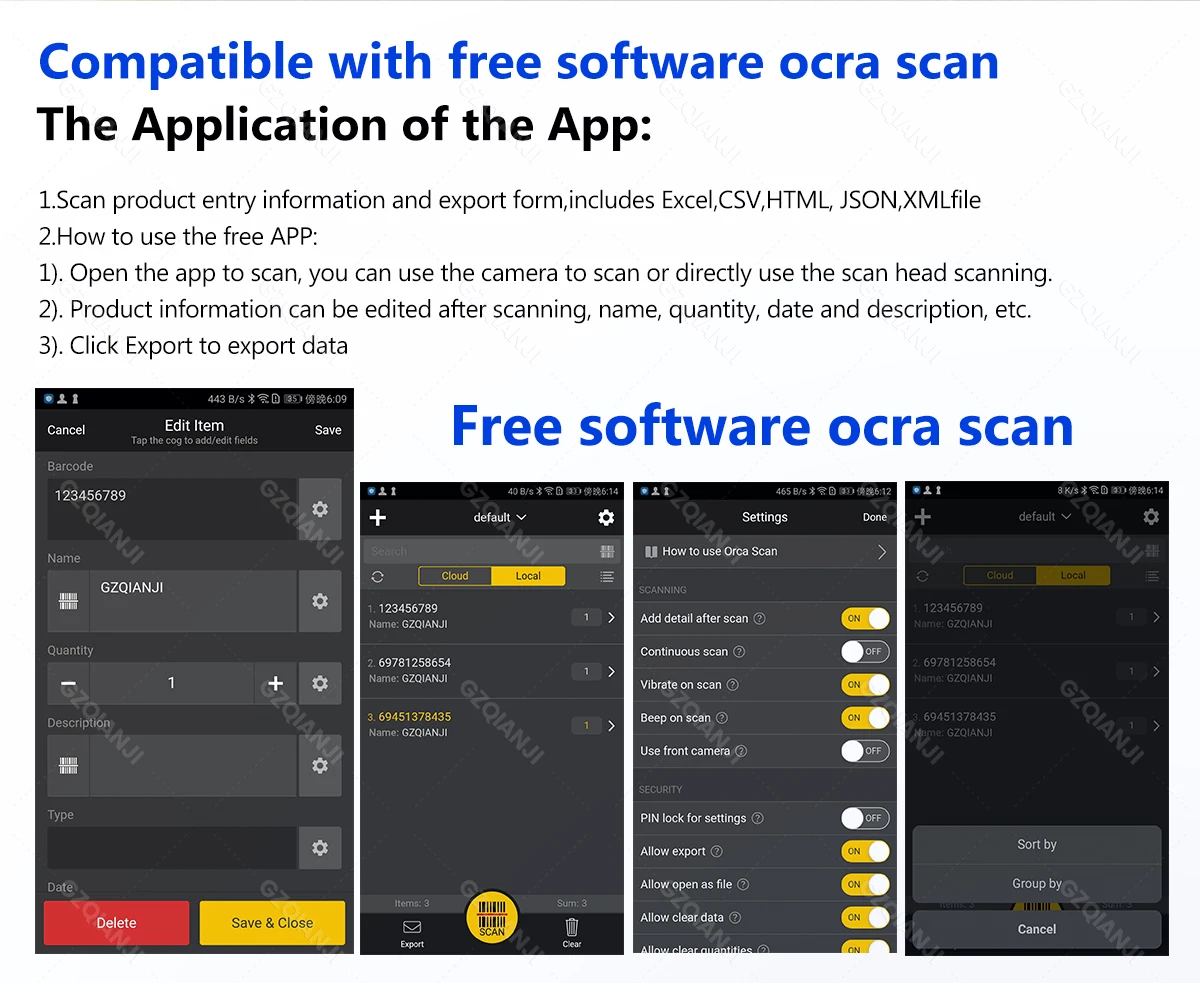

Compatible with free software ocra scan
The Application of the App:
1.Scan product entry information and export form,includes Excel,CSV,HTML,JSON,XMLfile
2.How to use the free APP:
1). Open the app to scan, you can use the camera to scan or directly use the scan head scanning.
2). Product information can be edited after scanning, name, quantity, date and description, etc.
3). Click Export to export data

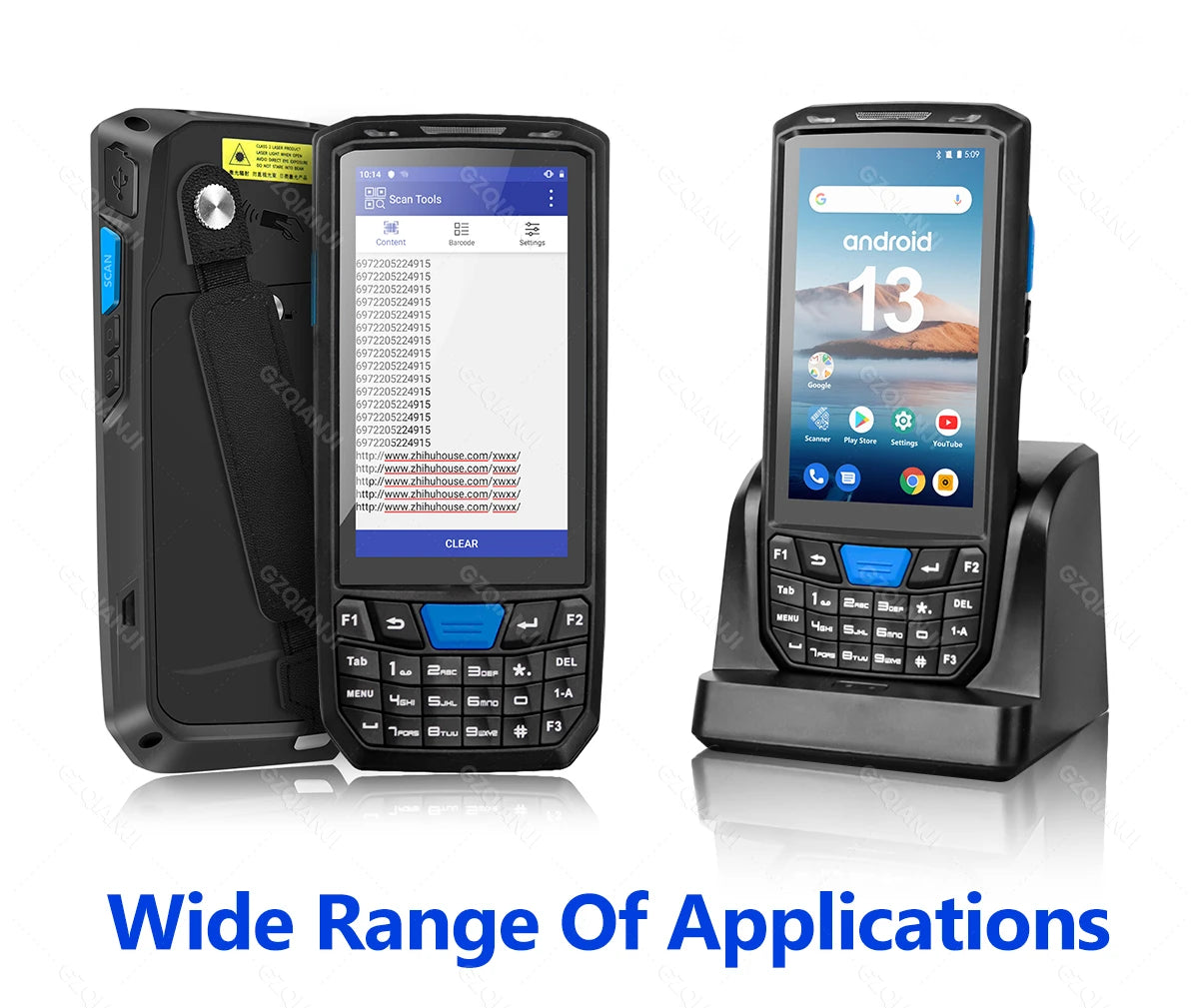

Where can use the device:

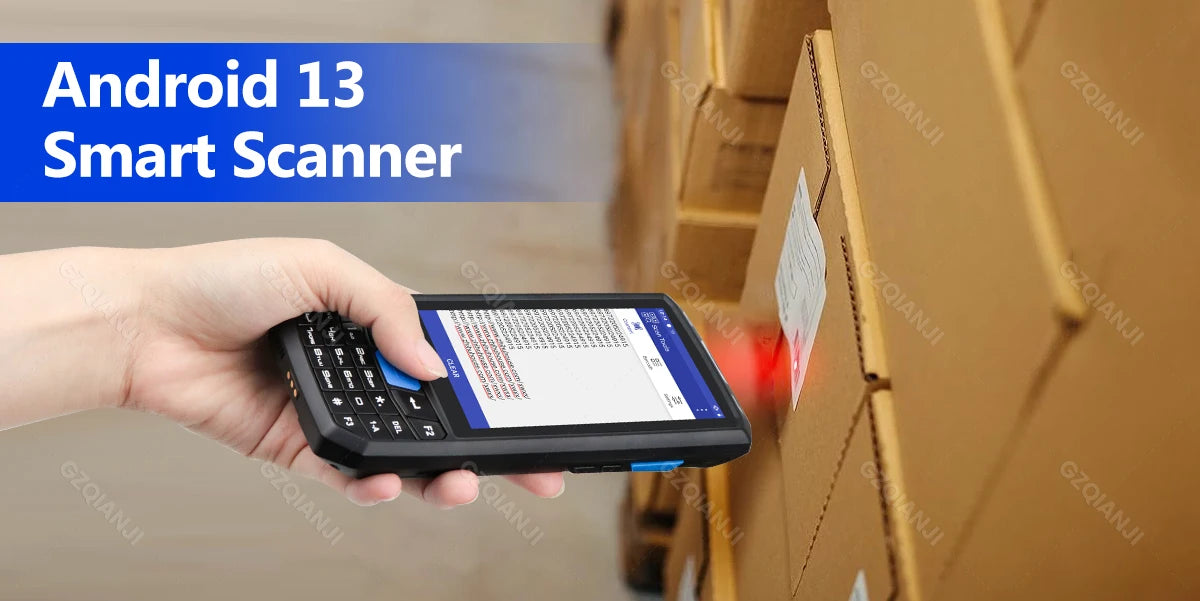

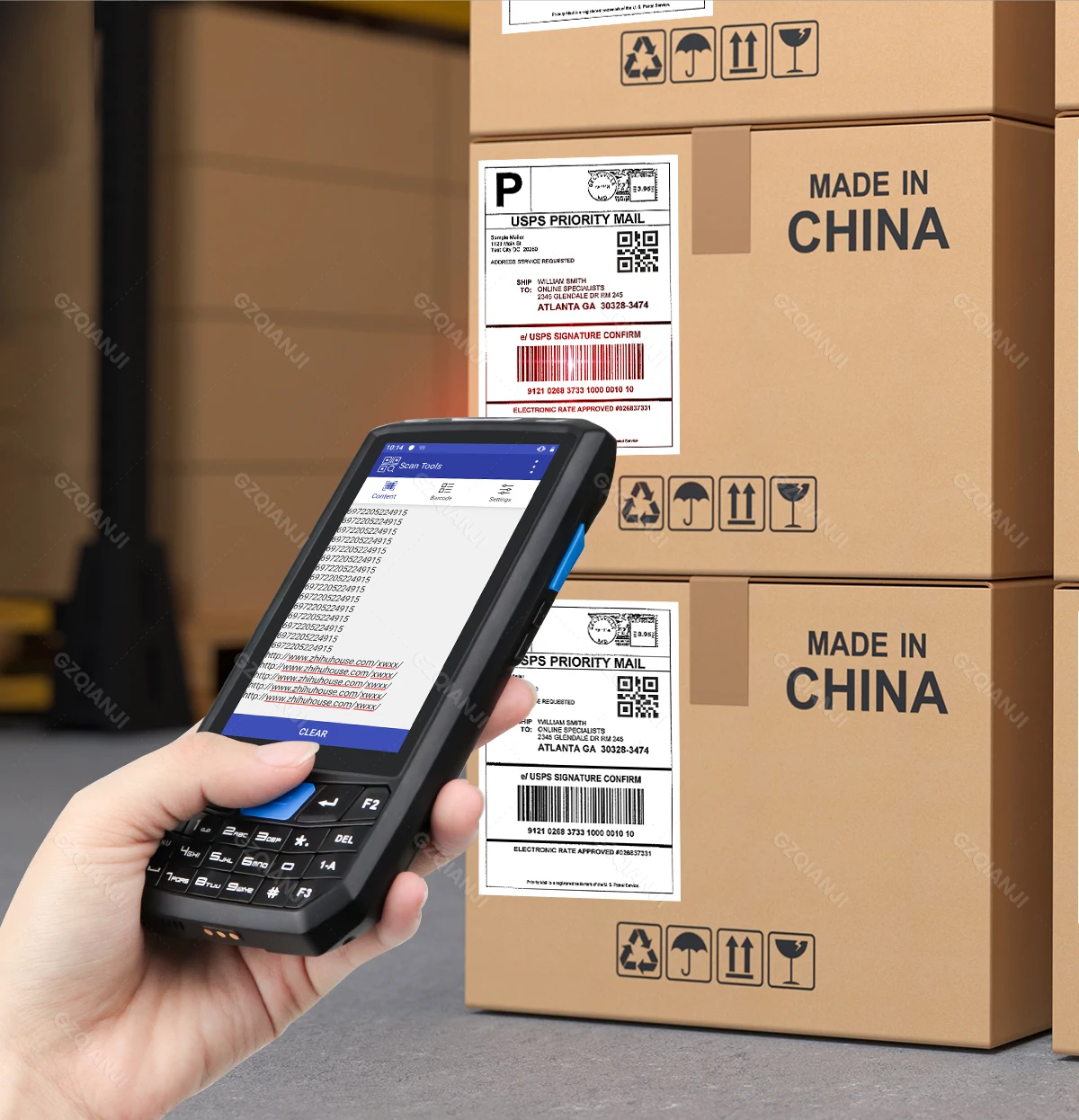

Warehouse management, Logistics express, Food Security, Supermarket, Library, Manufacturer, Airport and so on.

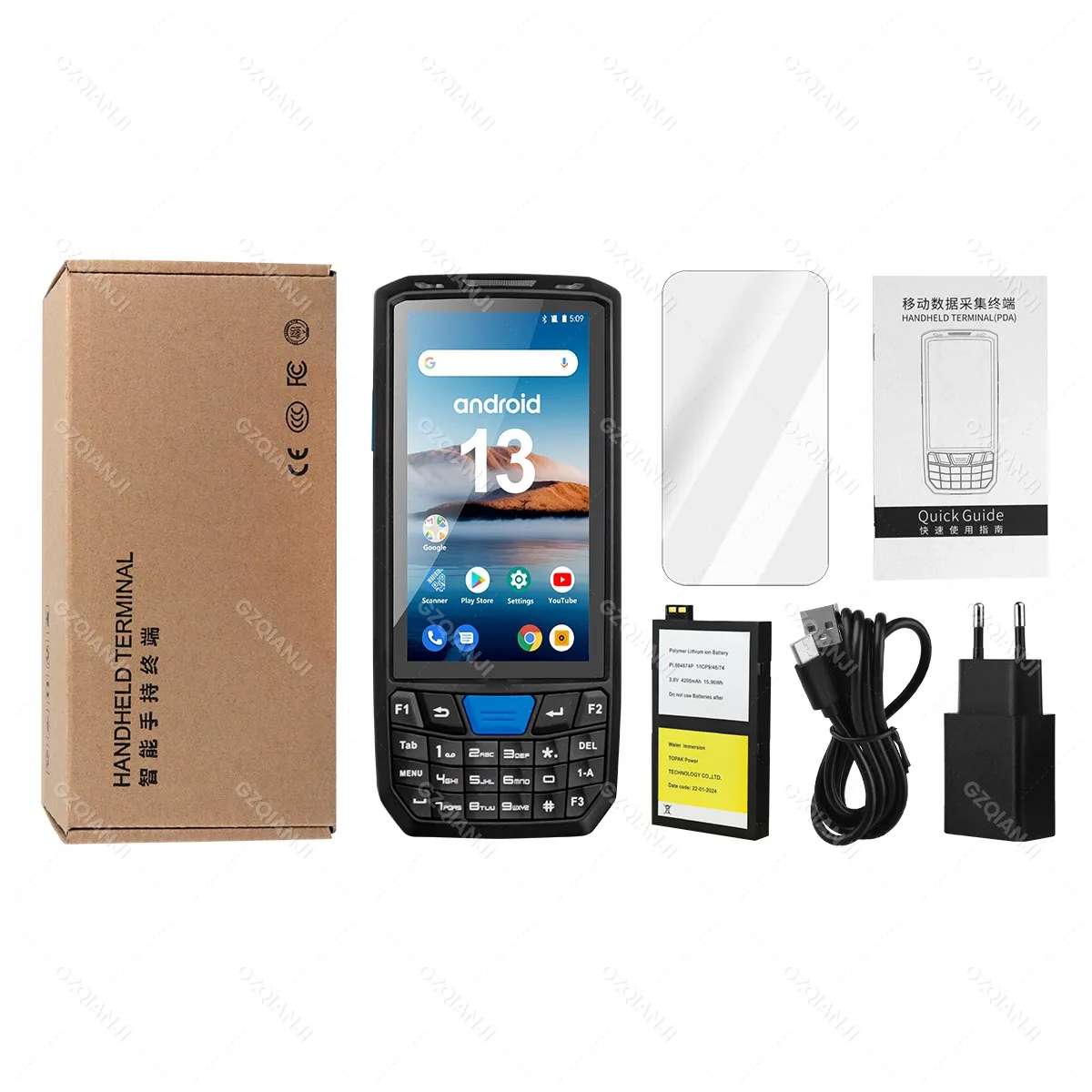

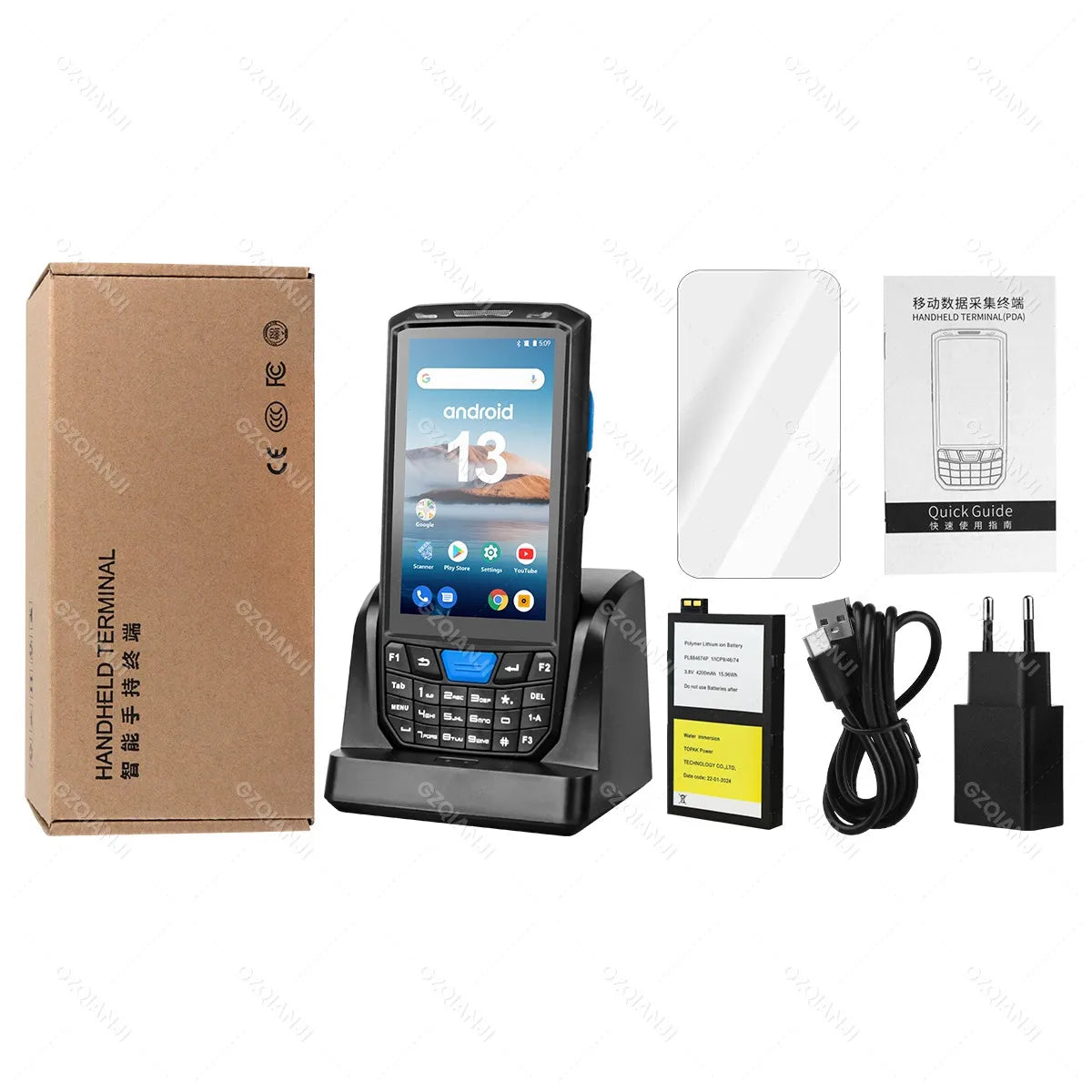

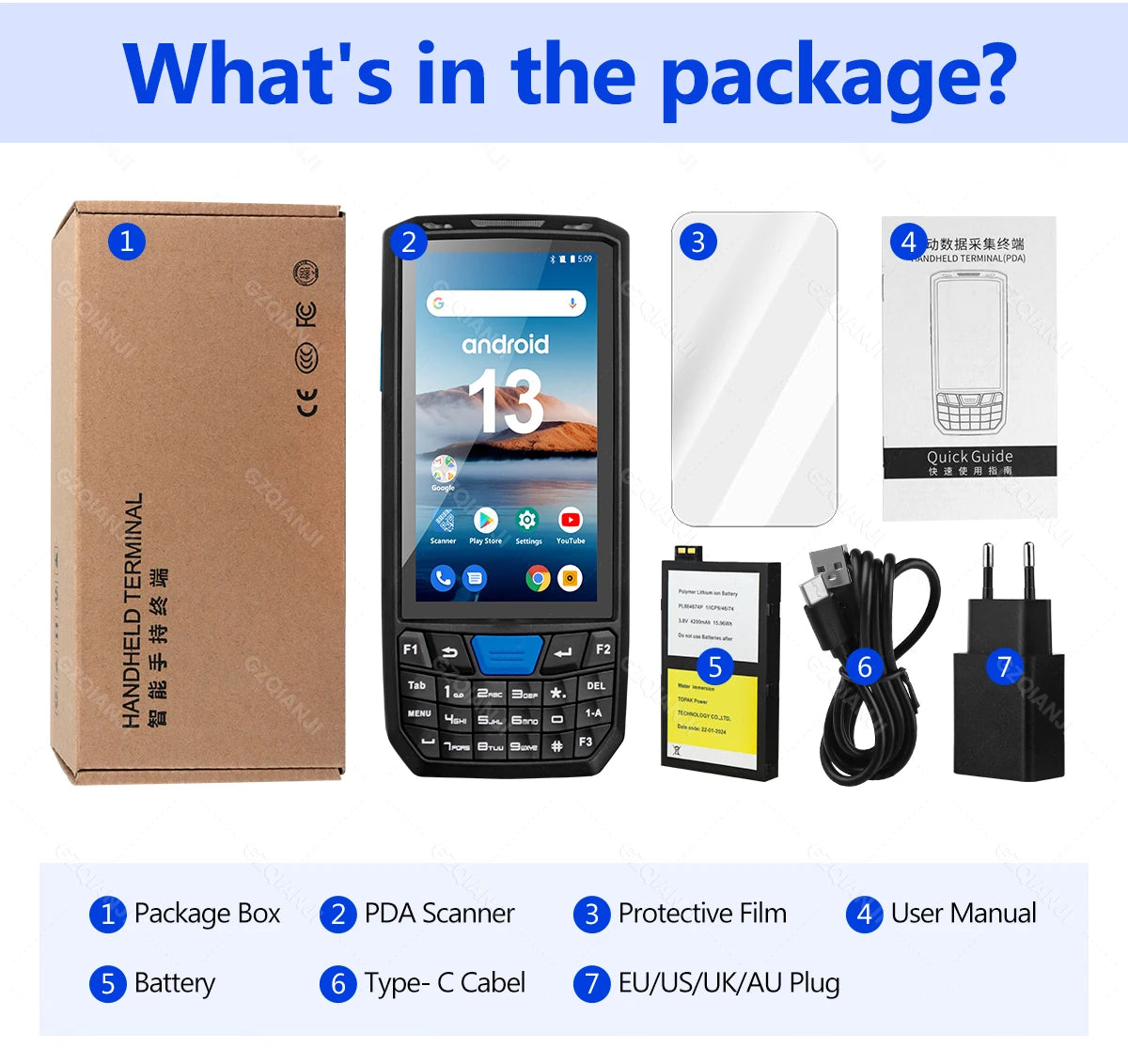

Packed with:
1* mobile android pos terminal,
1* 4200mAh battery,
1* Type-C cable & Adaptor.
You can use the SDK we provide to customize your software
Frequent Questions and Answers
Q1: Can the device be used in my country via 4G LTE network?
A: Yes, it supports global 4G LTE network.
Q2: Does this device support dual band with 5ghz and 2.4ghz wifi?
A: Yes.
Q3: What languages do the device support?
A: Our device support global languages, rest assured to use it in your country.
Q4 Does this device work with scanning usps, ups and fedex barcodes?
A: Yes, our terminal support to scan this kinds of barcodes.
Q5: What is the range on the scanner for scanning?
A: It depends on the size of the codes.
Q6: Can this scan a barcode presented on a smartphone screen?
A: Yes, the model with 2D scanner can scan the codes on the Electronic screen
Q7: Does this device have phone capabilty?
A: Yes, you can use it as a smartphone with barcode scanner.
Q8: Can I develop App based on SDK by Java language?
A: Yes, you can use the Java language develop your App in Android studio.
Q9: How do I use the F1, f2 and F3 buttons?
A: You can customize the F1, F2 and F3 with our SDK for this handheld terminal.
Physical Parameter | |

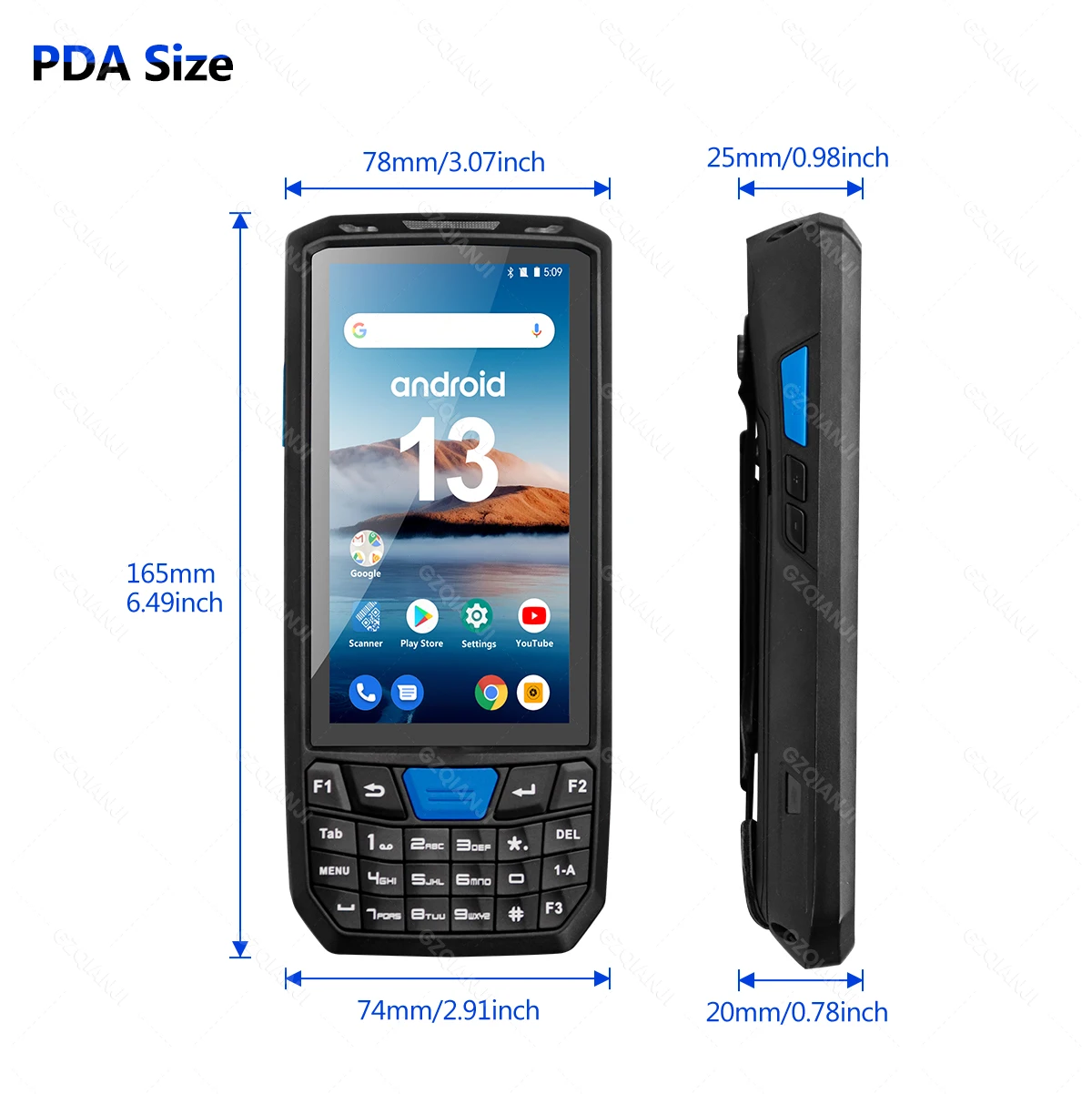

Dimensions |
166mm(L)X77.5mm(W)X22mm(D) |
Weight |
<500g |
Display Screen |
Color 4.0 inch QVGA imitative glass durable touch screen |
TFT-LCD, 650000 colors, 480*800 (QVGA size) | |
The brightness of LED Backlight is adjustable | |
Expand Port |

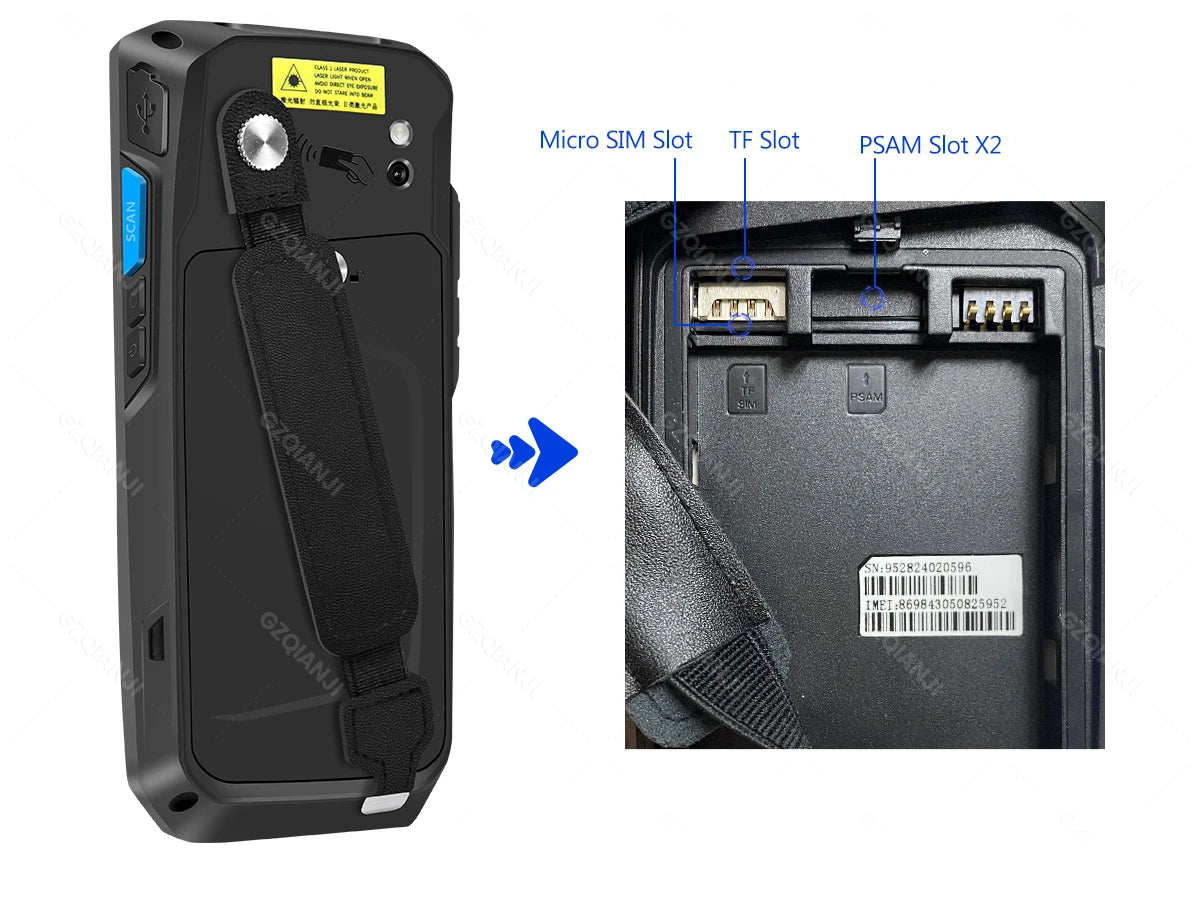

SIM card, Micro SD (TF) Card |
Communication Interface |
USB2.0 Device, |
Input Mode |
Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity |
Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
Frequency |
8 1W speaker |
Buttons |
21pcs soft silicon key |
Data Communication | |
WI-FI |
Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover |
FDD-LTE 4G |
Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ |
Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ | |
WCDMA 3G |
Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
GSM 2G |
850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ |
900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ | |
Bluetooth |
Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Operating Environment | |
Operating Temperature |
—20C to 50C |
Storage Temperature |
—25C to 70C |
Environment Humidity |
5%RH--95%RH(no condensation) |
Drop Specifications |
6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications |
1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment |
IP65 |
Development Environment | |
Operating System |
Android |
SDK |
exclusive use software development kit |
Supported Language |
JAVA |
Development Tool |
Eclipse |
1D Scanner | |
One dimensional scanner |
Minde966 or Honeywell N4313 |
Resolution |
4Mil minimum width |
Ambient Light |
10000ft.candles(107640 lux) |
Scanning Speed |
104(±)12/sec (both way) |
Scanning Angle |
47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type |
UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, |
2D CMOS (Optional) | |
CMOS Scanner |
2D 6602 or Honeywell 5703 |
The Sensor Resolution |
752(level)×480(vertical)pels(gray level) |
Ambient Light |
All dark 9000ft.candles/96900 lux |
Focus element (VLD) |
655nm ± 10nm |
Support bar code type |
PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, |
NFC(Optional) | |
NFC |
13.56MHz |
If you need the NFC |
Please choose the NFC optional |
Camera |
Hd 8 million pixels, with LED, automatic focusing |
GPS |
Support A-GPS |
Android 13 | |
CPU |
ARM Cortex-A53 64bit Octa-Core 1.3G |
RAM |
4G |
Flash ROM |
8G NAND Flash Storage |
or 64G NAND Flash Storage | |
