Features:

Microwave sensor:

This motion detector adopts a microwave sensor based on advanced technology which is safe and sensitive than infrared sensor, and the detection signal can penetrate through doors, glass panels or thin walls.

High Performance:

It can provides high probability of detection, low nuisance alarm and resistant to rain, dog, wind, dust, snow and temperature extremes.

User-friendly extended sensing design

If someone continuously moves in the sensing area, the sensing signal will automatically extend the sensing time, and will not re-sensing after the light is extinguished.

Easy to install:

The wire connection method is more scientific than other products. It has 2 inlet holes and 2 outlet holes. Easy to connect and install. And pluggable terminals are used. Easy and quick to complete the installation.

Wide use:

It can be applied to any load, such as monitoring device, alarm equipment, LED lights, fluorescent lights, incandescent lights, exhaust fans, solenoid valves, etc.

Specifications：

Type：Sensor Switch

Material: plastic

Color: White

Quantity: 1 pc

Power supply: 220-240V AC

Power Frequency: 50/60HZ

HF system: 5.8GHZ±75MHz CW radar, ISM

Power consumption: Approx. 0.5W

Installation sit: ceiling mounting

Reach:1-8m(radii.), adjustable

Time setting: 8sec to 30min

Detection angle:360°

Light control:5-2000LUX

Transmission Power: <0.2mW

Operating temperatures:-15°C to 70°C

Size: 6.8*4.1*3.9cm/2.67*1.61*1.53inch

Net weight: 46g/1.62oz

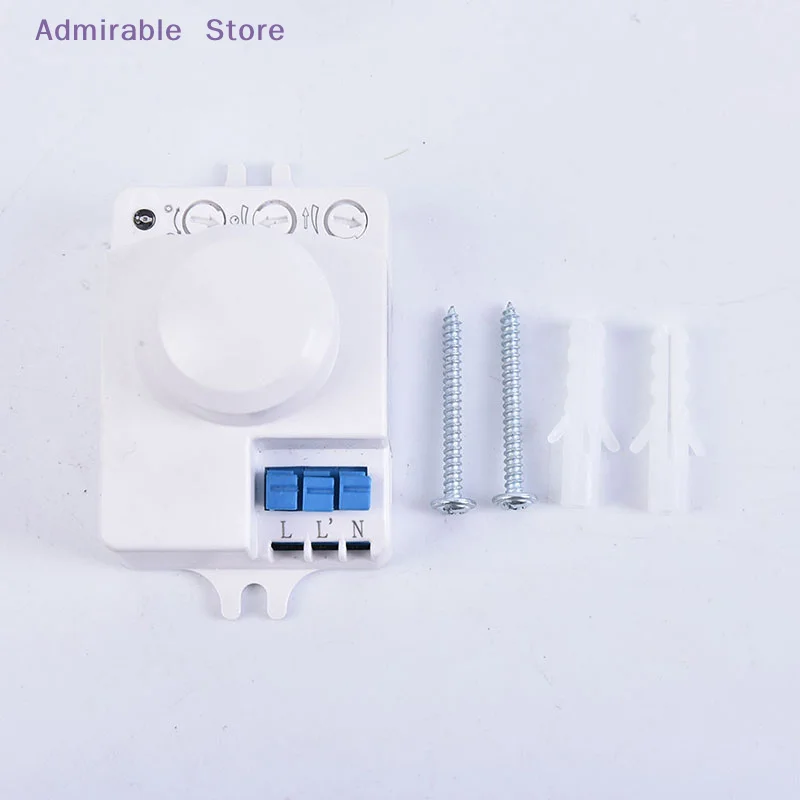

Packages:

1* Sensor Switch

2* expansion pipe

2* screws

1* user manual

Note:

Pictures may be displayed differently due to different shooting angles and lights.

Manual measurement will have errors, ranging from 1-2cm. Please understand.
