SPECIFICATIONS

AI Functions: Other

App name: Other

Audio Output: None

Brand Name: Clestech

Certification: CE,FCC,RoHS

Color: WHITE,black

Color Night Vision: Yes

Connectivity: Closed System/CCTV Wired

Dimensions (L x W x D)(mm): See product description

High Definition: 5.0 Megapixels

High-concerned chemical: none

IP Rating: Other

IR Distance(m): 0,is Full COLOR 25M

Installation: Normal

Internal Storage: None

Lens (mm): 3.6mm,6mm,8mm,2.8mm

Lens Quantity: Single Lens

Megapixels: 5 MP

Minimum Illumination(Lux): 0.001Lux

Model Number: AHD CAMERA

Movement Range(Pan): Other

Movement Range(Tilt): Other

NOTE What DVR is Required: Summary AHD/TVI/CVI DVR,Otherwise, only analog mode can be used

Optical Zoom: NONE

Origin: Mainland China

Power Consumption(W): 18W

Power Mode: Mains Electricity

Power Supply: Normal

Power Supply(V): 12v2A

Rechargeable Battery: NONE

Rechargeable Battery Capability: Other

Scene: Indoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Plastic

Smart home platform: NONE

Special Features: Vandal-proof

Style: Dome Camera

Supported Operating Systems: No

TF Card: None

Video Compression Format: H.265

Viewing Angle : 96°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: none

is_customized: Yes

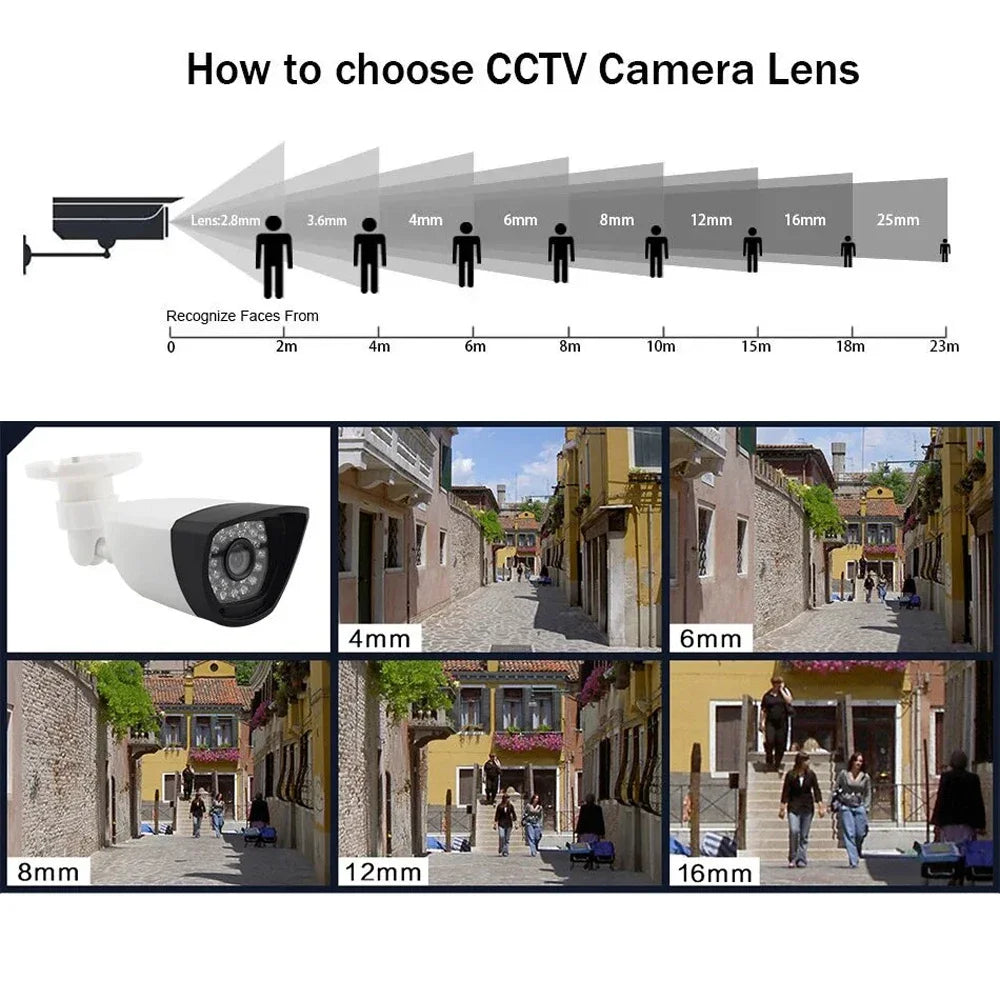

2.8mm/3.6mm=Wide angle field of view（close range）

6mm/8mm=Narrow angle field of view（remote）

NOTE:

Since we cannot accurately determine the optimal signal mode and frame rate supported by your DVR/XVR from thousands of models,

when you receive the camera, you need to activate it by pressing and holding the direction key for 20 seconds until the image appears.

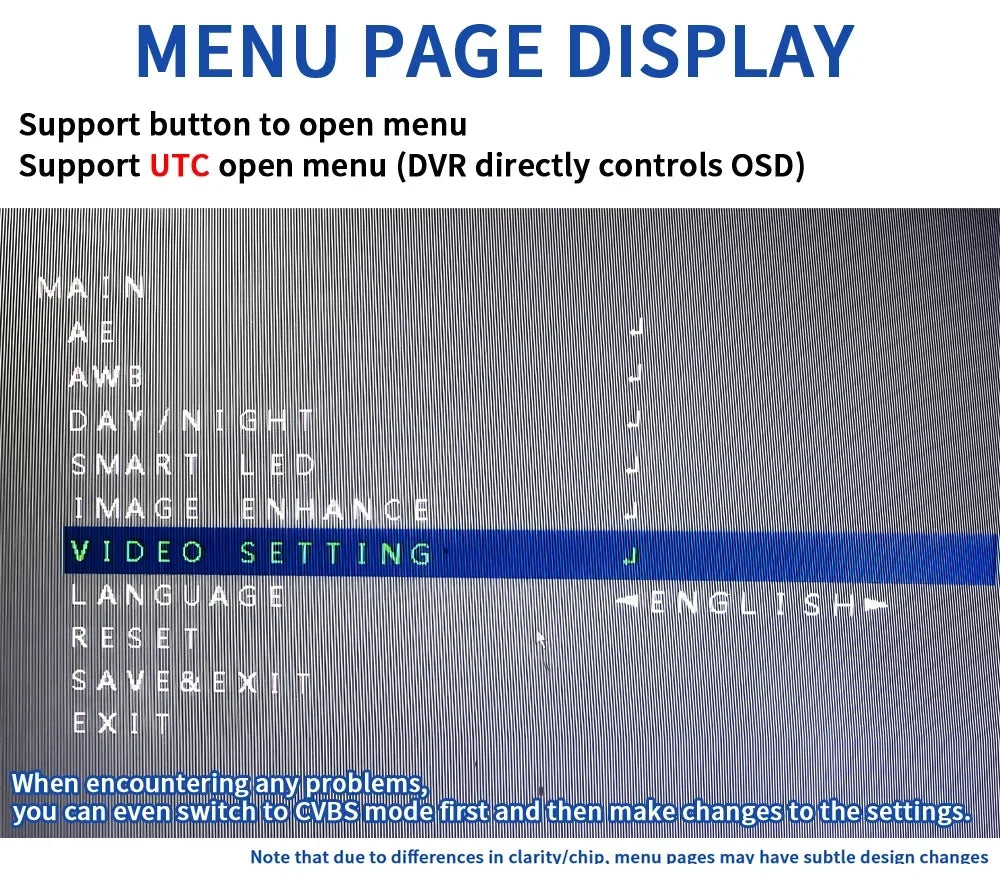

If activation issues occur, you can enter the CVBS mode and manually select the best signal using the menu function.

Therefore, the Compatibility rate of the camera is 100%. You can purchase with confidence.

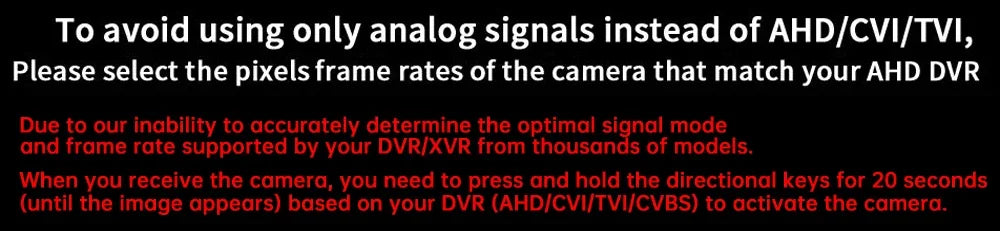

Please select a camera resolution that matches the maximum resolution supported by your DVR (AHD/CVI/TVI/CVBS) to ensure optimal image performance.

Otherwise, the camera will operate in low-resolution analog mode (→CVBS) = Compatibility Mode.

→Compatibility Mode/CVBS/Analog Mode/TV Mode will have lower clarity compared to digital AHD/CVI/TVI modes, and the image will be enlarged by 20%.







FACTORY PROFILE:

CLESTECH®Brand Camera Is A Ten-Year-old Camera Brand Produced And Sold By Our Factory.

The Factory Has A High-quality Standardized Production Line, The Manufacturer's Direct Selling Price, And Ensures Professional And Service For Customers.

ABOUT PRE-SALES SERVICES:

Due To The Time Difference, You Can Also Shop By Yourself.

Buyers Can Also Leave Customized Information In The Order, And We Will Make It According To The Requirements.

If You Have Any Questions, Please Contact Us.

ABOUT AFTER SALES:

This Product Has a One-year Warranty Period and Professional Foreign Trade Sales Experience.

We Know How to Best Deal with the After-sales Problems at Any Time within a Year and Satisfy the Users.

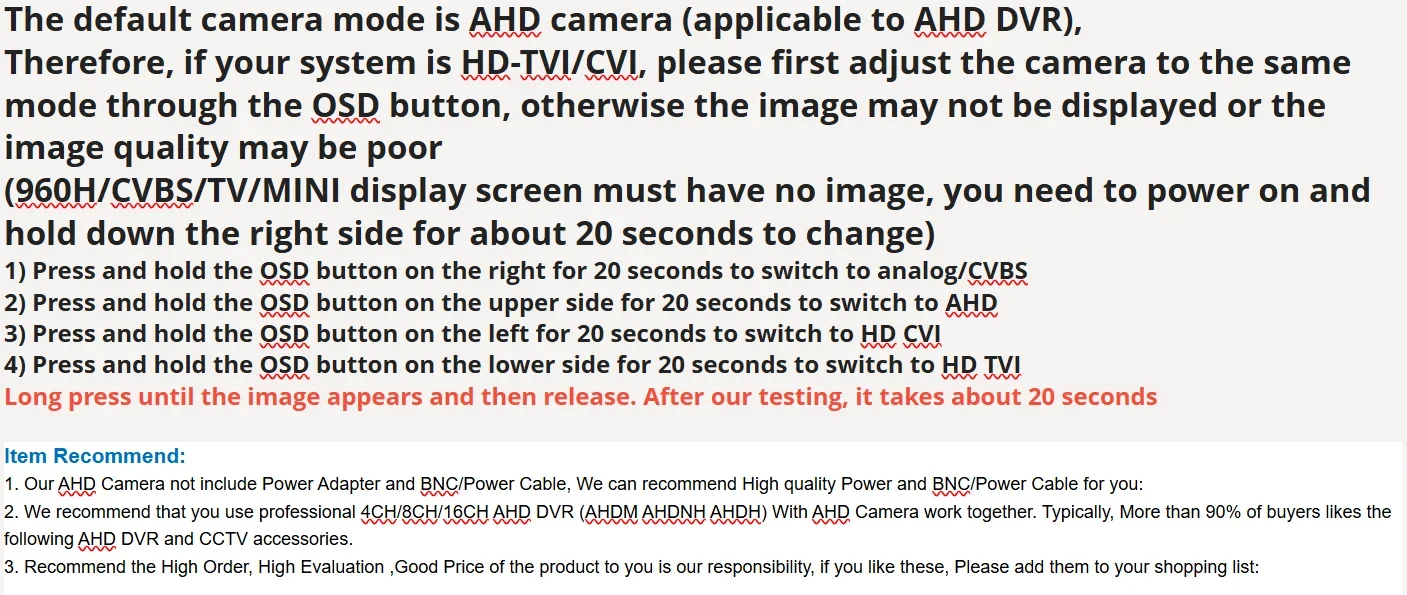

There is a more detailed description at the end of the article on how to switch signals

Features and specifications:

Specifications:

• Horizontal resolution:1080P 4MP 5MP 4k Optional

• Operation temperature: -20 to 50℃ (Relativehumidity: 95% maximum)

• Lens: Megapixel 2.8mm/3.6mm/6mm/8mm



（Using 5MP as a description）

Experience with 5mp AHD System

Ideal for home or business 5MP(2560*1920) offers exceptional Full AHD resolution and quality enhancing efficiency and monitoring capabilities.



2PCS 3500K CCTV Warm Light Array LED

2PCS Warm Light LED makes your surveillance screen full of colors at night

·Soft light adjustable;

·Array LED can last 30,000 hours;

·Close to the sun's CCTV,remote the best color.

Bright the way you home

At night, the two warm lights in the camera will turn on, they will dispel the darkness and illuminate your courtyard

Full Time Color, Provides Color Image both Day and Night

With this special function, you can get details with color image even in a starlight environment, never miss a suspicious movement.

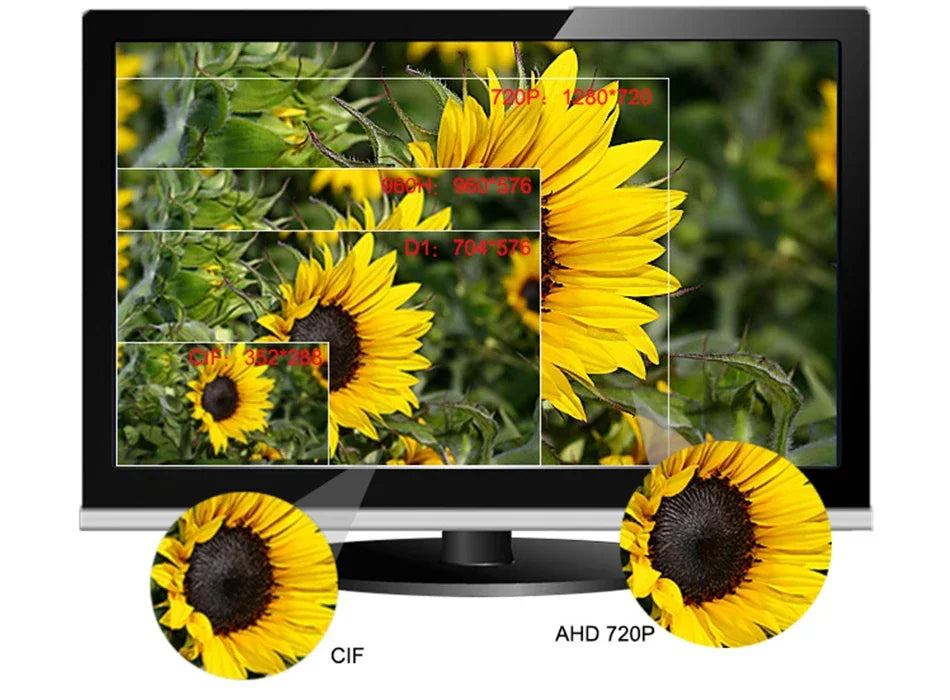

Utlra Full Color AHD Product introduction:

In The AHD signal camera, High quality in 2560*1920; More Details Captured.

More lines mean more image details need to be captured.

Clestech-4K security camera has a line resolution of 2560*1920.

Record life. Record wonderful moments.

From now on. Immediately with have.

You will definitely have the best chance to see every image details as you wish.

（The text refers to AHD/CVI/TVI 5MP resolution）





AHD camera and the traditional analog camera connected to the AHD DVR as shown below:
