SPECIFICATIONS

Average power: 50W/ m~60W/ m

Brand Name: NONE,NONE

Brightness control: Manual/automatic/program control

Color Depth: Red, green and blue 16bit each

Content Management System: Built-In CMS

Contrast Ratio: 4000:1

Control Distance: 100 meters, over 100 meters using optical fiber transmission

Display Function: Graphics, Animation, Text

Installation: Adhesive

Keyword: Slim Graceful Flexible Led Screen

Life span: LED>100000Hours

Material: Adhesive

Mounting type: Adhesive

Operation System: Windows

Origin: Mainland China,Mainland China

Pixel Density: 160*40 for one P6 panel module

Pixels: 6MM

Power Supply: AC:110V~240V,50~60Hz

Product name: Flexible COB Led Screen

Refresh rate: 60Hz

Screen Type: LED

Screen color temperature: 2000K to 9500K adjustable

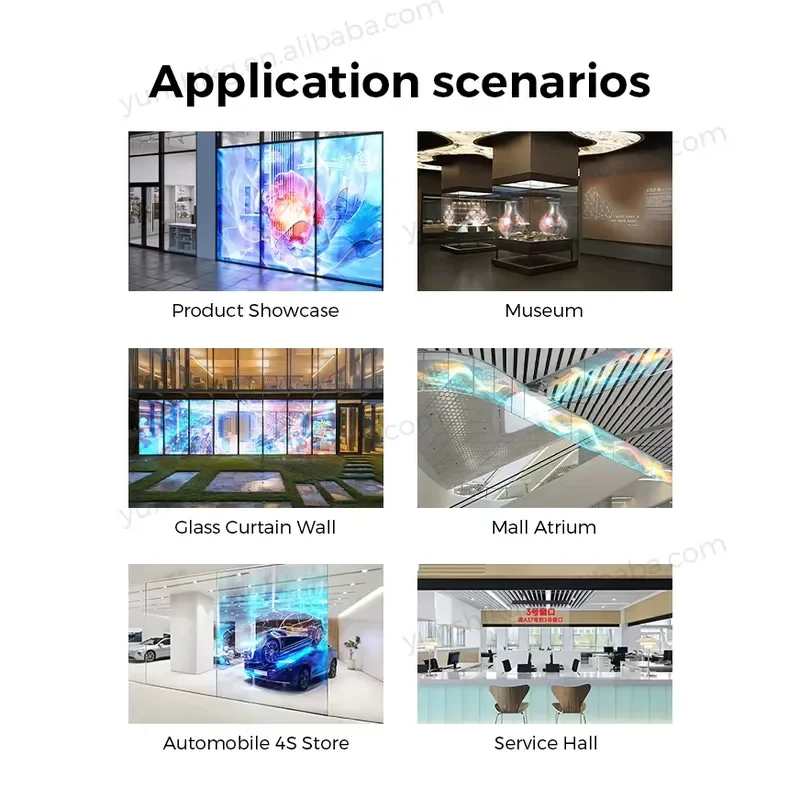

application: Indoor, Outdoor

aspect ratio: Other

brand name: FUTURE-X

brightness: 1200cd

color: 90% Transparent

function: Customized

installation type: Stick it on the glass

ip rating: ip43

lifespan (hours): 100000

media available: Datasheet, Photo

model number: FUX-001ALAB

place of origin: Guangdong, China

resolution: 144*64, 144*48, 160*40, 123*30, 100*24

specification: Digital Poster, Video Wall

supplier type: Original Manufacturer, ODM, OEM

warranty: 2 Years

Welcome to Your Custom Manufacturing Hub! Please be aware that the prices and shipping costs shown on our product pages are starting estimates only. Since every order is uniquely tailored to your specific requirements—be it size, material, or technical specs—the final quote will be calculated just for you. To get your accurate personalized pricing and shipping quote

Products Description

Screen body technical parameters
Point density	P5: 40,000 points per m²  P6: 26,560 points per m² P8: 15375 points per m² P10: 10000 points per m²
Brightness	1000cd to 1500cd/ m² Adjustable
Horizontal view/vertical view	140°/140°
Flatness	≥98%
Contrast ratio	4000:1
IP Grade	IP43
System control parameter
Color	16bit
Drive mode	Constant-current performance
Repetition frequency	60 frames/SEC ;high brush support 3D: 120 frames/SEC
Refresh rate	≥3840Hz
Screen color temperature	2000K to 9500K adjustable
Brightness control	Manual/automatic/program control
Control distance	Super Category 5 twisted-pair cable, over 100 meters using optical fiber transmission
Software interface	Windows
Signal input	HD MI、DVI
Screen operating parameters
Working voltage	AC：110V~240V、50~60Hz
Average power	50W/ m²～70W/ m²
Continuous working hours	24/7，Supports continuous and uninterrupted display
LED chip life	100,000 hours
Screen temperature rise (using running state)	≤3℃（≤37.4℉）
Operating ambient temperature	-10℃～60℃
Operating environment humidity	10% to 90% R H, no condensation



Installation Instructions

STEP 1

After opening the vacuum bag. care-fully remove the screen body and do not damage the lamp beads

STEP 2

Tear off the double-sided adhesive film on the surface of the screen,Spray a thin layer of water mist onto the surface of the double-sided tape using a water sprayer

STEP 3

Stick the screen in the corresponding position and use a silicone roller to roll it down from top to bottom once to discharge the water droplets



STEP 4

Open the power box of the screen connect the network cable to the power cord turn on the power, and debug the screen
