HD CPE Worry-free Monitoring

900mbp/5km Transmission/5.8G Anti-interference

Support 10-20HD cameras/Qualcomm Chip/Dual network port power supply

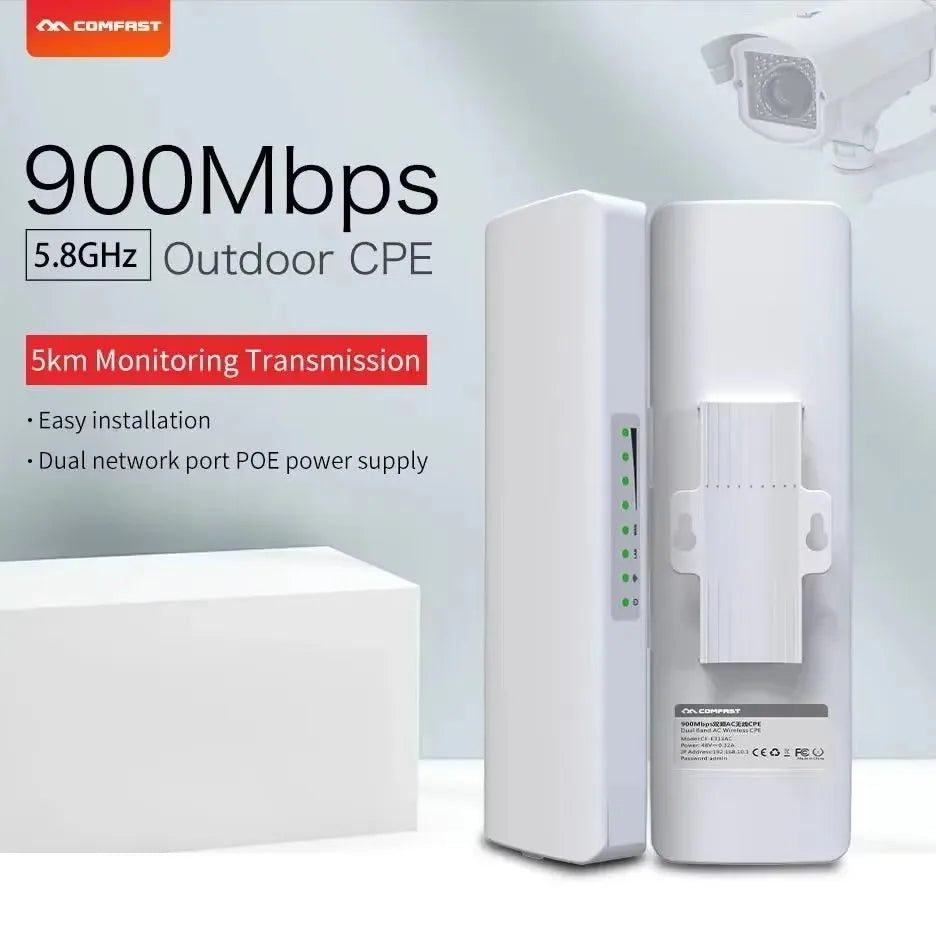

CF-E313AC use 802.11ac wireless technology,make transmission faster and more fluent with 900mbps

5km stable Transmission

Full engineering-level hardware technology with two high-power PA RF power amplifier chips , can achieve 5km point-to-point and point to multipoint transmission , and separate monitoring and centralized management of distributed video surveillance in different manufacturing sites or construction sites , terminals , parks , etc .

HD Video Transmission No Delay , No Pause

5GHZ 900mbps , provide multiple channels to choose , improve Wi-fi signal ,avoid data loss , reduce video pause , guarantee stable HD quality ,Powerful hardware configuration ensures high quality HD transmission

Qualcomm Chips Guarantee Perfect Performance

Qualcomm chipset has been tested and precipitated over time,and it is trusted and favored by engineering users

Reduce Interference Effectively with 5.8GHZ

Too many equipment working in 2 . 4GHZ cause interference . CF-E313AC works in 5 . 8GHZ , which reduces interference , makes POE work more stable

POE Power Supply , More Convenience

CF-E313AC supports power supply with dual network ports , effectively solves the problem of webcam power supply difficulties and enable seamless IP video integration

Comprehensive Protection against Severe Outdoor Environment

Precise structural design provides the ability to handle different kinds of rugged surroundings

Low Temperature Protection

It can support work and start up in low temperature

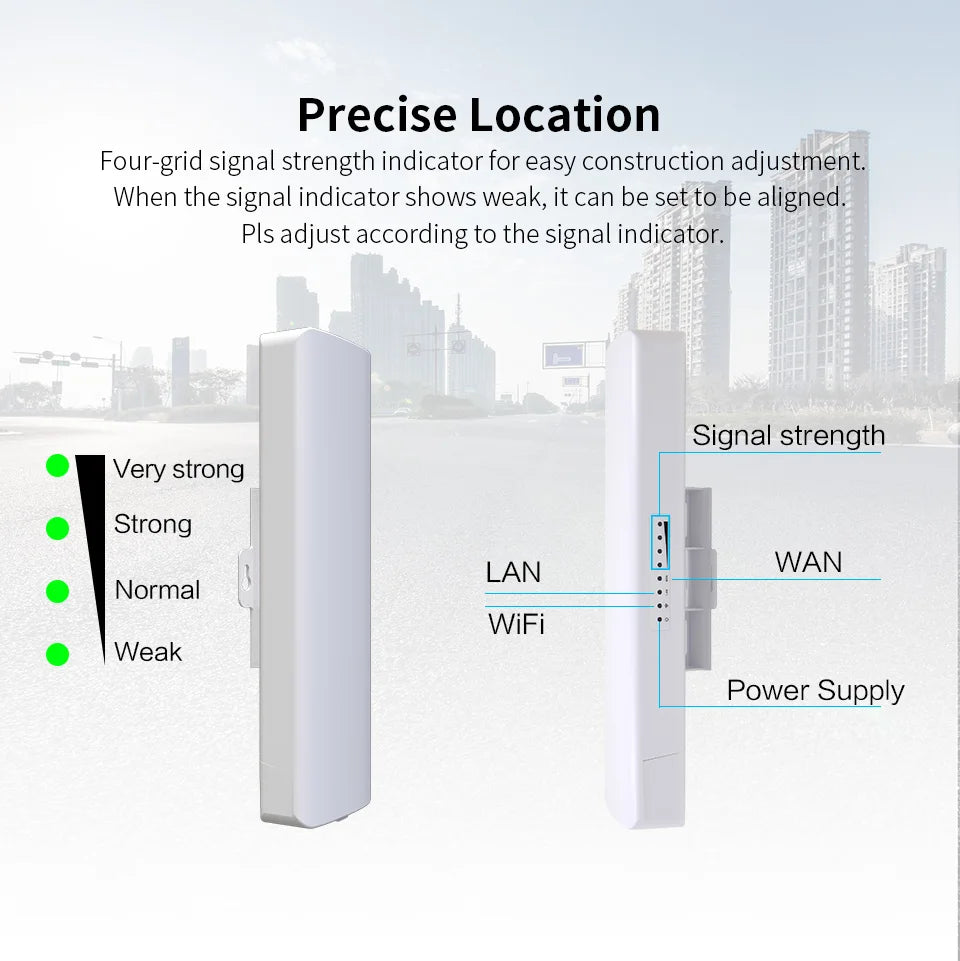

Precise Location

Four-grid signal strength indicator for easy construction adjustment.When the signal indicator shows weak , it can be set to be aligned .Pls adjust according to the signal indicator

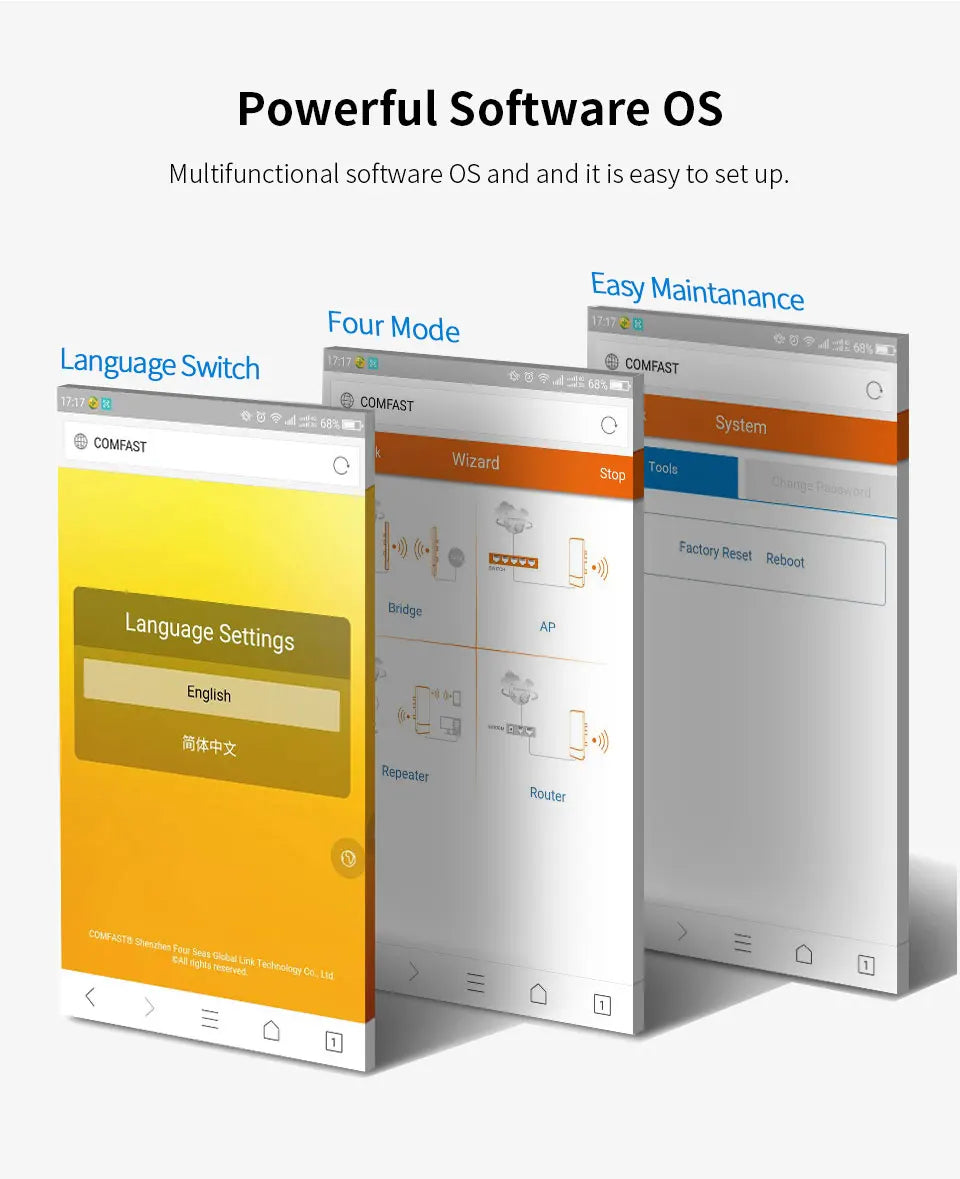

Powerful Software OS

Multifunctional software OS and and it is easy to set up

Applicable Occasions

Elevator/Community/Driving school

Factory/Tourist sites/Construction sites

Elevator monitoring application

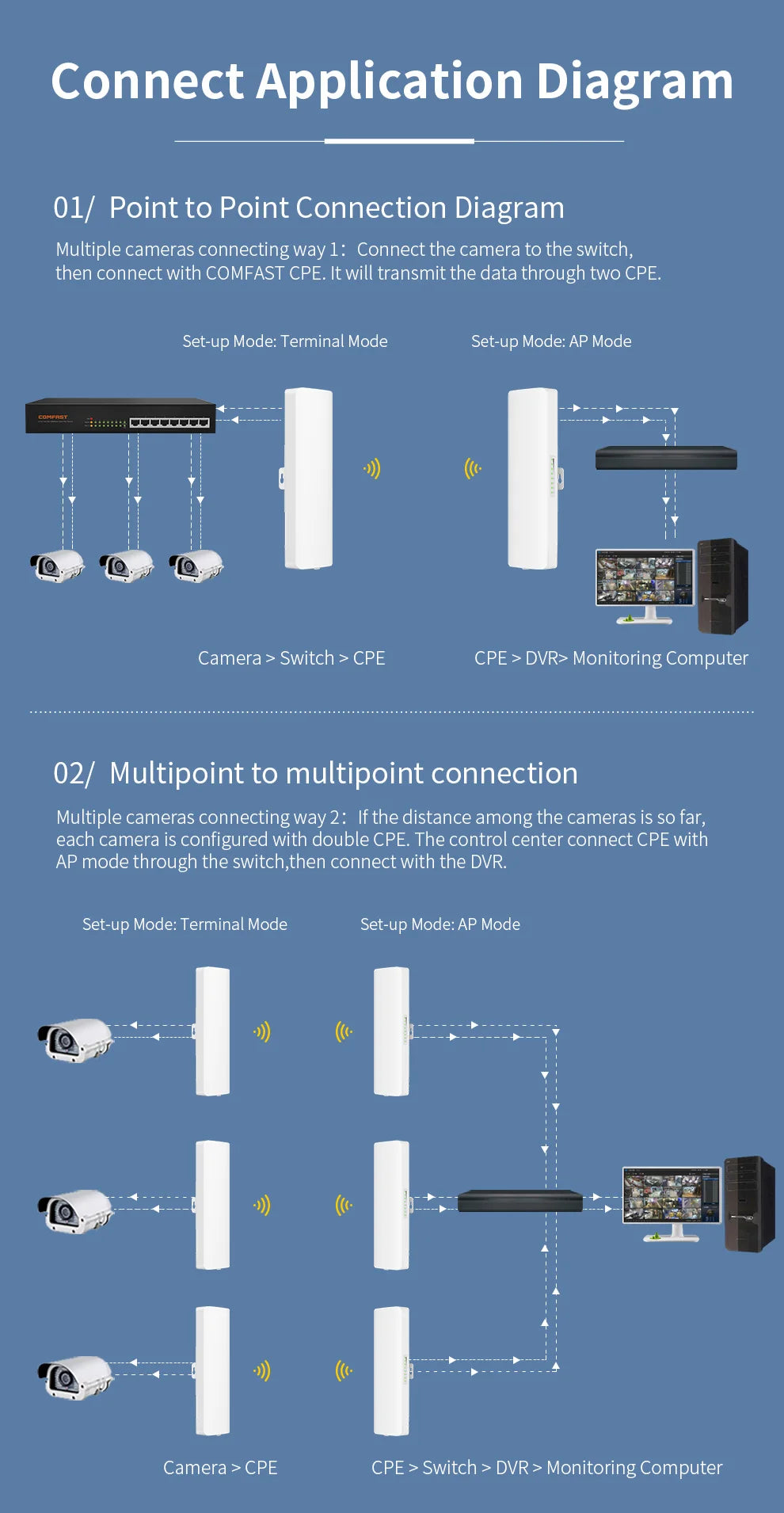

Connecting Application Diagram

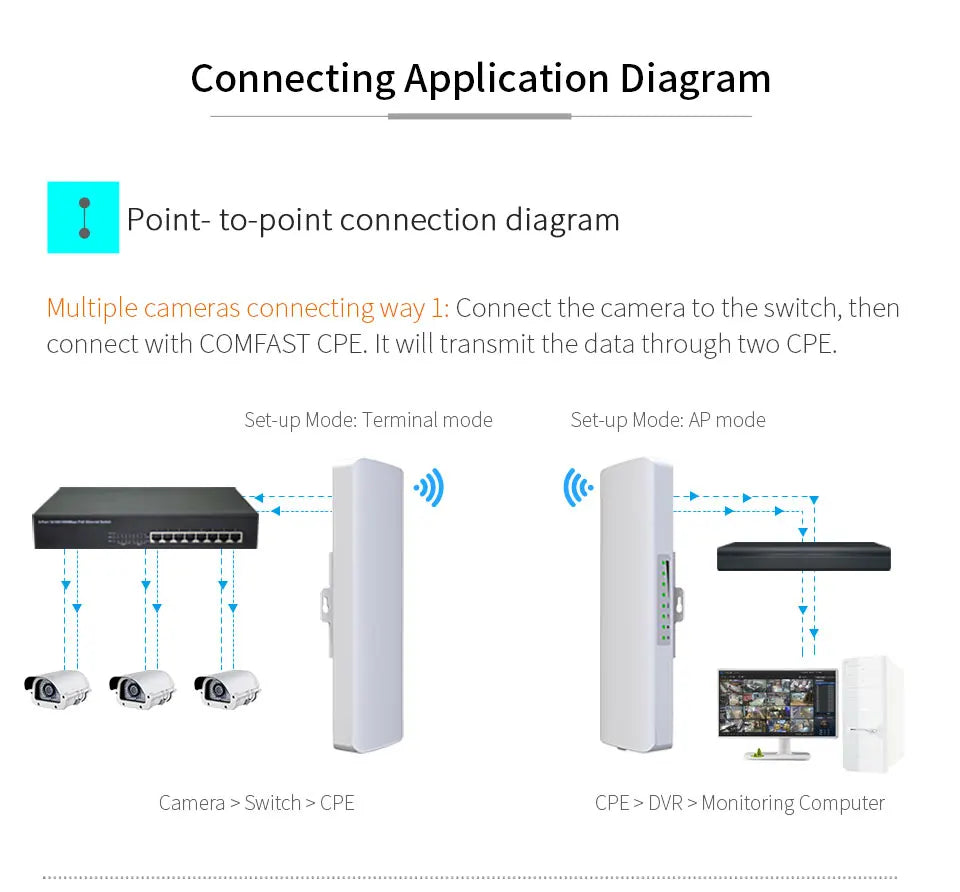

01 Point-to-point connection diagram

Multiple cameras connecting way 1 : Connect the camera to the switch , then connect with COMFAST CPE It will transmit the data through two CPE

Multiple cameras connecting way 2 : If cameras are far away from each other ,configure each camera with two CPES . The control center connects CPE with AP mode via switch then connect with DVR

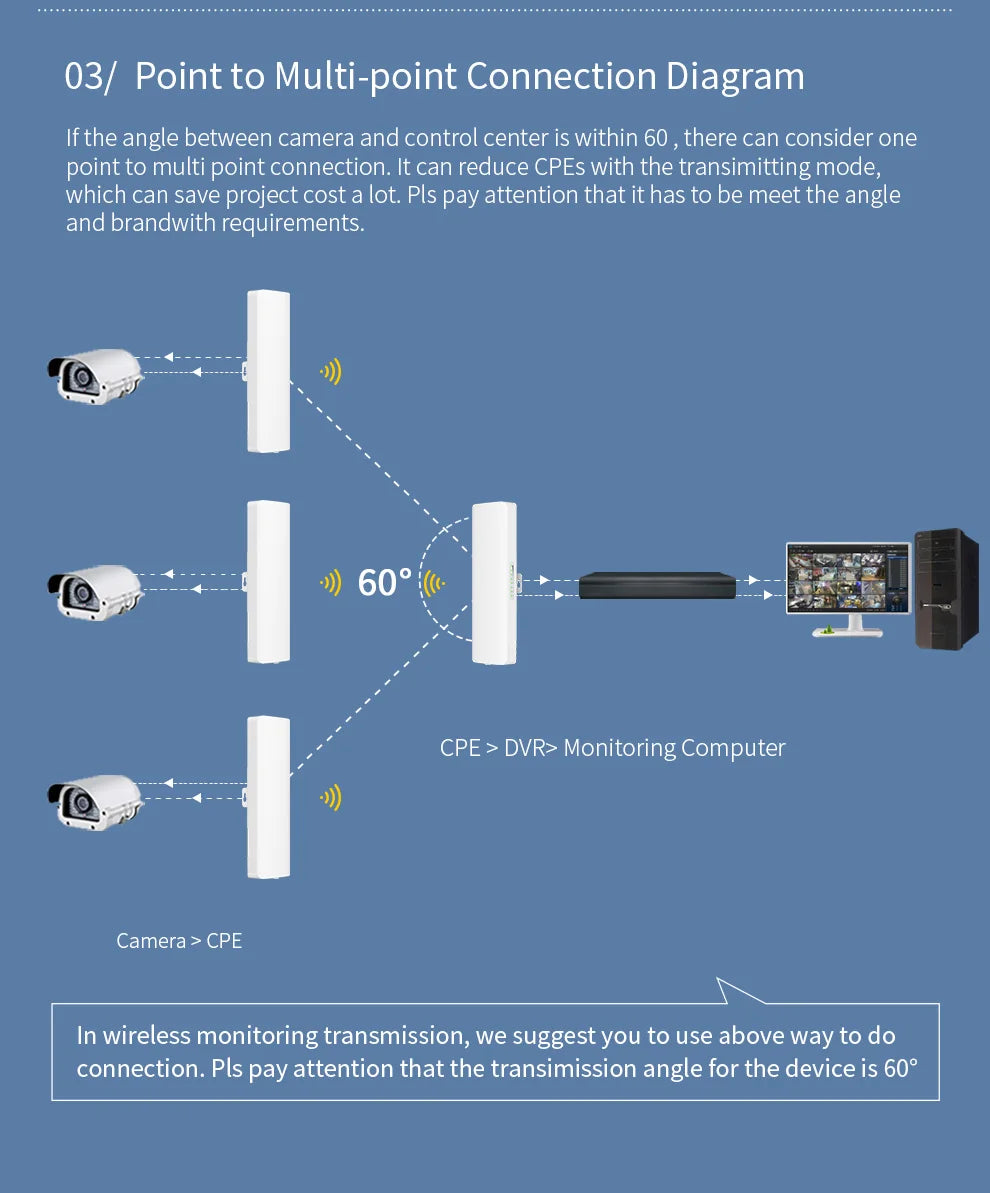

02Point to Muti-point Connection Diagram

If the angle of camera and monitor center is less than 60degree , there can consider one point to multi point connection . It can reduce CPES with the transmitting mode , which can save project cost a lot . Pls pay attention that it has to meet the angle and Broadband requirement

Q1: How long Range is the wifi transmission distance of this device?

When 2 bridges are paired, the maximum point-to-point transmission distance is about 3-5KM (without obstacles).

Q2: What is the frequency of this device? What is the transfer rate?

5.8Ghz, 900Mbps.

Q3: What scenario is this device used for?

It is suitable for security monitoring projects, suitable for monitoring project transmission in scenic spots, ports, oil fields, construction sites, etc.

Q4: Is it possible to accept internet from home router via WiFi and transmit further?

Yes, the router WiFi can be used as the transmitter or as the receiver (for reference only, the specific application needs to be combined with the actual situation)

Q5:Can only one device be installed?

Yes, a device can be set to AP mode and repeater mode, but the transmission distance of WiFi is the same as the normal relay and AP coverage. If you use one device, it is recommended to set AP mode.
