SPECIFICATIONS

Applicable People: Men

Board Category: Flat-Plate

Brand Name: NONE

High-concerned chemical: none

Model Number: -

Origin: Mainland China

Plug Type: EU Plug

Type: Snake Board

is_customized: Yes

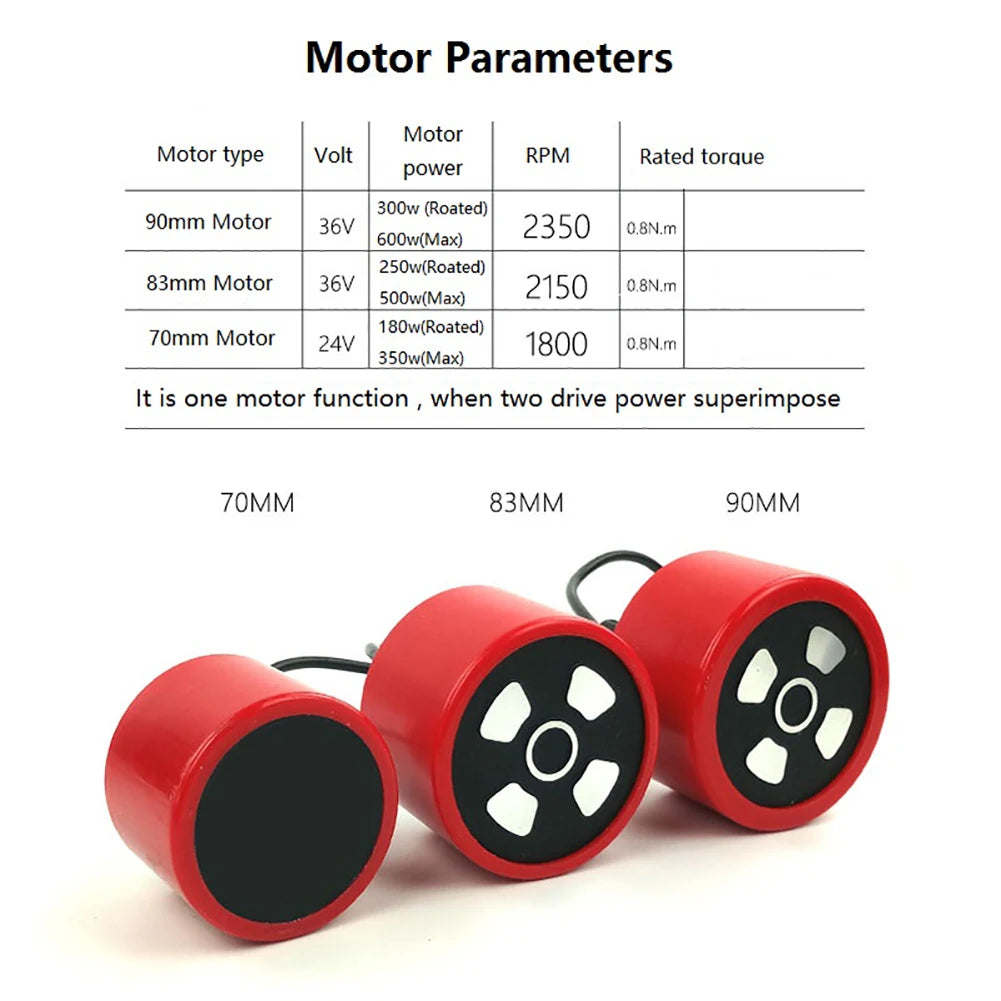

Motor Parameters:

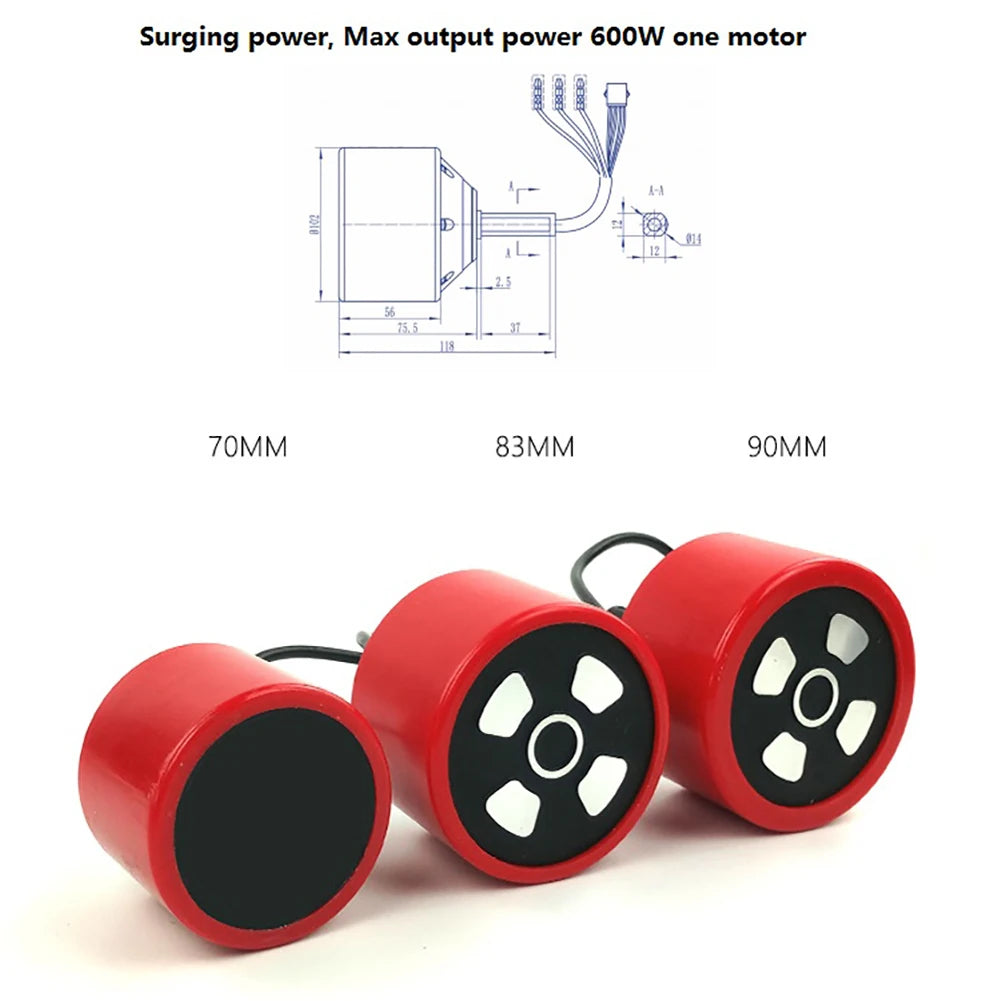

70mm 83mm 90mm motor:

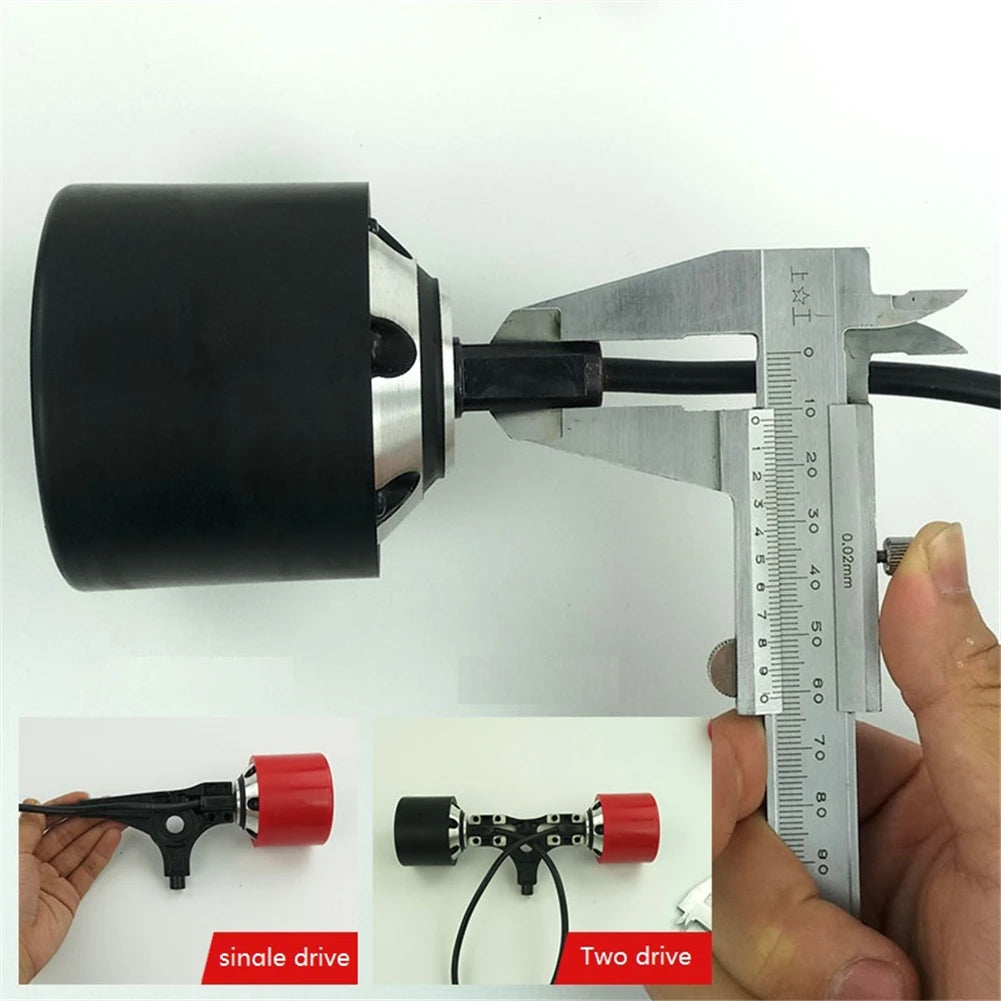

motor wheel size: about 83*52mm/3.27*2.05in,70x52mm/2.76*2.05in, 90x52mm/3.54*2.05in
Weight: about 750G
Brake: Yes, the force varies according to speed

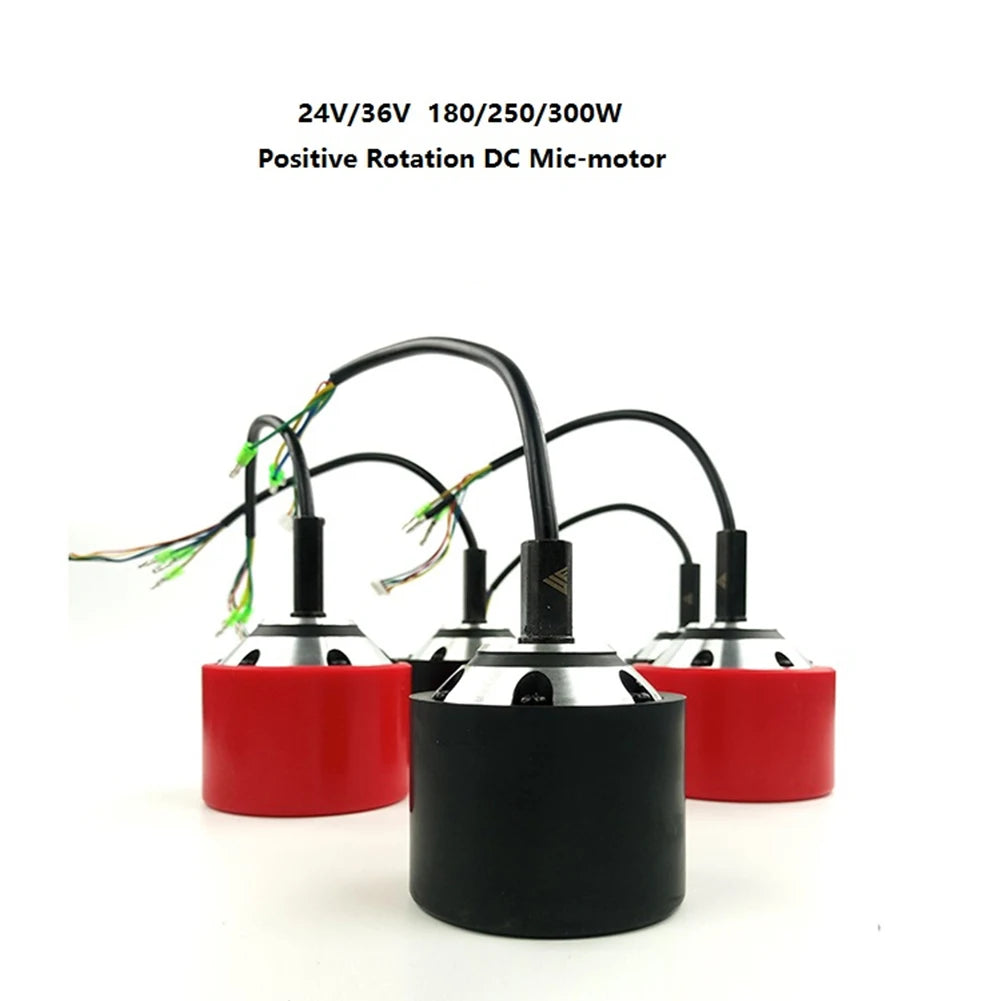

Rated voltage: 24-36V
Rated power: about 250W
Top speed: 38km / hour
70mm maximum power: 350W
83mm maximum power: 500W

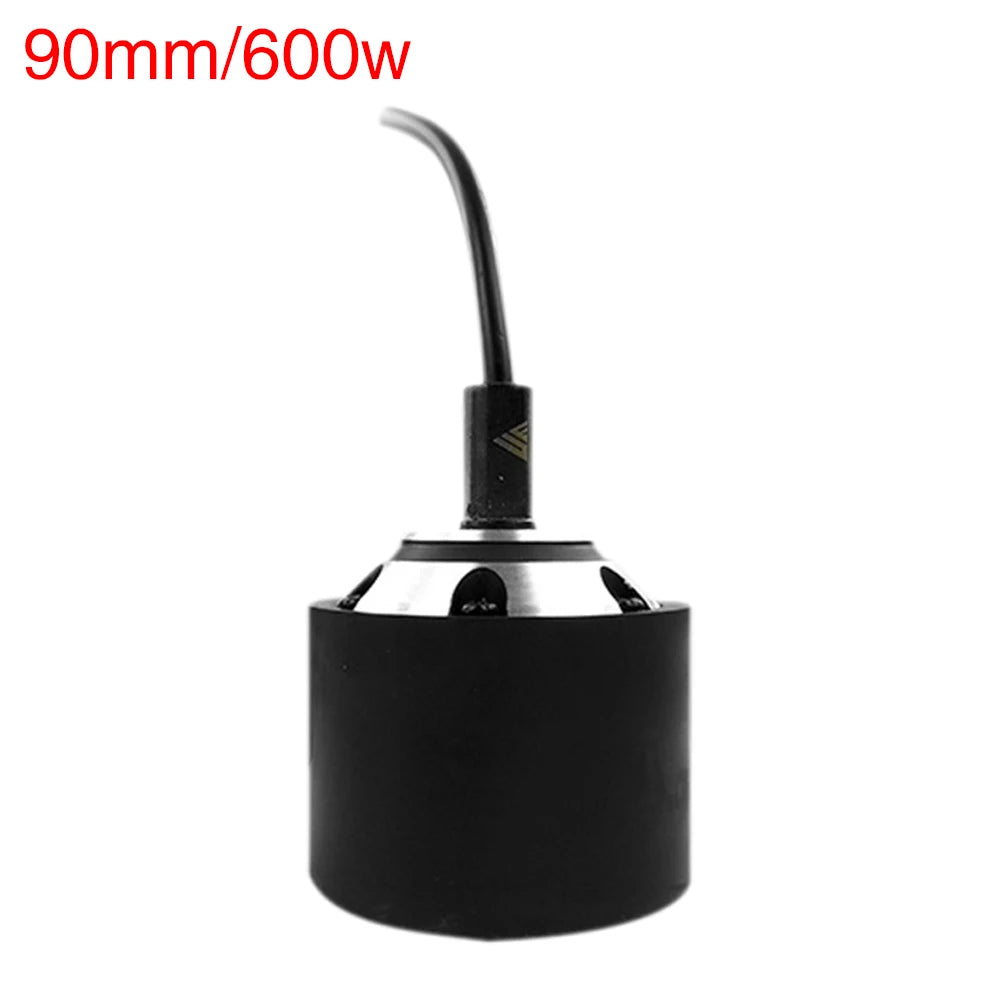

90mm maximum power: 600W
Maximum current: about 38A
No-load speed: 2640rpm
No-load current: 500MA
Efficiency: 85%
Maximum load: 100KG

1. Use voltage: 24-36V
2.24 pole stator, smooth start, high torque and high efficiency!
3.kv value: 110KV (rotation speed of 2640rpm under 24v voltage)
4. The tire can be replaced
5. Closed bearing support at both ends, the whole motor is waterproof and dustproof.
6. Hall supports up to 60V

Packing List:

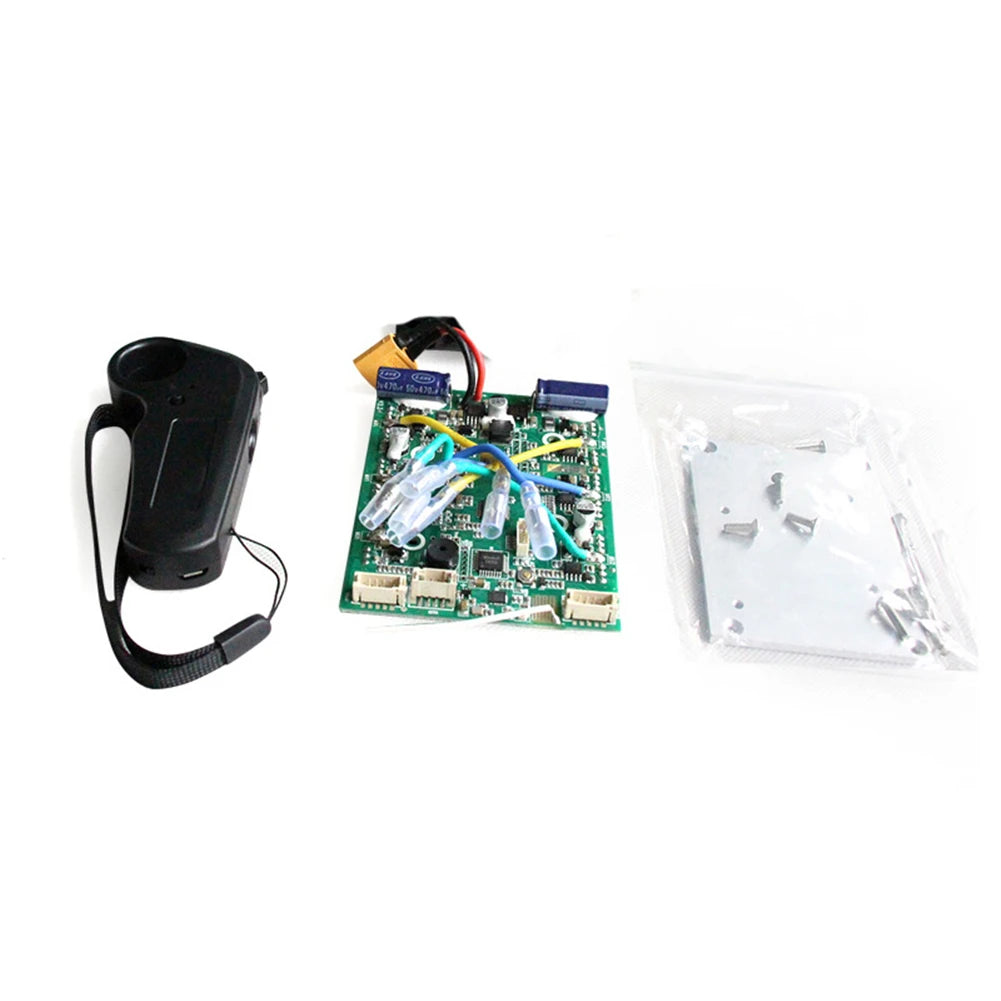

1 set of circuit board + remote controller + power switch + power display

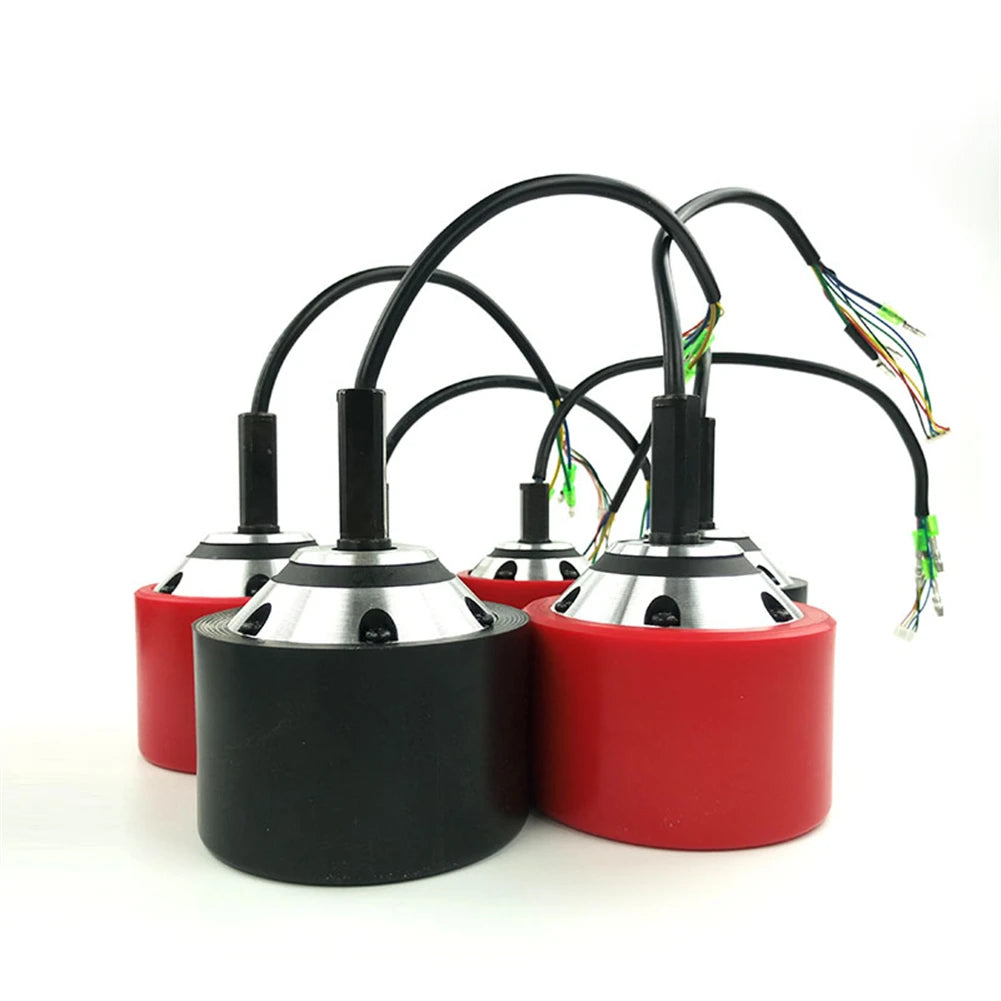

Red motor (70mm)*1

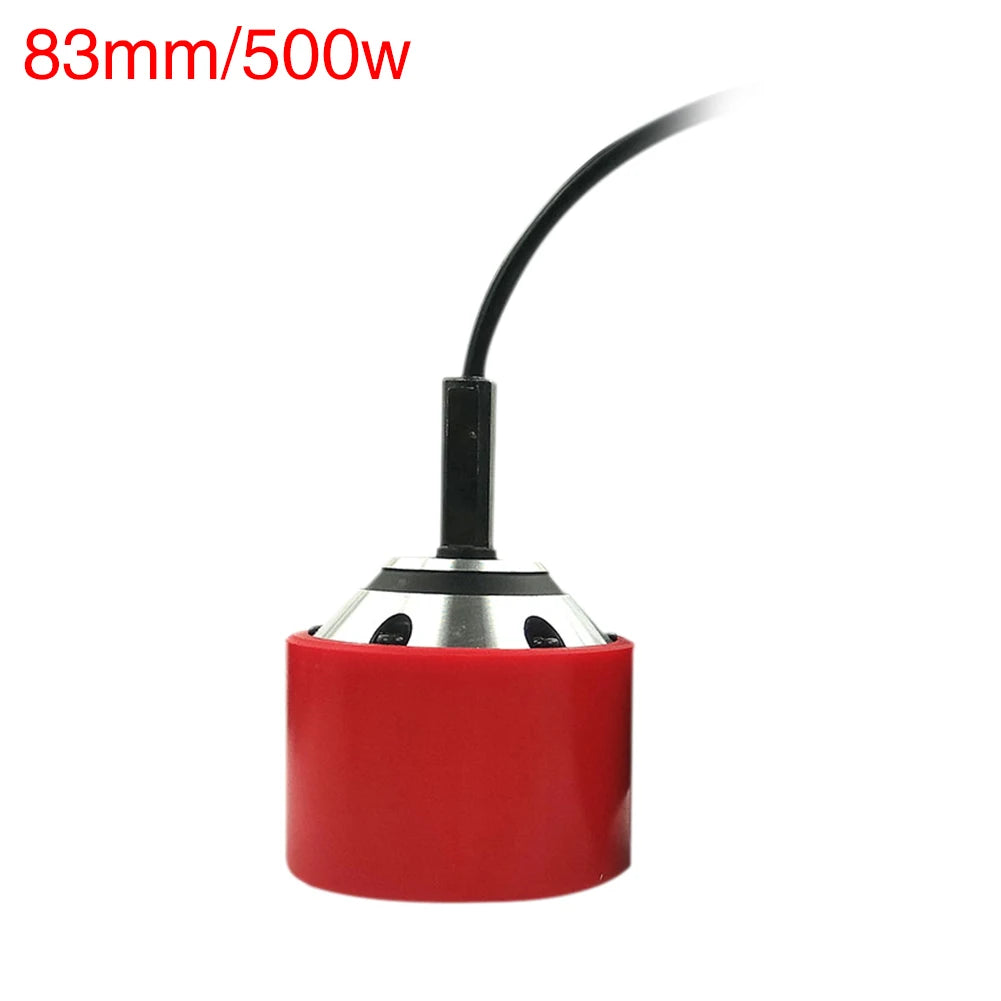

Red motor (83mm)*1
Red motor (90mm)*1
Black motor (70mm)*1
Black motor (83mm)*1
Black motor (90mm)*1

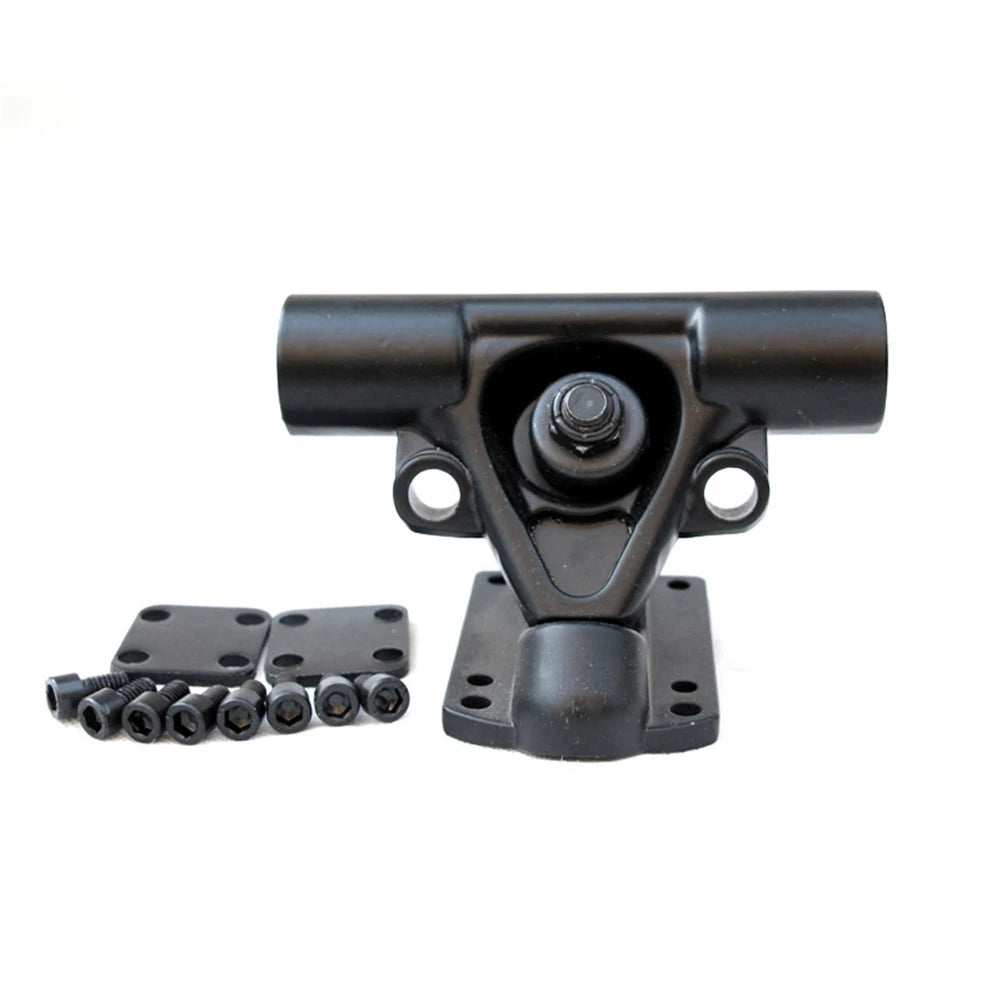

Flattened shaft bracket*1
