SPECIFICATIONS

Brand Name: NONE

Camera Used for: Outdoor Security Surveillance

Charging Time: 6.9 hours

Color: Customized Color

High-concerned chemical: none

Input Voltage: DC24V

Model Number: BL1P-G4MHS

Name: mobile solar CCTV tower

Origin: Mainland China

Place of Origin: Guangdong, China

Power Supply: solar battery

Solar Panel Type: 1*450W Mono-Crystalline,dual facial

Style: Parking Security Camera

System Voltage: DC24V

Trailer Type: US/EU/AU Standard,Ball Hitch,Single Axle,Manual Outrigger

Work Time (h): 3 Days for 80W

waterproof: yes

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! For quick assistance, please contact me via WAP:+86 19173199094 or Email： maoyishunda@gmail.com.

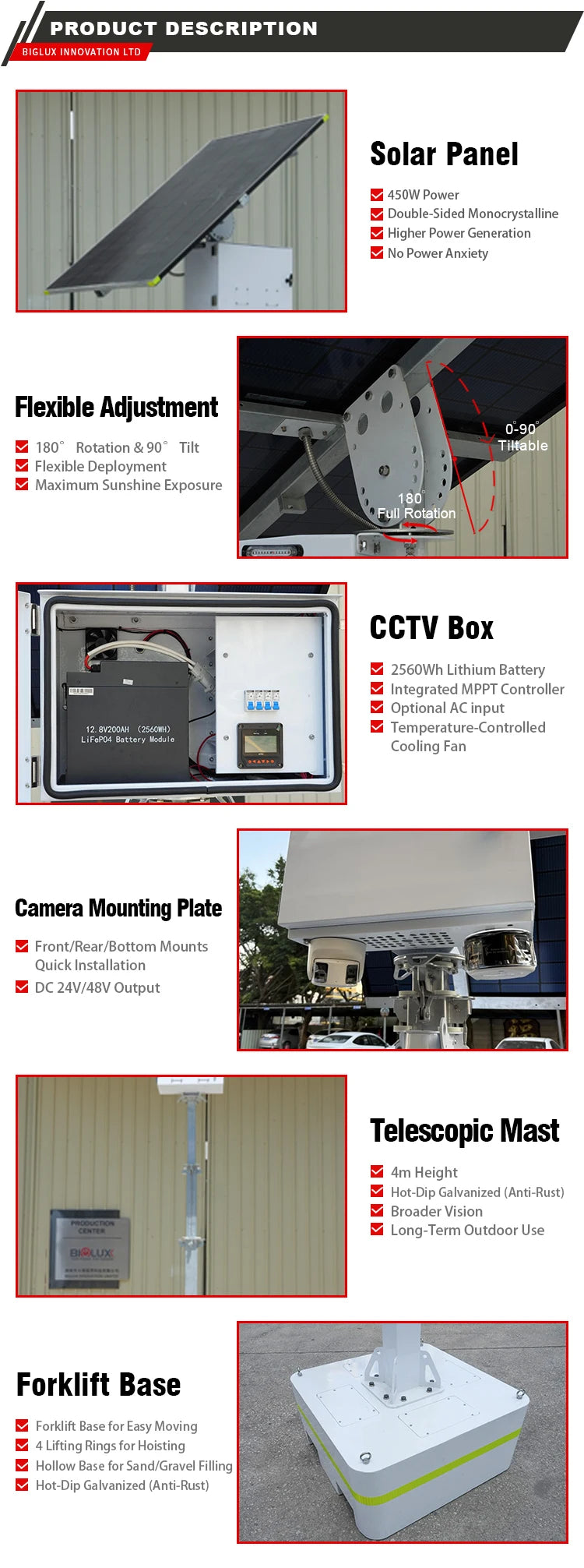

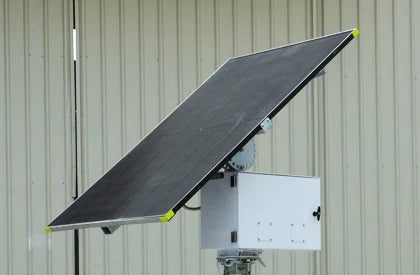

Solar Panel

* 450W Power
* Double - Sided Monocrystalline
* Higher Power Generation
* No Power Anxiety

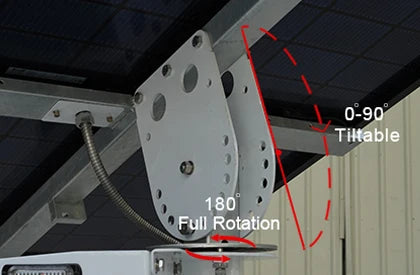

   Flexible Adjustment

* 180° Rotation & 90° Tilt
* Flexible Deployment
* Maximum Sunshine Exposure

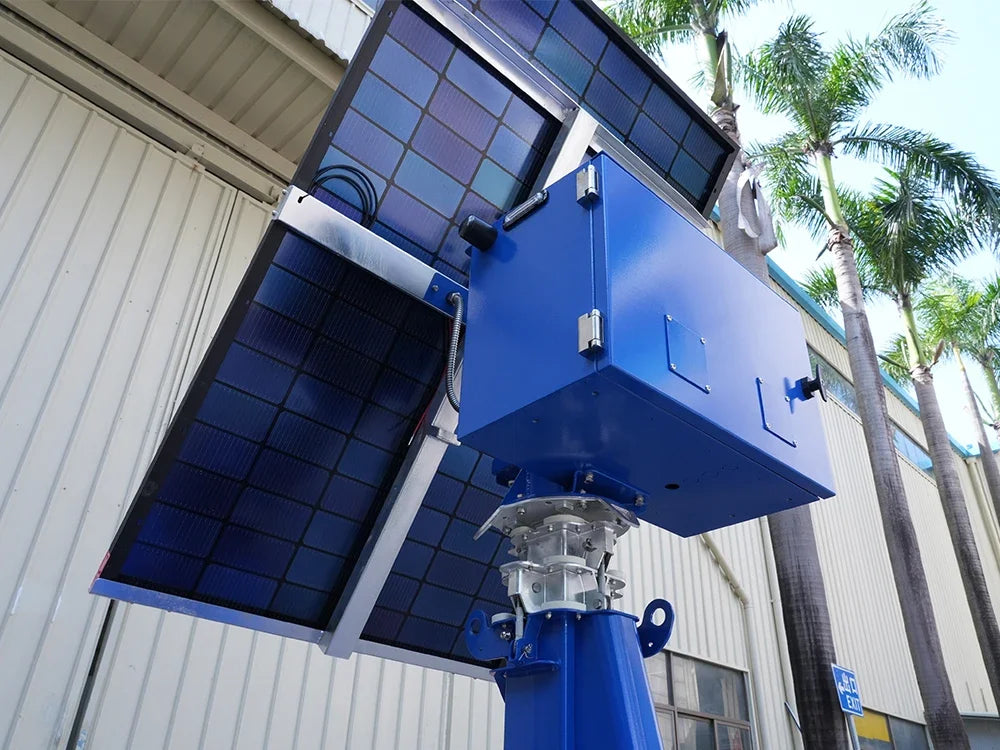

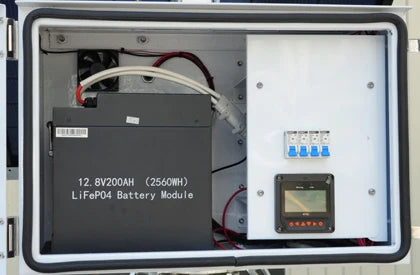

CCTV Box

* 2560Wh Lithium Battery
* Integrated MPPT Controller
* Optional AC input
* Temperature - Controlled Cooling Fan

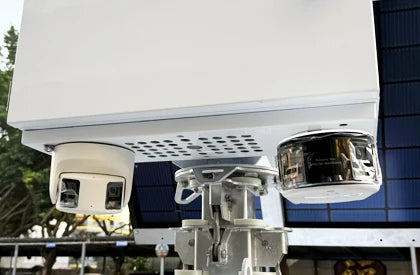

   Camera Mounting Plate

* Front/Rear/Bottom Mounts

* Quick Installation
* DC 24V/48V Output

Telescopic Mast

* 4m Height
* Hot - Dip Galvanized (Anti - Rust)
* Broader Vision
* Long - Term Outdoor Use

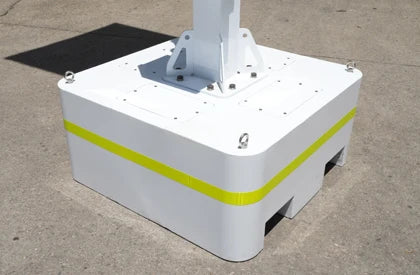

   Forklift Base

* Forklift Base for Easy Moving
* 4 Lifting Rings for Hoisting
* Hollow Base for Sand/Gravel Filling
* Hot - Dip Galvanized (Anti - Rust)

Product Name	HiGUARD Solar Surveillance Tower
Solar Panel	1 × 450W
Panel Adjustment	90°tiltable, 180°rotatable
MPPT Controller	EPEVER/VICTRON
Battery	2560Wh, 1 × 200Ah DC12.8V
Power Output	DC12V/24V/48V
Mast & Height	4 Sections, 4M, Hot-Dip Galvanized
Mast Lifting	Manual Winch
Outriggers	Optional
Base	Hollow,Metal, Hot-Dip Galvanized
Lifting Ring	4 ×
Optional Accessories	AC Charger, 4G Router, Loud Speaker, Cameras
Charging Time	4.8 hours
Running Time	72 hours on 30W

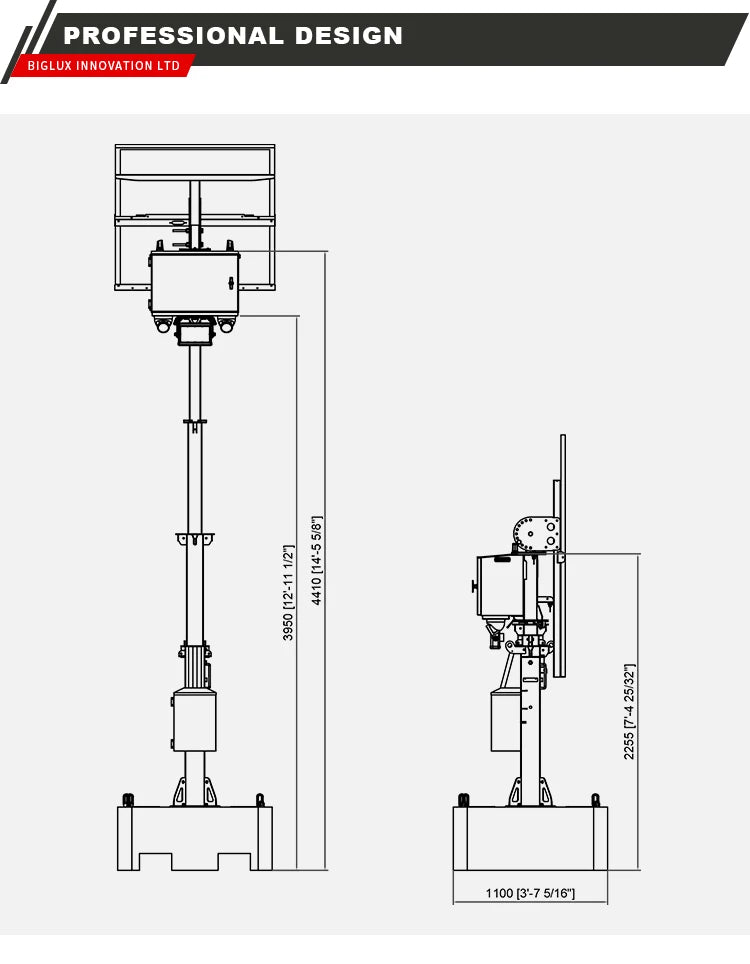

Dimension(In Transit)	1100*1100*2255mm
Dimension(On Deployment)	1100*1100*4410mm
Weight	400kgs
QTY in 20' / 40'	12 units / 26 units

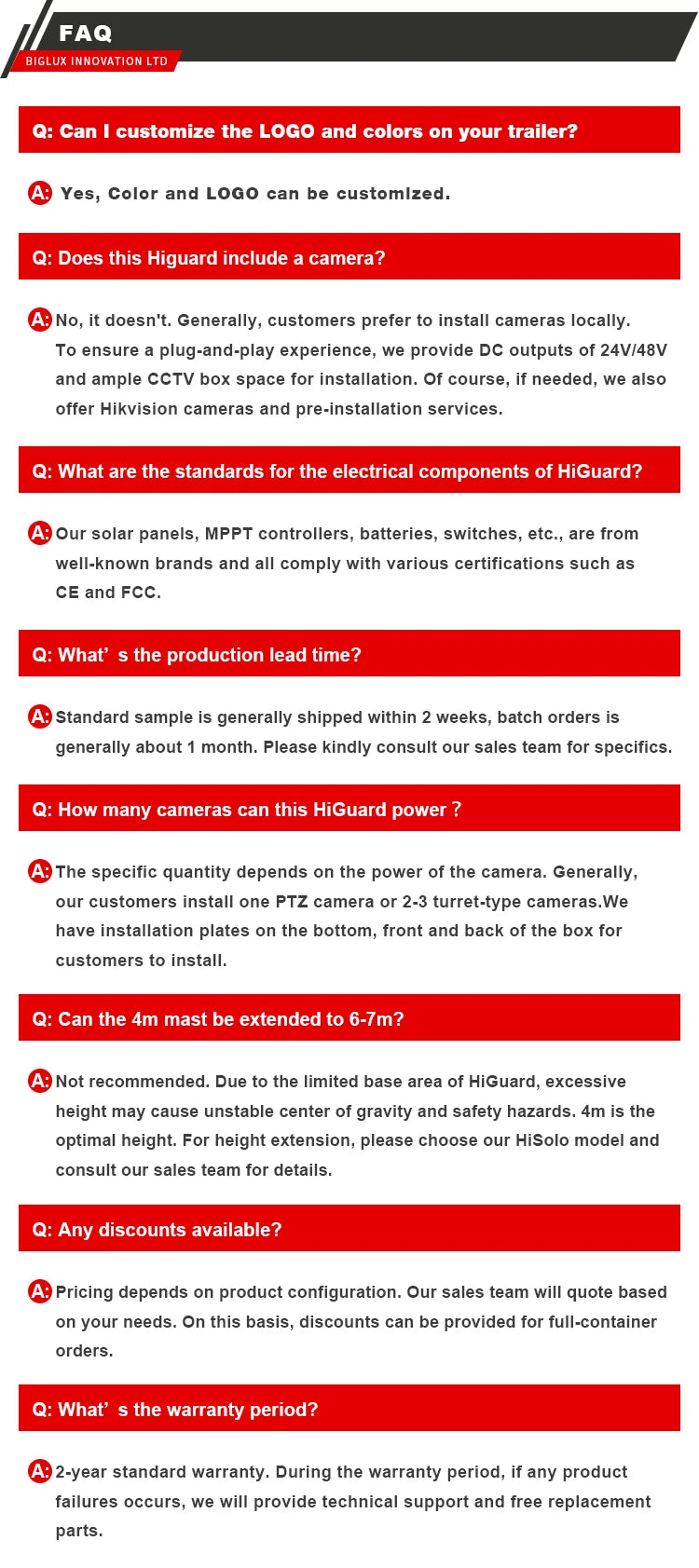

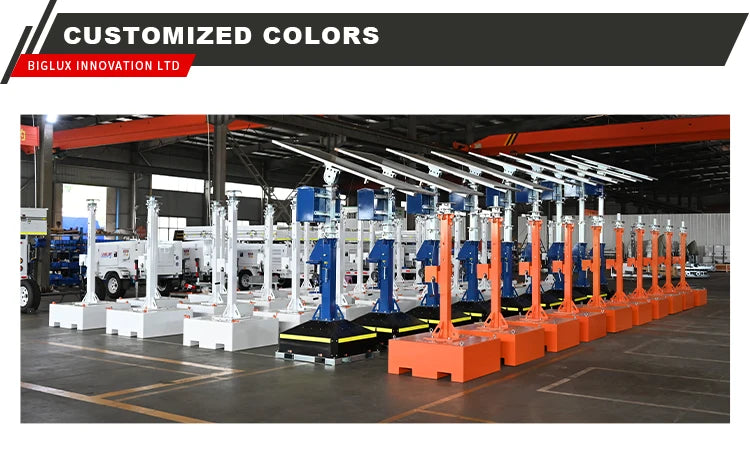

Can I customize the LOGO and colors on your trailer?

Yes, Color and LOGO can be customized.

Does this Higuard include a camera?

No, it doesn't. Generally, customers prefer to install cameras locally. To ensure a plug - and - play experience, we provide DC outputs of 24V/48V and ample CCTV box space for installation. Of course, if needed, we also offer Hikvision cameras and pre -installation services.

What are the standards for the electrical components of HiGuard?

Our solar panels, MPPT controllers, batteries, switches, etc., are from well - known brands and all comply with various
certifications such as CE and FCC.

What’s the production lead time?

Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.

How many cameras can this HiGuard power?

The specific quantity depends on the power of the camera. Generally, our customers install one PTZ camera or 2 - 3 turret - type cameras. We have installation plates on the bottom, front and back of the box for customers to install.

Can the 4m mast be extended to 6 - 7m?

Not recommended. Due to the limited base area of HiGuard, excessive height may cause unstable center of gravity and safety hazards. 4m is the optimal height. For height extension, please choose our HiSolo model and consult our sales team for details.

Any discounts available?

Pricing depends on product configuration. Our sales team will quote based on your needs. On this basis, discounts can be provided for full - container orders.

What’s the warranty period?

2 - year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
