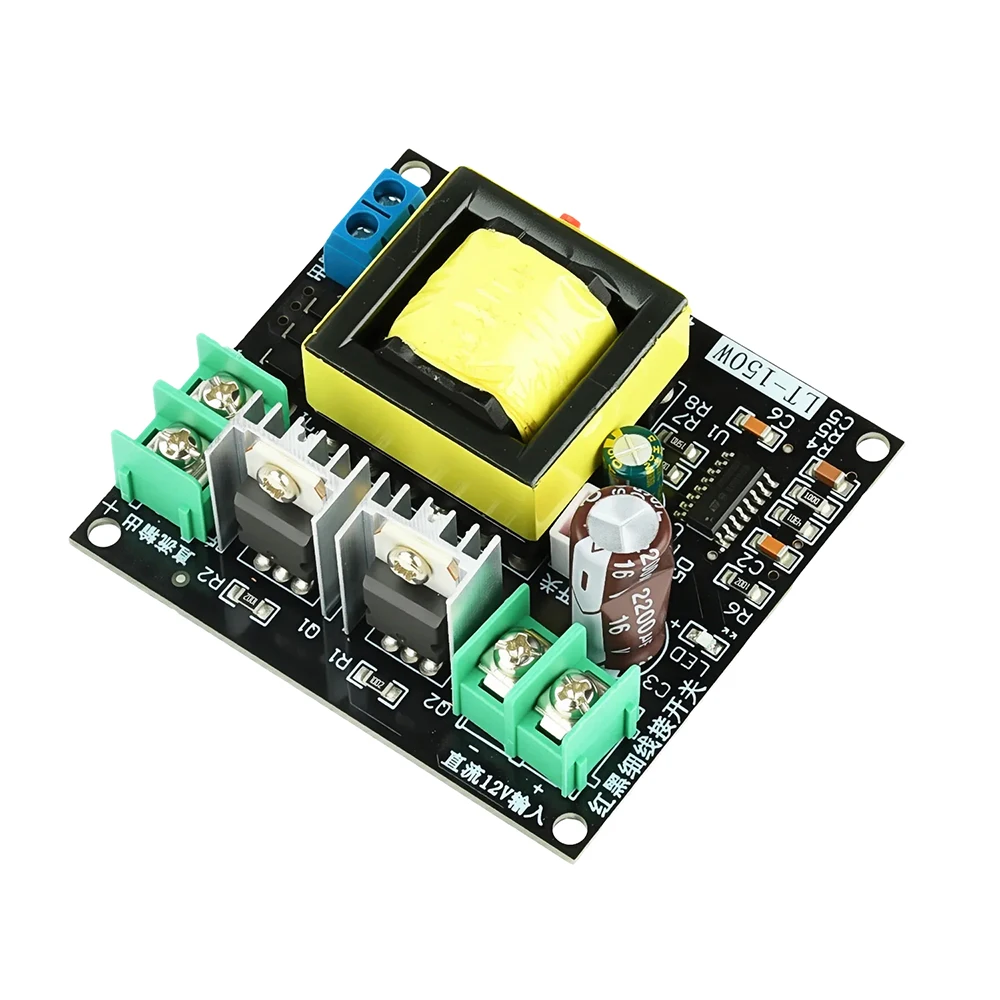

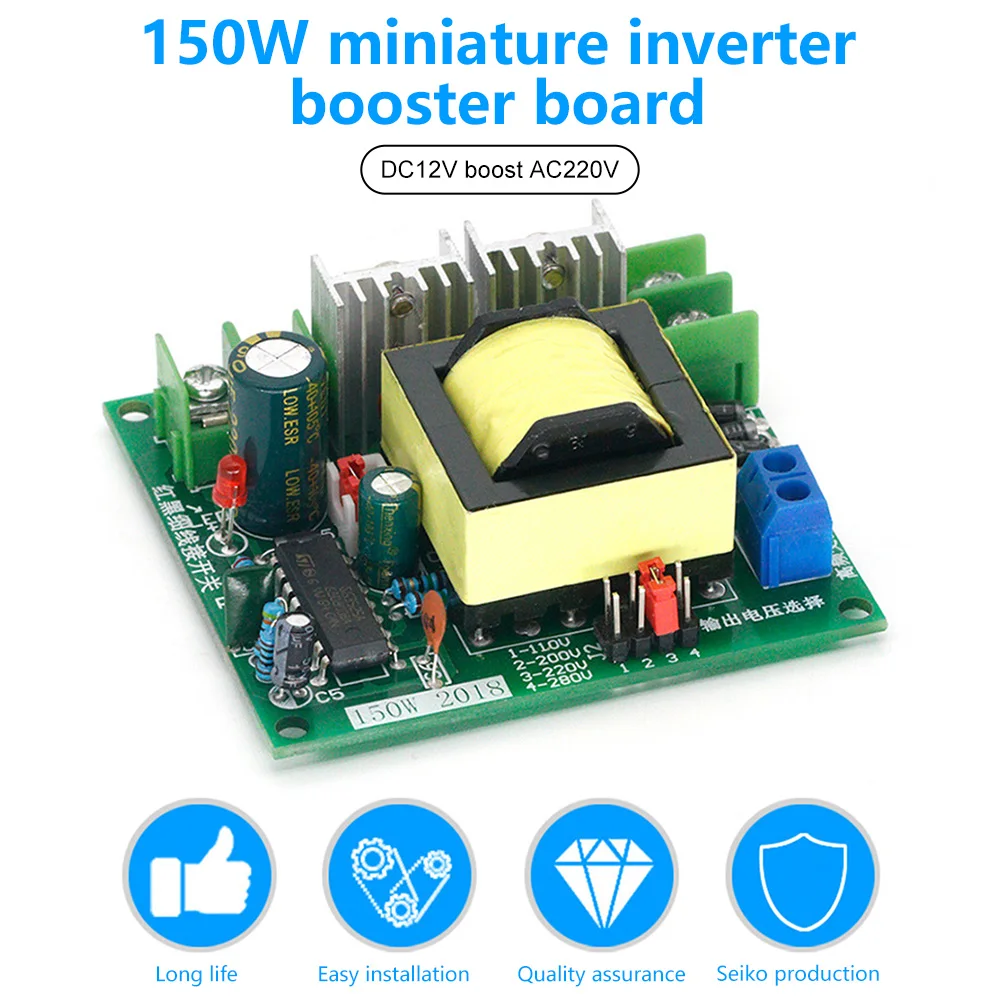

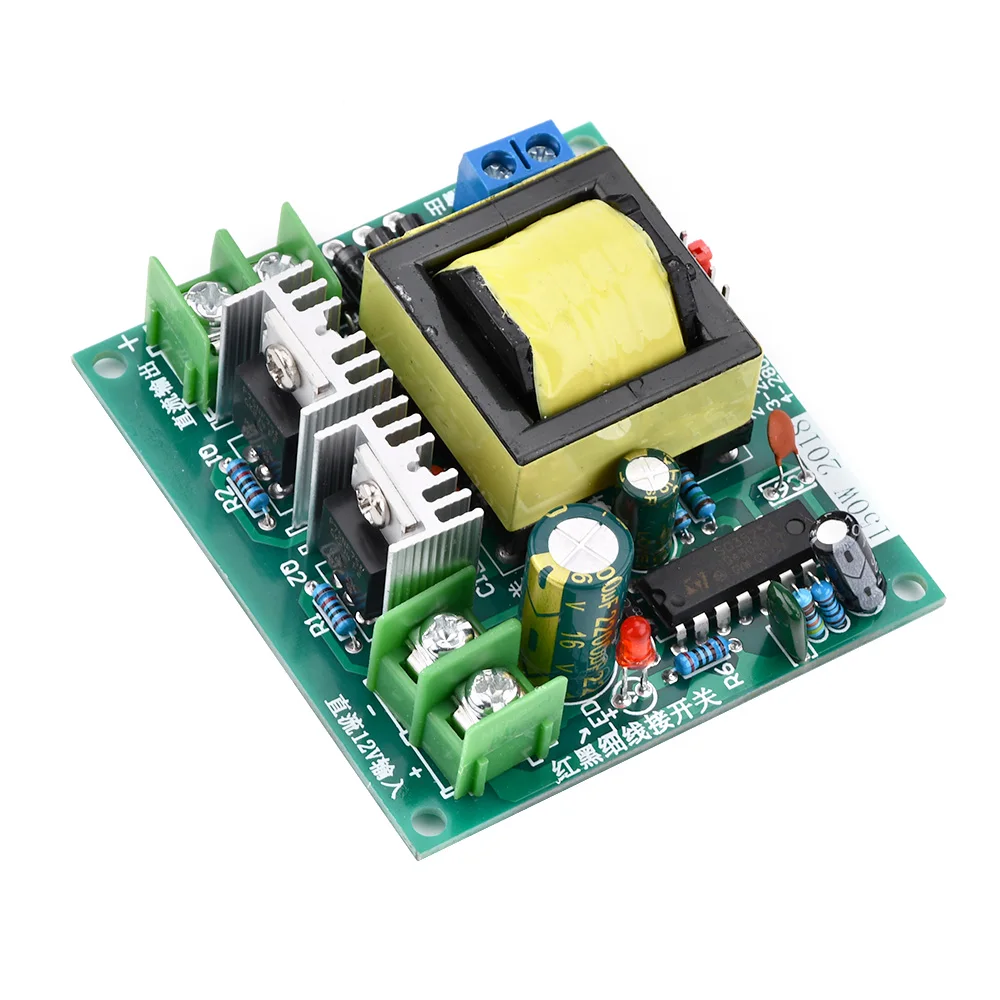

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

High-concerned chemical: None

Origin: Mainland China

Type: DC/AC Inverters

is_customized: Yes

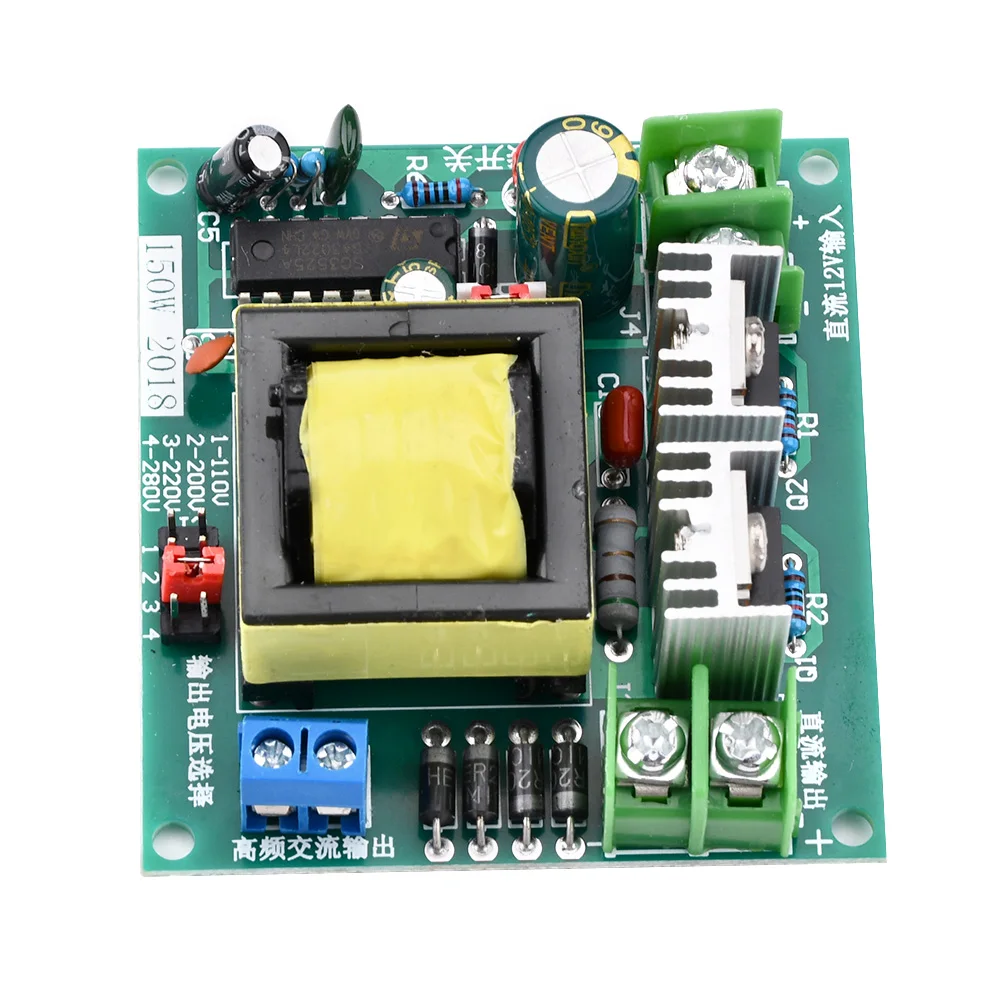

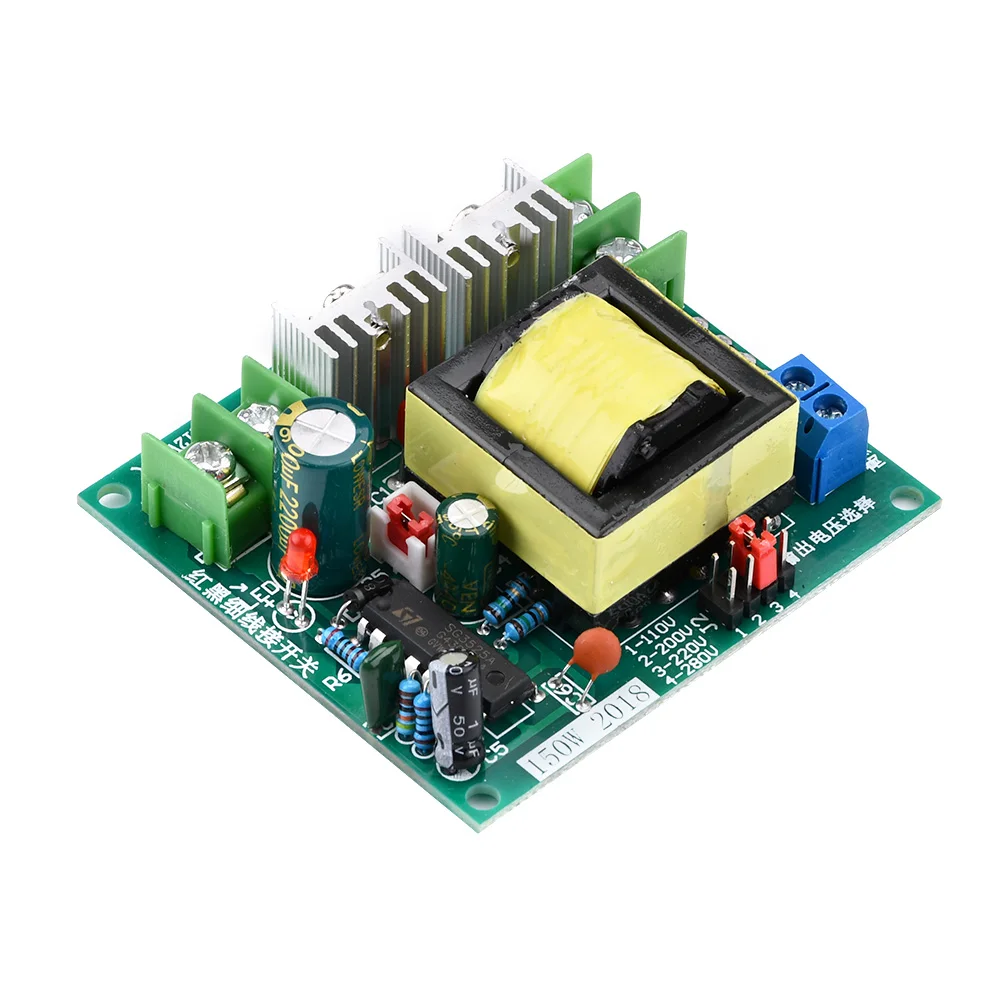

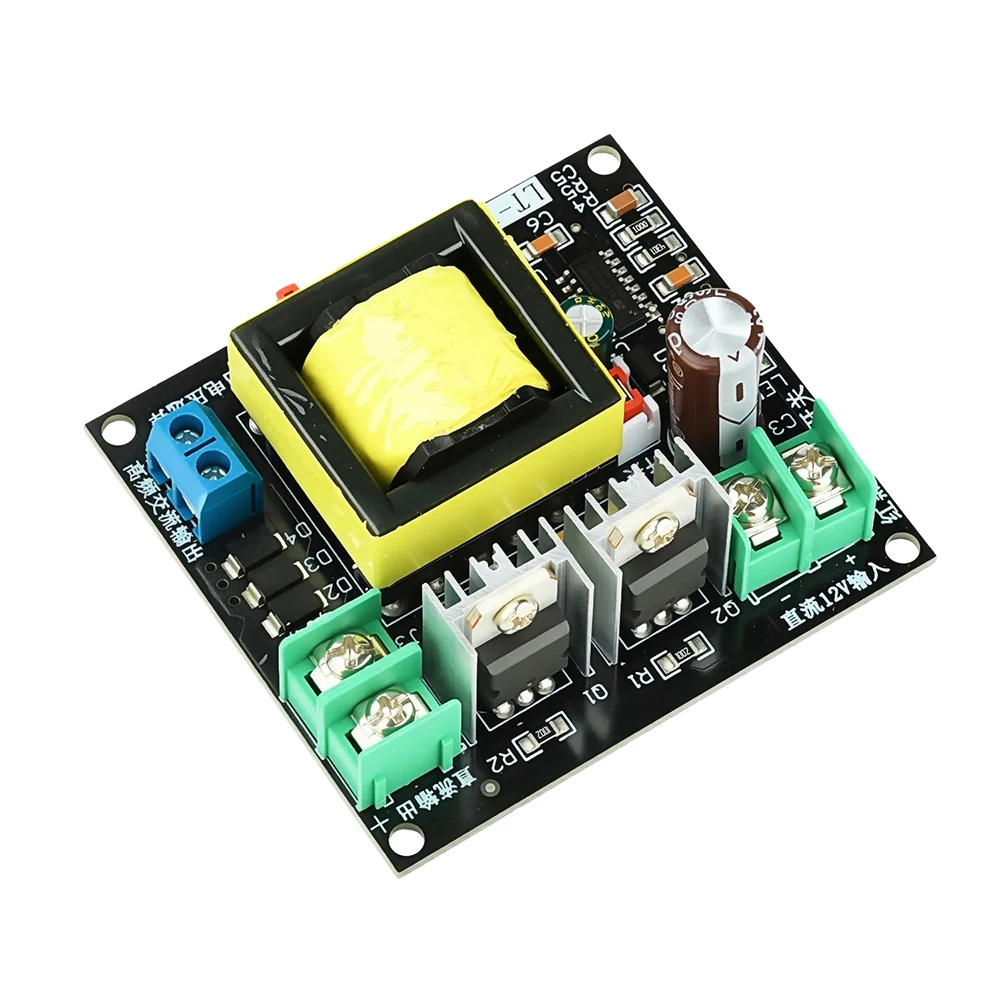

Features:

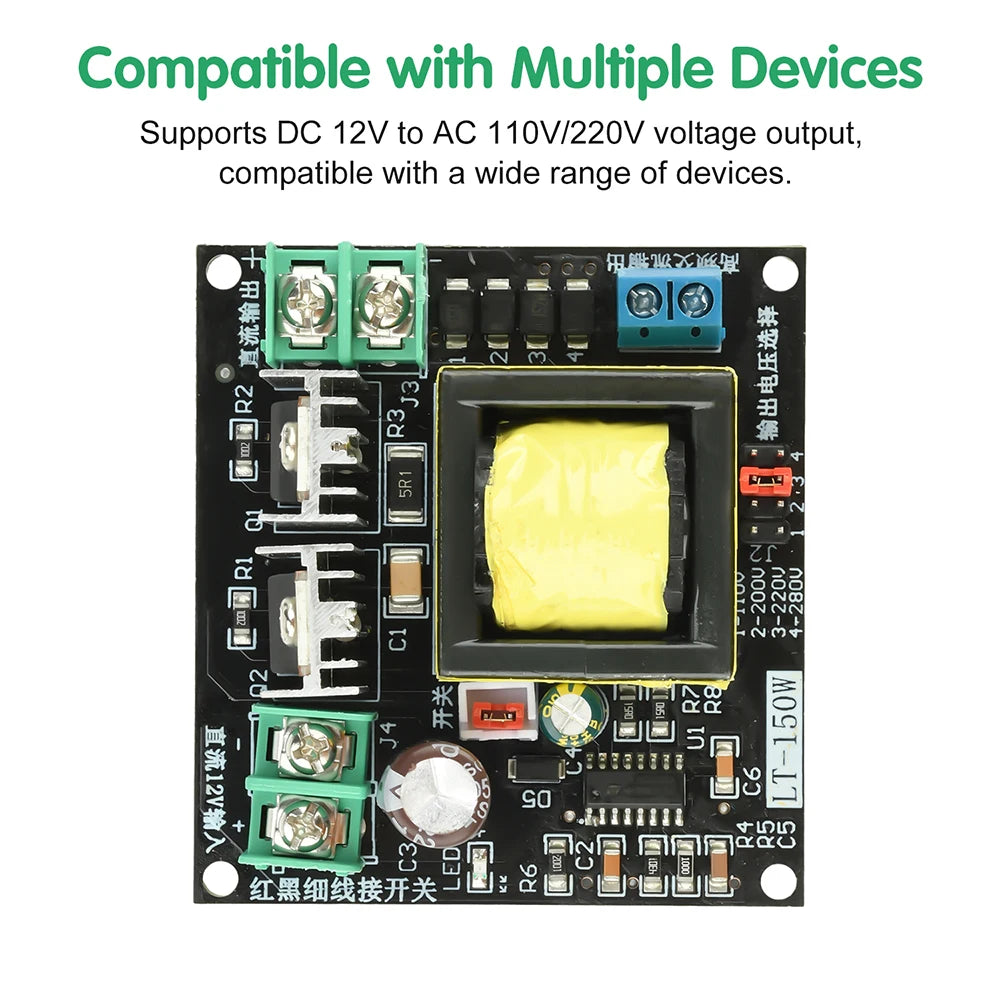

1. Supports DC12V to AC110V/220V voltage output, compatible with various devices

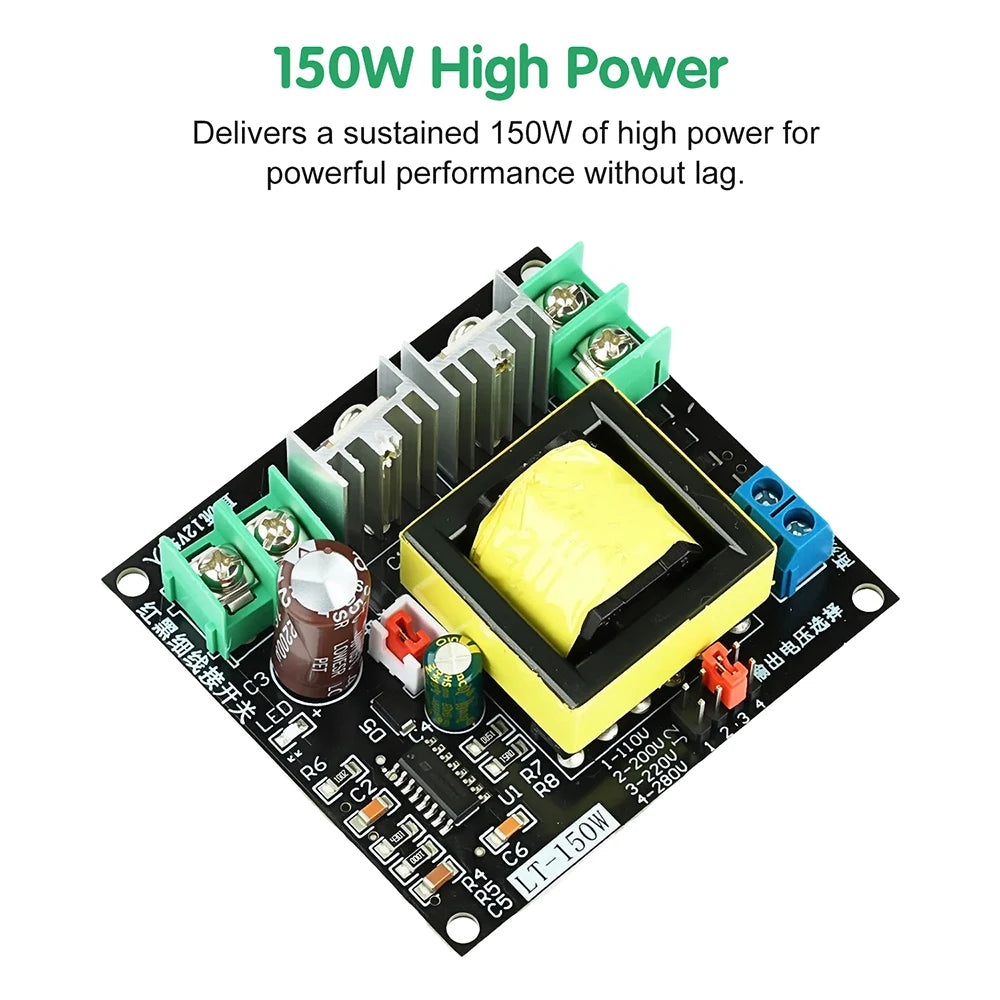

2. Continuous output of 150W high power, strong performance without lagging

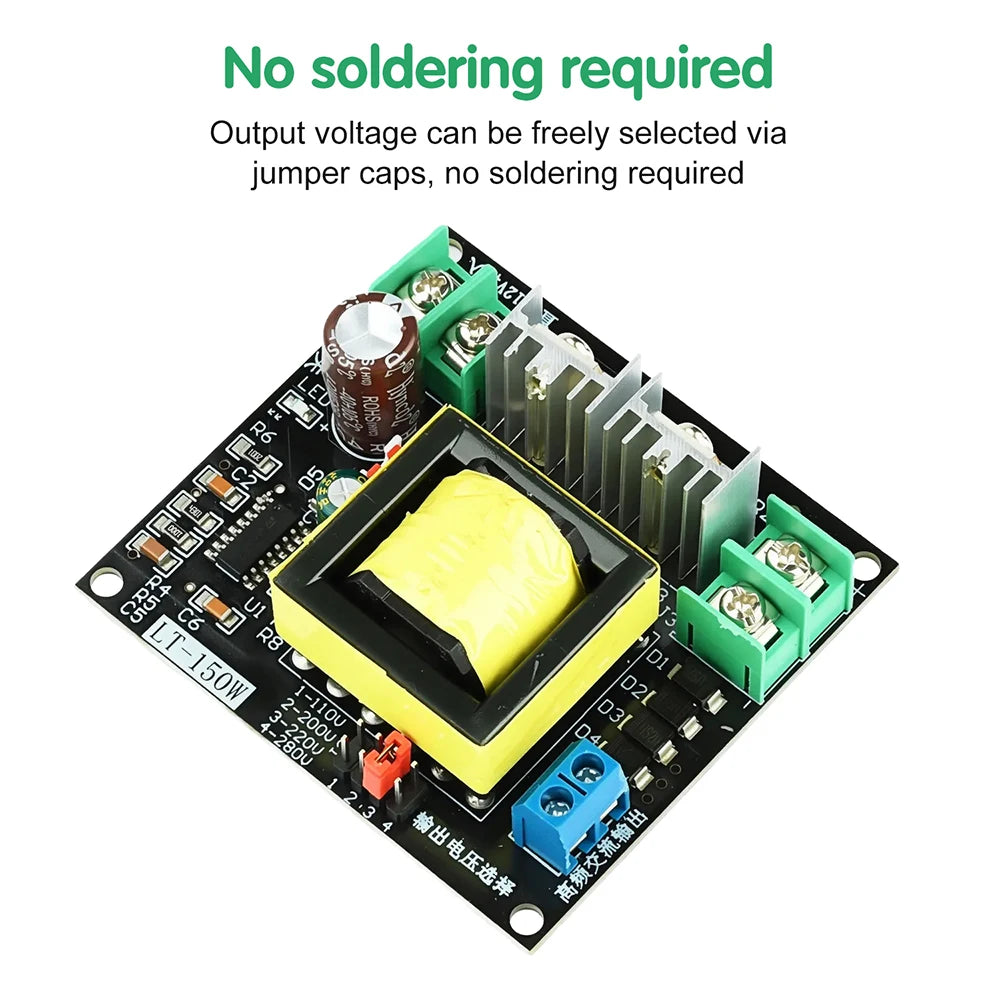

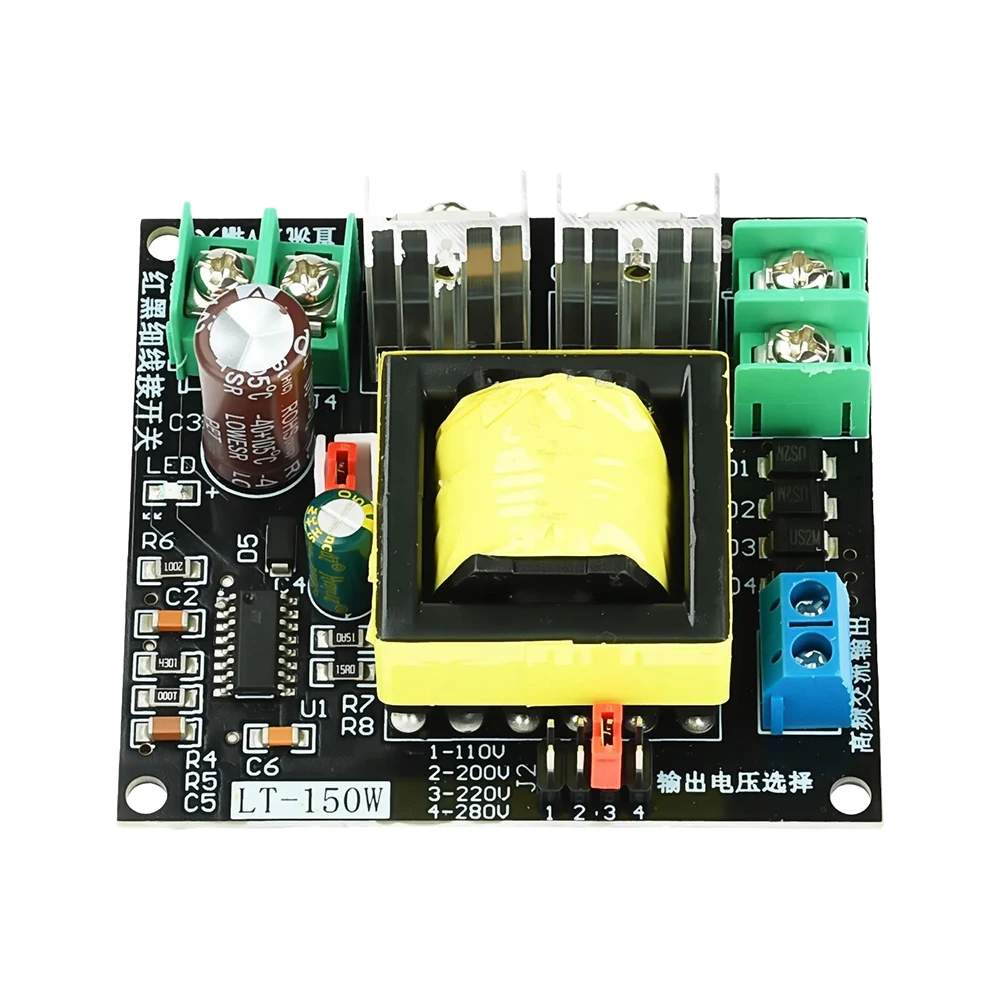

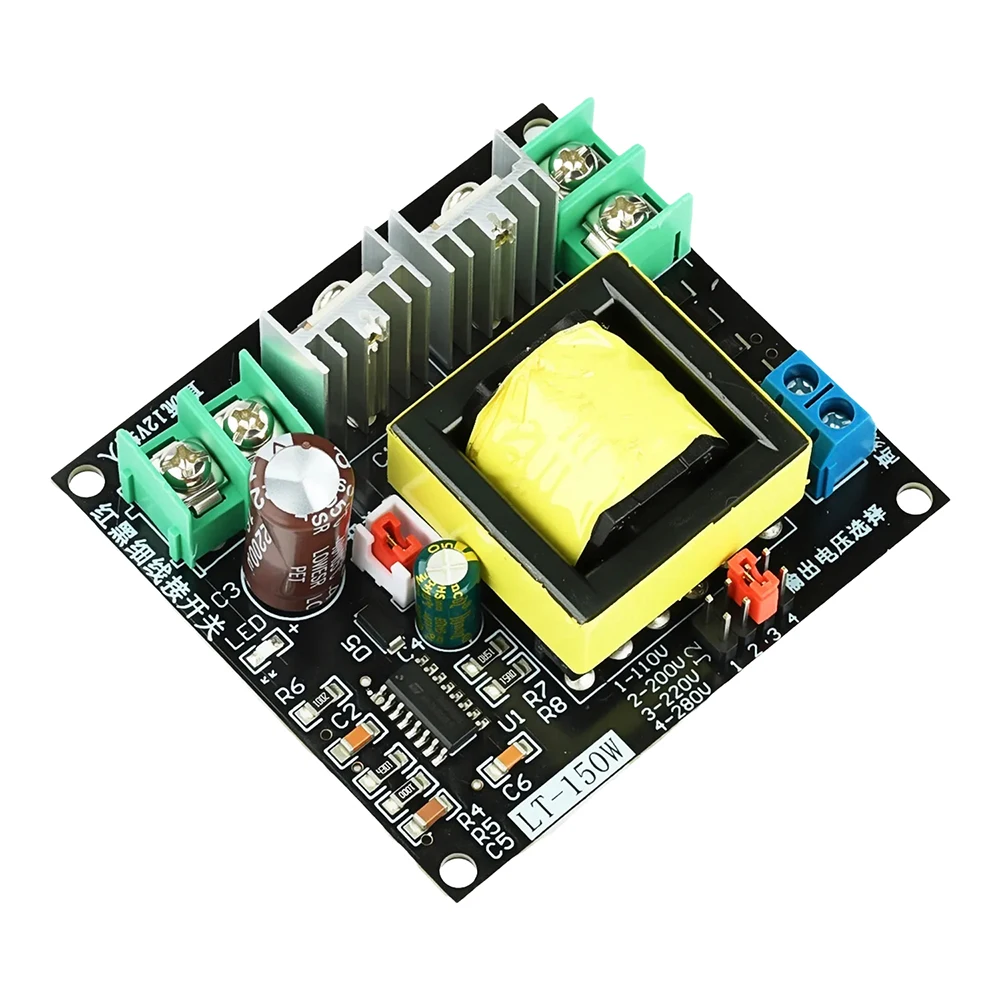

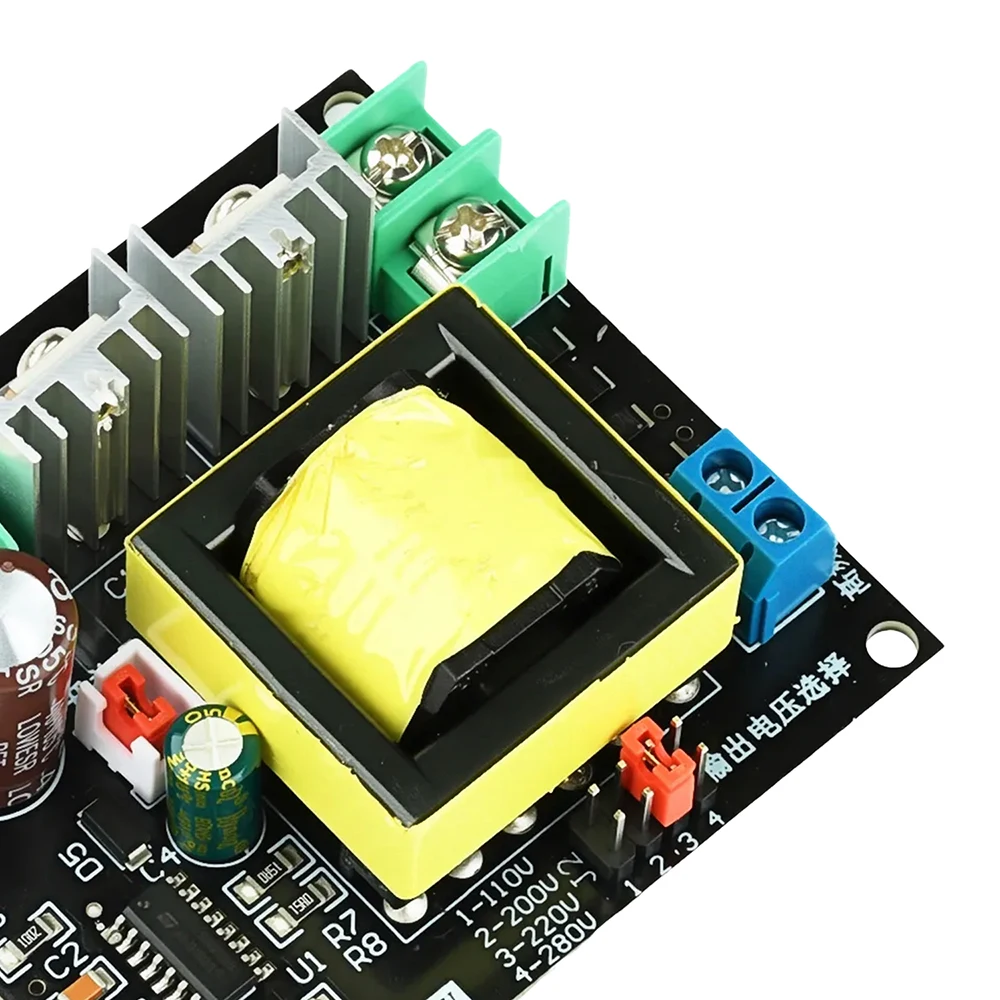

3. The output voltage can be freely selected through jumper caps without the need for welding

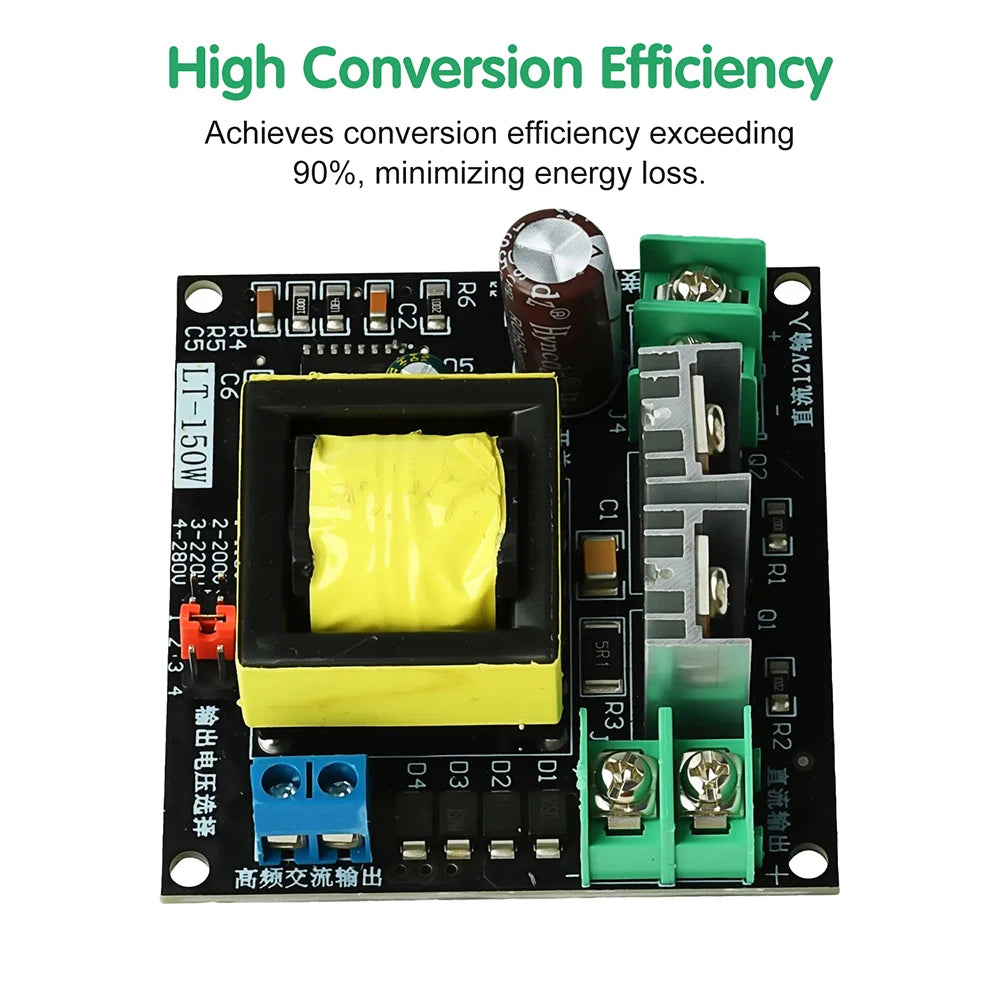

4. Conversion efficiency of over 90%, reducing energy loss

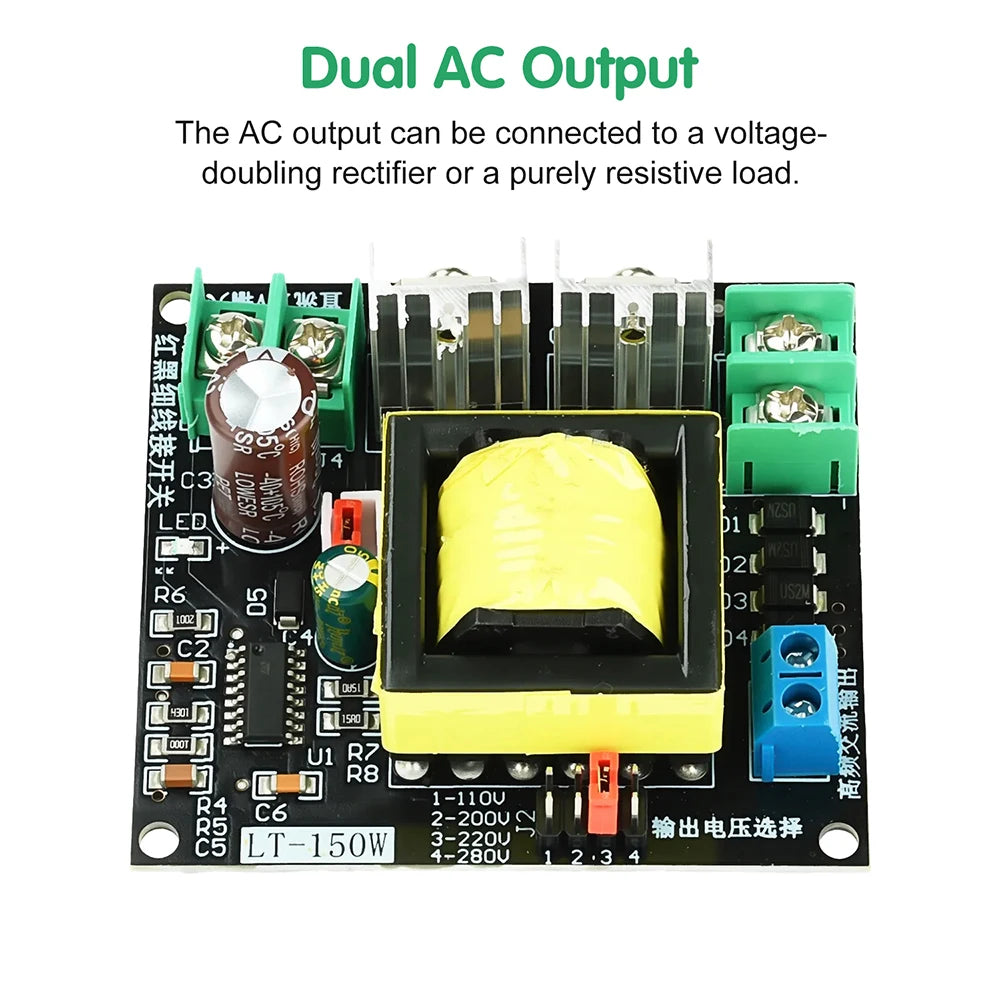

5. AC output can be connected to voltage doubling rectifier or pure resistive load

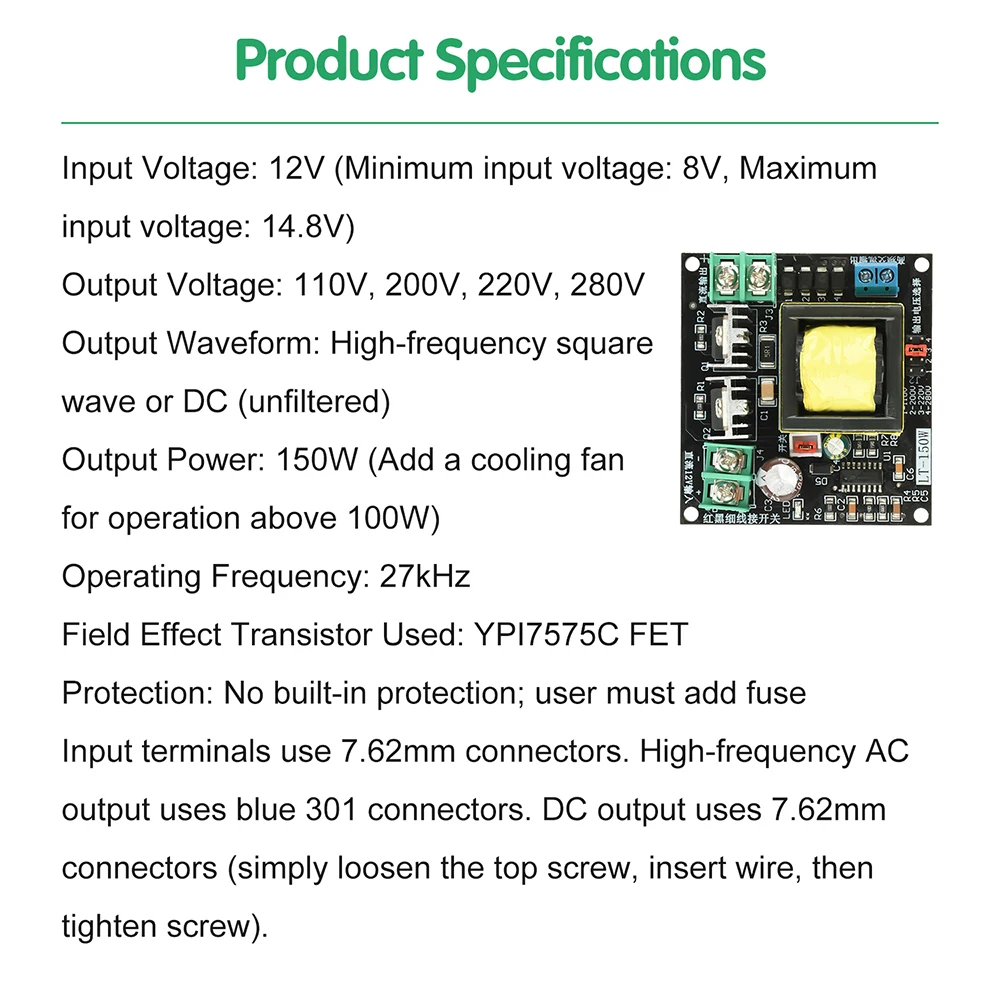

Product Parameters:

Input voltage: 12V (limited to low input voltage of 8V, limited to high input voltage of 14.8V)

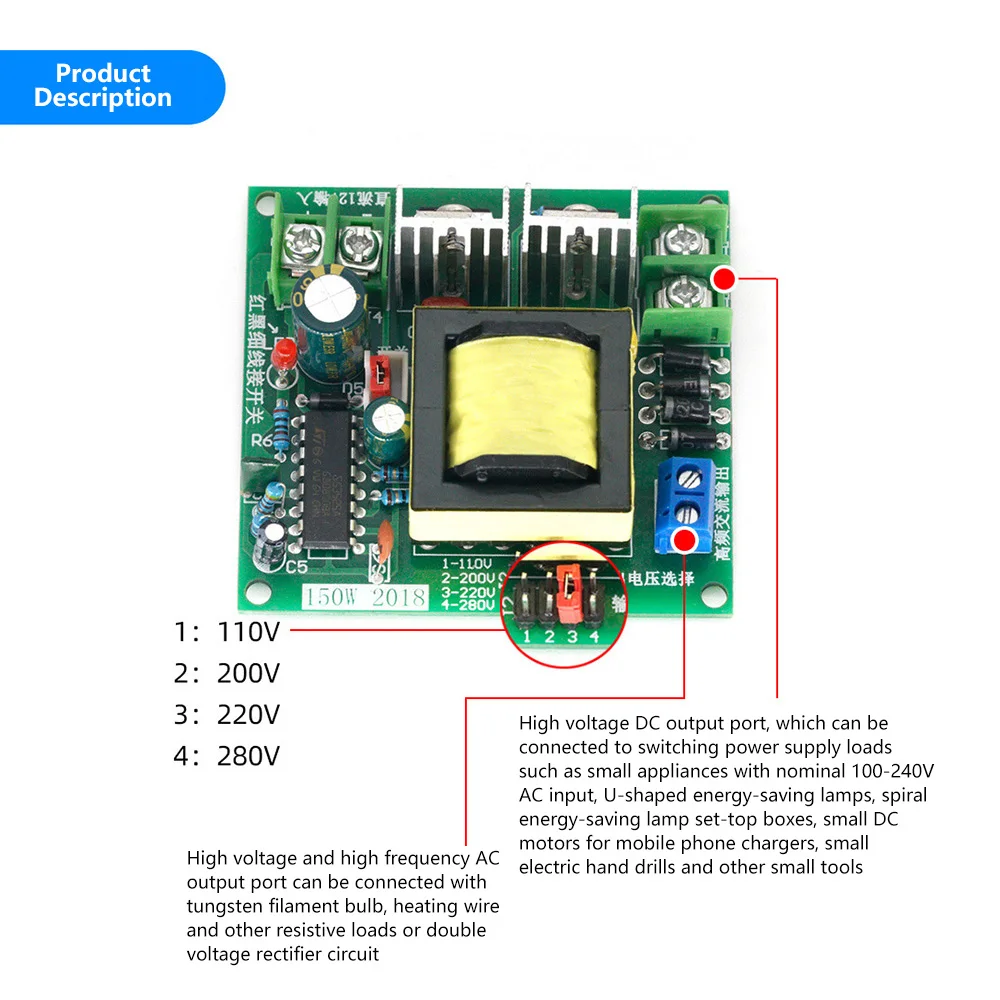

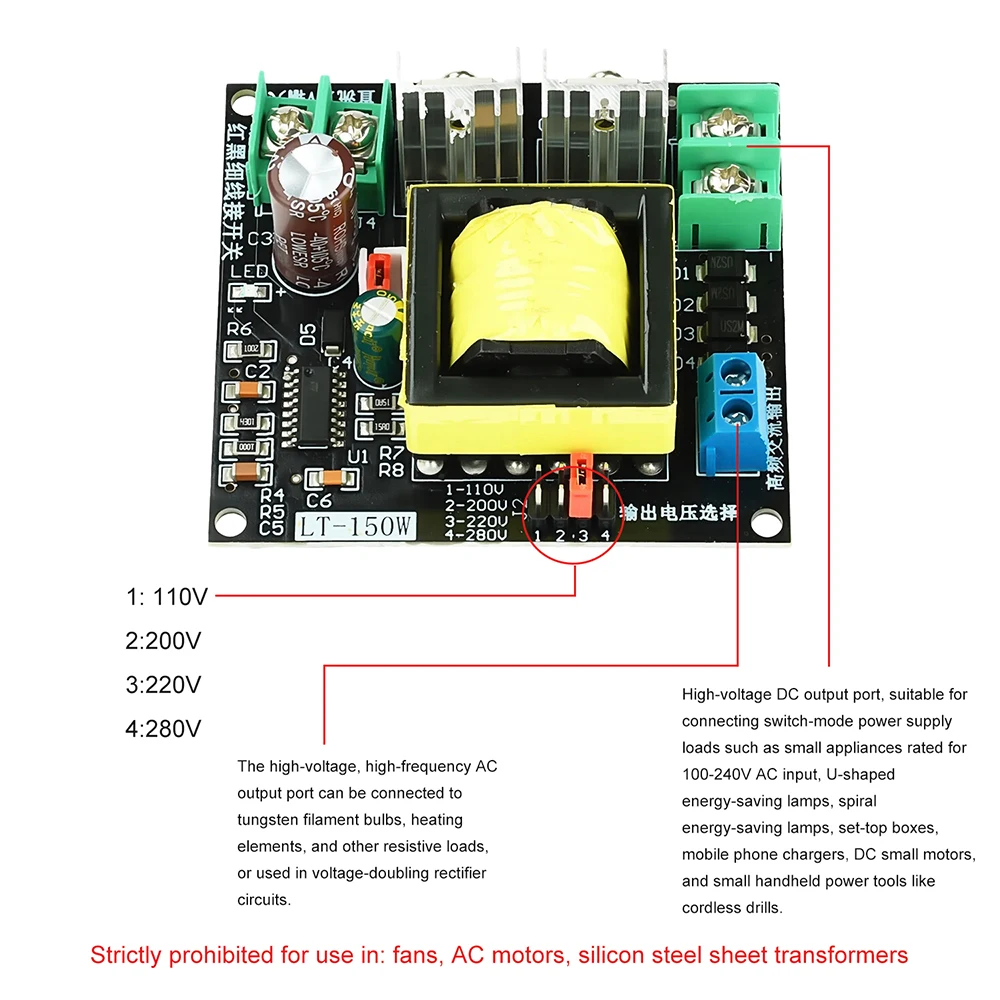

Output voltage: 110V, 200V, 220V, 280V

Output waveform: high-frequency square wave or DC (unfiltered)

Output power: 150W (please add a fan for cooling above 100W)

Working frequency: 27KHZ

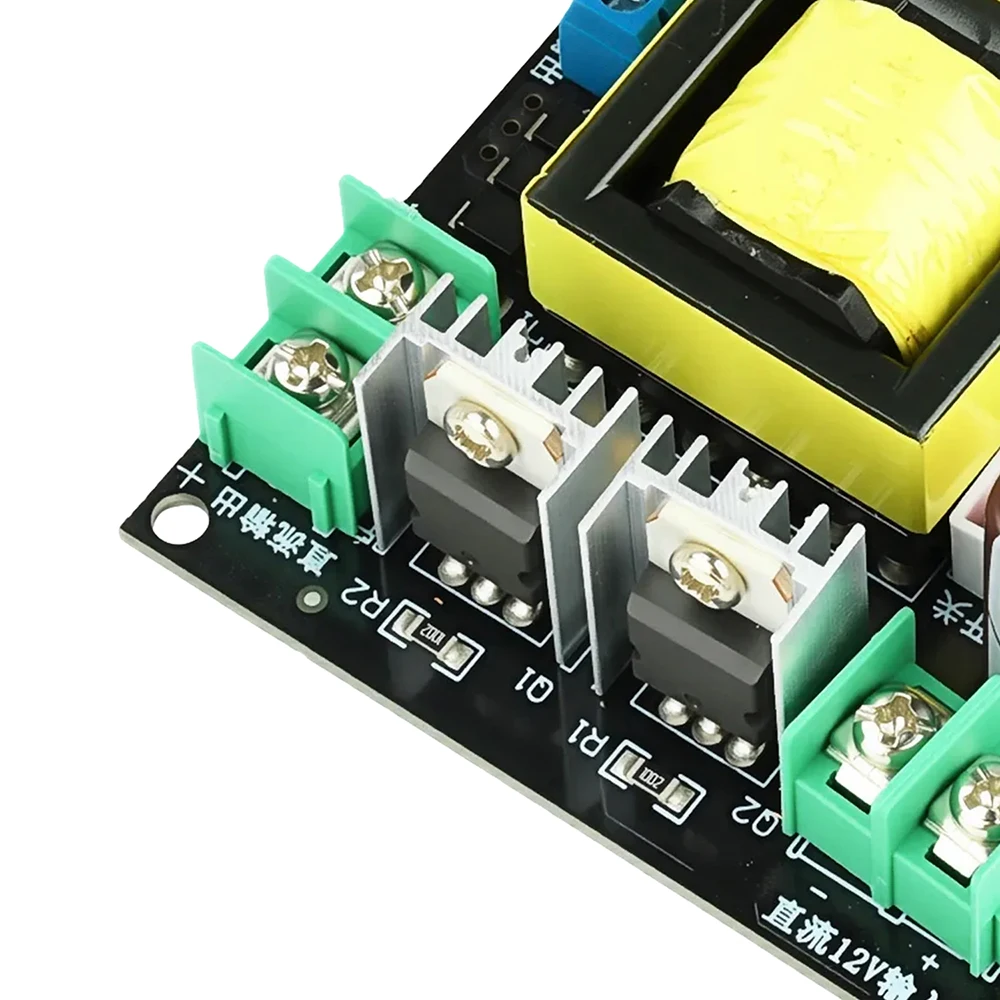

Using Field Effect Transistor: YPI7575C Field Effect Transistor

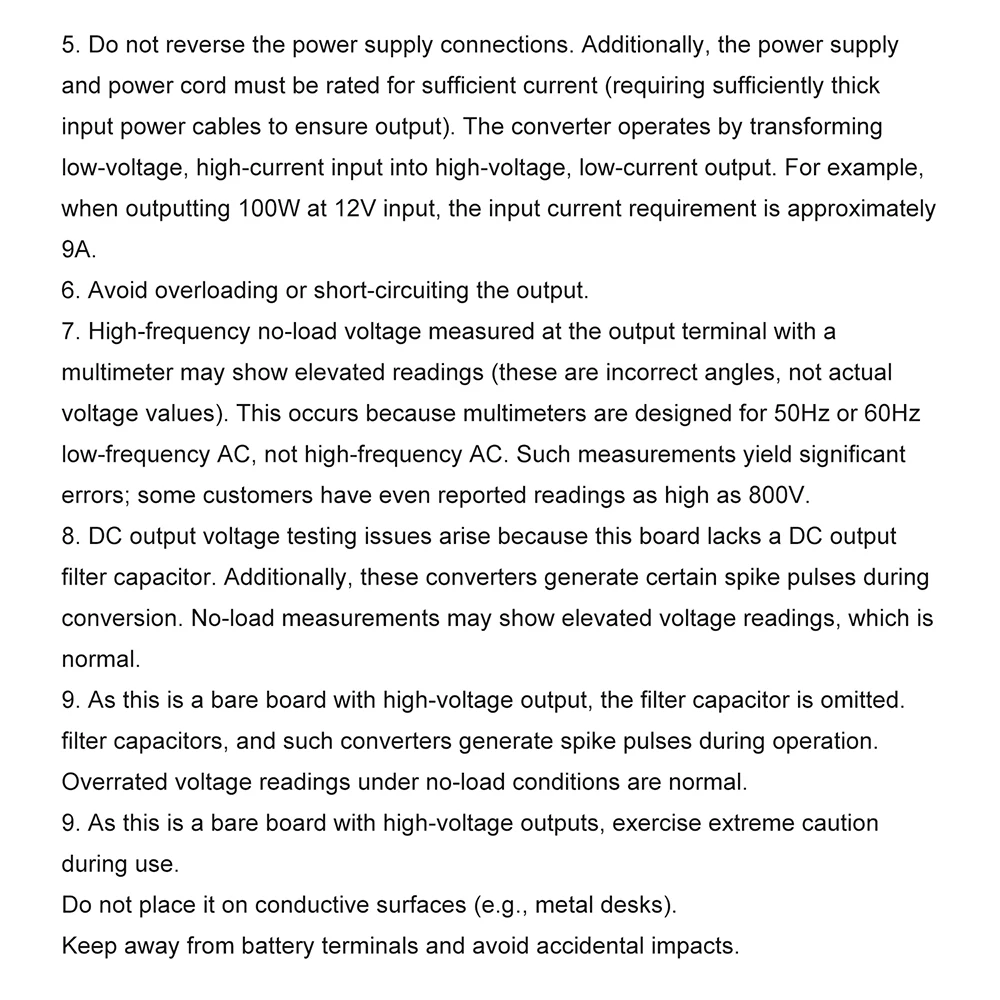

Protection: No protection at all, please add your own fuse when using

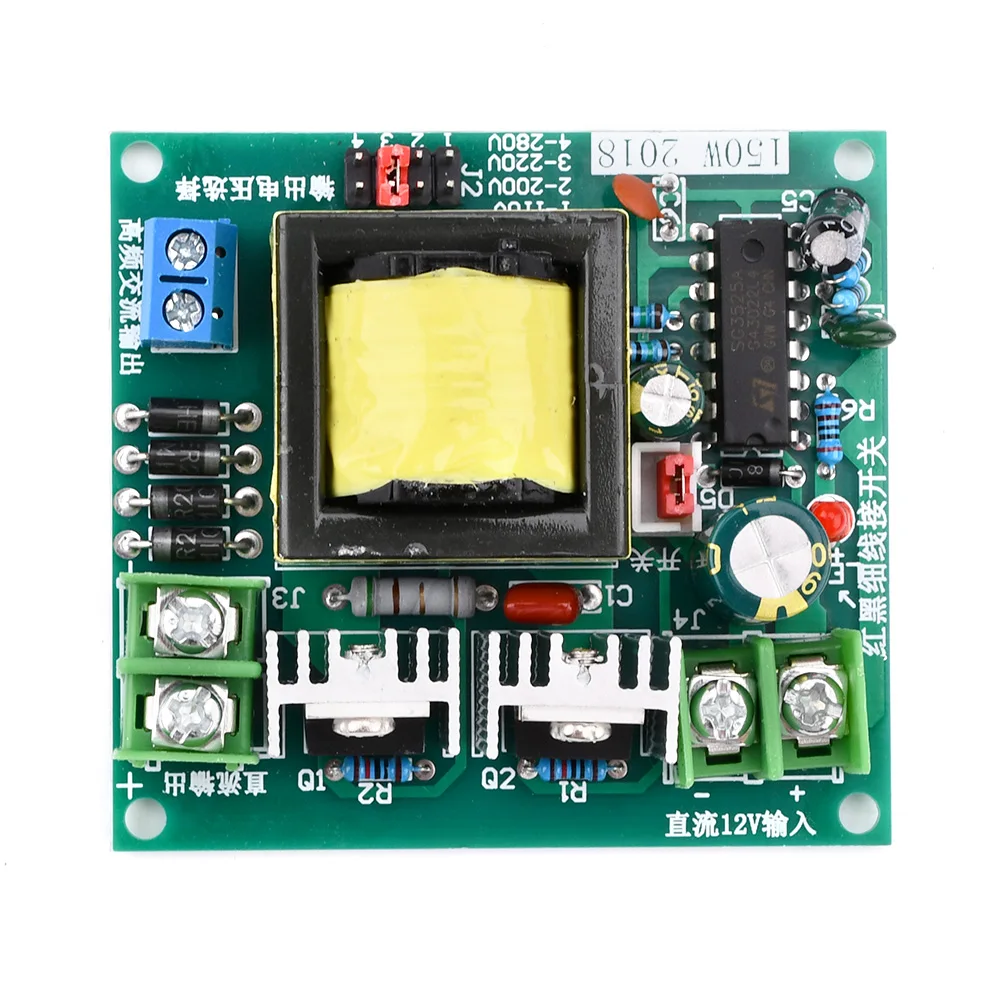

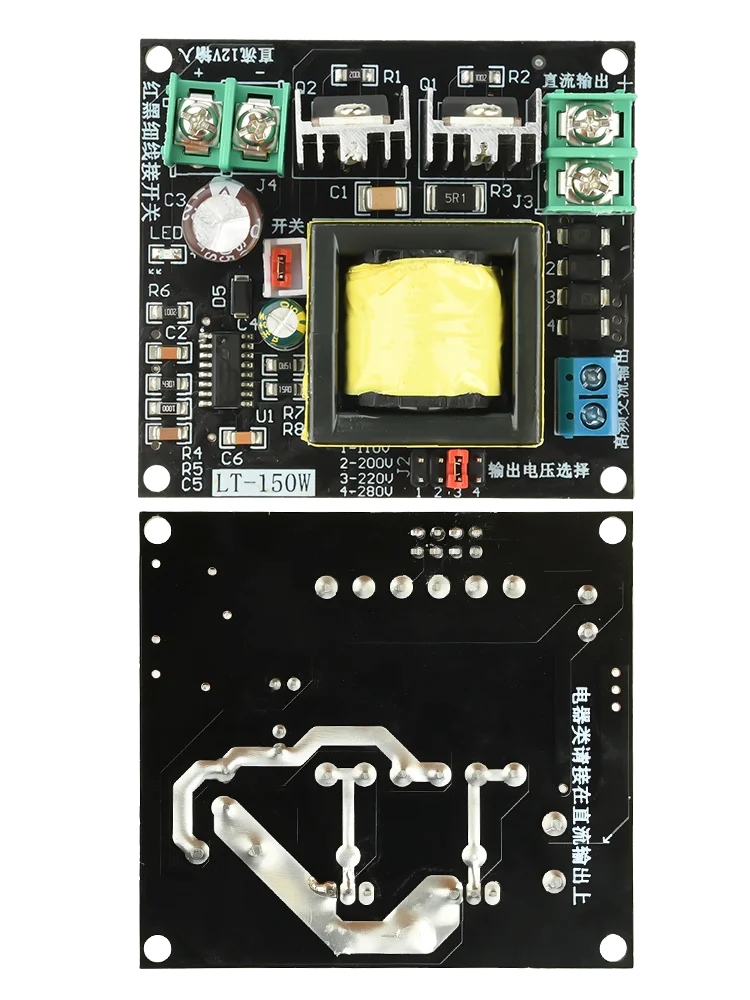

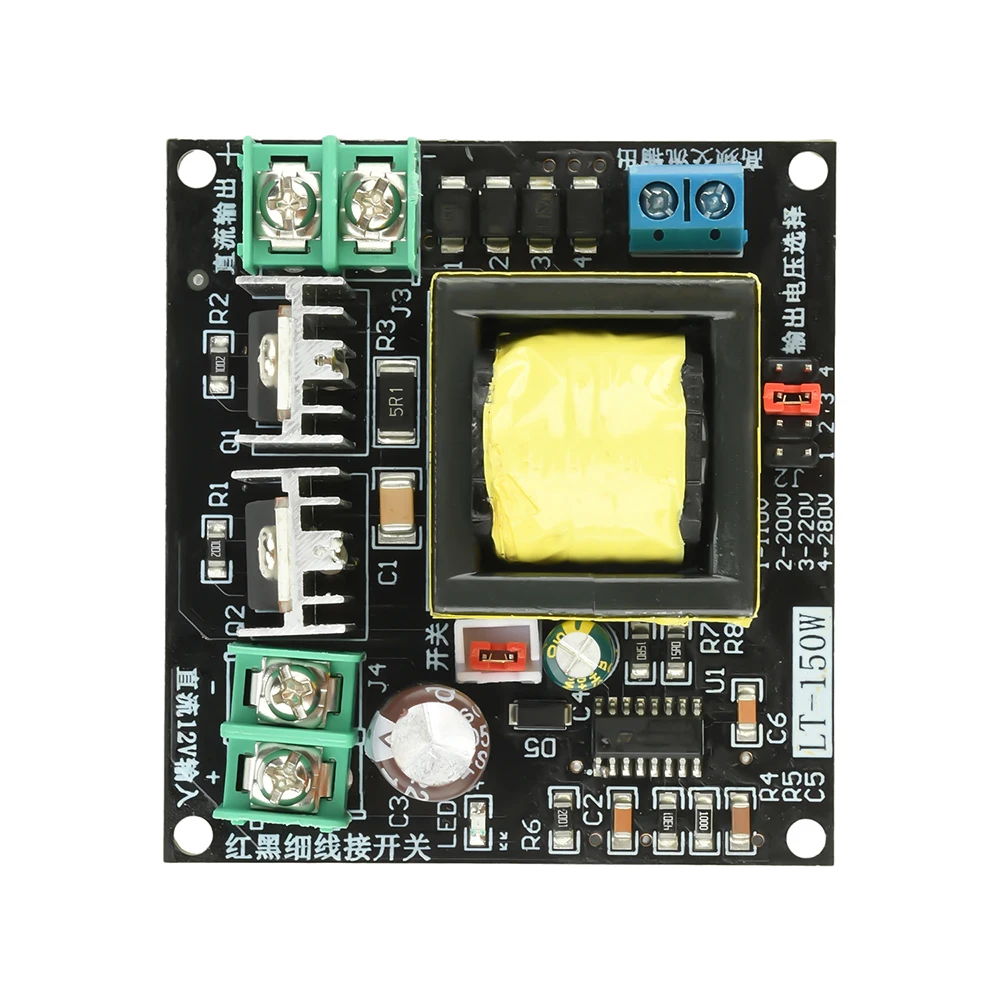

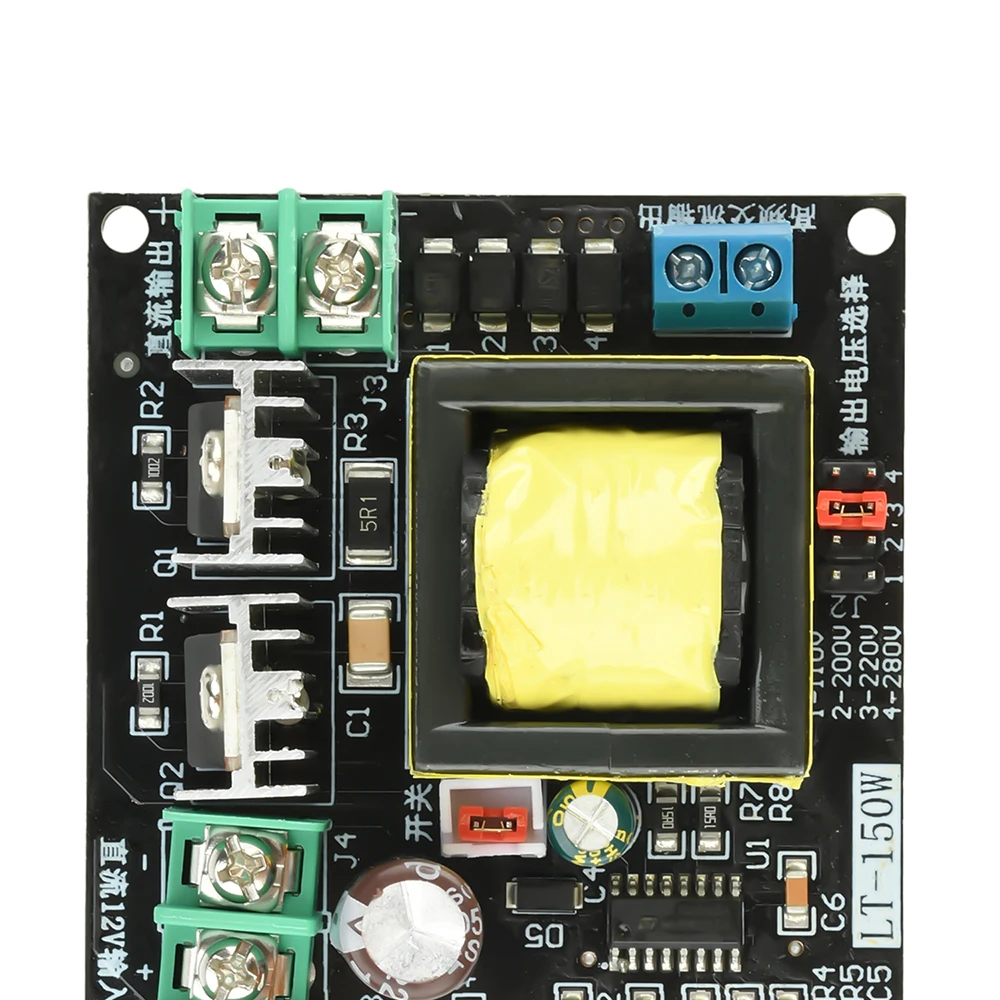

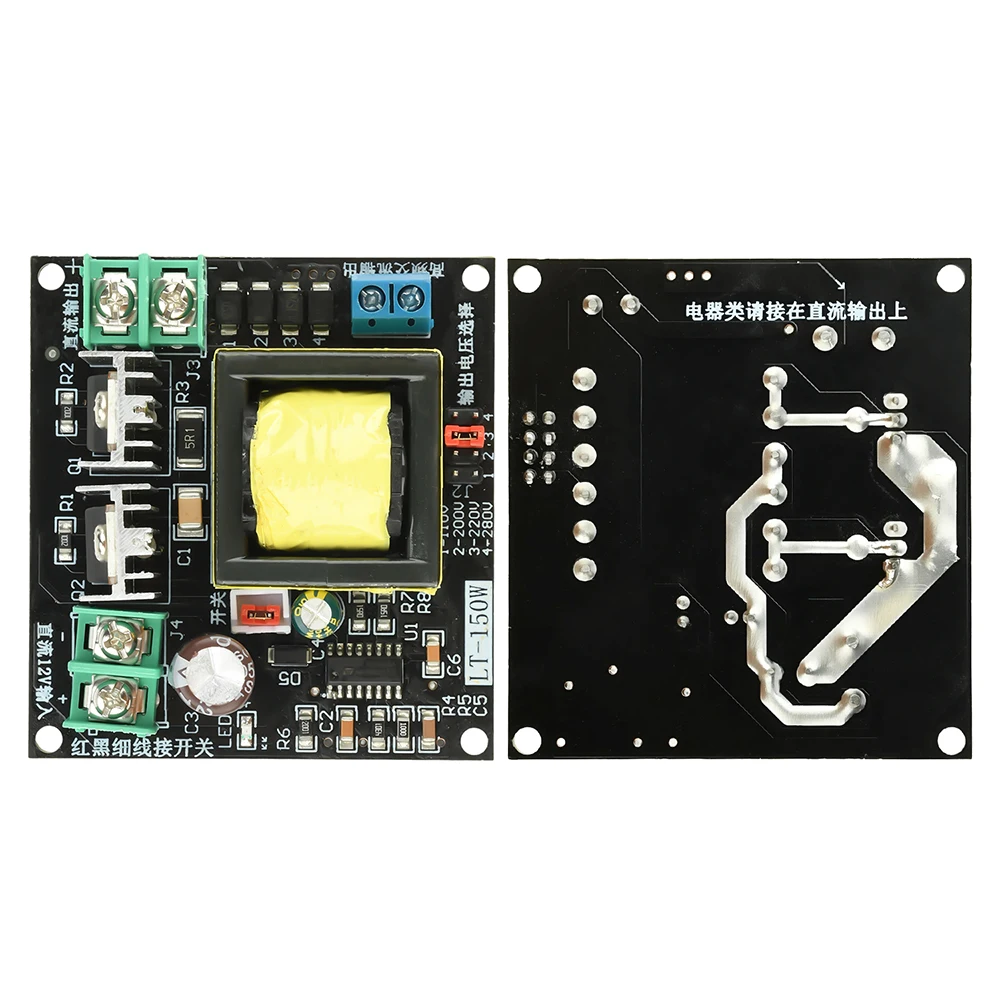

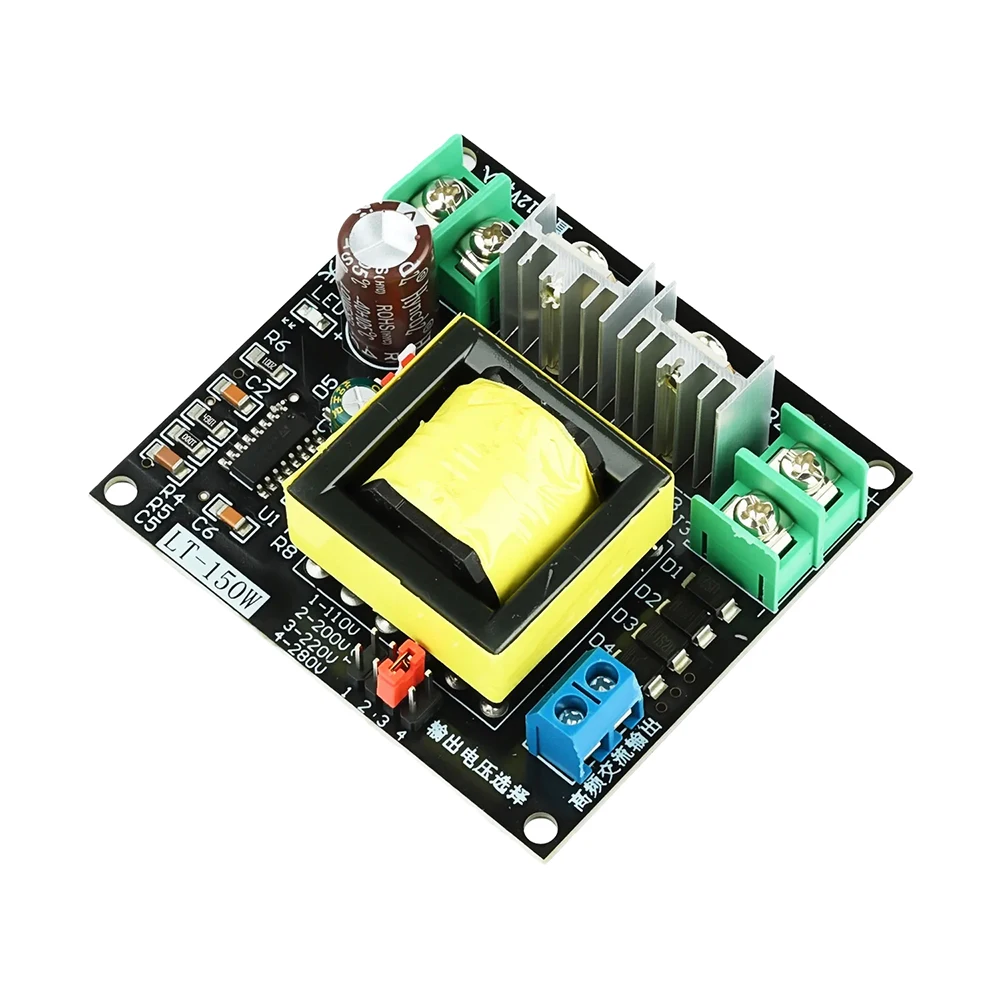

The input terminal adopts 7.62 terminal block, the high-frequency AC output adopts blue 301 terminal block, and the DC output adopts 7.62 terminal block (simply loosen the screw at the top of the terminal block, insert the wire, and tighten the screw)

Communication output: can be connected to voltage doubling rectifier or pure resistive load

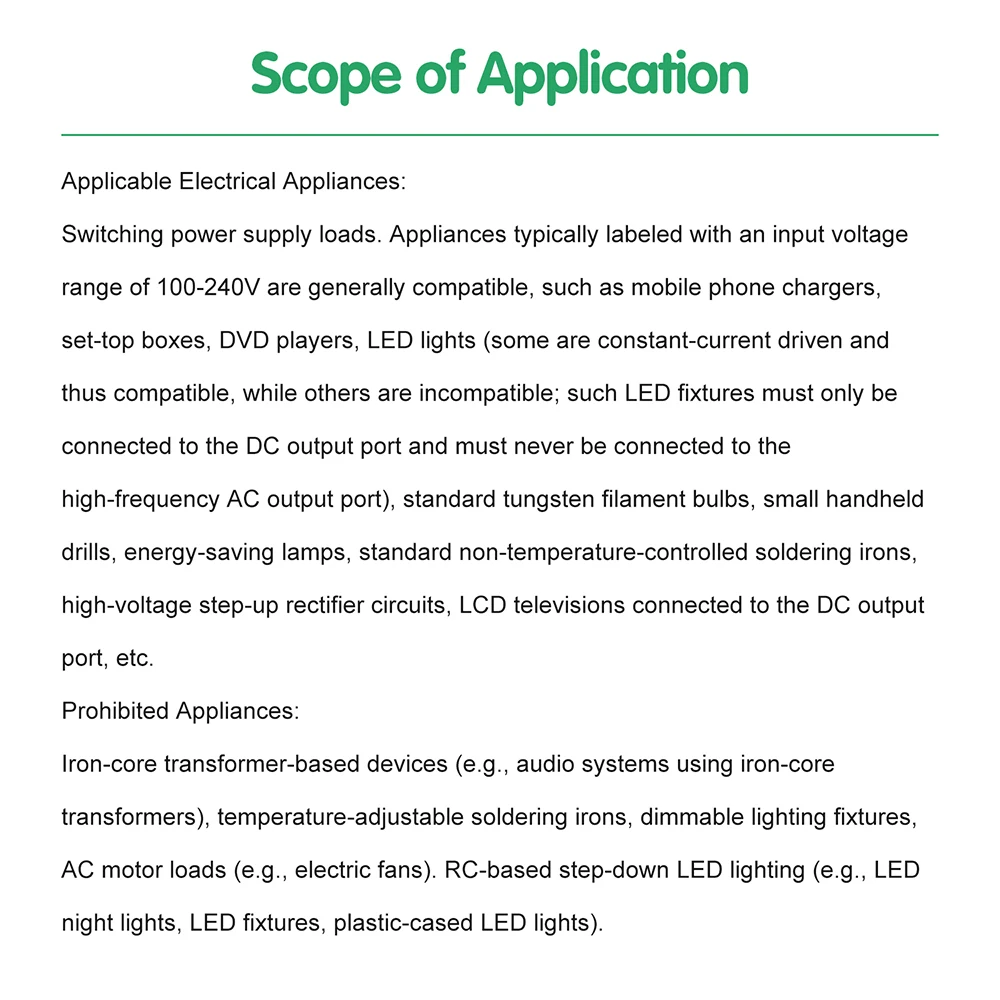

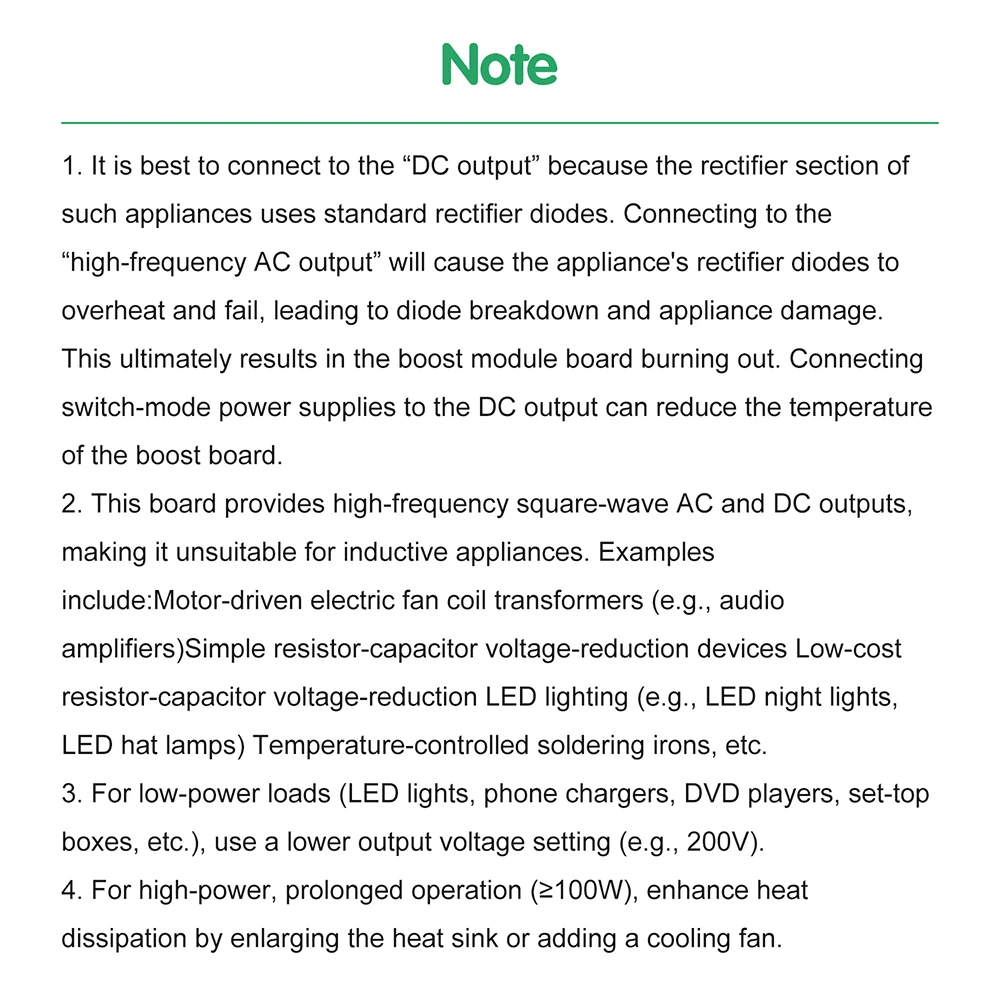

Range of available electrical appliances:

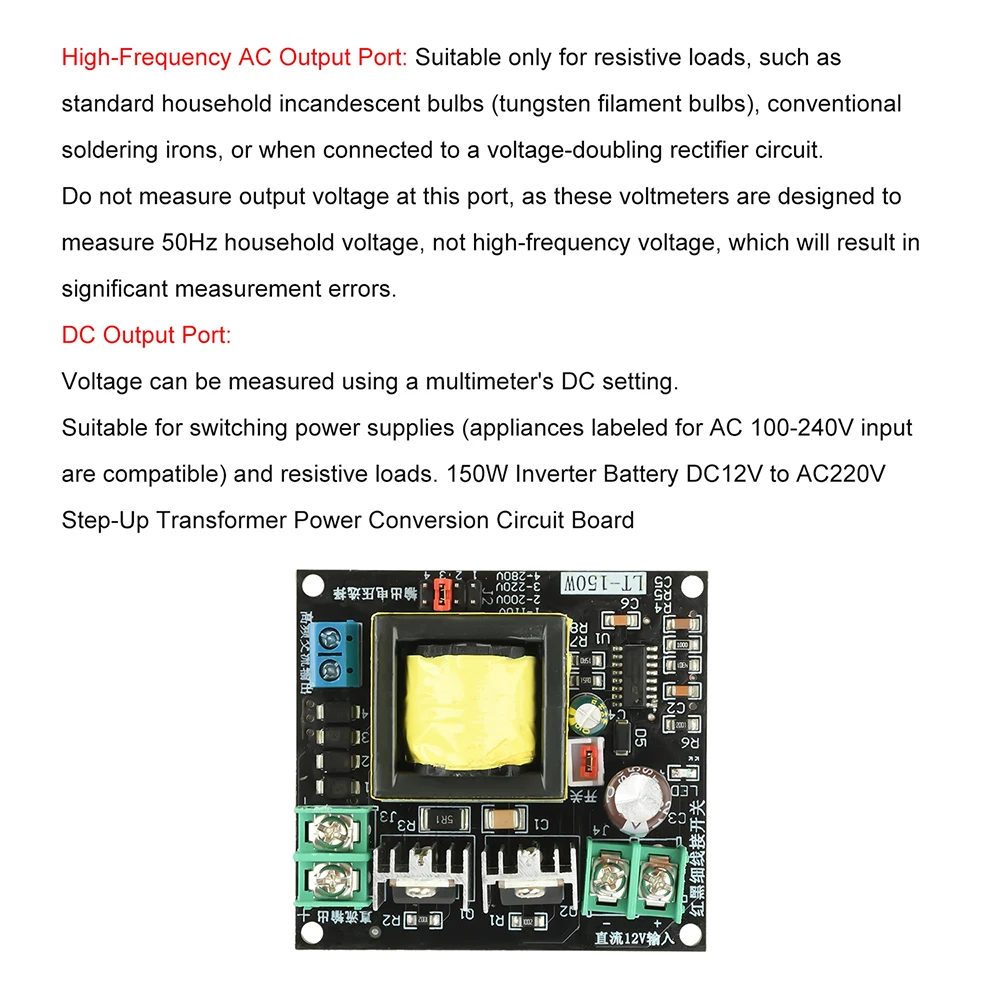

Switching power supply loads can generally be used with electrical appliances labeled with input voltage of 100-240V, such as mobile phone chargers, set-top boxes, DVDs, LED lights (some can be used with constant current drive, but some LED lights cannot be used and can only be connected to DC output ports, never to high-frequency AC output ports), ordinary tungsten light bulbs, small hand drills, energy-saving lamps, ordinary non temperature regulating soldering irons, circuits that require high-voltage double voltage rectification, LCD TVs connected to DC output ports, and so on.

Scope of Unavailable Electrical Appliances:

Iron core transformers, such as speakers using iron core transformers, temperature regulating soldering irons, dimming lamps, and AC motor loads such as electric fans. Resistance capacitance voltage reducing LED lamps (such as LED night lights, LED lamps, plastic shell LED lamps)

Package List:

Inverter module * 1 (optional style)
