SPECIFICATIONS

Appearance: sprayed

Brand Name: NONE

Color: silver gray

Dimensions: 385*307*204mm

External Size: 385*307*204mm

External interface: customizable

High-concerned chemical: none

IP level: Ip67

Impact resistance: IK10

Internal dimensions: 358*263*120mm

Material: Aluminum, Aluminum

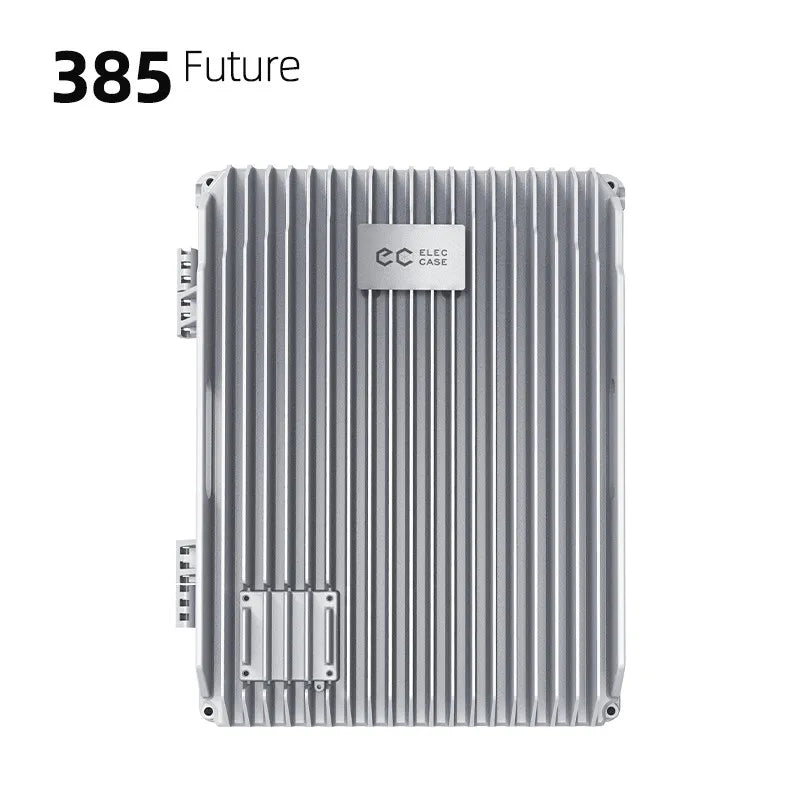

Model: HW385-20

Model Number: HW385-20

Origin: Mainland China

Place of Origin: Guangdong, China

Type: Switch Box

Weight: 13.8kg

Standard Parameters
Name	Model	Dimensions mm	Inside diameter mm	Weight kg
2G Cast aluminum chassis	HW2G-28	610*420*285	540*355*190	26.5
		HW2G-21	605*445*215	550*360*140	20.5
		HW2G-22	603*445*226	552*358*142	20.1
		HW2G-16	460*350*163	410*280*95	11.6
513 Cast aluminum chassis	HW513-23	513*462*233	461*381*141	18.6
		HW513-18	513*462*187	461*381*110	16.1
		HW513-14	513*462*140	461*381*80	13.8
385 Cast aluminum chassis	HW385-20	385*307*204	358*263*120	10.6
		HW385-18	385*307*180	358*263*100	9.9
		HW385-15	385*307*156	358*263*80	9.2
370 Cast aluminum chassis	HW370-16	370*332*164	351*261*100	8.8
		HW370-13	370*332*137	351*261*85	7.8
		HW370-11	370*332*110	351*261*70	6.8
343 Cast aluminum chassis	HW343-16	343*268*160	316*230*90	6.9
		HW343-10	343*268*102	316*230*57	4.7
450 Cast aluminum chassis	HW450-17	450*368*178	430*295*94	14.4
430 Cast aluminum chassis	HW430-17	430*424*175	387*352*90	15.9
321 Cast aluminum chassis	HW321-13	321*231*135	300*210*80	4.8
