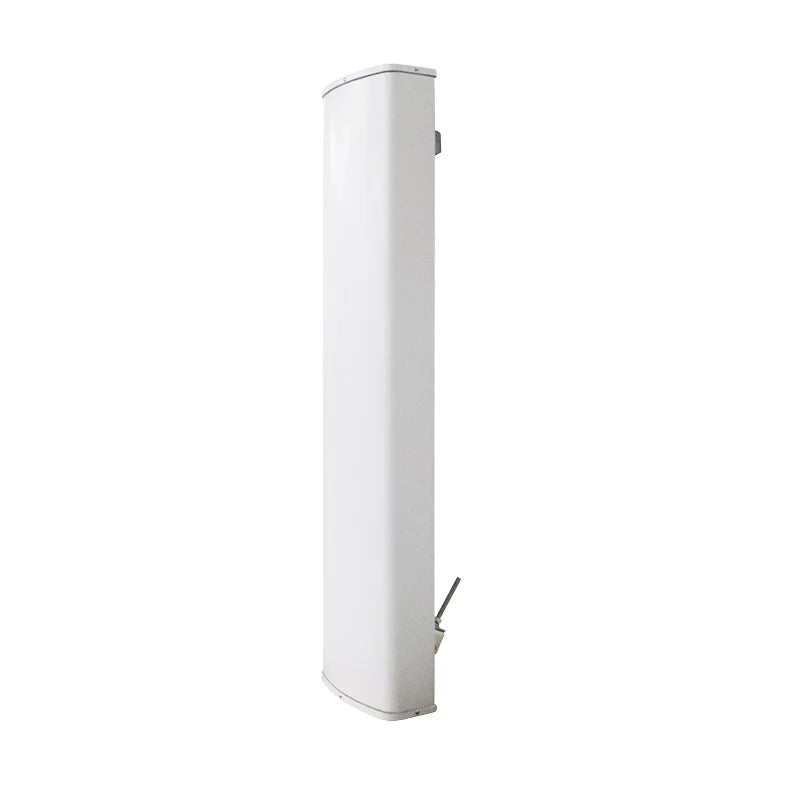

Lintratek 2g 3g 4g Outdoor Frequency High Gain 12 Dbi 800-960/1710-2500mhz Mobile Signal Repeater Big Transmitting Antenna

Default Title

€472,95

Lintratek 2g 3g 4g Outdoor Frequency High Gain 12 Dbi 800-960/1710-2500mhz Mobile Signal Repeater Big Transmitting Antenna

€472,95

Imposte incluse. Spese di spedizione calcolate al check-out.

SPECIFICATIONS

Application: Outdoor antenna

Beamwidth: 262/990

Brand Name: NONE,Lintratek

Color: White

Connector: N female

DIY Supplies: Electrical

Dimension: 730 X 330 X 200mm

Electronic: Yes

Gain: 14dBi

High-concerned chemical: none

Material: Metal&Plastic

Model Number: OBZ-15NK-698/2700

Origin: Mainland China

Place of Origin: Guangdong, China

Semi-finishedproduct: No

Type: Cellular Antenna, Outdoor all frequency antenna

Weight: 8kg

frequency Range: 698-960/1710-2700 MHz

If you have any questions, please contact us ,WhatsApp:+86 15580043427,Email:2589659452@qq.com

Lintratek 2g 3g 4g Outdoor All frequency high Gain 16 dbi 800-960/1710-2500mhz antenna for Mobile Signal Repeater Use

Product Description

Product Name	Transmitting big panel antenna
Model	TDJ-0825BP90D12
Frequency Range	698-960/1710-2700MHz
Bandwidth	262/990MHz
Gain	14dBi
Front/Back ratio	≥25dB
VSMR	≤1.7
Polarization	Vertical
Max power	100W
Nominal Inpedance	50Ω
Connector type	N female or customized type
Antenna Dimension	730330200mm
Weight	8kg

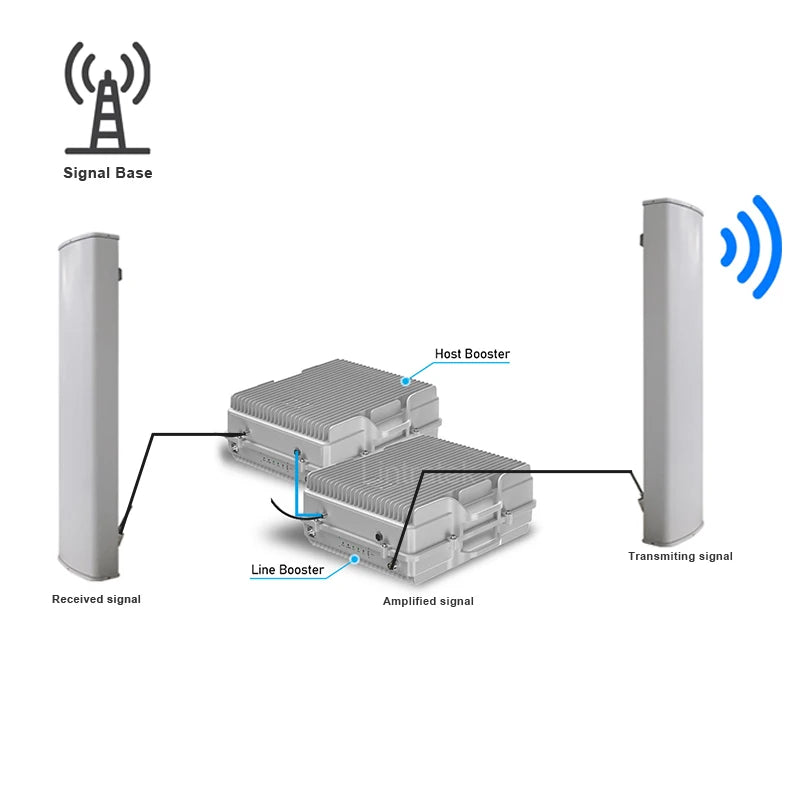

A regular cell phone repeater consists of: (full kit)

1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
2 - Indoor Omni ceiling antenna( panel antenna)
3 – Power adapter
4 - User manual
5 - Cell phone repeater
6. 10 meters outdoor cable and 1 meter indoor cable

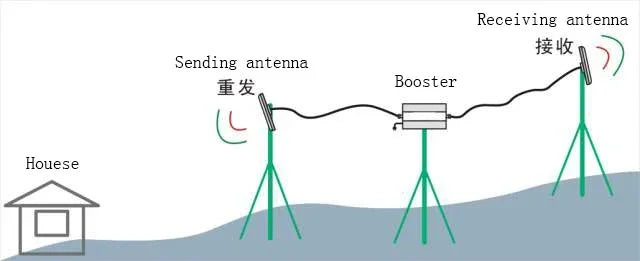

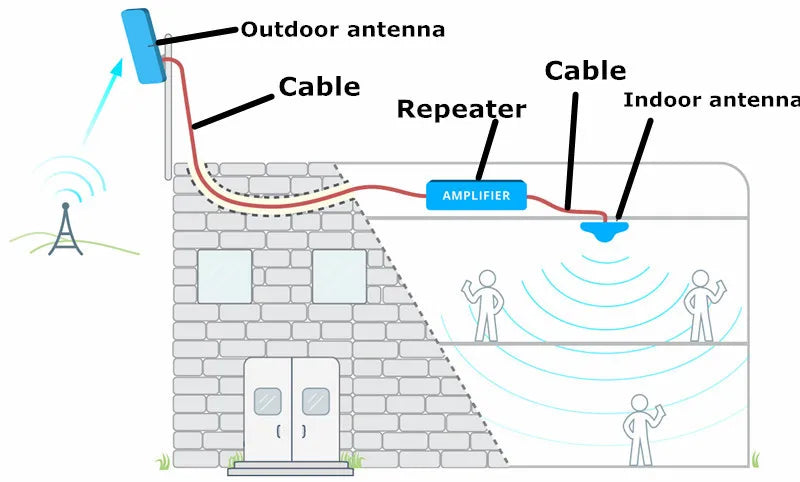

How should you install repeater (very easy and simple):

Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).

Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.

Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.

Step 4: Mount your indoor antenna with signal repeater

Step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.

Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.

Indoor and outdoor antenna must be separated by wall.

Photos:
