SPECIFICATIONS

Brand Name: Lenwaycn

Certification: NONE

Channels: 2 (2.0)

High-concerned chemical: none

Item name: Audio Signal Selector

Maximum Power Per Channel: NO POWER

Model Number: 2313-046

Origin: Mainland China

Package: Yes

Discriptions

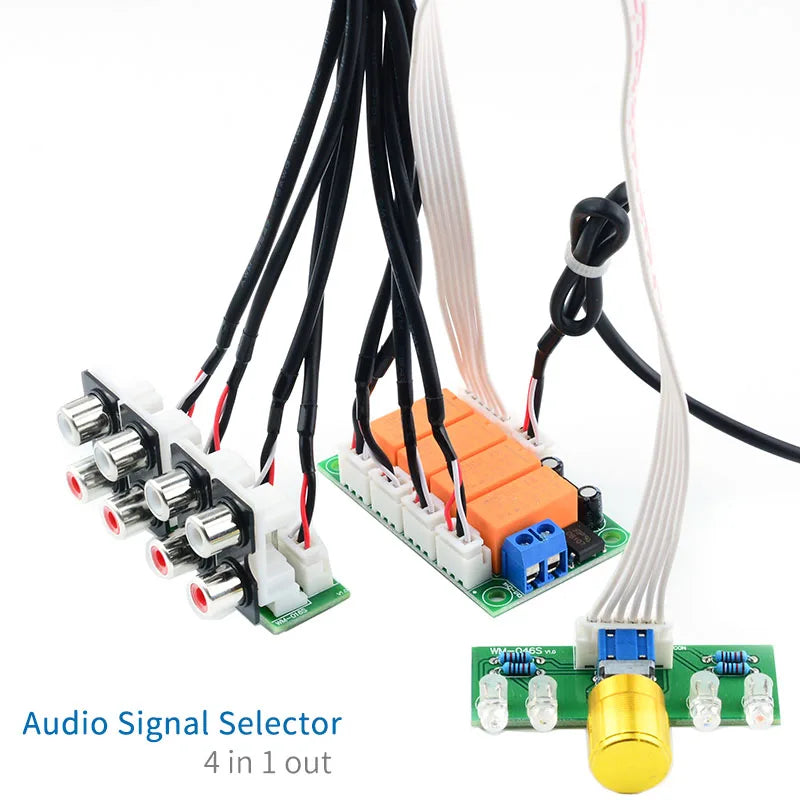

       This is an audio source switching input selection board.

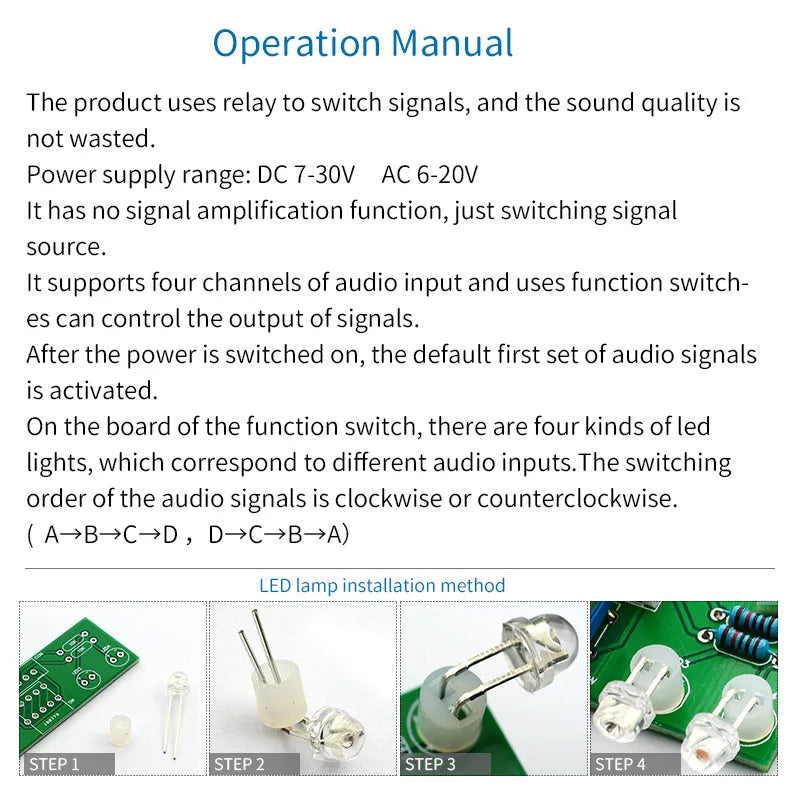

The product uses relay to switch signals, and the sound quality is not wasted.It has no signal amplification function, just switching signal source.

Power supply range: DC 7-30V     AC 6-20V

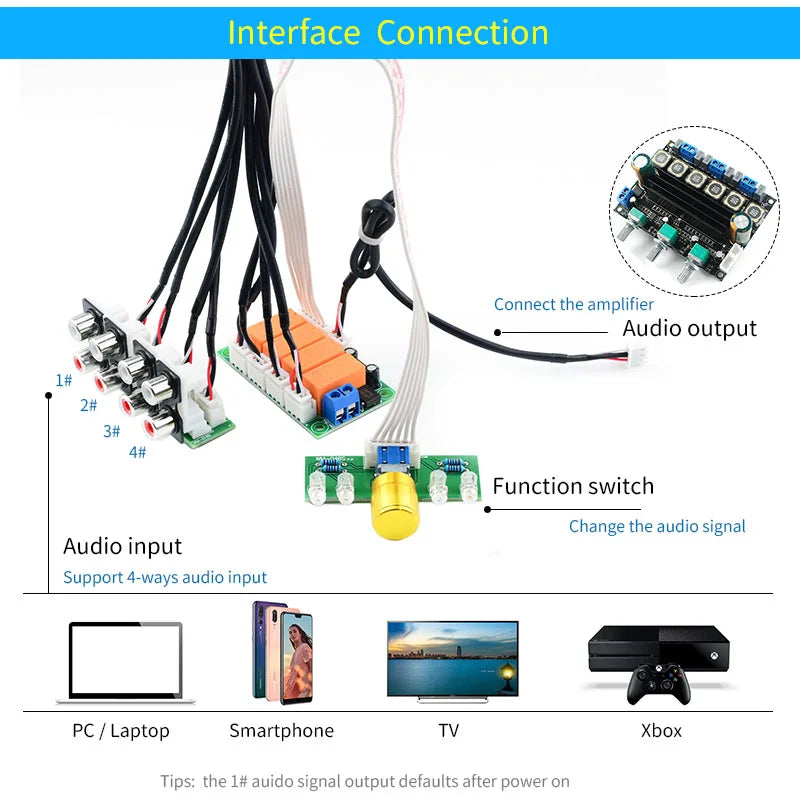

It supports four channels of audio input and uses function switches can control the output of signals.

After the power is switched on, the default first set of audio signals is activated.

On the board of the function switch, there are four kinds of led lights, which correspond to different audio inputs.The switching order of the audio signals is clockwise or counterclockwise.

(  A→B→C→D ，D→C→B→A）

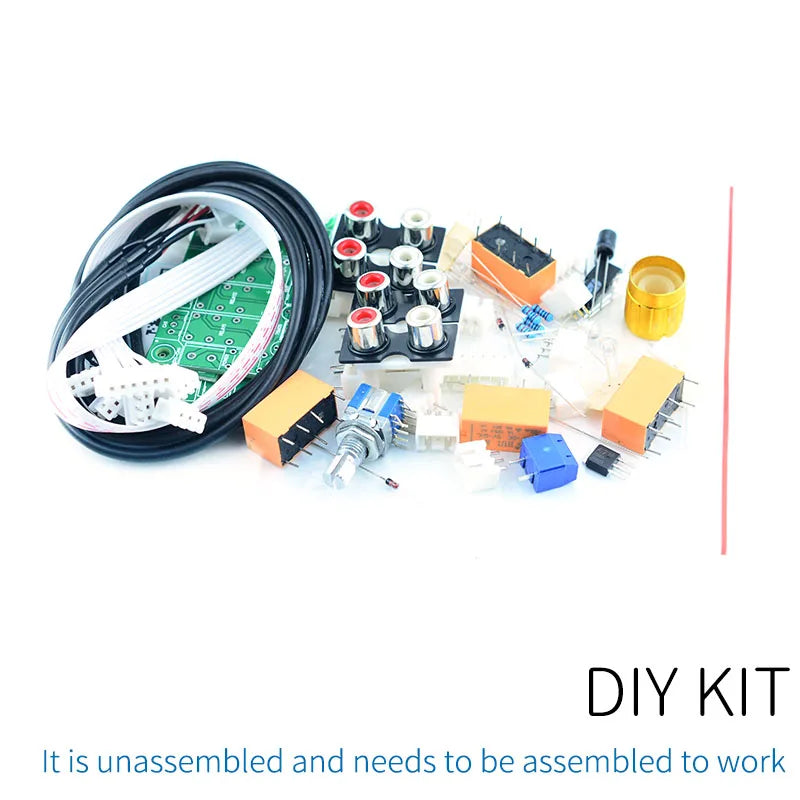

         DIY kits and finished products are optional. DIY KIT is an unassembled board that you need to assemble to work. If there is no electronic basis for buyers, it is not recommended to purchase DIY KIT, as the assembly may fail, please purchase the finished product. The finished board was tested successfully before shipment.

       When you receive the goods, please contact us if you have product problems or other problems, we look forward to solving your problem. Please do not leave negative feedback or open disputes before contacting me. It will have a big impact on our work and the store.Happy shopping

Tips：The products in the video are for demonstration purposes and are for reference only.

Specifications

Item name: Audio Signal Selector Board

Supply Voltage: DC7-30V  AC 6-20V

Sound input: 4-way

Sound output: 1-way

Signal switching ：(  A→B→C→D ，D→C→B→A）

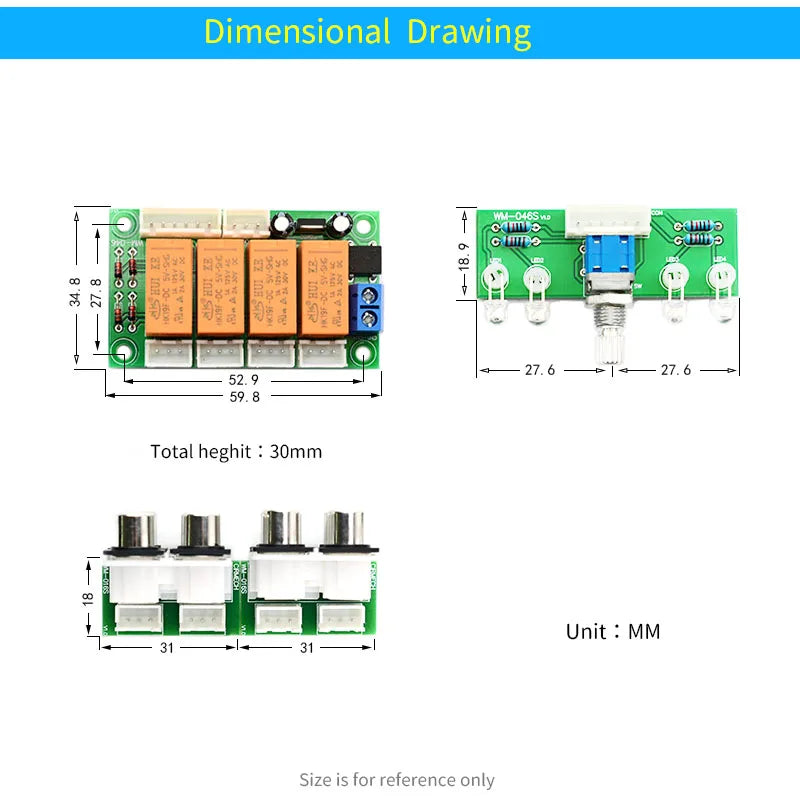

Dimension:

Main board :59.8*34.8mm   Switch board:55.2*18.9    RCA board:62*18

Package

1pc  Audio Signal Selector

1pc 6pin calbe

1pc  Knob

5pcs  3pin cable
