SPECIFICATIONS

Application: charger

Brand Name: SYHY

Description: Intelligent fast charging module

Features: Support fast charging with protection

Model Number: 140W

Mounting Type: surface mount

Place of Origin: China

Series: module

Size / Dimension: /

Supports full gear PPS3.3-21V 6.3A 133W
Support PD140W 20V7A@140W
Support super Vooc 10V 67W
Support QC5/QC4+/QC3+/QC2.0
Support AFC/FCP/High Voltage SCP/SFCP
Multiple protection mechanisms, including input overvoltage protection and input undervoltage protection
Output overcurrent protection, output short circuit protection
Integrated thermistor, temperature protection
Install insurance to ensure safe operation

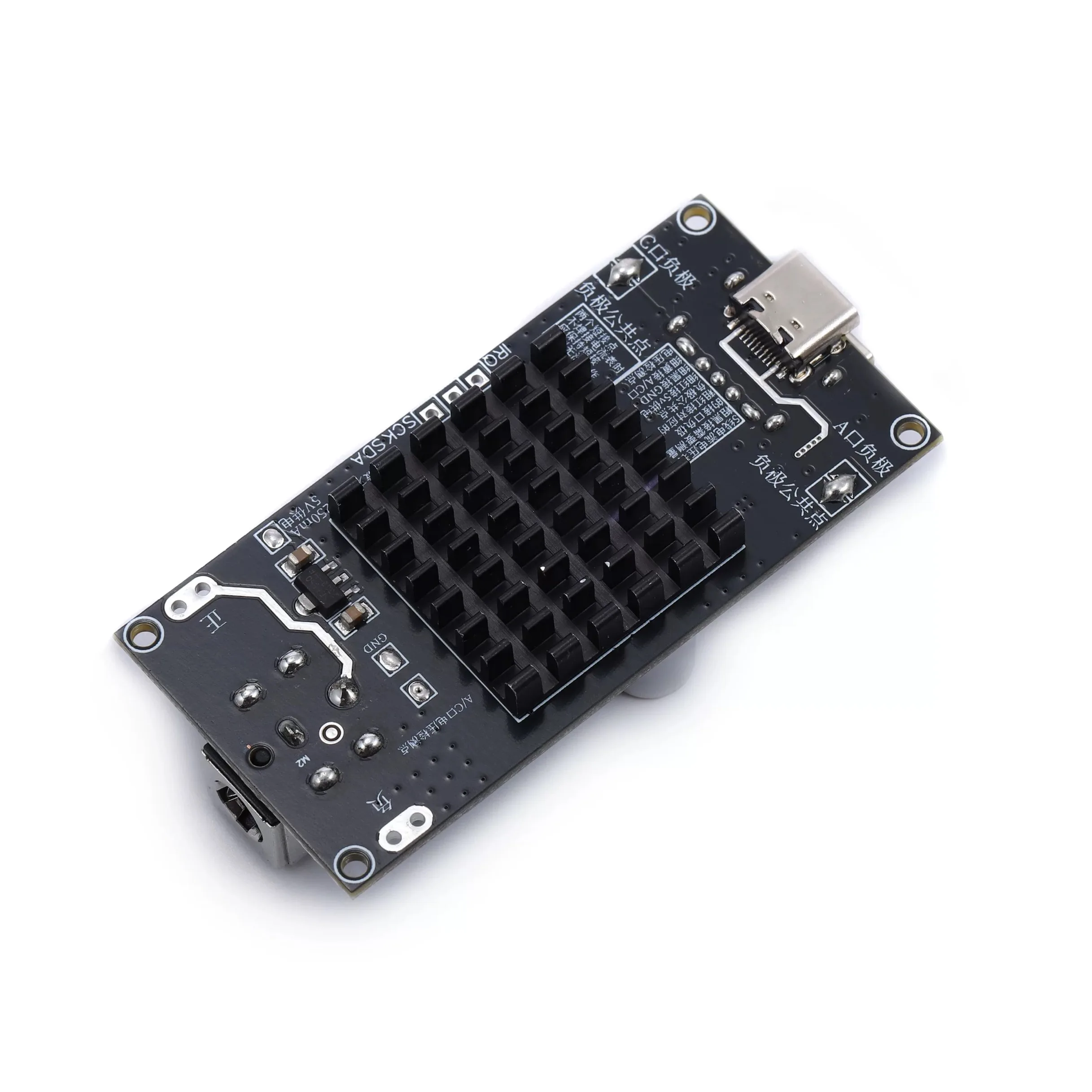

The single channel version is equipped with a large heat dissipation block on the back, effectively reducing 140w of heat generation
Dual version integrated temperature controlled fan, rejecting noise
Supports installation of current and voltage meters, compatible with almost 90% of products on the market, as long as it is negative sampling
