SPECIFICATIONS

Filter system: Air Filter+PPF+UF+T33+LED-UV

Logo/graphic design: Inkjet Printing

Power Source: Electric,Solar

Power consumption: 370W

Product name: Atmospheric Water Maker Air To Water Generator awg

Refrigerant: R134A

Usage: Drinking Water From Air

Voltage: AC 220V/110V - 50Hz/60Hz

Water Production: 20L @30°C & RH-80%

Working humidity: 30% - 100%

Working temperature: 15°C - 45°C

after-sales service provided: Overseas Call Centers

app-controlled: No

application: Hotel,Car,Garage,RV,Commercial,Household

brand name: Haolin

dimensions (l x w x h (inches): 53.1*30.7*58 cm

model number: HL-A20L-D

operating language: English

place of origin: Zhejiang, China

power (w): 370

type: Hot & Cold

voltage (v): AC 110V/220V 50Hz/60Hz

warranty: 1 Year

Product Description

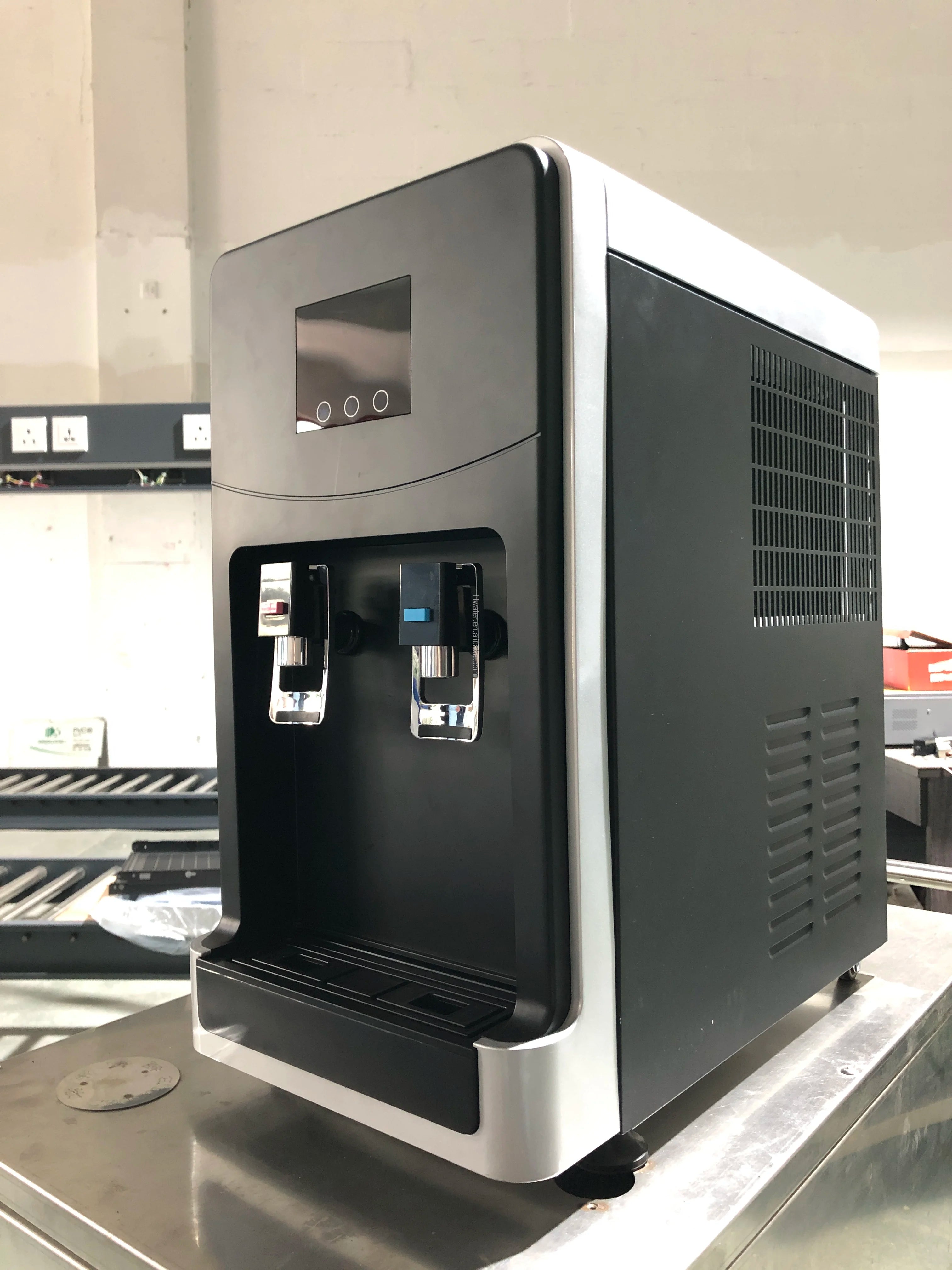

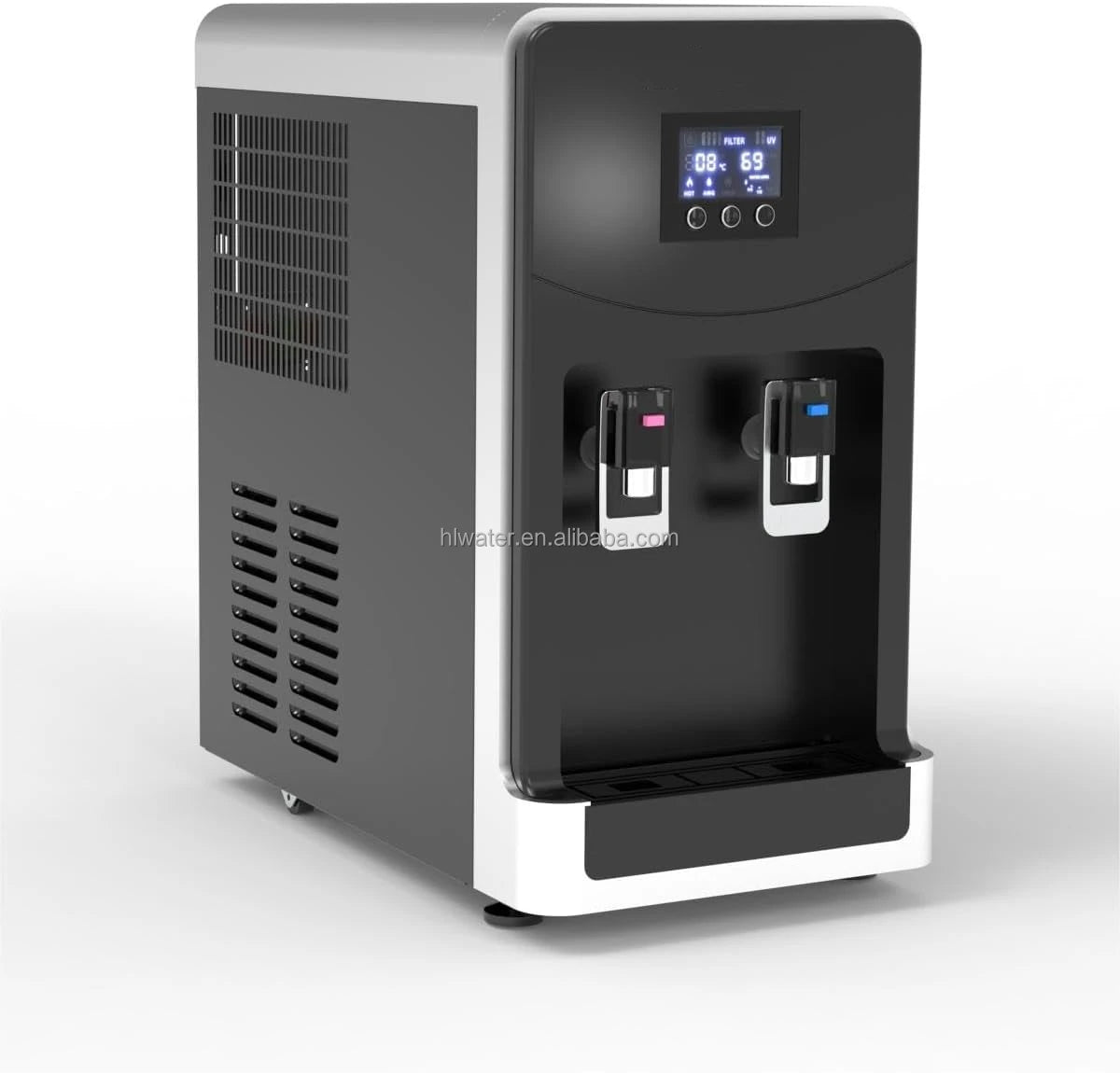

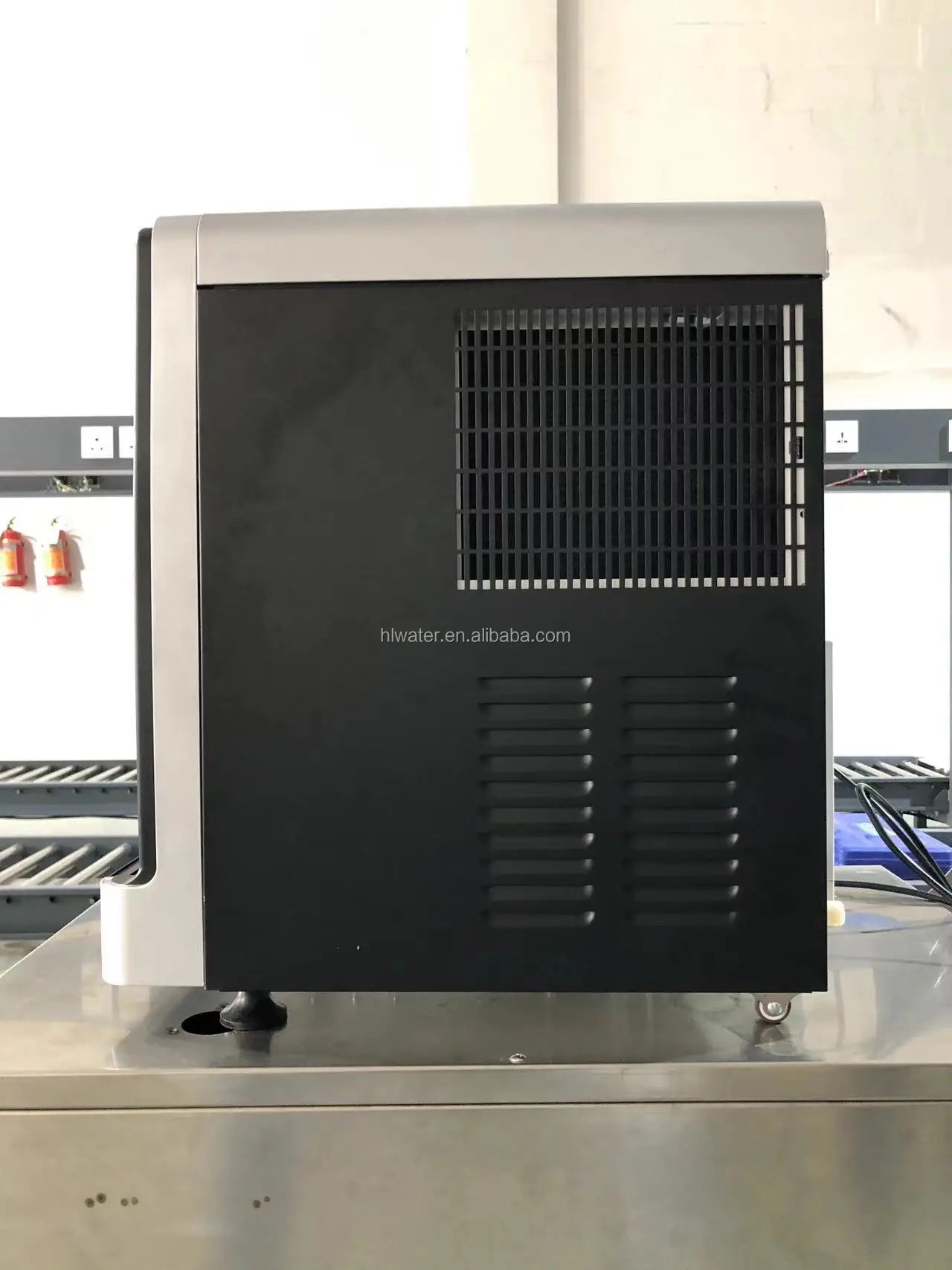

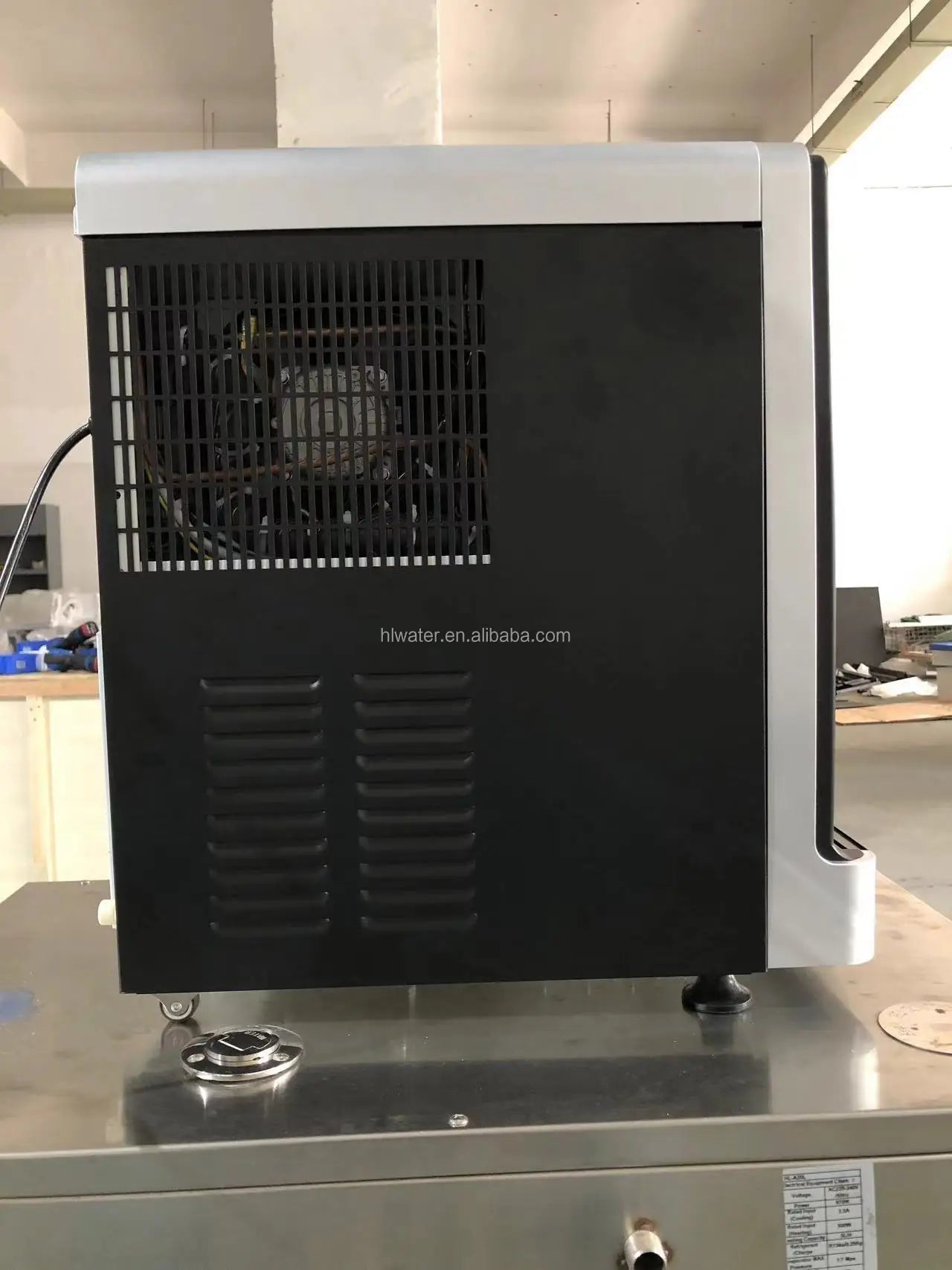

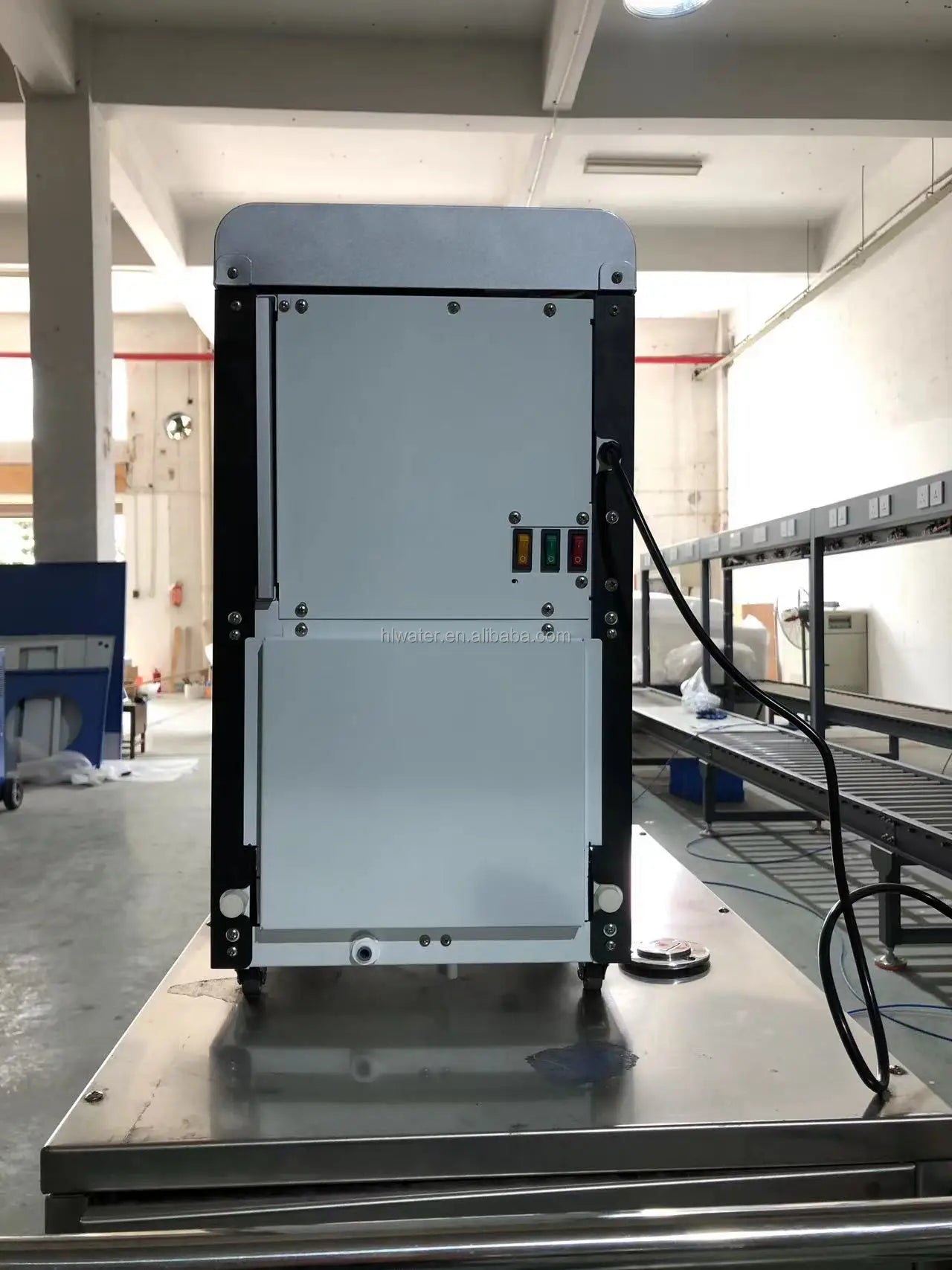

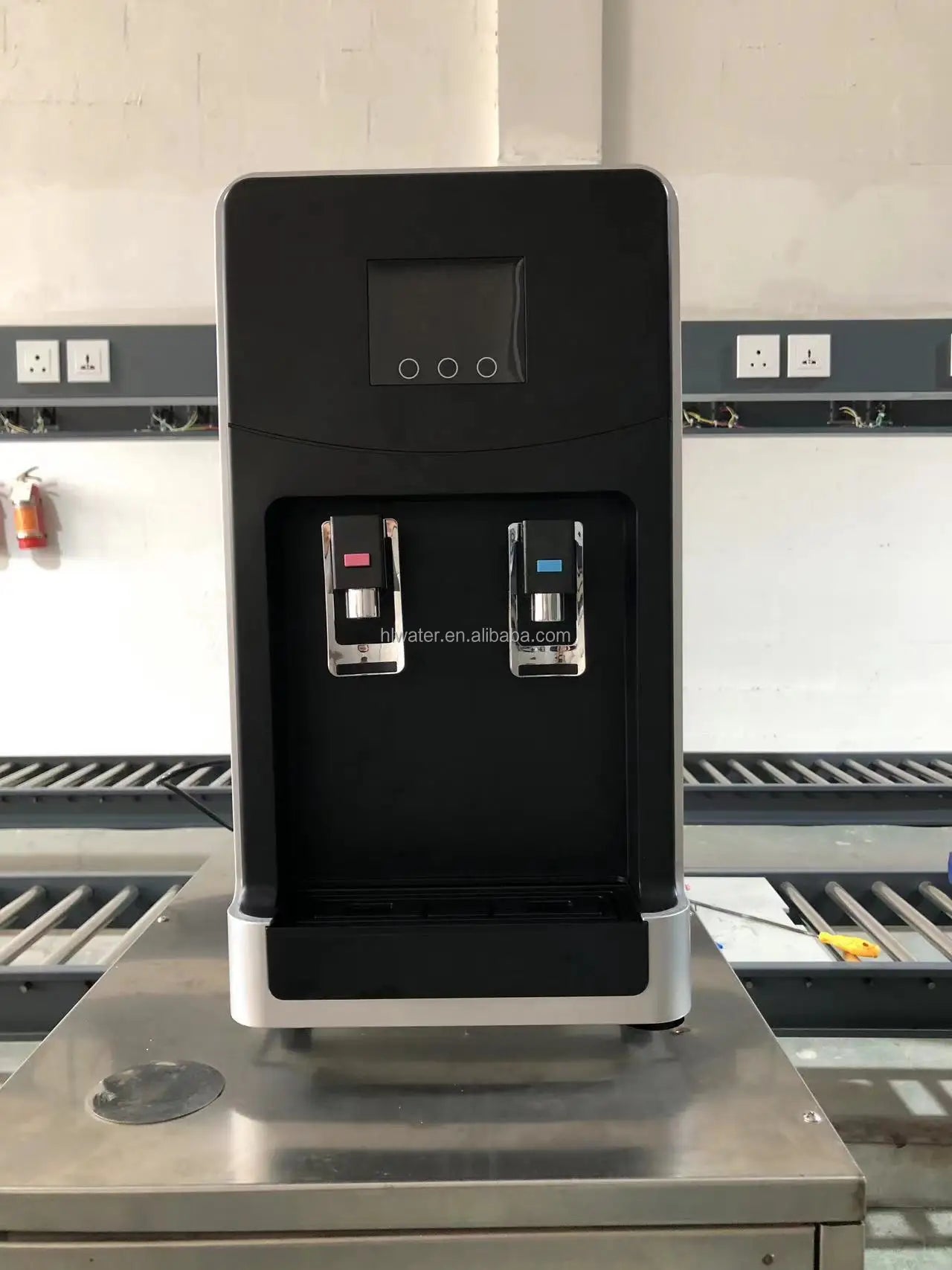

HL-A20L-D can produce 20L/Day pure water from air @30°C & RH-80%.

Input Power: 370W (Water Production)

Power Supply: AC 110V/220V 50Hz/60Hz

Refrigerant: R134a

Filtration Steps: Air Filter + Sediment Filter + Ultra-Fine Membrane Filter + Post-Carbon Filter + LED-UV.

Working Temperature: 15-45°C

Working Humidity: RH 30% above

Net Dimension & Weight: 53.1*30.7*58 CM, 28KG

LCD Touch Screen Display

Indoor Lifestyle and Low Noise Level

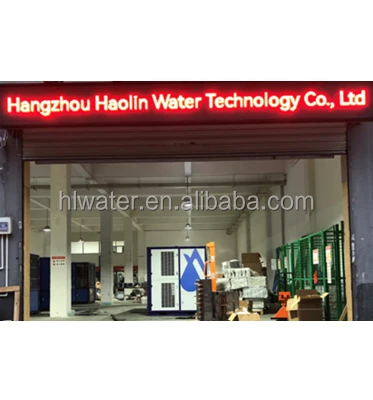

Hangzhou Haolin Water Technology Co., Ltd

Vision: Make A Better World
Mission: To Make Drinking Water Available and Affordable Anywhere on the Earth
Core Values: Customer First, Integrity, Passion, Openness, Teamwork

20 Years

AWG R&D and Manufacture Experience

6+

Product Patents

(30+ Historical Patents)

15

Countries Installed Haolin AWG

30+

Partners in Worldwide

2000+

Units Haolin AWG Delivered

1500 m2

Factory Area

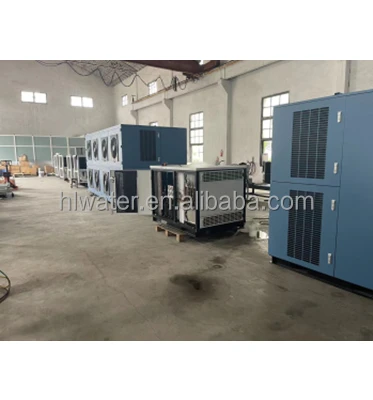

Factory Workshop of Haolin Industrial Atmospheric Water Generator, 250~5000L/D

Key Highlights of Haolin Industrial Atmospheric Water Generator

a) 206~235Wh per liter water, 33%~64% Power Saved Vs Traditional AWGs

b) 230% More Water Produced @25°C & RH-30% Vs Traditional AWGs

c) IOT Enabled to support Maintain Remotely + Further Opex Saved

d) Totally compatible with Solar Power Green Energy Solution

1 - Excellent and high efficiency on water production, even @lower humidity level

Haolin industrial AWGs’ (atmospheric water generators) water production is:
230% More Water Produced @25°C & RH-30% Vs Traditional AWGs

2 - Energy saving and cost effective - 206~235Wh per 1 liter @30°C & RH-80%

Haolin industrial AWGs rated power consumption can achieve 206~235Wh per 1 liter @30°C & RH-80%, with Haolin unique and patented design allowing the cool and dehumidified air to absorb heat of incoming air, which make Haolin AWGs power consumption is 33%~64% lower than other traditional AWGs. It is really benefit to areas with energy shortages or expensive. And lower power consumption will lower your investment on solar power panels, inverters, and batteries when customer want to use solar power or wind power.

3 - Function modularity design for various capacity demand

Haolin function modularity design allows to built various capacity for industrial use to reach a wide range of application scenarios. Currently 250L, 500L, 1000L, 2000L, 5000L @30°C & RH-80% can be provided directly, other capacity design can be delivered quickly according to customers’ requirement.

4 - Guaranteed product quality on water extraction

Haolin workers have many years experiences on AWG manufacture and commissioning.

Haolin will make performance testing before packing AWG into plywood box to ensure Haolin AWG product quality and efficiency.

5 - High quality materials and multi-layer filtration system to ensure quality guaranteed drinkable water

Only high quality stainless steel, aluminum foil, air and water filtration systems are used in Haolin AWGs, since all components contact with potable water are strictly following National Standards for Drinking Water guidelines.
With Air filter+PPF+GAC+PPF+RO+LED-UV sterilizer to filter particles and remove bacteria in air and water effectively, Haolin AWGs can produce high quality drinkable water.

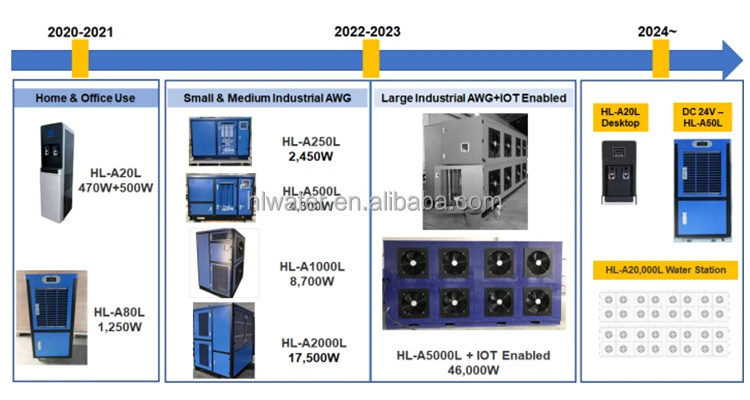

Product Roadmap of Haolin Atmospheric Water Generator

Company Profile

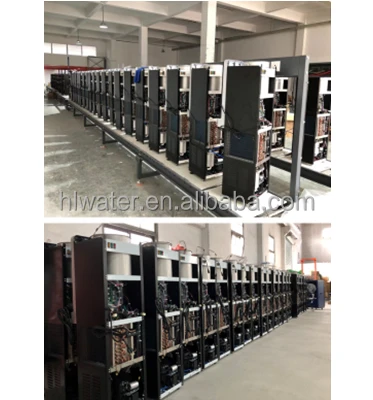

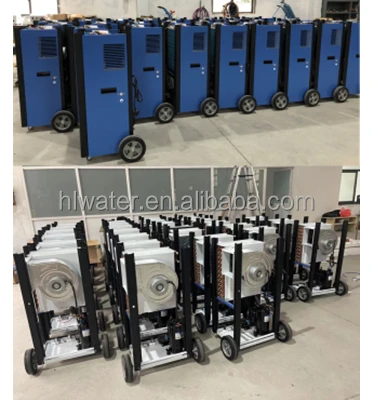

Key Manufacture Process in Haolin Factory

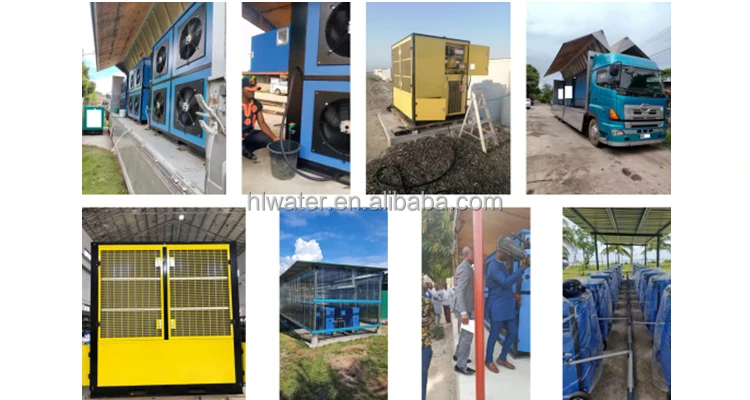

Haolin AWG Cases Study in Worldwide

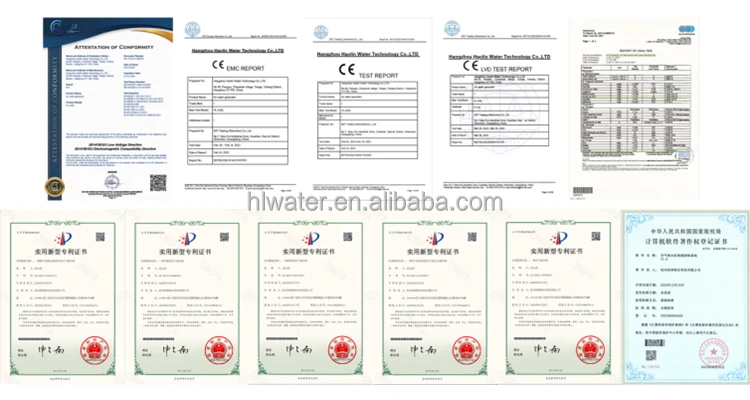

Haolin AWG Certificates and Patents

FAQ

1. Are Haolin atmospheric water generators compatible with solar power system?

A: Sure, both solar power system and wind power system can be integrated, once the equivalent power input provided.

2. What is the pH value of the water produced by Haolin atmospheric water generators?

A: The pH value is around 6.5-7.6. And the optional mineral filter can be provided if requested.

3. How often should I need to change the filters?

A: We suggest the air filters to be checked once a month and cleaned by washing, if needed. Every 3-6 months for the water filters and every 12-18 months for the reverse osmosis after you start to use, which is depend on the quality of ambient air and the actual usage. The LED-UV light needs to be cleaned or replaced every 12-18 months. Water storage tank needs to be empty and cleaned every 6 months.

4. What’s the warranty policy of Haolin atmospheric water generators?

A: The warranty period of overall machine is 1 year. And 3 years for the 4 core parts: compressor, condenser, evaporator and motor. Damage to the product due to misuse, not following user manual, improper environmental placement are not being covered.

5. Can you make a customization on AWG according to an assigned dimension?

A: Sure, we’ve made a customized and compact AWG according to customer’s limited dimension for recreational vehicle usage scenario, which can be easily and firmly attached under recreational vehicle to provide water for drinking and daily usage with solar system powered.
