Model

SPI4865M150-300P

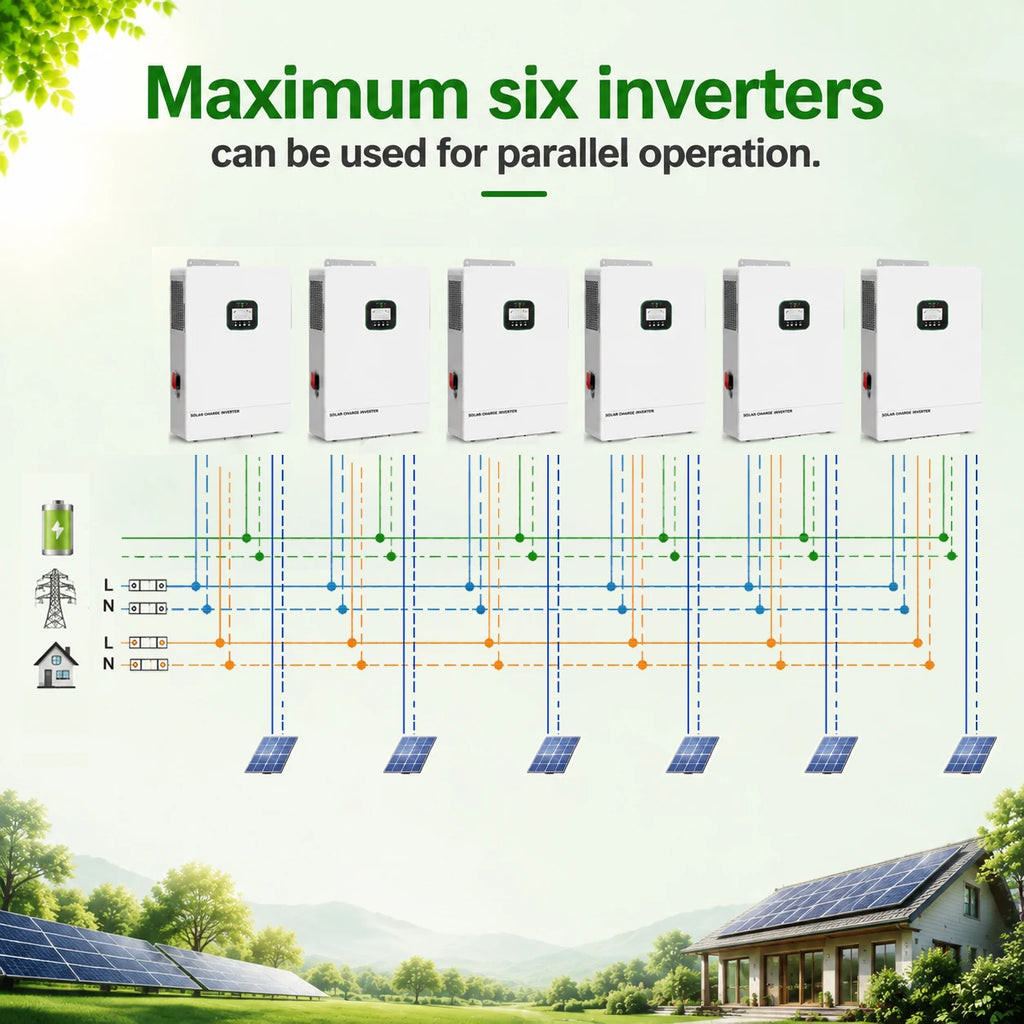

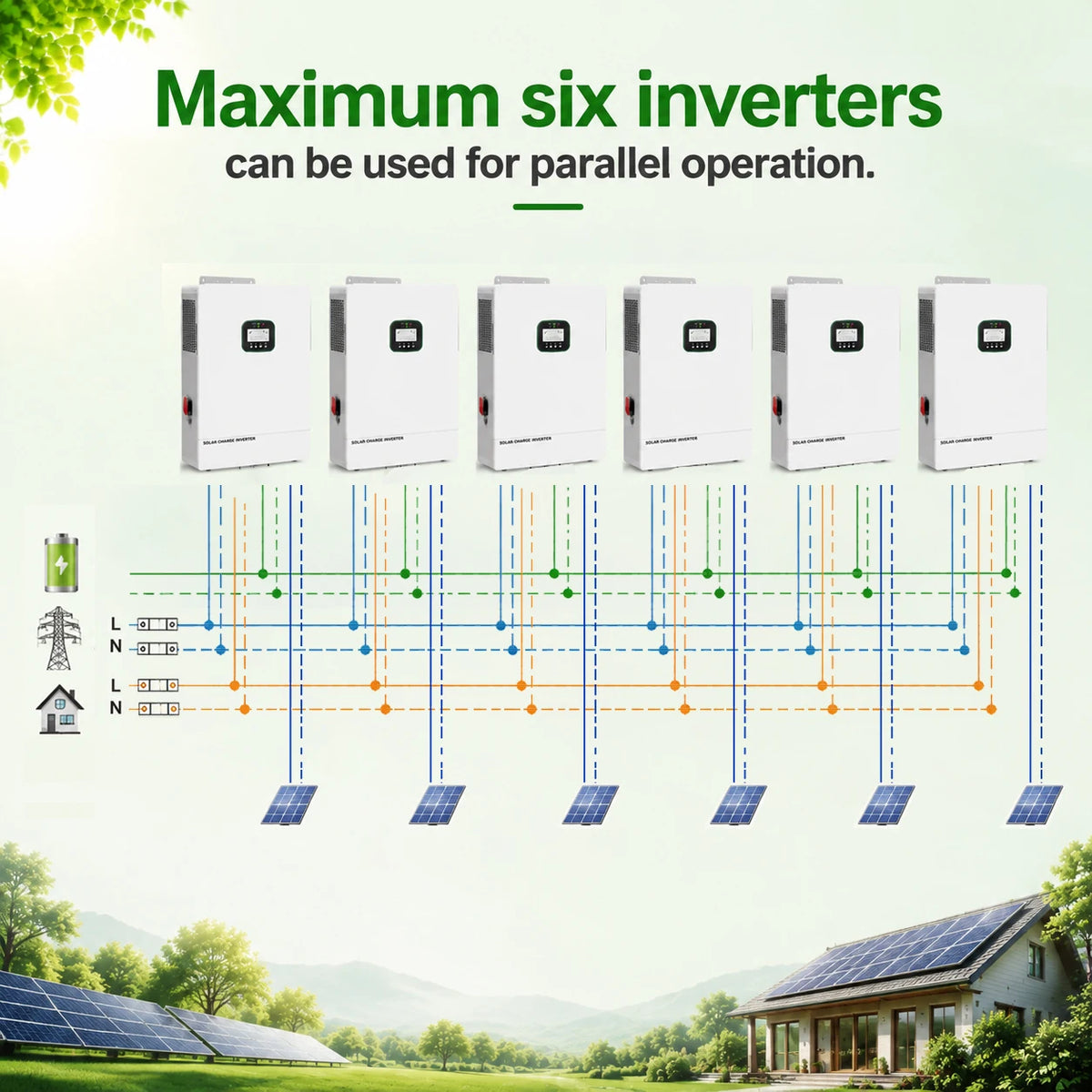

Parallel mode

Permitted parallel number

1~6

AC mode

Rated input voltage

120Vac±5%

Input voltage range

(90Vac-140Vac)±2%

Frequency

50Hz/60Hz (Auto detection)

Efficiency

>95%

AC reverse protection

60A

Inverter mode

Output voltage waveform

Pure sine wave

Rated output power

6500VA/6500W

Rated output voltage (Vac)

120Vac

Peak power

9750VA

AC charging

Battery type

Lead acid or lithium battery

Maximum charge current (can be set)

120A

Charge voltage range

40 –60Vdc

PV charging

Maximum PV open circuit voltage

300Vdc

Start-up Voltage

120V

PV operating voltage range

90-300Vdc

MPPT voltage range

90-260Vdc

Battery voltage range

40-60Vdc

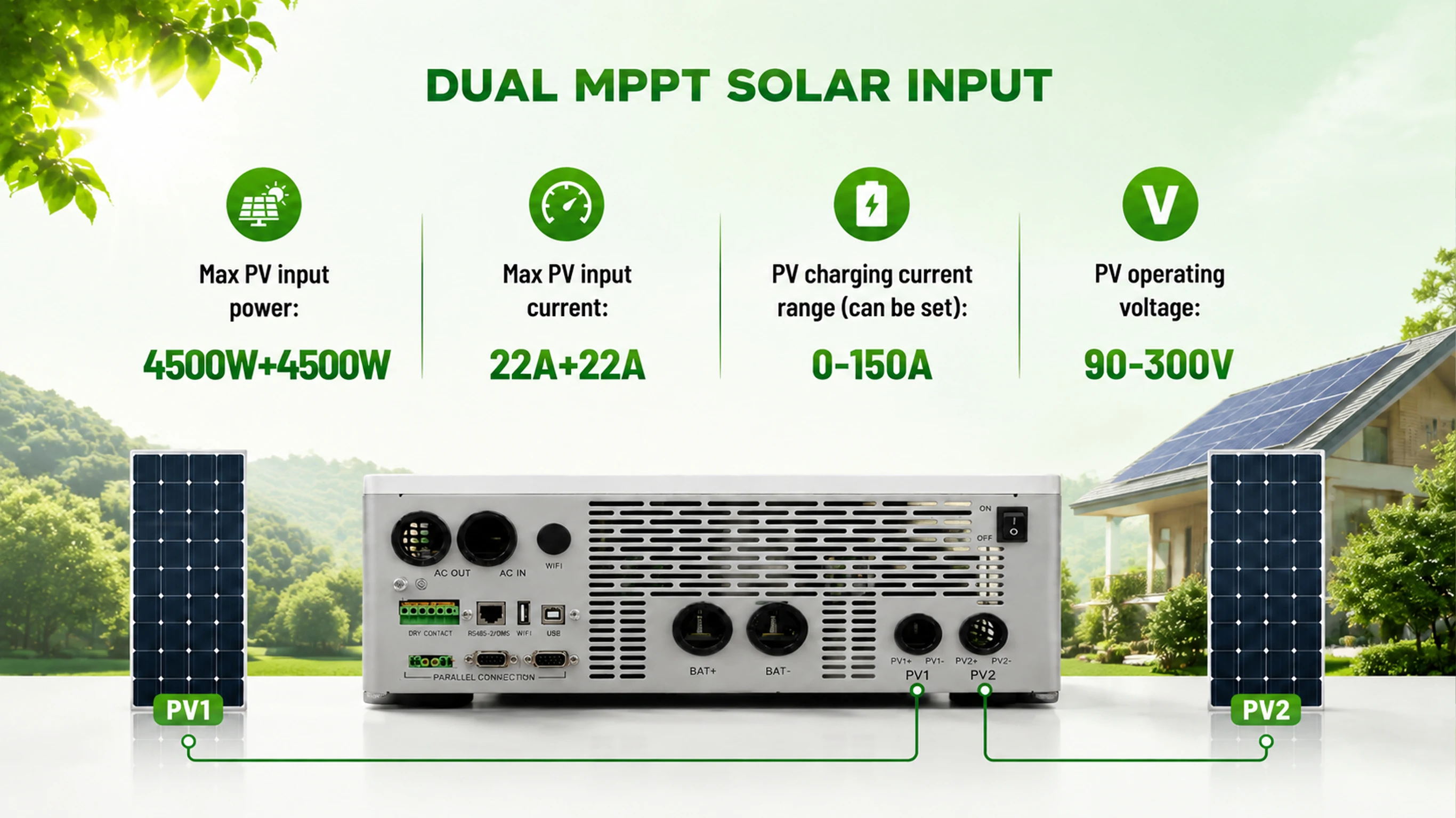

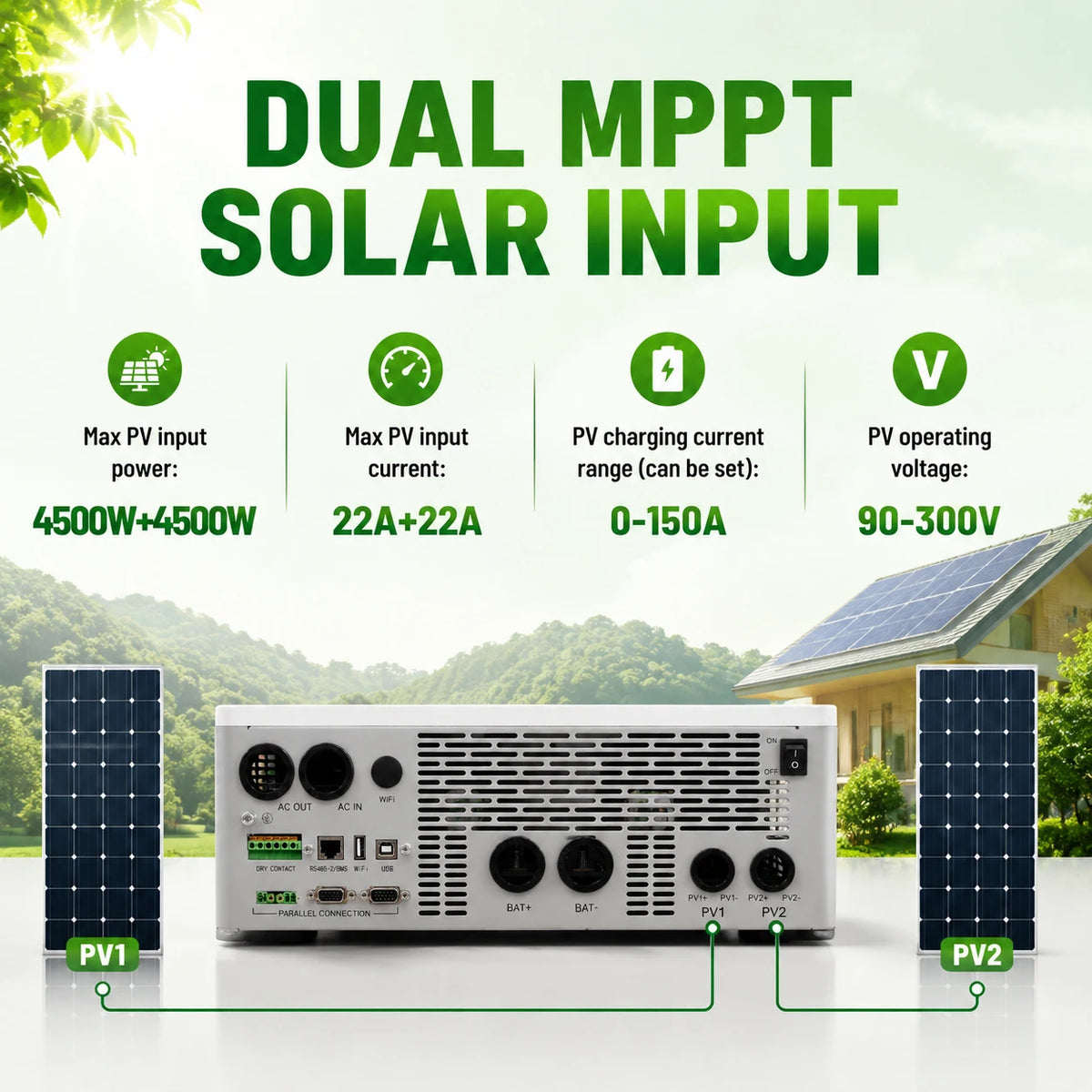

Maximum PV input power

4500W+4500W

Maximum PV input current

22A+22A

PV charging current range (can be set)

0-150A

Hybrid charging Max charger current specifications (AC charger+PV charger)

Max charger current(can be set)

0-150A

Certified specifications

Certification

UL 1741

EMC certification level

FCC 15 class B

Operating temperature range

-10°C to 55°C

Storage temperature range

-25°C ~ 60°C

Humidity range

5% to 95%（Conformal coating protection)

Size (L*W*D)

540mm*350mm*120mm

Weight (kg)

18.5
