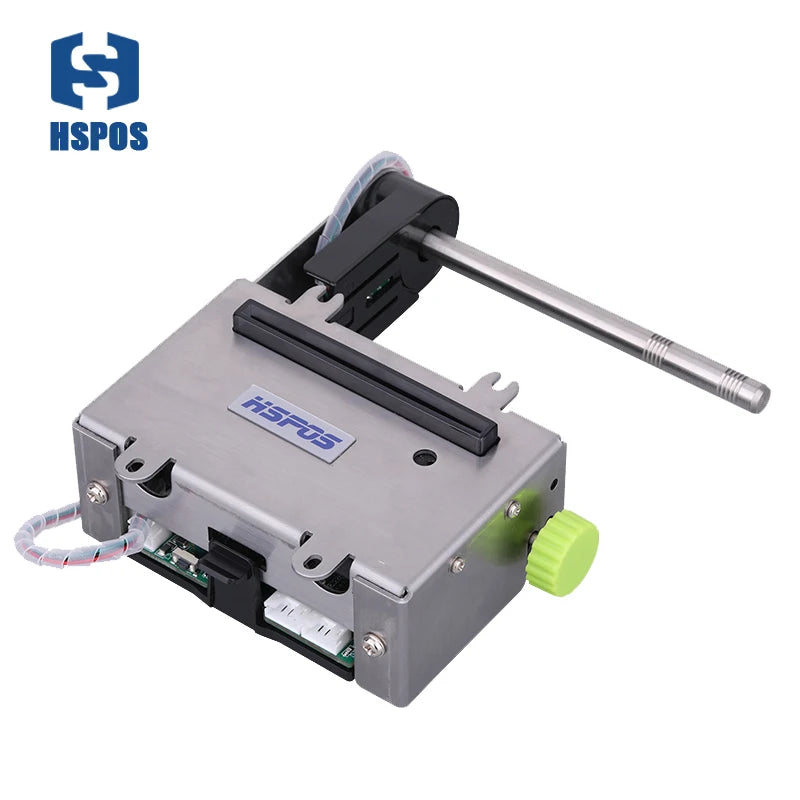

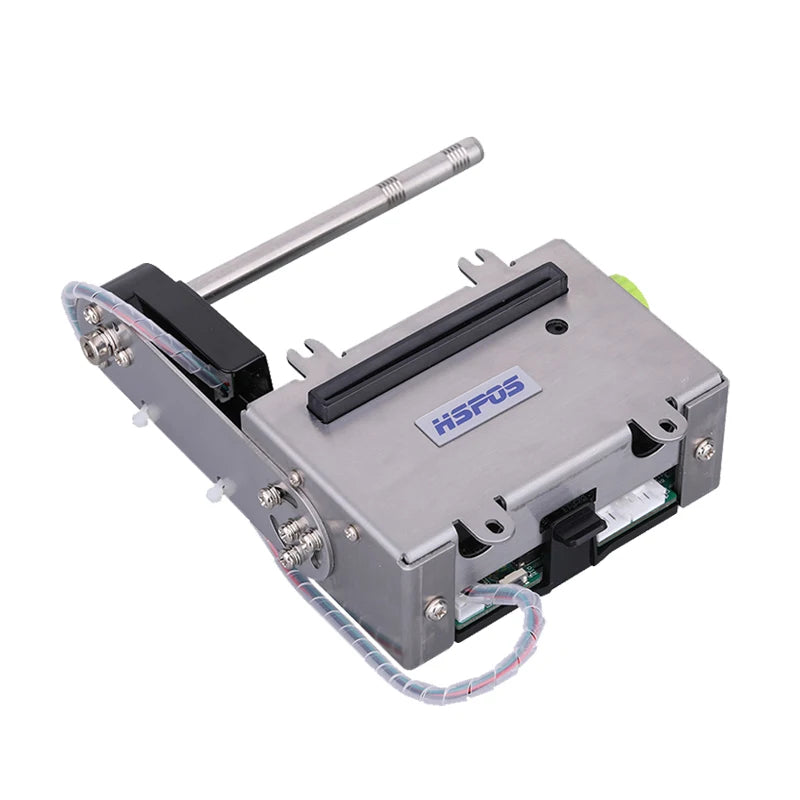

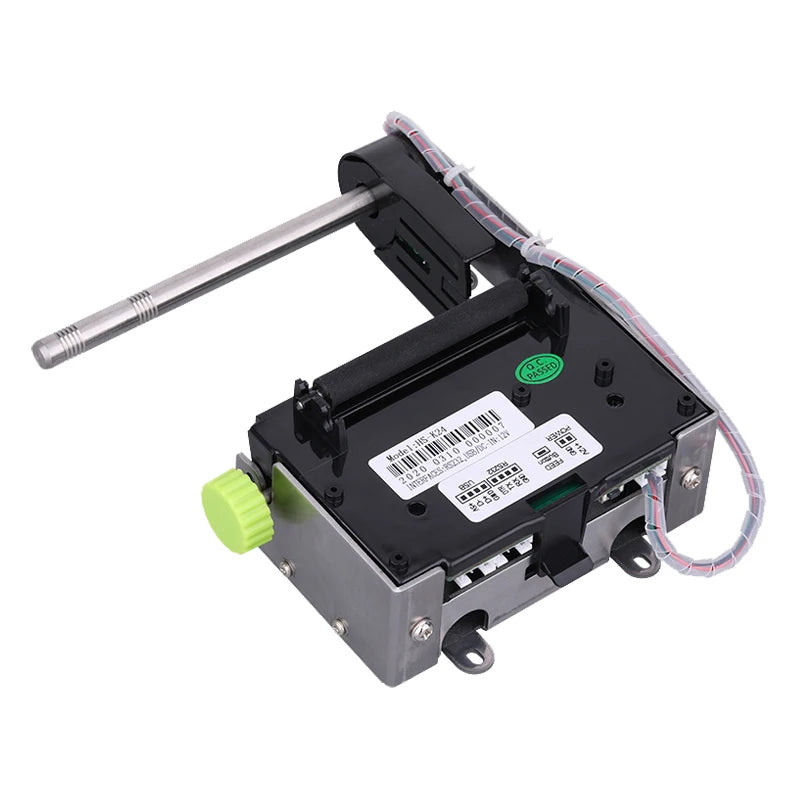

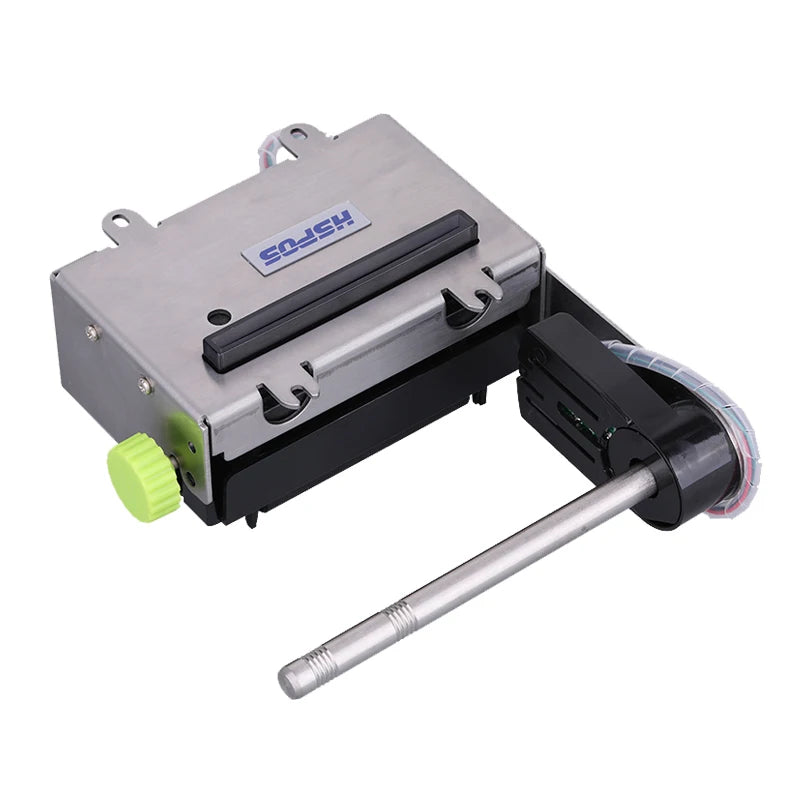

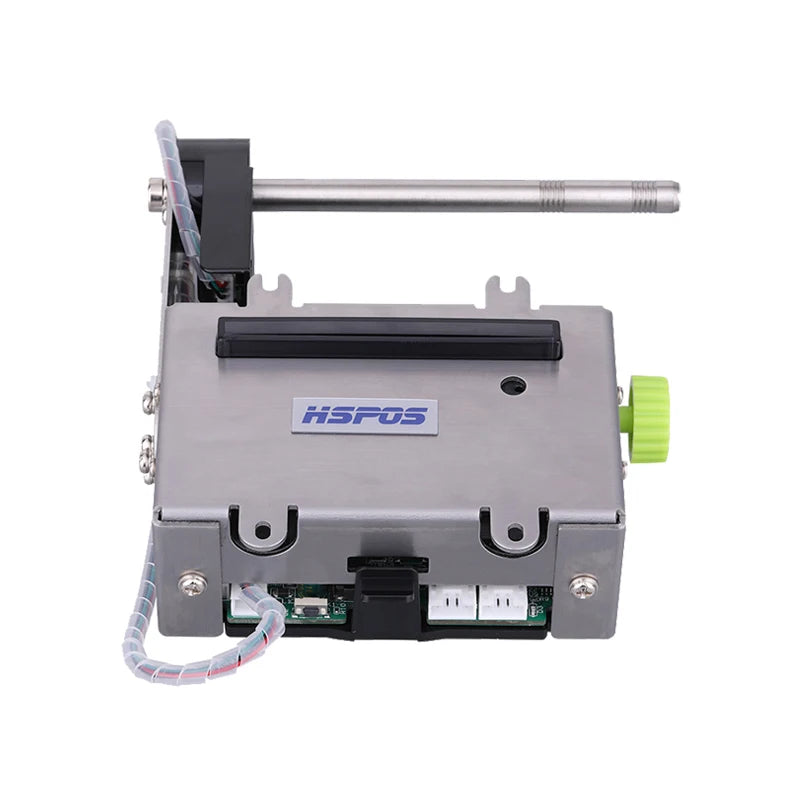

2 Inch Thermal Kiosk Printer With Auto Cutter Support Paper Near End Sensor Function And Real TIme Monitoring HS-K24

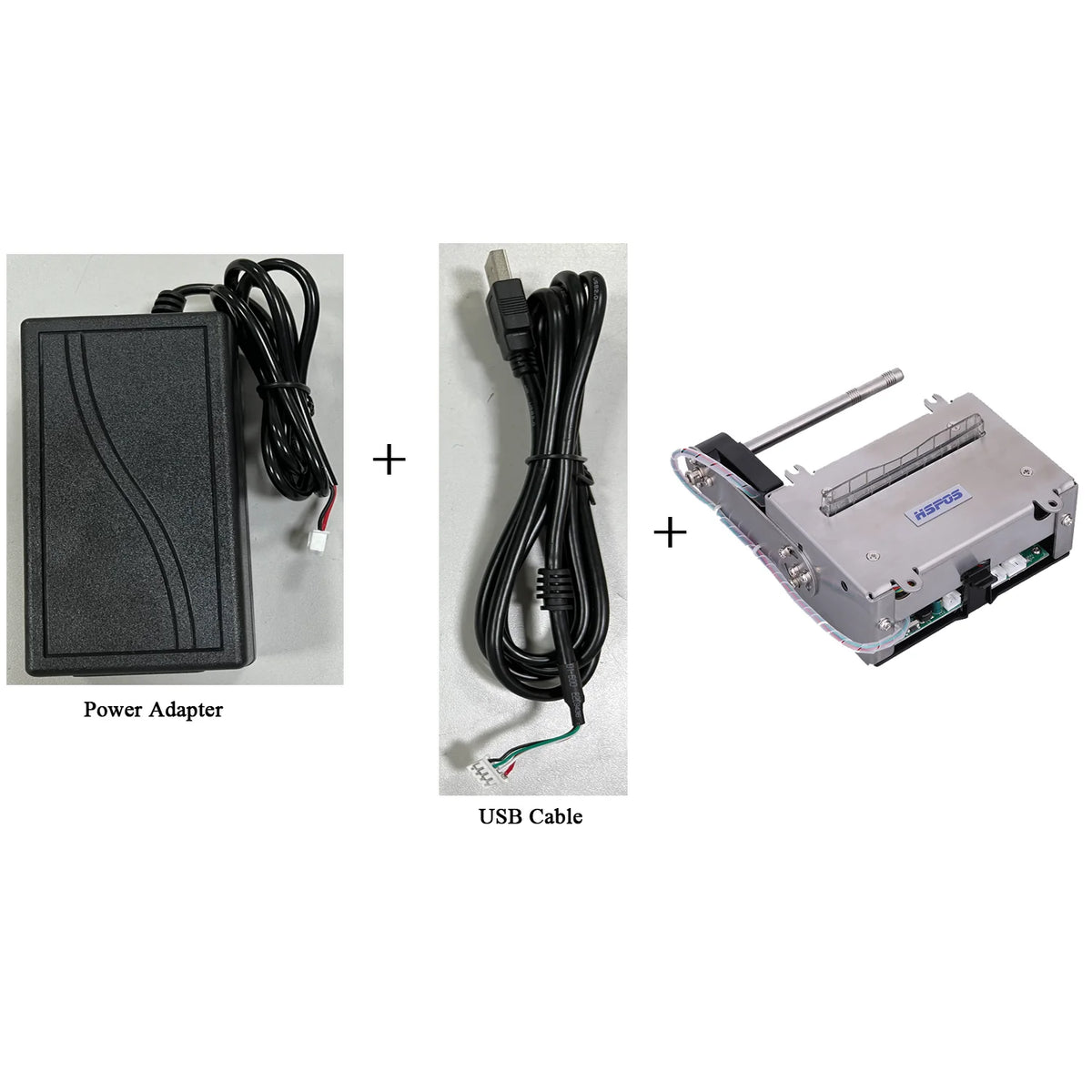

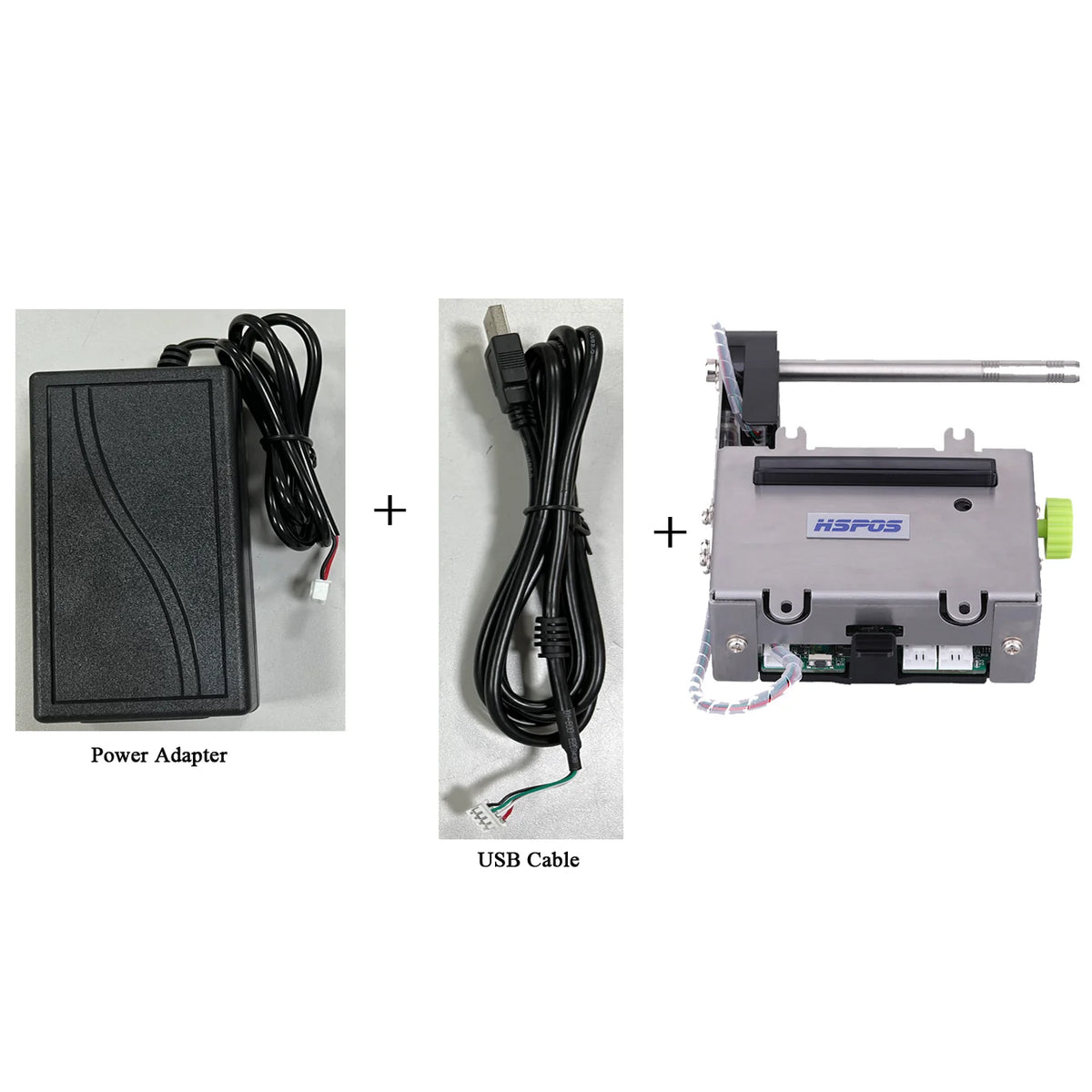

USB RS232 SET

€105,95

€105,95

Taxes included. Shipping calculated at checkout.

color USB RS232 SET USB TTL SET USB RS232 12V USB TTL 12V

SPECIFICATIONS

After-sale Service: Shop's Three Guarantees

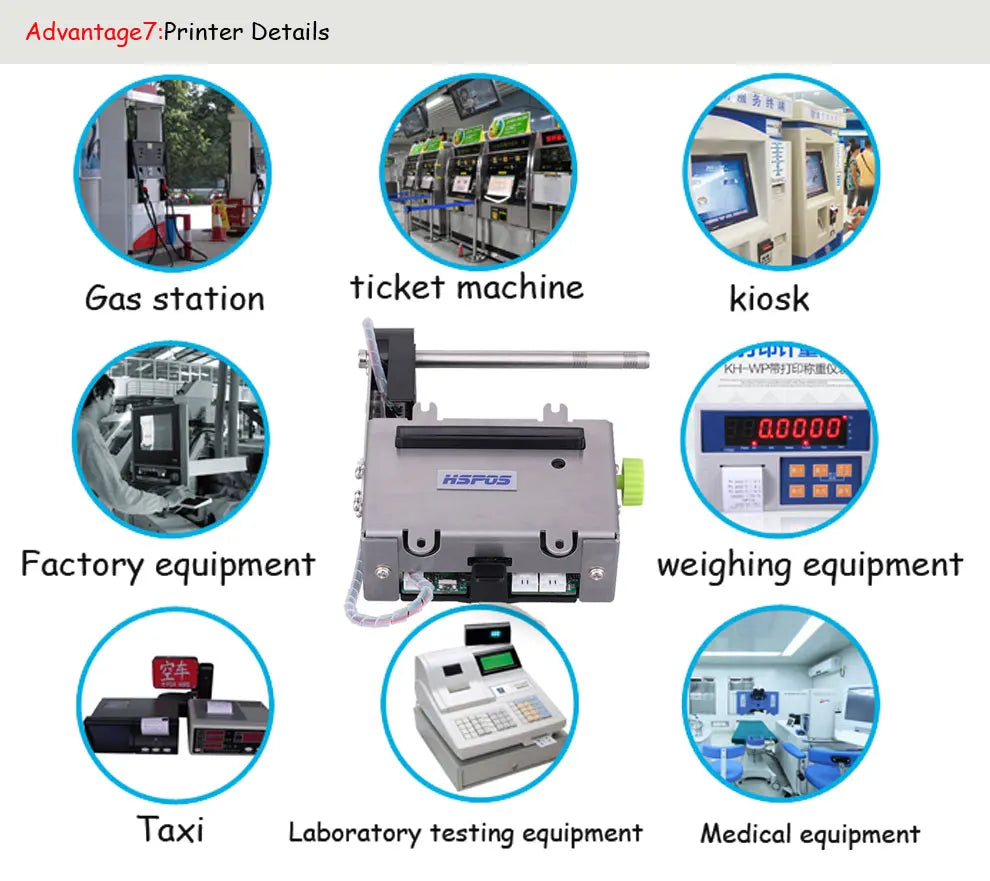

Application: For Commercial

Battery Included: no

Black Print Speed: 90mm/s

Brand Name: HSENGPRT

Certification: CE,FCC,RoHS

Color Print Speed: 0

Consumable Type: Thermal Paper

Control Method: Others

Dot Matrix Printer Type: Ticket printers

Double-sided Printing: No

High-concerned chemical: none

Interface Type: USB

Internal Memory: None

Max Paper Size: A0

Max. Resolution: 203dpi

Origin: Mainland China

Paper Feed Mode: Automatic and manual

Place of Origin: China (Mainland)

Power: 12V

Print Speed: 8ppm

Products Status: Stock

Signal Connection Type: none,Bluetooth,Wi-fi

Size: 290*349*180mm

Supports Network Printing: No

Type: thermal

Use: Receipt Printer

Voltage: 100-240V

Weight: 1.5kg

is_customized: Yes

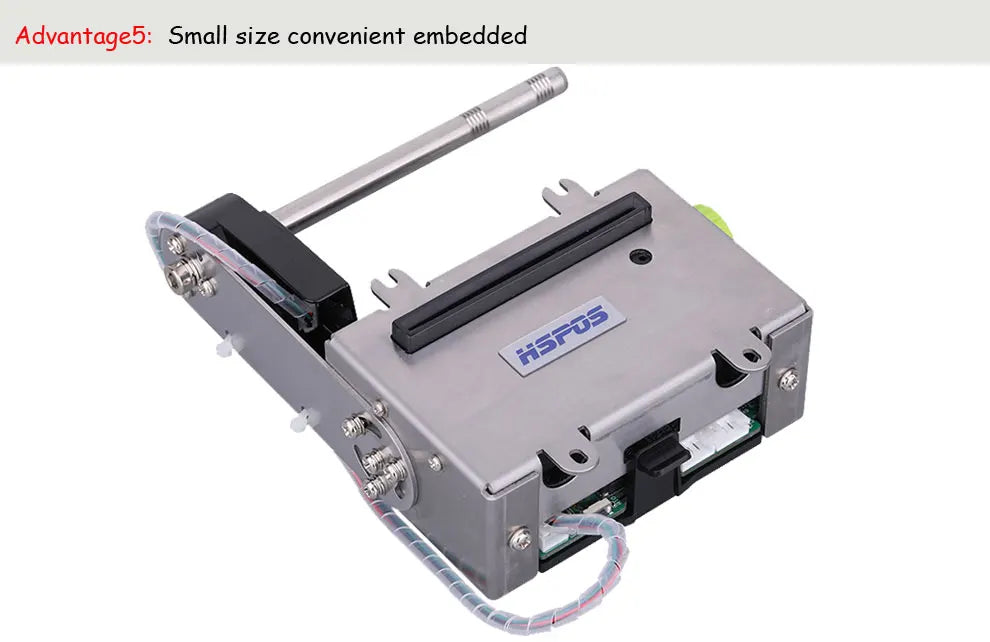

2 inch Thermal kiosk Printer with auto cutter support Paper near end sensor function and Real time monitoring

Function

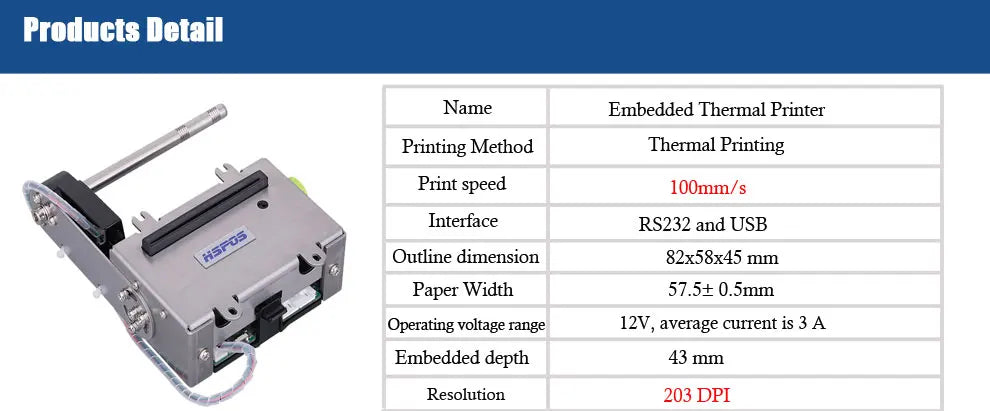

Parameters

Printing type	direct thermal line printing
Dot density	384dots/line(default)
Resolution	203DPI x 203DPI
Paper feeding method	unidirectional friction feeding
Printing width	8dots /mm ,48mm.
Number of columns	Character spacing（default）: 30 dots（3.75mm）. Note: Adjust character spacing through emulation command, incremental unit is 0.125mm.
Printing speed	Max.90mm/s. Speed depend on data/command transmission speed、 input voltage and printing density.
Paper feeding speed	around 100mm/s.
Paper feeding	0.125mm (one step spacing of feedingmotor).
Printing columns	Max.32columns(12x24 font), Max.16 columns(24 x 24 Chinese)

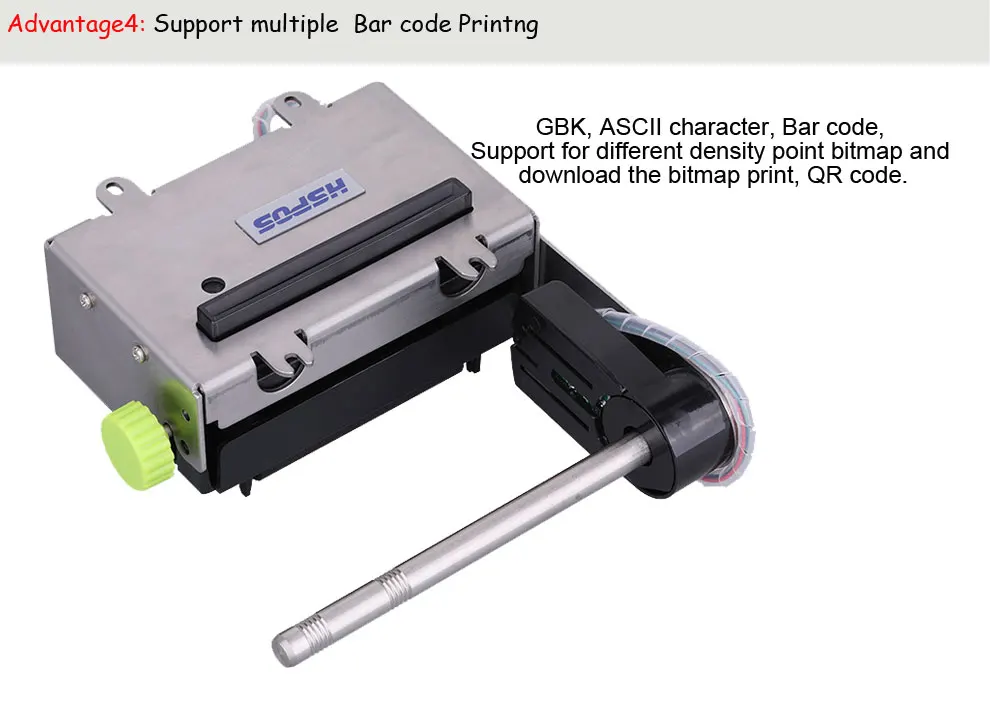

Character sets	IBM character sets-II and GB18030 Chinese sets
Data buffer	Receive buffer:4K bytes

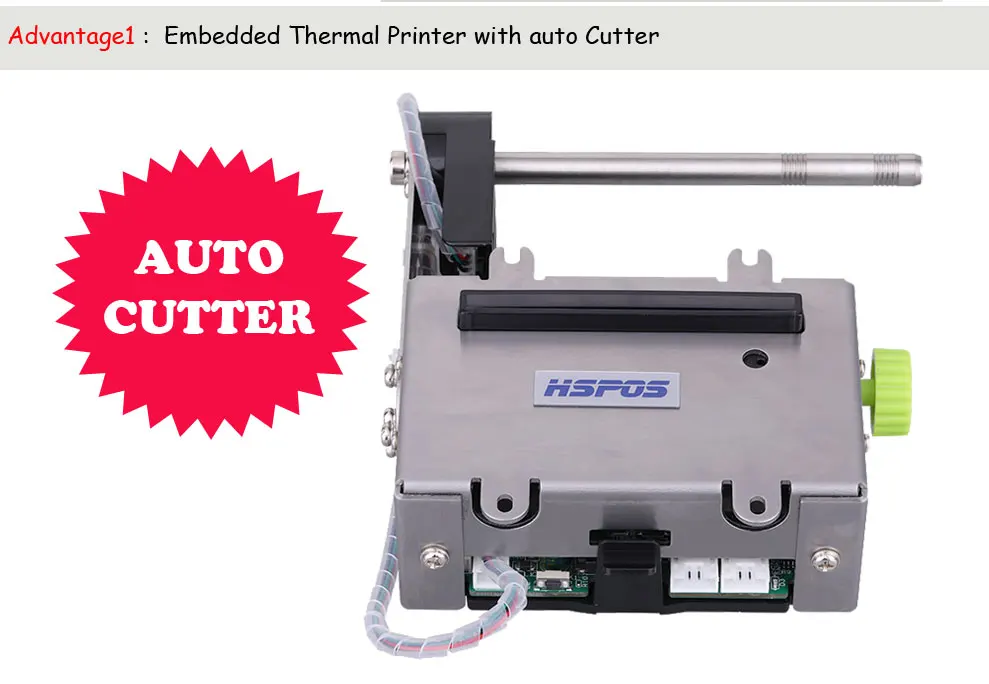

Auto cutter	Full, partial.
Paper near-end detector	detecting range of paper roll diameter is 16～42mm (calculated on the core center of paper roll).

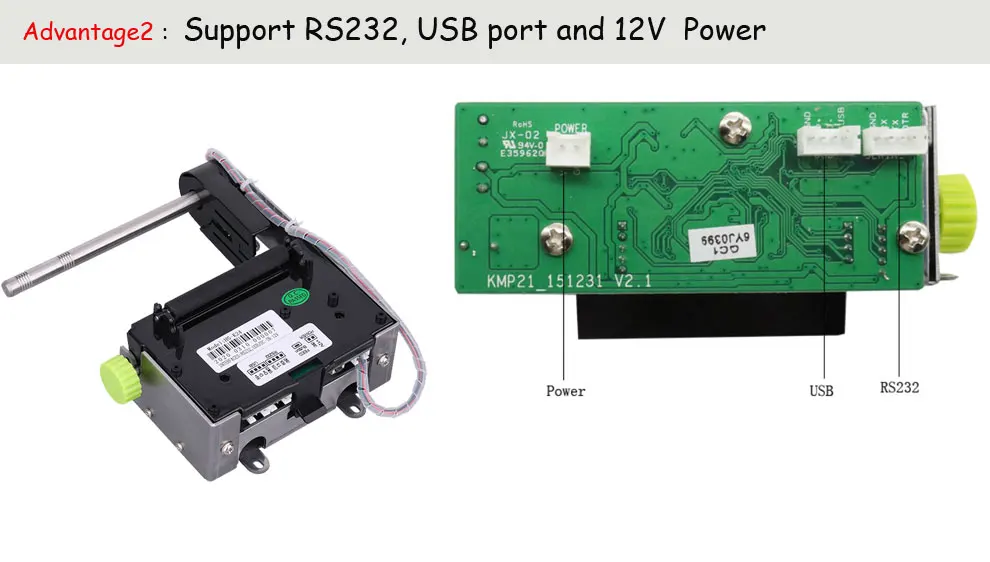

Interface	Serial: HX Connector,RS-232C compatibility, support RTS/CTS handshake, asynchronous communication 115200(default),9600/19200/38400/57600 optional USB2.0 Full Speed
Paper	High quality thermal paper,smooth surface ,thickness 65-100 µm.

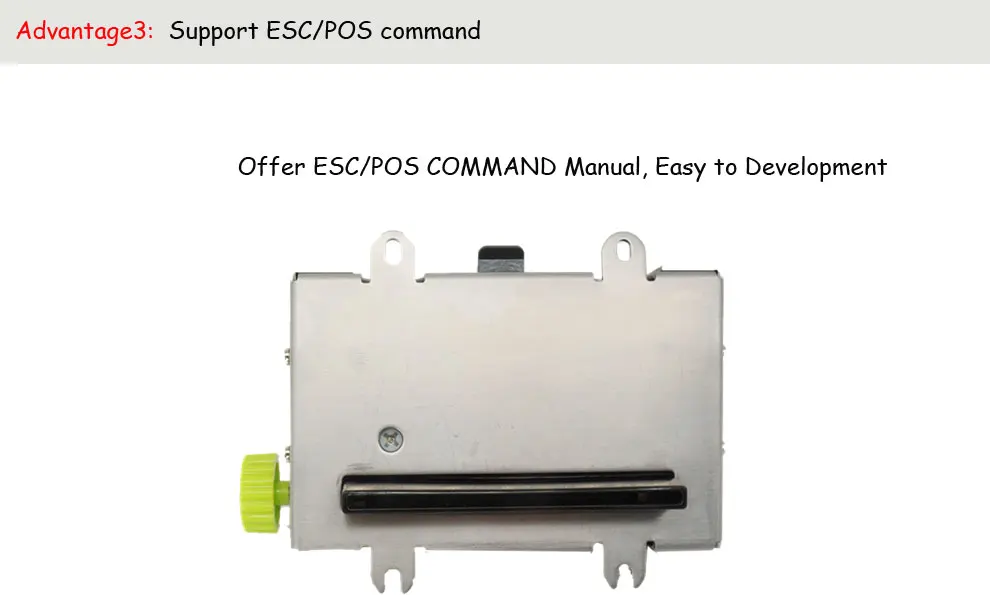

Emulation command	compatible with EPSON ESC/POS
Paper width	57.5+/-0.5mm.
Paper roll outside diameter	Max. 150 mm.
Paper roll inner diameter	when thickness is 65µm~100µm,min. inner Dia. Is 25.5+/-0.5mm.
Paper take-up direction	outside of paper must be printed on.
Pint side	outside of paper
Voltage	DC:12V
