SPECIFICATIONS

Application: Outdoor

Battery: 12V 40Ah Lithium Battery

Battery Type: Lithium Ion

Brand Name: NONE

Certificate: CE ROHS FCC

Controller: PWM MPPT Controller (Optional)

Controller Type: Pwm

Free installation service: No

High-concerned chemical: none

Installation method: Wall/Pole mount

Load Power (W): Others

Model Number: SY-TYNTZ8040A

Mounting Structure: Hot Dip Galvanized Steel

Mounting Type: Roof Mounting

OEM & ODM: Acceptance

Origin: Mainland China

Output Frequency: 50HZ

Output Voltage: DC12V/24V/48V Optional

Output Voltage (V): 12V DC

Place of Origin: Shandong, China

Pre-sales project design: Y

Solar Panel Type: Monocrystalline Silicon

Solar panel: 80w Monocrystalline Solar Panel

Usage: Application Outdoor

Warranty: 5 Years, 5Years

Work Time (h): 72 hours

Dear customer,my name is Shane Ning Welcome to my store,There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and accurate prices, please add WA for confirmation Manager: Shane WhatsApp:+86 18627604199 Email：Qianruiyan8@gmail.com

Product Description

Product Name	80w40ah dc 12v output solar power system
Solar panel	80w 18v mono solar panel
Solar panel size	700*670*30mm
Solar panel weight	5.2kg
Battery type	Ternary lithium polymer battery
Battery capacity	12V 40ah
Max pulse discharge current	40A
Battery size	200*150*100mm
Battery weight	3.2kg
Solar controller type	PWM
System voltage	12V
USB output	5V/2A
Solar controller size	190*170*135mm
Waterproof size	280*190*100mm
U-type hoop	8-14 U-type hoop
Package size	700*725*205mm
Package weight	17.5kg

• DC output solar solutions

- Long standby tiem for 12V loads

- Suitable for environment without electricity      and network

- Low power consumption and long       endurance Peak power tracking technology

- High conversion rate of solar controller

Low cost solar power system

This solar system is equipped with a 80W solar panel, a 40AH lithium battery and PWM charge controller. Output of this system is 12V DC.

We also provide other solar systems, like 360WH, 480WH, 720WH, 960WH, 1440WH, 2160WH and so on. Feel free to contact us if you have any requirements about power issue.

solar panel 12v dc power system portable power solar station smart solar backup for PTZ wifi camera

Andy Shaw

Mob: 0086 130 5334 3539

E mail: andy@siysolar.com

Skype: live:e125cf9f4b64b661

Professional solar power solutions

- Solar solution according to your request

- Comprehensive testing to ensure quality
- Bang for the buck
- Professional technical support on line

Advantages of our solar power system

- No wiring: we collect power from the sun, no need wiring from other power supply

- No electric bill: green energy from the sun

- Green power: No pollution, no noise

- Plug and play: complete the installation and it runs easily

- Application scenarios: Suitable for all kinds of outdoor environment without power supply

- Waterproof: The system is waterproof

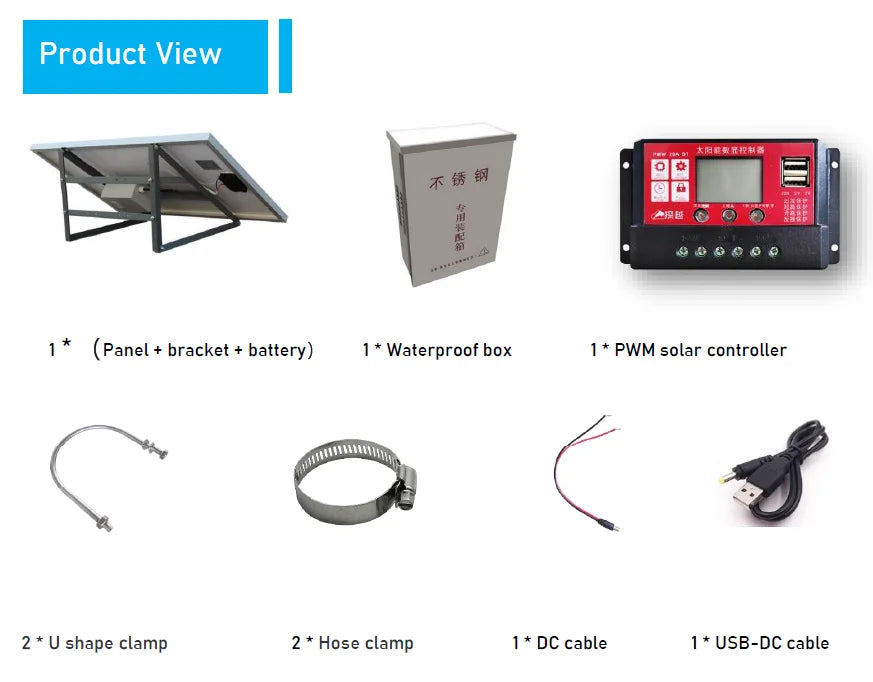

Details Images

High efficiency solar panel

- A grade solar cell with efficiency rate
- Toughened glass withstand 5400Pa wind and rain impact
- PPF backboard waterproofing and sealing
- IP65 junction box

Solar panel specifications
Max power voltage(Vmp)	18V
Max power current(Imp)	4.45A
Open circuit voltage(Voc)	21.6V
Short circuit current(Isc)	5.02A
Module efficiency STC	22%
Power tolerance	0~3%
Max system voltage	1000V
Cell type	78mm
Number of cells	36pcs
Dimension	700*670*30mm
Weight	5.2kg

PWM solar controller

- 10A PWM solar charge controller

- Support 5V/2A USB output

- LCD real time display

- Intelligent charge management

Solar controller specifications
System voltage	12V DC
Rated charge current	10A
Rated discharge current	10A
Maximum solar voltage	＜50V
Floating charge current	12.6V
USB output	5V/2A
Dimension	190*170*135mm
Weight	3.8kg

60ah lithium battery

After 2500 times cycles, battery performance still remains about 85%

Lithium battery specifications
Rated capacity	40Ah
Operating voltage	7.8V ~ 12.6V
Overcharge protection voltage	12.83V
Standard cycle life	≥2500
Dimension	200*150*100mm
Weight	3.1kg

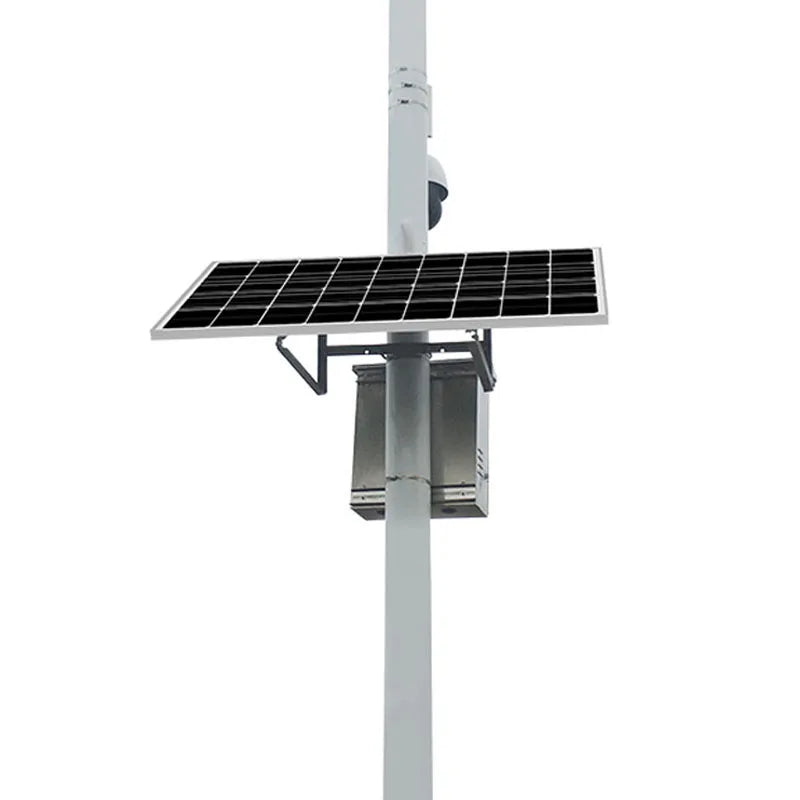

Mounting bracket

We fix solar panel and battery to the mounting bracket, you just open it and mount it to your pole.

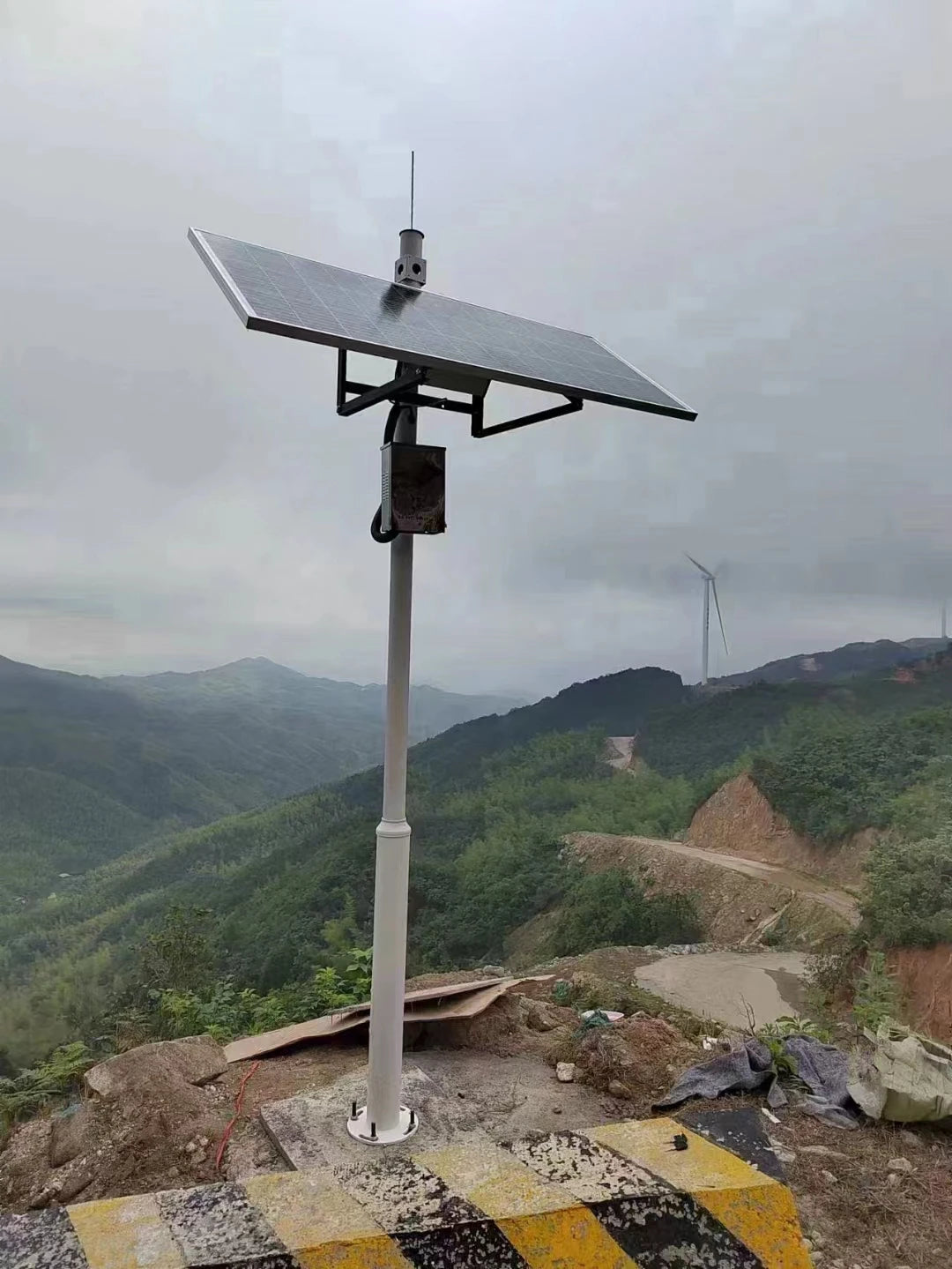

Product Usage

Wide application scenarios

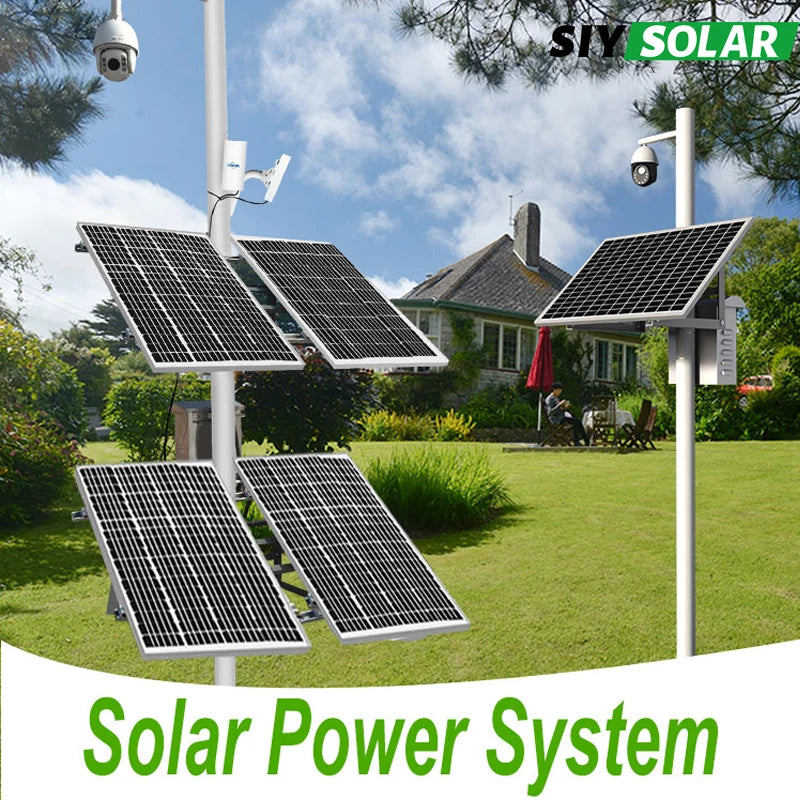

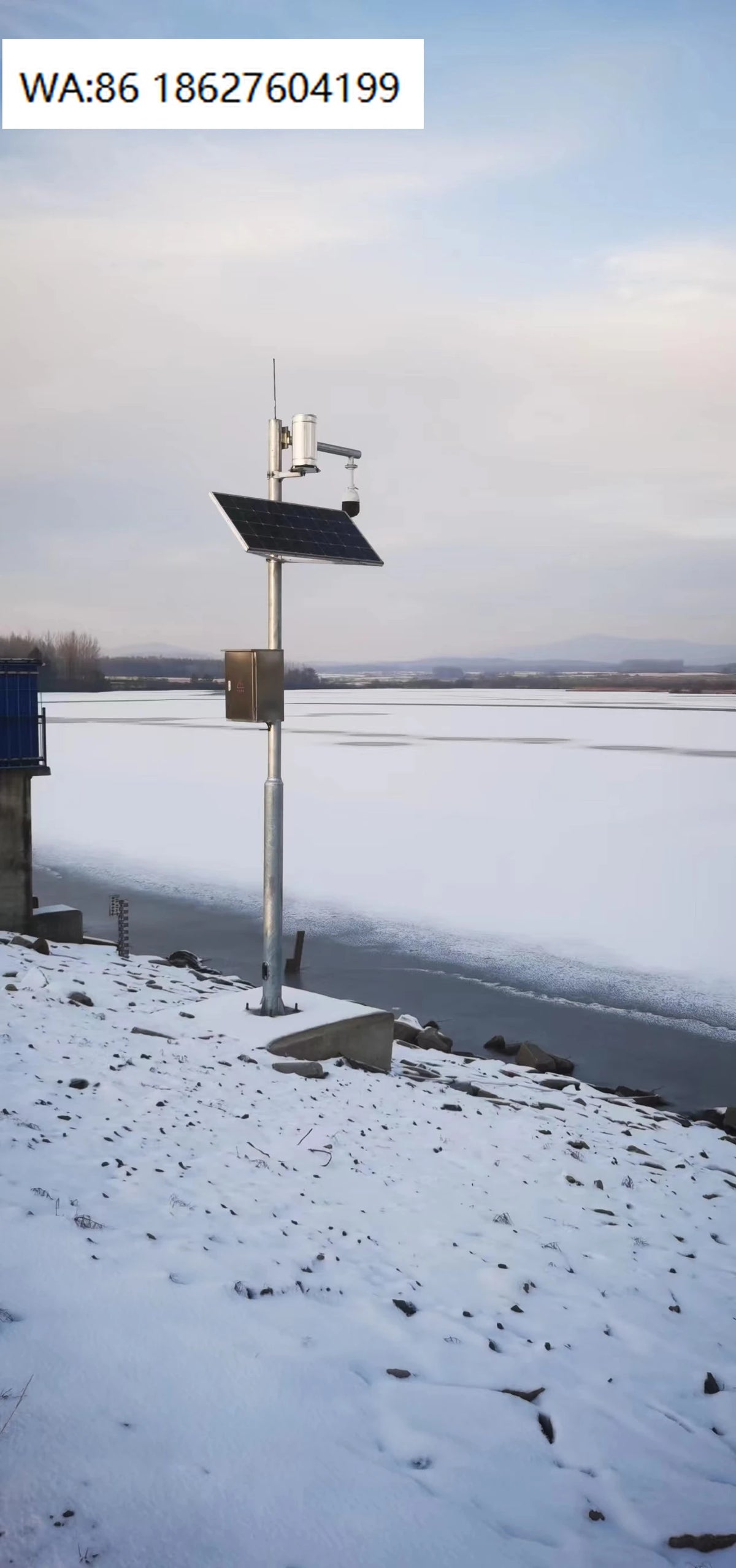

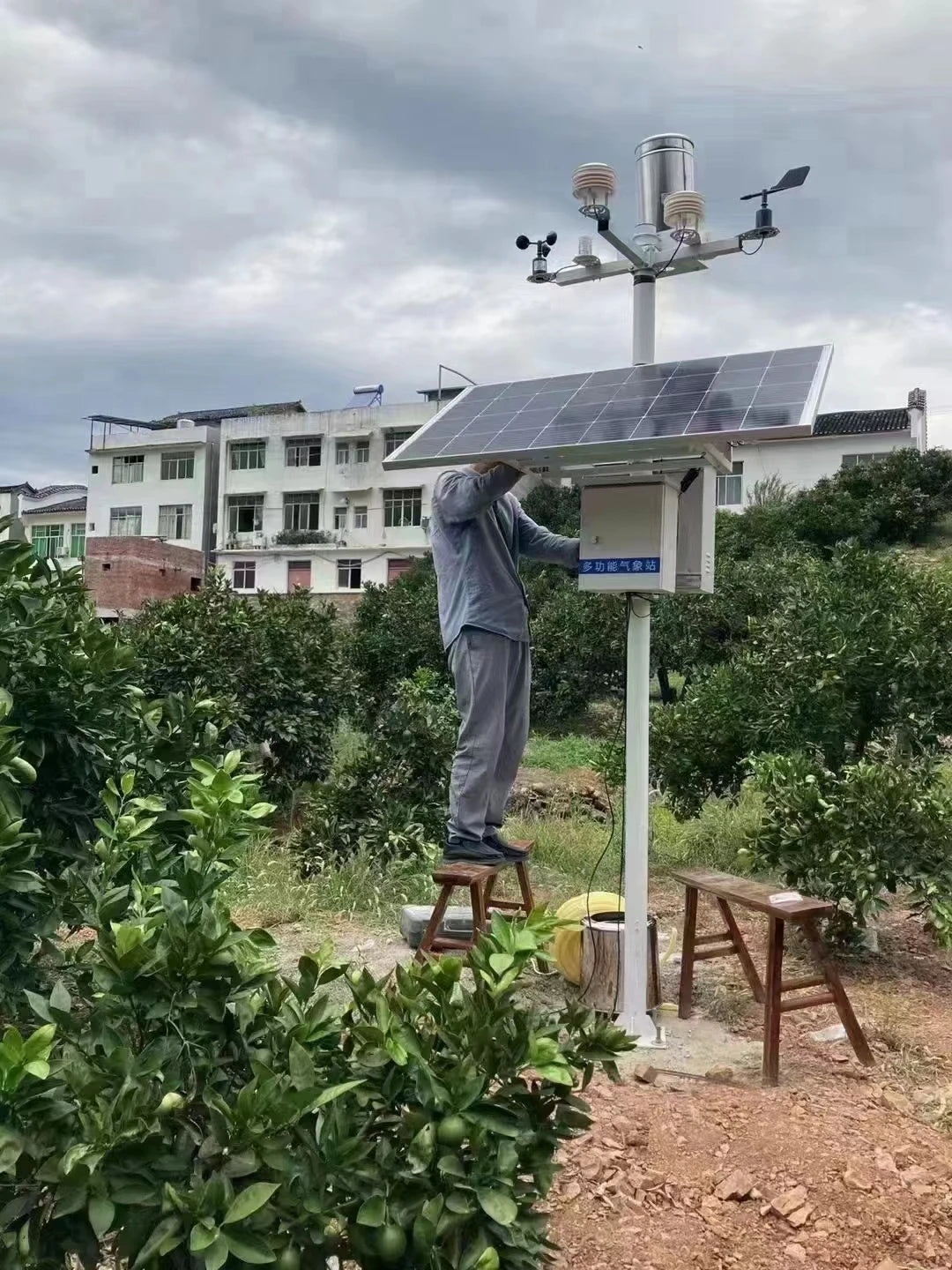

Our solar power system provides power for different a pplication scenarios, such as CCTV camera, wifi bridge, wireless access point, smart weather station, smart hydrological monitoring station and other IoT devices.

Packing&Shipping

Every product is tested before delivery and packed well to prevent destroy
