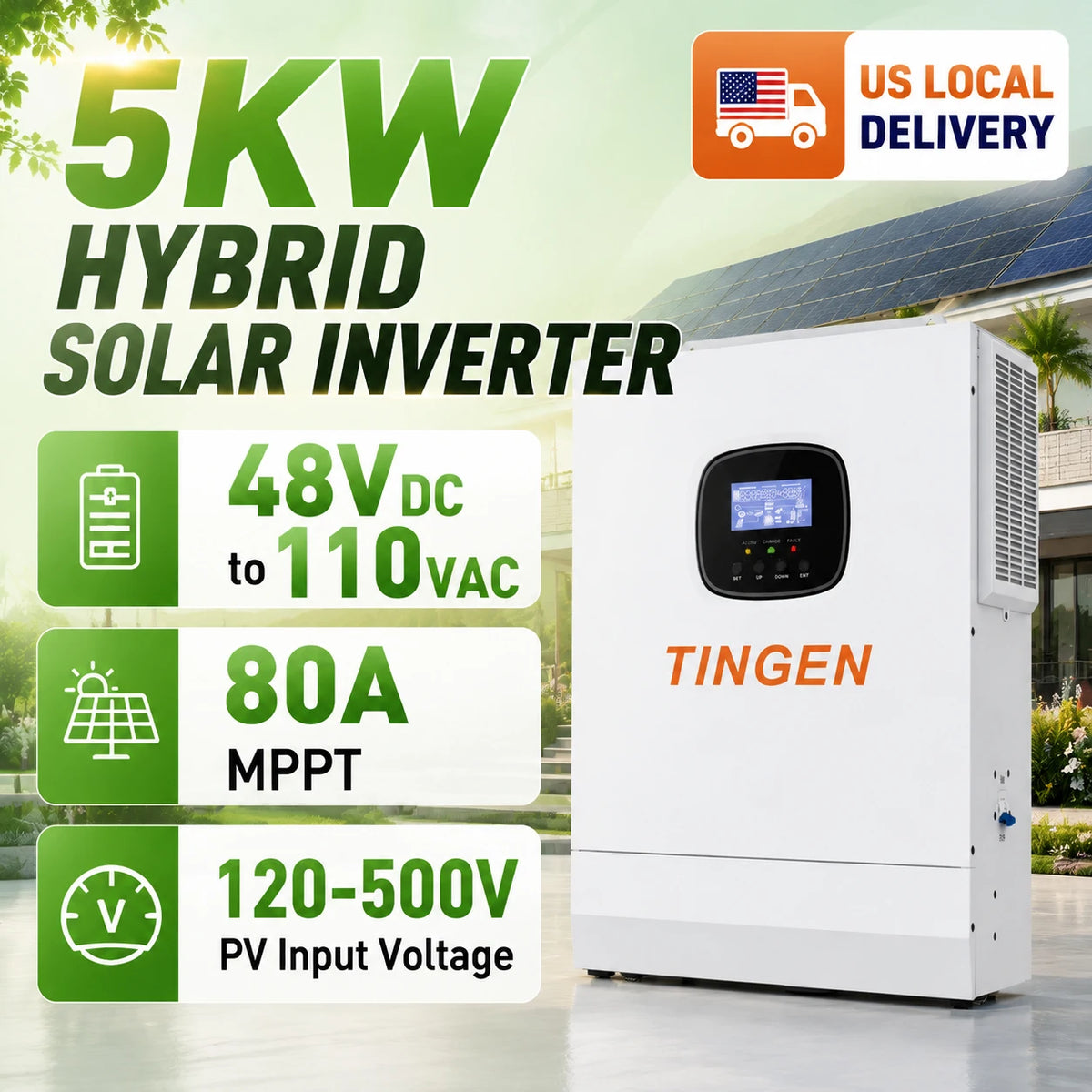

5KW Hybrid Solar Inverter 48VDC to 110VAC with 80A MPPT Controller 120-500V PV Input Pure Sine Wave Inverter for Home Solar System
5KW / United States
€989,95
Sale price
€989,95
Regular price
Skip to product information
5KW Hybrid Solar Inverter 48VDC to 110VAC with 80A MPPT Controller 120-500V PV Input Pure Sine Wave Inverter for Home Solar System
€989,95
Sale price
€989,95
Regular price
Taxes included.
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: EVSOLAR
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Origin: Mainland China

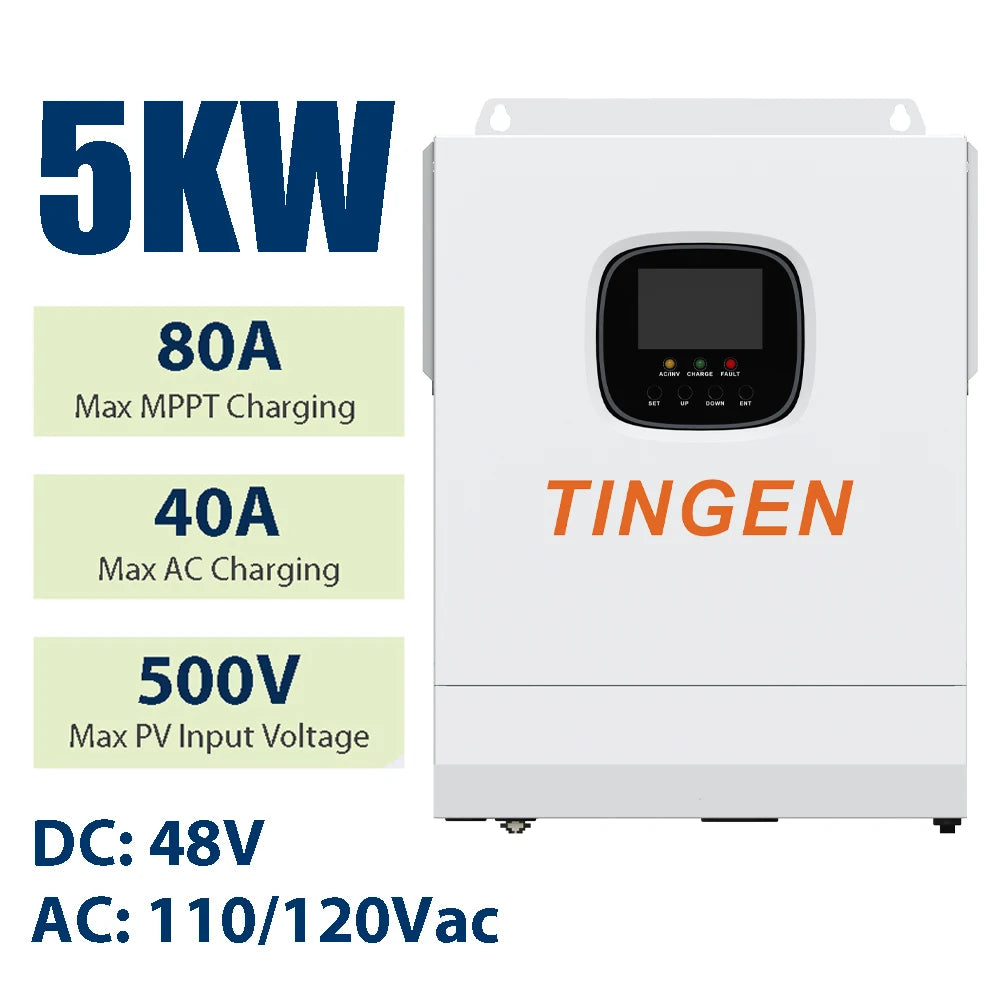

5KW Hybrid Solar Inverter 48V DC to 110V/120V AC Pure Sine Wave Inverter 80A MPPT Charge Controller 120-500V PV Input Voltage Off Grid Solar Power System US Local Delivery
Model |
HSI 5000U |
AC mode | |
Rated input voltage |
110/120Vac |
Input voltage range |
(90Vac~140Vac)±2% |
Frequency |
50/60Hz(auto-detect) |
Overload/short-circuit protection |
Breaker |
Efficiency |
＞95% |
Conversion time |
10ms(Typical value) |
Bypass and inverting | |
Maximum bypass overload current |
63A |
Inverter mode | |
Output voltage waveform |
Pure sine wave |
Rated output power |
5000VA/5000W |
Power factor |
1 |
Rated output voltage (Vac) |
120Vac(100/105/110/120Vac Settable) |
Efficiency |
>90% |
Peak power |
11000VA |
Rated battery input voltage |
48V (minimum start voltage 44V) |
Battery voltage range |
40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage |
Self-consumption power |
Non-energy saving mode ≤50W, Energy saving mode <25W |
AC charge | |
Battery type |
Lead acid or lithium battery |
Maximum charge current |
40A |
Charge voltage range |
40–60Vdc |

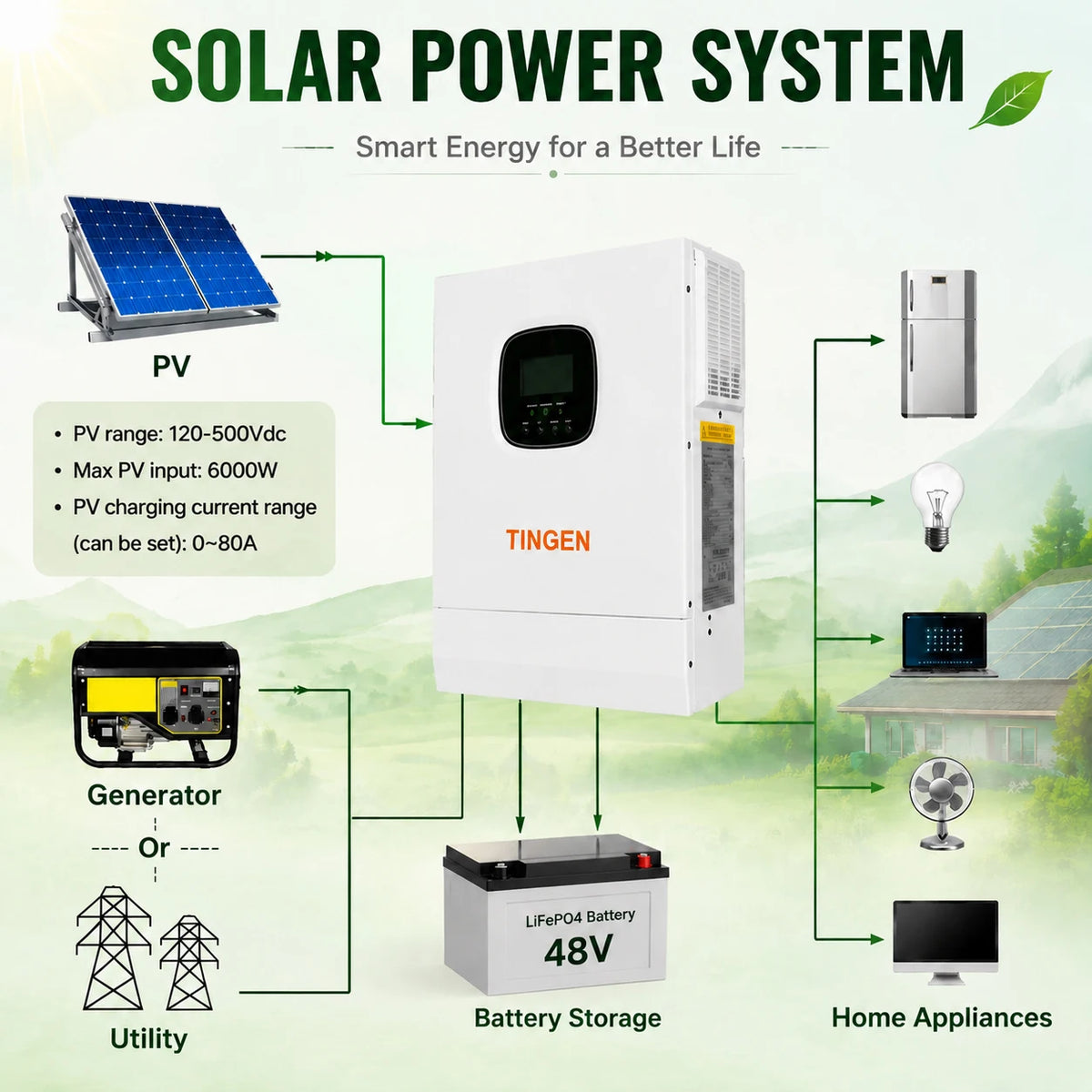

Solar charge | |
Maximum PV open circuit voltage |
500Vdc |
PV operation voltage range |
120-500Vdc |
MPPT voltage range |
120-450Vdc |
Battery voltage range |
40-60Vdc |
Maximum input power |
6000W |
Charge current range of solar energy (settable) |
0~80A |
Certified specifications | |
Certification |
CE(IEC62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA |
EMC authentication grade |
EN61000 |
Operation temperature range |
-10°C to 55°C |
Storage temperature range |
-25°C ~ 60°C |
Humidity range |
5% to 95% (three-proof paint protection) |
Noise |
≤60dB |
Thermal dissipation |
Forced cooling with adjustable air speed |

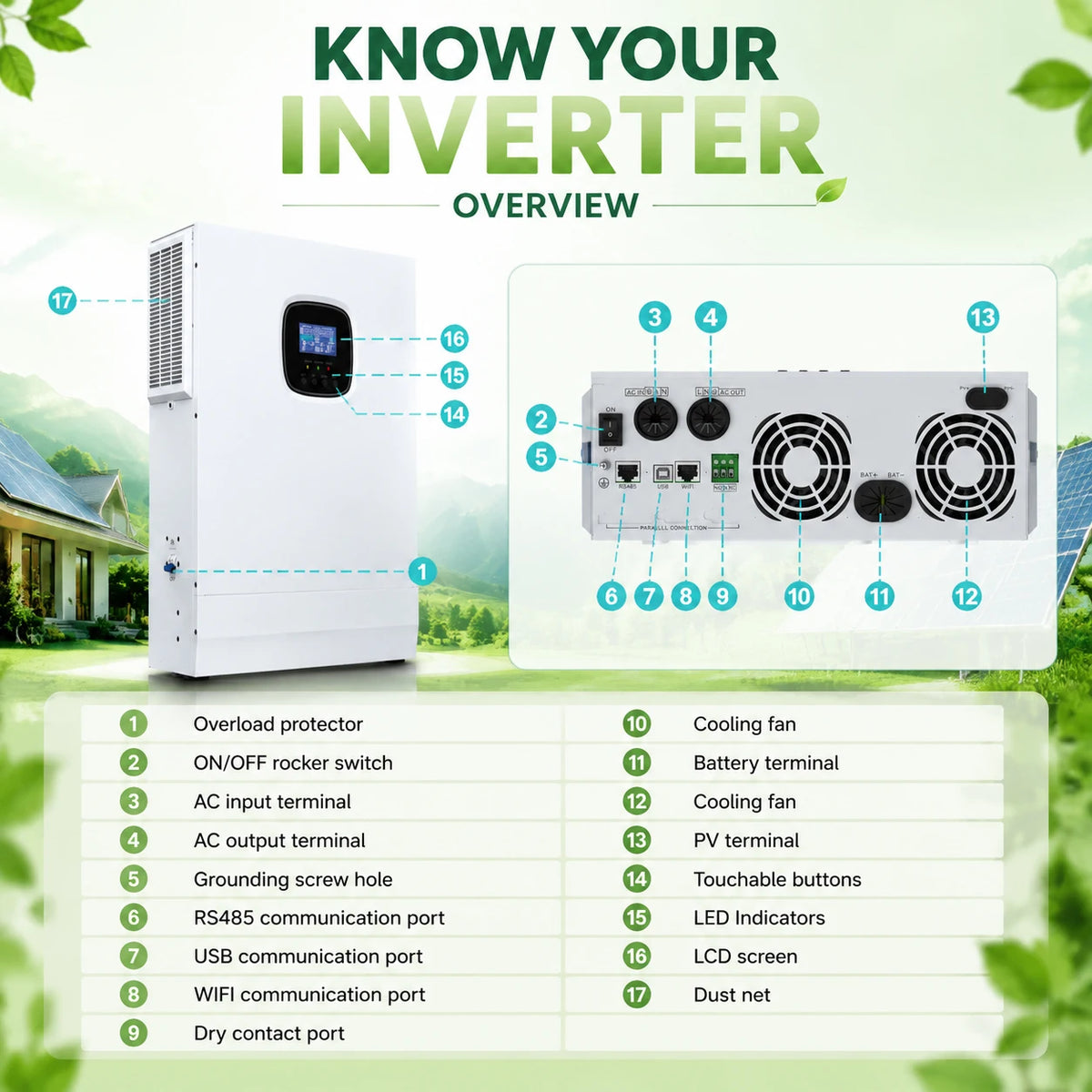

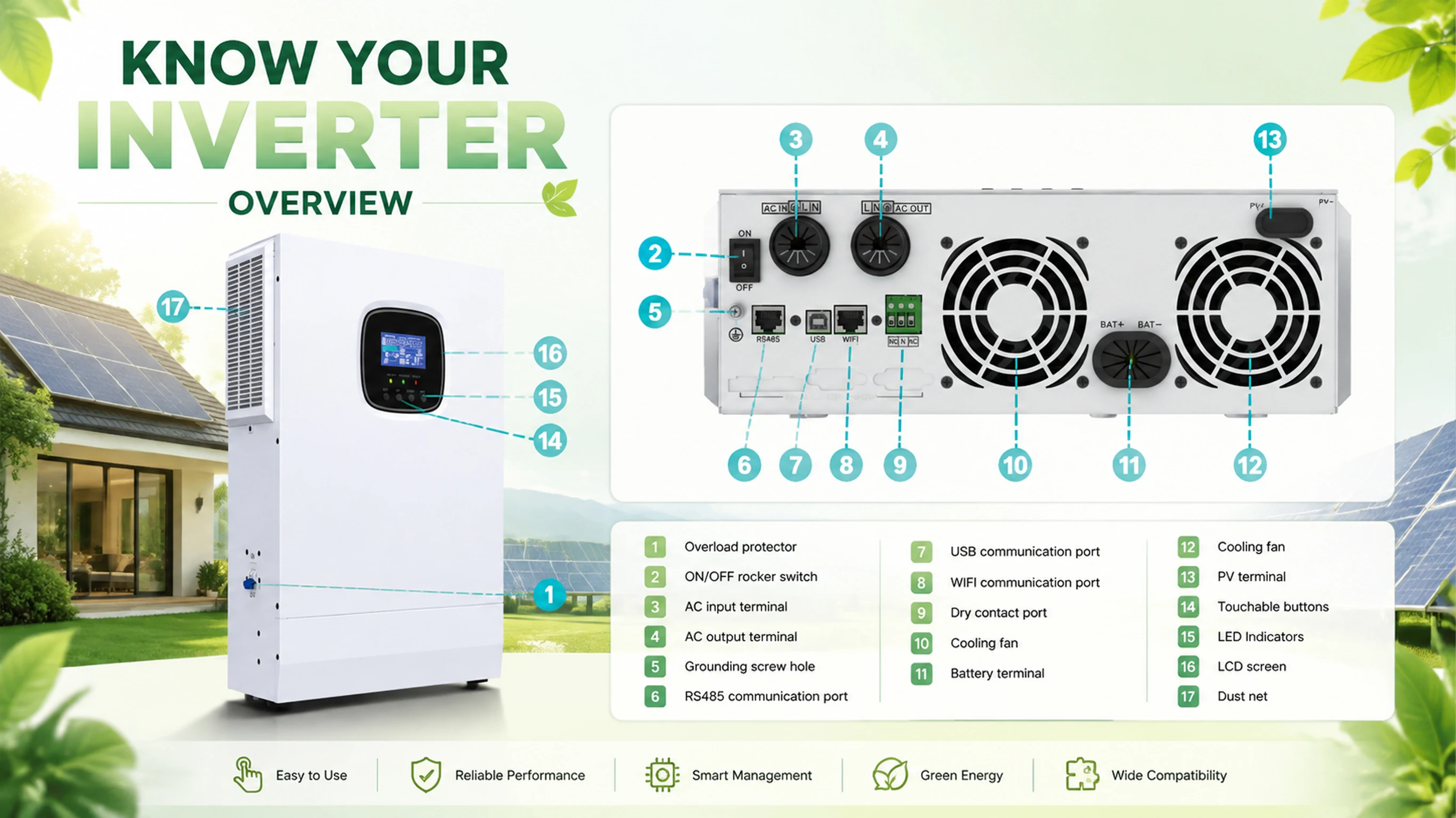

Communication interface |
USB/RS485 (WiFi/GPRS)/Dry contact |
Dimension |
426*322*126mm |
Weight |
11.6kg |
