SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 300 Mbps

5G Wi-Fi Transmission Rate: None

Antenna Type: Internal

Application: Soho

Brand Name: comfast

Certification: CE

Choice: yes

Frequency: 2.4 GHz

Frequency Band Class: Single-Band

Frequencyband: 5470–5725MHz

Function: Firewall,QoS,VPN,VOIP

High-concerned chemical: none

LAN Ports: 2

Max. LAN Data Rate: 300Mbps

Model Name: CF-E314NV2

Number of USB Interfaces: None

Origin: Mainland China

Package: Yes

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

Support Mesh: Support

Supports WDS: No

Supports WPS: No

Telecomcableconnected: Yes

Type: WireLess

WAN Ports: 1 x10/100Mbps

Wi-Fi Supported Frequency: 2.4G

Wi-Fi Transmission Standard: 802.11ac

Wired Transfer Rate: 10/100Mbps

Wireless Communication Standard: 802.11.ac

Wireless transmission rate: 300m

With Modem Function: No

comfast Model: CF-E315N

COMFAST CF-E314N 300Mbps 2.4GHz Outdoor Mini Wireless AP Bridge WIFI CPE Access Point Dual 2*14dBi WI-FI Antenna Nanostation

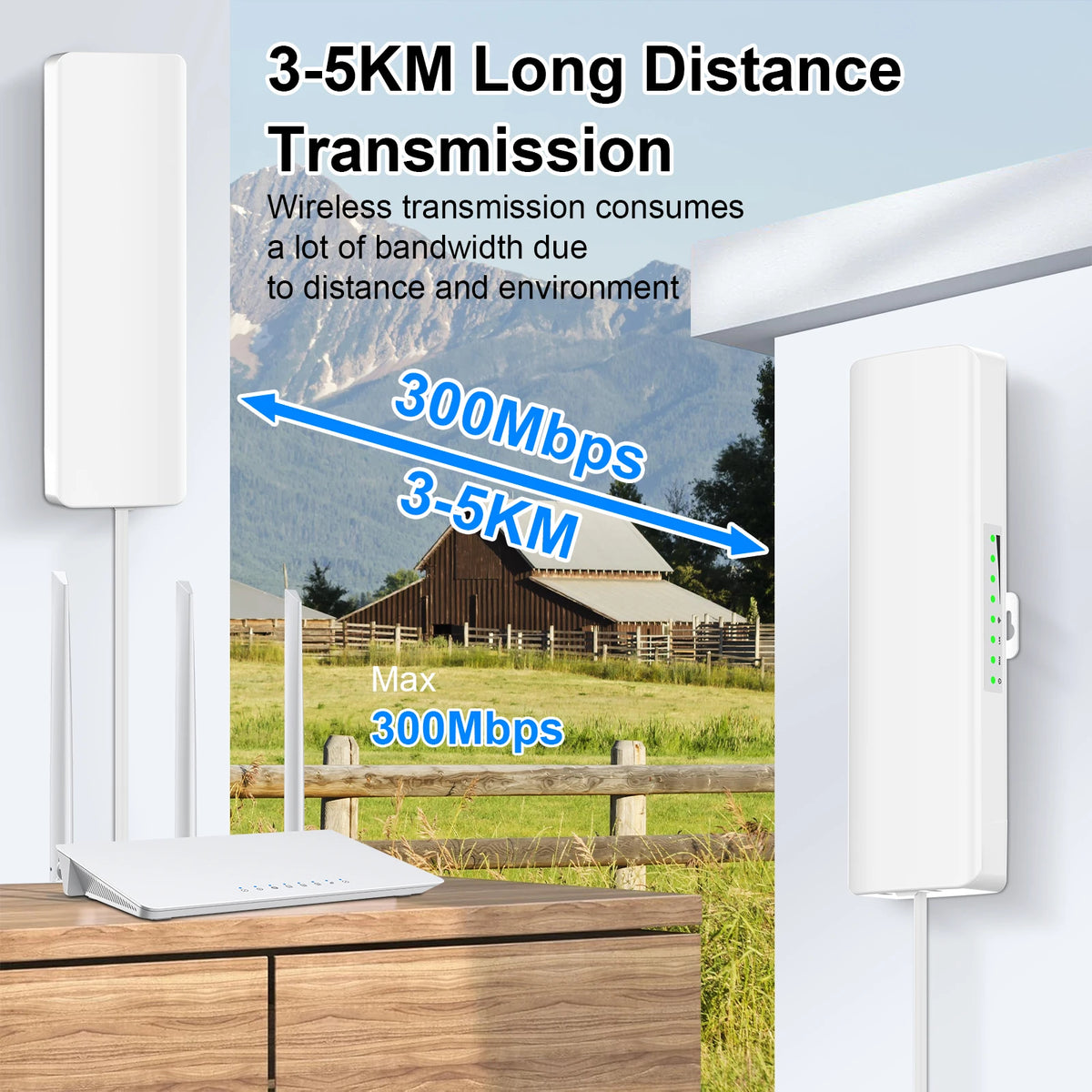

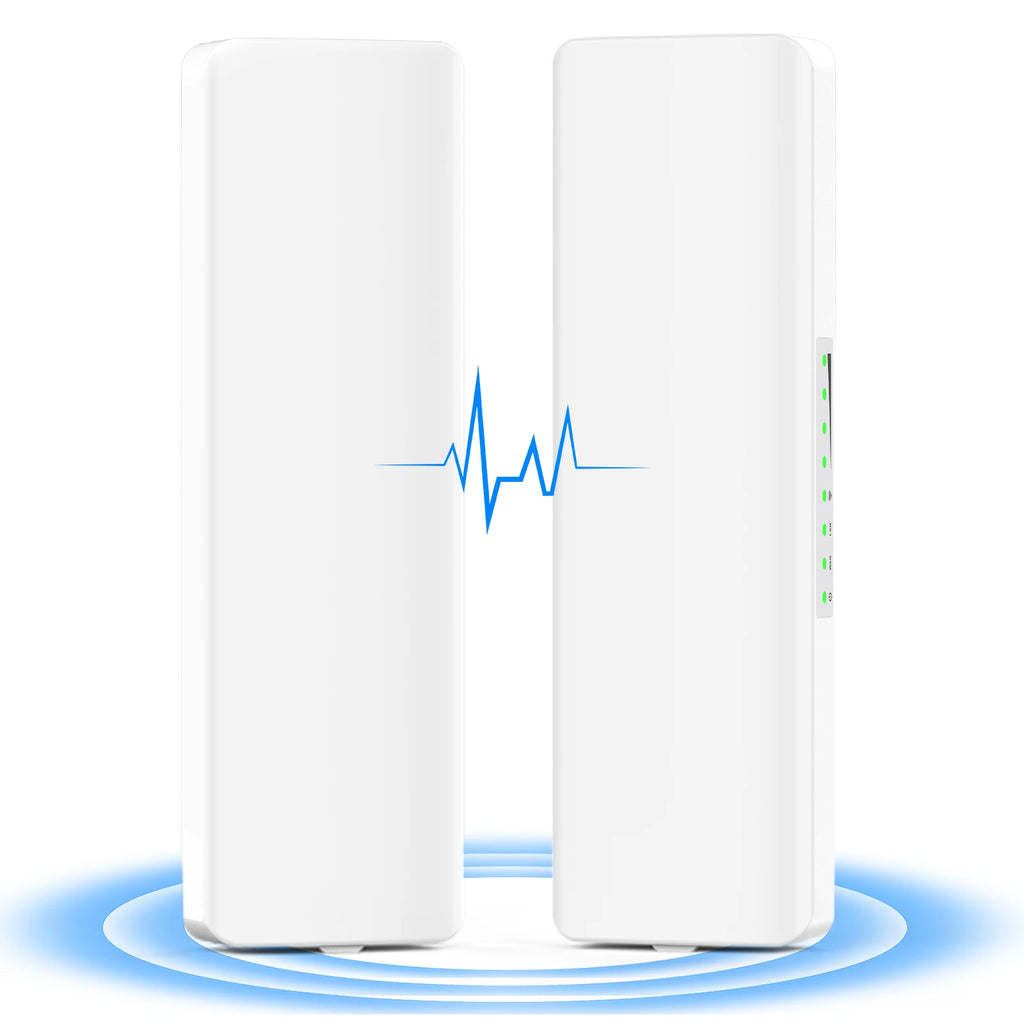

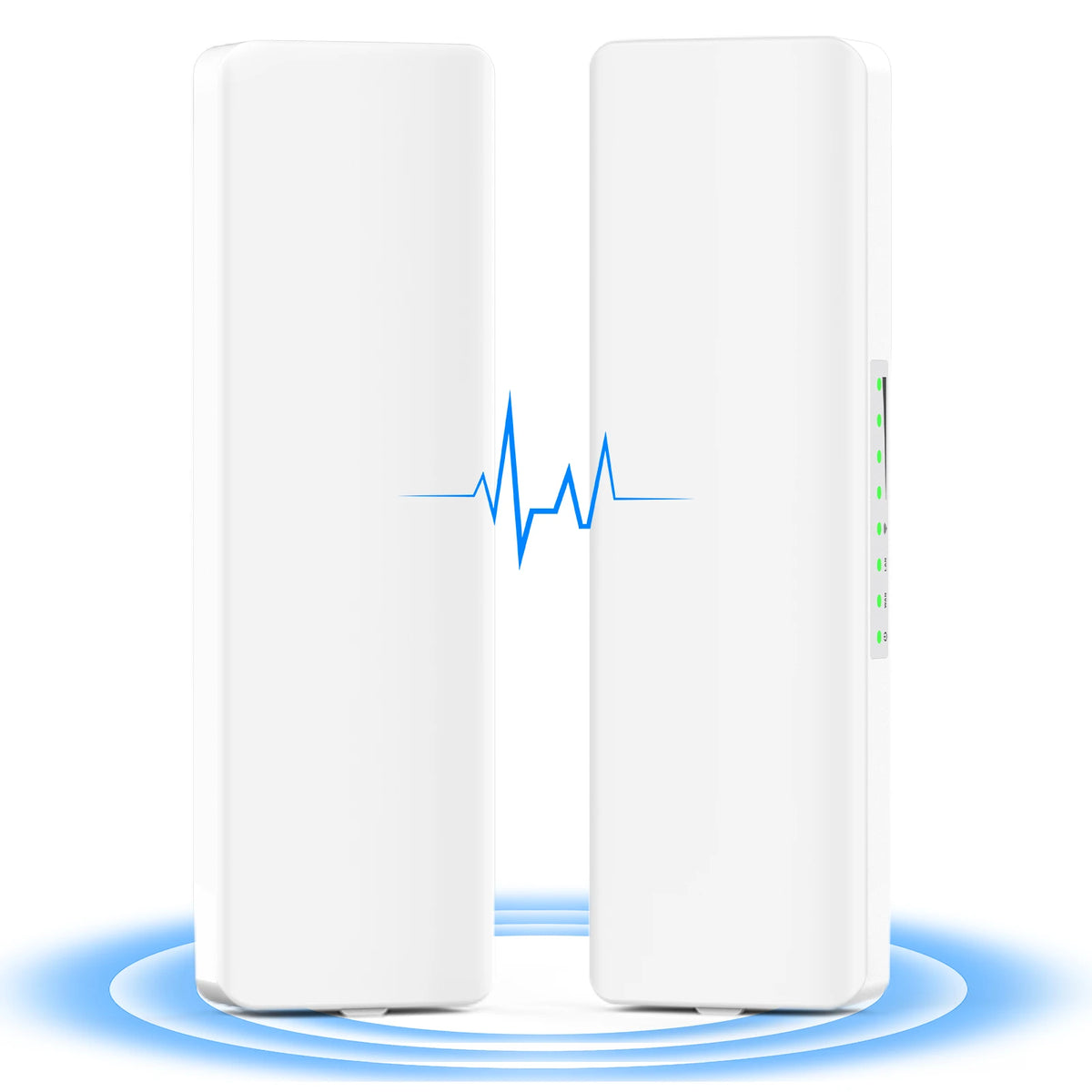

CF-E314N V2 2.4GHz 300Mbps long-distance transmission wireless bridge, support 2-5 km transmission distance.

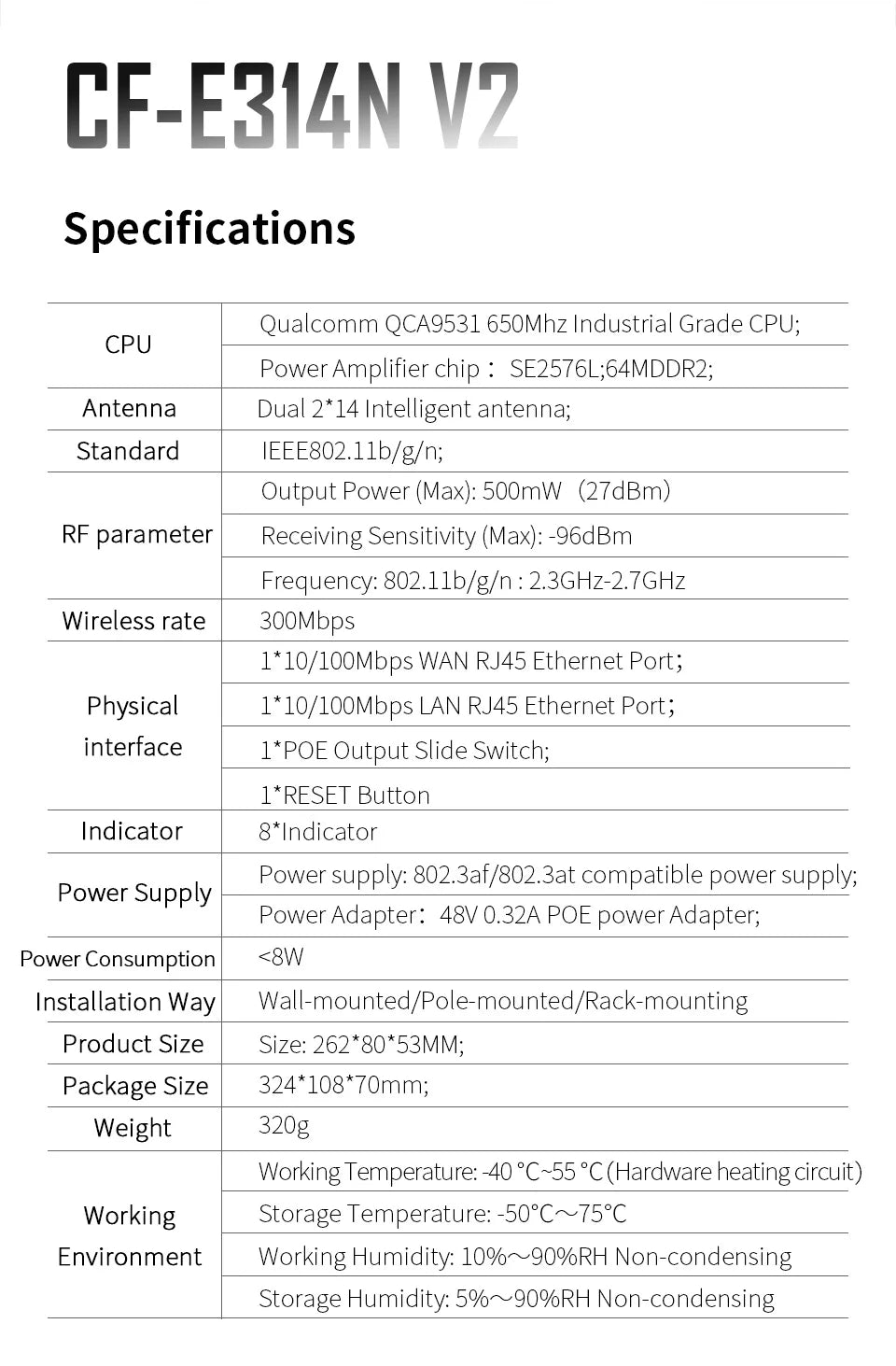

Specifications:

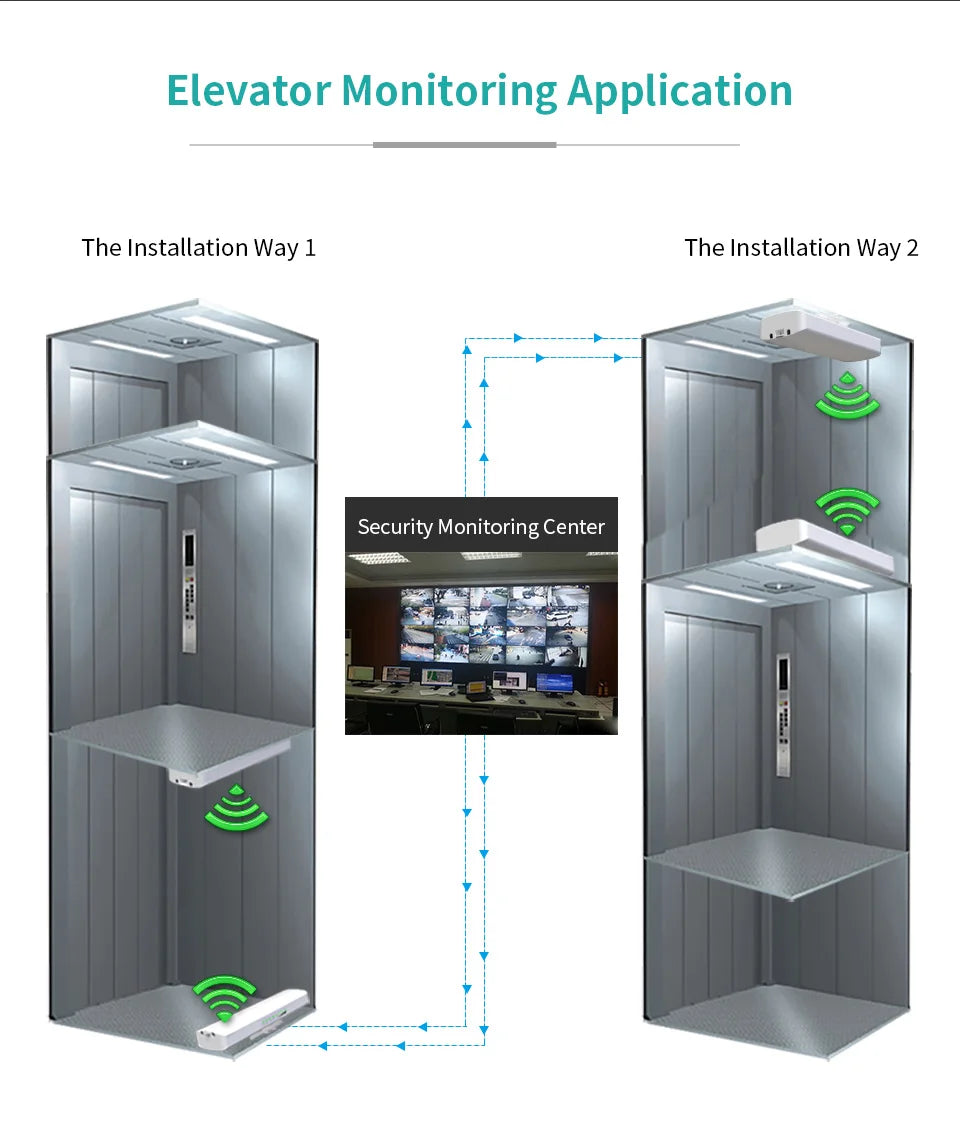

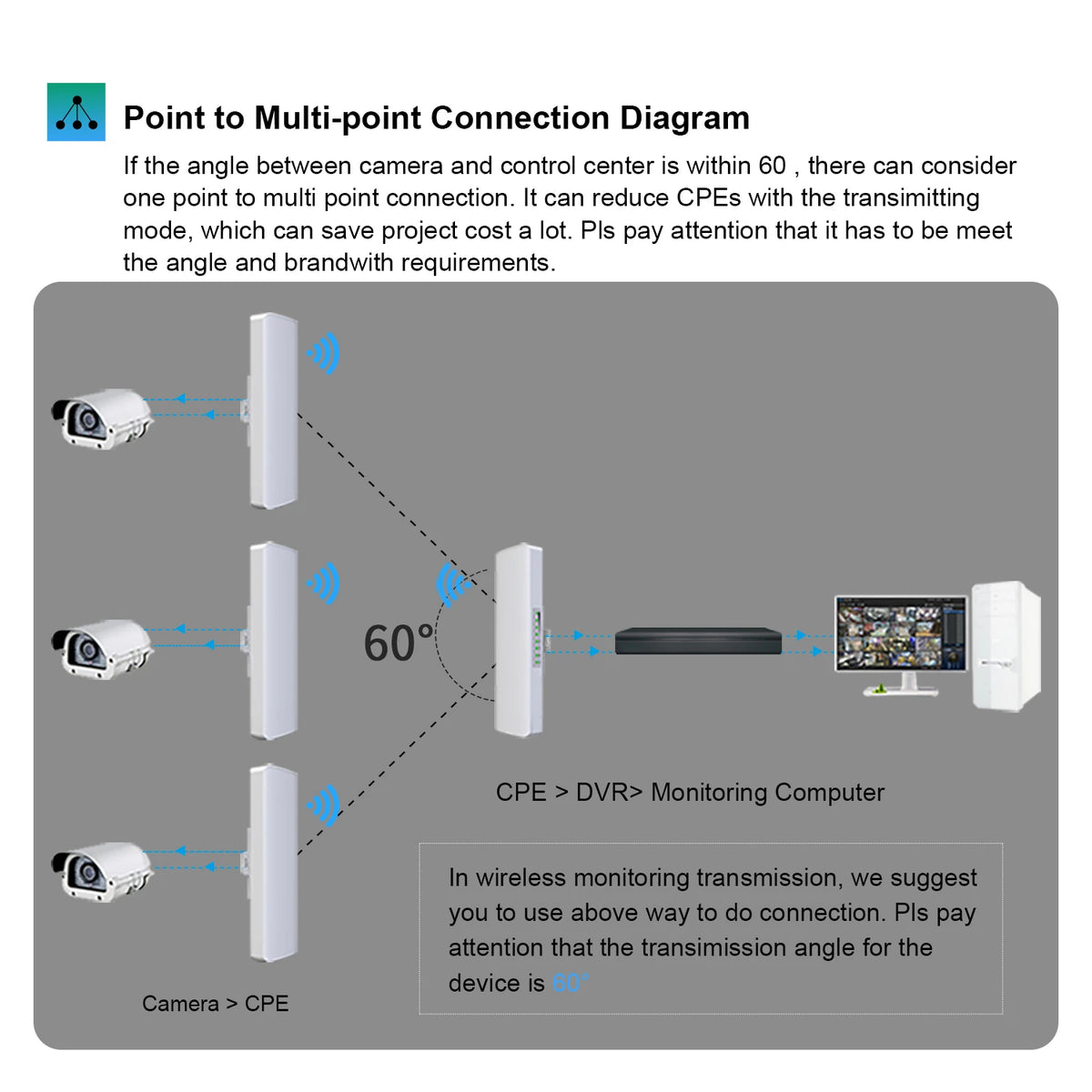

1. Suitable for wireless signal transmission in security monitoring projects.

2. Suitable for the transmission of monitoring projects in scenic spots, ports, oil fields, construction sites, etc.

3. Wireless CPE waterproof, lightning protection, high temperature resistance, working temperature：-40℃-55℃.

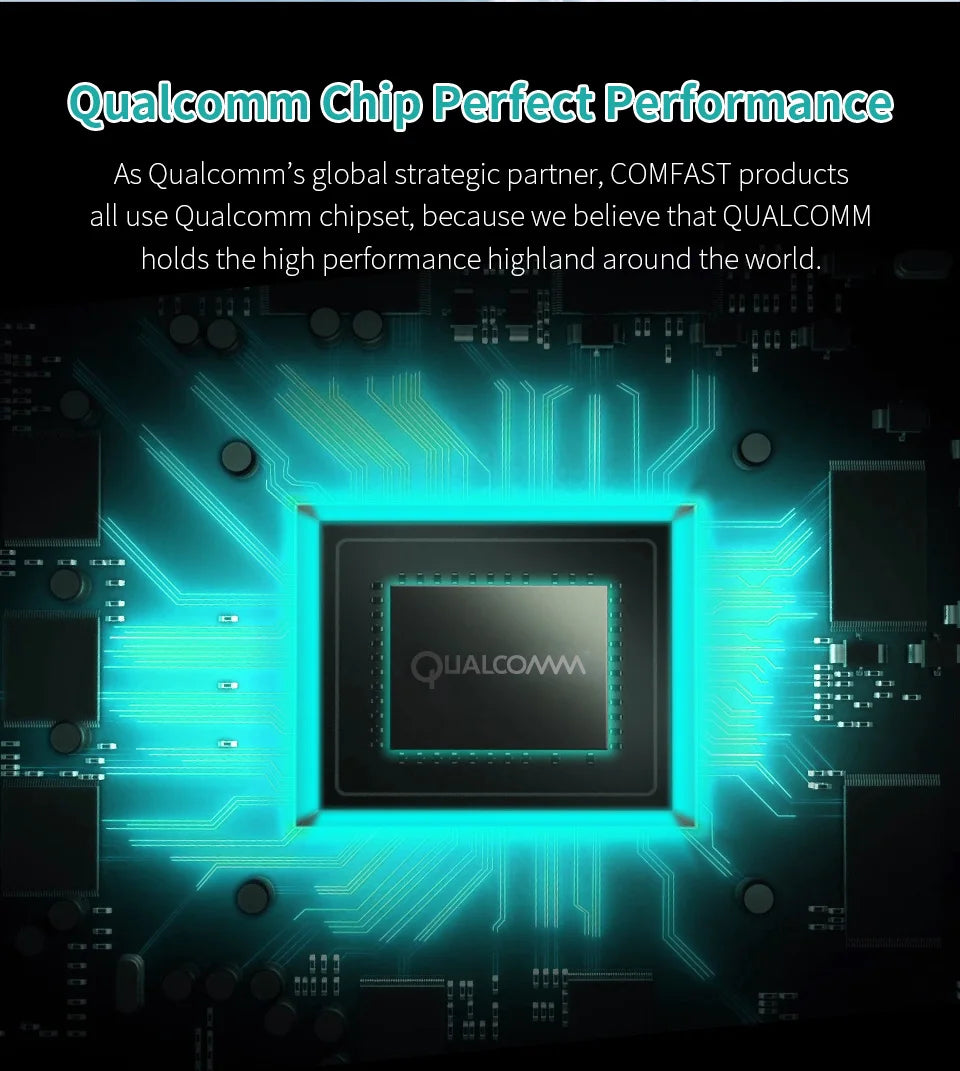

4. Using Qualcomm QCA9531 650Mhz chipset, great stability and functionality, also supports a fast transmission rate of 300Mbps.

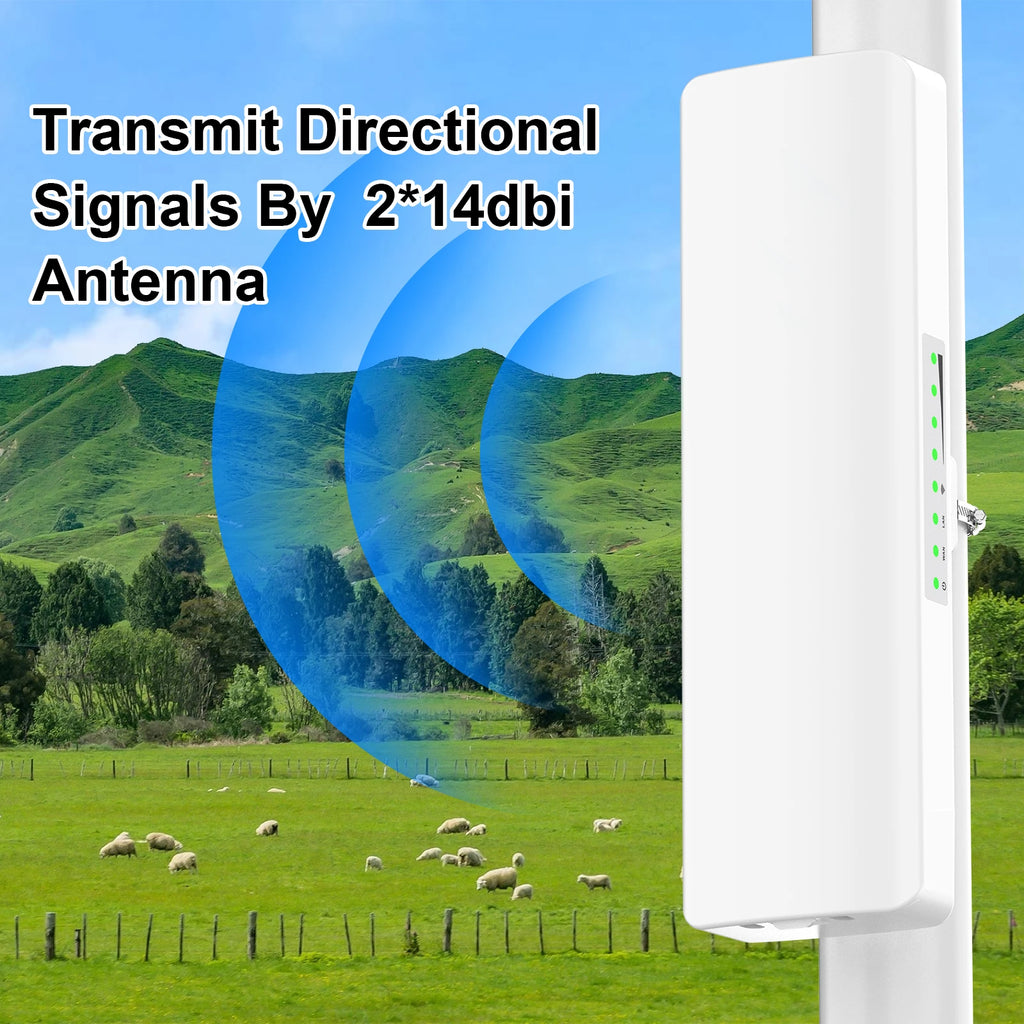

5. Antenna：Built-in 2*14dBi Antenna

6. IEEE802.11b/g/n Wireless Standard

7. AP / Wireless Client / Repeater Mode

8.IP65 waterproof

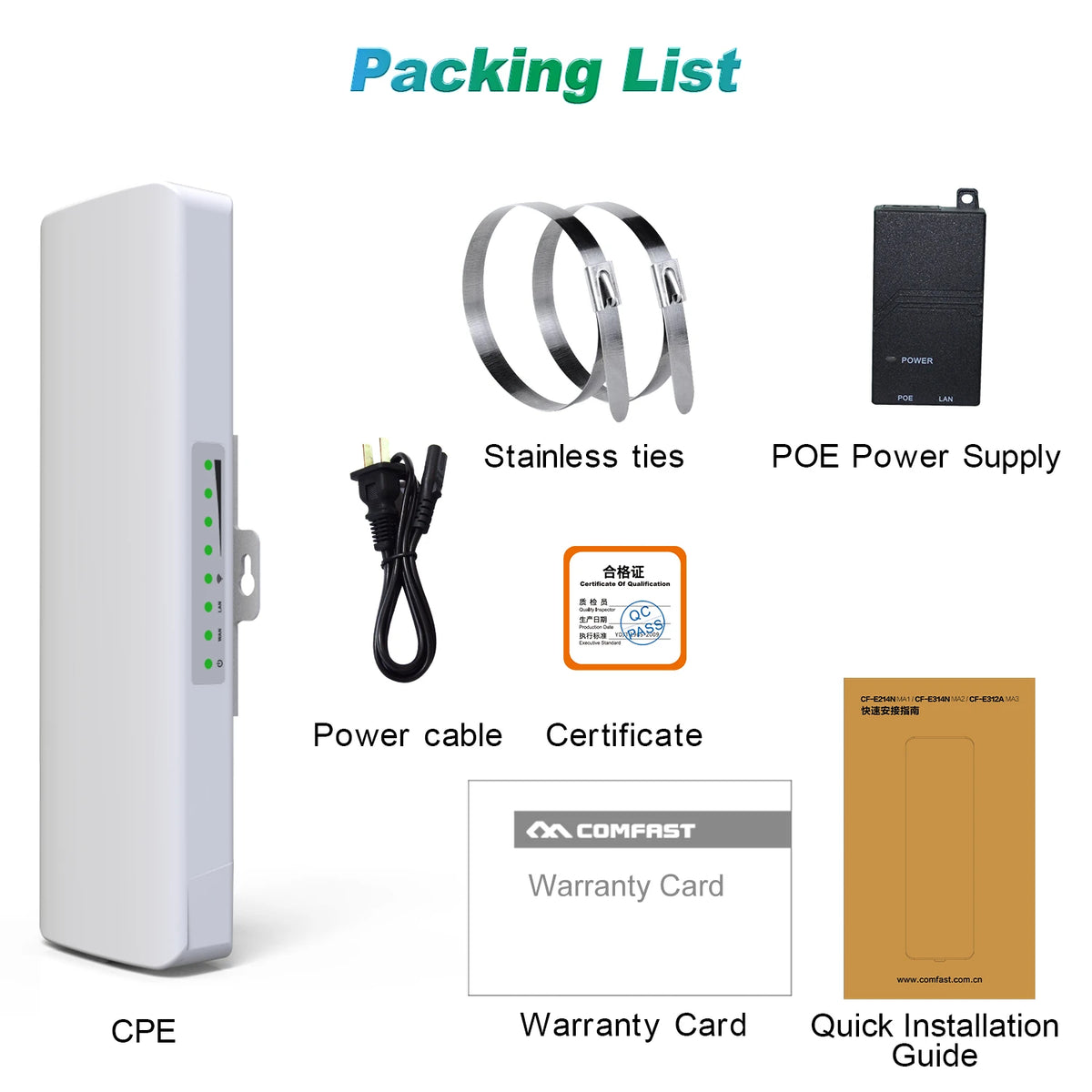

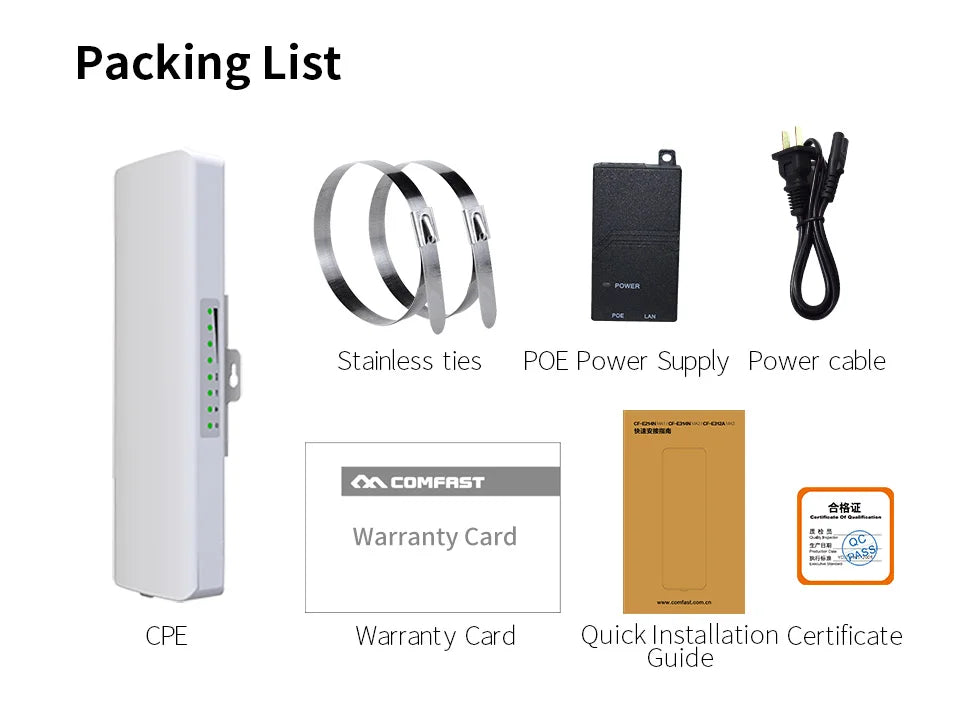

Package included:

1 or 2* CF-E314N V2 CPE
1 or 2* Poe Adapter
1 or 2* Quick install guide

1 or 2* Power cable

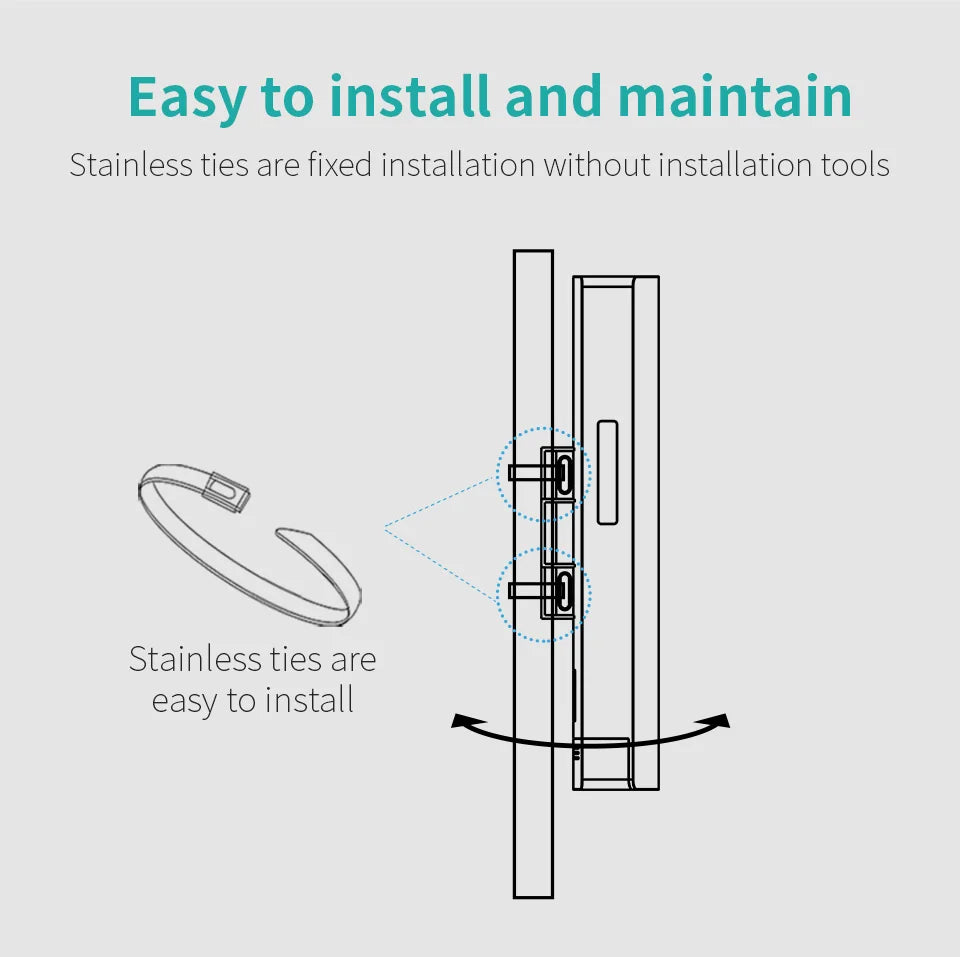

2 or 4* Stainless Steel Ring

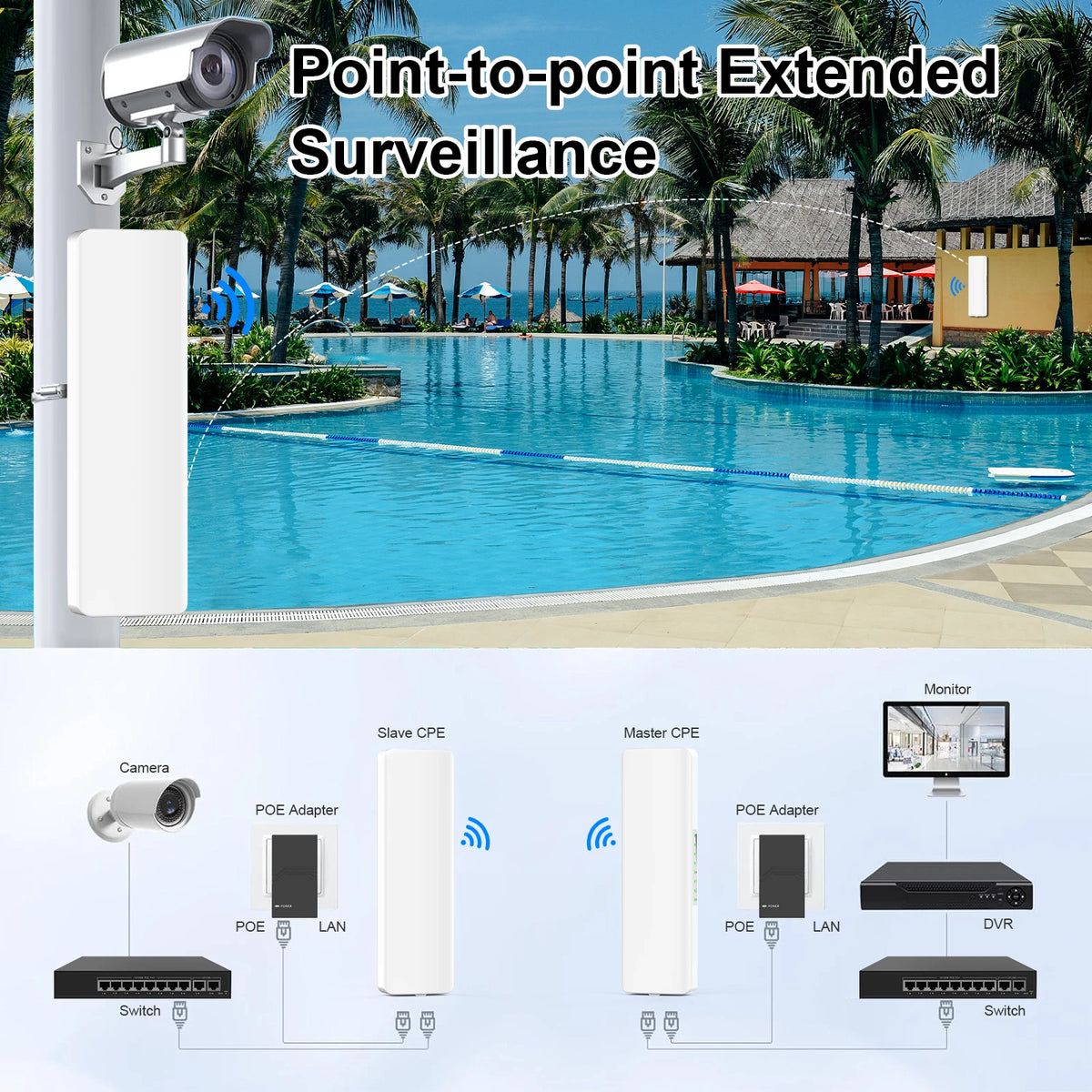

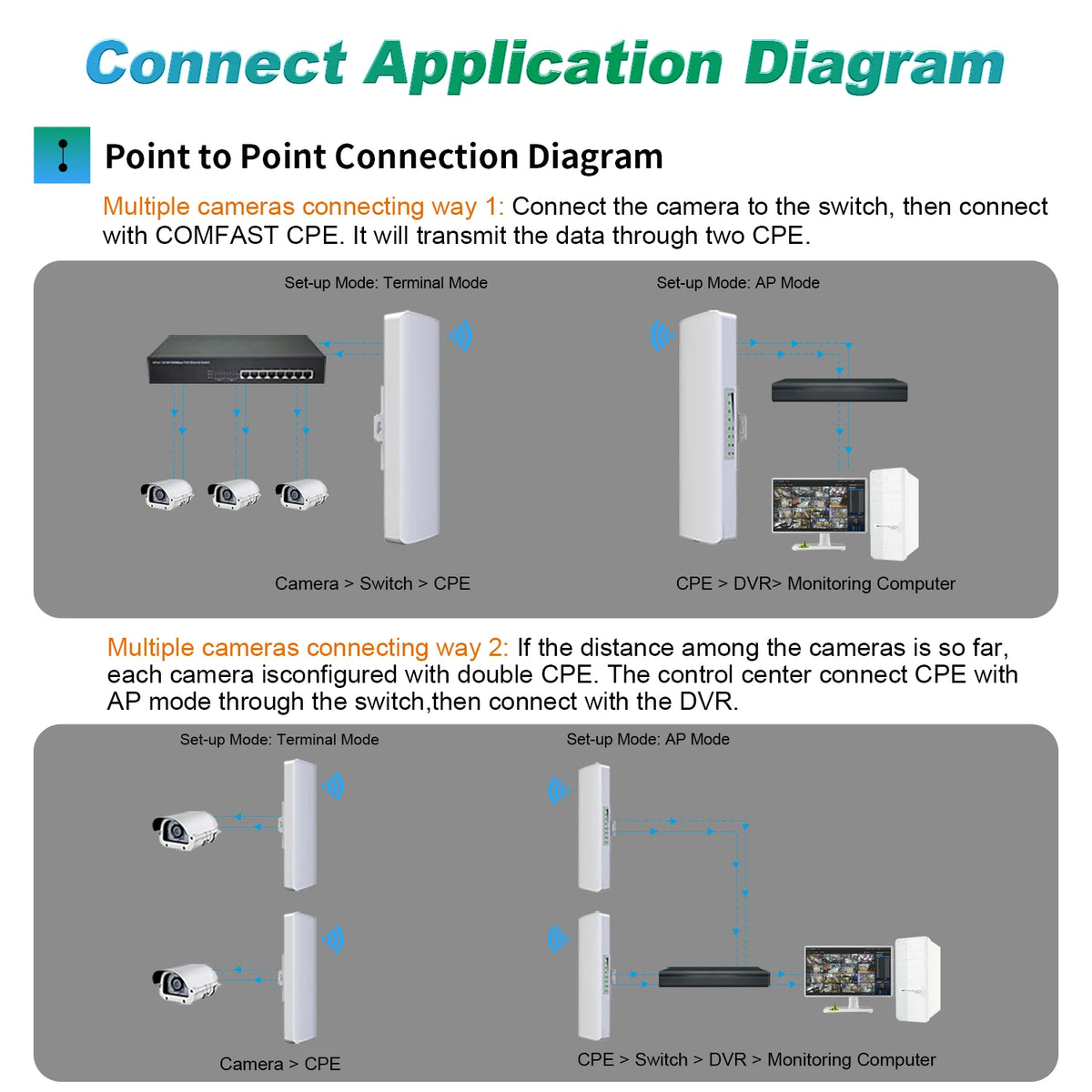

Note: 2-5KM means 2pcs point to point as wifi bridge(No obstacles)

FAQ

Q1. Does it support APP management?

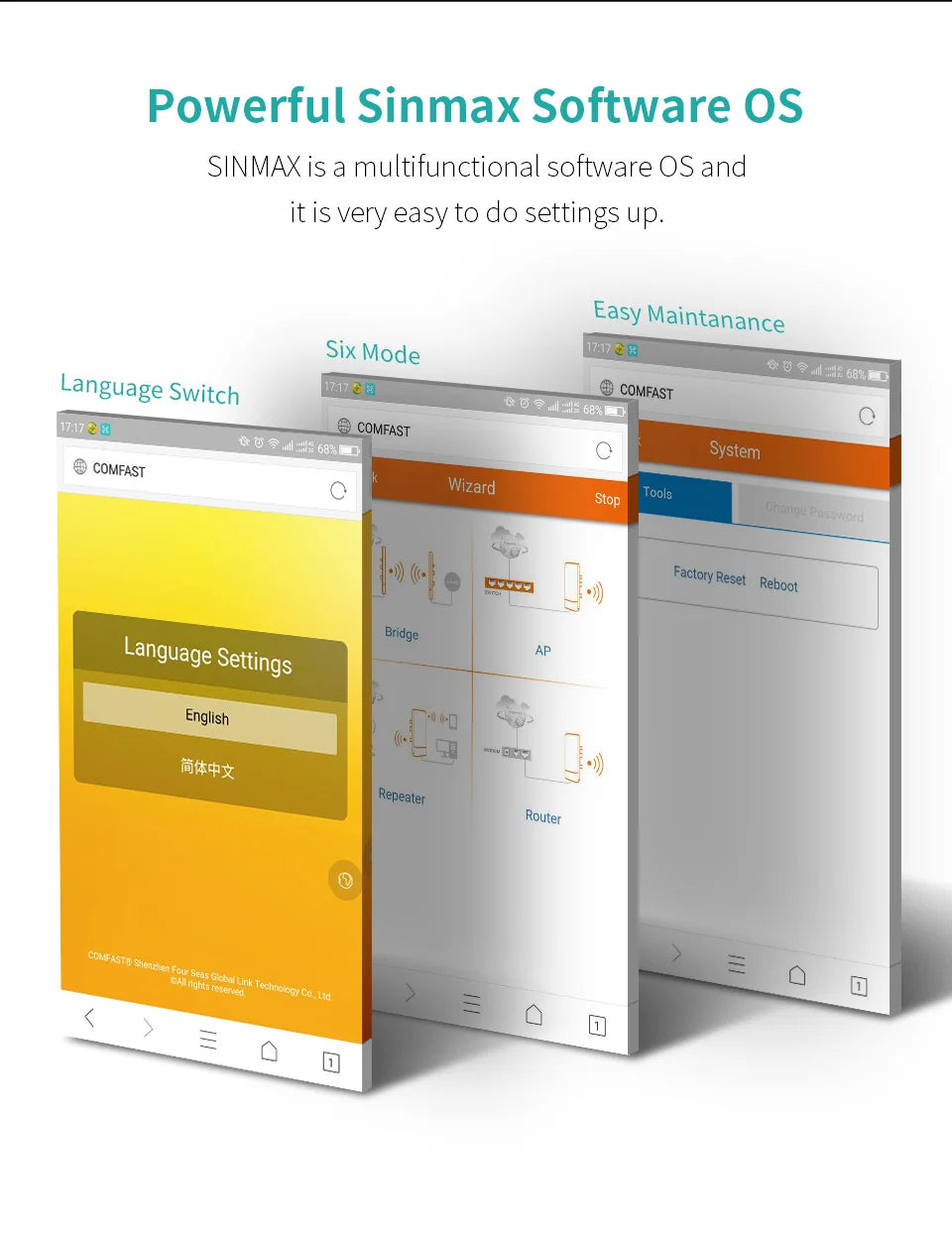

A: No, our device is managed through the HTTP WEB page, and the default address is 192.168.10.1.







Q2. How many pieces of CPE are included in the package?

A: There are 2 options in the link, if you need 2pcs CPE, please order "2pcs Cheaper" option. (Note: (Long distance wireless transmission requires at least 2pcs CPE)







Q3. Can the coverage of the antenna reach 3KM?

A: No, this is a directional antenna, and 3KM is a directional transmission distance, which can only be achieved if two CPEs are set to point-to-point wireless bridge mode and there are no obstacles in between. Other modes cannot refer to this distance.







Q4. Why the transmission distance is less than 3KM?

A: The transmission distance is affected by many factors such as weather, local network conditions, buildings, trees, etc., so it may not be able to reach 3KM, I hope you can understand.







Q5: What power supply are supported?

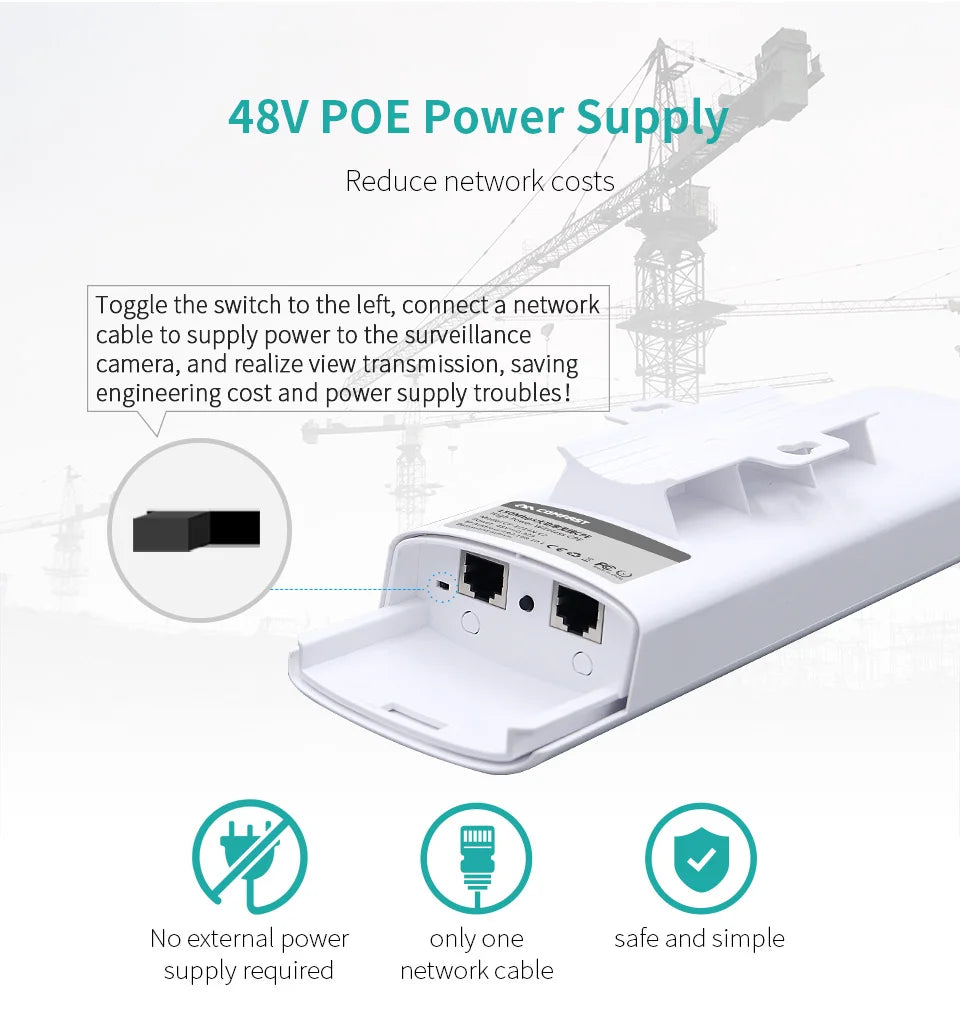

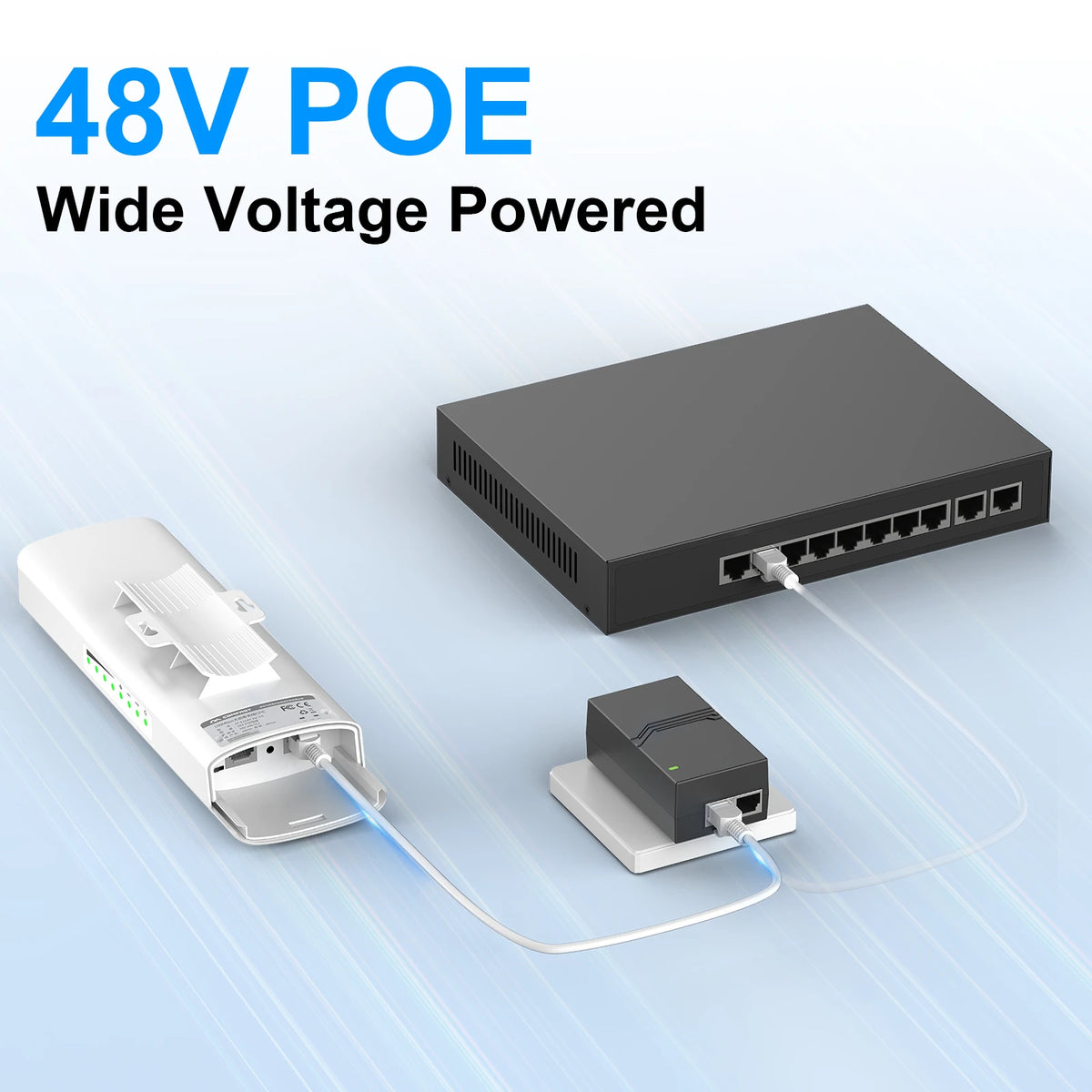

A: This CPE equipped with 48V 0.32A POE power supply, supporting 802.3af/802.3at compatible power supply.







Q6. The CPE is not powered, power light is off.

A: Please check whether the connection between POE and the device is correct. If the connection is correct but the CPE is still not powered, please change the POE and RJ45 Lan cable to try.

(NOTE: Power POE---connected with CPE WAN port; CPE Lan Port---connected with laptop)
