Tp-link Ubiquiti 867M 5.8G Wifi Access Point Cpe Top Cpe 5000m Router Wireless Outdoor 5 Ap Point To Point 1 Pcs
4Pcs / China Mainland / Add EU PLug
€495,95
Sale price
€495,95
Regular price
Skip to product information
Tp-link Ubiquiti 867M 5.8G Wifi Access Point Cpe Top Cpe 5000m Router Wireless Outdoor 5 Ap Point To Point 1 Pcs
€495,95
Sale price
€495,95
Regular price
Taxes included.
Shipping calculated at checkout.
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: NONE,None
5G Wi-Fi Transmission Rate: 867Mbps
5G Wi-Fi Transmission Rate: 867Mpbs
Antenna Type: Internal
Application: Outdoor,Outdoor
Brand Name: TP-LINK
Certification: NONE
Frequency: 5 GHz
Frequency Band Class: Single-Band
Function: QoS
High-concerned chemical: none
LAN Ports: 1,1
Language: Chinese
Max. LAN Data Rate: 867Mbps
Model Name: TL-S5-5KM
Number of USB Interfaces: None,None
Origin: Mainland China
Package: Yes
Recommended Uses: Business
Standards And Protocols: Wi-Fi 802.11ac,11AC
Support Mesh: Support
Supports WDS: Yes,Yes
Supports WPS: Yes
Telecomcableconnected: Yes
Type: WireLess,Wireless
WAN Ports: 1 x10/100Mbps,1 x10/100Mbps
Wi-Fi Supported Frequency: 5G,5G
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100Mbps,10/100Mbps
Wireless Communication Standard: 802.11.ac
Wireless transmission rate: 900M
With Modem Function: No,NO
Note: The product is packaged in single piece, the product setting language is Chinese, and we provide English user manual. Two are needed for the best effect.

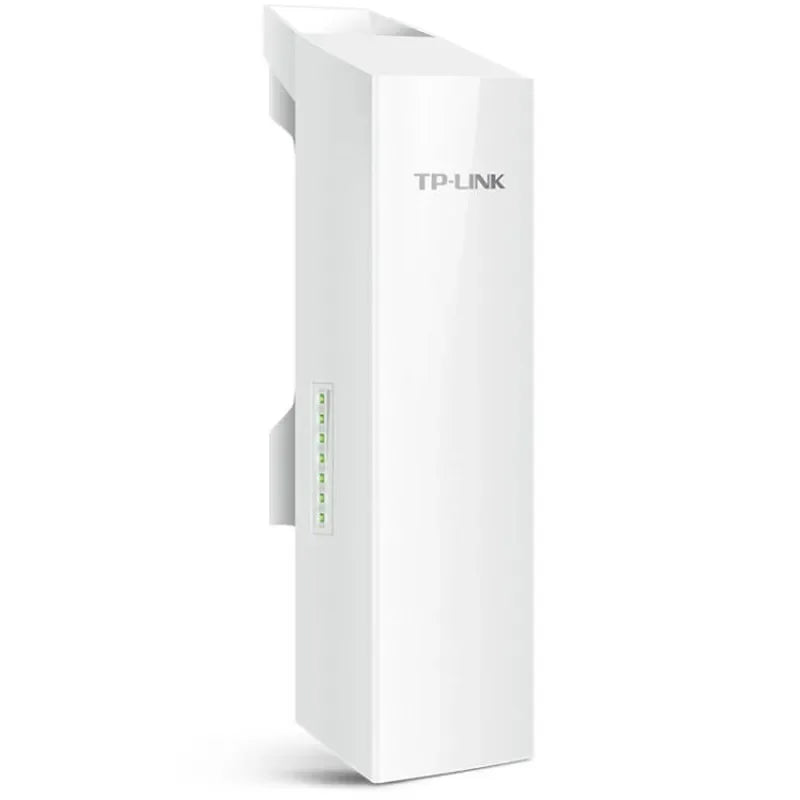

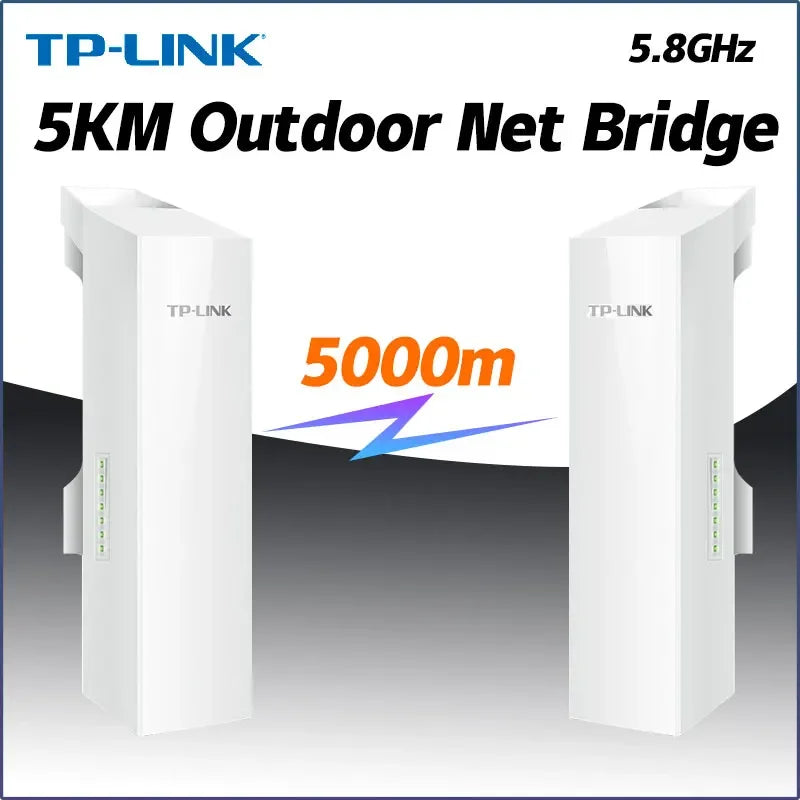

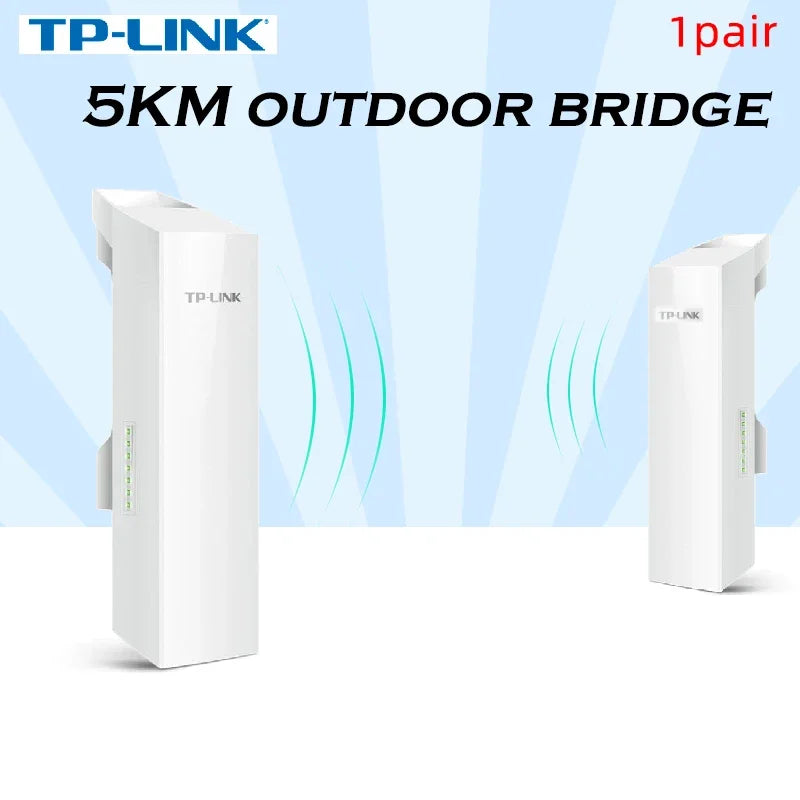

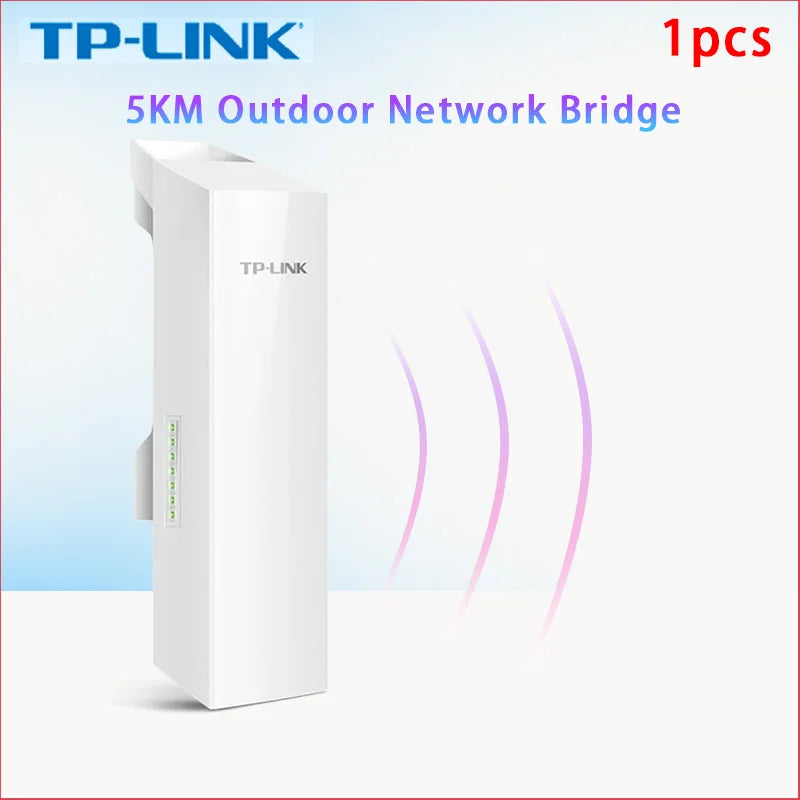

5GHz AC867 outdoor wireless CPE TL-CPE500/TL-S5-5KM
>Professional outdoor housing design, adapt to various harsh environments
>867M wireless, built-in high gain 13dBi dual-polarized antenna, provide high performance wireless

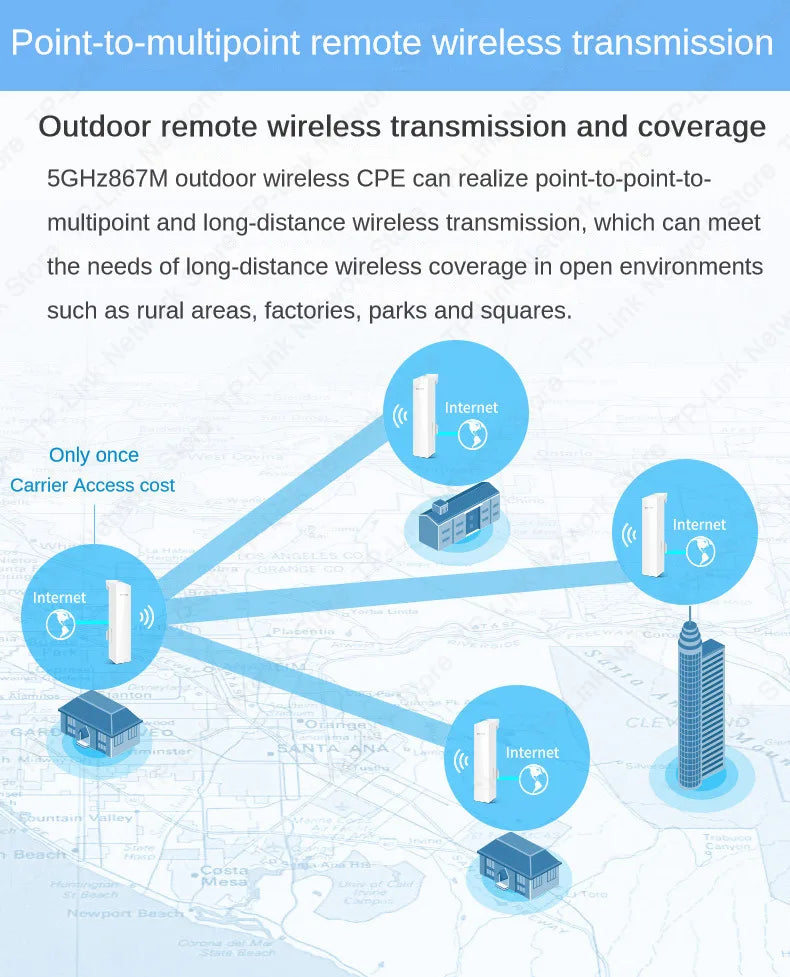

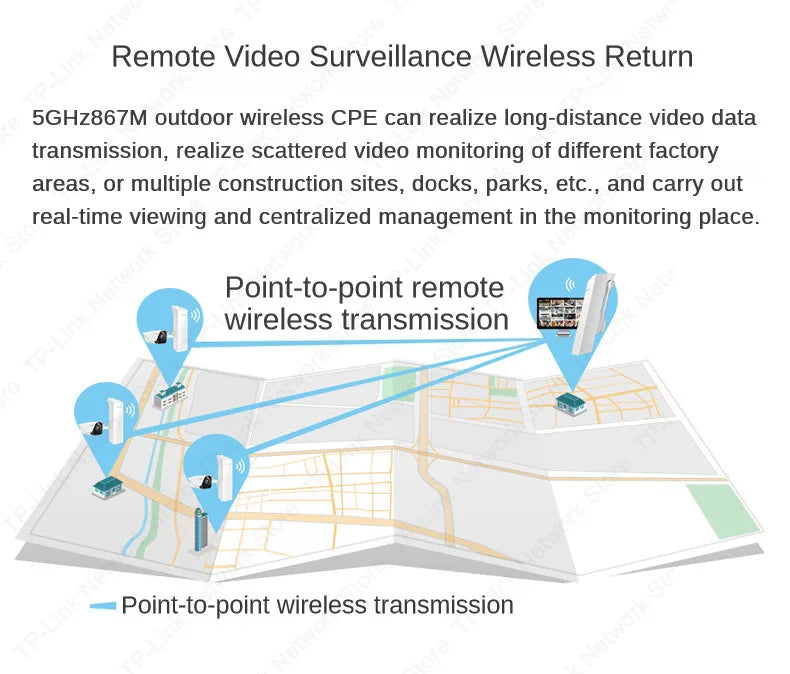

>Pure 5GHz frequency band, less interference, wireless transmission distance 5 kilometers

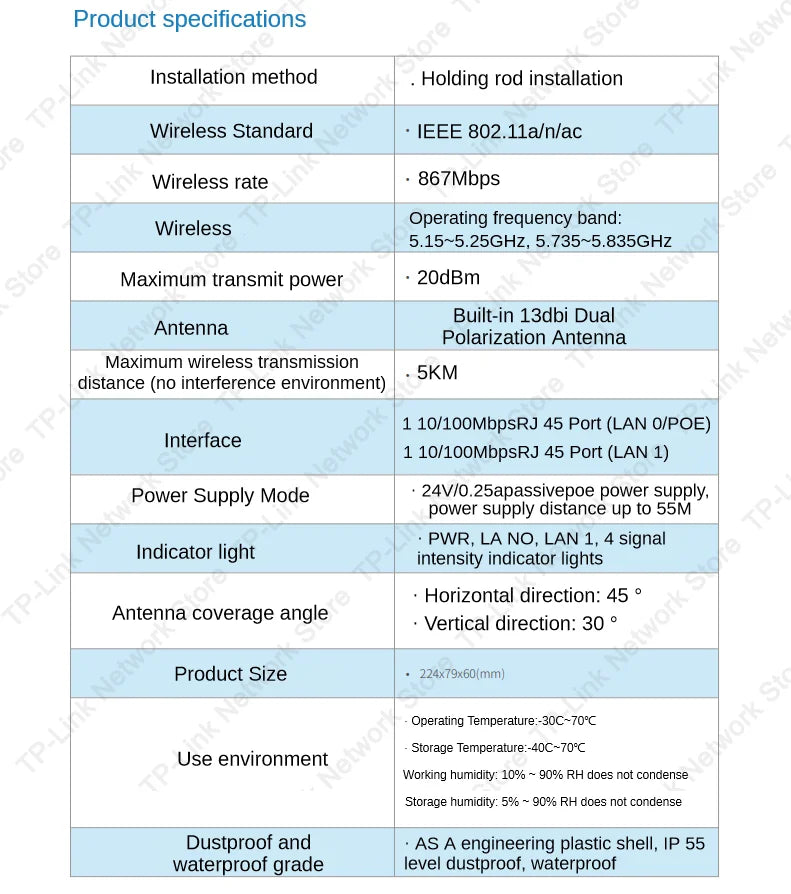

Hardware specifications

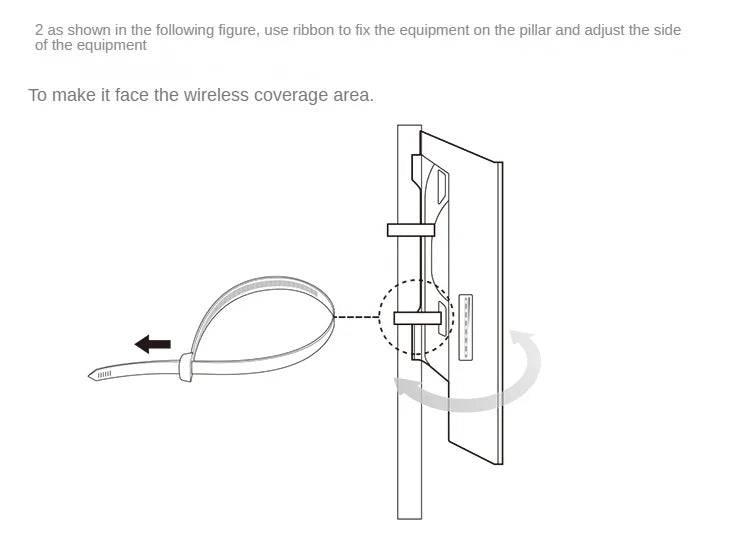

>Installation method: Pole-mounted installation
>Wireless standard IEEE 802.11a/n/ac
>Wireless rate 867Mbps
>Wireless operating frequency band: 5.15~5.25GHz, 5.735~5.835GHz
>Maximum transmit power 20dBm

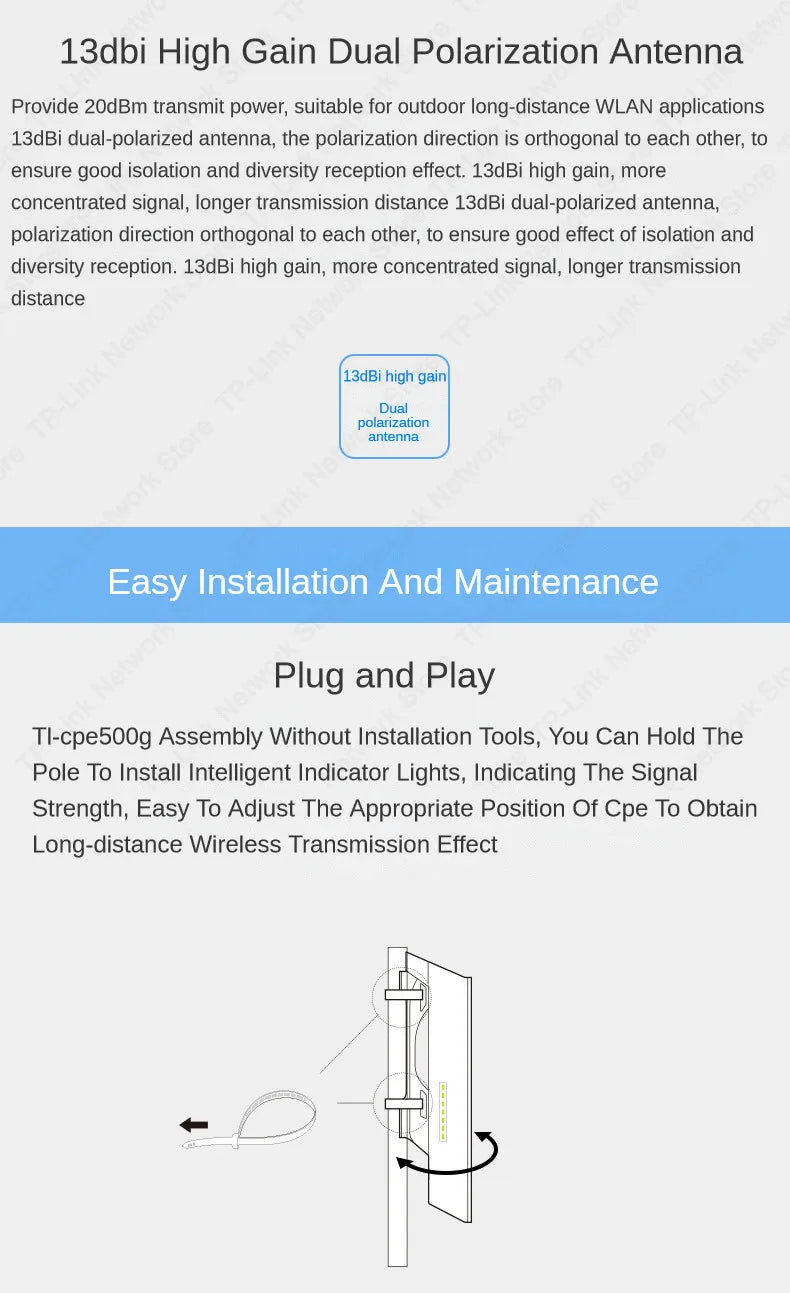

>Antenna built-in 13dBi dual-polarized antenna
> Maximum wireless transmission distance (under non-interference environment) 5 KM

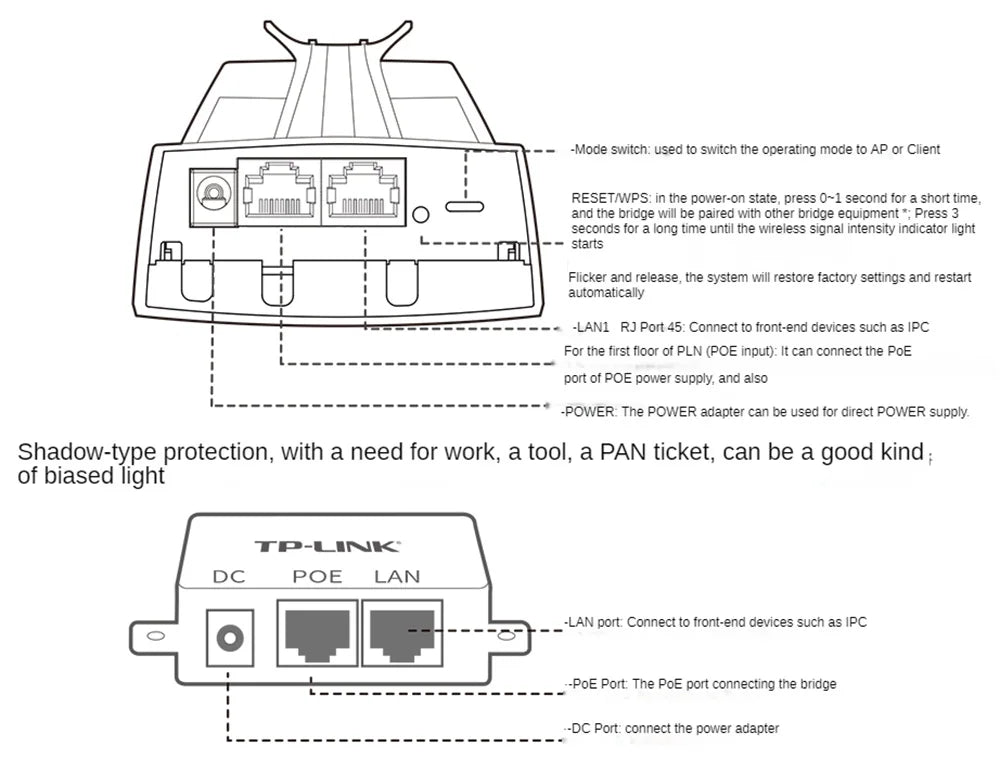

>Interface 1 10/100Mbps RJ45 port (LAN0/POE) 1 10/100Mbps RJ45 port (LAN1)
>Power supply mode 24V/0.25A Passive PoE power supply, power supply distance is up to 55M

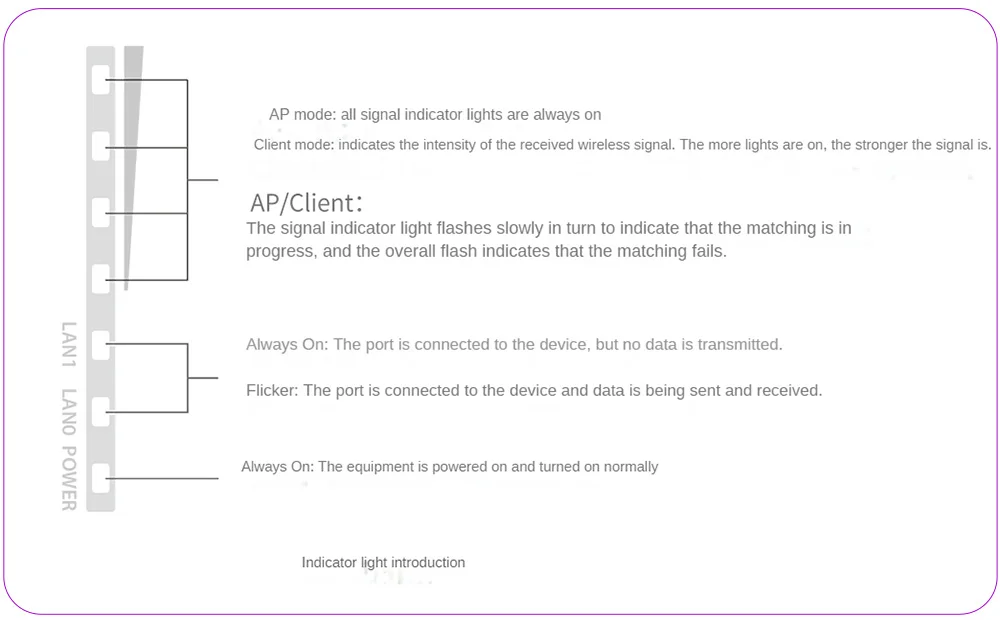

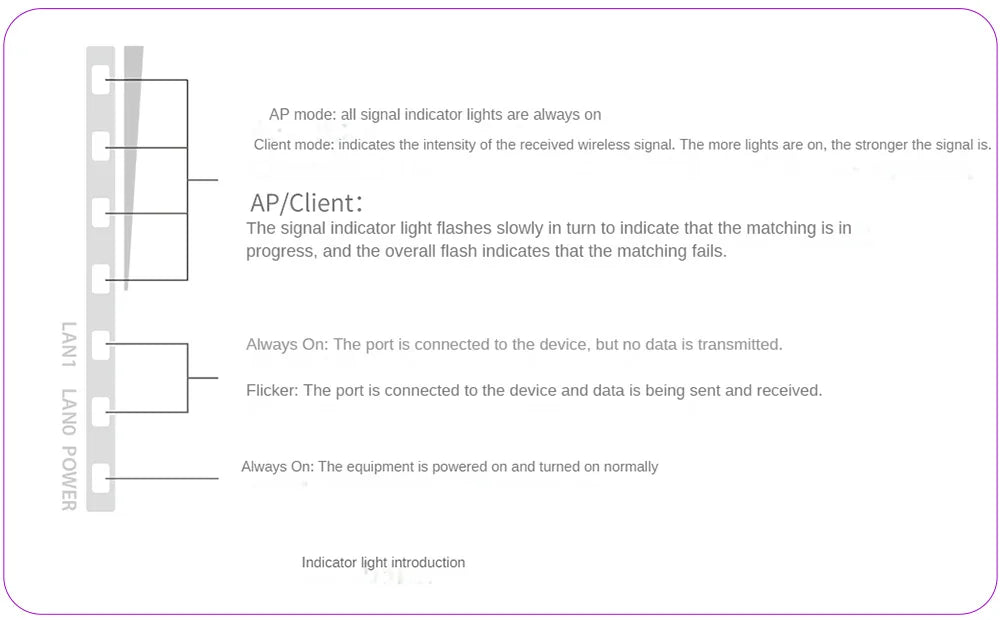

>Indicators PWR, LAN0, LAN1, 4 signal strength indicators
> Antenna coverage angle Horizontal direction: 45° Vertical direction: 30°
> Product size 224x79x60(mm)
> Use environment working temperature: -30°C~70° C Storage temperature: -40℃～70℃ Working humidity: 10%～90%RH non-condensing Storage humidity: 5%～90%RH non-condensing
> Dustproof and waterproof grade ASA engineering plastic shell, IP55 grade dustproof and waterproof

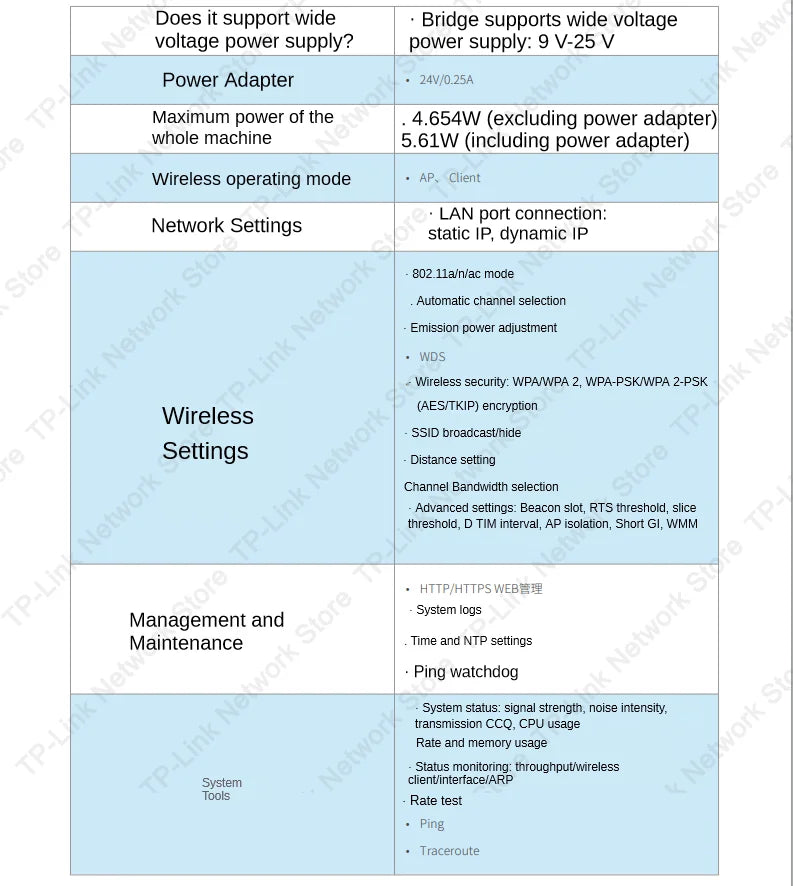

>Whether to support wide-voltage power supply network bridge Support wide-voltage power supply: 9V-25V
>Power adapter 24V/0.25A
>The maximum power of the whole machine is 4.654W (without power adapter) 5.61W (with power adapter)
Software specifications

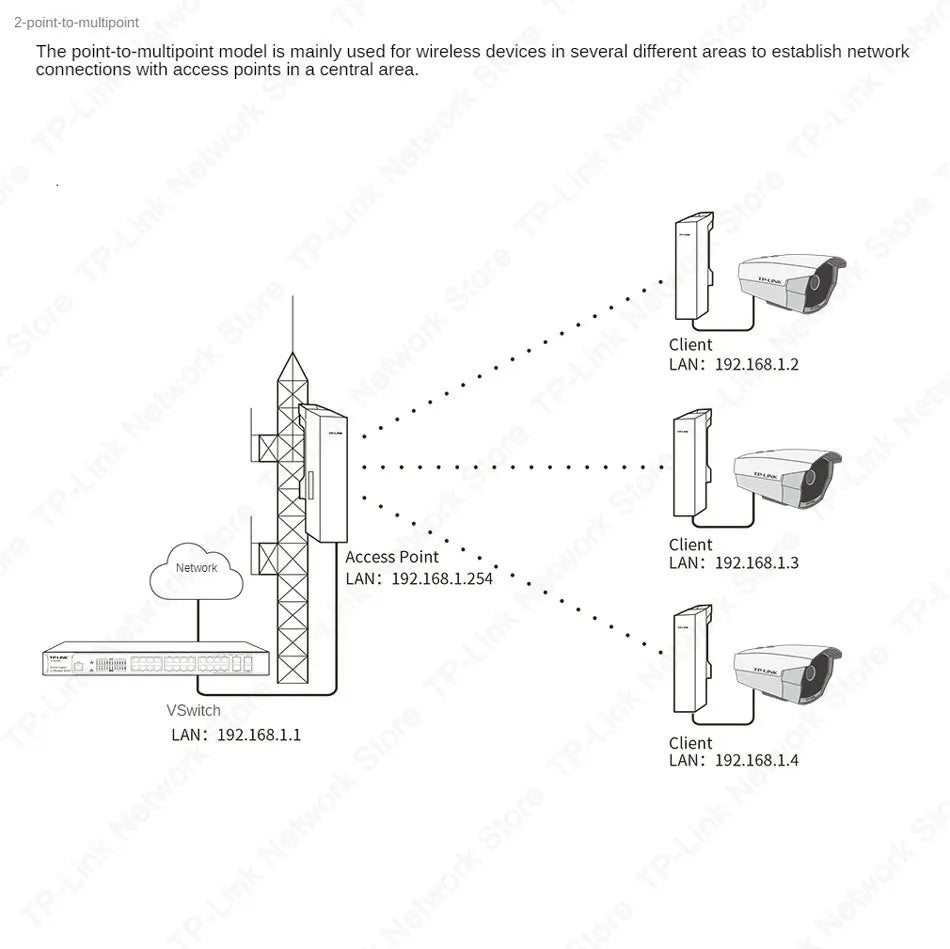

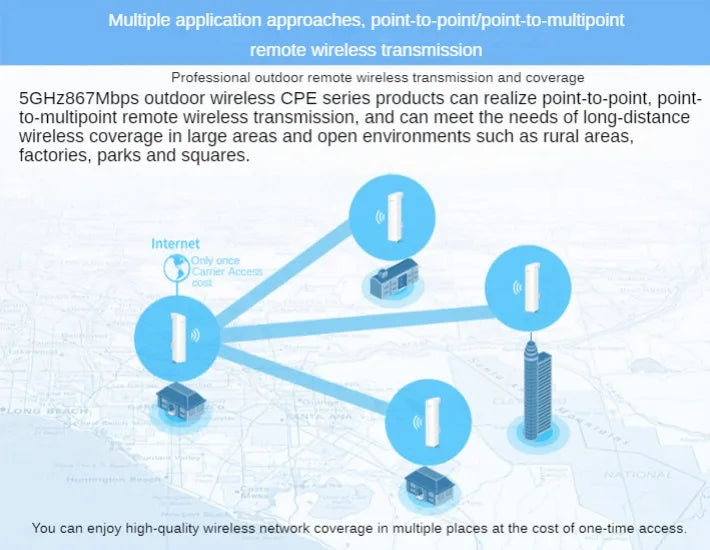

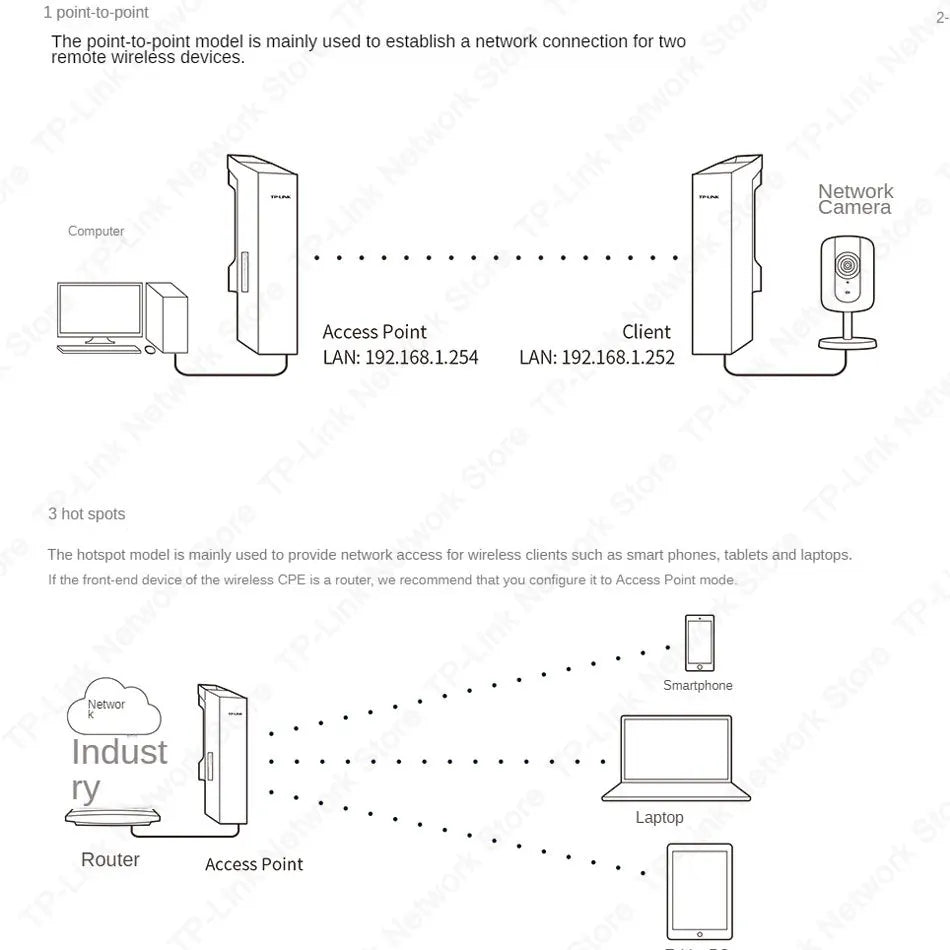

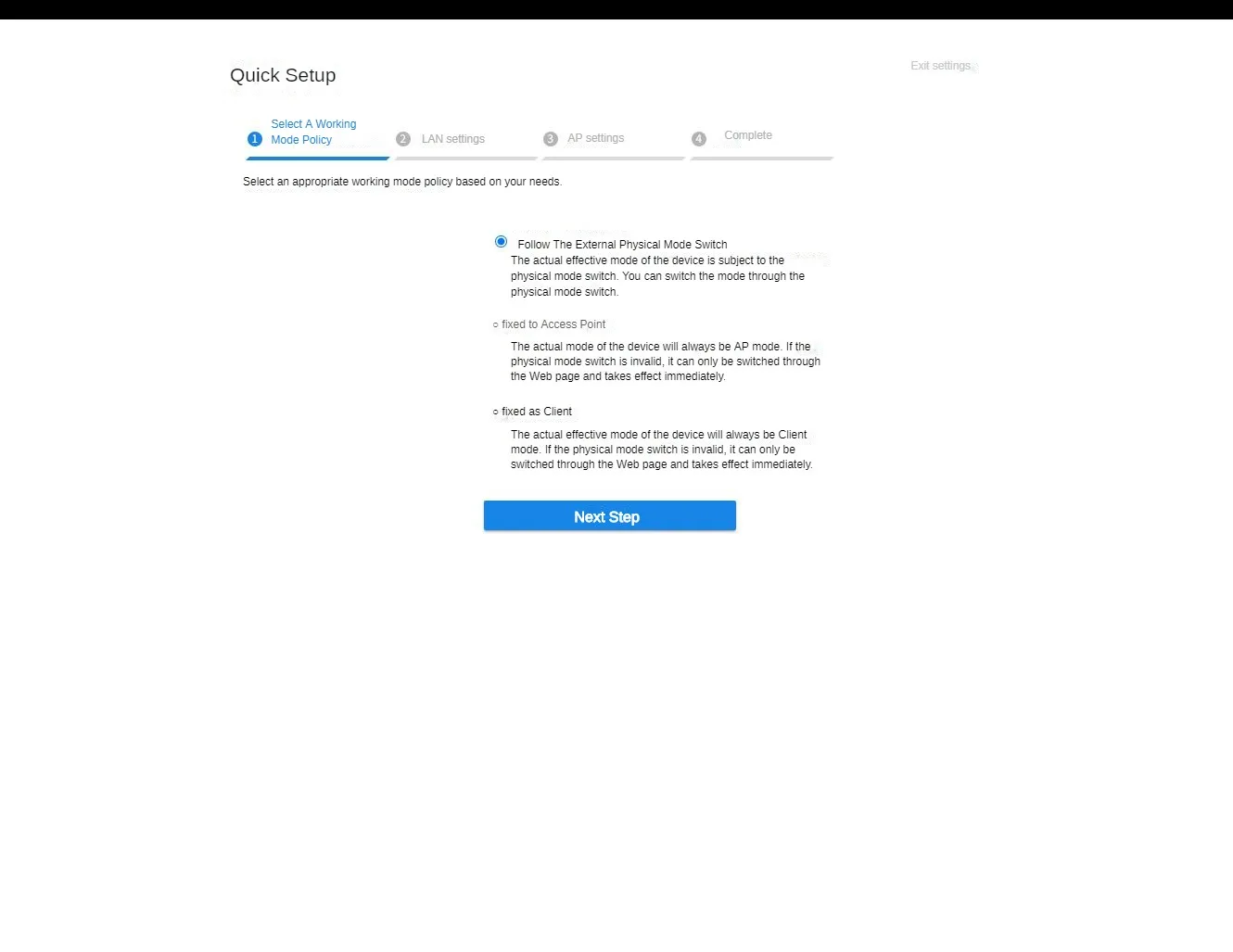

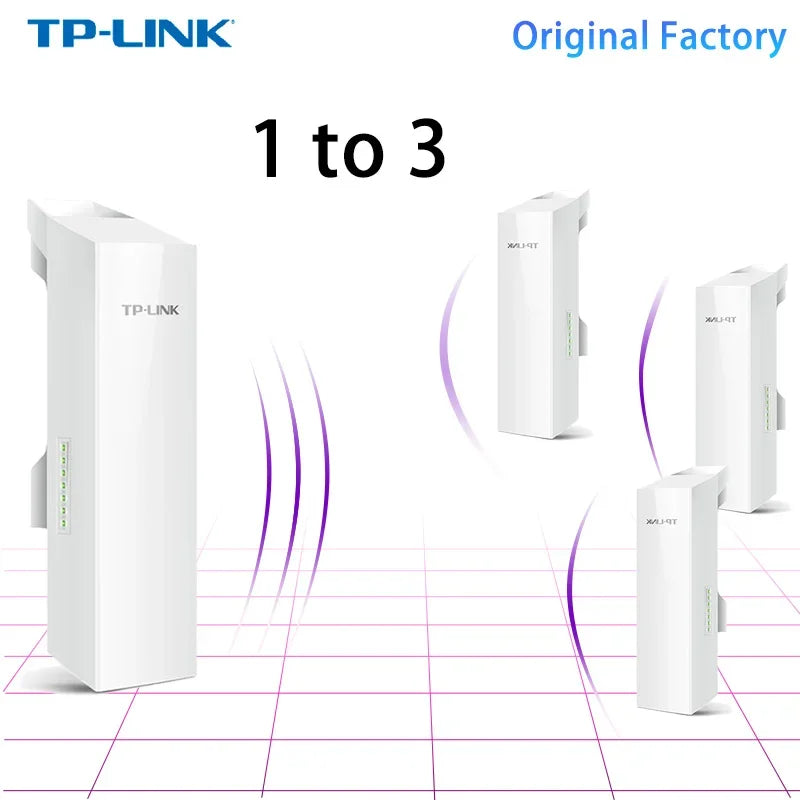

>Wireless working mode AP, Client
>Network setting LAN port connection: static IP, dynamic IP

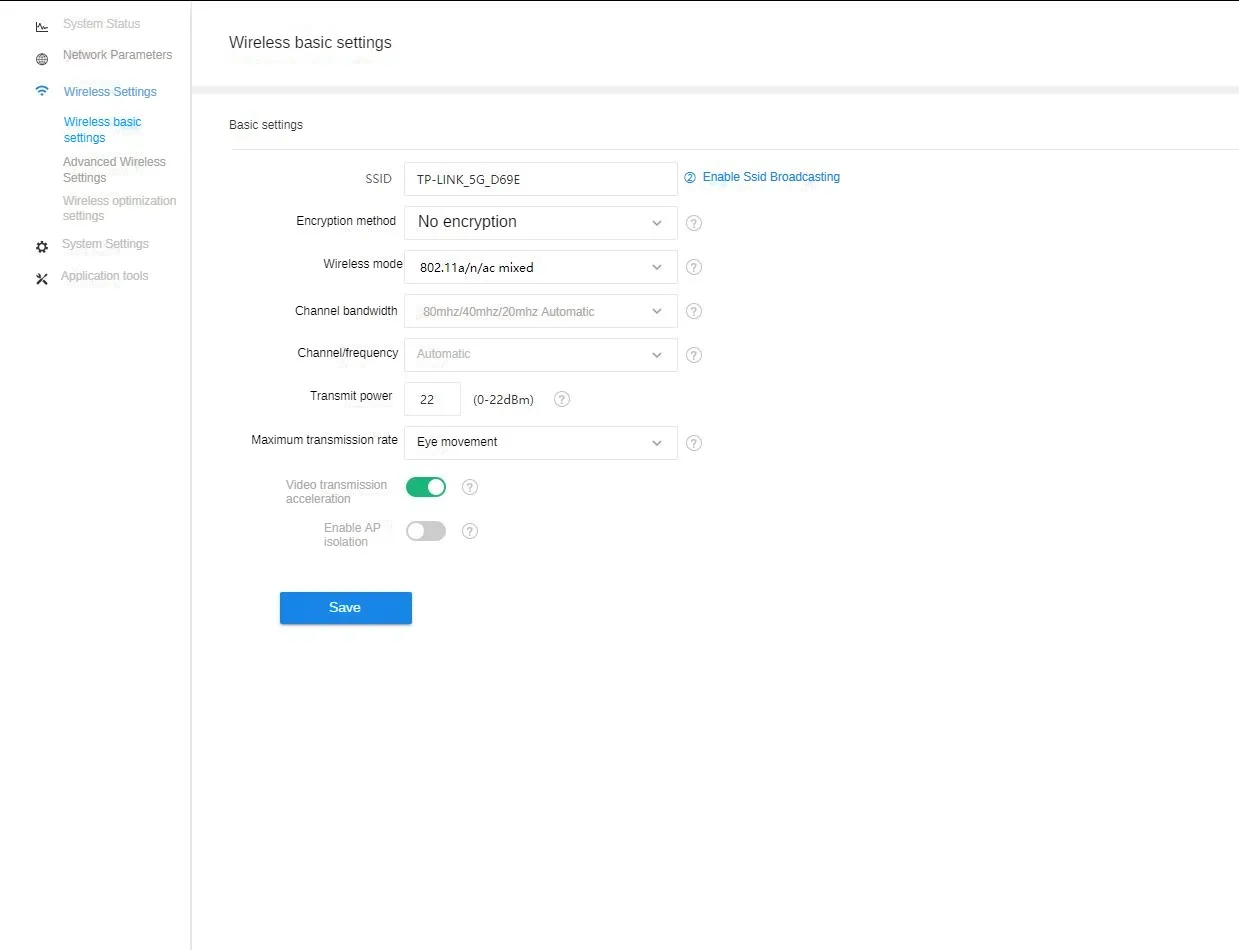

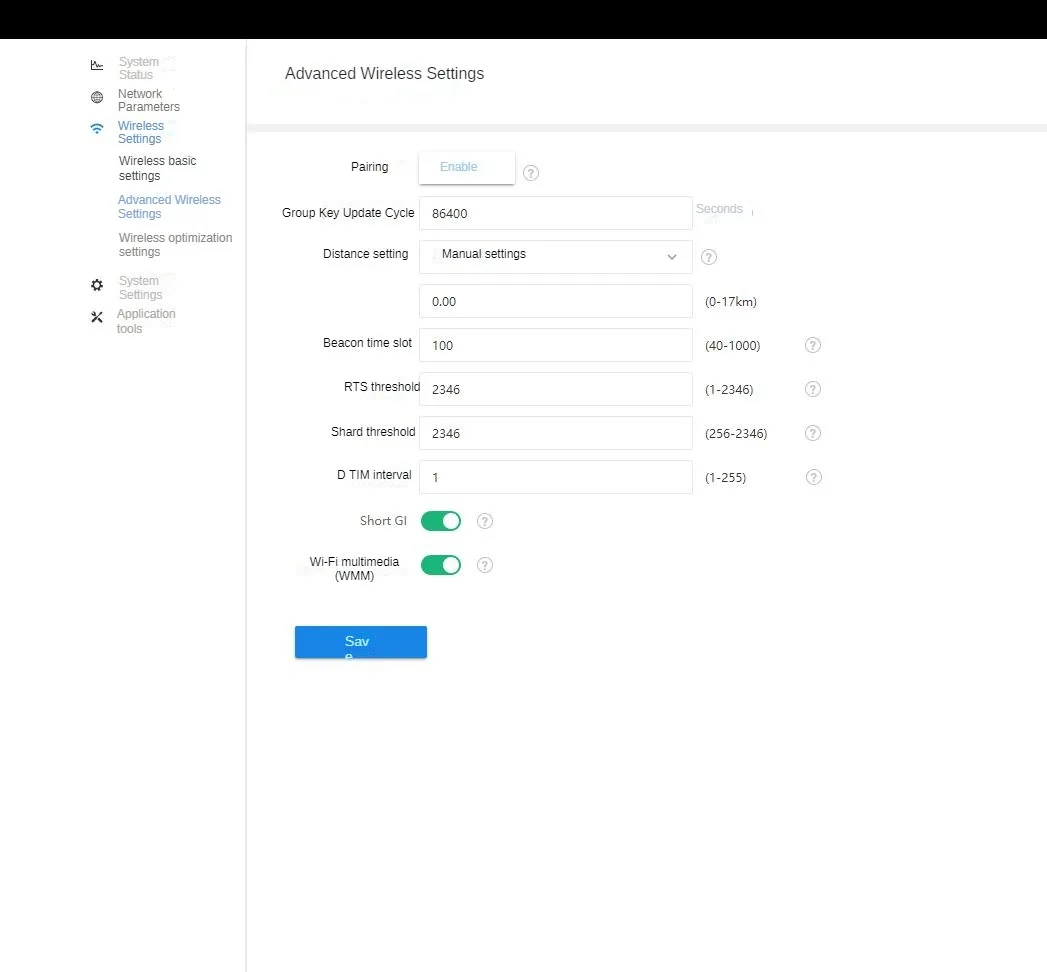

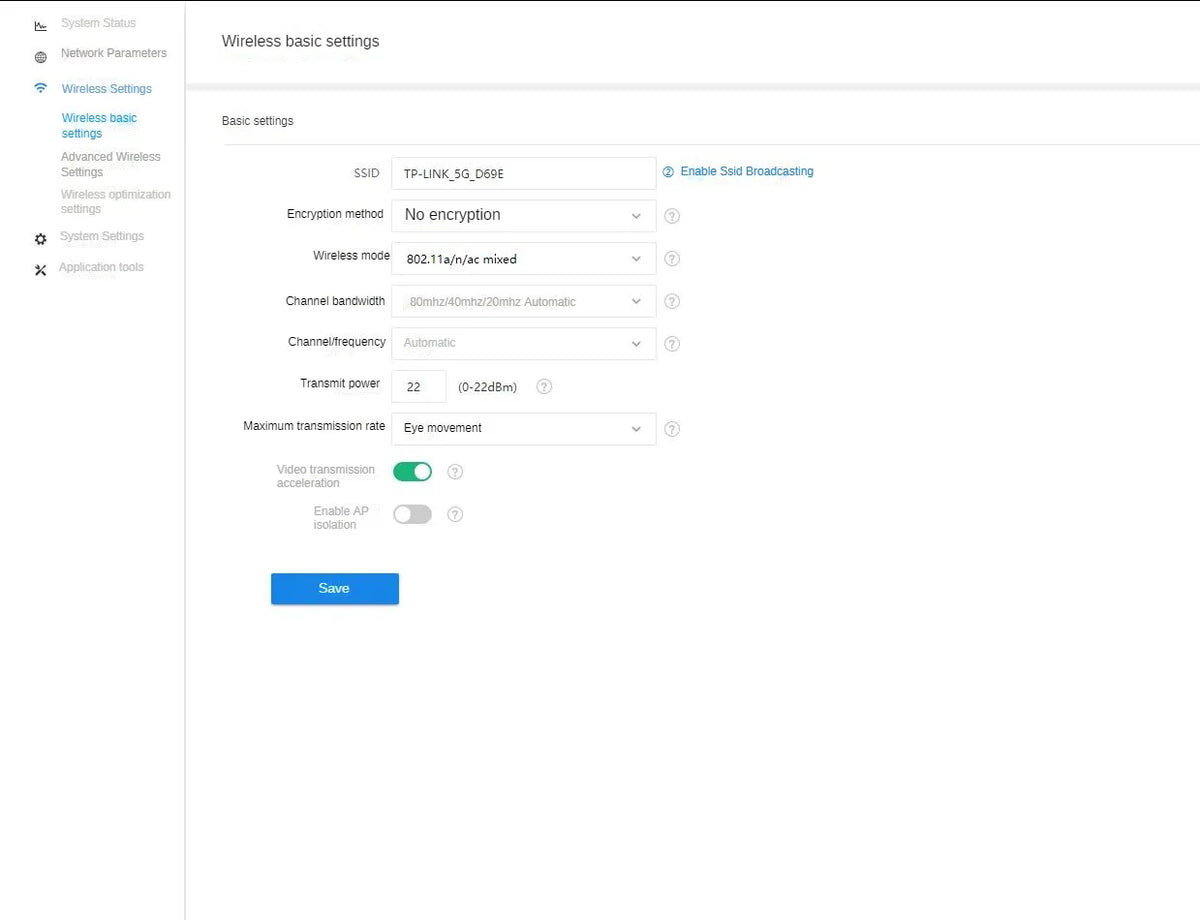

>Wireless setting 802.11a/n/ac mode automatic channel selection Transmit power adjustment WDS wireless security: WPA/WPA2, WPA-PSK/WPA2 -PSK (AES/TKIP) encrypted SSID broadcast/hidden distance setting channel bandwidth selection advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM
> Manage and maintain HTTP/HTTPS WEB management system Log time and NTP settings Ping watchdog
> System tools System status: signal strength, noise strength, transmission CCQ, CPU occupancy, memory occupancy Status monitoring: throughput/wireless client/interface/ARP spectrum analysis rate test Ping Traceroute
>System optimization IGMP Snooping optimization hardware watchdog
