SPECIFICATIONS
Application: Voltage Controller
Brand Name: NONE
Certification: CE,RoHS,UL
High-concerned chemical: None
Is Smart Device: no
Maximum Current: 10a
Model Number: Digital Display Battery Equalizer
Origin: Mainland China
is_customized: Yes
Product Introduction
Battery equalizer is used for the 12V batter is which are connected in series to keep battery voltage balance.(Gel/Fod/AGM lead acid battery,lifepo4 and other lithium battery all are ok)

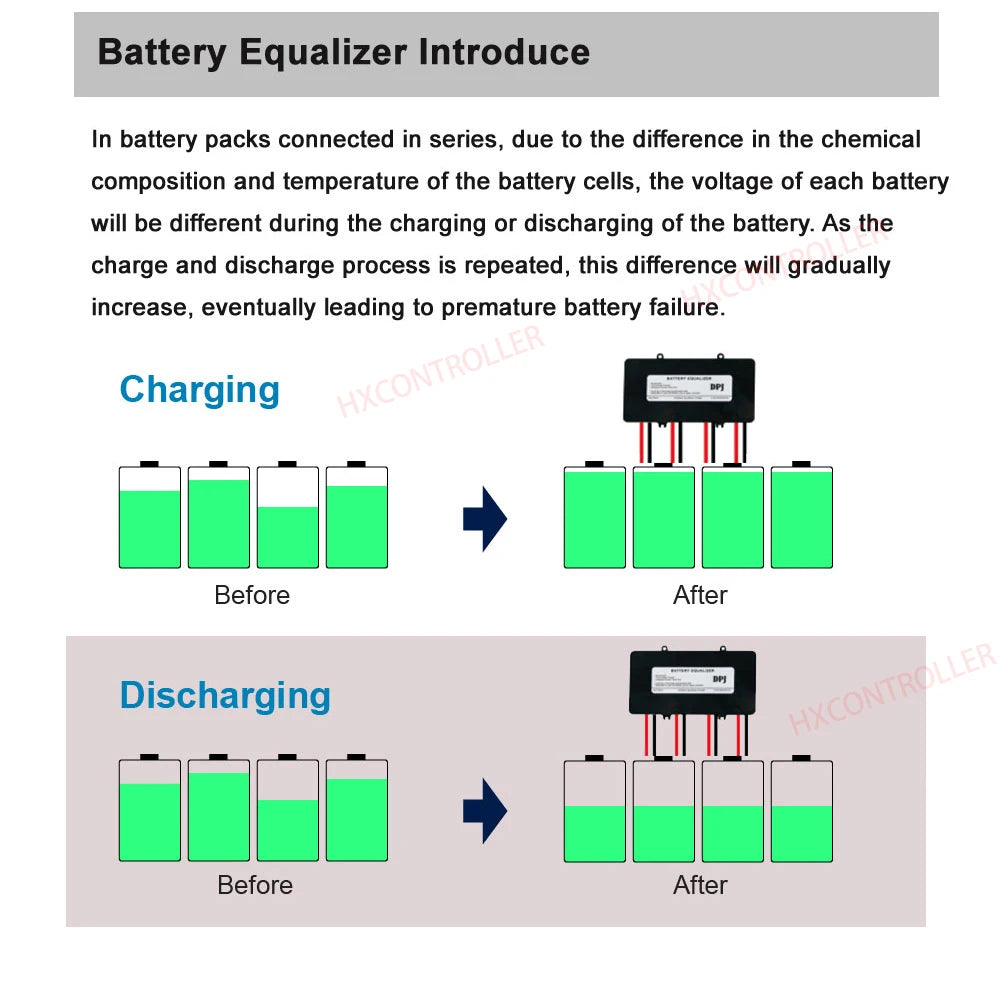

·When two or more in-series connected batter is are in charging/discharging/free status.The battery voltages maybe become different.One batery voltage is high and one is low.
·The batery equalizer wil equalize/balance the battery voltage when it detect there are 20mV between two batter is.It will shunt current from one battery(the higher voltage one) to the other battery(the lower voltage one) .Until their battery voltage almost becomes same.This wil improve battery's performance and extent battery's lifetime.

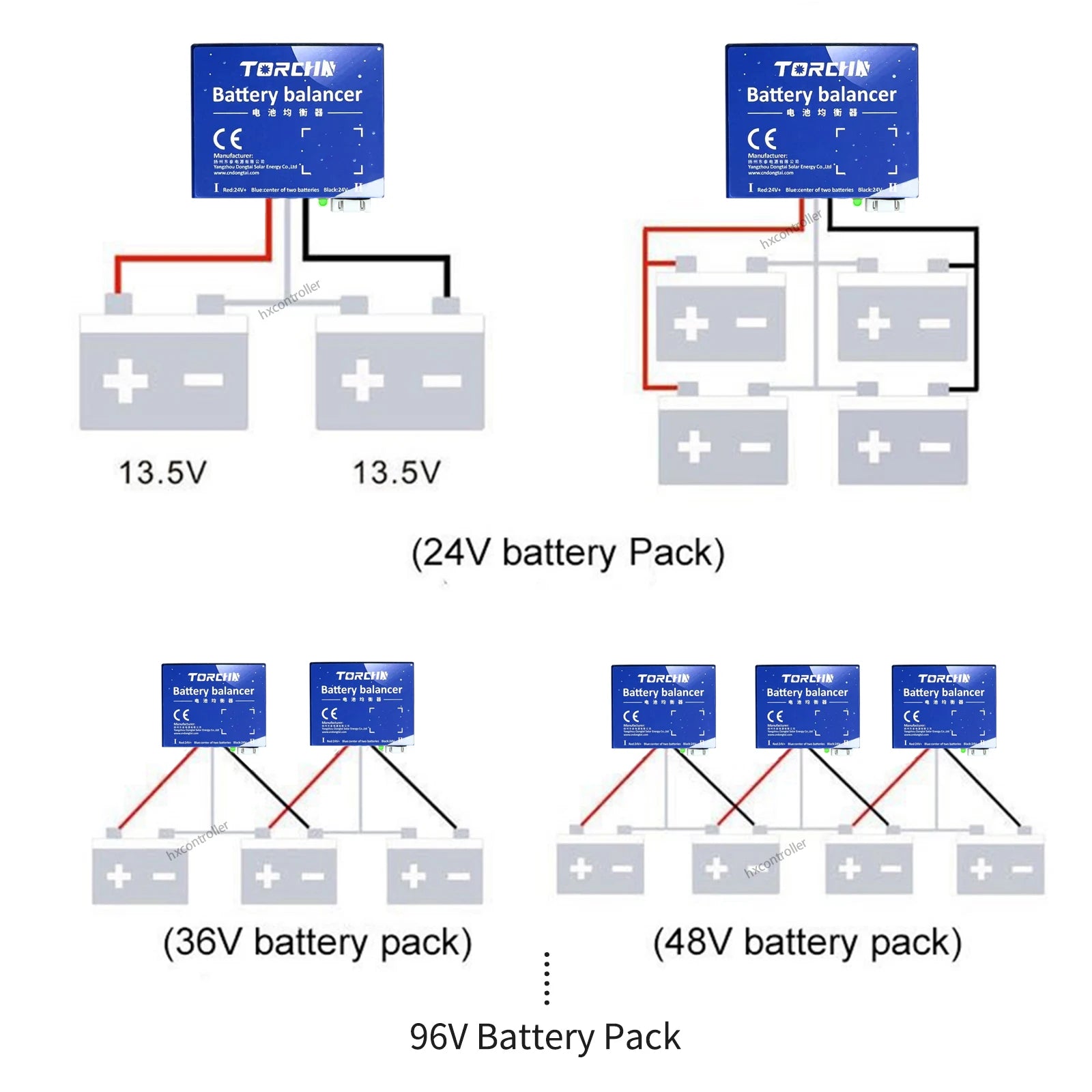

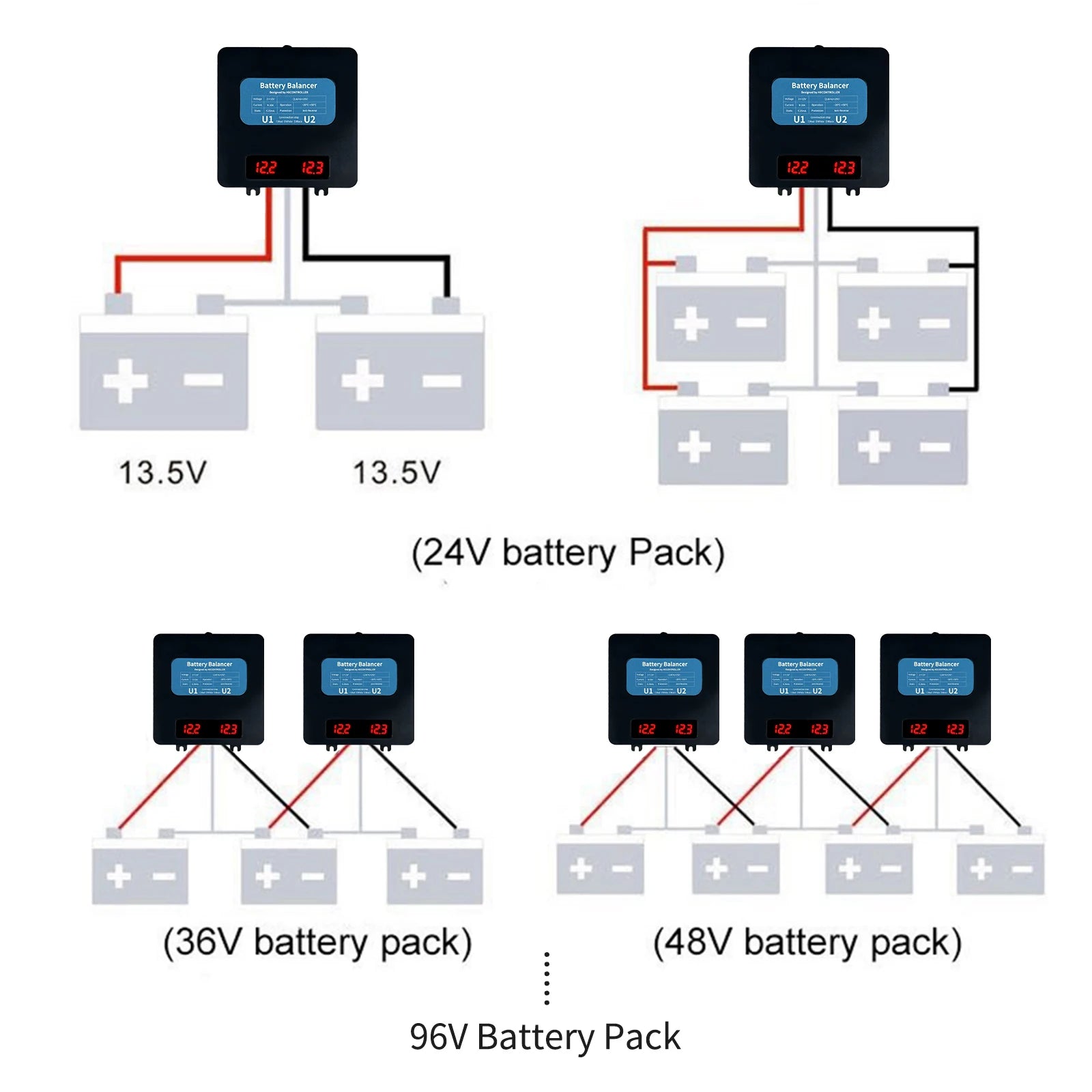

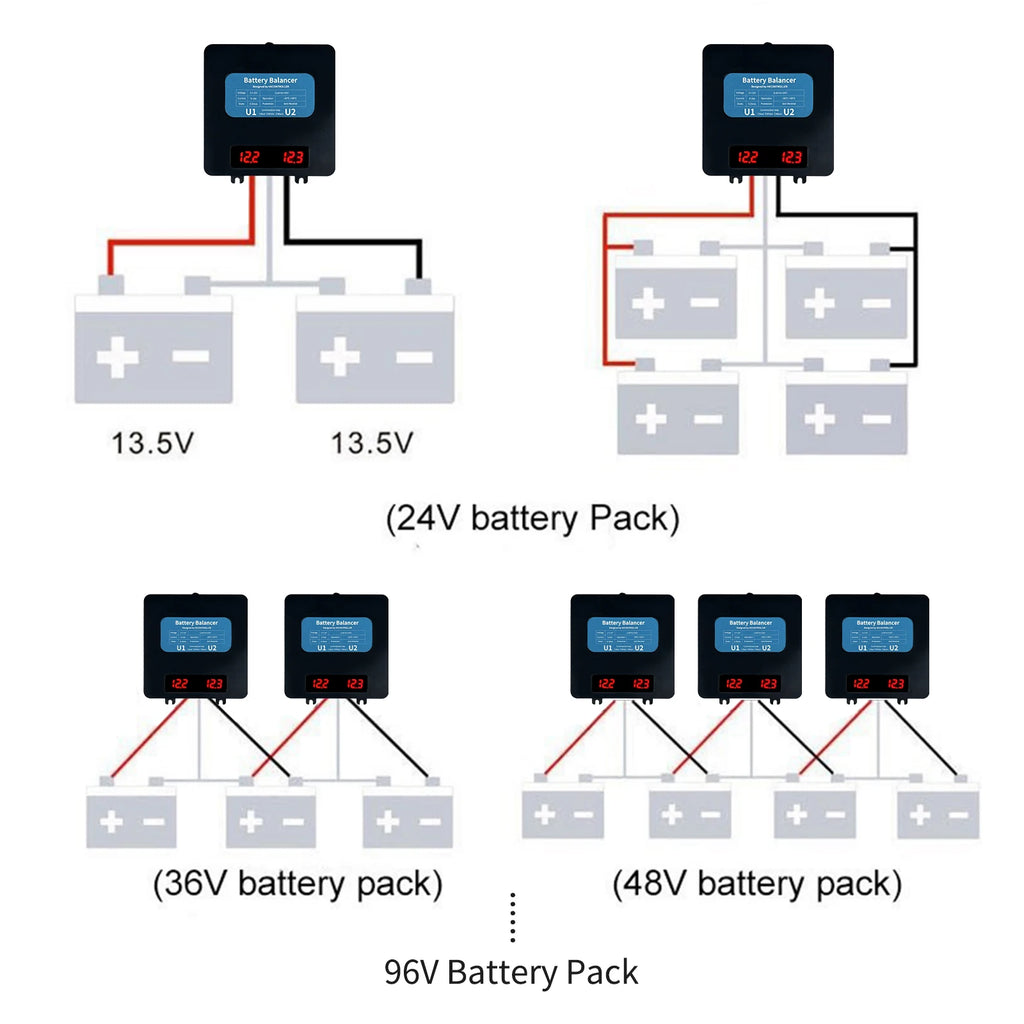

Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;
4 pieces for 60V system;
5 pieces for 72V system;

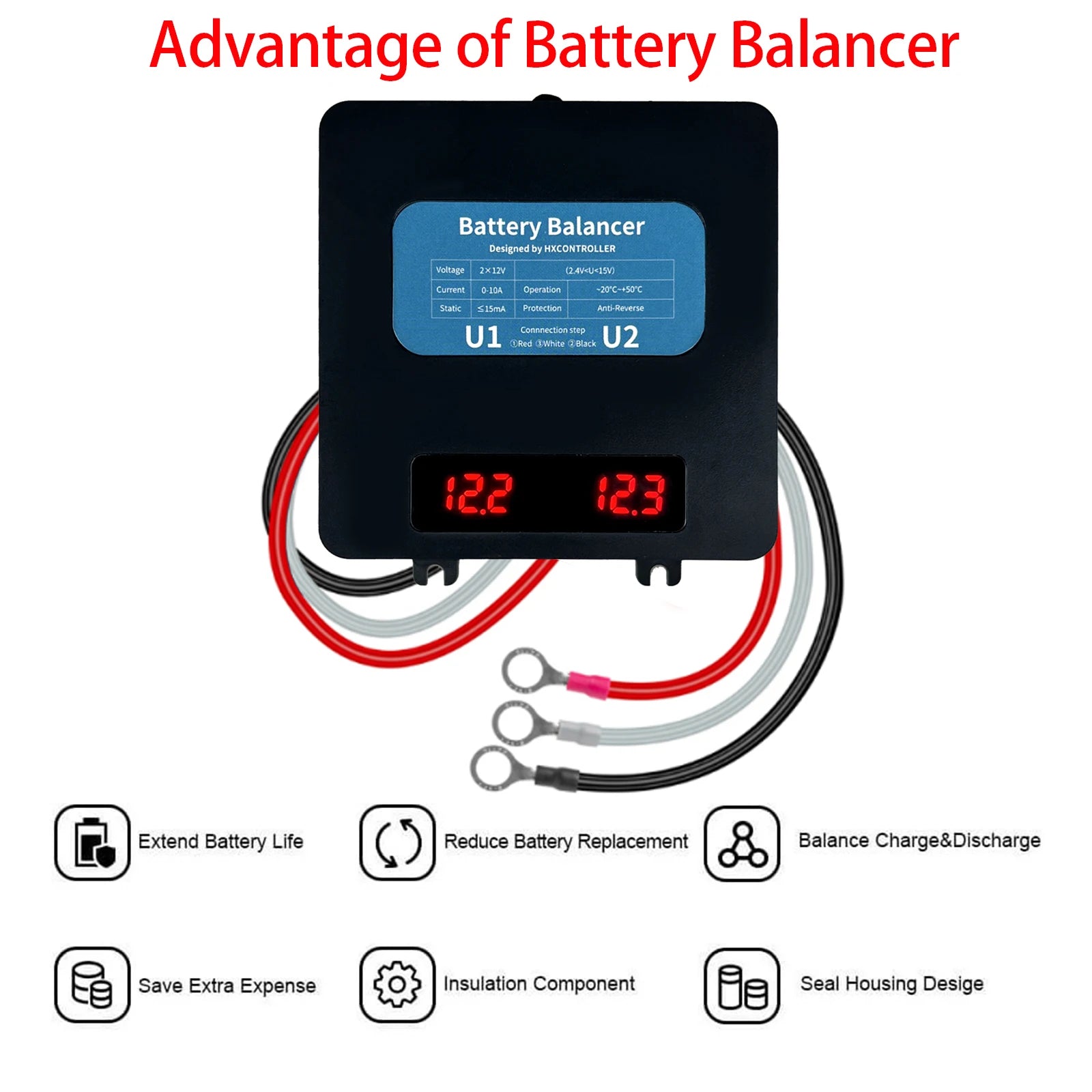

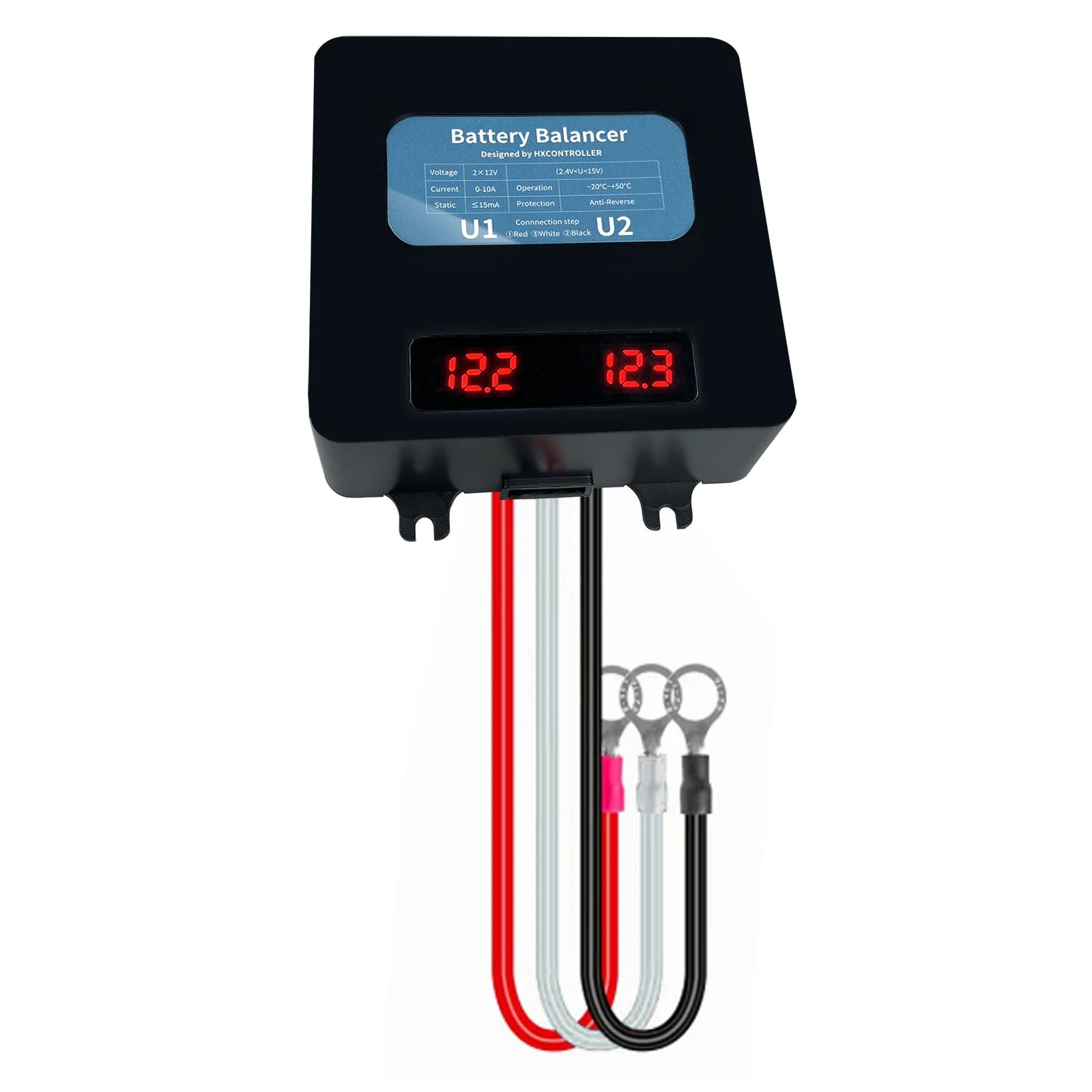

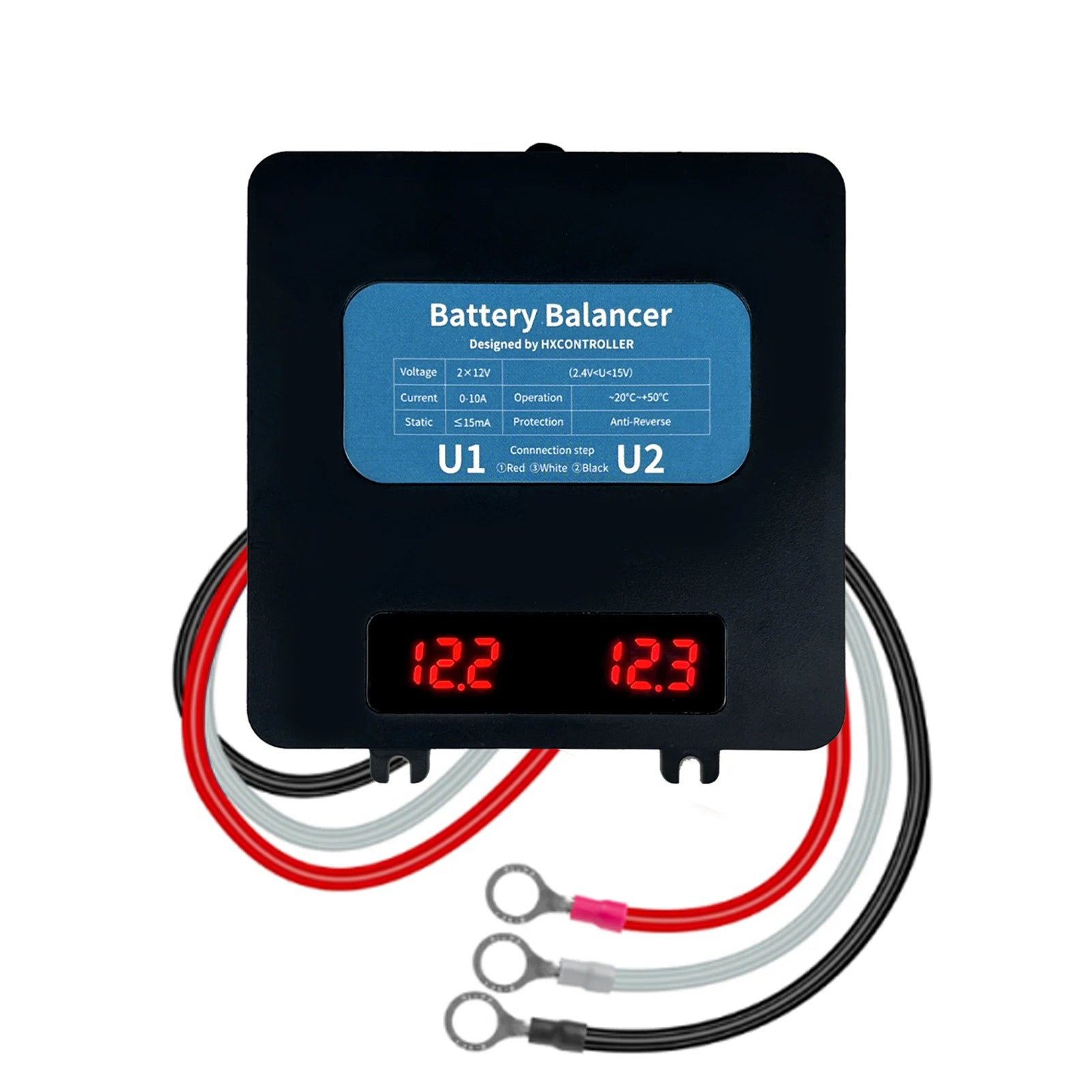

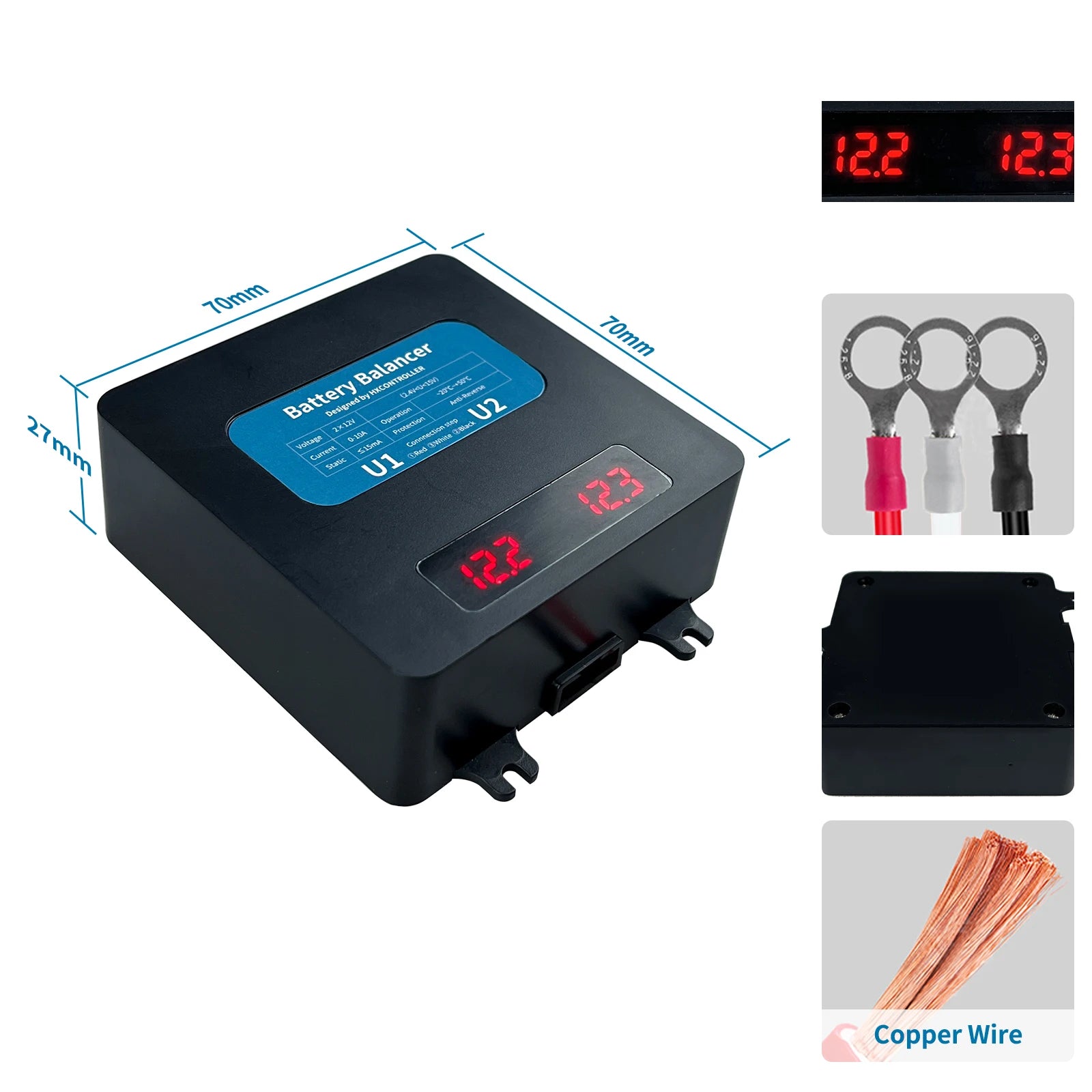

LED Screen Version Parameter
Color: Black
Battery nominal voltage:2x(2.4V/3.6V/6V/9V/12V)
Optimizing current:0-10A
Quiescent current:15mA(12V) 1.2mA(24V)
Dimensions:75*75*27mm
Protection:Reverse polarity protection

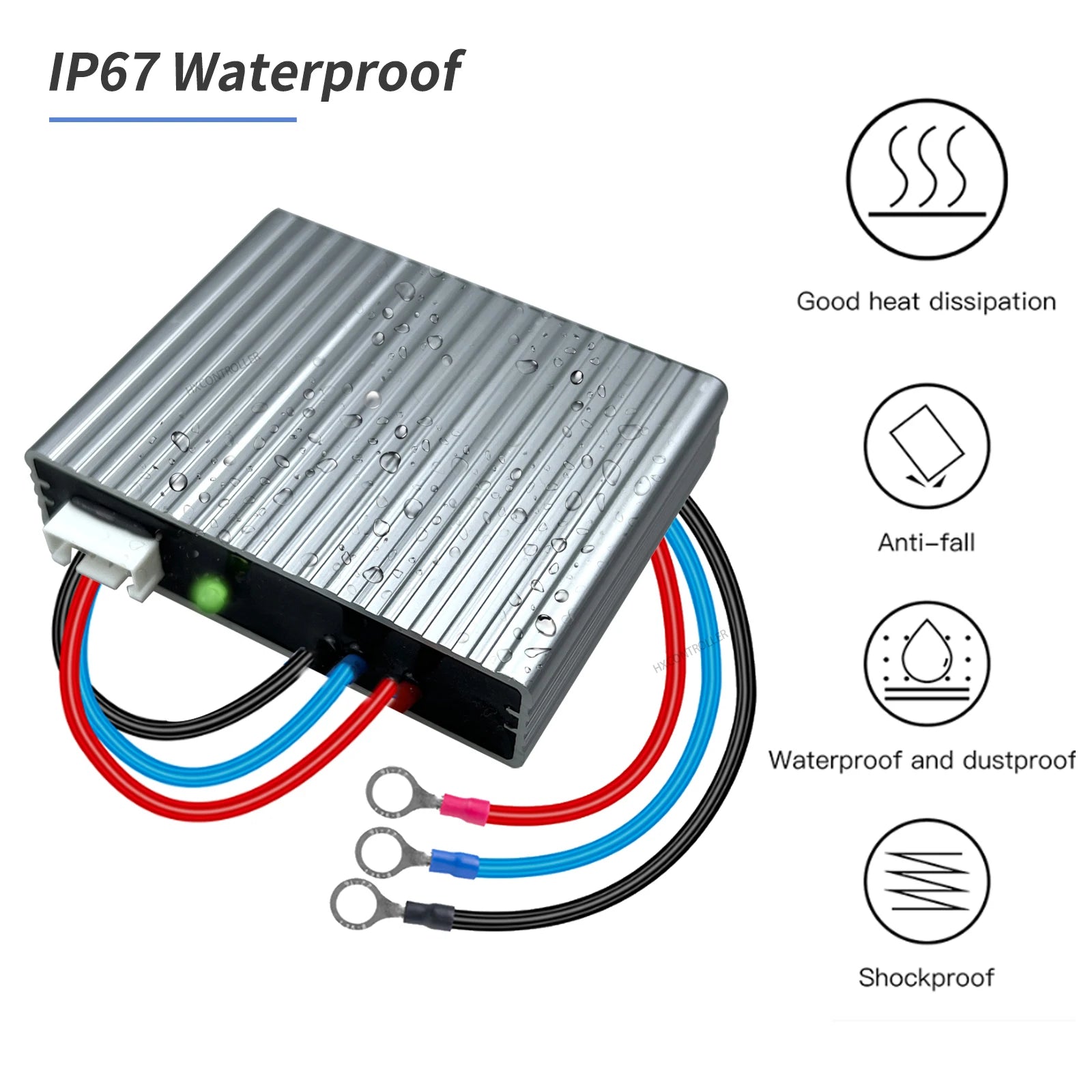

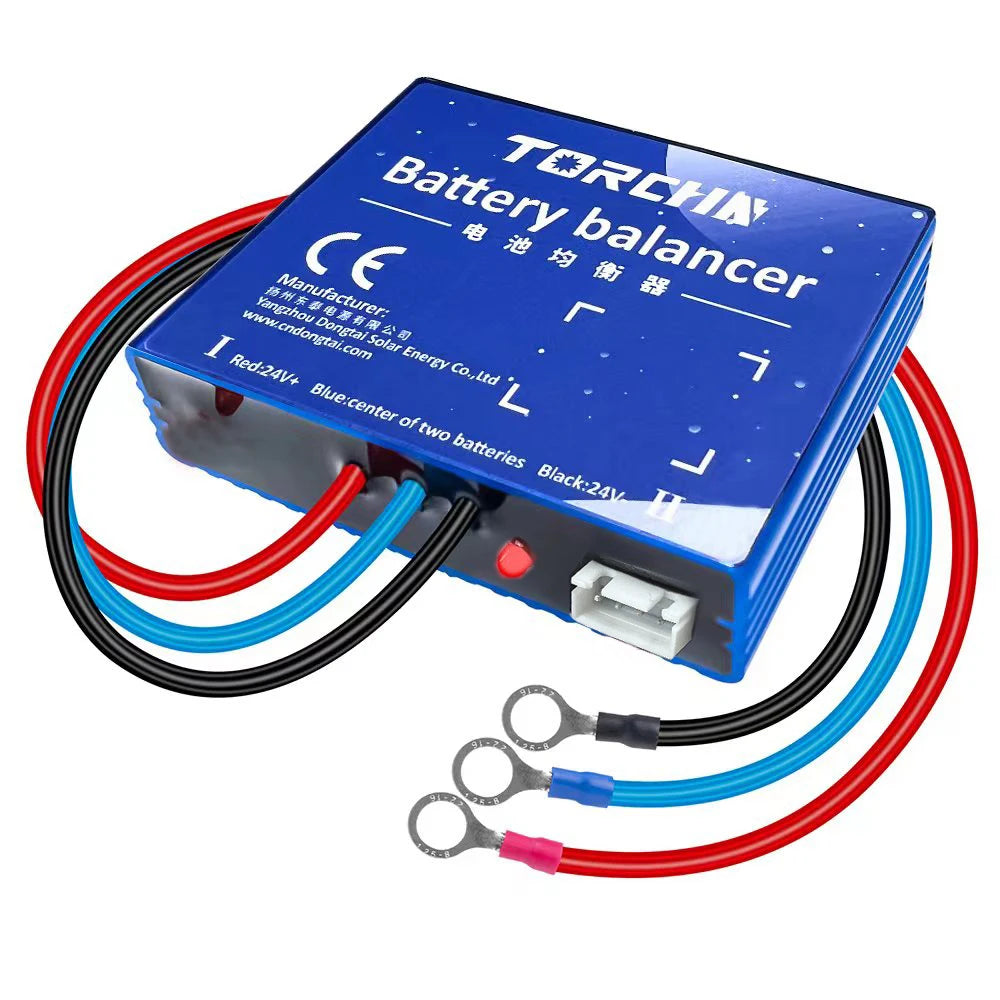

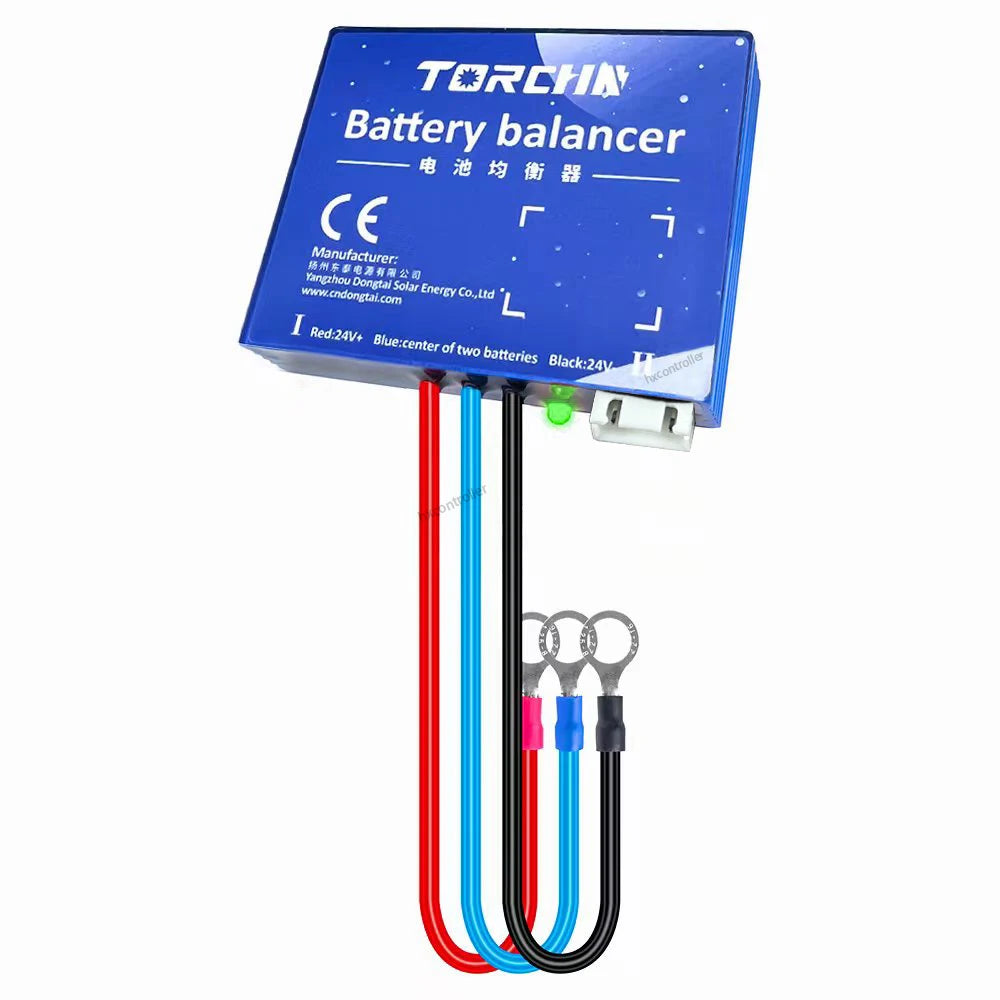

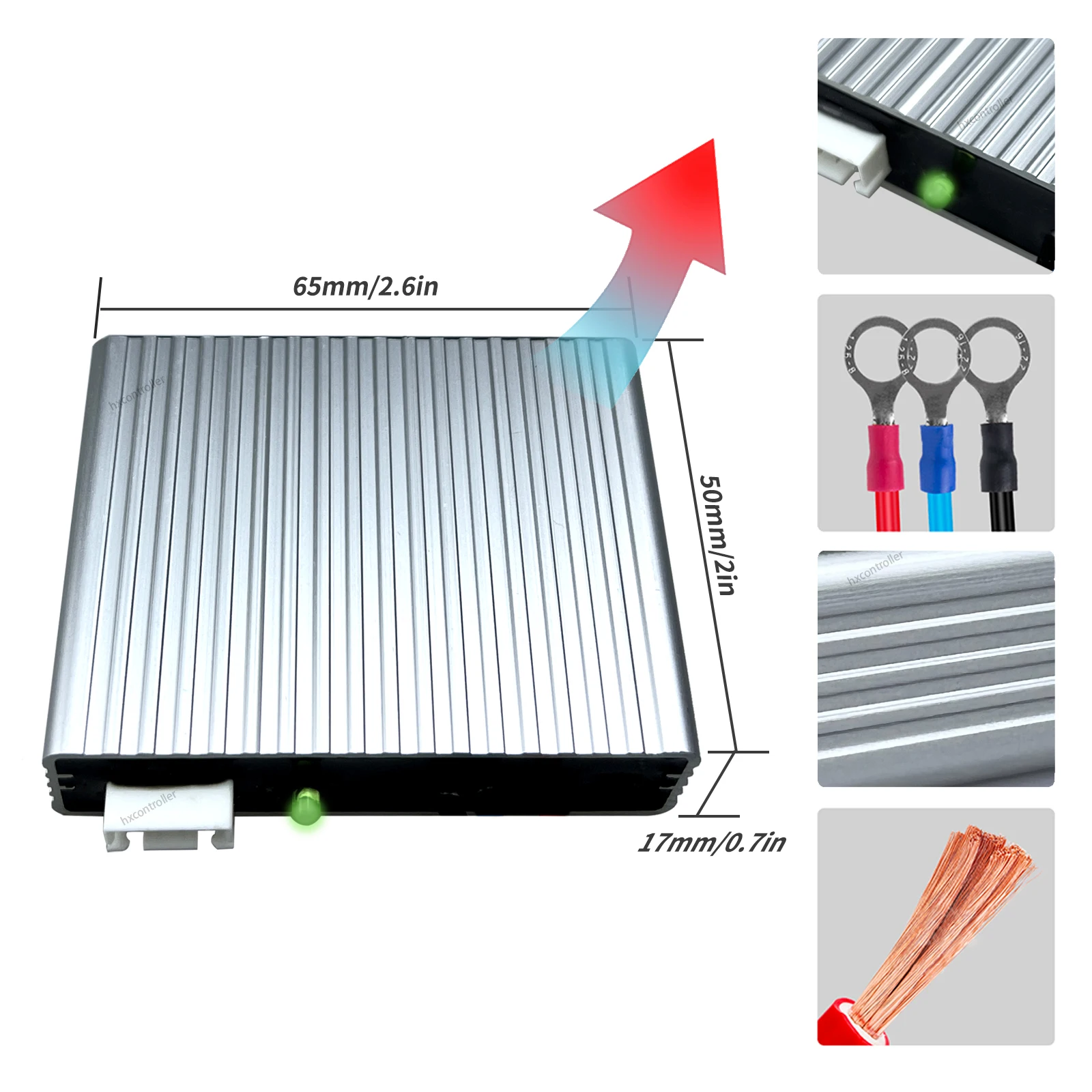

Without LED Screen Version Parameter ( IP65 Waterproof)
1)Balancedbatteryvoltage:10V~15VDC
2)Battery Voltage: Every 2*12V or 2*11.1V or 2*12.8V
3)Balanceable current:0~4A
4)Static consumption:≦3mA
5)Battery Group Voltage: 24V,36V,48V,60V,72V,96V etc. (12V multiples of battery pack. No limit on the maximum of battery pack voltage )
6)Applicable battery type :
Lead-acid, GEL; Ternary Lithium battery; Lithium Iron battery
7)Connecting wires: 3 colors(red, blue, black),
8)Cable Length:2*25cm/9.85Inch, 1*30CM/11.8Inch
9)Balancer Net Size:6.5*5*1.6cm/2.6*1.97*0.63 Inch
10)Net Weight: 0.13KGS
Material：aluminum（good cooling）
LED Screen Version
