SPECIFICATIONS

Application: Industrial Application

Brand Name: TXWEI

Brightness: 300cd/m²

Business Policy 1: Always have samples

Business Policy 3: Long time supply

Communication Interface: EDP

Display Size: 13.3 INCH

Interface: EDP

Interface Type: EDP

Operating Temperature: -20+70℃,-20+70℃

Outline Dimension: 305.2*178.1*2.6

Place of Origin: Guangdong, China

Screen Size: 13.3 INCH

Supplier Type: OEM

Touch Function: No

Type: TFT LCD

Products Description

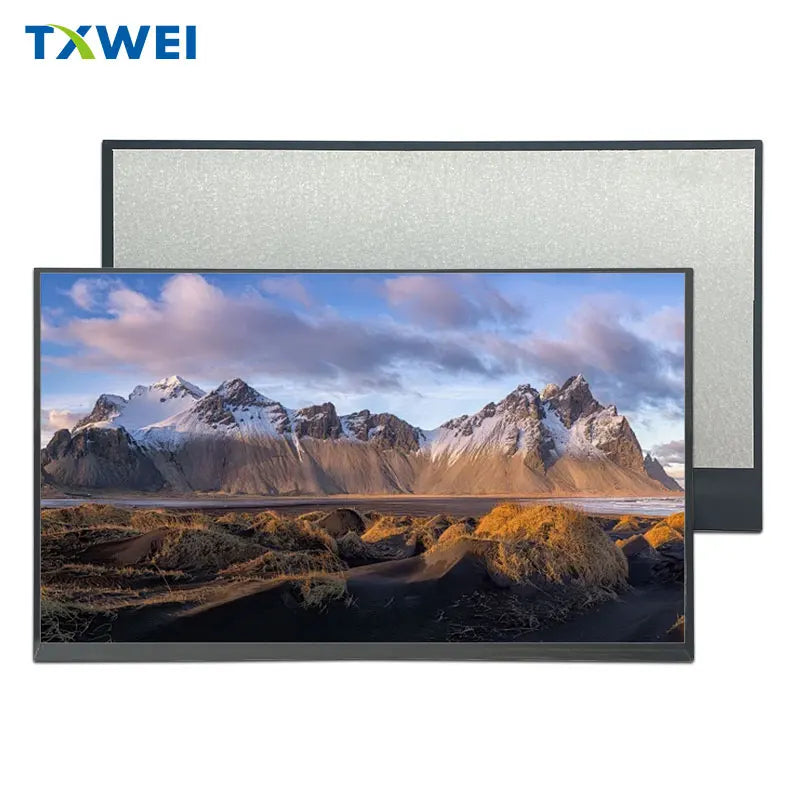

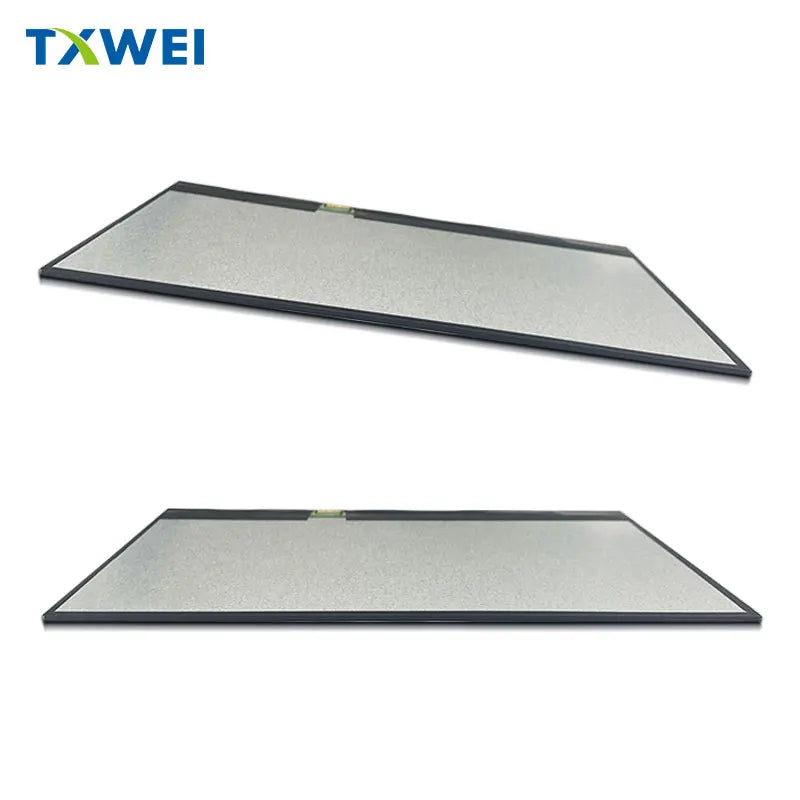

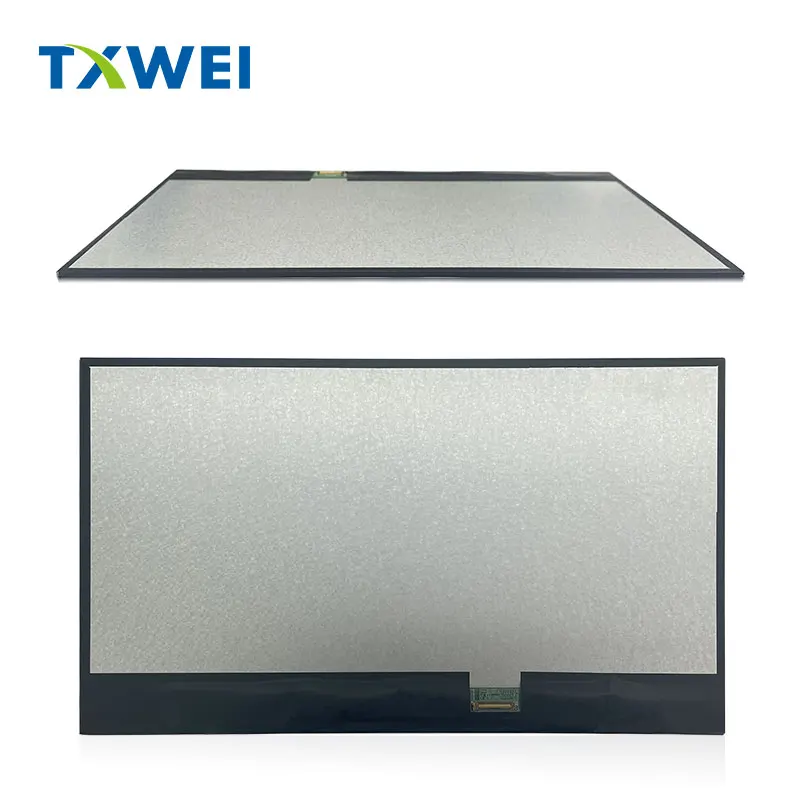

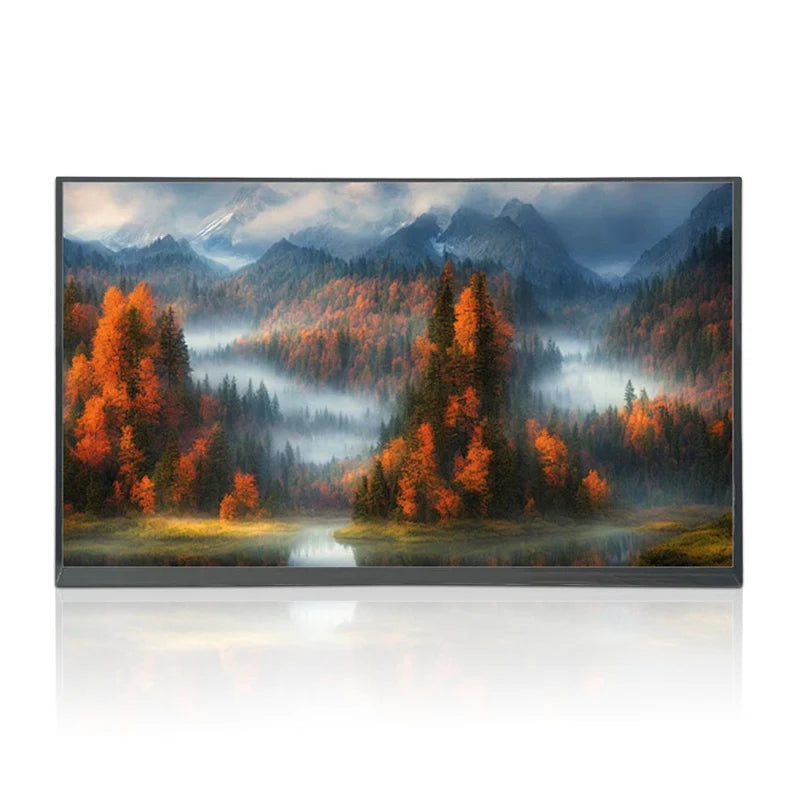

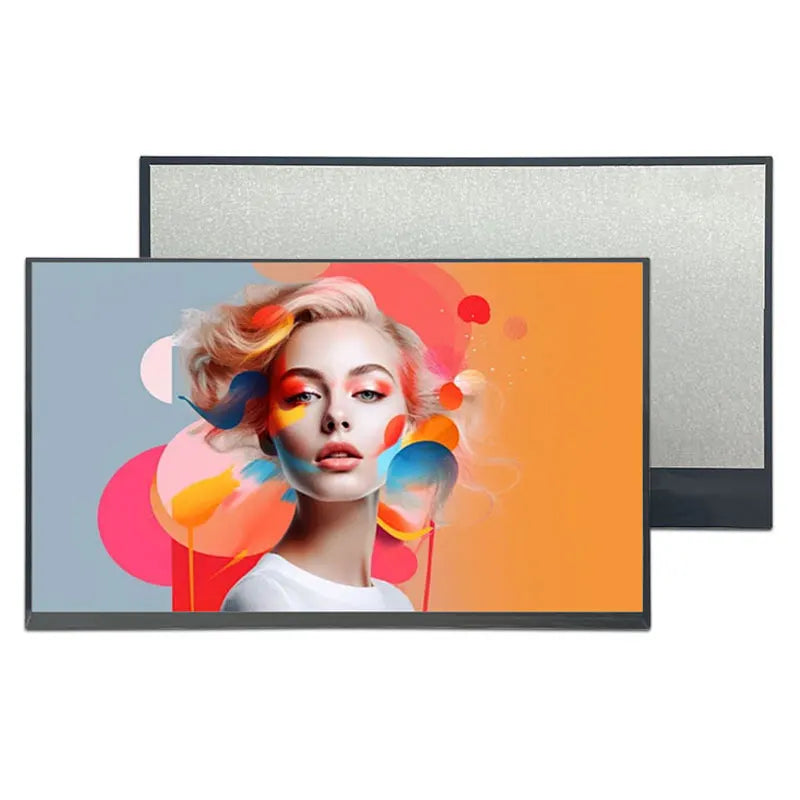

Model Number : TXW133008B0

：13.3-inch square scale full-color TFT LCM

：IPS full viewing angle

：Brightness up to 300cd/m²

：Resolution is 1920*1080

：High-definition and highlight display effect

：Good quality, long-term supply

ITEM	Standard value	Unit
Model Number	TXW133008B0
Size	13.3	Inch
LCD Type	Normally Black	--
Drive Element	TFT active matrix	--
Number of Pixels	1920*3RGB(H)X1080(V)	Dots
Pixel Arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.153*0.153	mm

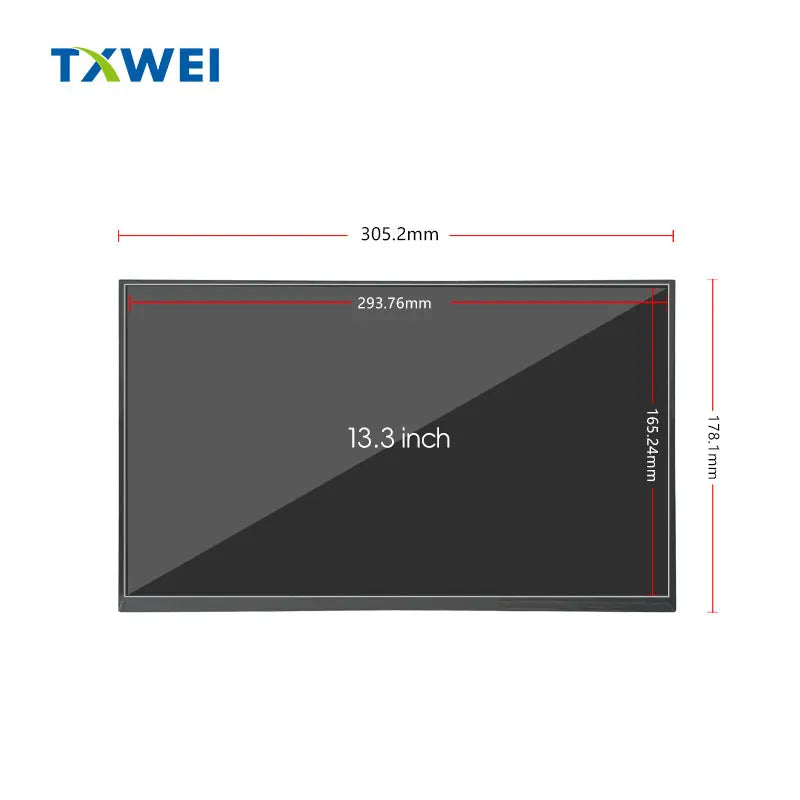

Active Area	293.76(H) *165.24(V)	mm
LCM Mechanical Outline Size(W*H*T)	305.2*178.1*2.6	mm
Viewing direction	ALL O’CLOCK	-
LCM Interface	EDP Interface	-
LCM Pin Count	56	pcs
Approx. Weight	160	ma
Backlight voltage	21	v
Operating temperature	-20+70	℃
Storage Temperature	-30+80	℃
Lumen Degrees	300	Cd/㎡

Products Overview

1.Relevant information: If the above product parameters are not enough, please contact us to provide you with specific product data-sheet and Software display debugging parameter.

2.Supply quality assurance: Our product supply cycle commitment is not less than 5 years,and can be replaced with product quality and no damage within 30 days from delivery. 3.Wide range of applications：This product is widely used in scooter meters, electric vehicle meters, bicycle meters, outdoor handheld PDAs, medical equipment, electronic cigarettes, automotive electronics and other products. 4.Guaranteed after sale: We have an excellent after-sales service team,they will be professional,technical,and can quickly and effectively,solve all the product quality and after-sales problems that plague you. 5.Reply quickly: We can accept any feedback from customers.If you have any questions or concerns about our transactions,please contact us by e-mail or online.We will reply quickly within 24 hours.

Product List

TFT Highlight LCD Display-Series
Inch	Resolution	Display perspective	Interface	Brightness
1.54	240*240	IPS	MCU 8 BIT	1100cd/m2
2.0	320*240	IPS	3 SPI+ 6 BIT RGB	600-1000cd/m2
2.4	240*320	IPS	MCU 8 BIT	1100cd/m2
4.3	800*480	IPS	RGB 24 BIT	800cd/m2
4.0	640*480	IPS	MIPI	800cd/m2
5.0	800*480	IPS	RGB 24 BIT	1500cd/m2
5.5	1080*1920	IPS	MIPI	900cd/m2
7.0	1024*600	IPS	RGB 24 BIT	900cd/m2
8.0	800*1280	IPS	MIPI	500cd/m2
10.1	1280*800	IPS	LVDS BIT	1000cd/m2
We have more size LCD. If it doesn't appear in the product list, you can contact us.
