15dbi Outdoor Antenna For Cell Phone Repeater Rural Area 2G 3G 4G Cellular Network Amplifier Antenna 698-2700mhz Panel Anten

China Mainland

€450,95

15dbi Outdoor Antenna For Cell Phone Repeater Rural Area 2G 3G 4G Cellular Network Amplifier Antenna 698-2700mhz Panel Anten

€450,95

Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

Bandwidth: 262 / 990 MHz

Brand Name: Callboost

Connector Type: N-Female or customized

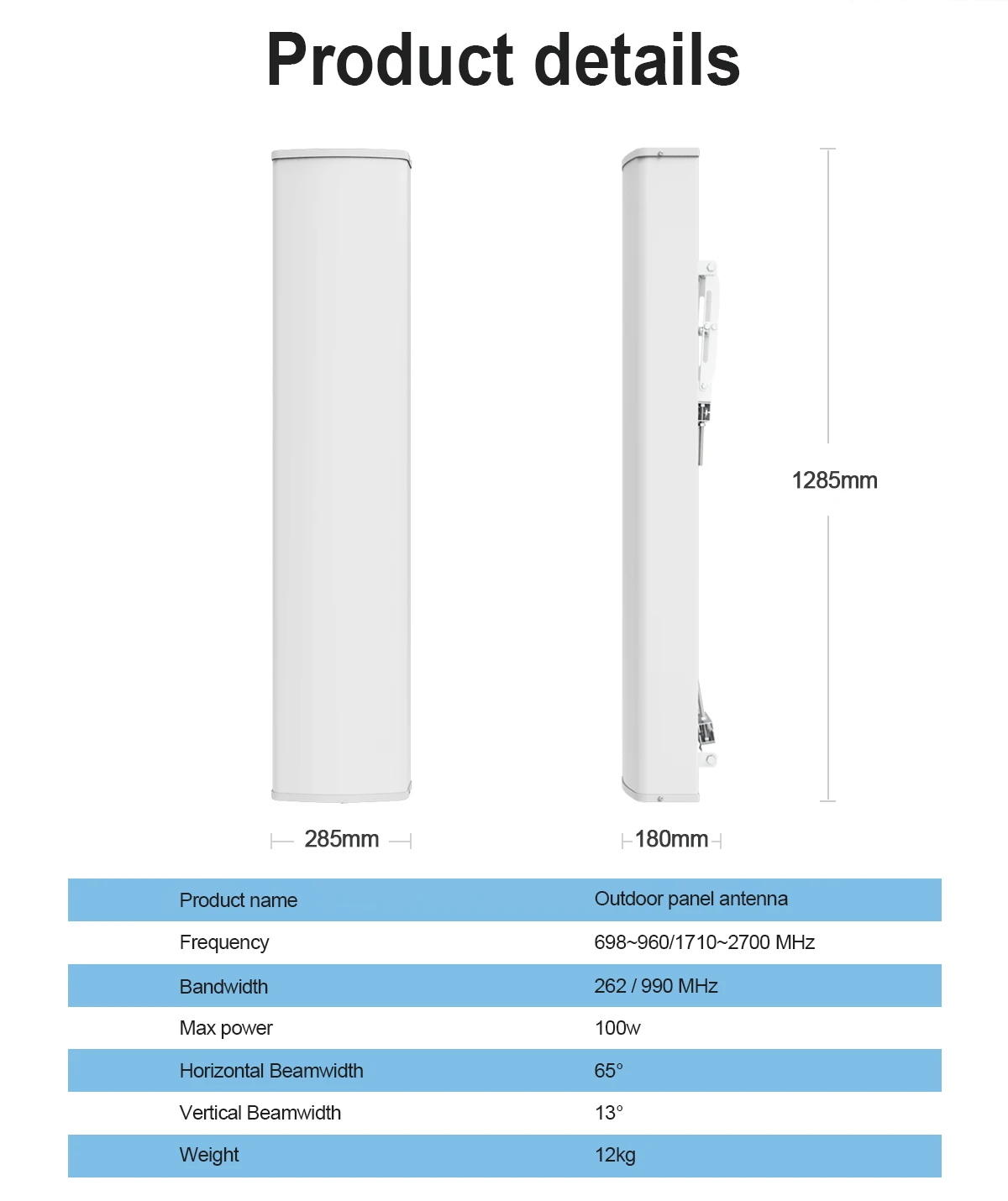

Dimension: 1270*285*135mm

Frequency: 698~960 / 1710~2700 MHz

Gain: 15dBi

Gain(dB): 15dBi

High-concerned chemical: none

Horizontal Beamwidth: 65°

Impedance: 50omh,50Ω

Max power: 100W

Model Number: CAOP0727-1565

Origin: Mainland China

Polarization: Vertical

Radome Material: PVC

Rated Wind Velocity: 60m/s

Reflector Material: Aluminum Alloy

VSWR: ≤1.8

Vertical Beamwidth: 13°

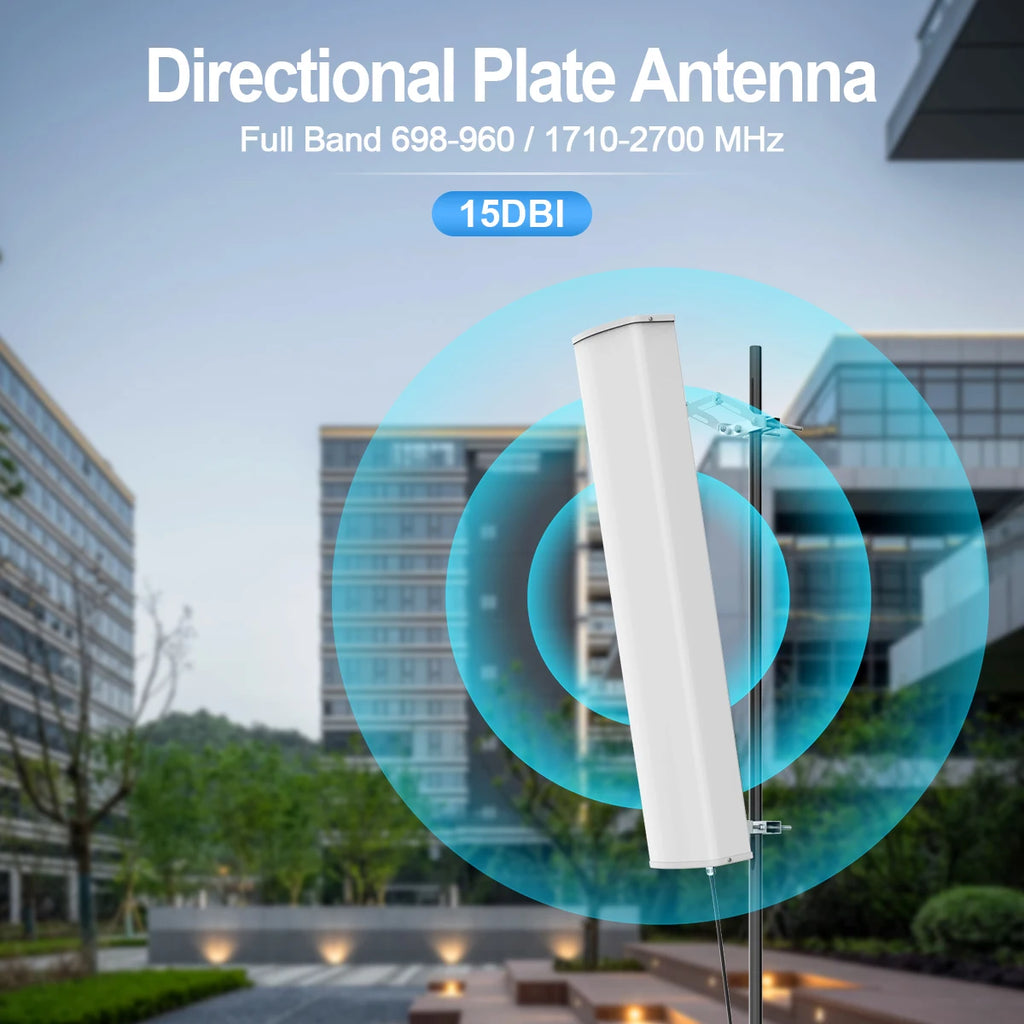

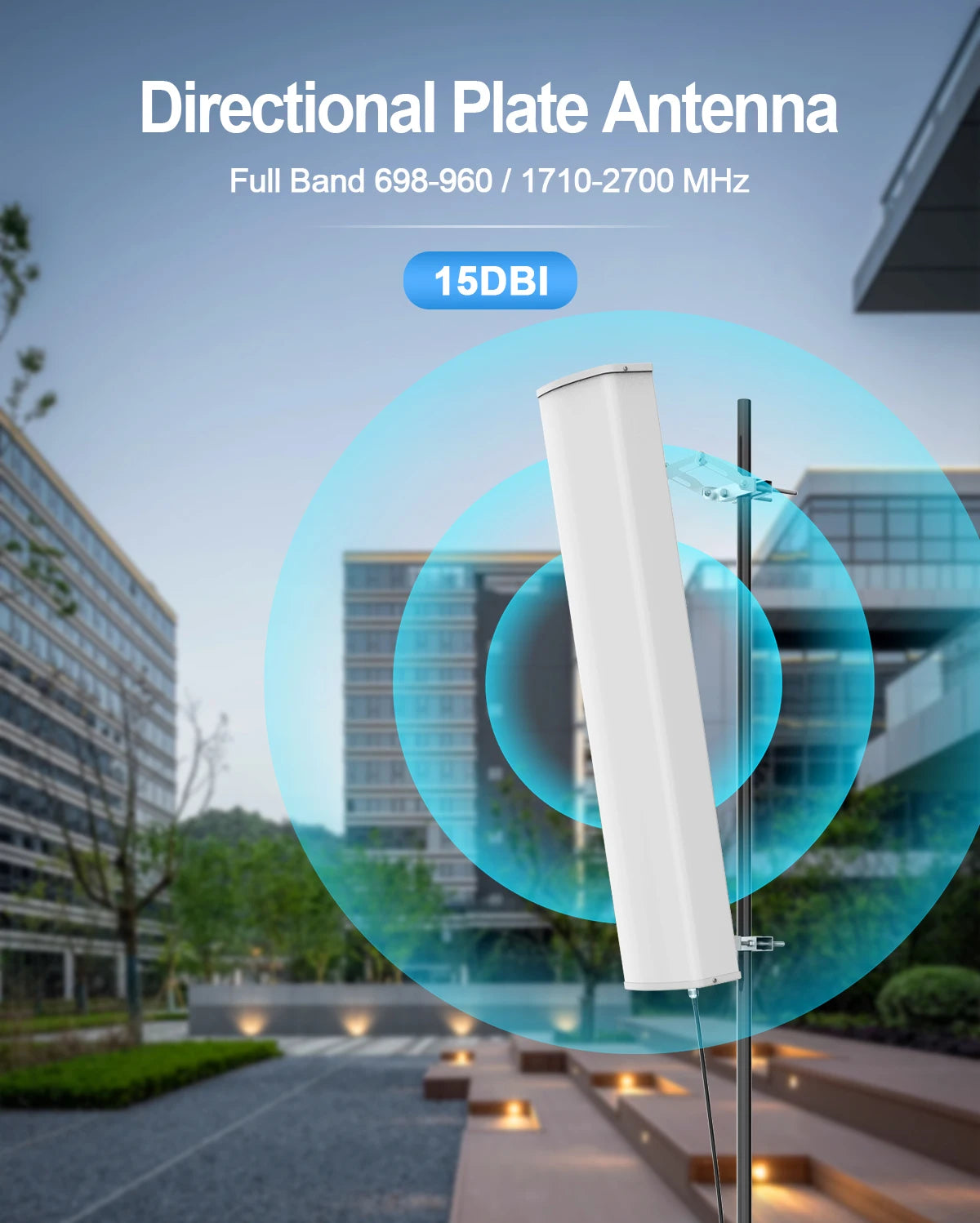

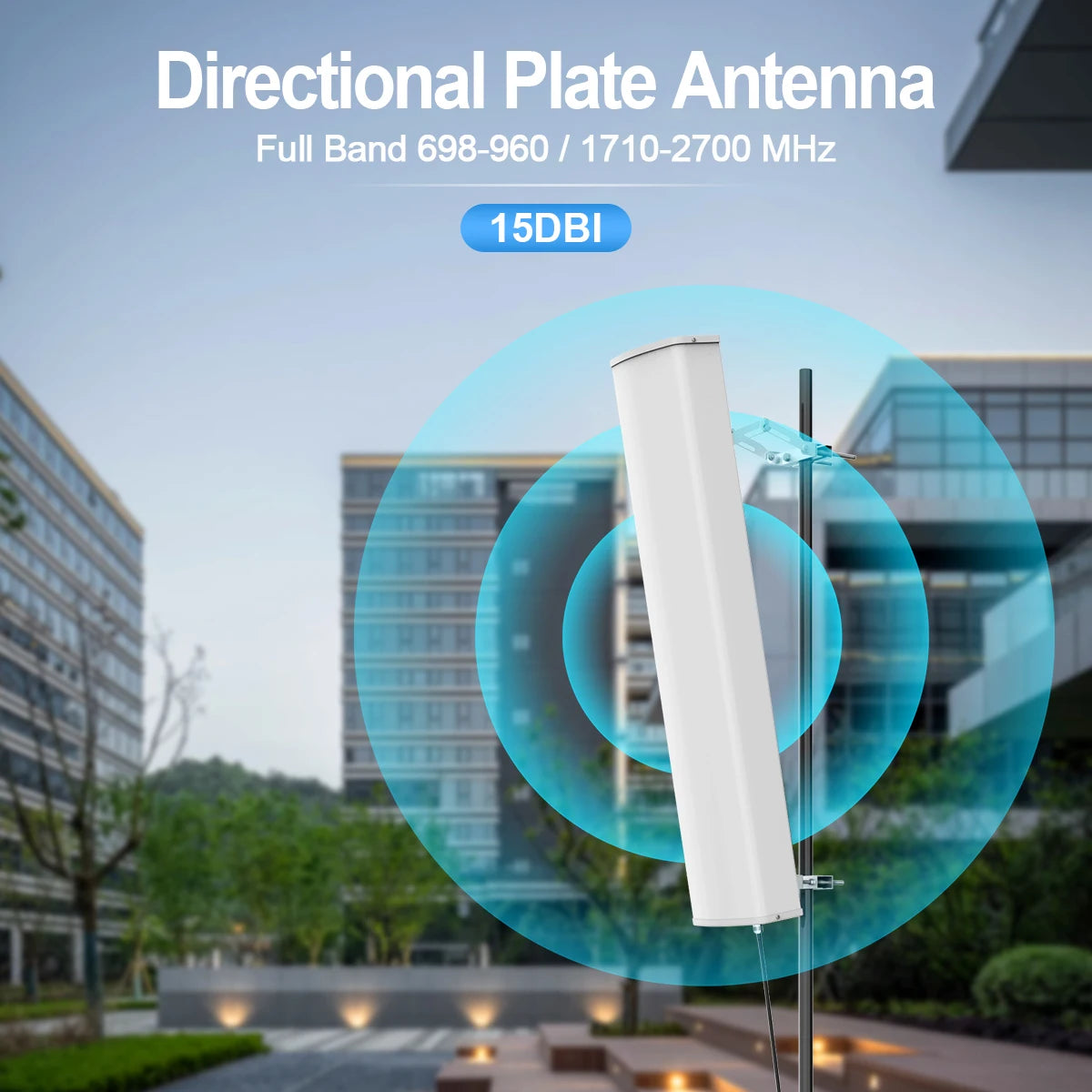

15DBI DERECTIONAL PLATE ANTENNA

698~960 / 1710~2700 MHz

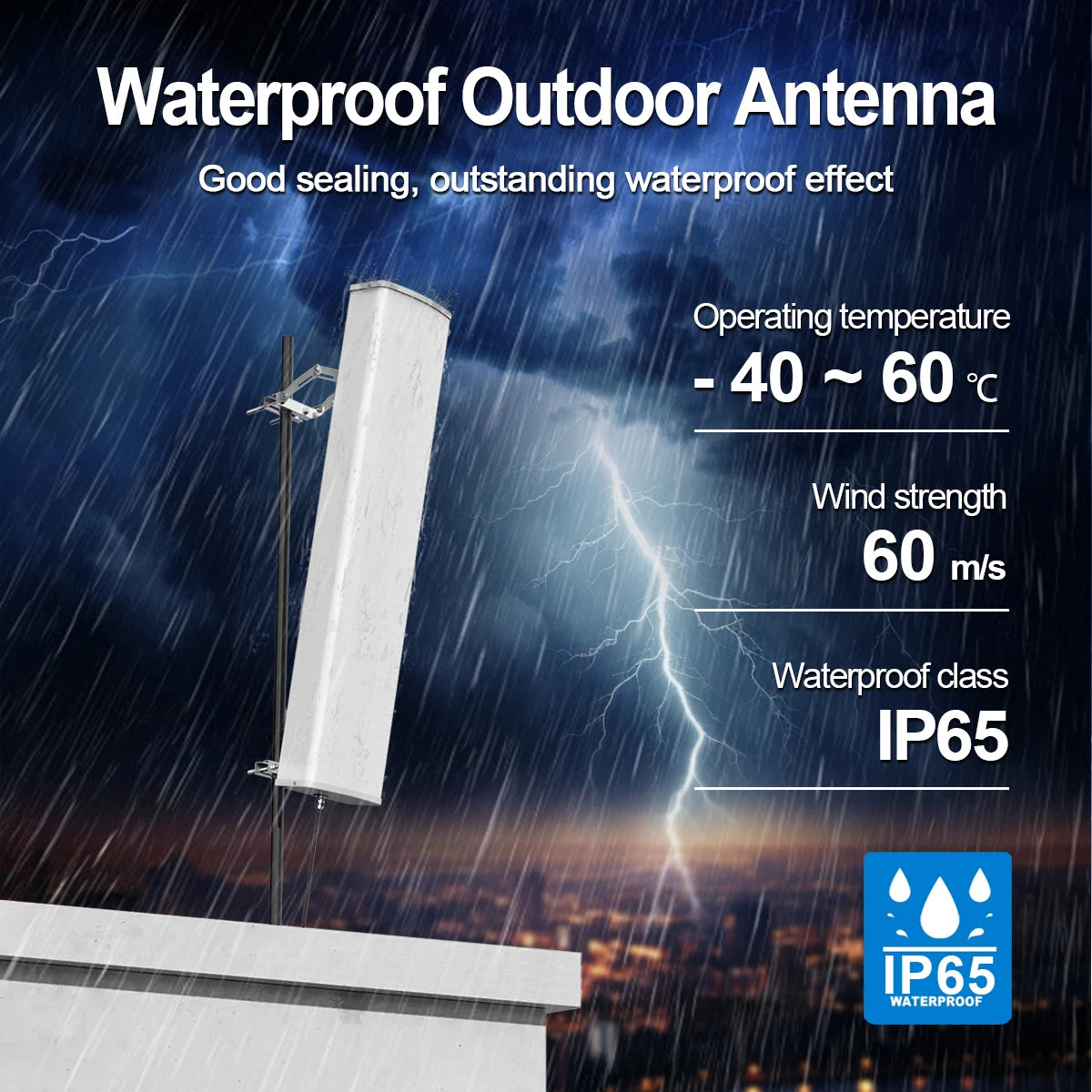

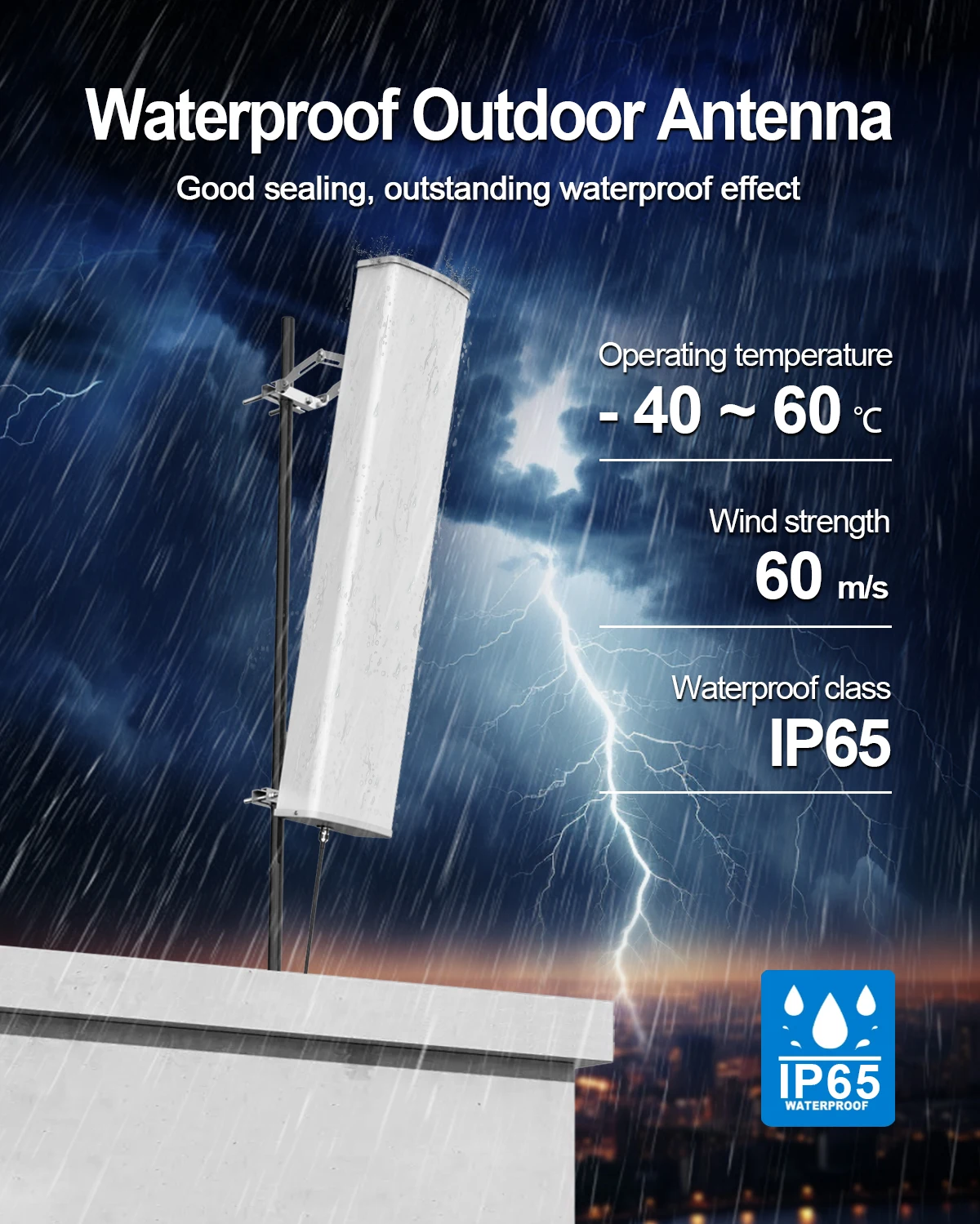

IP65 WATERPROOF OUTDOOR ANTENNA PANEL

Good sealing, outstanding waterproof effect

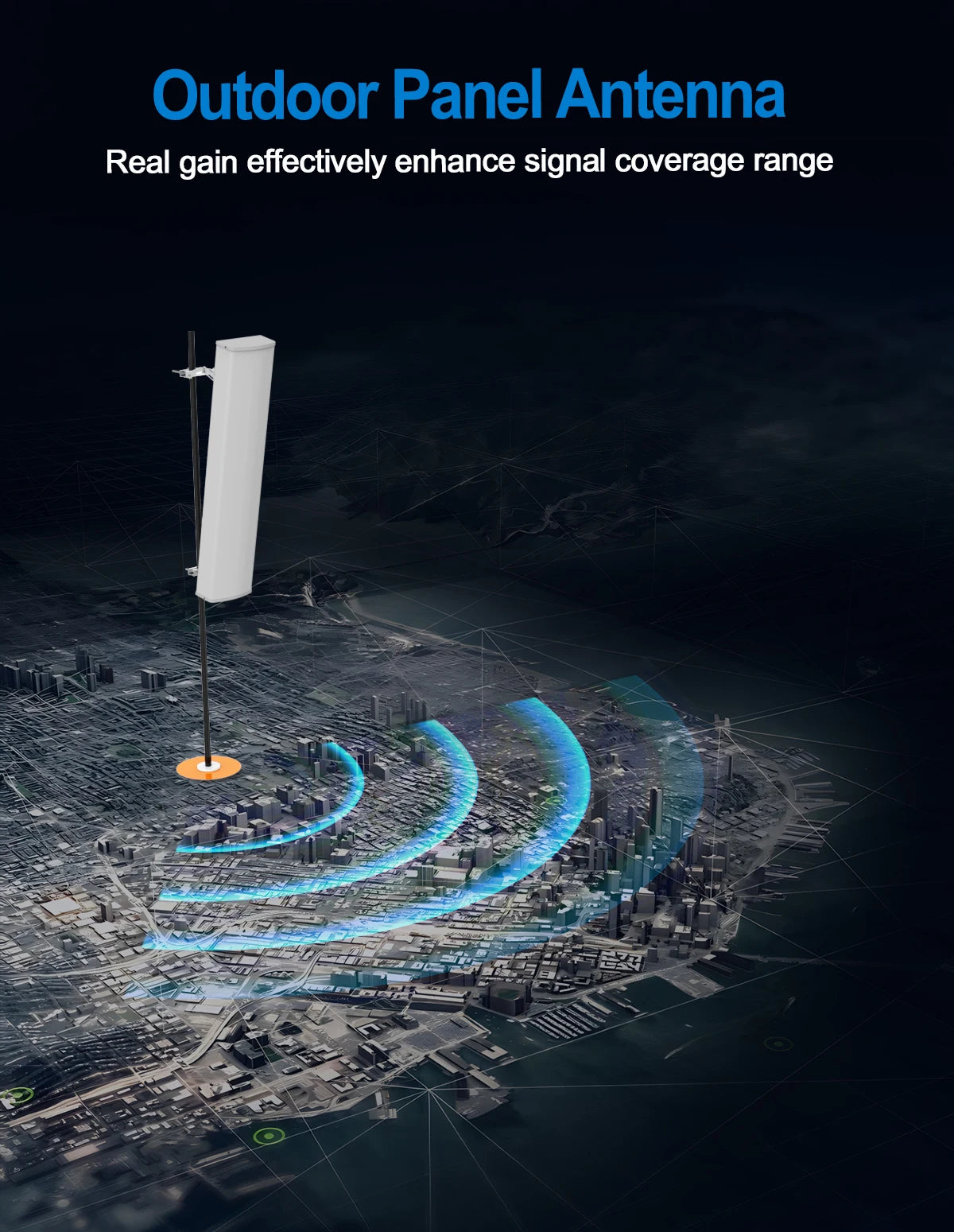

15DBI HIGH GAIN PANEL ANTENNA

Real gain effectively enhance signal coverage range

ACCURATE TRANSMISSION

Being able to concentrate signals in a specific direction, reducing signal diffusion and interference, and achieving precise signal transmission.

STRONG ANTI-INTERFERENCE ABILITY

Effectively filtering out interference signals from other directions to improve signal quality and ensure communication stability and reliability.

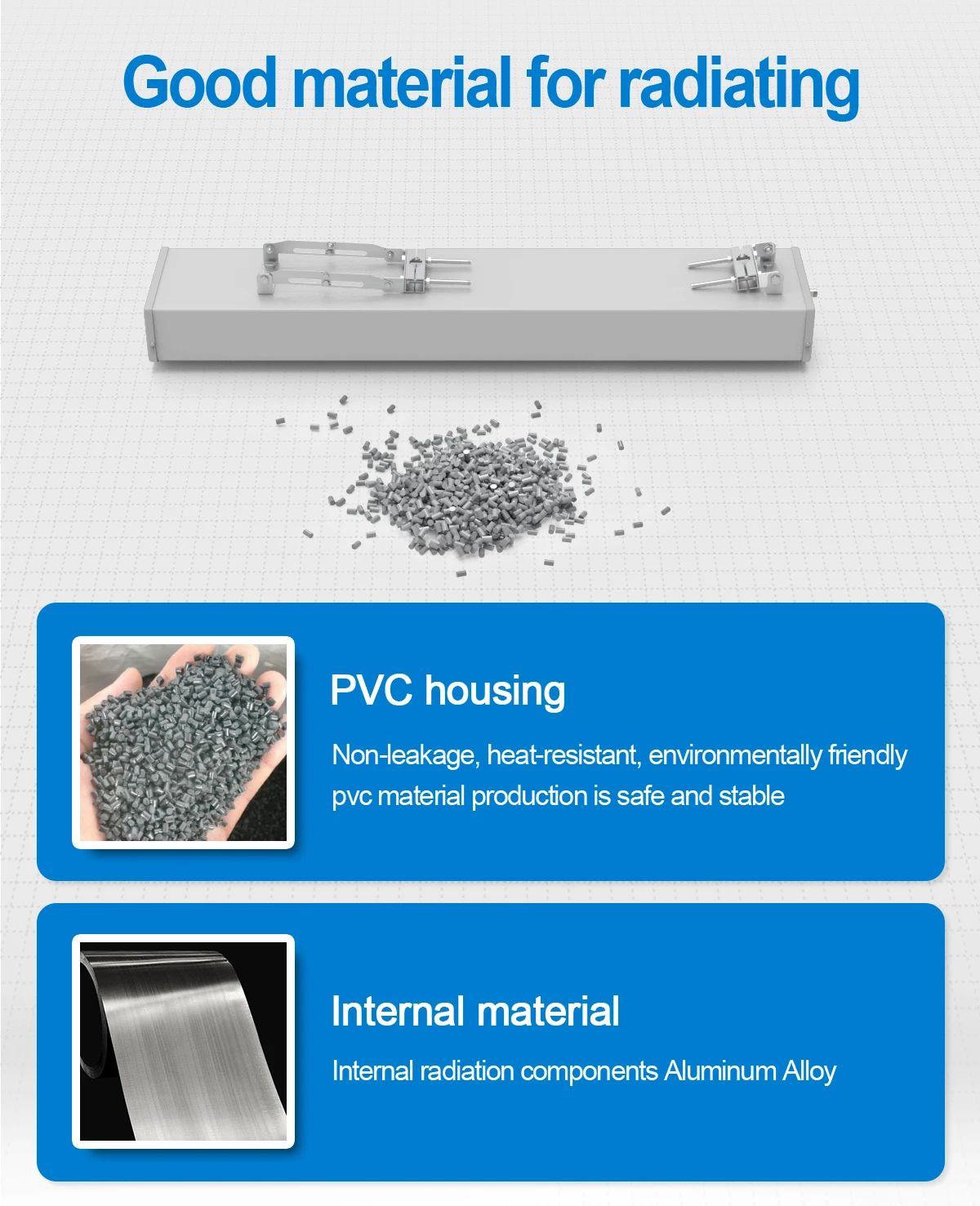

GOOD MATERIAL FOR RADIATING

The external material is PVC, and the internal radiating components are Aluminum Alloy

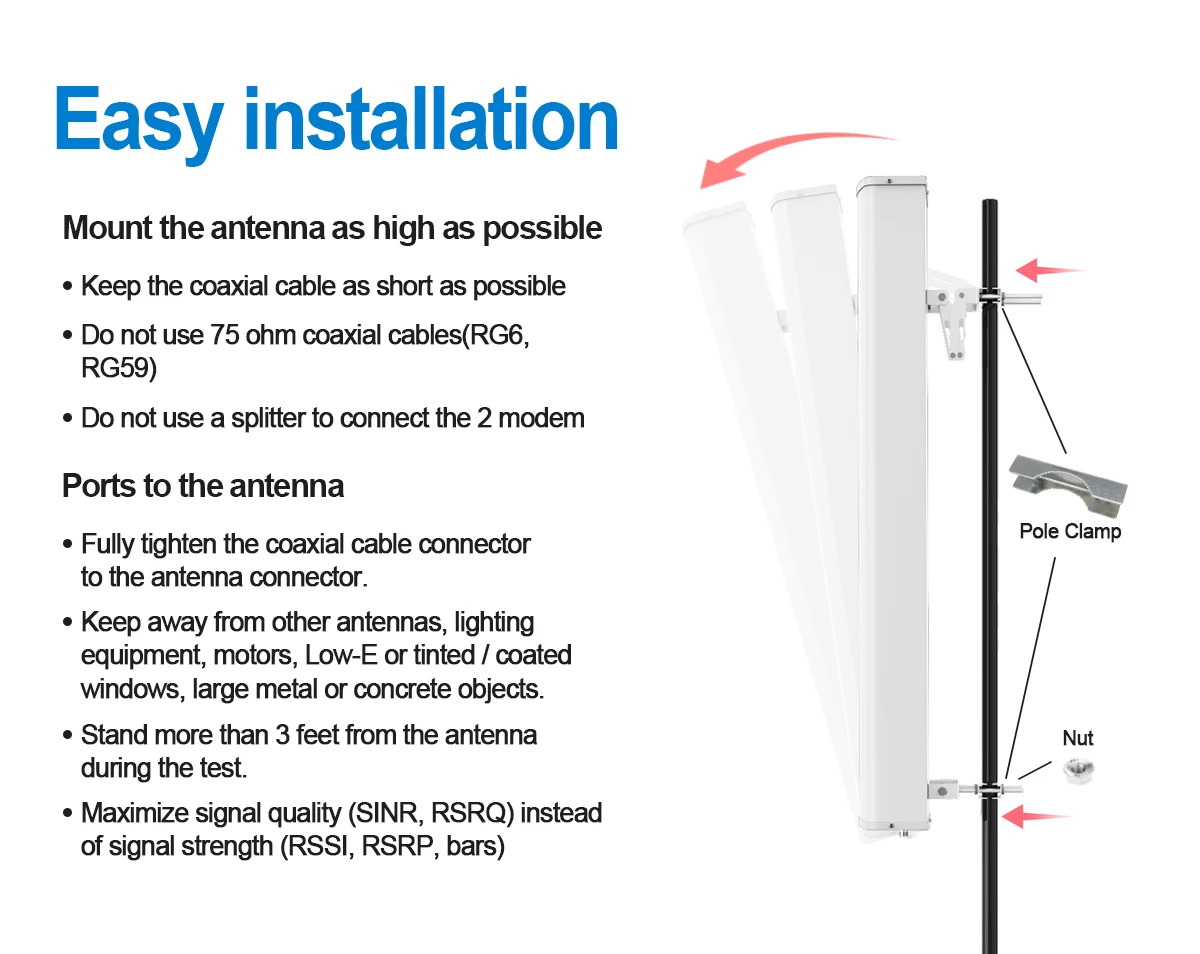

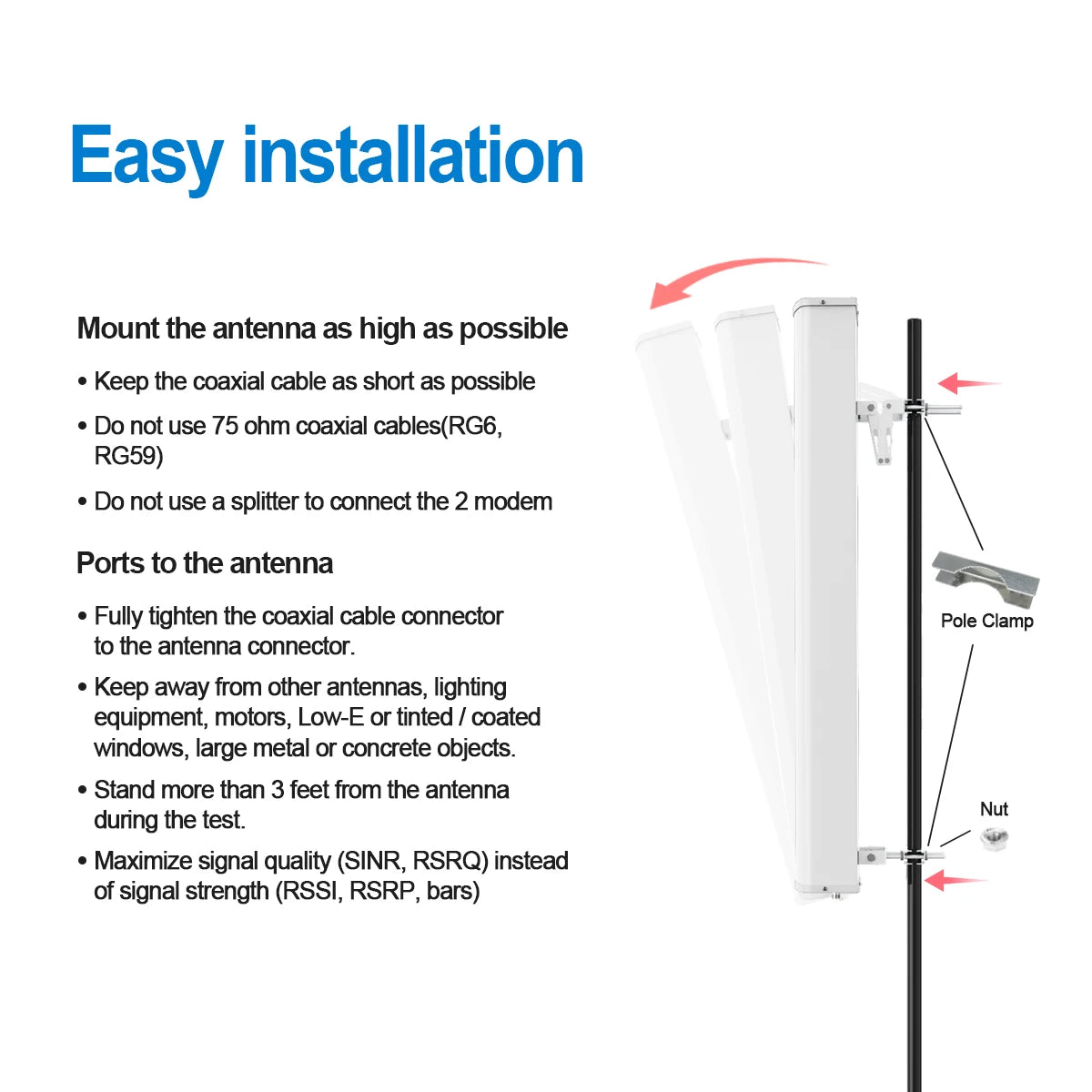

Mount the antenna as high as possible Keep the coaxial cable as short as possible,
Do not use 75 ohm coaxial cables(RG6,RG59),
Do not use a spliter to connect the 2 modem.

Ports to the antenna
Fully tighten the coaxial cable connector to the antenna connector.
Keep away from other antennas, lighting equipment, motors, Low-E or tinted / coated windows, large metal or concrete objects.Stand more than 3 feet from the antenna during the test.
Maximize signal quality (SINR, RSRQ) instead of signal strength (RSSI, RSRP, bars)
