SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Material: Aluminum alloy
Origin: Mainland China
Type: Other
Product Description
this product is widely used in internal envirments such as power equipment switch cabinets,terminal boxes,and power boxes.It can also be used for communications,banking,taxation,and large enterprises computer rooms and cabinets
Specification
|
Name
|

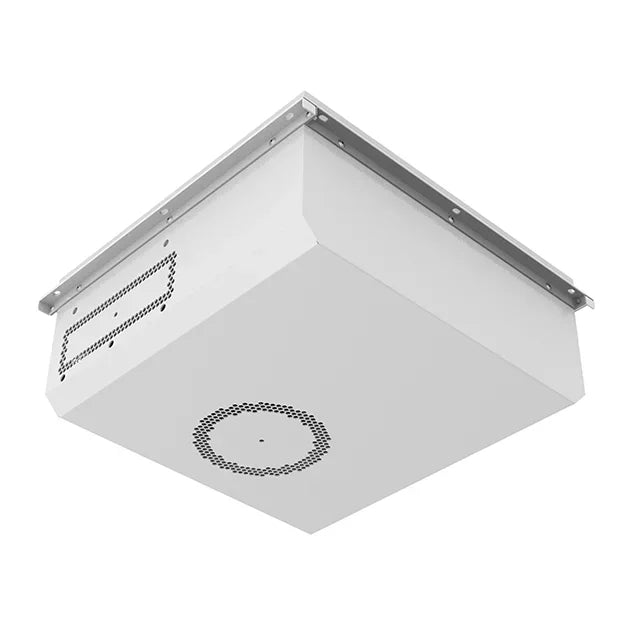

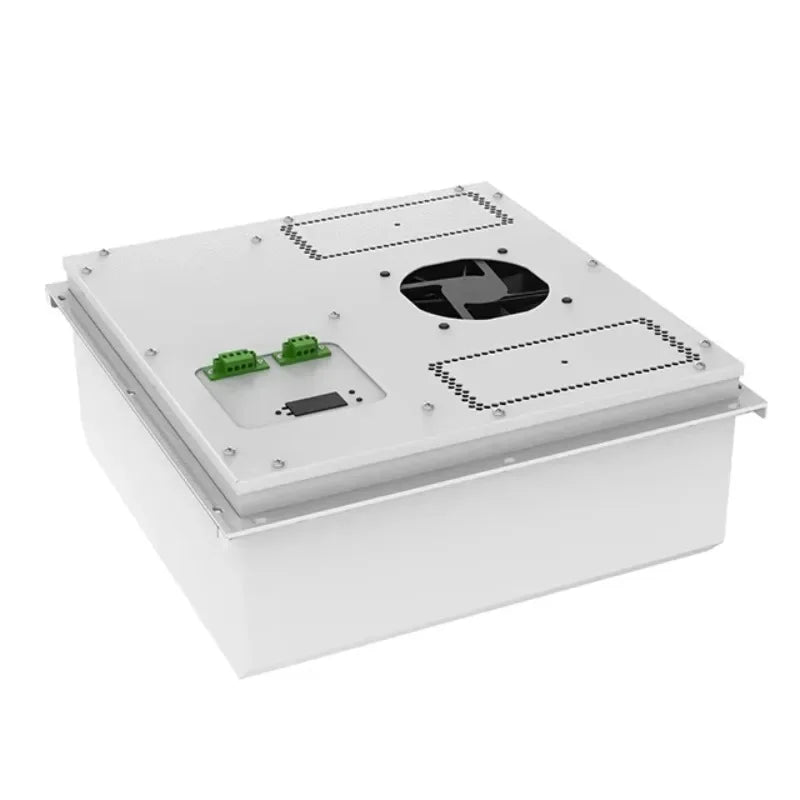

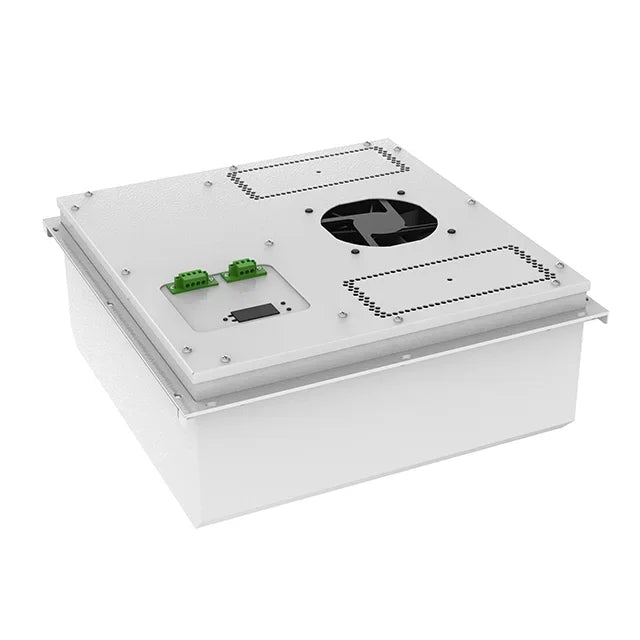

Semiconductor cabinet air conditioner
|
|
Model
|
OD01-180XEA
|
|
Rated Operating Voltage(V)
|
220V
|
|
Operating Current(A)
|
1.7A/2.0A
|
|
Refrigeration capatity(W)
|
180W(balance method test at internal and external ambient temperature of 35℃)
|
|
Noise Level(dB)
|
≤68dB
|
|
Communication interface
|
RS485
|
|
Internal Protection level
|
IP42
|
|
External Protection level
|
IP58
|
|

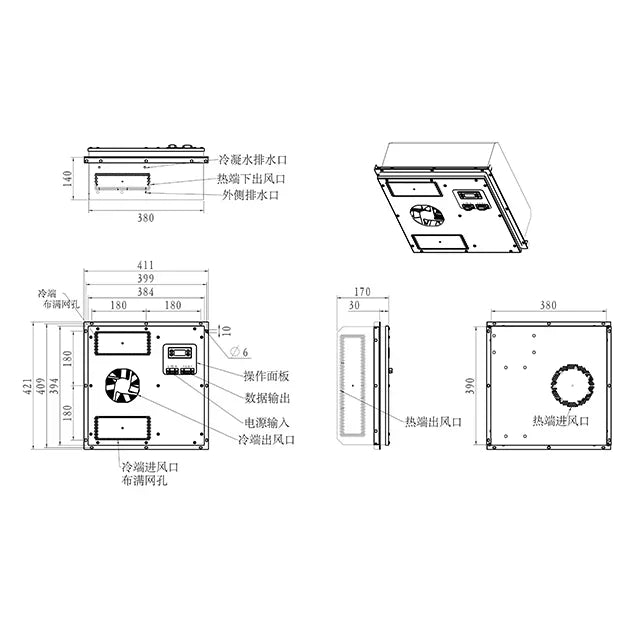

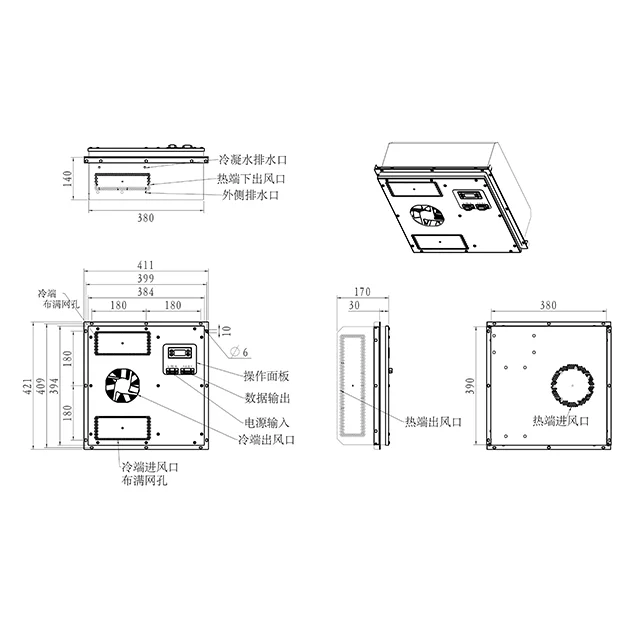

Dimension(mm,L*W*H)
|
411*421*170mm
|
|
Alarm function
|
High and low temperature alarm inside the cabinet
Fault alarm for interal and external phoenix fans TE over- and under-current protection High and low power supply voltage alarm |
|
Installation method
|
Flange bolt tightening
|
|
Surface treatment
|
outdoor orange pattern RAL7035
|
|
Radiator material
|
AL6063
|
|
Operating Temperature(℃)
|
20℃~50℃
|
|
Operating Humidity(%)
|
15%~95%
|
|
Storage Temperature(℃)
|
-40℃~70℃
|
|
Storage Humidity(%)
|
15%~90%
|
|
Net Weight(Kg)
|
14kg
|
|
Application
|
Laser,CNC,Medical,Cosmetology,Sensing
|
Why Choose Us
Huajing can provide more accurate thermal solutions to meet the unique needs of customers. Design and development are carried out based on specific customer requirements to effectively solve their problems. Providing satisfactory service to customers with more personalized and precise solutions
High Efficiency and Energy Saving.
By adopting semiconductor cooling technology, the product's cooling efficiency has been greatly improved.
Good Sealing Effect.
Our thermoelectric cooler assemblies feature excellent sealing performance to prevent air leakage, ensuring reliable and stable operation in various environments.
Modular Design.
The modular design of our thermoelectric cooler assemblies provides flexibility for customization and easy maintenance, allowing for quick and efficient replacement of parts if needed.
Compact Structure.
With a compact structure, our thermoelectric cooler assemblies are space-saving and easy to integrate into different systems or devices, providing efficient temperature control in limited spaces
