SPECIFICATIONS

Application of Display: LED,LCD,PDP

Certificate: CE , FCC

Interface: USB2.0 full speed

Multi Touch: Multi points optional

Product name: Multi Touch Screen/Touch Panel/Touch Screen Panel

Products Status: Stock

Seal Ability: IP65

System (OS): Win XP/7/8,Win CE,Linux,Andiord

Warranty: 3 years

Working Environment: Under sunlight ,indoor and outdoor

after-sales service: Repair

aspect ratio: 16:9

brand name: ThinkTouch

color: Black

interface type: Usb

package: Yes

place of origin: Guangdong, China

products status: New

series: For Business

type: Infrared

warranty(year): 1-Year

Product Description

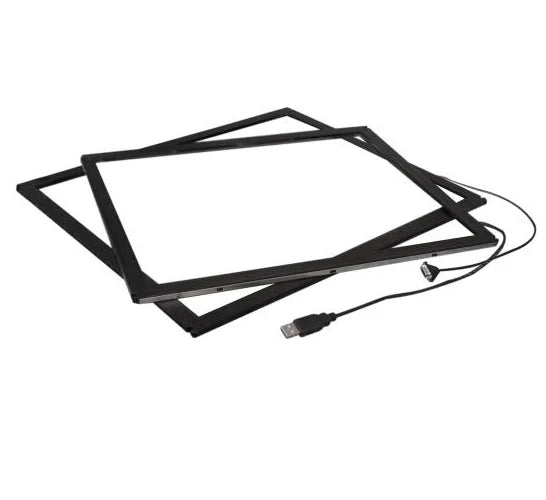

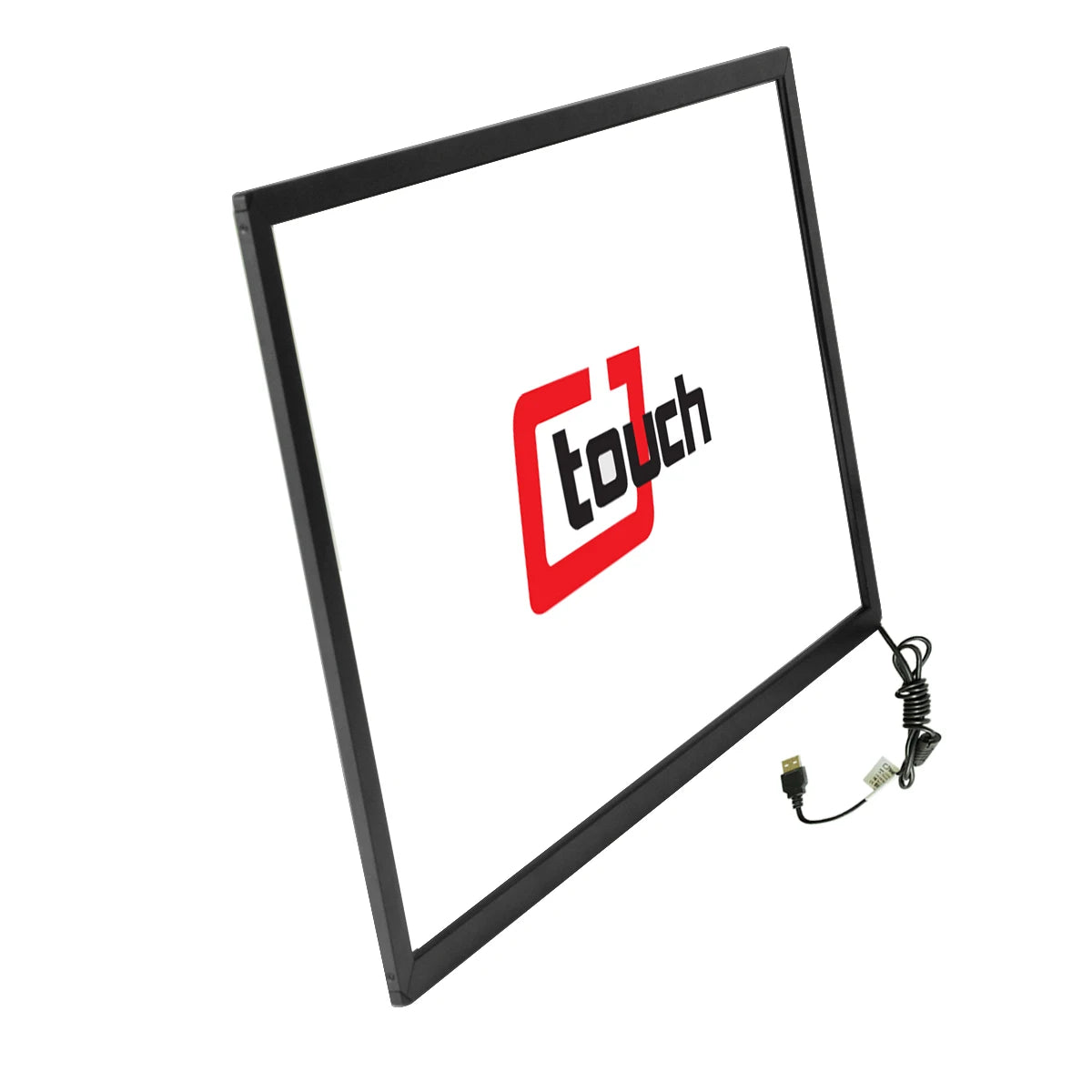

27-inch Infrared Touch Screen

Model:CIN270AP-3K1

18.5mm width 7.9mm thickness frame with 3mm tempered glass embedded

CJtouch Infrared Touch Screen/Frame :Size from 10.4"-150", customized size optional

Main Features

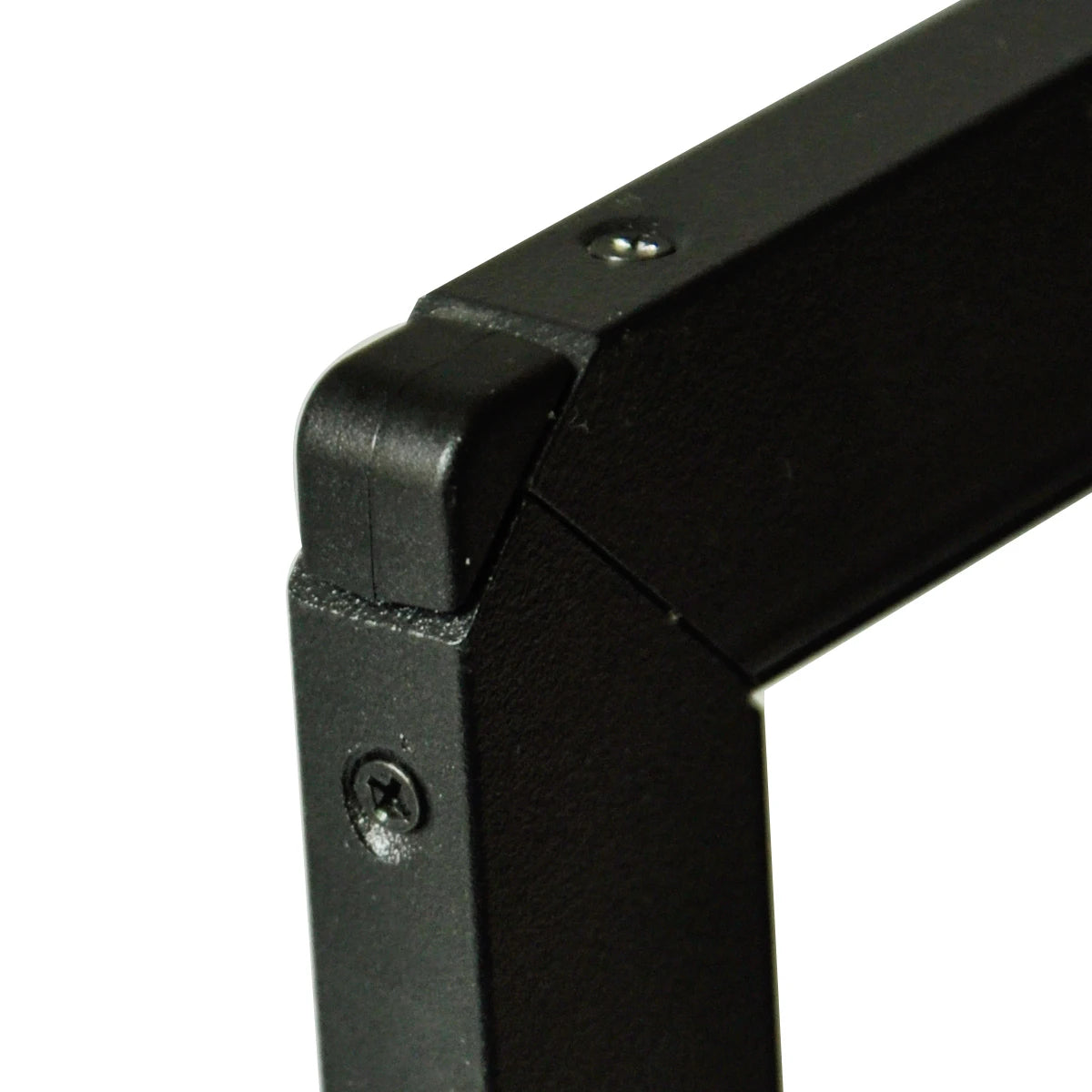

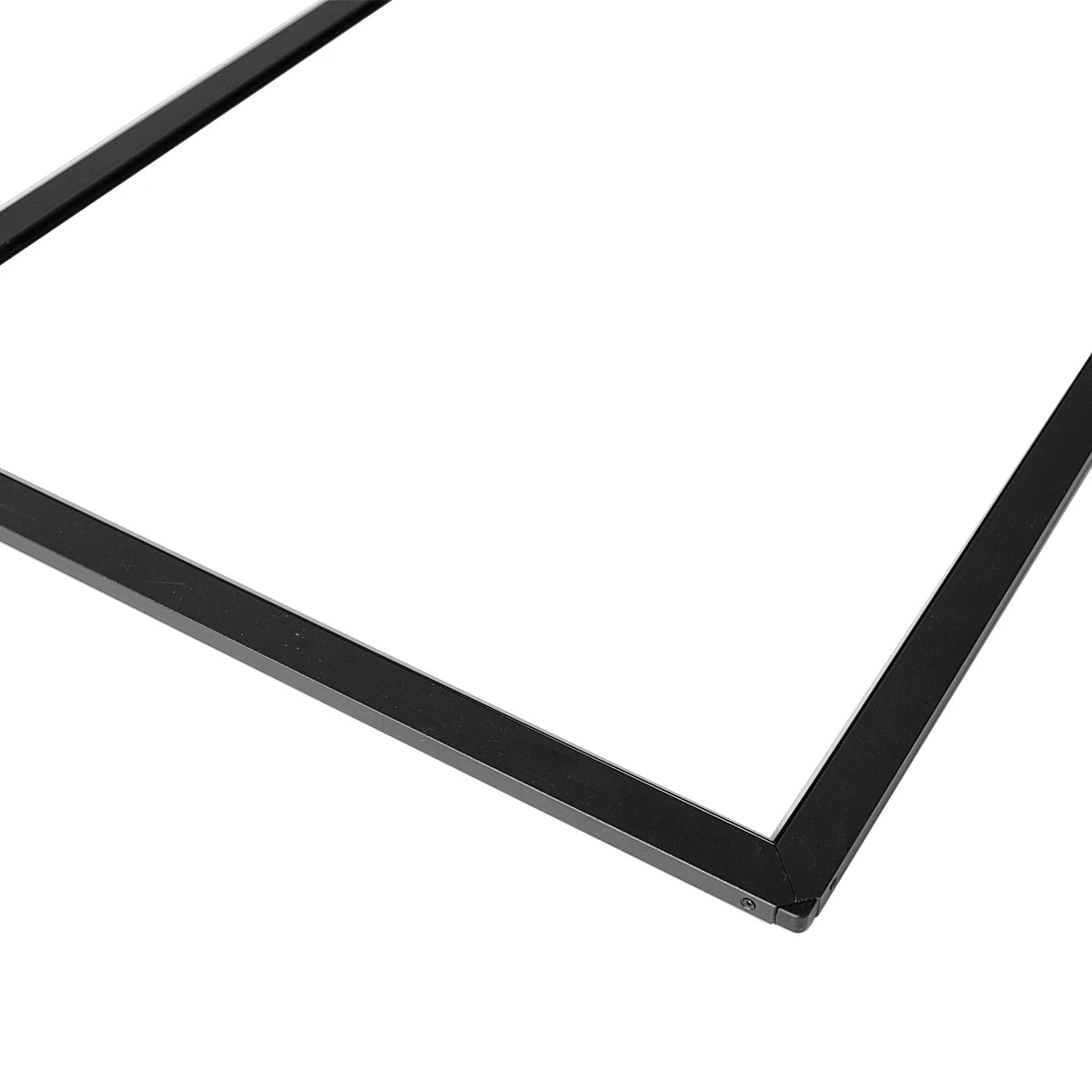

Aluminum frame or plastic frame - Dust proof or water proof
3/4 mm tempered glass - Vandal proof
Sunlight readable
Multi touch - 2/4/6/10 touch points
USB 2.0, plug and play
Support windows XP/7/8/10, Android, Linux OS

Detail images

01 (6).jpg

Product Dimensions

Specifications

General
Product Type	Dust Proof Type			Waterproof Type
Series	CIN Series	CIP Series		IRW Series	JX Series
Size Range	10.4-50"	32-98"		15",17",19",21.5",22"	15", 17", 19"
Product Size	18.5mm Width 7.9mm Thickness	19.1mm Width 10.1mm Thickness		17mm Width 6.8mm Thickness	20mm Width 7mm Thickness
Housing	Aluminum Frame			Plastic shell + Metal Base
Glass	3mm /4mm Tempered Glass			3mm /4mm Tempered Glass
Touch Interface	USB Full Speed 2.0
Certification	CE, CFF
Warranty	1 Year
O/S	Windows7/8/10, Windows XP, Android, Linux
Touch Characteristics
Touch Technology	Infrared Touch
Multi-Touch	1-10 Touch Points Optional		10-40 Touch Points Optional	Single Touch
Input Method	Finger, Pen or any other opacity objects
Position Accuracy	1mm
Resolution	4096*4096
Transparence	With Glass - 92%, Without Glass - 100%
Linearity Error	1.5mm
Response Time	Touch 8ms, Drawing 8ms
Cursor Speed	120 dot/sec
Touch Force	Non Minimum Activation Force
Object Touch Size	≥Ø5mm
Scanning	Auto Full Screen Scanning
Touch Intensity	Over 60 Millions Single Touch
Electrical
Operating Voltage	DC4.5V~DC5.5V
Power	1.0W (200mA at DC 5V)
Anti-Static Discharge	Touch Discharge, Grade 2: Lab Vol 4KV / Air Discharge, Grade 3: Lab Vol 8KV
Environment
Temperature	Working Temperature: -20C-70C / Storage Temperature: -40C-80C
Humidity	Working Humidity:20%-85% / Storage Humidity:0%-95%
Relative Humidity	40C, 90%RH
Altitude	3000m
Anti - glare Test	Incandescent lamp (220V,100W) ,
	operating distance over 350mm
Seal Ability	IP64 Anti-Spill			IP65 Front surfac-e Waterproof
Vandal-proof	Meet GB9963 Standard
Working Environment	Under Sunlight, Indoor and Outdoor
Application of Display	LED, LCD, PDP
