Optional output voltage:

24V 14.5A

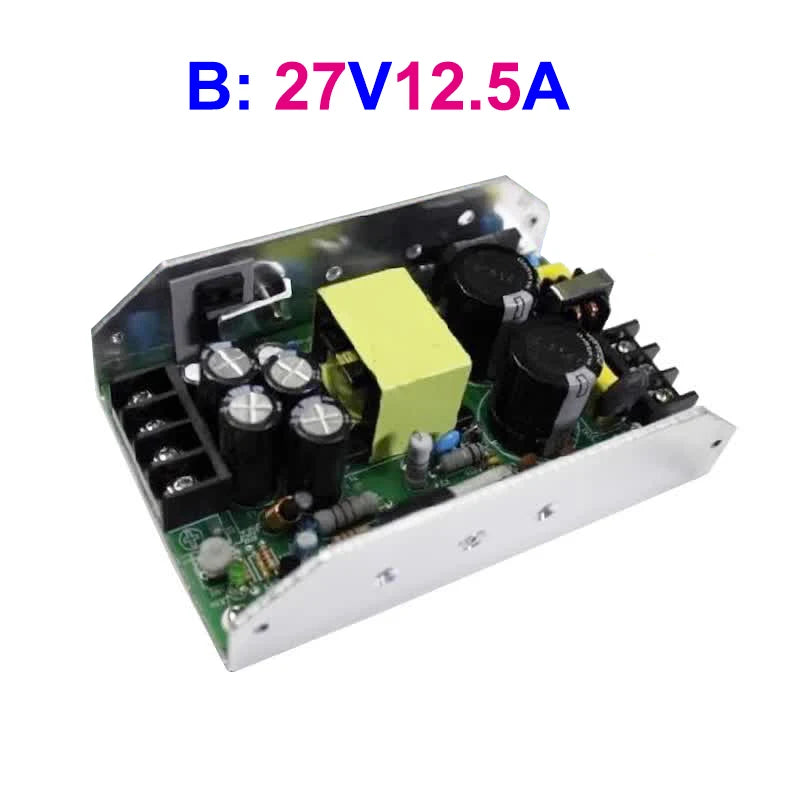

27V 12.5A
32V 11A
36V 9.5A

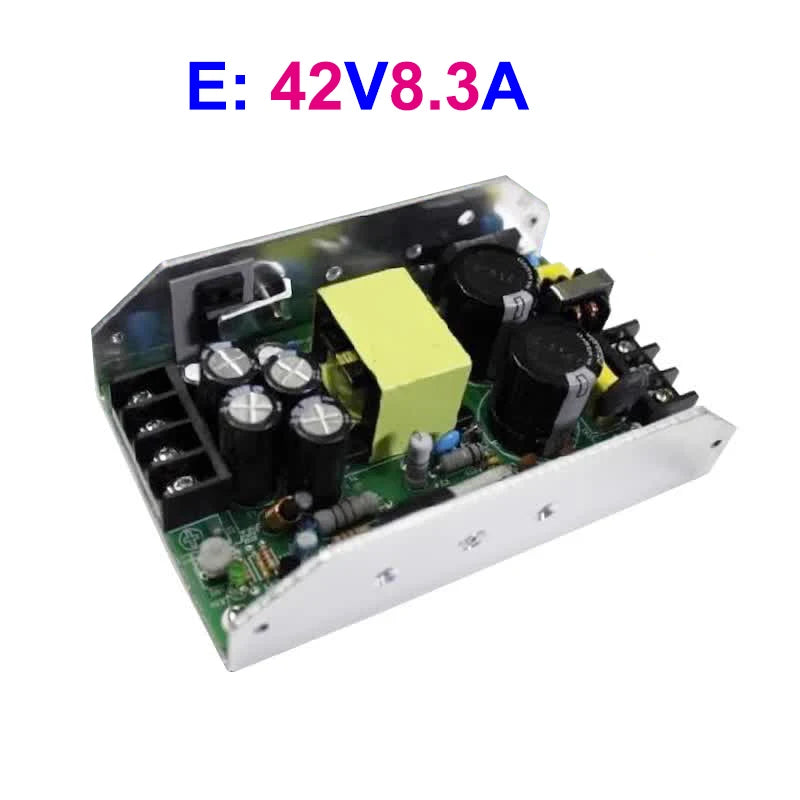

42V 8.3A
48V 7.3A
54V 6.5A

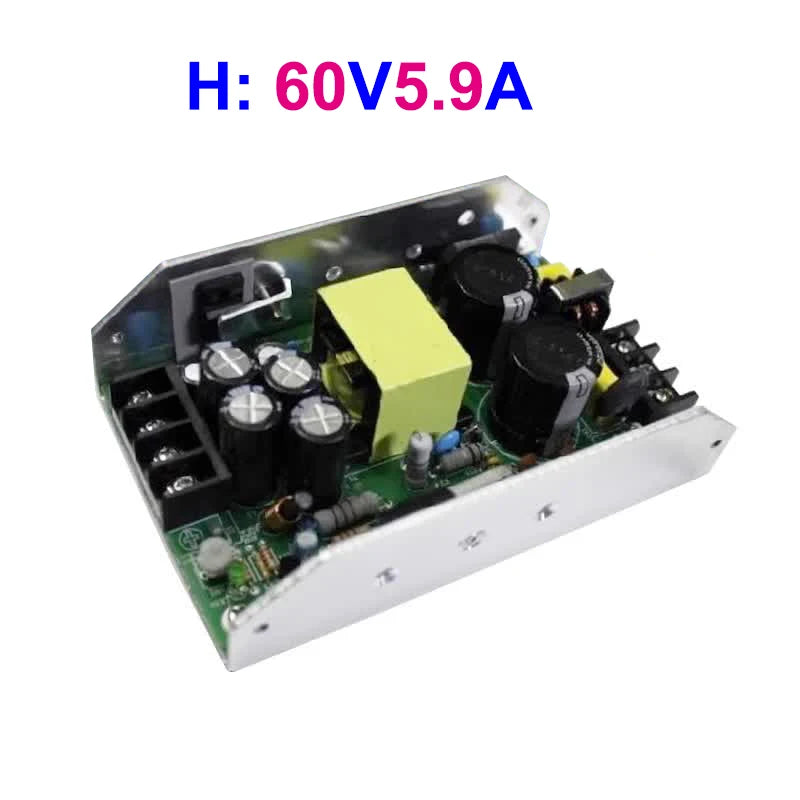

60V 5.9A

Specifications:

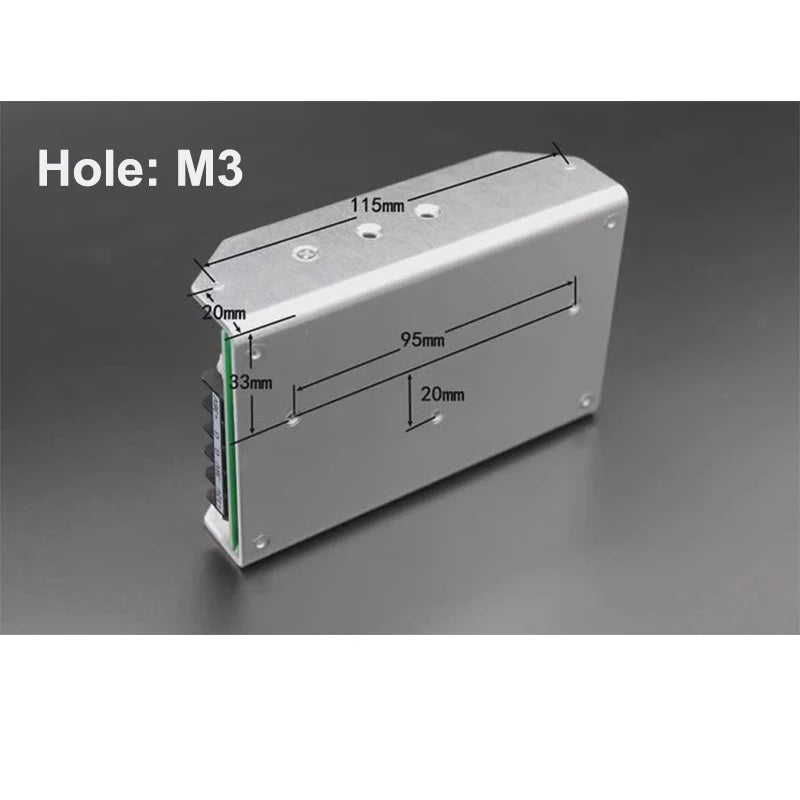

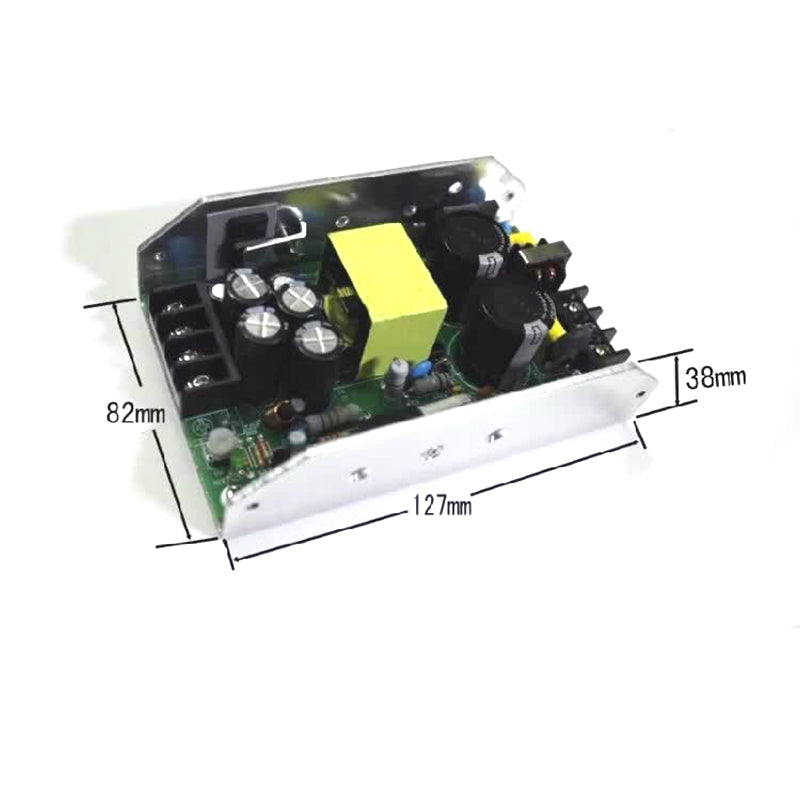

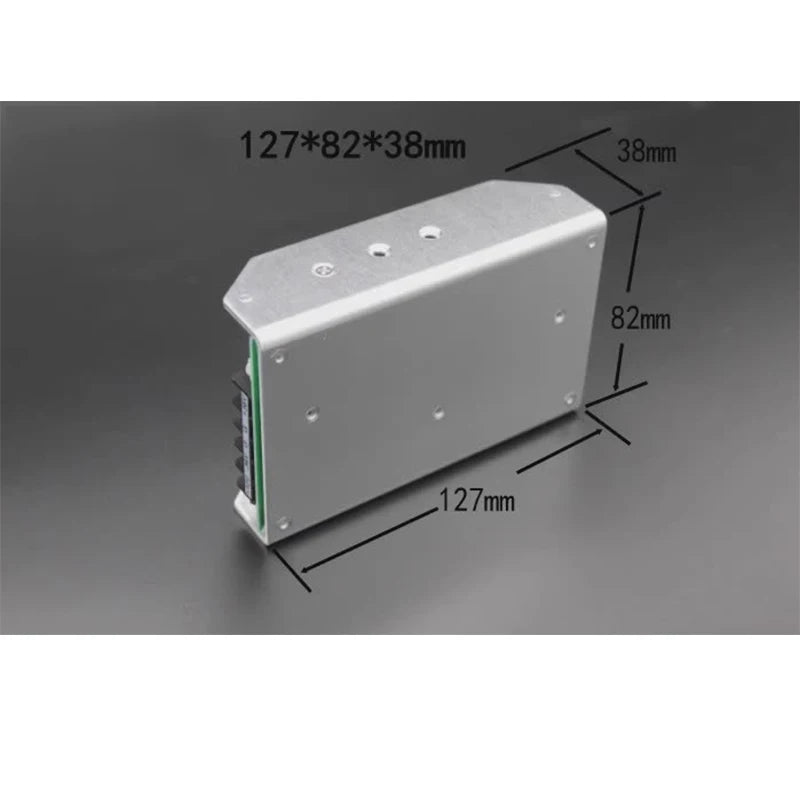

Dimensions: 127*82*38mm
Weight: 300g
Cooling method: natural cooling
Output voltage/output current (optional)
Output ripple: less than 150mV

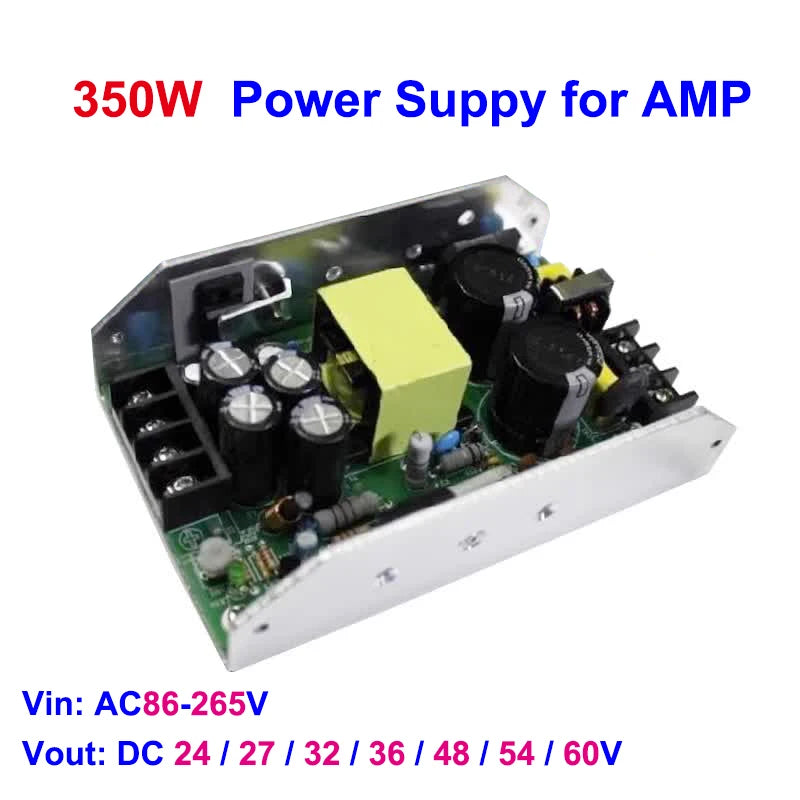

Total output power: 350W
Output voltage adjustment range: 10%
Incoming line stability: ±0.5%
Load stability: ±1%
Input voltage: 88~264VAC
Start, rise, hold time: 200ms, 50ms, 20ms input voltage 230VAC output full load
Pressure resistance: input-output 1.5KVAC; input-shell 1.5KVAC; output-shell: 500VAC
Insulation resistance: input-output, input-case 500VDC/100Mohm
Working temperature and humidity: -20℃~60℃, 20%~90%RH Humidity without condensation
Storage temperature: -40℃~60℃
Protection function: over current, over power
Safety standards: GB4943, UL60950, EN60950

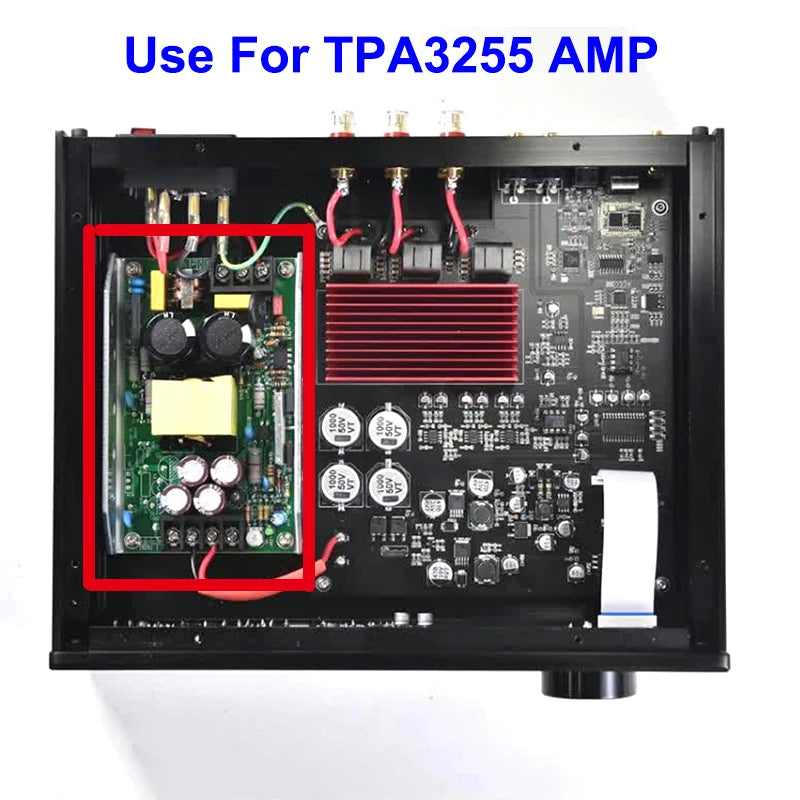

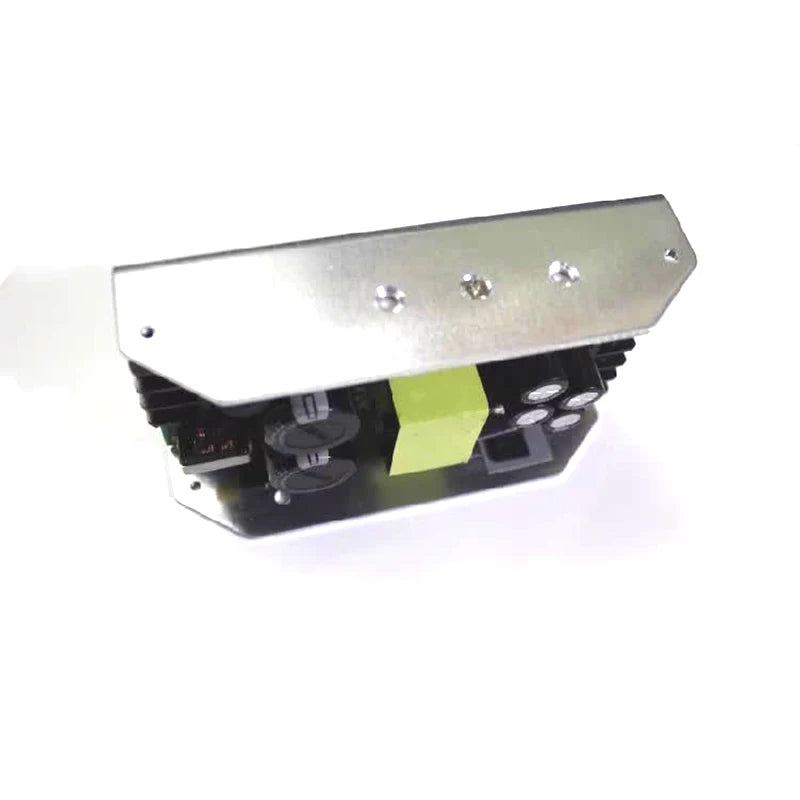

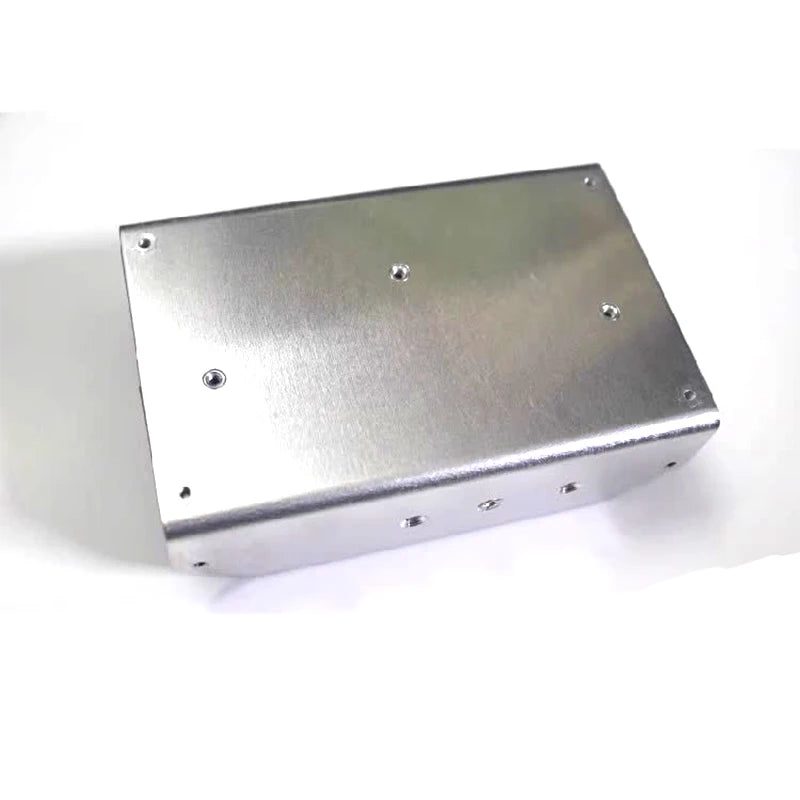

This power supply is specially designed for power amplifier circuit, with pure aluminum shell for heat dissipation and shielding, and the ripple interference is very small.
The upper part of the power supply is exposed. In order to prevent electric shock, please install it in the amplifier case for use.

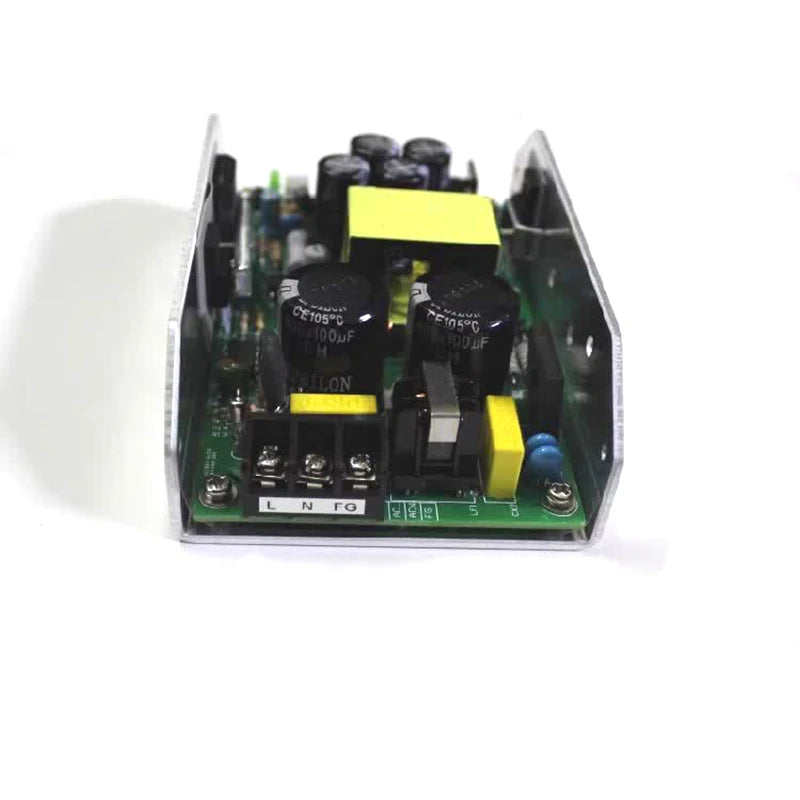

Input terminals: L and N are respectively connected to the live and neutral wires of the AC Input plug. FG can be connected to the shell or the ground wire.

Packing List:

1* Switching Power Supply
