SPECIFICATIONS

Brand Name: BgerLine

Certification: RoHS,FCC,CE,ce,FCC,ROHS

Choice: yes

Color: white/black

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Name: 3way wifi switches

Origin: Mainland China

Switch Type: APP Control

Product description:

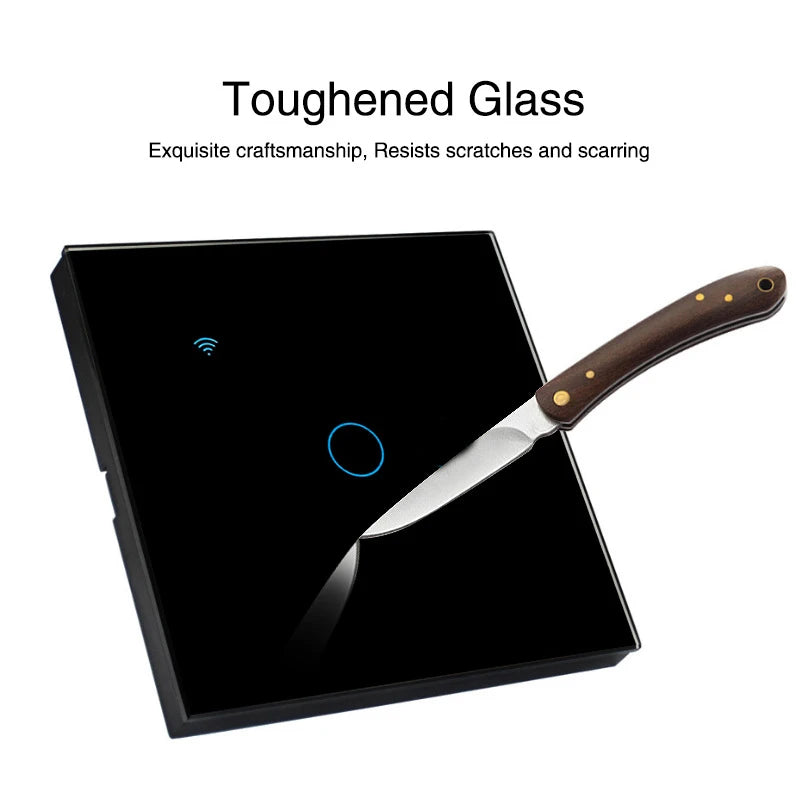

1: Tempered glass panel wifi smart cross switches
2: Standard: EU Standard
3:Use place: stair switch/bedside switch
4:Input voltage:AC100-240V 50/60Hz
5:Power current: 10A
6:Load: Normal lamps:5~600W/Gang
  LED:5~300W/gang
7:Stanby power: ≤0.2W
8:Relative humidity: 10% ~ 93%
9:Working temperature: -20℃~+55℃
7:Certification: CE,  RoHS,FCC
10:Wifi Standard : 2.4GHz 802.11b/g/n
11:Application: smart life
12:Voice Control: Google Home, Amazon Alexa
13:Wiring: Need neutral wire required
14:Led indicator: ON-blue OFF-red

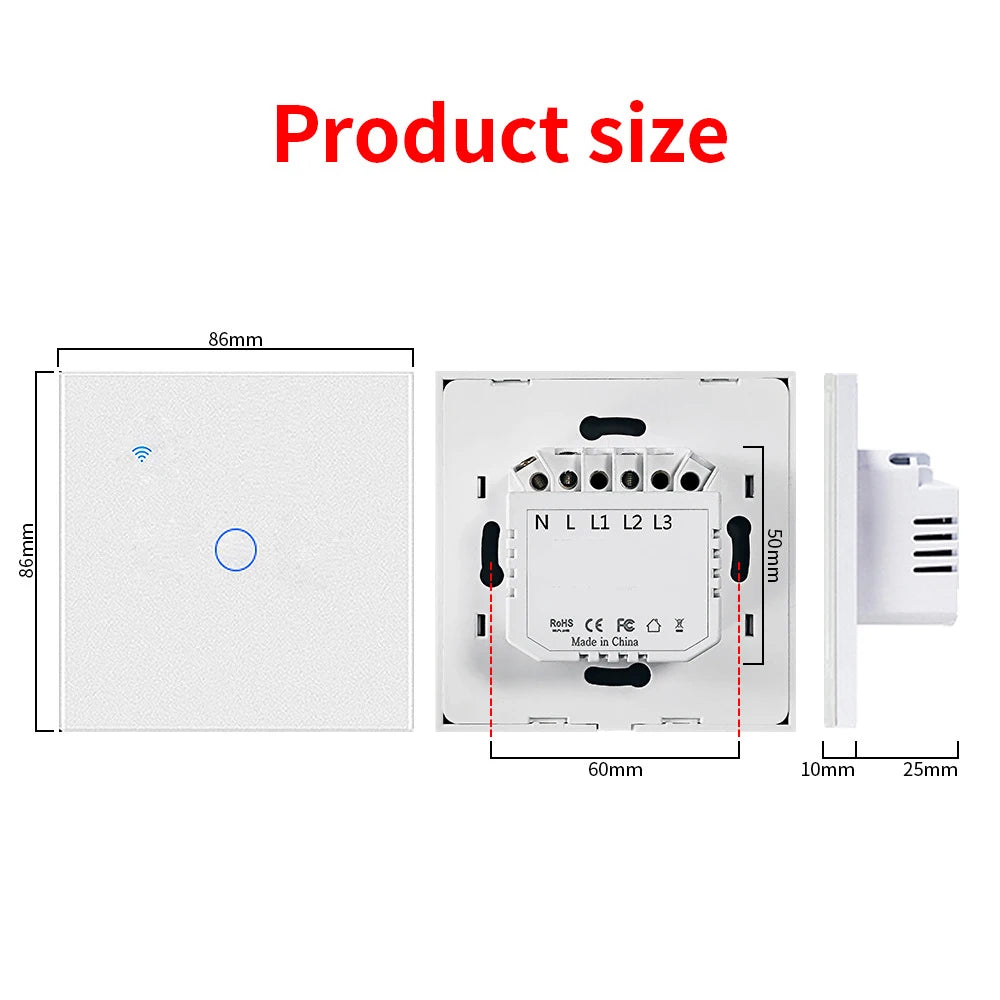

15:Installation Box: Round and Square,install 60mm hole spacing
16,The power must be cut off during installation/maintenance

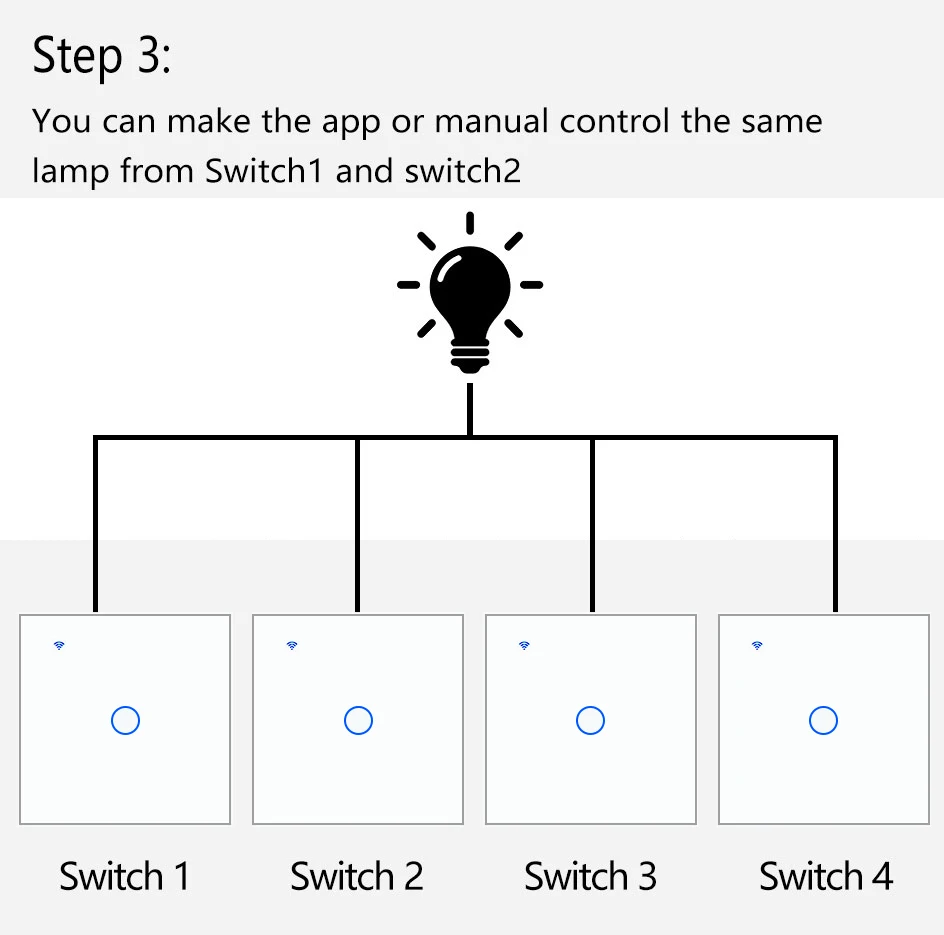

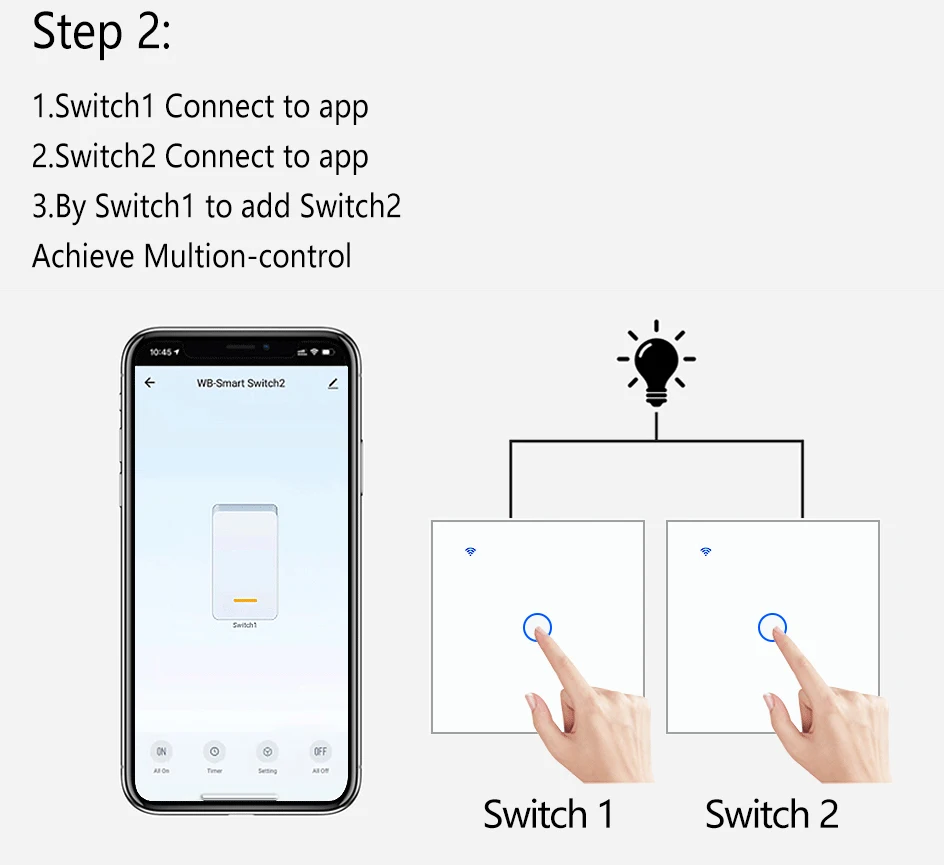

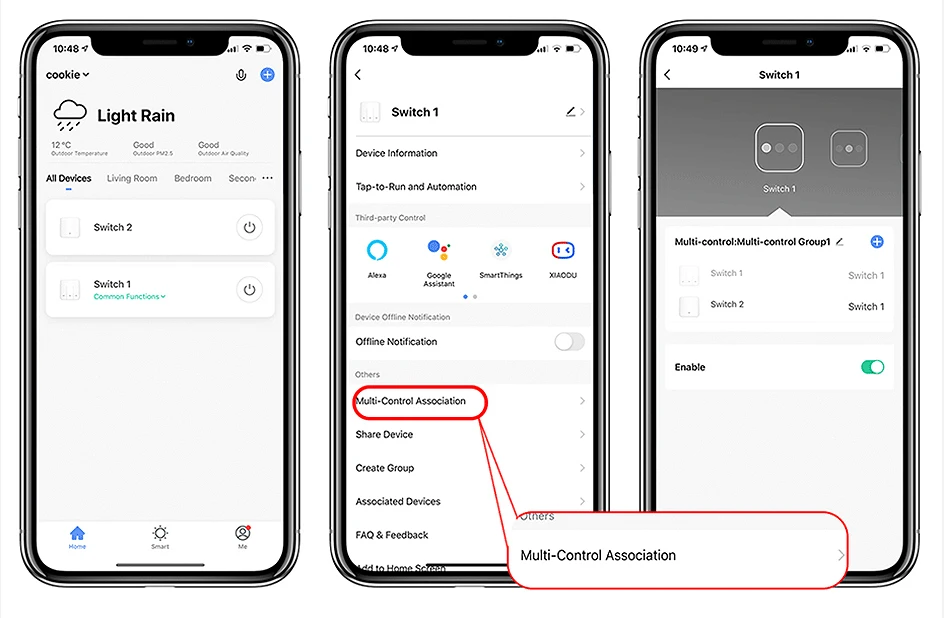

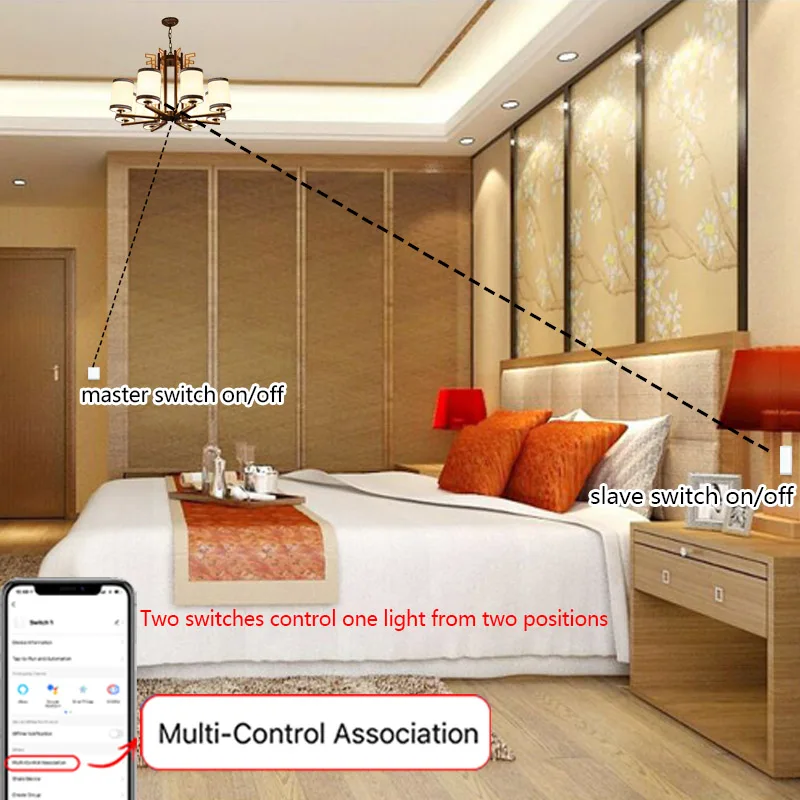

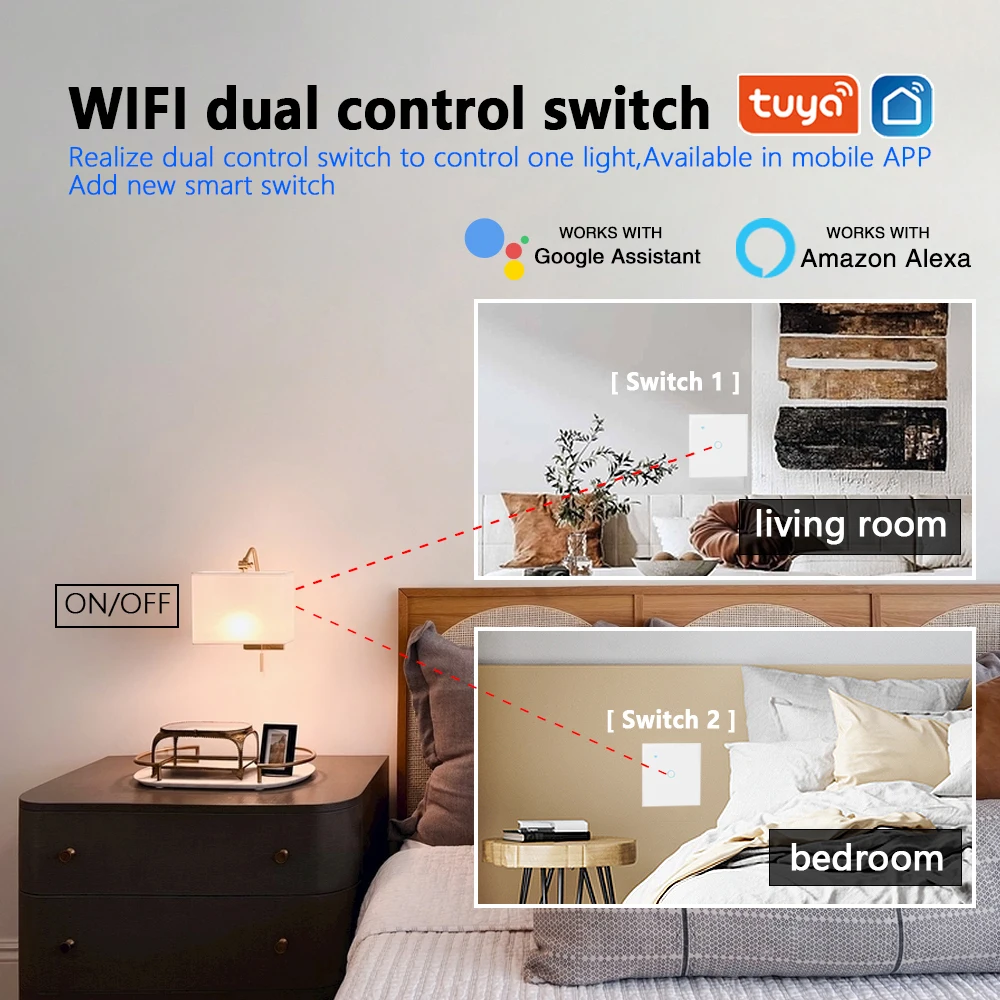

17, Each products have the same function. If you want to control your lights from three places, you need to link them on the mobile app.( see below for steps how to link them)

Package including :

3pcs x switches as your choice

Note : 1gang 3way switches mean that control one lamp from 3places.

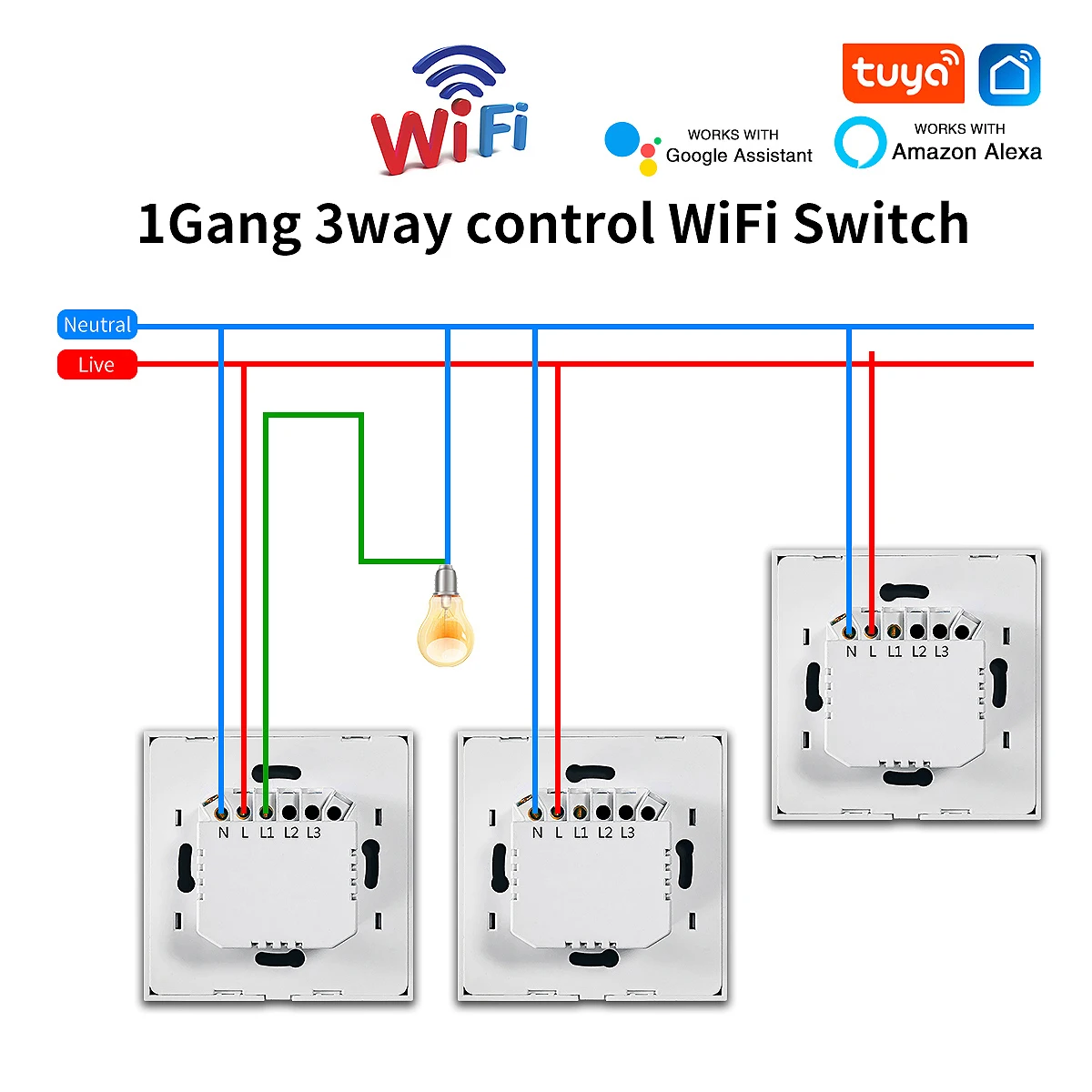

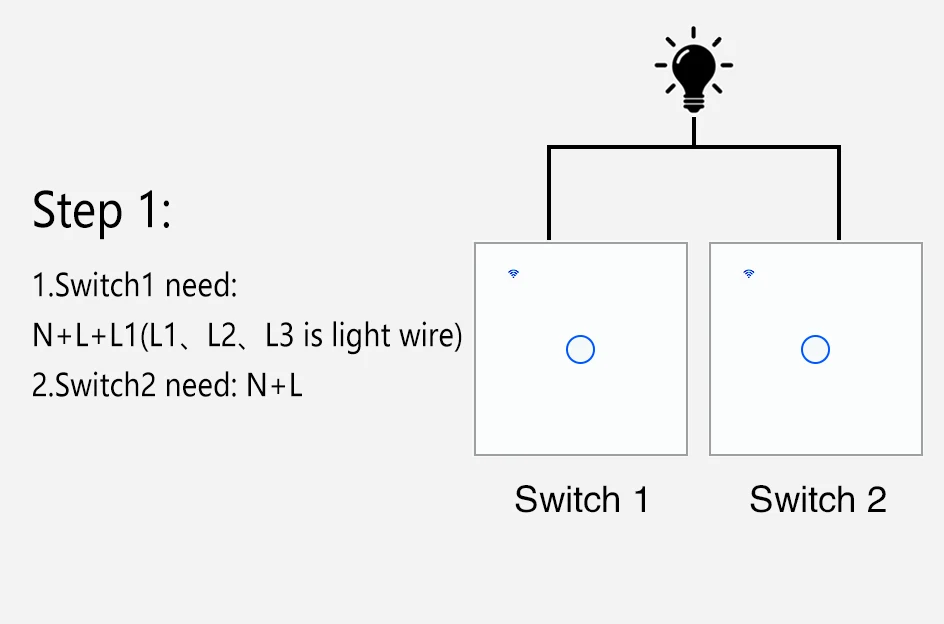

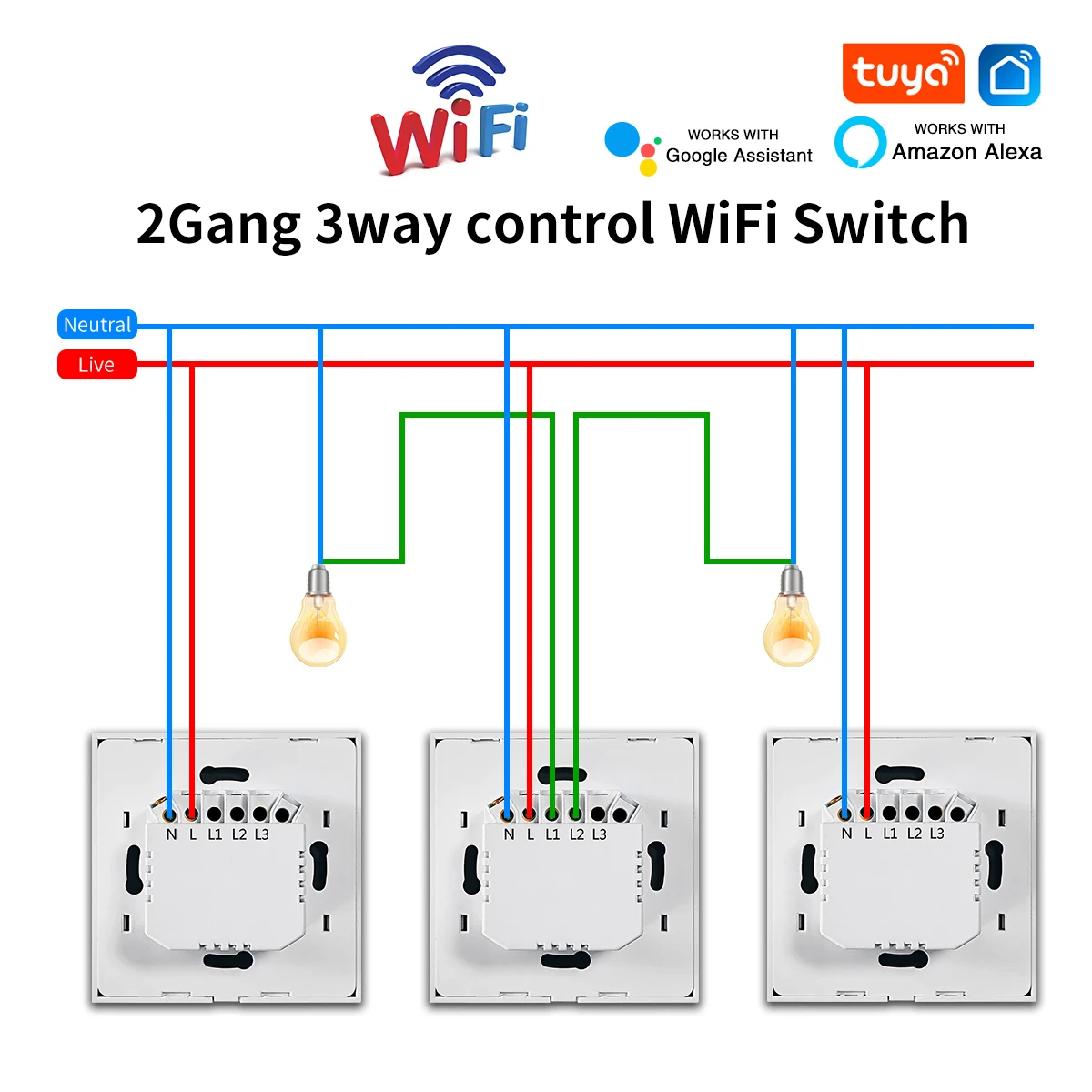

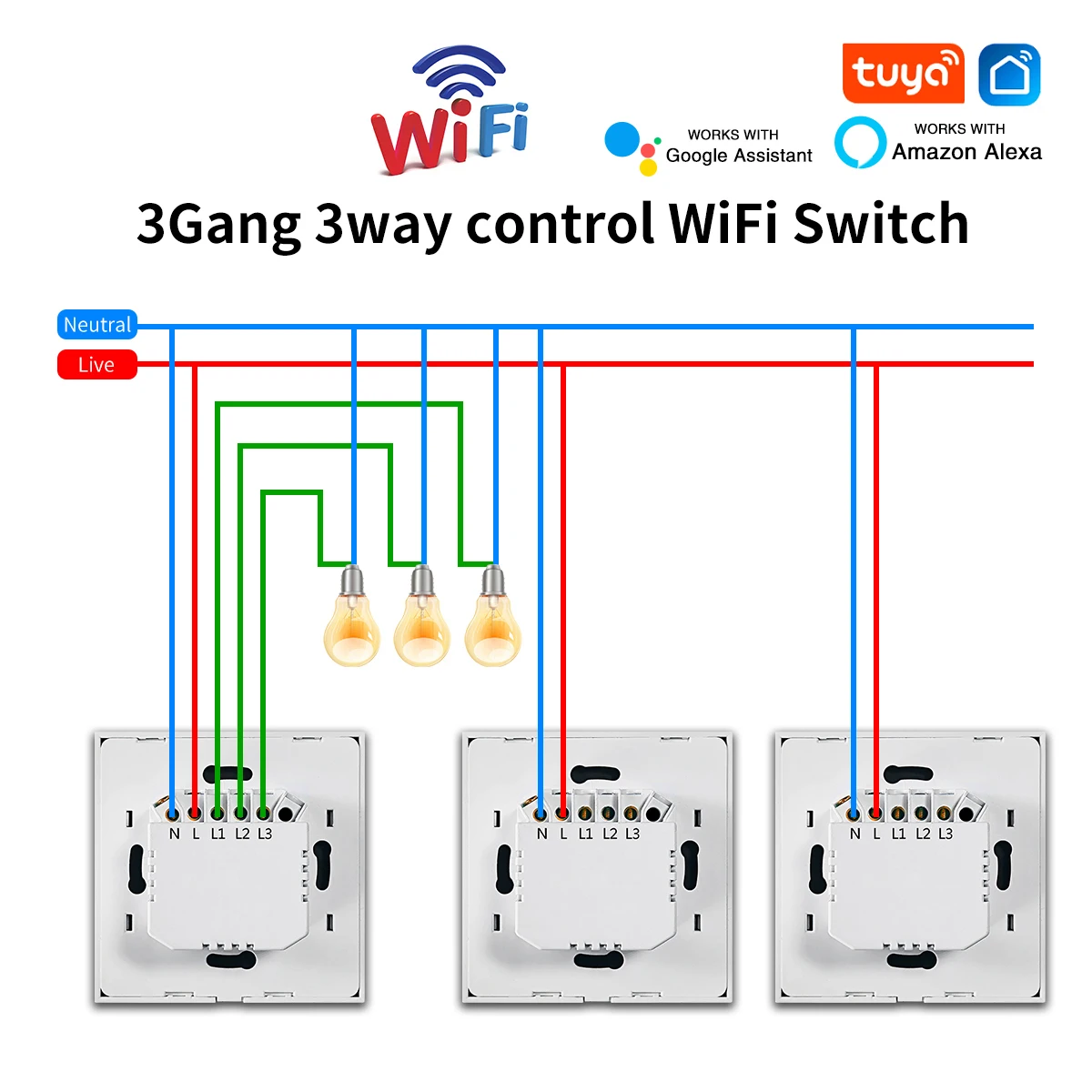

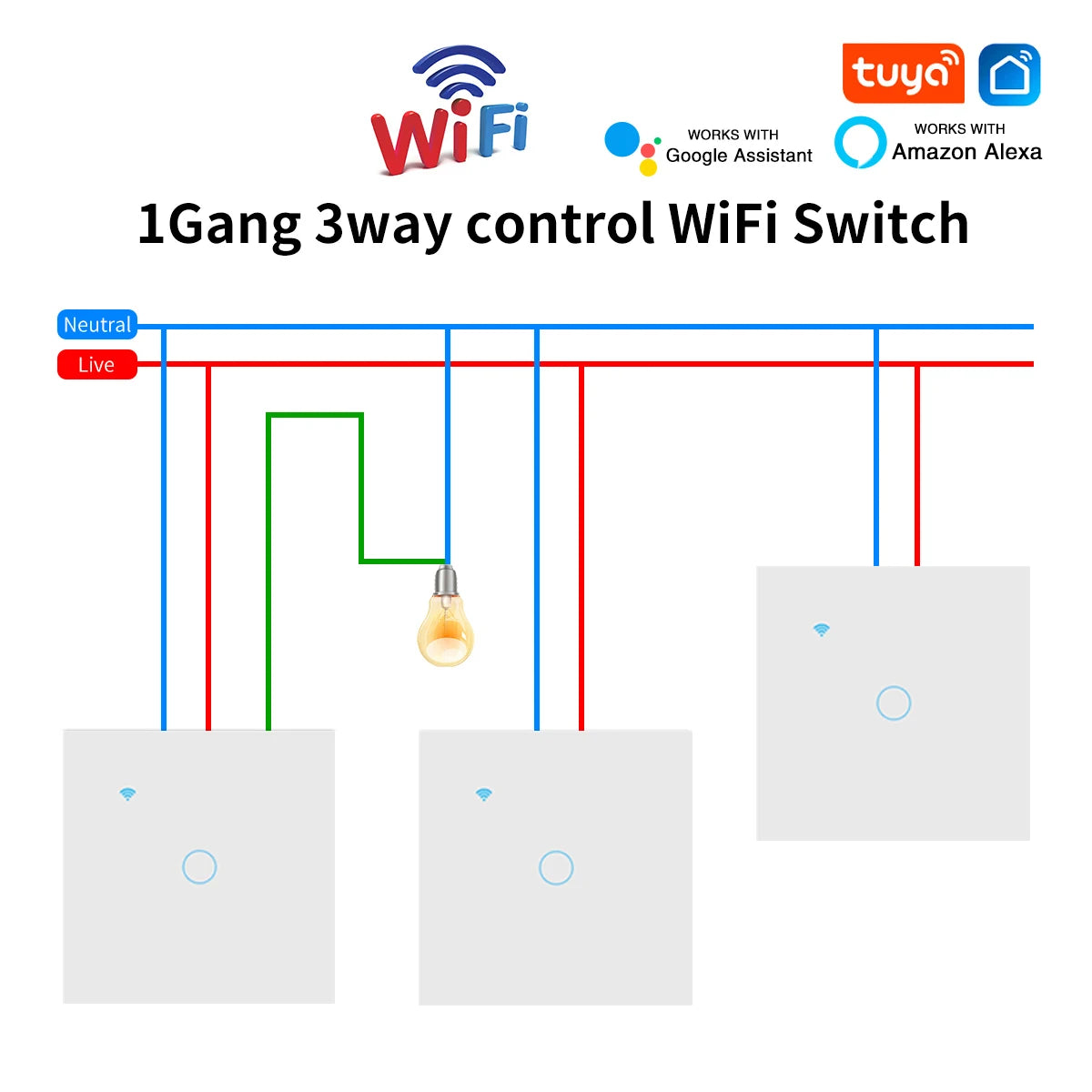

WIFI switch multi-control wiring diagram:

1. The neutral wire is connected to the 'N' terminal
2. Live wire is connected to 'L' terminal

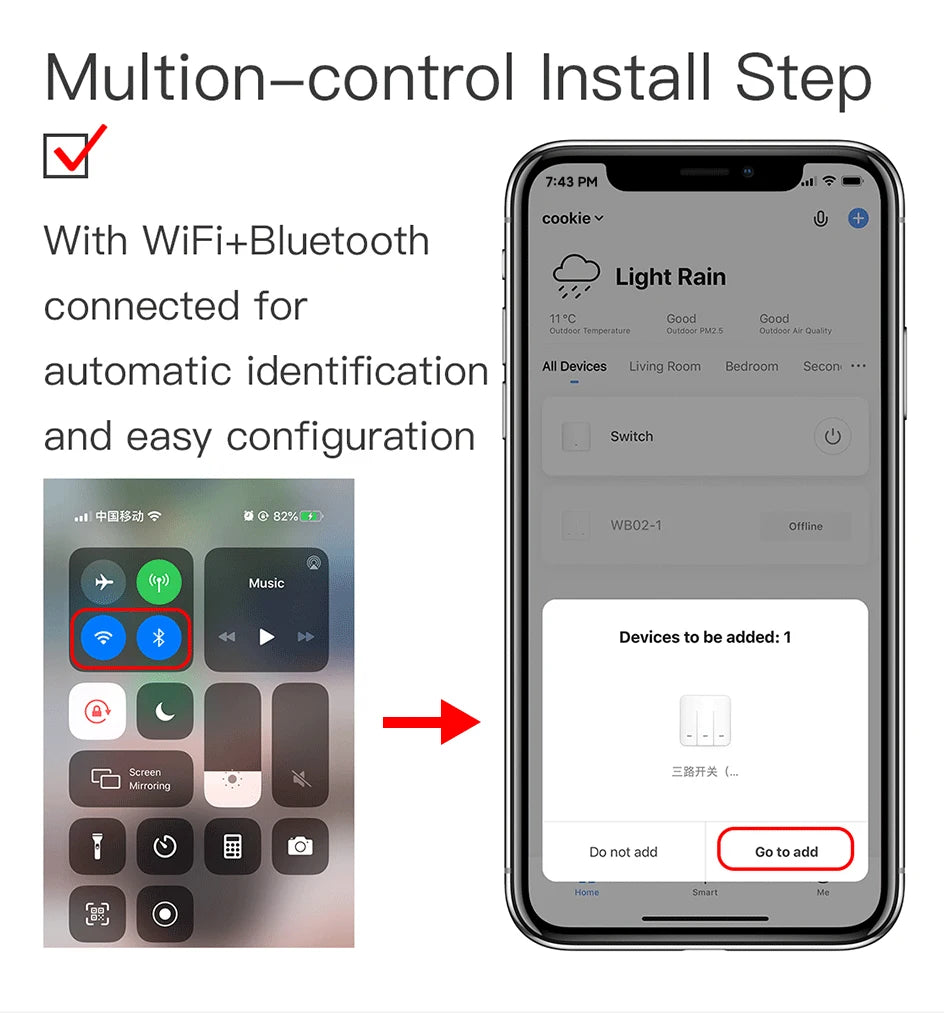

3. After the installation and wiring, please download the Smart Life or Tuya app to add the device

If you want Multion-control, more switches , just operate by repeat steps.

FAQ

Q: Does your Wifi touch sensor light switch require a neutral wire installed?

A: Yes, you need to install the neutral wire.

Q: Can your Wifi touch light switch work with Zigbee or Home Kit?

A: Sorry, our items are currently unavailable.

Q: Will your Wifi light switch work with Smart Life Tuya or Google Alexa?

A: Yes, it can work with them.

Q: Does your Wifi touch light switch have a backlight?

A: After the connection is successful, the red backlight will be on. Let you clearly notice our touch switches in the dark.

Q: Can our switches be mounted vertically or horizontally on 86mm/86mm glass panels?

A: Yes, we can mount it in different ways, but you will see small holes. (Open the small hole of the glass cover)
