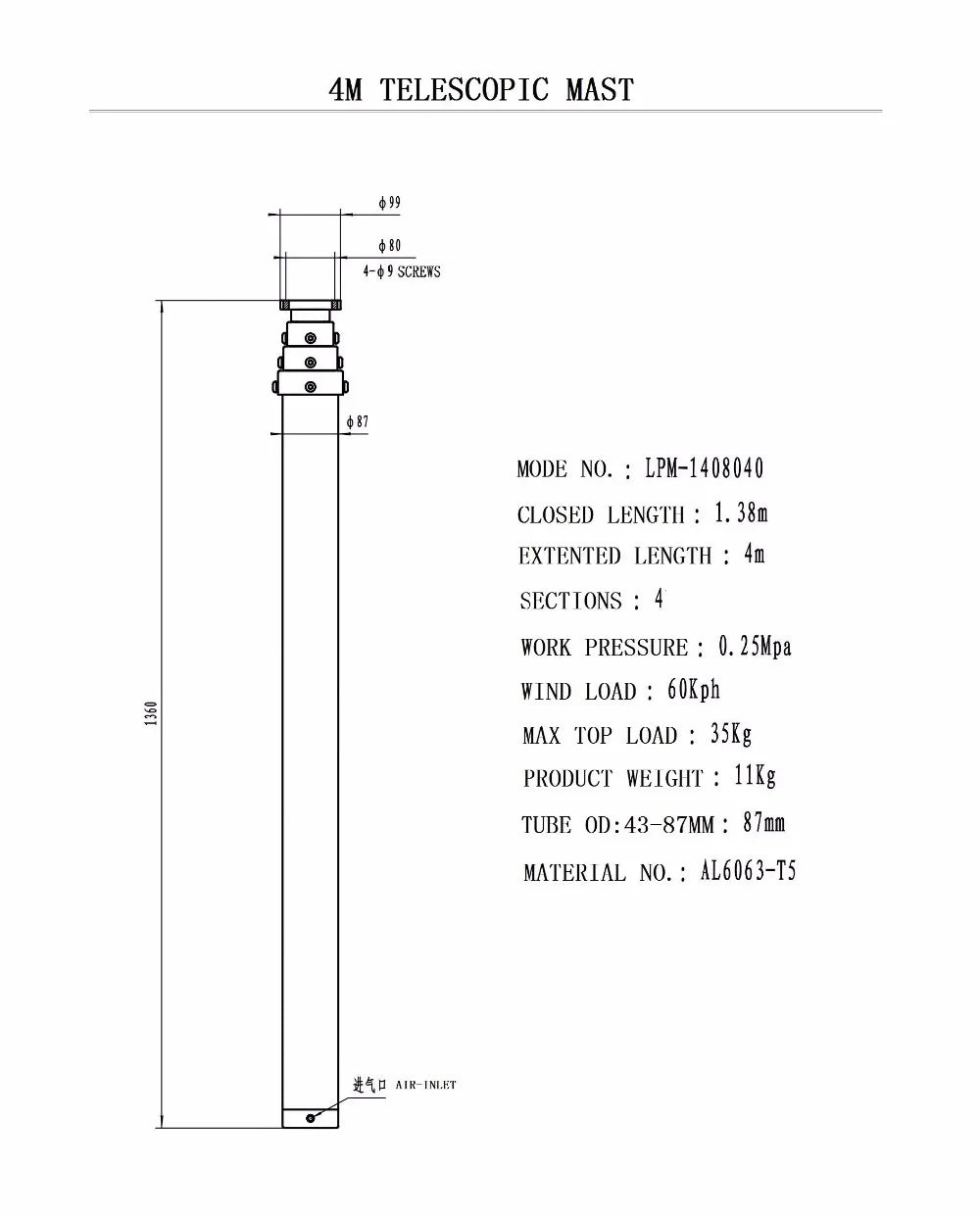

4m mast Specification

1> Extended height:              4.0m

2> Retracted height:             1.38m

3> Diameter range:                43-87mm

4> Maximum head loads:      35kgs

5> Collar style:                       hard plastic orange collars

6> Number of sections:         4 sections

7> product weight:                14kgs

8> Max Working pressure:   0.25MPA

9> Working temparature:      -40--+40C

10> Air compressor:               DC12v

4m Communication antenna wifi Tower /telescopic pole with tripod and clamps

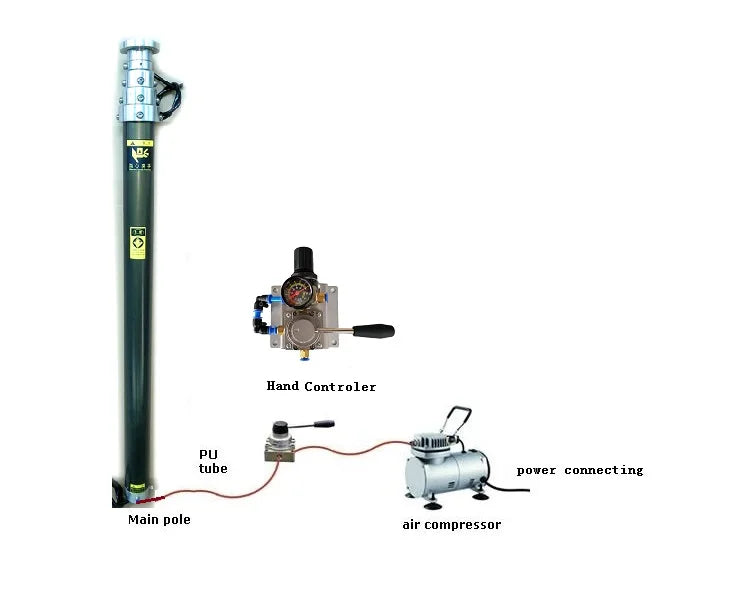

How to connect the parts?

All items included per set:

1   4.0m Main pole           A4—1500-4000               1 set

2   Hand-operated valve   0.4kg                               1 pc

3   Air compressor           DC 12V 3.5kg                  1 pc

4.  PU tube                      ODΦ8mm- ID Φ5mm            2 pcs

5  Tripod                          Aluminum telescopic            1 set

Air compressor

Hand-operate valve

Bottom ---without flange

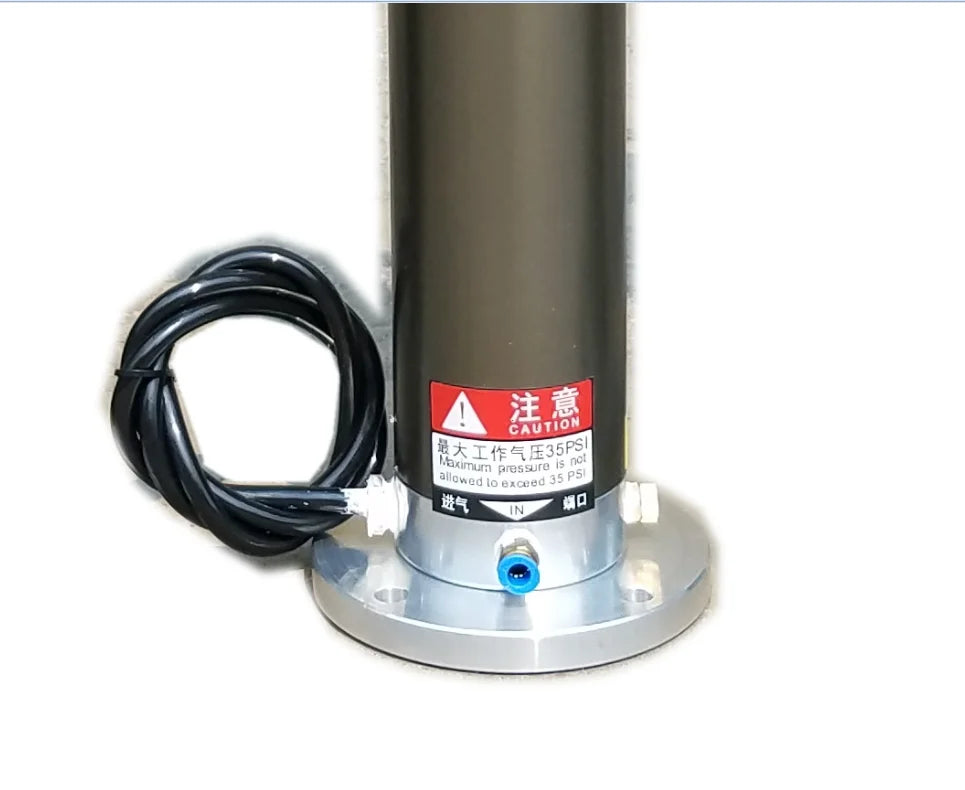

---if with bottom flange(contact us if needed)

Hard Plastic Collars---Old type

Aluminam Collars---The new improved type stronger

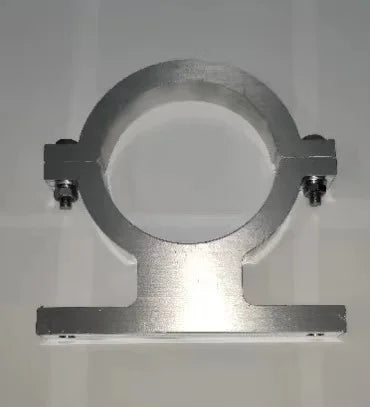

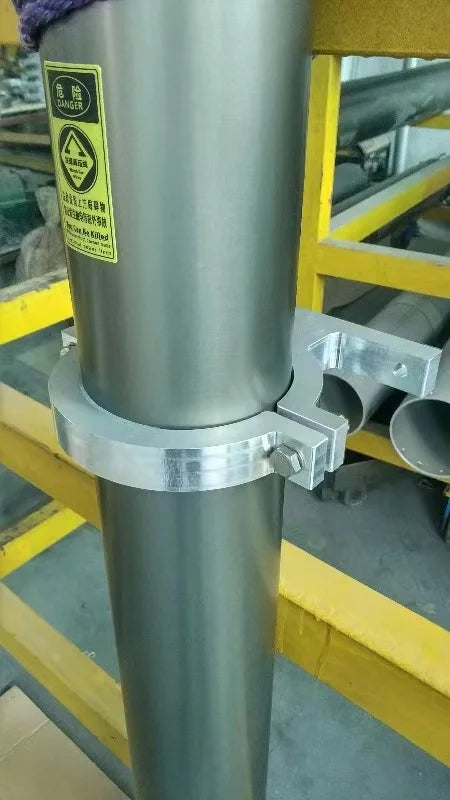

Vehicle install clamps

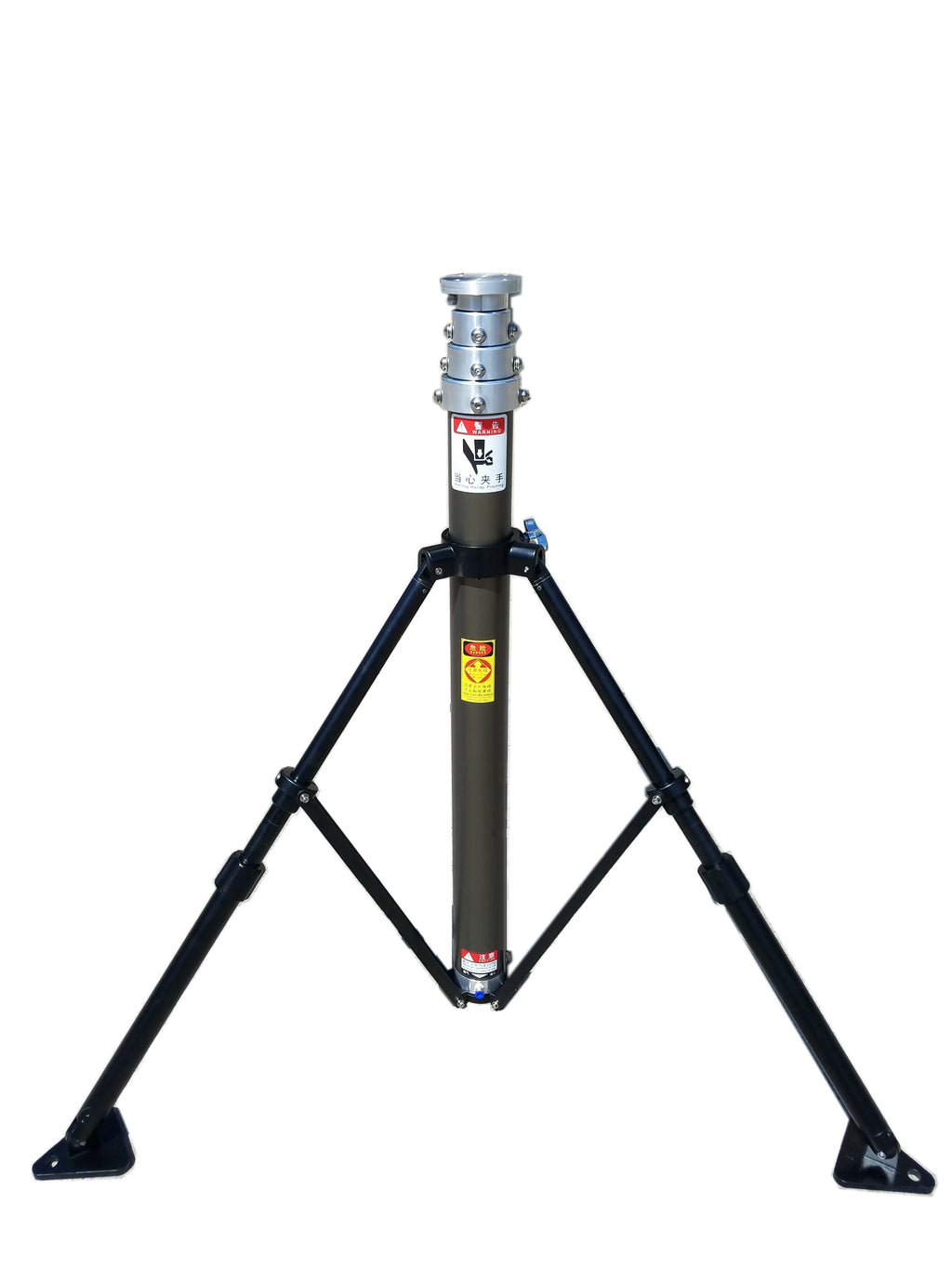

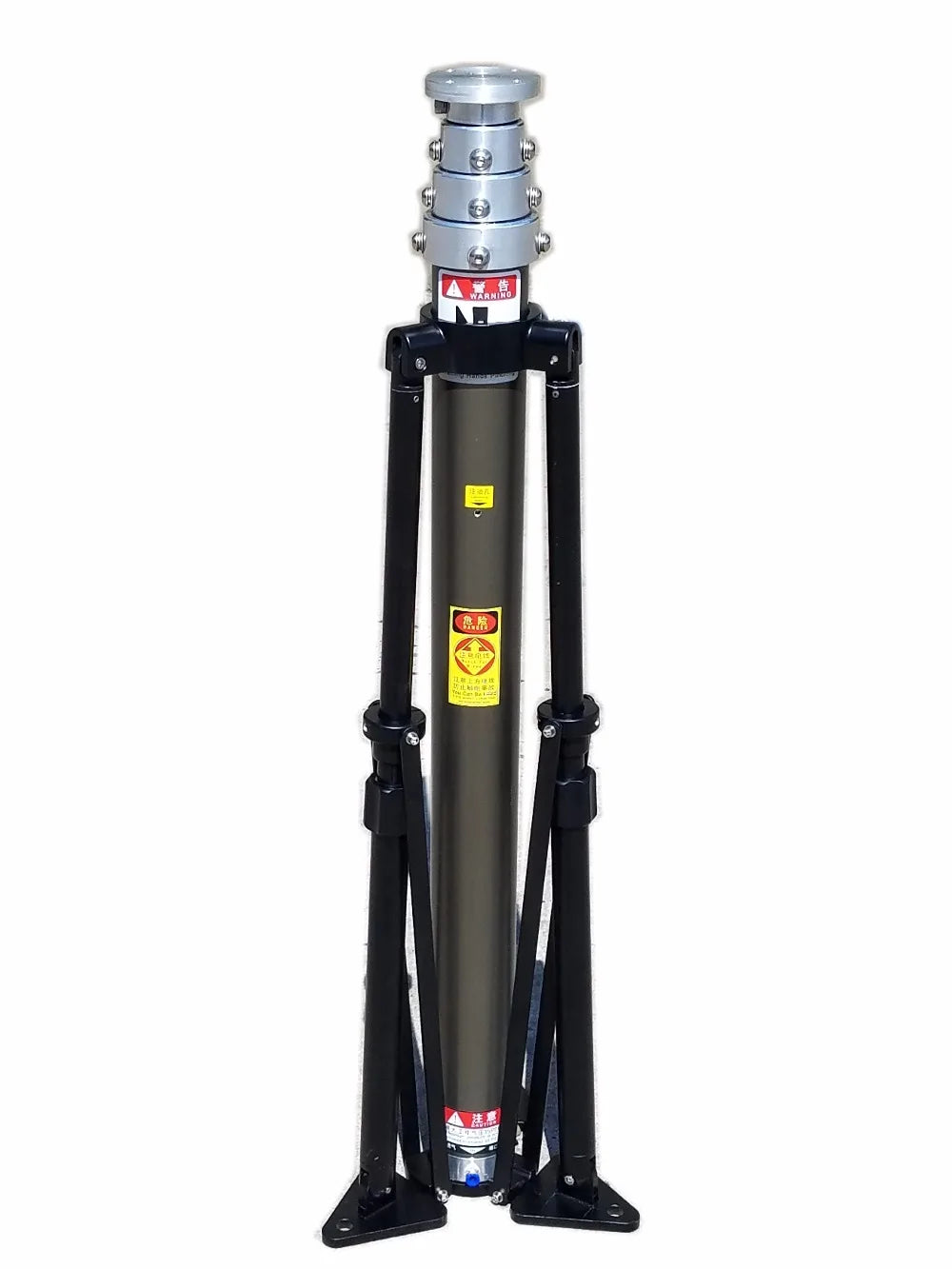

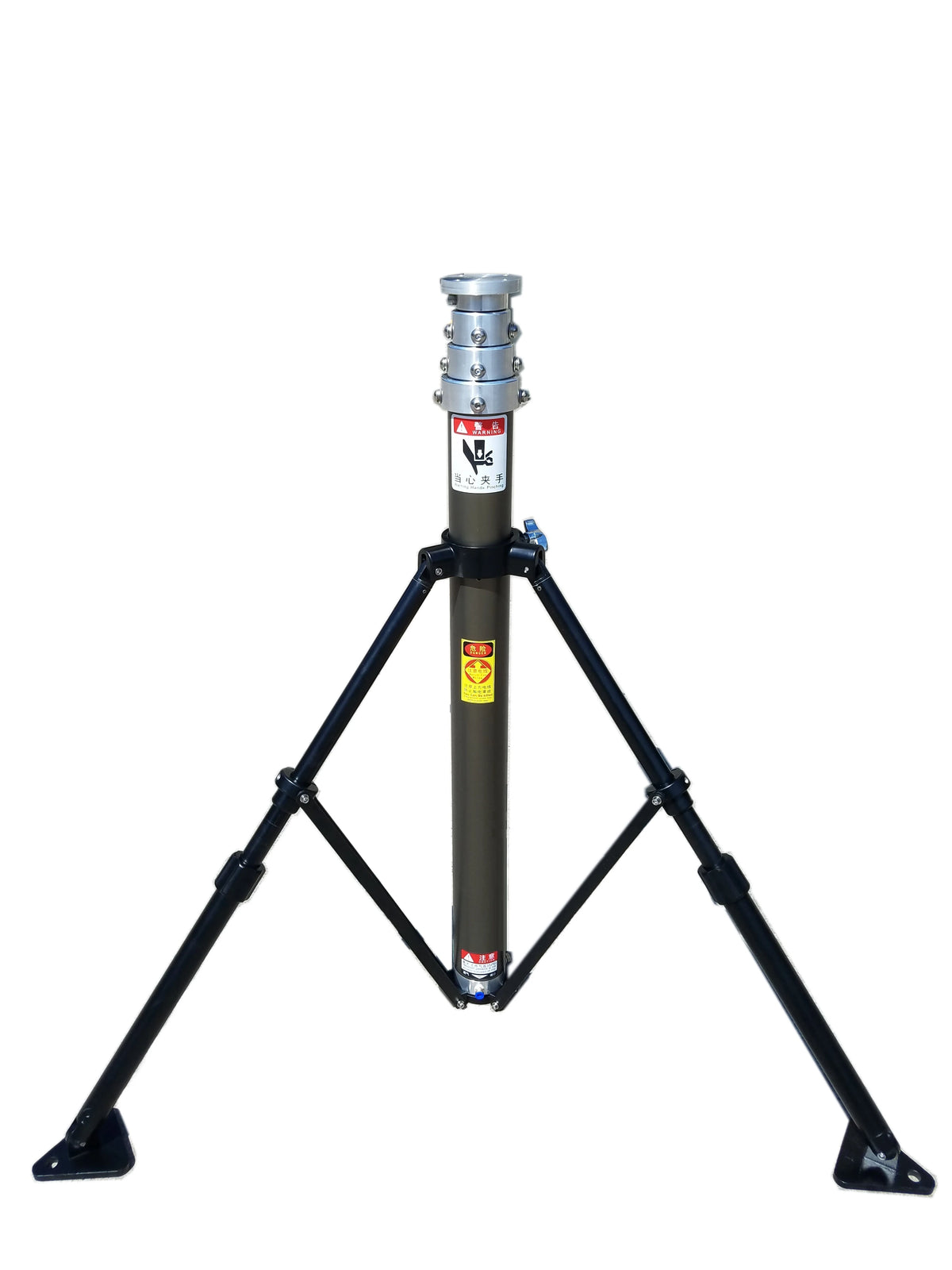

Tripod

Application

On the top , you can mount the camera ,antenna, lighting, mobile equipment etc.

we have many ways to install the Pneumatic telescopic mast for different application .

the mast can be vertically mounted inside or outside of the vehicle, or on the wall

of the shelter ,cabin, trailer and etc.

Different  Pneumatic telescopic mast are applied to connect with different vehicles.

The masts are the ideal lifting platform for CCTV, mobile communication base station,

video surveillance,emergency lighting , etc.

Features & advantage

Features :

          Our Pneumatic telescopic mast is made of high strength 6063 aluminium alloy .

          The surface coating is hard anodized treatment that improves the surface hardness,

          anti-corrosion strength, and longer lifetime.

Advantages:

           A:length adjustable

           B:easy up and down,portable taking.

           C:easy install on vehicle or stand on ground

           D:heavy duty/payload

Product Ranges

Height---------------1m(3.2feet) - 21m(68.8feet)

Top payload-------1kgs (2.2lbs) - 450kgs(992lbs.)

Material------------aluminum alloy 6063B/T5

Surface--------------hard anodized treatment

We have developed hundreds of models for different application

We design and work out the most suitable specifications according to customer's needs and the application.

recommen depends on customer's situation differently.

Reference size list-----updating
