720P HD Industrial Microscope Camera CMOS C-Mount Camera electronic eyepiece

Default Title

€1.902,95

€1.902,95 €0,00

720P HD Industrial Microscope Camera CMOS C-Mount Camera electronic eyepiece

€1.902,95

€1.902,95 €0,00

SPECIFICATIONS

Brand Name: SRATE

Certification: NONE

High-concerned chemical: None

Model Number: RS230

Origin: Mainland China

Product Type: Microscope Cameras

Semi-finishedproduct: No

720P HD Microscope High Speed CMOS C-Mount Camera USB Interface Wireless WiFi Interface Industrial Camera

Sensor Size (mm): 720p Mt Mt 9p001 (c) Megapixels "(5.70 X 28)

Pixel (μ m): 2 2 X 2

G-ray sensitivity dynamic range signal-to-noise ratio: 0.53v Lux Sec, 66.5dB, 40dB

Fps Resolution: 30 1280 X 720

Sample average: 2x2

Exposure Time (ms): Automatic/manual exposure

Hardware other parameters

Spectrum Response Range: 380-650nm (with IR cutoff filter)

White balance: Automatic white balance/manual Temp tint Adjustment

Color reduction Technology: Ultra fine TM color processing engine

Capture/Control Api Native C C, TWAIN (Windows operating system)

Recording mode: Image and video

Cooling mode: Natural cooling

Camera Working environment

Working temperature (Celsius): $number

Storage temperature (Celsius): 20

Working Humidity: 30

Storage Humidity: 10

Power supply: USB charger or power supply via USB port

Software operating Environment

Operating system: Microsoft Windows (32 bit)

Device requirements: DHCP enabled WiFi adapter

Can smooth play 720P Mjpg format video

This camera is used in the field of scientific research and teaching, digital laboratory, medical research, food, aviation and military. A variety of devices can be connected in two ways:

1. Connect to smart devices (such as smartphones, pads) and computers via WiFi;

2. Connect to the computer via USB;

When the camera is connected to a smart device via WiFi, there are several platforms for users to choose from, including iOS, Android and other platform software. Further, this camera supports simultaneous access to up to 10 devices. Its video stream coding format is Mjpg.

When the camera is connected to a computer via WiFi or USB, the camera's hardware is embedded with a dedicated color and image processing DSP to achieve the perfect reproduction of the image. Through the Atlas photoelectric professional software Toupview, the user can control the camera as needed to ensure a high quality image (currently 720P), where the control includes exposure (automatic and manual), gain, white balance (click), Color adjustment, flicker prevention and so on. In addition, the streaming video stream uses the current popular Mjpg code to ensure the best video quality. Finally, users can make full use of the advanced processing functions such as layer, measurement, image mosaic, image overlay denoising, Toupview image fusion, fluorescence image synthesis and other functions.

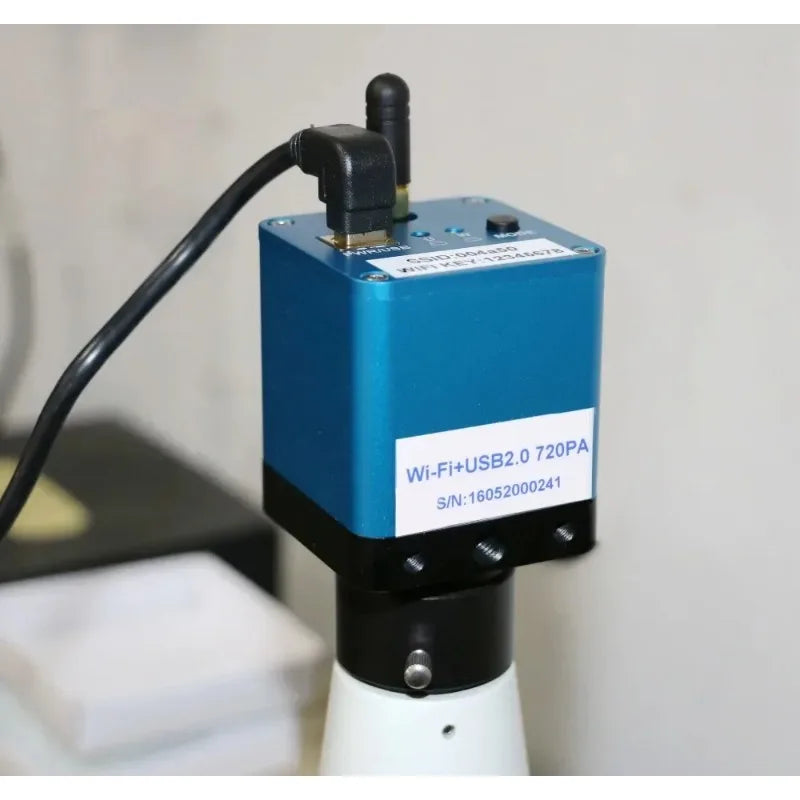

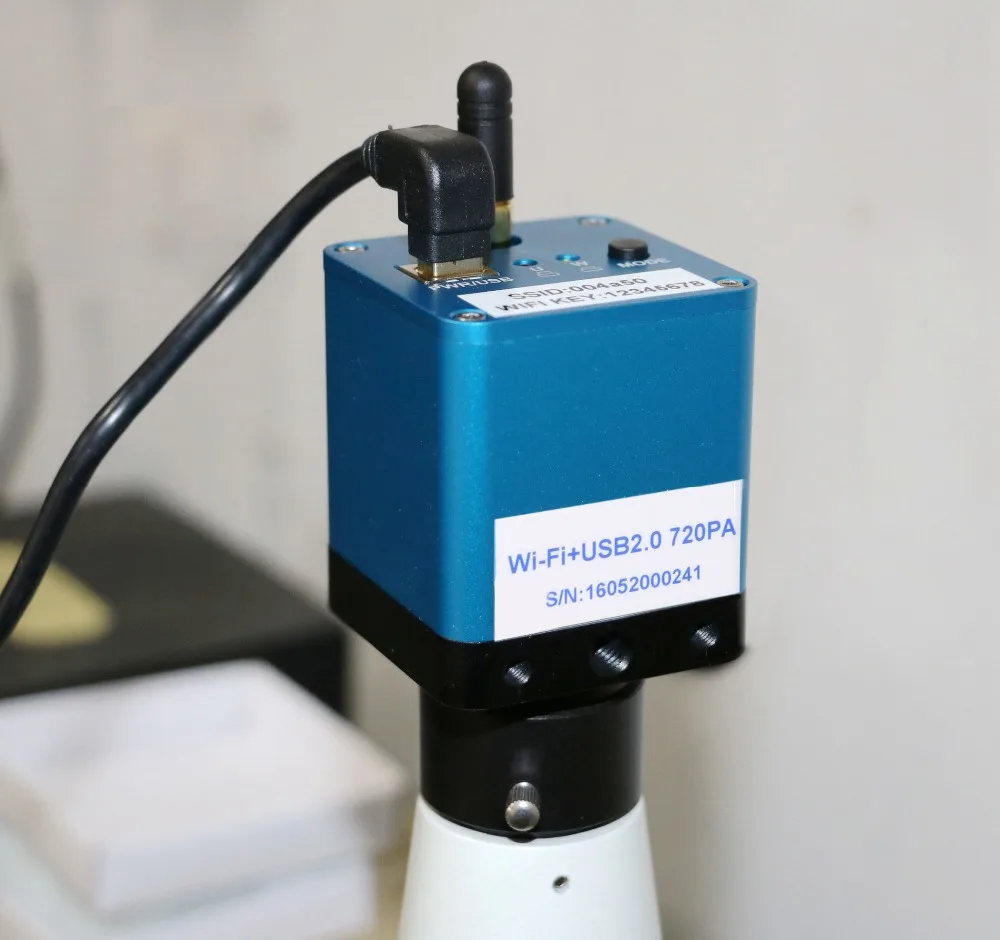

The camera can be professionally designed with a C-interface camera adapter to seamlessly connect with microscopes, telescopes and viewing mirrors.

The basic features of this camera are as follows:

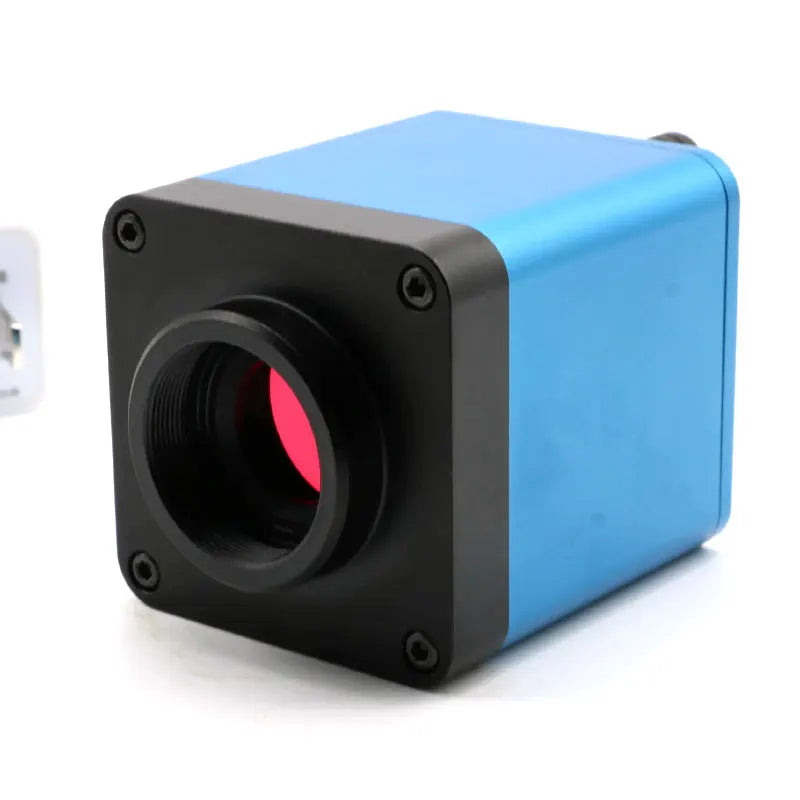

C-Interface CMOS camera with Aptina CMOS sensor;

The video is uploaded to smartphones, computers and smart tablets via Mjpg coding;

By Mjpg encoding, the video is transmitted to the computer by USB.

Support Windows Ios Platform devices

Support for multiple devices receiving at the same time (WiFi connection);

Aluminum Alloy CNC Casing

Efficient cooling structure to ensure low noise image;

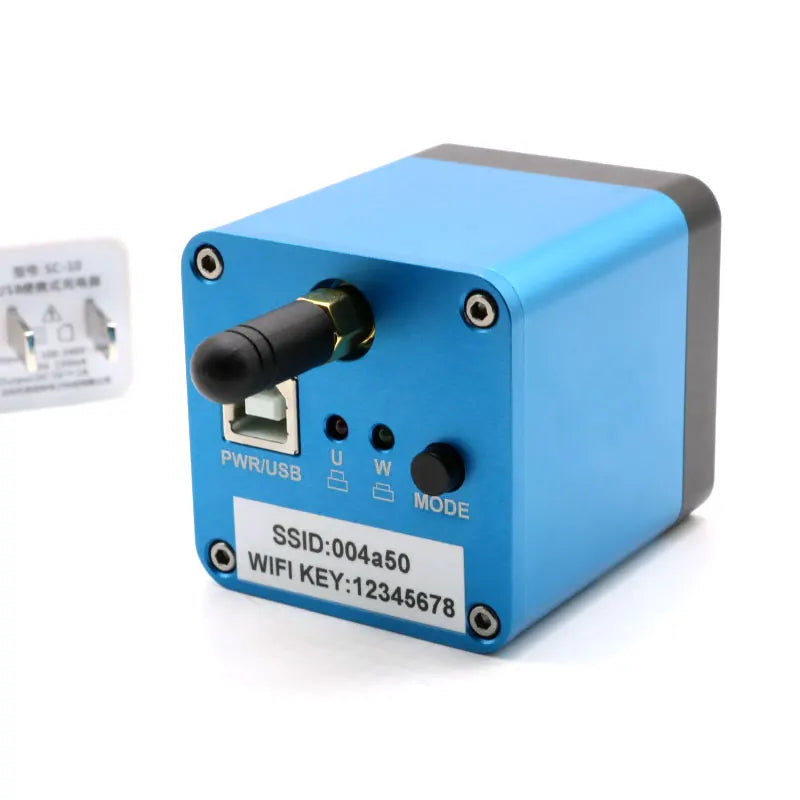

USB2.0 interface ensures high transmission rate;

Ultra fine color engine ensures accurate color reproduction;

With the camera to provide advanced video and image processing application software Toupview;
