Auto Universal Automotive Auto Electric Air Conditioning 12V 24V Compressor for Cars Van Street Rod Hot Classic A/C Conditioner

Cool and Heat 12V

€1.064,95

€1.064,95 €0,00

Auto Universal Automotive Auto Electric Air Conditioning 12V 24V Compressor for Cars Van Street Rod Hot Classic A/C Conditioner

€1.064,95

€1.064,95 €0,00

Color Name Cool and Heat 12V Single cooling 24V Single cooling 12V Cool and Heat 24V

SPECIFICATIONS

Air Conditioner Type: Electric Air Conditioning

Brand Name: NONE

Compressor Power: 550 / 850 Watts

Cooling Capacity: 1680 / 2500W (5724 / 8532Btu/h)

External Testing Certification: ce

High-concerned chemical: None

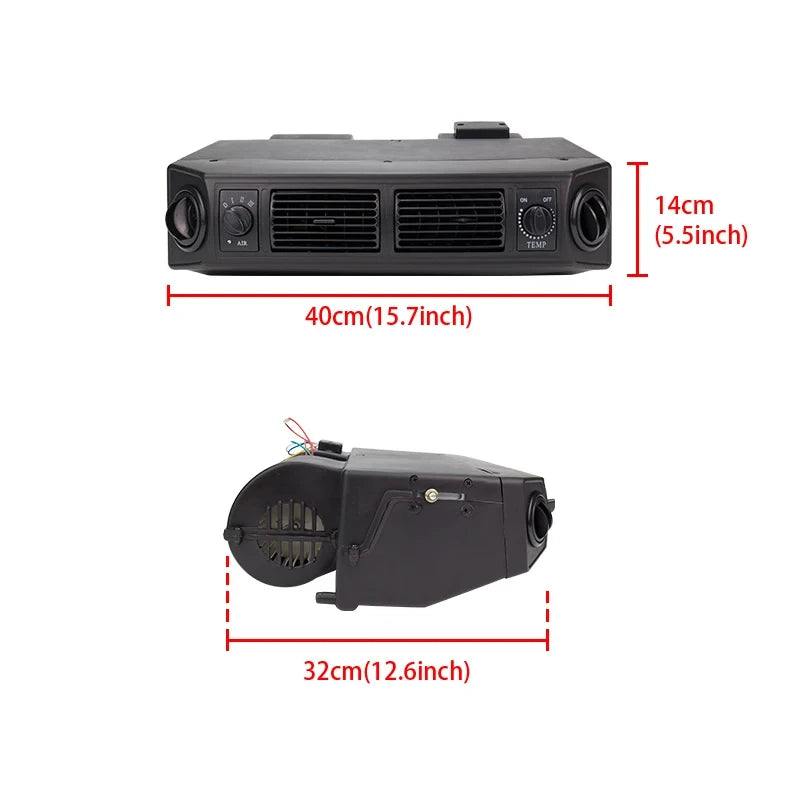

Inside Unit Dimension (Inch): 15.7x13.8x5.5inchY

Is it Powered: Non-powered

Item Height: 5.5

Item Length: 15.7

Item Type: Air-conditioning Installation,Air-conditioning Installation

Item Weight: 28

Item Width: 13.8

Item name: Universal Auto Electric Air Conditioning Compressor 12V 24V for Cars Van Street Rod Classic A/C Conditioner

Keywords: Air conditioning 12v / 12v climate / 12v air conditioner / 12v air conditioning /

Keywords 1: air conditioning for camper / 12v 24v car air conditioner

Material: Plastic,alloy,Iron,Aluminum,etc.

Model Name: BESTYLS-404-1

Mounting Bracket and Screws: Yes,With three sizes a/c hose

Origin: Mainland China

Outside Unit Power: 120 Watts

Product name: Electric Air Conditioner Dc air conditioner Dc air conditioning 12v for camper

Promotion activity: New Year, Halloween, Thanksgiving, Valentine's Day, Easter, Mardi Gras, Christmas, International Labor Day promotions

R134a gas needed: About 600g-1200g

Refrigerant Oil Needed: 130g+-10g

Special Features: Cool and heat

Voltage: 12V / 24V

Whole Unit Current: 45A / 38A

Year: 2025

Universal Automotive Auto Electric Air Conditioning Compressor 12V 24V for Car Van Street Rod Hot Classic A/C Conditioner Dc air conditioner Dc air conditioning 12v for camper

Notice:

Please pay attention to the voltage when placing an order!

Air conditioning kits are divided into 12V and 24V.

Description:

This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled, you still can use this air conditioner. Low noise, energy-saving, environmental protection is the best choice for you. It will help you save thousand dollars on gas every year.

Pay attention：

1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.

2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.

3. Blower temperature couldn't be adjusted ! If you want to adjust temperature, you need to add one digital control panel.

Generator (battery) request:

12V compressor require generator ampere over 100a;

24V compressor require generator ampere over 70A.

About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

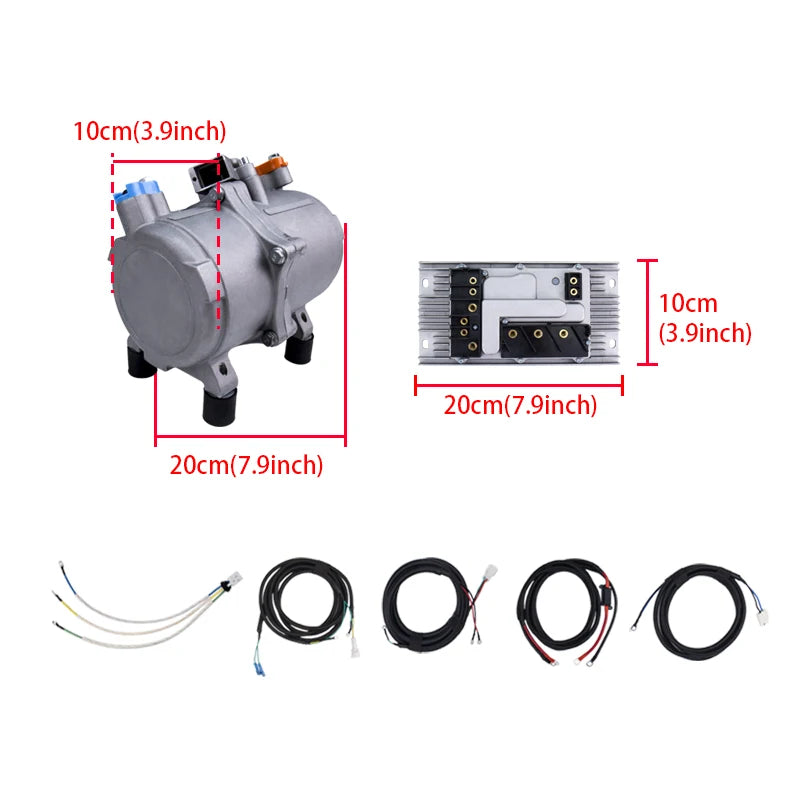

Compressor data:

Compressor style: Semi-closed Horizontal Scroll Compressor

Material: Aluminum alloy

Voltage: DC 12V / 24V

Working voltage range: 10.5VDC～15VDC / 19.5VDC～32VDC

Current: 45A+-2 / 35A+-2

Displacement: 21cm³/r

Cooling capacity: 1.688KW / 2.465KW

(5731BTU / 8410BTU)

Speed range: 1000 - 2300rpm / 1000 - 3000rpm

Rated power: 550W / 850w

Rated speed: 1800rpm / 3000rpm

Oil: POE / 130ml - 150ml (Oil has already in compressor )

Gas/Refrigerant: R134a

Condensing temperature range: 26.7～68℃

Evaporating temperature range: -10～12.5℃

Refrigerant leakage rate: <14g per year

Suction pipe inner size: Ø18.3mm

Discharge pipe inner size: Ø15.5mm

COP W/W: 3.07 / 2.9

Led blinking：

Blinking 1 times, pause 1 second: Standby mode.

Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.

Fast blinking 3 times, pause 1 second: Locked rotor protection.

Fast blinking 4 times, pause 1 second: Undervoltage protection.

Fast blinking 6 times, pause 1 second: Electric fan fault.

Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.

Fast blinking 8 times, pause 1 second: Compressor over heated protection.

Fast blinking 9 times, pause 1 second: Pressure switch protection.

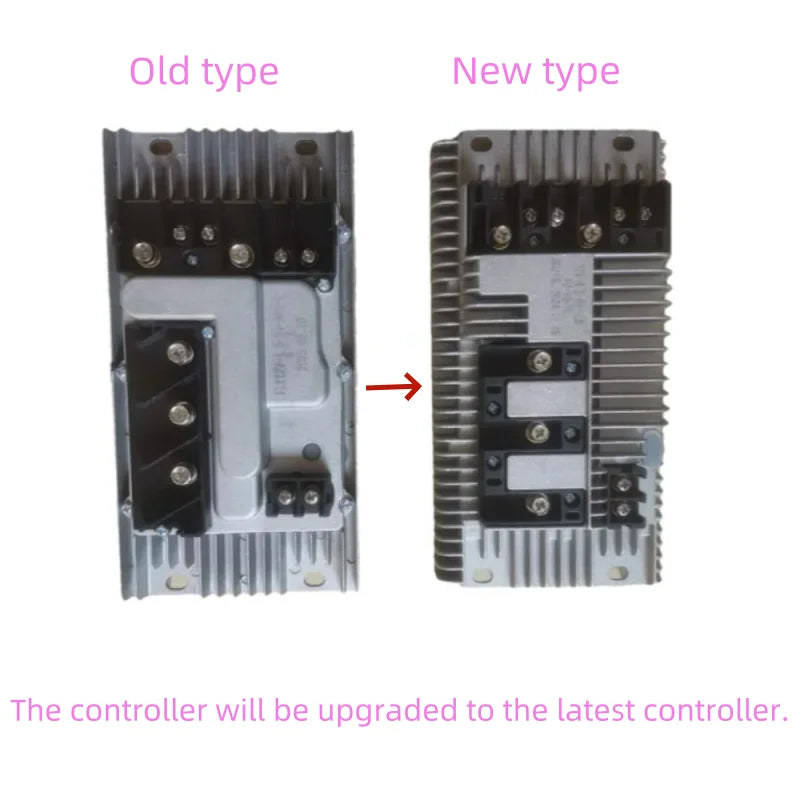

Brushless controller unit:

Brushless direct current controller

1. Over / Under voltage protection:

DC 12V -- ( 21V / 10.5V )

DC 24V -- ( 42V / 20.5V )

2. Max power: 600W / 1200W

3. Working temperature: Under 50℃

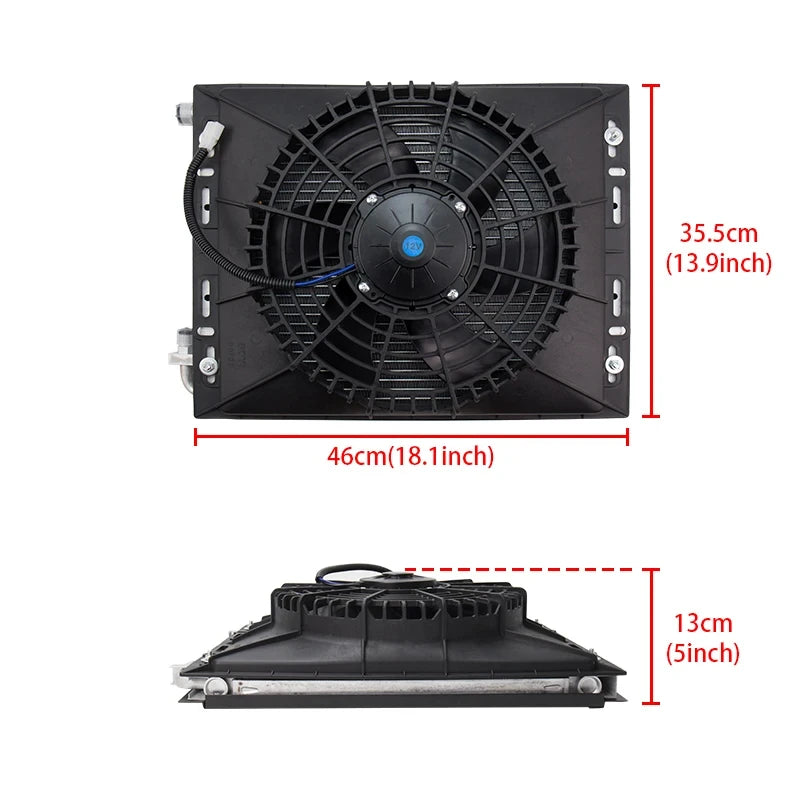

Outside unit:

Power : 120w

Outside Unit Dimension (Inch): 18.1 x 9 x 14inch

Whole unit :

Cooling capacity: 1680/2500w (5724/8532Btu/h)

R134a gas (Freon): R134a

R134a gas (Freon) needed: 600g-1200g

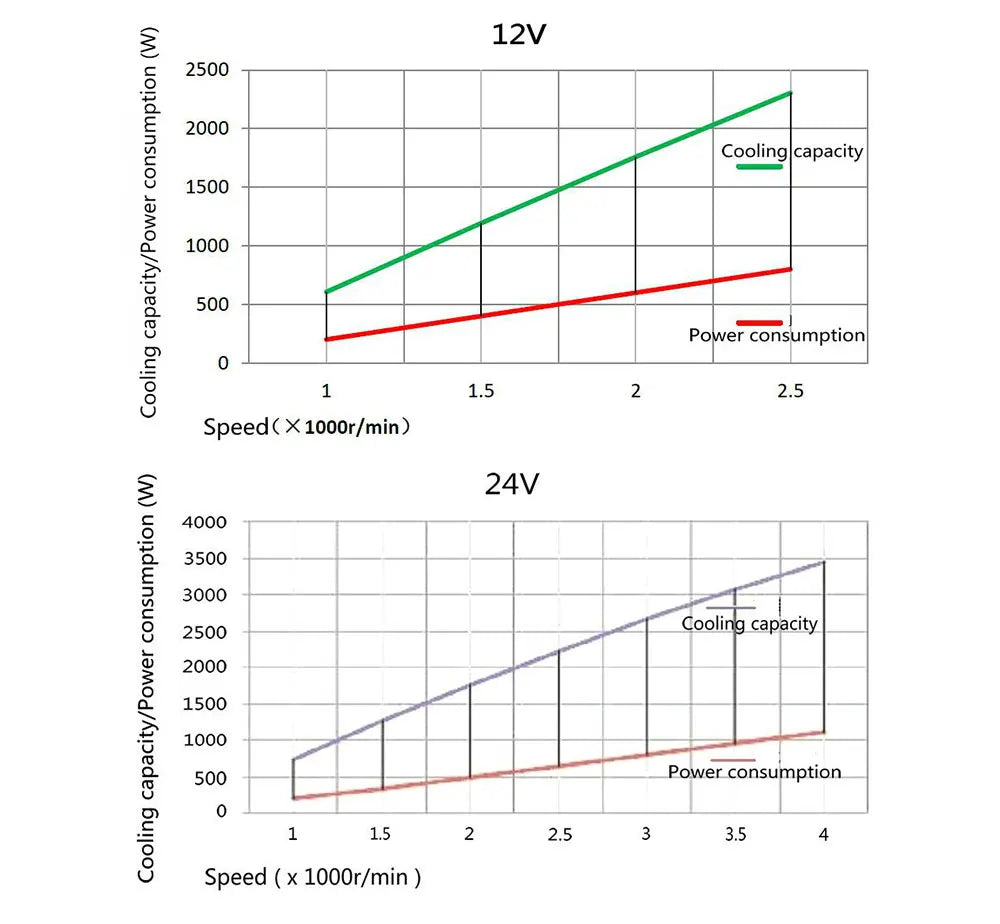

Cooling performance:

Remark: Speed tolerance ±1%. Actual test cooling capacity data not less than 90% of data in the table. Actual test power rate not exceed 110% of data in the table.

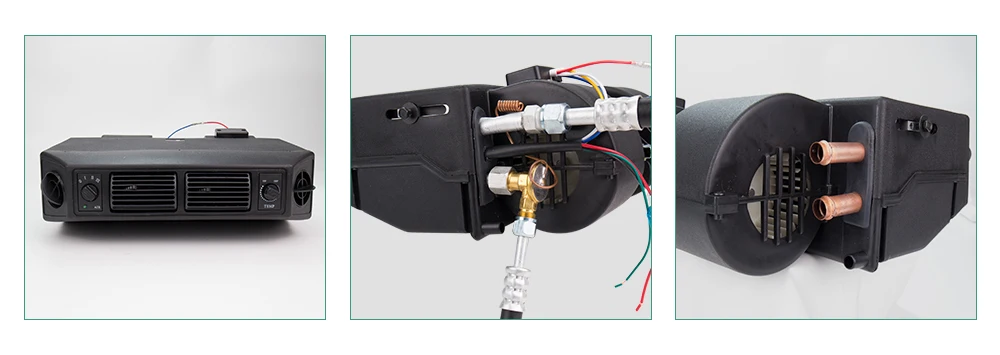

Evaporator

Blower couldn't be adjusted by two switches ! Adjusted through digital control panel and remote control

1.2 Ton O-ring expansion valve, Size #6 and #10

Strong PP case

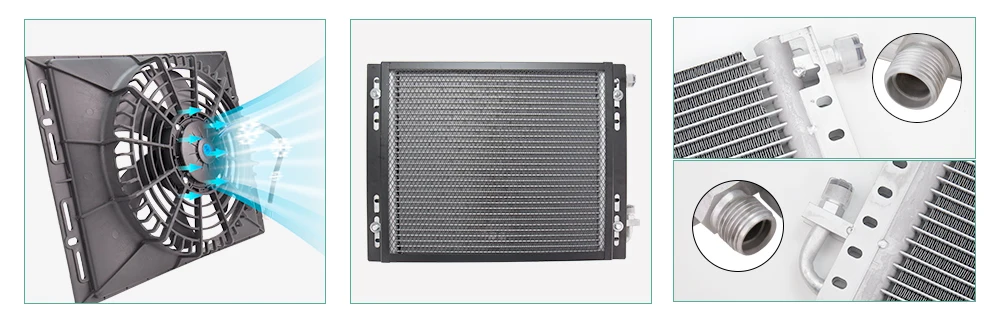

Electric fan

120W strong airflow (pulling air) radiator fan

Radiator protector net for stone attacked.

Radiator with #6 and #8 male O-ring fittings.

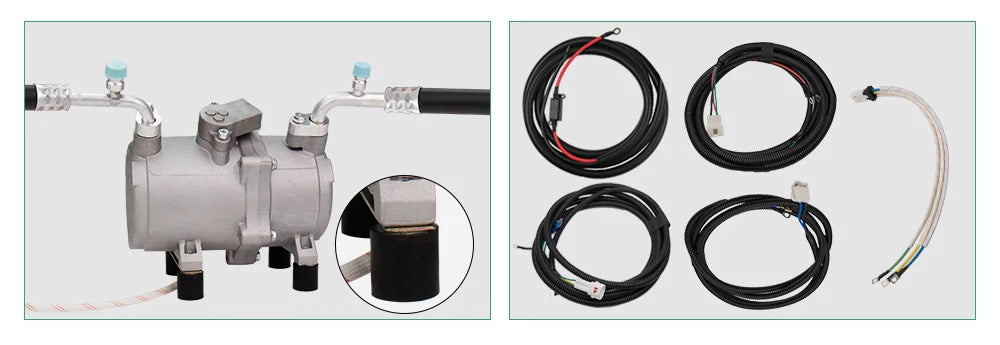

Electric compressor

Four thick rubber leg for shockproof

Four extended cable. From 2 to 12 square millimeter. Safety and qualified

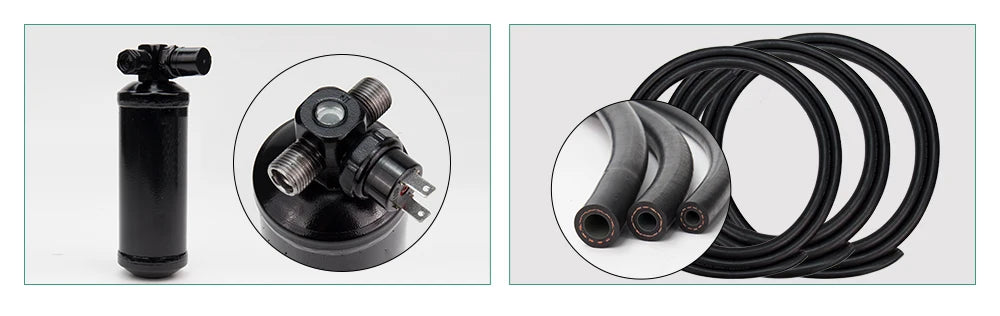

Dryer/Hose

Dryer with glass. Size #6 to #6

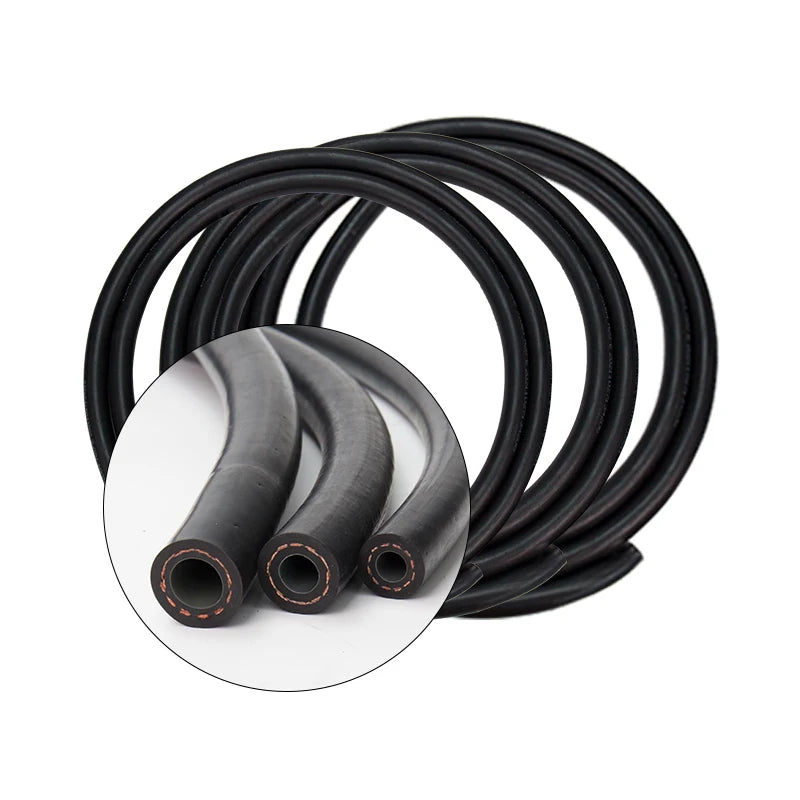

Hose with three layer protection. No leaking and strong.

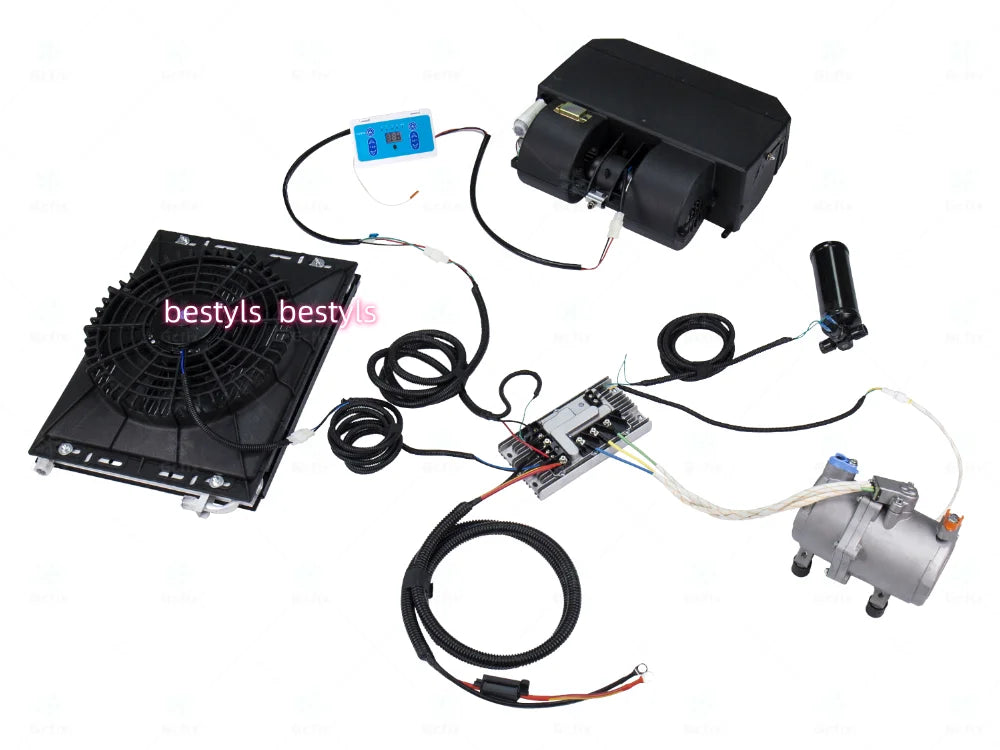

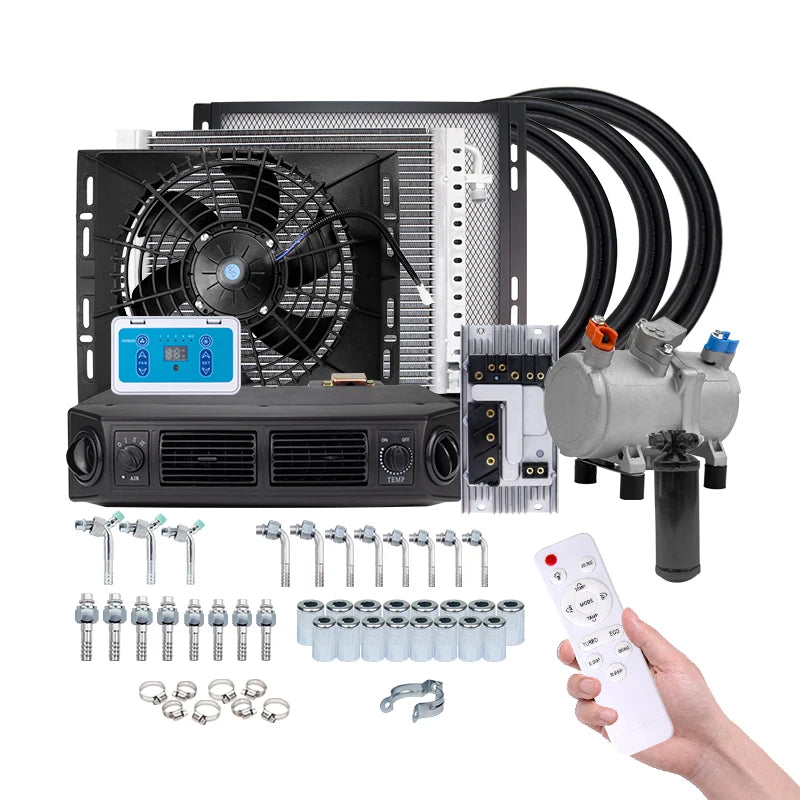

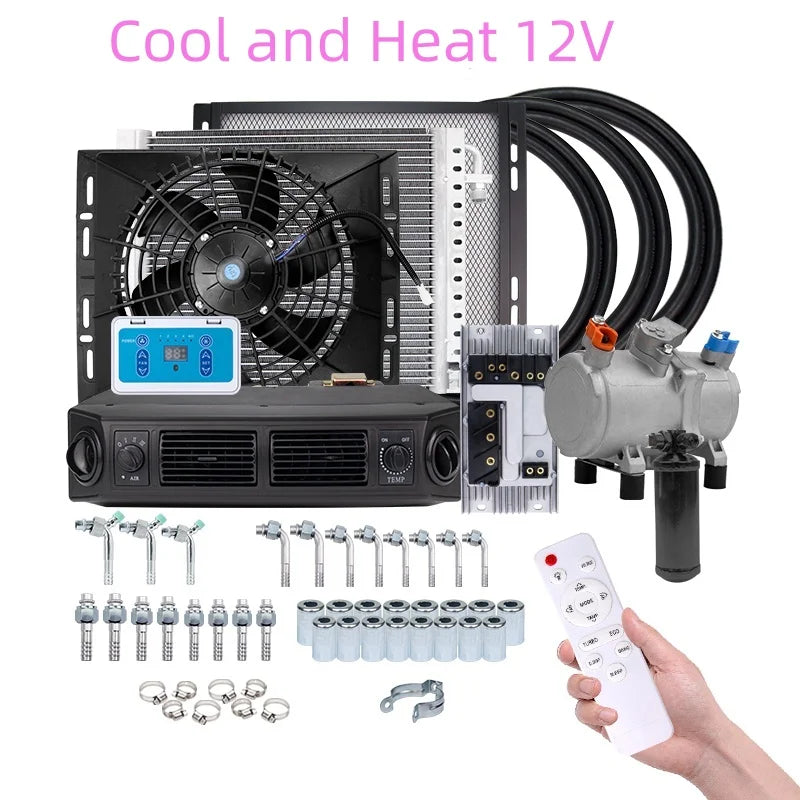

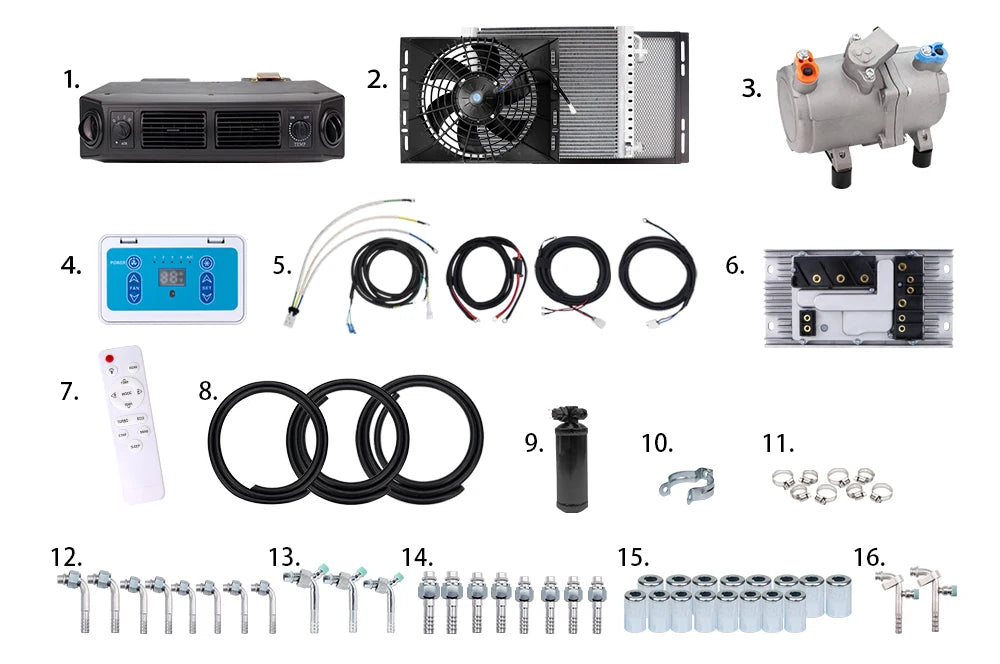

Product List

① 1 x Evaporator with mounting bracket

② 1 x Radiator fan / Radiator/ Radiator protector

③ 1 x Electric compressor

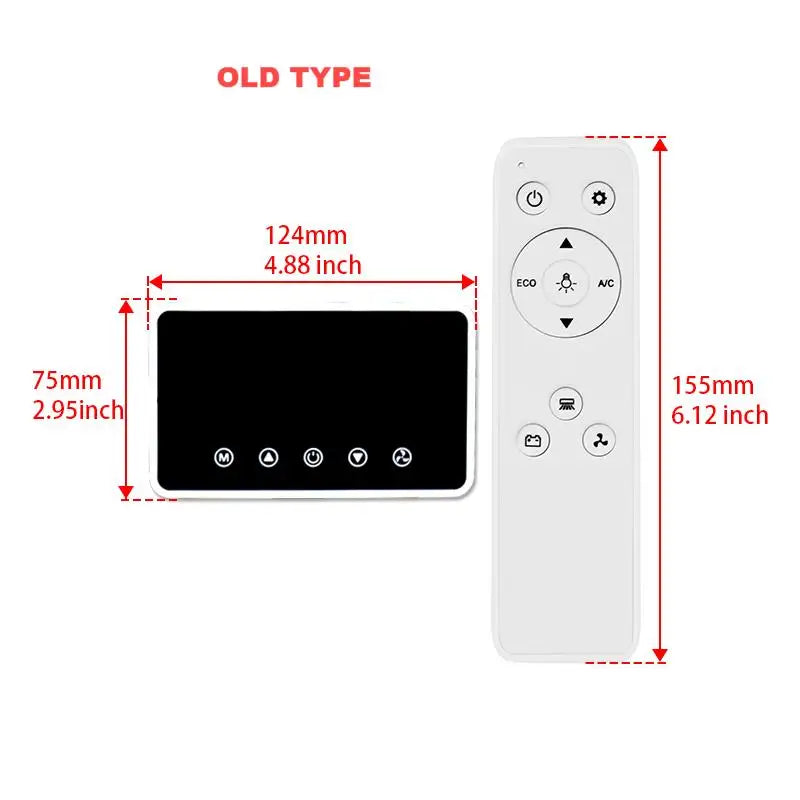

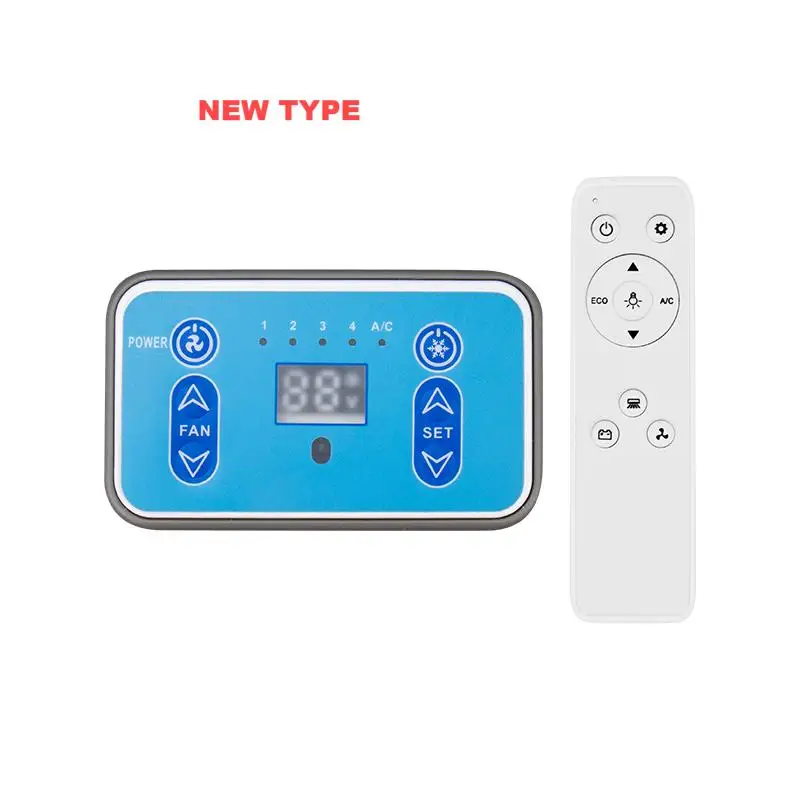

④Air and temperature control panel

⑤ 2 meters x Electric compressor motor cable / dryer cable / 2 meters x Power cable /

2 meters x Electric compressor temperature sensor cable /2 meters x Radiator fan cable

⑥ Electric compressor control board

⑦Remote control

⑧5 meters x #6 hose 3 meters x #8 hose 5 meters x #10 hose

⑨ 1 x dryer

⑩ 1 x clamp

⑪ 8 x hose clips.

⑫ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting

⑬ 1 x #6 #8 #10 fitting with service port

⑭ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting

⑮ 8 x #6 steel crimp ferrule / 4 x #8 steel crimp ferrule / 4 x #10 steel crimp ferrule

⑯ 2x Electric compressor fittings
