SPECIFICATIONS

Alarm Type: ACCESSORIES,Vehicle Backup Cameras

Brand Name: yeshibation

CCD Night Vision: YES

Certification: CE

Guiding Line: Yes

Length of Video Cable: 6M

Lens Material: Plastic + Glass

Material: ABS

Origin: Mainland China

PAL: Optional (if need, please leave message)

Shell Material: Plastic

Wire or Wireless: Wire

HD High Definition  | CCD Night Vision | Water Proof | Wide Lens Angle

Replace One Of License Plate Lamps | With Parking Reference Lines | RCA & Original Connector

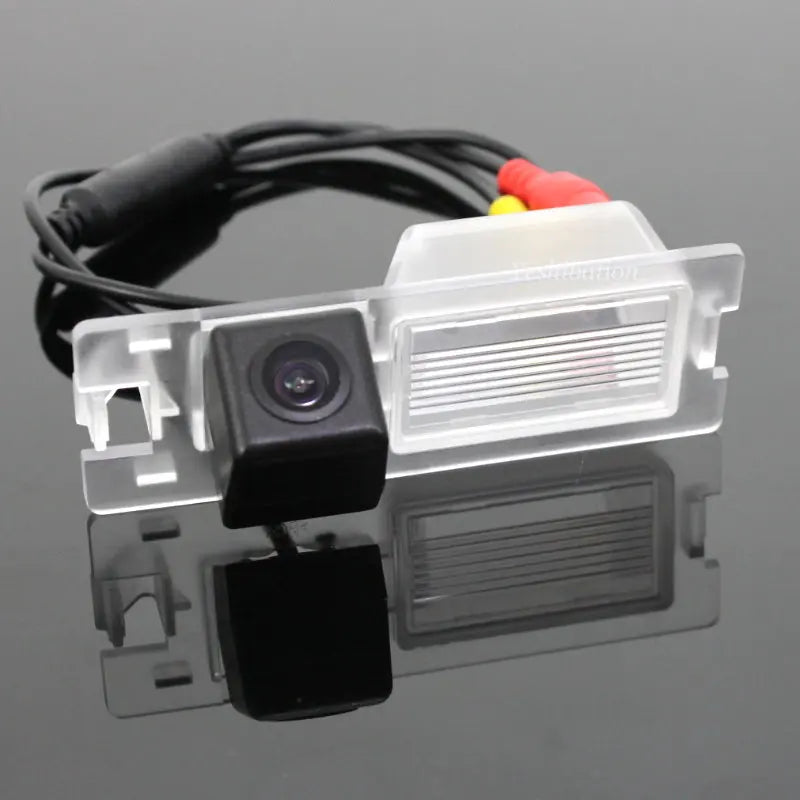

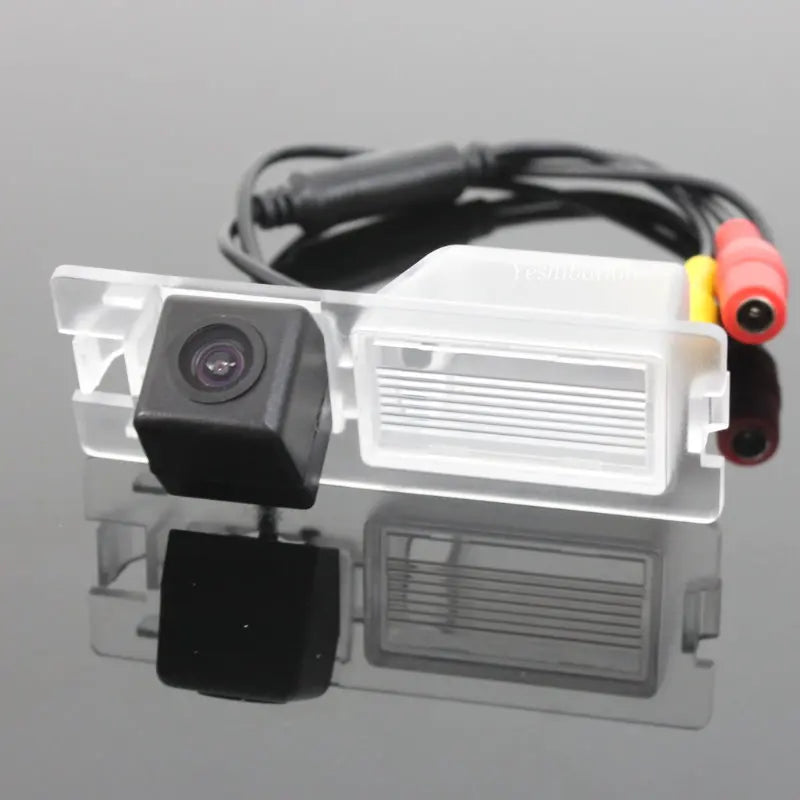

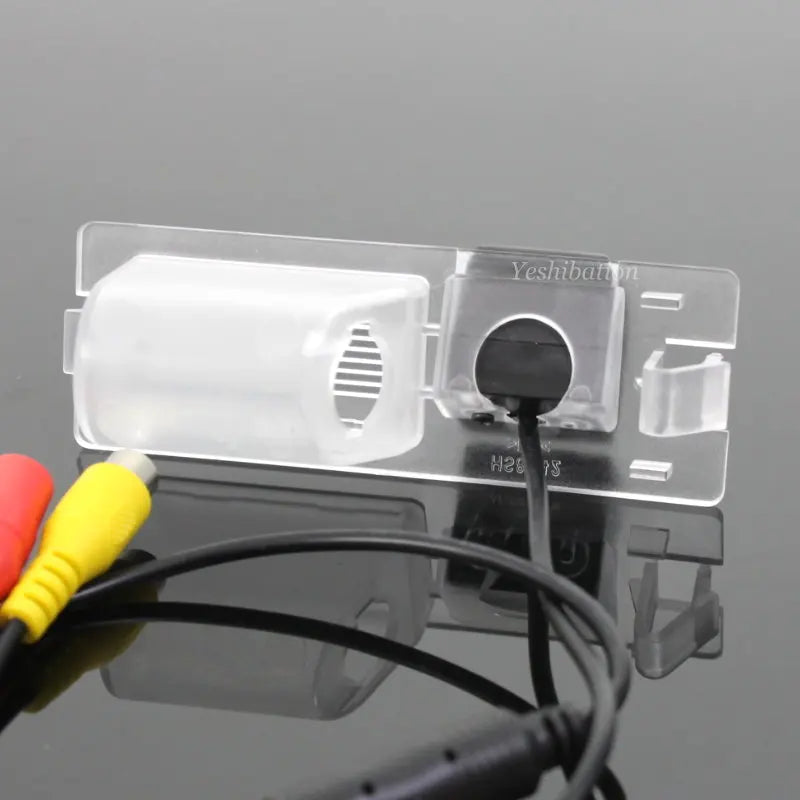

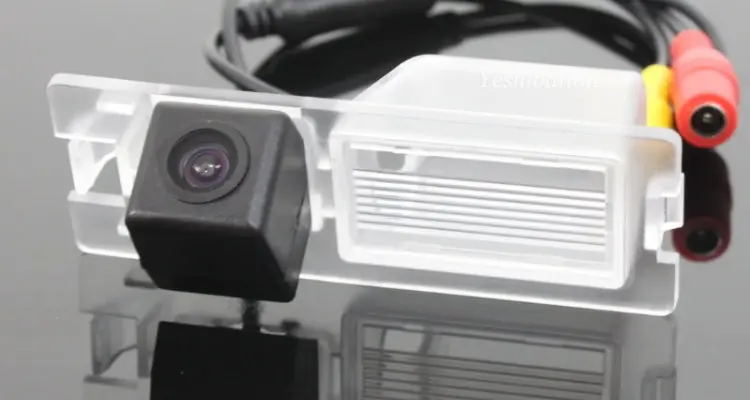

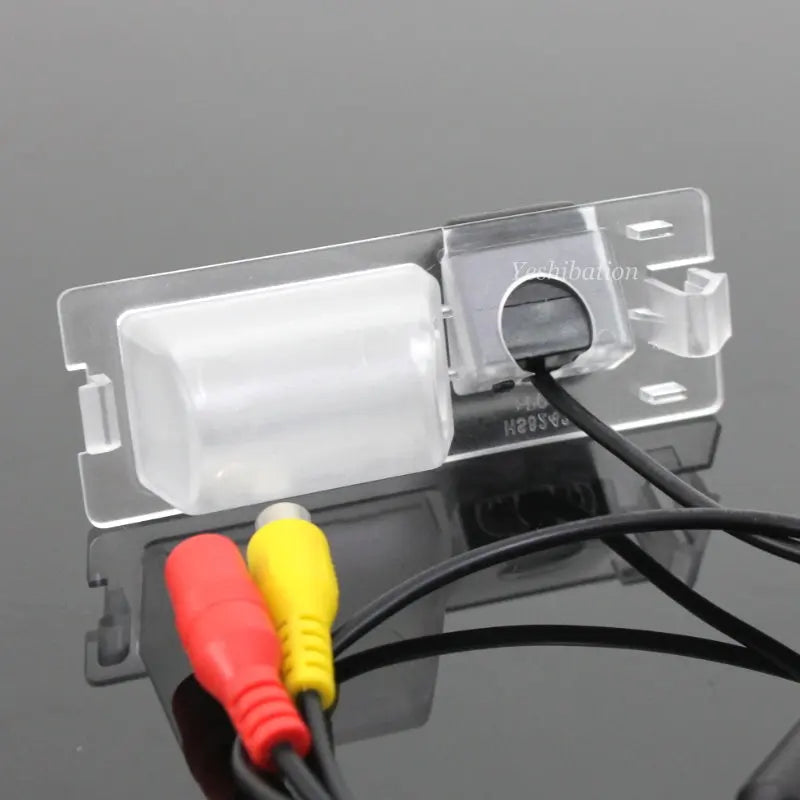

Car Rear View Camera / Reverse Camera / Parking Camera / License Plate Camera

For Fiat Grande Punto 2005~2017

For Fiat Punto 2007~2017
For Fiat Avventura 2014~Present
For Abarth Grande Punto 2007~2014

How to install :

1. Fix the camera to a special design hole in your car.

2. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

3. Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative.

4. Connect the video cable of the camera to the extension cord.

5. Connect the extension cord to your car monitor.

6. You will see the images when your car is in reverse shift.

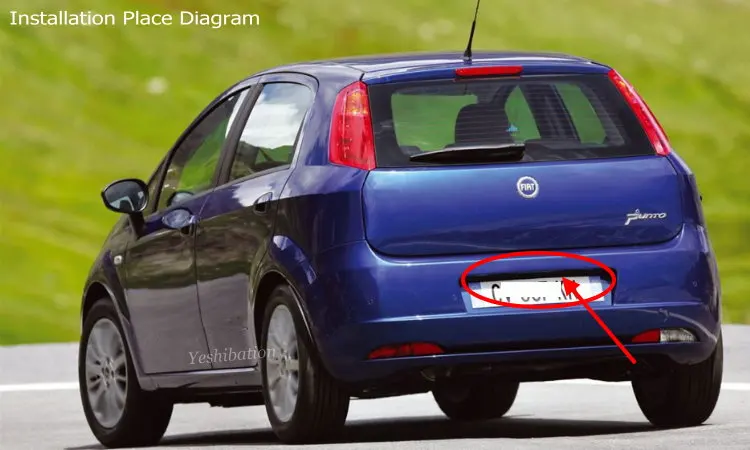

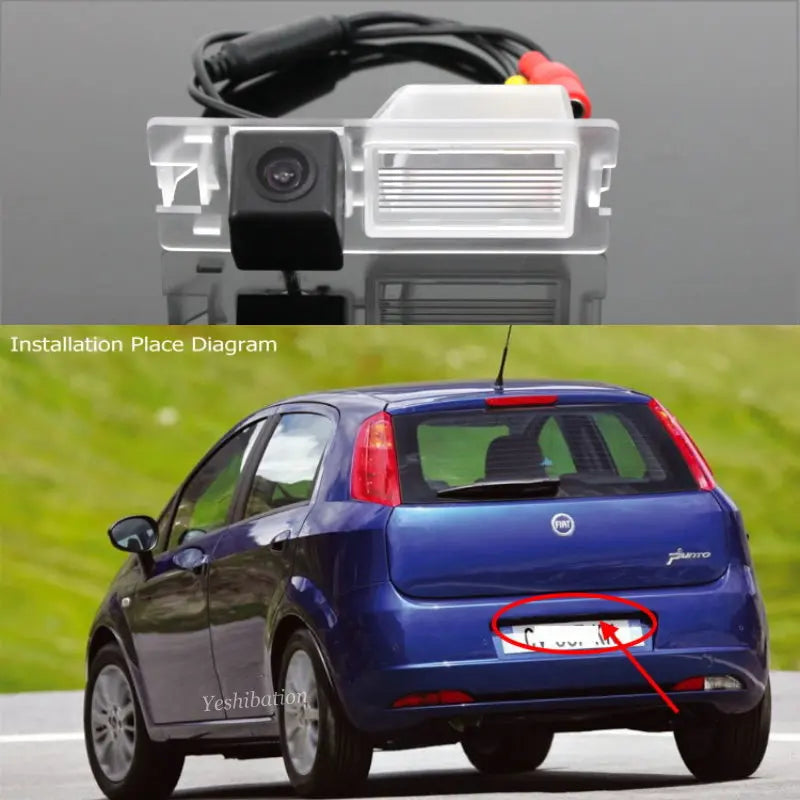

=>Take out your stock license plate light at the back of your car

=>Fix the camera to where the stock license plate light was.

=>You will see the images when your car is in reverse shift.

Wiring Diagram:

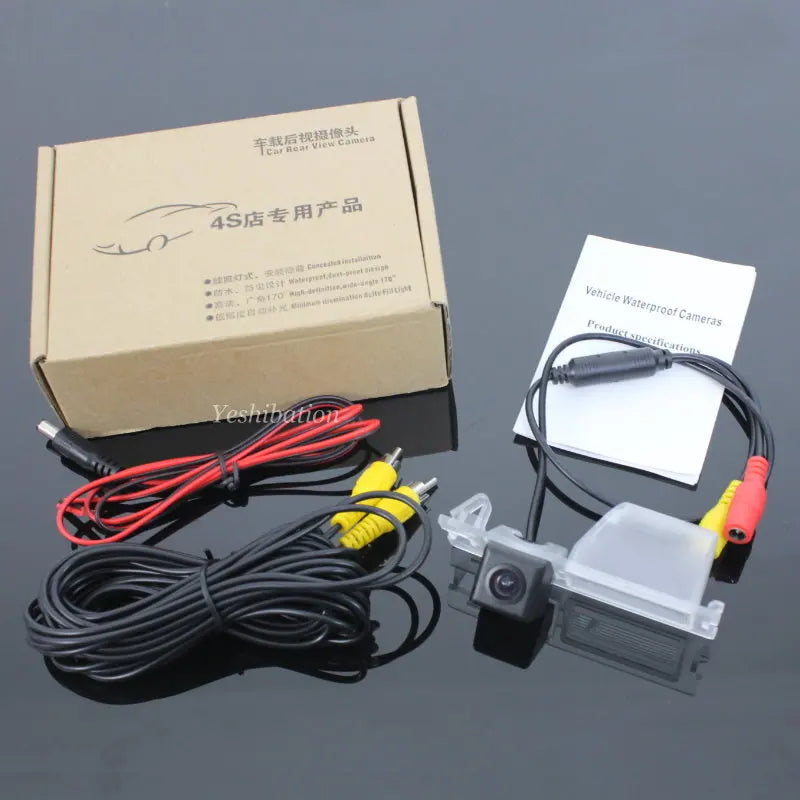

Package:

1 x Car Waterproof Car Rear View Camera

1 x 6M Video Cable

1 x Power Supply Cable

1 x User Manual

Features:

1.Installation Iocation: License Plate Lamp

2.High-definition and wide viewing angle,Lens Angle: 170°

3.Waterproof/Dustproof

4.Shakeproof/Anti Fog

5.Night vision

6.Support NTSC/PAL Video system

7.Compatible Display: TV Screen (NTSC & PAL) with RCA

Parameter:

Image sensors: 1/3"  Color CCD

TV System: NTSC/PAL( if you need PAL,Pls write in the order details or we will send NTSC)

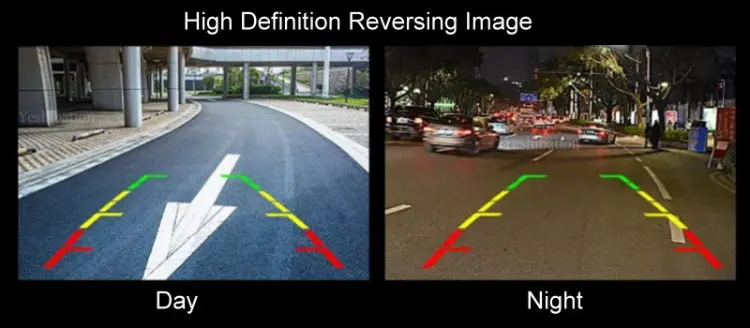

Unique Design,With reference line functions

Minimum illumination. <0.1

AGC: Auto

BLC: Auto

White Balance: Auto

Video Color: Colorful

Effective Pixels : 752*582

Resolution : 520TV lines

Video Output: 1.0Vp-p,75?

Electronic Shutter: 1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S

S/N ratio: Better Than 48db

Lens Angle: 170 Degree

Waterproof Class:Ip 68

Operation Temperature: -20C-60C

Storage Temperature: -30C+80C

Working Power (DCV): 12

Current consumption: <100ma
