Feature：

1.Very easy installation. The system is powered by connecting to reverse lights for use when vehicle is in reverse gear. Or can be powered by directly connecting to a 12v source fuse box or cigarette lighter/power point/ignition switch for continuous use. 2.IP68 waterproof, color HD license plate camera with 140 degree viewing angle and 8 LED lights.Camera is connected to monitor via direct wire (provided).IR Night Vision view clearly at night. 3.Monitor has capability to monitor two video inputs V1/V2. V2 video input will have priority (reverse camera) for safety.

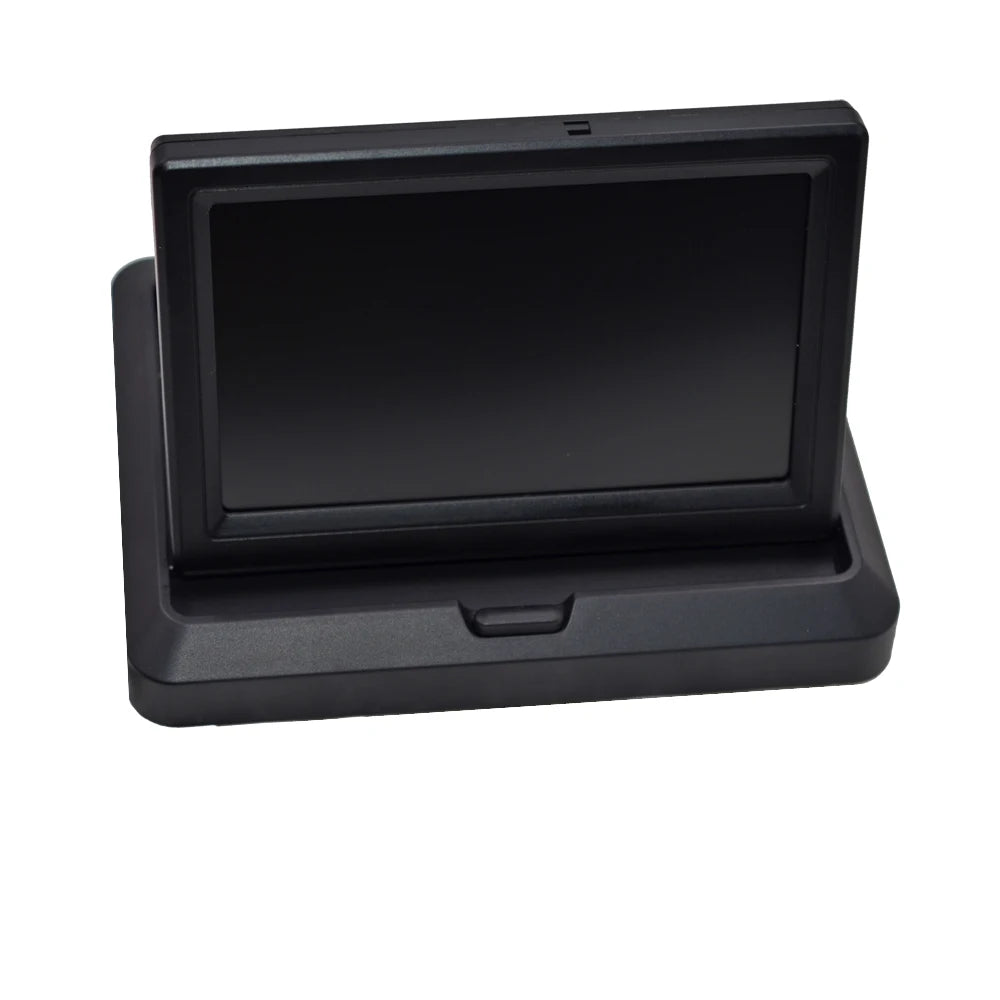

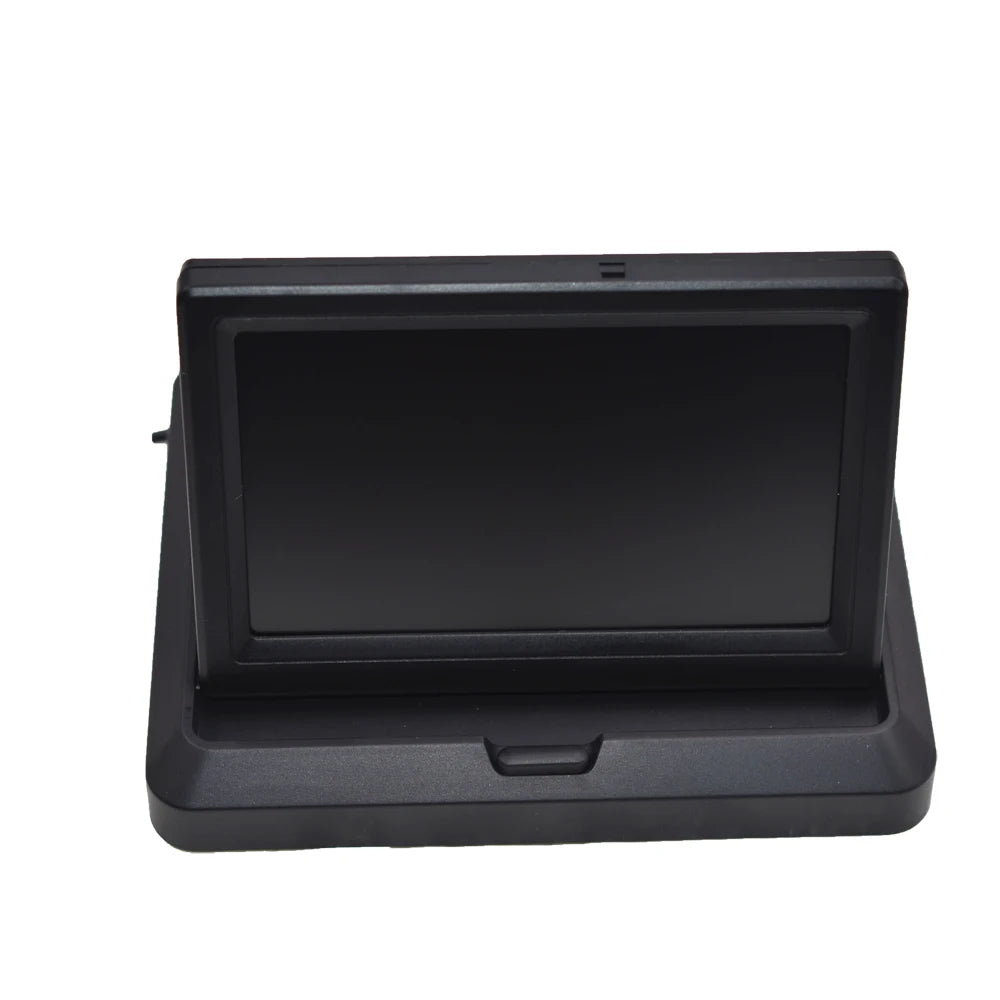

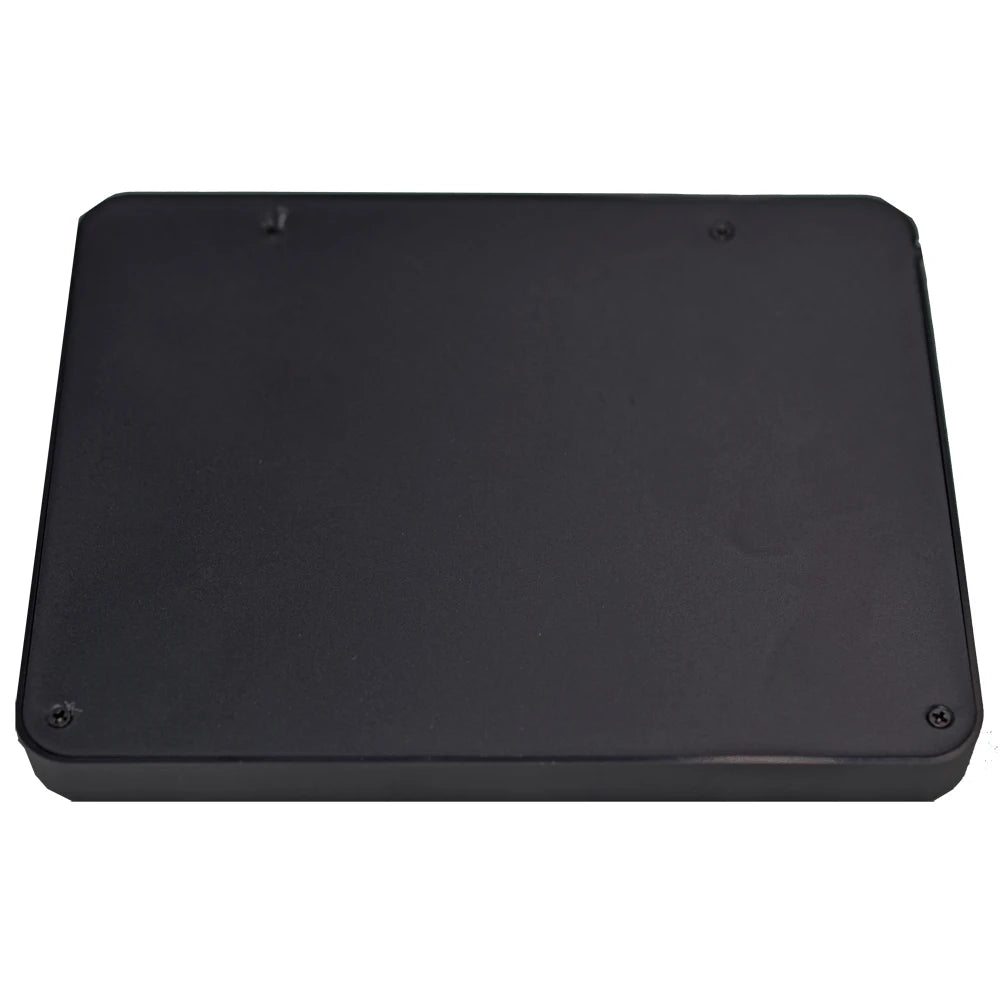

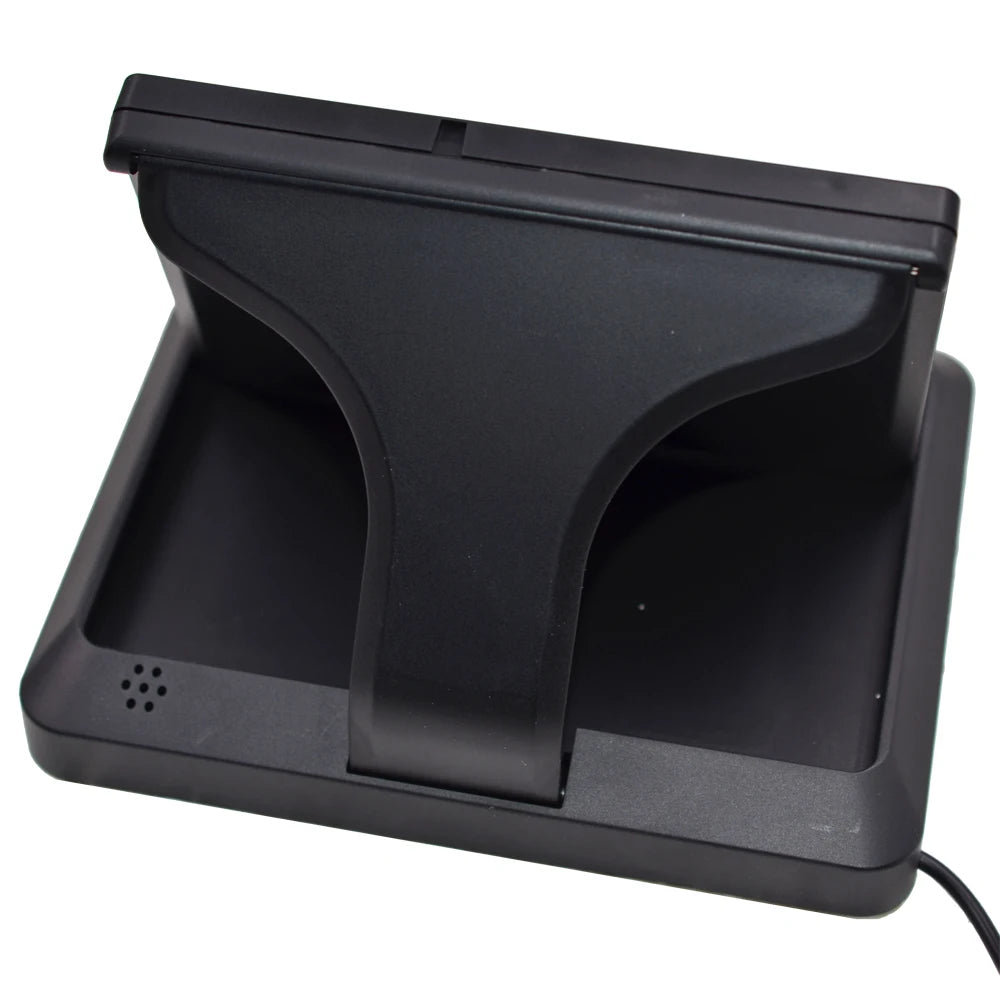

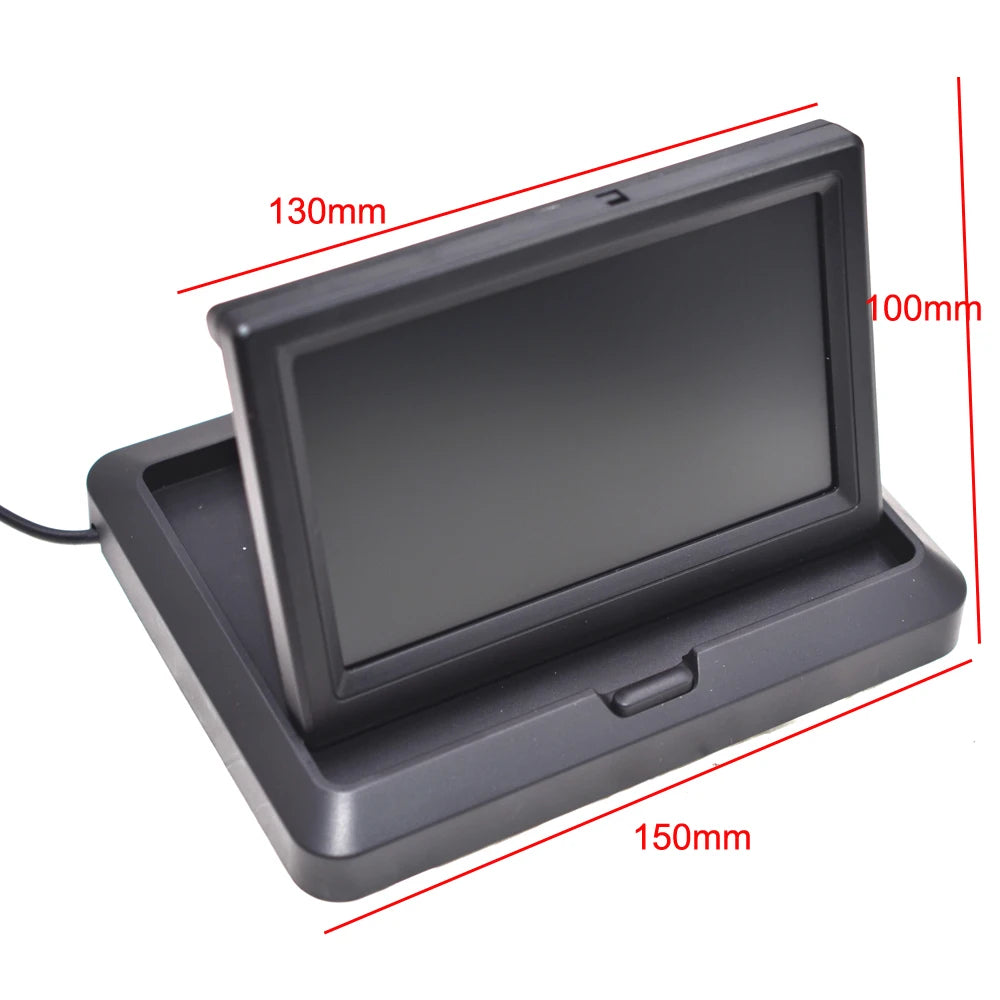

5.0inch Car Monitor

Specification: The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard Displays: 5.0inch (diagonal length) Resolution: 800 (W) × 480 (H) Contrast: 350:1 Brightness: 300CD/m2 Ultra-low power consumption, to prevent over heat Signal format: PAL / NTSC. Compatible with all signal formats Rated Voltage: 12V - 24V 2-channel video input: V1/V2 auto switching

12 LED Rear view Camera

Specification: The product itself 100% safety and met any FCC/CE/RoHS/UL/IP6X standard Pixels: 656(H) * 492(V) Video output:1.0VP-P, 75 OHM Scanning system 2: 1 interlace Operating temperature -30 ℃ ~ + 70 ℃, RH95% MAX Storage temperature -40 deg C to 85 deg C, RH 95% MAX TV system:NTSC Light perception area of 3.584mm * 2.688mm Gamma coefficient:0.45 Lens angle lens angle: Level: 135deg / Diagonal 170deg Horizontal clarity:480 TV lines Shutter speed:1-1 / 10000 White balance:auto Waterproof grade:IP67 / 68 Power:supply DC 12V

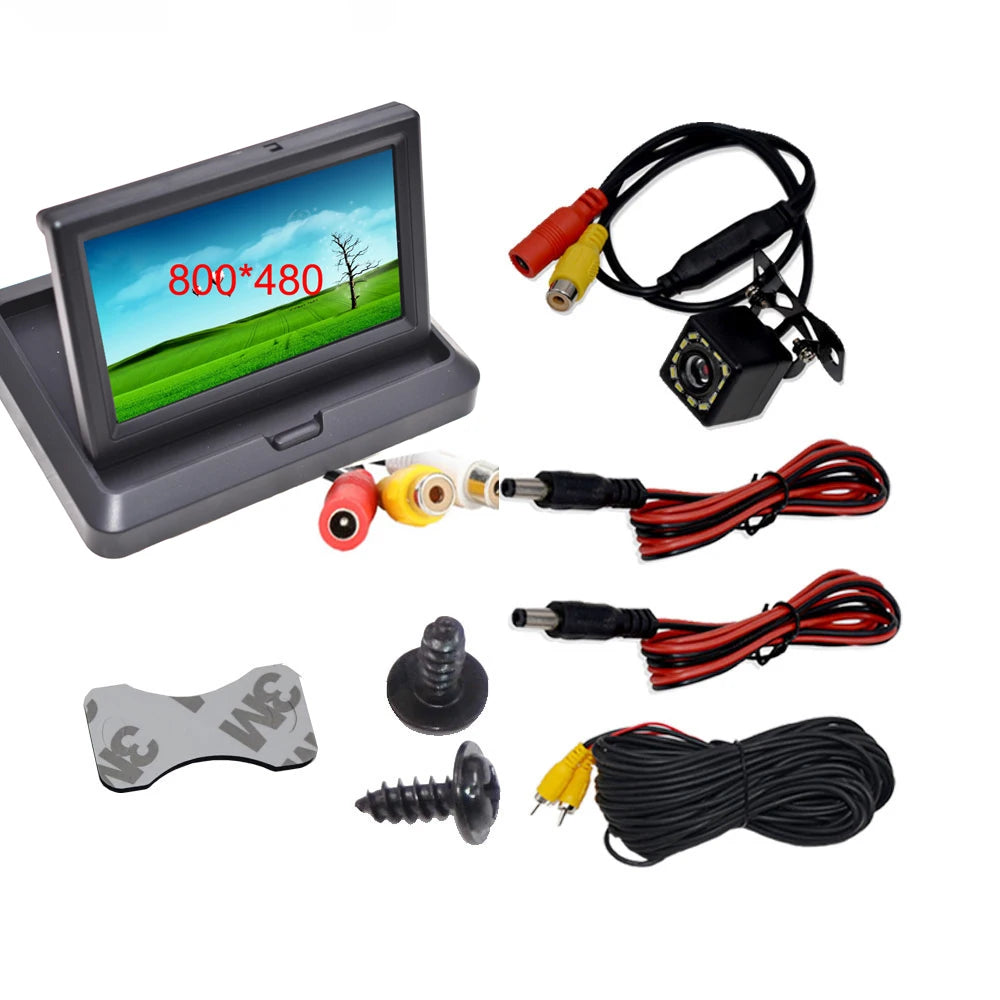

Package Includes:

1 x Car Monitor 1 x Rearview Camera 2 x Power Cable 1 x Video Cable 1 x User Manual
